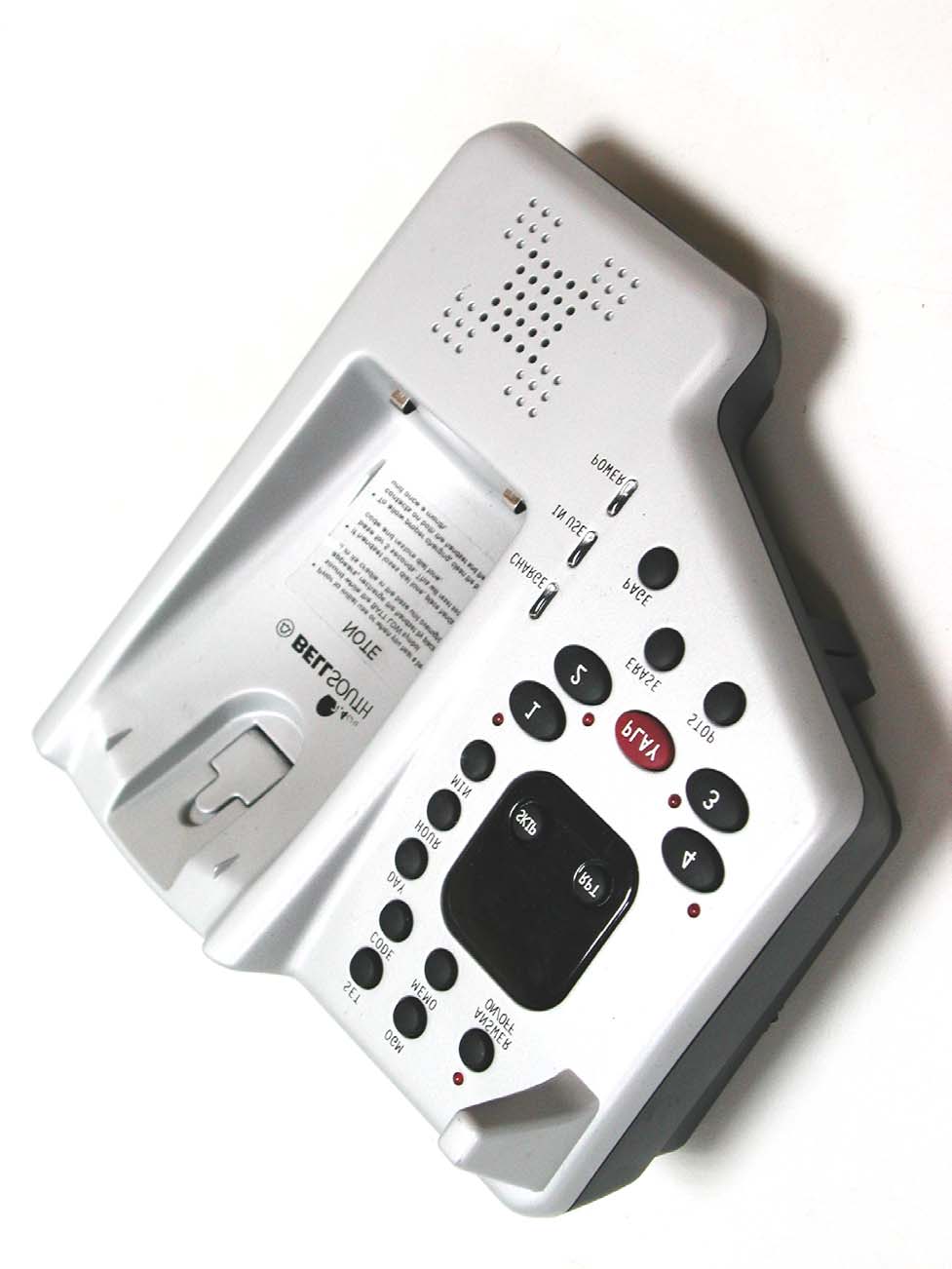

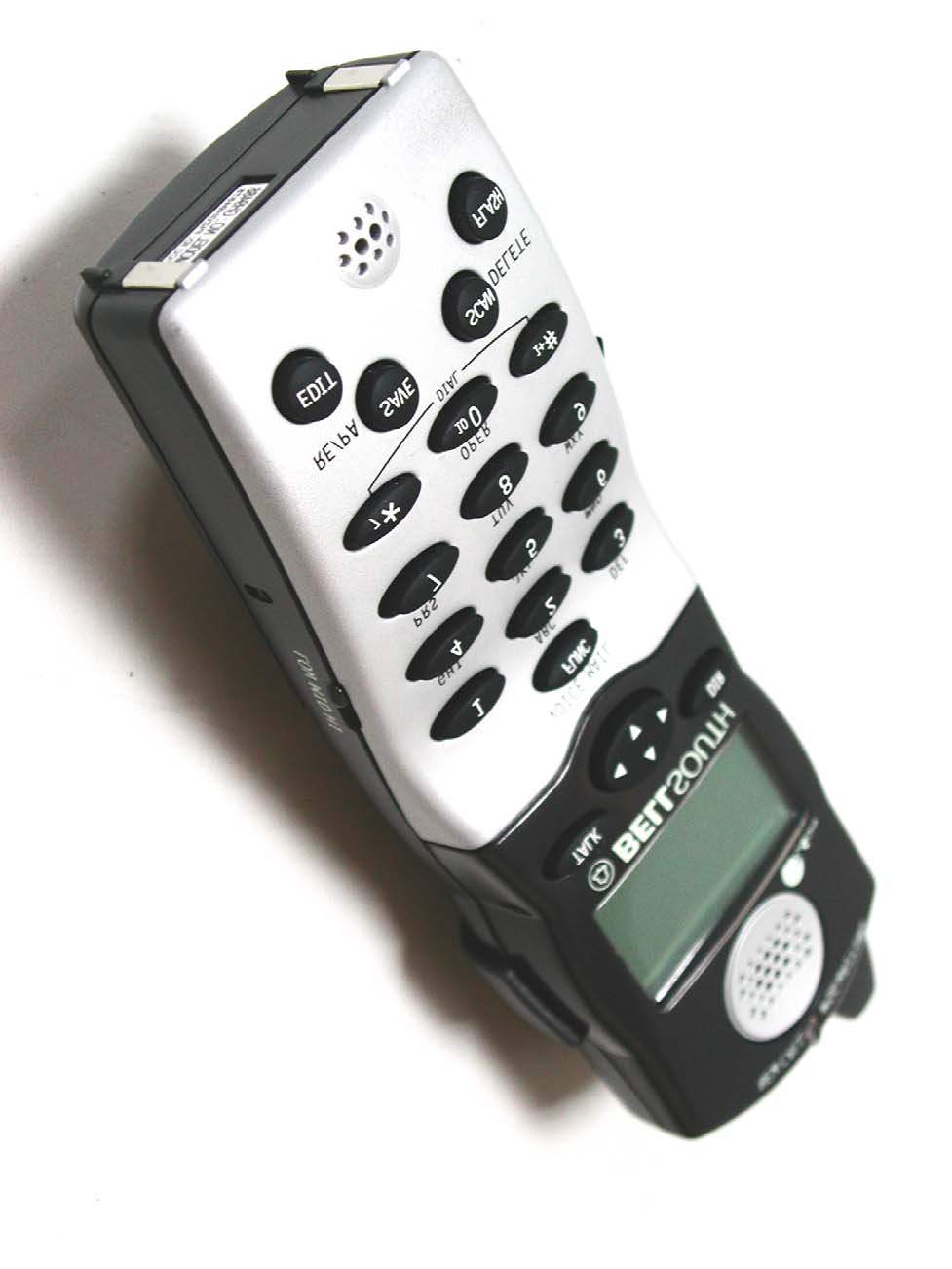

PIZGH948782.4 GHz Analog Cordless Phone

1 Contents Safety Instructions-------------------------------------------------------------------------------------------- 3 Getting Started------------------------------------------------------------------------------------------------ 6 Desk Mounting------------------------------------------------------------------------------------------------- 9 Wall Mounting----------------------------------------------------------------------------------------------- 1 0 Cordless Telephone Operation------------------------------------------------------------------------- 1 2 Preparing for Use---------------------------------------------------------------------------------------- 1 2 NO LINE Indicator--------------------------------------------------------------------------------------- 1 2 Receiving Calls------------------------------------------------------------------------------------------ 1 2 Placing Calls--------------------------------------------------------------------------------------------- 1 3 Headset Feature----------------------------------------------------------------------------------------- 1 4 Redial Feature------------------------------------------------------------------------------------------- 1 4 Caller ID System Operation------------------------------------------------------------------------------ 1 5 Caller ID System ----------------------------------------------------------------------------------------- 1 5 Viewing Caller Information During Incoming Calls-------------------------------------- 1 5 MSG WAITING (Message Waiting)----------------------------------------------------------- 1 5 Call Waiting------------------------------------------------------------------------------------------ 1 6 Voice Mail Function------------------------------------------------------------------------------- 1 6 C-F (Forwarded Call)------------------------------------------------------------------------------- 1 6 L-D-C (Long Distance Call) ---------------------------------------------------------------------- 1 6 Caller List-------------------------------------------------------------------------------------------------- 1 6 Viewing the Caller List----------------------------------------------------------------------------17 Placing a Call From the Caller List----------------------------------------------------------- 1 7 Editing the Caller List before Dialing-------------------------------------------------------- 1 7 Saving the Name and Number in the Caller List into the DIRECTORY---------- 1 8 Deleting All Records in the Caller List------------------------------------------------------- 1 8 Selective Deleting in the Caller List--------------------------------------------------------- 1 8 Name and Telephone Number DIRECTORY-------------------------------------------------- 1 8 Viewing the DIRECTORY------------------------------------------------------------------------ 1 8 Speed Viewing the DIRECTORY-------------------------------------------------------------- 1 9 2 Contents Saving in the DIRECTORY ---------------------------------------------------------------------- 1 9 PREFERRED CALLS------------------------------------------------------------------------------ 1 9 BLOCKED CALLS---------------------------------------------------------------------------------- 1 9 Editing a Name and Number in the DIRECTORY--------------------------------------- 2 0 Editing the Number in the DIRECTORY before Dialing------------------------------- 2 1 Placing Calls from the DIRECTORY--------------------------------------------------------- 2 2 Deleting All Records in the DIRECTORY--------------------------------------------------- 2 2 Selective Deleting in the DIRECTORY----------------------------------------------------- 2 2 Function Operation------------------------------------------------------------------------------------- 2 3 A. Language---------------------------------------------------------------------------------------- 2 4 B. Silent On/Off------------------------------------------------------------------------------------ 2 4 C. Time Set----------------------------------------------------------------------------------------- 2 4 D. Ringer Volume--------------------------------------------------------------------------------- 2 5 E. LCD Contrast ------------------------------------------------------------------------------------ 2 5 F. PBX Number------------------------------------------------------------------------------------ 2 5 G. Flash Time-------------------------------------------------------------------------------------- 2 6 H. Pause Time------------------------------------------------------------------------------------- 2 6 I. Voice Mail--------------------------------------------------------------------------------------- 2 7 J. MSG Waiting (Message Waiting)--------------------------------------------------------- 2 7 Telephone Keypad Characters--------------------------------------------------------------------- 2 8 Answering System Operation--------------------------------------------------------------------------- 2 9 Initiating the Answering System --------------------------------------------------------------------------- 29 Setting the Day/Time Stamp------------------------------------------------------------------------ 2 9 Recording your Outgoing Messages-------------------------------------------------------------- 3 0 Turning the Answering System ON/OFF--------------------------------------------------------- 3 1 Setting to Answer Calls -------------------------------------------------------------------------------- 3 1 Setting to Announce Only--------------------------------------------------------------------------- 3 1 Screening Incoming Calls---------------------------------------------------------------------------- 3 2 Message Alert-------------------------------------------------------------------------------------------- 3 2 3 Setting Ring Select--------------…

Text truncated - open the document above for the full version.

9488bsbd.sch-1 - Fri Jun 21 15:57:14 2002 9488hsbd.sch-1 - Fri Jun 21 15:58:15 2002

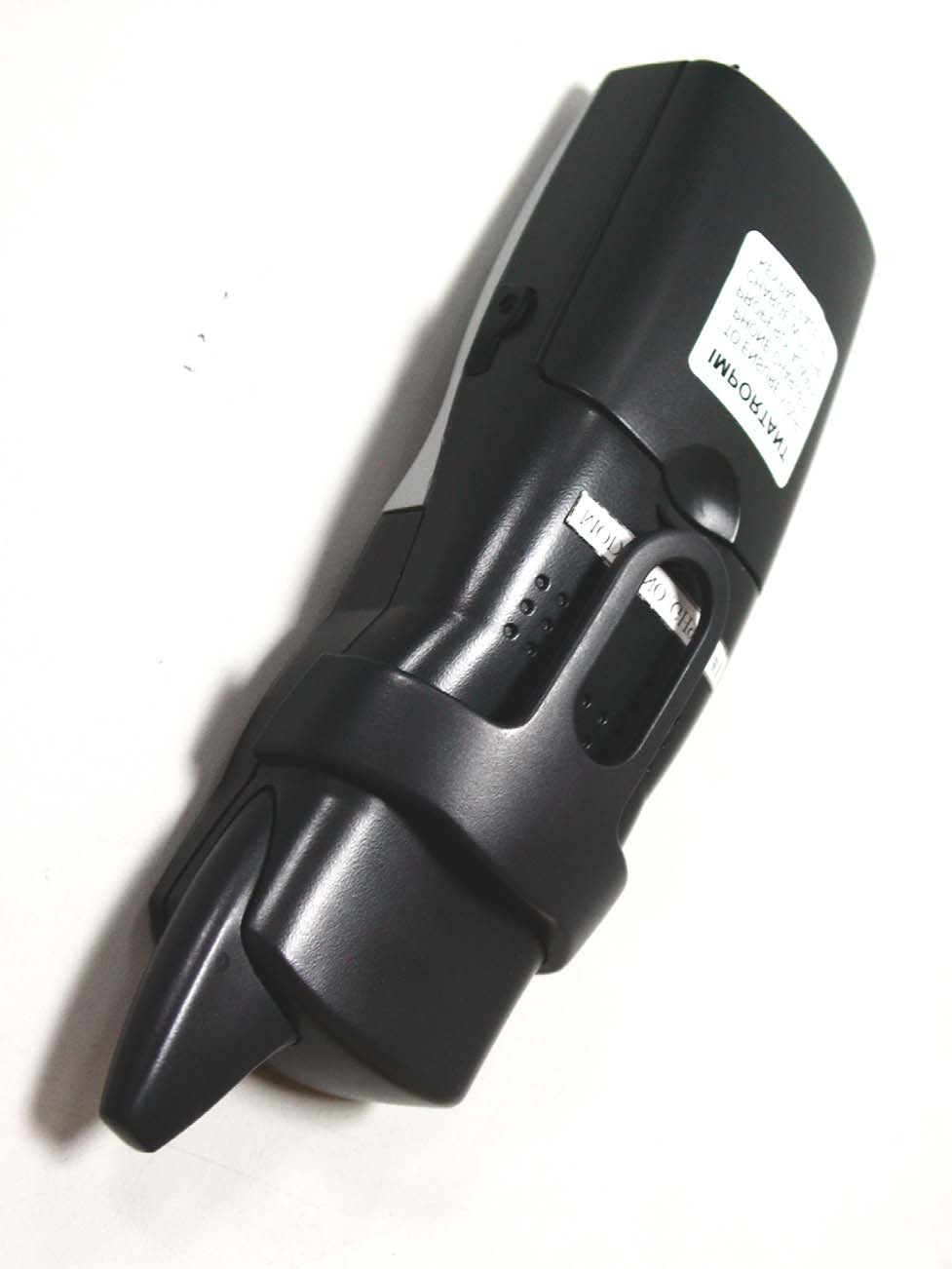

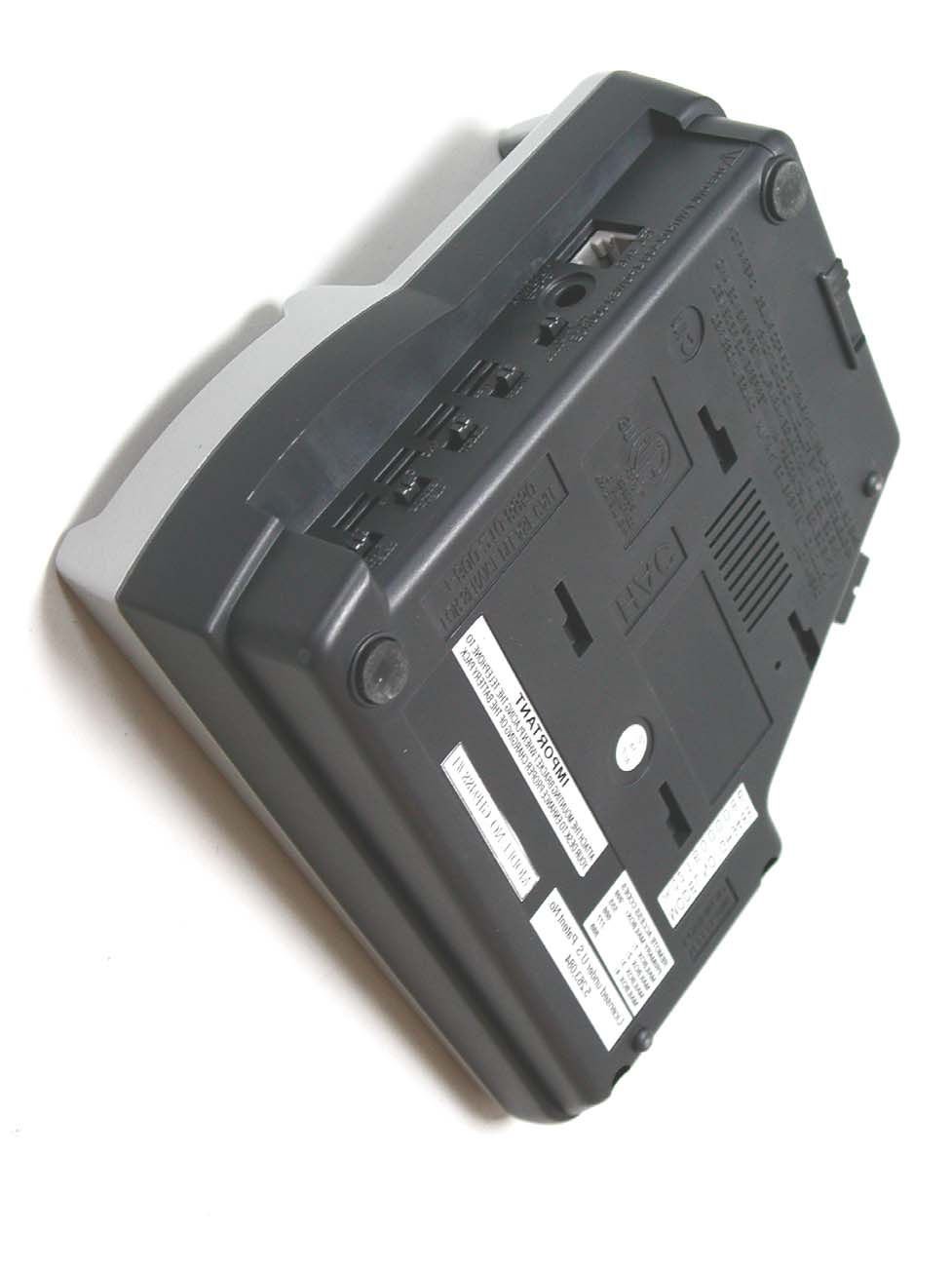

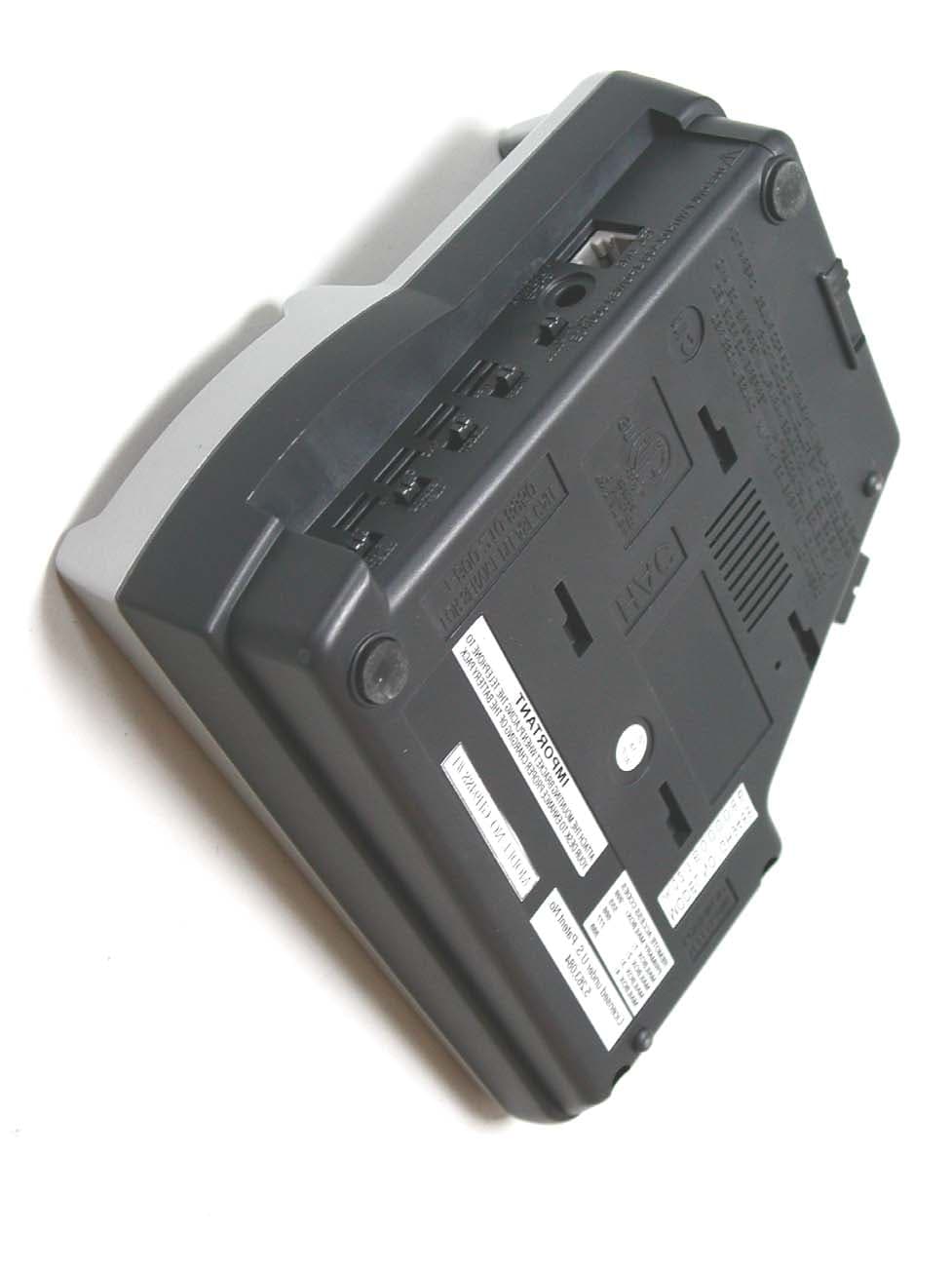

LABEL Position: (Base) LABEL Position: (Handset)

CIDMATE International Technology Inc. 3F-B, No. 58, Sec. 1, Minsheng E. Rd., Taipei, Taiwan 104, R.O.C. Tel: 886-2- 2521-8658 Fax: 886-2-2561-6624 Email: [email protected] OPERATION DESCRIPTION „ HANDSET 1. RF/Audio Section The radio link Handset and Base is full duplex at 2400/2483.5 MHz with the 40 channels. FM modulation is used for the link. The 1 st IF frequency is 10.7MHz and the 2 nd IF frequency is 450KHz. The operating frequency for the cordless phone is selected from one of the following channels and controlled by the synthesizer U2 that is programmed by the MCU. This section is common to both handset and base as the same ICs are used LMX1602(U2), KA3361(U1) is made up of dual serial input PLL frequency synthesizer with 1000MHz prescaler. KA3361 is a narrow-band IF detector IC. 1.1 Receiver The receiver section is made of double conversion with 10.7MHz as the first and second IF. Rx signal from the duplexer circuit is amplified by a Low Noise RF transistor and passed to a Mixer (Q2), and it is converted to 10.7MHz IF and it is then double converted to 450KHz IF in the internet mixer of U1. Voice/data signal is demodulated and output from pin9 of U1. The demodulated signal is then divided into two paths, a path is fed into the data amplifier Q1, Q10. The other path will go through a de-emphasized amplifier and an expander in IC1. Recovered signal can be muted by the pin 13 of IC1,the volume level of the signal can be controlled by the push switch SW1. 1.2 Transmitter Audio signal (from Microphone for headset/Tip & Ring for base) is first fed into the amplifier and compressor inside IC1(IC2 for Base). The signal will pass through a limiter. The AGC and the limiter have the property to limit the maximum signal that feed into the transmitter so that the RF deviation is limited. The transmitter section mainly divided into two parts. They are the voice/data modulator and the Tx power amplifier. The voltage-controlled oscillator VCO operated at the Tx frequency controlled by the synthesizer is modulated by the audio and data signals. Modulated signal is amplified by the RF amplified and sending the signal to the duplexer for radiation by the antenna. 1.3 Band-Pass Filter(BPF) The function of the Two Band-Pass Filter(BPF) is to individual fed the transmitting and receiving signals to a common antenna while providing isolation and rejection of CIDMATE International Technology Inc. 3F-B, No. 58, Sec. 1, Minsheng E. Rd., Taipei, Taiwan 104, R.O.C. Tel: 886-2- 2521-8658 Fax: 886-2-2561-6624 Email: [email protected] interference and other spurious signals. 1.4 Alerter The alerting signals include the following: Ringing, Paging, Key beep and Low battery warning tone. These tones are generated by the MCU to the alerter through the driving circuit formed Q5,Q6 and the associated components. 1.5 Headset microphone The condenser microphone is in the headset and it biased by the resistor R6. The signal is applied to the amplifier inside IC1 2. MCU 2.1 Battery Detect The voltage detector is composed of U3 that is used to detect battery low condition. The detecting accuracy of the voltage detector is +/- 0.2V. The detect pin BAT-LOW is connected to the pin 70 of MCU. 2.2 Carrier Detection This 40 channels cordless has the features of auto-scanning. This is done by the detection of the RSSI at pin 72 of MCU of handset. During PHONE on or CHANNEL changing, the MCU will select the clearest channel for the RF communication. „ BASE 3. RF/Audio sections The operation of the RF/Audio section is similar to that of the handset. 4. Telephone Network 4.1 Telephone interface Fuse FUSEx is for over-voltage protection. Relay RL1 controls the on/off hook state and pulse dialing. The Tip& Ring are isolated from the base circuit by the transformer T1, relay RL1. CIDMATE International Technology Inc. 3F-B, No. 58, Sec. 1, Minsheng E. Rd., Taipei, Taiwan 104, R.O.C. Tel: 886-2- 2521-8658 Fax: 886-2-2561-6624 Email: [email protected] 4.2 Ring Detect When ring signal is present on the Tip Ring, and envelope waveform of the ring pattern will transfer to pin 20 of MCU by the LM324 pin 14. The MCU will read this waveform and determine whether it will send ringer command. 4.3 Sidtone Cancellation Network The sidetone cancellation is a hybrid circuit of the Tx and Rx paths of the telephone circuit formed by the Q12. 5. MCU 5.1 Charging Network Base charging circuit provides a DC current for handset battery. Resistor R129 controls the current flow. 5.2 Carrier Detection This is similar to the handset counterpart. 6. Digital Answer System Digital Answer System is consist of a DSP chip (MX93132, U7) and flash memory chip (MX29F400T, U4), audio output amplifier for audio (LM386, U10) 6.1 MX93132 provides speech processing/ management modules, including speech compression/ decompression silence management, telephone line signal processing RAM Management line echo cancellation and acoustical echo cancellation, etc. 6.2 MX29F400T: Memory Chip - resources of DAS. 6.3 LM386: Amplifier for audio output.

G88BM1A6.sch-1 - Thu May 09 14:40:09 2002 G88BM1A6.sch-2 - Thu May 09 14:45:12 2002 G88BM1A6.sch-3 - Thu May 09 14:47:13 2002 G88BM1A6.sch-4 - Thu May 09 14:49:45 2002 G8788hs2.sch-1 - Fri Jun 21 14:19:47 2002 G8788hs2.sch-2 - Fri Jun 21 14:29:32 2002

Test Report ------------------------------------------------------------------------------ 1/35 Report No.: C5015343, 2.4GHz Analog Cordless Phone, FCC Part 15 Class B Training Research Co., Ltd. TEL:886-2-26935155, Fax:886-2-26934440 MEASUREMENT REPORT of CORDLESS TELEPHONE Applicant : CIDMATE International Technology Inc. Model No. : GH9488xx, GH9487xx (x could be numbers or alphabets) EUT : 2.4GHz Analog Cordless Phone FCC ID : PIZGH94878 Report No. : C5015343 Test by : Training Research Co., Ltd. TEL : 886-2-26935155 FAX : 886-2-26934440 2, Lane 194, Huan-Ho Street, Hsichih, Taipei Hsien 221, Taiwan, R.O.C. Test Report ------------------------------------------------------------------------------ 2/35 Report No.: C5015343, 2.4GHz Analog Cordless Phone, FCC Part 15 Class B Training Research Co., Ltd. TEL:886-2-26935155, Fax:886-2-26934440 CERTIFICATION We here by verify that: The test data, data evaluation, test procedures and equipment configurations shown in this report were made mainly in accordance with the procedures given in ANSI C63.4 (1992) as a reference. All test were conducted by Training Research Co., Ltd., 2, Lane 194, Huan-Ho Street, Hsichi, Taipei Hsien 221, Taiwan, R.O.C. Also, we attest to the accuracy of each. We further submit that the energy emitted by the sample EUT tested as described in the report is in compliance with the technical requirements set forth in the FCC Rules Part 15 Subpart C Section 15.249. Applicant : CIDMATE International Technology Inc. Product Name : 2.4Hz Analog Cordless Phone Model No. : GH9488xx, GH9487xx FCC ID : PIZGH94878 Report No. : C5015343 Test Date : June 6, 2002 Prepared by: Approved by: JACK TSAI FRANK TSAI Test by : Training Research Co., Ltd. TEL : 886-2-26935155 FAX : 886-2-26934440 2, Lane 194, Huan-Ho Street, Hsichih, Taipei Hsien 221, Taiwan, R.O.C. Test Report ------------------------------------------------------------------------------ 3/35 Report No.: C5015343, 2.4GHz Analog Cordless Phone, FCC Part 15 Class B Training Research Co., Ltd. TEL:886-2-26935155, Fax:886-2-26934440 Tables of Contents I. GENERAL 1.1 Introduction ................................................................................................................ 6 1.2 Description of EUT .................................................................................................... 6 1.3 Description of Support Equipment ............................................................................. 6 1.4 Configuration of System Under Test ......................................................................... 7 1.5 Test Procedure ............................................................................................................ 7 1.6 Location of the Test Site ............................................................................................ 8 1.7 General Test Condition .............................................................................................. 8 II. Conducted Emissions Measurements 2.1 Test Condition & Setup ............................................................................................. 9 2.2 List of Test Instruments ............................................................................................. 9 2.3 Test Result of Conducted Emissions ........................................................................ 10 III. Radiated Emissions Measurements 3.1 Test Condition & Setup ............................................................................................ 14 3.2 List of Test Instruments ............................................................................................ 15 3.3 Test Result of Radiated Emissions ........................................................................... 16 3.4 Test Result of Spurious Radiated Emissions ............................................................ 17 IV. Verify Frequencies and Channels ............................................................................. 29 Appendix A ........................................................................................................................ 30 Appendix B ......................................................................................................................... 31 Test Report ------------------------------------------------------------------------------ 4/35 Report No.: C5015343, 2.4GHz Analog Cordless Phone, FCC Part 15 Class B Training Research Co., Ltd. TEL:886-2-26935155, Fax:886-2-26934440 TABLES Table 1 Power Line Conducted Emissions [Channel 01].............................................. 10 Table 2 Power Line Conducted Emissions [Channel 21].............................................. 11 Table 3 Power Line Conducted Emissions [Channel 40].............................................. 12 Table 4 Power Line Conducted Emissions [Charging Mode]....................................... 13 Table 5 Open Field Fundamental Emissions ............................................................... 16 Table 6 Open Field Radiated Emissions [Base Channel 01 Horizontal 30MHz to1GHz] ............................................... 17 Table 7 Open Field Radiated Emissions [Base Channel 01 Vertical 30MHz to 1GHz] ............................................... 17 Table 8 Open Field Radiated Emissions [Base Channel 01 Horizontal 1GHz to 25GHz] ............................................. 18 Table 9 Open Field Radiated Emissions [Base Channel 01 Vertical 1GHz to 25GHz] ................................................. 18 Table 10 Open Field Radiated Emissions [Base Channel 21 Horizontal 30MHz to 1GHz] ............................................ 19 Table 11 Open Field Radiated Emissions [Base Channel 21 Vertical 30MHz to 1GHz] .................................................. 19 Table 12 Open Field Radiated Emissions [Base Channel 21 Horizontal 1GHz to 25GHz] ............................................. 20 Table 13 Open Field Radiated Emissions [Base Channel …

Text truncated - open the document above for the full version.

Test Setup Photos ------------------------------------------------------------------------- 1/5 FCC ID: PIZGH94878 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Conducted Emissions Test Configuration (Idle, Charging mode) Test Setup Photos ------------------------------------------------------------------------- 2/5 FCC ID: PIZGH94878 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Conducted Emissions Test Configuration (Operating mode) Test Setup Photos ------------------------------------------------------------------------- 3/5 FCC ID: PIZGH94878 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Radiated Test Setup Placement: (Front/Rear View, BASE) Test Setup Photos ------------------------------------------------------------------------- 4/5 FCC ID: PIZGH94878 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Radiated Test Setup Placement: (Front/Rear View, HANDSET) Test Setup Photos ------------------------------------------------------------------------- 5/5 FCC ID: PIZGH94878 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Radiated Test Setup Placement: (Front/Rear View, Charging) The test configuration for frequency between 1 GHz to 25 GHz is same as above.
