PIZMH9012900MHz Cordles Phone

Intertek Testing Services ETL SEMKO Intertek Testing Services Taiwan Ltd. (Hsinchu EMC Lab.) No. 11, Ko-Tze-Nan, Chia-Tung-Li, Shiang-Shan District, Hsinchu City, Taiwan Tel: (886-3)519-1411 Fax: (886-3)519-1410 To: American Telecommunications Certification Body, Inc. Date: June 27, 2001 Attn: Mr. William Graff Applicant: CIDMATE International Technology Inc. FCC ID: PIZMH9012 We hereby would like to clarify that we did test in 3 orthogonal planes for both handset and base units of the captioned model, and the data stated in the testing report was the worst case. In addition, the maximum frequency we tested in radiated emissions was 18GHz, the noise level of harmonic under 18GHz frequencies were extremely low.

Dear Timothy, As per the requirement from FCC, please see the response below: 1. The frequency range for Base is 902.675 to 904.625MHz. for handset is 925.375 to 927.325. 2. Please find the RF board schematic for PIZMH9012 as file attached for your reference. 3. We have checked the set-up photo of submitted file, we did provide it, but I send the set-up photo in this mail again. Would these response be ok? If need more info, please let me know. Thank you. Have a nice day & Best Regards, Julia/ Intertek Taiwan To: "'Timothy R. Johnson'" <[email protected]> Subject: RE: Addition to 2nd ...... OLD, OLD Application Audit (FCC ID: PIZMH9012) 3/29/2004file://C:\DOCUME~1\TIMOTH~1.JOH\LOCALS~1\Temp\eud1A.htm

Dear Timothy, Sorry I missed that. I have checked the test data for this project, and found we did test both peak and average of radiated measurement data over 1000 MHz for the EUT. But I did not show the average test data on the report because we have so limited experience on such devices that we did not know both (peak and average) needs to be on the report. I have the test data added on the report and have it attached for your review. If you have question, please feel free to let me know. Thanks for all your kindly help. Have a nice day & Best Regards, Julia/ Intertek Taiwan >From: Timothy R. Johnson [mailto:[email protected] ><mailto:[email protected] > ] >Sent: Saturday, March 20, 2004 11:07 AM ...snip... >alternate email: [email protected] >direct number: 404-414-8071 >corporate phone: 703-847-4700 >corporate fax: 703-847-6888 PIZMH9012 -revised.pdf PIZMH9011 -revised.pdf From: "Julia Chu EMC-TPE" <[email protected]> To: "'Timothy R. Johnson'" <[email protected]> Subject: RE: FCC ID: PIZMH9011 & PIZMH9012 (radiated data over 1GHz) Page 1 of 1 4/24/2004Printed for "Timothy R. Johnson" <[email protected]>

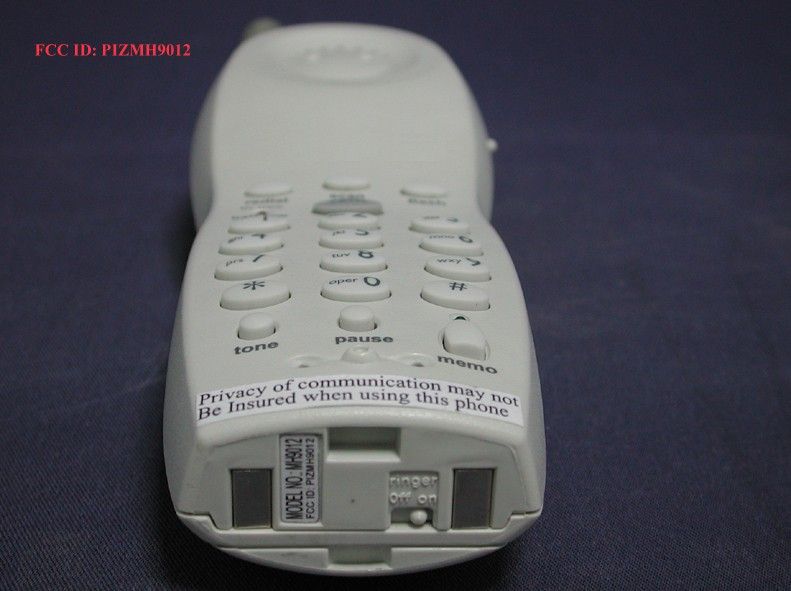

FCC ID: PIZMH9012

FCC ID: PIZMH9012

FCC ID: PIZMH9012

FCC ID: PIZMH9012

FCC ID: PIZMH9012 FCC ID: PIZMH9012 FCC ID: PIZMH9012 FCC ID: PIZMH9012 FCC ID: PIZMH9012 FCC ID: PIZMH9012 FCC ID: PIZMH9012 FCC ID: PIZMH9012

FCC ID: PIZMH9012 FCC ID: PIZMH9012 FCC ID: PIZMH9012 FCC ID: PIZMH9012 FCC ID: PIZMH9012 FCC ID: PIZMH9012 FCC ID: PIZMH9012

Intertek Testing Services ETL SEMKO FCC ID.: PIZMH9012 Report No.: EME-010048 Page 1 of 23 EMC TEST REPORT Report No. : EME-010048 Model No. : 9012 Issued Date : Mar. 16, 2001 Applicant : CIDMATE International Technology Inc. 5F-1, No. 168, Lian-Cheng Rd., Chung-Ho City, Taipei Hsien, Taiwan, R.O.C. Test By : Intertek Testing Services Taiwan Ltd. No. 11, Ko-Tze-Nan Chia-Tung Li, Shiang-Shan District, Hsinchu, Taiwan, R.O.C. This test report consists of 23 pages in total. It may be duplicated completely for legal use with the allowance of the applicant. It shall not be reproduced except in full, without the written approval of ITS Laboratory. The test result in this report only applies to the tested sample. Test Engineer Approved By Elton Chen Intertek Testing Services ETL SEMKO FCC ID.: PIZMH9012 Report No.: EME-010048 Page 2 of 23 Table of Contents 1. Summary of Tests.........................................................................................................3 1.1 General Information...............................................................................................4 1.2 Identification of the EUT........................................................................................4 1.3 Test Assignment to the EUT...................................................................................4 1.4 Peripherals equipment............................................................................................5 2. Test Condition...............................................................................................................6 2.1 Test Standard..........................................................................................................6 2.2 EMI Reduction Solution During Compliance Testing...........................................6 2.3 Test Equipment.......................................................................................................7 3. Conducted emission test FCC 15.207..........................................................................8 3.1 Operating Environment..........................................................................................8 3.2 System Test Configuration.....................................................................................8 3.4 Conducted Emission Data (Base unit) FCC 15.207...............................................9 4. Radiated Emission Test FCC 15.249 (C)....................................................................12 4.1 Operating Environment........................................................................................12 4.2 Test Setup & procedure........................................................................................12 4.3 Radiated Emission Test Data (Handset unit) FCC 15.249...................................13 4.3.1 Fundamental & Harmonics Emission Data.......................................................13 4.4 Radiated Emission Test Data (Base unit) FCC 15.249.........................................16 4.4.1 Fundamental & Harmonics Emission Data.......................................................16 4.5 General Radiated Emission Data (Handset unit) FCC 15.209.............................19 4.5.1 General Radiated Emission Data.......................................................................19 4.6 General Radiated Emission Data (Base unit) FCC 15.209...................................21 4.6.1 General Radiated Emission Data.......................................................................21 4.7 Radiated Emission on the band edge FCC 15.249(C)..........................................23 Intertek Testing Services ETL SEMKO FCC ID.: PIZMH9012 Report No.: EME-010048 Page 3 of 23 1. Summary of Tests Basic 900MHz Cordless Phone-Model: 9012 FCC ID: PIZMH9012 Test Reference Results Emission within operated Band 15.249(a) (b) Complies Conducted Emission of AC Power 15.207 Complies Radiated Emission 15.249(c), 15.209 Complies Emission above 1GHz 15.249(d) Complies Radiated Measurements 15.33(a) Complies Test Engineer Approved By Elton Chen Intertek Testing Services ETL SEMKO FCC ID.: PIZMH9012 Report No.: EME-010048 Page 4 of 23 1.1 General Information 1.2 Identification of the EUT Manufacturer : CIDMATE International Technology Inc. Product : Basic 900MHz Cordless Phone Model No. : 9012 FCC ID. : PIZMH9012 Frequency Range : 902MHz to 928MHz Channel Number : 40 channels Type of Modulation : FM Power Supply : 120Vac, 60Hz to 9Vdc adapter Data Cable : Cable length 10m with RJ-11 connector ×1 Sample Received : Jan. 17, 2001 Test Date(s) : Jan. 29, 2001 to Feb. 27, 2001 1.3 Test Assignment to the EUT The EUT is a Basic 900MHz Cordless Phone, and is defined as Unlicensed Intentional Radiated equipment, should be conducted the tests to represent the conformity of FCC Part 15 Subpart C Paragraph 15.249 for non-spread spectrum devices. The models listed below are identical to model 9012 (EUT); the difference is model number for different brand serves as marketing strategy. Trade Name(s) Model Number BELLSOUTH MH9012xx, I9012xx, M40002xx Unisonic MH9012xx, I9012xx, M40002xx U-phone MH9012xx, I9012xx, M40002xx i5 MH9012xx, I9012xx, M40002xx P2-net MH9012xx, I9012xx, M40002xx The “x” could be alphabet, number or blank, for the difference in "*" do not affect the EMI characteristics. For more detail features, please refer to user's Manual. Intertek Testing Services ETL SEMKO FCC ID.: PIZMH9012 Report No.: EME-010048 Page 5 of 23 1.4 Peripherals equipment 1. Exchange Board Product No. : 250-00193-07 Serial No. : 94948 Manufacturer : Teltone 2. Telephone Product No. : ATC-814 Serial No. : 9904000066 Manufacturer : Tozai 3. Headphone Product No. : EMS-101 Serial No. : N/A Manufacturer : STAND WIN Co., Ltd. Intertek Testing Services ETL SEMKO FCC ID.: PIZMH9012 Report No.: EME-010048 Page 6 of 23 2. Test Condition 2.1 Test Standard The EUT was performed according to the procedures in FCC Part 15 Subpart C Paragraph 15.249 for non-spread spec…

Text truncated - open the document above for the full version.

Intertek Testing Services ETL SEMKO FCC ID.: PIZMH9012 Report No.: EME-010048 Page 13 of 23 4.3 Radiated Emission Test Data (Handset unit) FCC 15.249 Worst Case Radiated Emission at Low Channel, 1849.74 MHz, margin: -5.03 dB 4.3.1 Fundamental & Harmonics Emission Data EUT : 9012 (Handset unit) Testing Mode TestinMoMoModel : Transmitter (Low Channel) Freq. (MHz) Spec. Analyz Detector Antenna Polariz. (H/V) Reading (dBuV) Antenna Factor (dB/m) Cable Loss (dB) Corrected Reading (dBuV/m) Limit At 3m (dBuV/m) Margin (dB) 1849.74 PK H 27.53 26.4 2.2 56.13 74 -17.87 1849.74 AV H 19.24 26.4 2.2 47.84 54 -6.16 2774.58 PK H 20.18 29.5 2.64 52.32 74 -21.68 2774.58 AV H 12.82 29.5 2.64 44.96 54 -9.04 1849.74 PK V 30.62 26.4 2.2 59.22 74 -14.78 1849.74 AV V 20.37 26.4 2.2 48.97 54 -5.03 2774.58 PK V 22.51 29.5 2.64 54.65 74 -19.35 2774.58 AV V 13.24 29.5 2.64 45.38 54 -8.62 Remark: 1. Corrected Level = Reading Level + Antenna Factor + Cable Loss 2. Uncertainty was calculated in accordance with NAMAS NIS 81. In the General Radiated Emission Test, the uncertainty is within ±2.5dB 3. All Readings below 1GHz are Quasi-Peak, above are average value PDF created with FinePrint pdfFactory Pro trial version http://www.pdffactory.com Intertek Testing Services ETL SEMKO FCC ID.: PIZMH9012 Report No.: EME-010048 Page 14 of 23 EUT : 9012 (Handset unit) Testing Mode TestinMoMoModel : Transmitter (Middle Channel) Freq. (MHz) Spec. Analyz Detector Antenna Polariz. (H/V) Reading (dBuV) Antenna Factor (dB/m) Cable Loss (dB) Corrected Reading (dBuV/m) Limit At 3m (dBuV/m) Margin (dB) 1852.55 PK H 27.85 26.4 2.2 56.45 74 -17.55 1852.55 AV H 18.34 26.4 2.2 46.94 54 -7.06 2778.87 PK H 21.69 29.5 2.64 53.83 74 -20.17 2778.87 AV H 12.34 29.5 2.64 44.48 54 -9.52 1852.55 PK V 25.41 26.4 2.2 54.01 74 -19.99 1852.55 AV V 17.33 26.4 2.2 45.93 54 -8.07 2778.87 PK V 21.32 29.5 2.64 53.46 74 -20.54 2778.87 AV V 11.45 29.5 2.64 43.59 54 -10.41 Remark: 1. Corrected Level = Reading Level + Antenna Factor + Cable Loss 2. Uncertainty was calculated in accordance with NAMAS NIS 81. In the General Radiated Emission Test, the uncertainty is within ±2.5dB 3. All Readings below 1GHz are Quasi-Peak, above are average value PDF created with FinePrint pdfFactory Pro trial version http://www.pdffactory.com Intertek Testing Services ETL SEMKO FCC ID.: PIZMH9012 Report No.: EME-010048 Page 15 of 23 EUT : 9012 (Handset unit) Testing Mode TestinMoMoModel : Transmitter (High Channel) Freq. (MHz) Spec. Analyz Detector Antenna Polariz. (H/V) Reading (dBuV) Antenna Factor (dB/m) Cable Loss (dB) Corrected Reading (dBuV/m) Limit At 3m (dBuV/m) Margin (dB) 1855.11 PK H 27.05 26.4 2.2 55.65 74 -18.35 1855.11 AV H 17.34 26.4 2.2 45.94 54 -8.06 2782.638 PK H 21.98 29.5 2.64 54.12 74 -19.88 2782.638 AV H 12.34 29.5 2.64 44.48 54 -9.52 1855.11 PK V 25.71 26.4 2.2 54.31 74 -19.69 1855.11 AV V 16.67 26.4 2.2 45.27 54 -8.73 2782.638 PK V 21.14 29.5 2.64 53.28 74 -20.72 2782.638 AV V 11.28 29.5 2.64 43.42 54 -10.58 Remark: 1. Corrected Level = Reading Level + Antenna Factor + Cable Loss 2. Uncertainty was calculated in accordance with NAMAS NIS 81. In the General Radiated Emission Test, the uncertainty is within ±2.5dB 3. All Readings below 1GHz are Quasi-Peak, above are average value PDF created with FinePrint pdfFactory Pro trial version http://www.pdffactory.com Intertek Testing Services ETL SEMKO FCC ID.: PIZMH9012 Report No.: EME-010048 Page 16 of 23 4.4 Radiated Emission Test Data (Base unit) FCC 15.249 Worst Case Radiated Emission at High Channel, 1810.18 MHz, margin: -9.16 dB 4.4.1 Fundamental & Harmonics Emission Data EUT : 9012 (Base unit) Testing Mode TestinMoMoModel : Transmitter (Low Channel) Freq. (MHz) Spec. Analyz Detector Antenna Polariz. (H/V) Reading (dBuV) Antenna Factor (dB/m) Cable Loss (dB) Corrected Reading (dBuV/m) Limit At 3m (dBuV/m) Margin (dB) 1805.07 PK H 24.15 26.4 2.2 52.75 74 -21.25 1805.07 AV H 14.63 26.4 2.2 43.23 54 -10.77 2707.65 PK H 15.86 29.5 3.14 48.5 74 -25.5 2707.65 AV H 6.24 29.5 3.14 38.88 54 -15.12 1805.07 PK V 16.3 26.4 2.2 44.9 74 -29.1 1805.07 AV V 15.71 26.4 2.2 44.31 54 -9.69 2707.65 PK V 14.97 29.5 3.14 47.61 74 -26.39 2707.65 AV V 5.82 29.5 3.14 38.46 54 -15.54 Remark: 1. Corrected Level = Reading Level + Antenna Factor + Cable Loss 2. Uncertainty was calculated in accordance with NAMAS NIS 81. In the General Radiated Emission Test, the uncertainty is within ±2.5dB 3. All Readings below 1GHz are Quasi-Peak, above are average value PDF created with FinePrint pdfFactory Pro trial version http://www.pdffactory.com Intertek Testing Services ETL SEMKO FCC ID.: PIZMH9012 Report No.: EME-010048 Page 17 of 23 EUT : 9012 (Base unit) Testing Mode TestinMoMoModel : Transmitter (Middle Channel) Freq. (MHz) Spec. Analyz Detector Antenna Polariz. (H/V) Reading (dBuV) Antenna Factor (dB/m) Cable Loss (dB) Corrected Reading (dBuV/m) Limit At 3m (dBuV/m) Margin (dB) 1807.49 PK H 22.6 26.4 2.2 51.2 74 -22.8 1807.49 AV H 13.24 26.4 2.2 41.84 54 -12.16 2711.24 PK H 13.59 29.5 3.14 46.23 74 -27.77 2711.24 AV H 6.34 29.5 3.14 38.98 54 -15.02 1807.49 PK V 22.1 26.4 2.2 50.7 74 -23.3 1807.49 AV V 12.41 26.4 2.2 41.01 54 -12.99 2711.24 PK V 14.46 29.5 3.14 47.1 74 -26.9 2711.24 AV V 5.1 29.5 3.14 37.74 54 -16.26 Remark: 1. Corrected Level = Reading Level + Antenna Factor + Cable Loss 2. Uncertainty was calculated in accordance with NAMAS NIS 81. In the General Radiated Emission Test, the uncertainty is within ±2.5dB 3. All Readings below 1GHz are Quasi-Peak, above are average value PDF created with FinePrint pdfFactory Pro trial version http://www.pdffactory.com Intertek Testing Services ETL SEMKO FCC ID.: PIZMH9012 Report No.: EME-010048 Page 18 of 23 EUT : 9012 (Base unit) Testing Mode TestinMoMoModel : Transmitter (High Channel) Freq. (MHz) Spec. Analyz Detector Antenna Polariz. (H/V) Reading (dBuV) Antenna Factor (dB/m) Cable Loss (dB) Corrected Reading (dBuV/m) Limit At 3m (dBuV/m) Margin (dB) 1810.18 PK H 25.52 26.4 2.2 54.12 74 -1…

Text truncated - open the document above for the full version.

FCC ID: PIZMH9012

FCC ID: PIZMH9012

FCC ID: PIZMH9012

FCC ID: PIZMH9012

FCC ID: PIZMH9012
