PIZXG240012.4 GHz Analog Cordless Phone

1 Safety Instructions -------------------------------------------------------------------------------------------4 Getting Started -----------------------------------------------------------------------------------------------6 Desk Mounting -----------------------------------------------------------------------------------------------9 Wall Mounting -----------------------------------------------------------------------------------------------10 Cordless Telephone Operation -------------------------------------------------------------------------12 Preparing for Use ---------------------------------------------------------------------------------------12 NO LINE Indicator --------------------------------------------------------------------------------------12 Receiving Calls ------------------------------------------------------------------------------------------12 Placing Calls ---------------------------------------------------------------------------------------------13 Headset Feature ----------------------------------------------------------------------------------------14 Redial Feature -------------------------------------------------------------------------------------------14 Caller ID System Operation -----------------------------------------------------------------------------15 Caller ID System ----------------------------------------------------------------------------------------15 Viewing Caller Information During Incoming Calls -----------------------------------------15 MSG WAITING (Message Waiting) ------------------------------------------------------------15 Call Waiting ------------------------------------------------------------------------------------------16 Voice Mail Function --------------------------------------------------------------------------------16 C-F (Forwarded Call) ------------------------------------------------------------------------------16 L-D-C (Long Distance Call) ----------------------------------------------------------------------16 Caller List -------------------------------------------------------------------------------------------------16 Viewing the Caller List ----------------------------------------------------------------------------17 Placing a Call From the Caller List ------------------------------------------------------------17 Editing the Caller List before Dialing ----------------------------------------------------------17 Saving the Name and Number in the Caller List into the DIRECTORY--------------18 Deleting All Records in the Caller List --------------------------------------------------------18 Selective Deleting in the Caller List -----------------------------------------------------------18 Name and Telephone Number DIRECTORY----------------------------------------------------18 Viewing the DIRECTORY------------------------------------------------------------------------18 Speed Viewing the DIRECTORY---------------------------------------------------------------19 Contents 2 Saving in the DIRECTORY----------------------------------------------------------------------19 PREFERRED CALLS -----------------------------------------------------------------------------19 BLOCKED CALLS ---------------------------------------------------------------------------------19 Editing a Name and Number in the DIRECTORY-----------------------------------------20 Editing the Number in the DIRECTORYbefore Dialing ----------------------------------21 Placing Calls from the DIRECTORY----------------------------------------------------------22 Deleting All Records in the DIRECTORY----------------------------------------------------22 Selective Deleting in the DIRECTORY-------------------------------------------------------22 Function Operation -------------------------------------------------------------------------------------23 A. Language ----------------------------------------------------------------------------------------24 B. Silent On/Off ------------------------------------------------------------------------------------24 C. Time Set -----------------------------------------------------------------------------------------24 D. Ringer Volume ----------------------------------------------------------------------------------25 E. LCD Contrast -----------------------------------------------------------------------------------25 F.PBX Number ------------------------------------------------------------------------------------25 G. Flash Time ---------------------------------------------------------------------------------------26 H. Pause Time --------------------------------------------------------------------------------------26 I. Voice Mail ----------------------------------------------------------------------------------------27 J. MSG Waiting (Message Waiting) ----------------------------------------------------------27 Telephone Keypad Characters ----------------------------------------------------------------------28 Answering System Operation ---------------------------------------------------------------------------29 Resetting the Answering System -------------------------------------------------------------------29 Setting the Day/Time Stamp--------------------------------------------------------------------------29 Recording your Outgoing Messages ---------------------------------------------------------------30 Turning the Answering System ON/OFF ----------------------------------------------------------31 Setting to Answer Calls --------------------------------------------------------------------------------31 Setting to Announce Only -----------------------------------------------------------------------------32 Screening Incoming Calls -----------------------------------------------------------------------------32 Message Alert --------------------------------------------------------------------------------------------32 Contents Setting Ring Select --------------------------------------------------------------------…

Text truncated - open the document above for the full version.

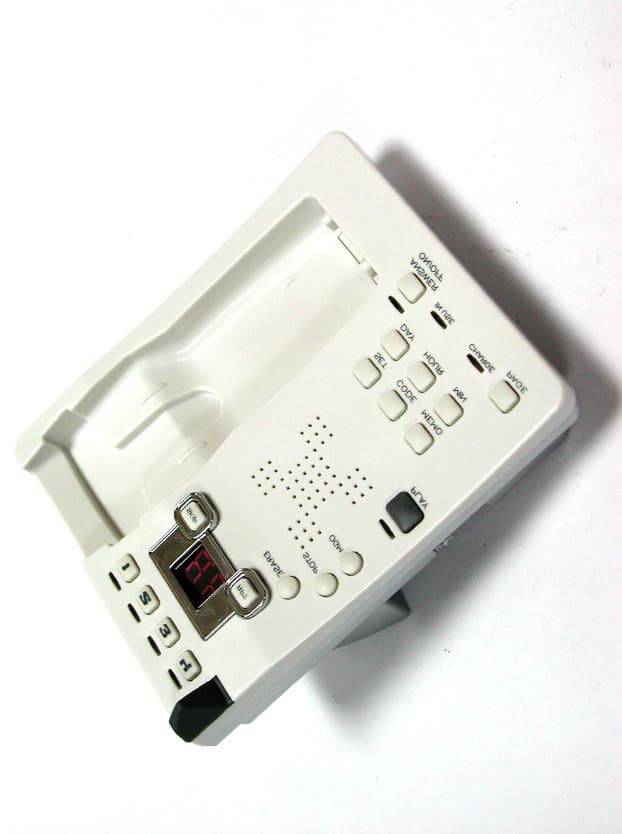

Recording Your Outgoing Messages Your Answering System provides one PRIMARYMAILBOX and four individual MAILBOXES (1, 2, 3, 4) which can receive their own Incoming Messages (ICM). Before using your Answering System, it is suggested that you record an Outgoing Message (OGM). This is the announcement callers will hear when the system answers a call. Apre-recorded system announcement “Please record your message after the beep”is available if you choose not to record your own OGM. A. Recording your OGM in the PRIMARYMAILBOX 1.Press and hold down the button to record your message. 2.Begin speaking immediately after you hear,“Please record your announcement after the beep”. Continue to depress the button. One second after completing your OGM, release the button. Your recorded message will be played after releasing the button. NOTE:Your OGM must be at least 3 seconds and no more than 30 seconds in length. If you wish to change your OGM, repeat steps 1 through 2. After recording an OGM, you can choose to use the pre-recorded announcement for your Answering System. 1.Press the button, while the OGM is playing, press the button. 2.After “You have no announcement” is played, the system generated “Please record your message after the beep”will replace the locally recorded Answering System’s OGM. NOTE:To obtain a better sound quality for locally recorded (OGMs and Memos) messages, speak directly into the MICROPHONEfrom a distance of 9 to 12 inches. It is recommended that you record an OGM on your PRIMARYMAILBOX instructing a caller to leave an ICM in one of the four mailboxes. If the caller is using a Touchtone telephone, this will enable the caller to record an ICM directly into one of the four mailboxes by dialing “11” for MAILBOX 1, “22” for MAILBOX 2, “33” for MAILBOX 3, “44” for MAILBOX 4. Example of a Primary OGM: “Hello, please leave a message after the tone, or if you are using a Touchtone telephone, please Dial 11 for Beth, Dial 22 for Jenny, Dial 33 for Jonathan, Dial 44 for Esson.” ERASEOGM OGM OGM OGM OGM 30 Answering System Operation NOTE:To check your OGM, press the button. If you did not record an OGM, your Answering System will announce, “You have no announcement.” B. Recording your OGM to Individual MAILBOX 1, 2, 3 or 4 1.Press a mailbox button, the corresponding MAILBOX LED indicator will blink. 2.Press and hold down the button to record your message. 3.Begin speaking immediately after you hear,“Please record your announcement after the beep”. Continue to press the button. One second after completing your OGM, release the button. Your recorded message will be played after releasing the button. NOTE:Your OGM must be at least 3 seconds and no more than 30 seconds in length. If you wish to change your OGM, repeat steps 1 through 3. NOTE:To check your OGM in a mailbox, press a mailbox button and then press the button. If you do not have an OGM in a mailbox, it will announce “You have no announcement.”Once a mailbox is activated, its corresponding MAILBOX LED indicator blinks slowly to show that the mailbox is active. If you do not press a button to activate another function within 12 seconds, the Answering System will return to the PRIMARYMAILBOX. You may return to the PRIMARYMAILBOX at anytime by pressing the button. Turning the Answering System ON/OFF 1.Press the button to turn ON the Answering System. You will hear the following message, “Answering machine is ON.” 2.Press the button again to turn OFF the Answering System. You will now hear the following message, “Answering machine is OFF.” NOTE:Once turned OFF, the Answer function will answer only on the tenth ring, allowing you to turn the Answering System ON from a remote location. Setting to Answer Calls The ANSWER ON/OFF LED indicator must be ON for the Answering System to answer calls. Depending on the setting of the ANNC/ICM switch, the Answering System will either hang up after your announcement (ANNC) or begin to record your caller’s messages (ICM). After the caller leaves an ICM, the time and day will be stamped at the end of each recorded ICM. The ICM is stored in the MEMORYand the LED Message Display shows the total number of ICMs currently stored. NOTE:ICMs are limited to a maximum of 2 minutes. If the ICM is more than 2 minutes, the system “beeps” twice and hangs up; or if the Answering System’s memory runs out, the Answering System announces, “Memory full,”and hangs up. ANSWER ON/OFF ANSWER ON/OFF STOP OGM OGM OGM OGM OGM OGM 31 Answering System Operation Setting to Announce Only During ANNC (Announce) mode, your system answers incoming calls with your recorded announcement but will not record any ICMs. 1.Set the ANNC/ICM select switch to ANNC. 2.Press and hold down the button to record your announcement. 3.Begin speaking after you hear,“Please record your announcement after the beep.”Do not release the button until you have completed your announcement OGM. NOTE:Your OGM must be at least 3 seconds and no more than 30 seconds in length. 4.Release the button one second after your announcement is completed, and the LED Message Display will show “aO”. NOTE:If you have not recorded an announcement for ANNC mode, even if the switch is set to ANNC mode, the Answering System will automatically operate in ICM mode and will record all ICMs. Screening Incoming Calls The Answering System allows you to listen to a caller leaving an ICM. Once the Answering System starts answering a call, press the button (or pick up any extension telephone on the same line), the Answering System will stop recording and you may converse with your caller. Message Alert When the message alert switch is “ON,” the unit will generate a “beep” sound every 15 seconds after a new message has been recorded. If you do not want to hear the “beep,” set the switch to the OFF position. Setting Ring Select To choose the number of times the phone rings before the Answering System responds, set the Ring Select switch to 3R, 5R, or TS (Toll SAVER). Set to 3R -System ans…

Text truncated - open the document above for the full version.

Request for Confidentiality Federal Communications Commission Authorization and Evaluation Division Sub.: Confidentiality Request regarding application for certification of FCC ID: PIZXG24001 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: l Schematics l Part List l Block diagram l Operational description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Beryl Liu, Sales Asst. Manager CIDMATE International Technology Inc. Request for Confidentiality Federal Communications Commission Authorization and Evaluation Division Sub.: Confidentiality Request regarding application for certification of FCC ID: PIZMH91101 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: l Schematics l Part List l Block diagram l Operational description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Beryl Liu, Sales Asst. Manager CIDMATE International Technology Inc.

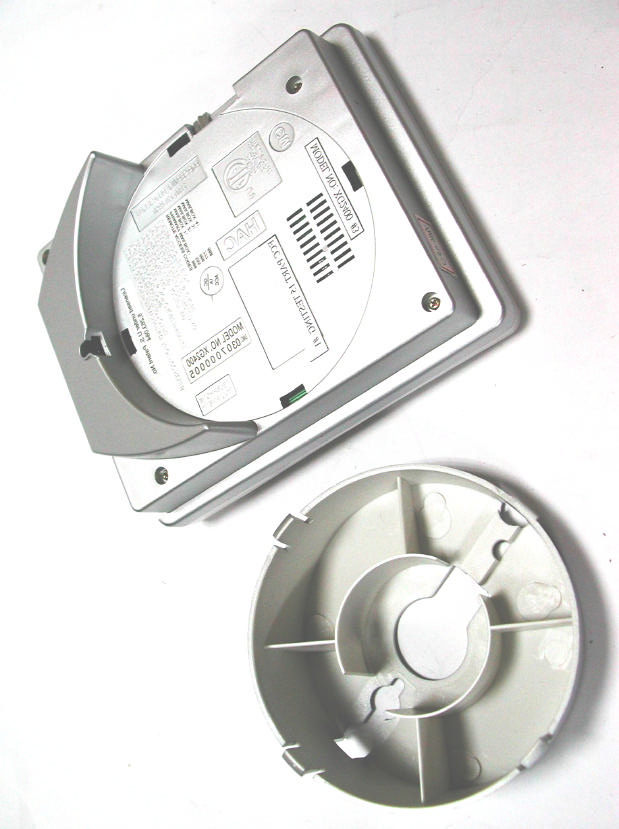

XG2400 LABES' LOCATION DESIGNED BY; DENG LING DATE: Feb./24/03 THIS DEVICE COMPLIES WITH PART 15 OF FCC RULES. OPERATION IS SUBJECTED TO THE FOLLOWING CONDITIONS: 1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND 2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. FOR SERVICE PLEASE CALL 1-866-466-9228 HAC CM TELEPHONE EQUIPMENT WALL MOUNT DESK MOUNT QC 1A ACC Licensed under U.S. Patent No. 5,263,084 FCC ID:PIZXG24001 COMPLIES WITH PART 68 FCC RULES,FCC REG. NO.: US: 6RUW900BXG2400USOC: RJ11C REN: 0.0B PRIVACY OF COMMUNICATIONS MAY NOT BE ENSUREDWHEN USING THIS PHONE MADE IN CHINA MODEL NO. XG2400 MODEL NO. XG2400 0307000001 S/NO.: R 2002627 CONFORMS TO ANSI/UL STD, 1950 US REMOTE ACCESS CODES PRIMARY MAILBOX: 999 MAILBOX 1: 555 MAILBOX 2: 666 MAILBOX 3: 777 MAILBOX 4: 888 ERASE STOP OGM PLAY MEMOCODESET DAYHOURMIN IN USECHARGE PAGEANSWER ON/OFF NOTE PRIOR TO INITIAL USE OR WHEN YOU HEAR A BEEP SOUND WHILE THE BATT LOW SYMBOL APPEARS, RECHARGE THE HANDSET BY PLACING IT IN ITS CRADLE IN THE BASE UNIT OVERNIGHT. IF HANDSET LOSES DIAL TONE, PLACE HANDSET IN BASE FOR 5 SECONDS. THIS WILL RESET SECURITY CODE AND RESTORE DIAL TONE. TO ALLOW PROPER CHARGING, CLEAN THE BATTERY CONTACTS ON BOTH THE HANDSET AND THE BASE UNIT ONCE A MONTH. XG2400 LABELS' LOCATION DESIGNED BY: DENG LING DATE: Feb./24/03 IMPORTANT TO ENSURE YOUR PHONE CHARGES PROPERLY ALWAYS CHARGE WITH THE KEYPAD FACE UP MODEL NO.: XG2400 FCC ID: PIZXG24001

Test Report ------------------------------------------------------------------------------ 1/28 Report No.: C5015384, 2.4GHz Analog Cordless Phone, FCC Part 15 Class B Training Research Co., Ltd. TEL:886-2-26935155, Fax:886-2-26934440 MEASUREMENT REPORT of CORDLESS TELEPHONE Applicant : CIDMATE International Technology Inc. Model No. : XG2400xx, XG2401xx (x could be numbers or alphabets) EUT : 2.4GHz Analog Cordless Phone FCC ID : PIZXG24001 Report No. : C5015384 Test by : Training Research Co., Ltd. TEL : 886-2-26935155 FAX : 886-2-26934440 No. 255, Nan-yang Street, Shijr, Taipei Hsien 221, Taiwan, R.O.C. Test Report ------------------------------------------------------------------------------ 2/28 Report No.: C5015384, 2.4GHz Analog Cordless Phone, FCC Part 15 Class B Training Research Co., Ltd. TEL:886-2-26935155, Fax:886-2-26934440 CERTIFICATION We here by verify that: The test data, data evaluation, test procedures and equipment configurations shown in this report were made mainly in accordance with the procedures given in ANSI C63.4 (1992) as a reference. All test were conducted by Training Research Co., Ltd., No. 255, Nan-yang Street, Shijr, Taipei Hsien 221, Taiwan, R.O.C. Also, we attest to the accuracy of each. We further submit that the energy emitted by the sample EUT tested as described in the report is in compliance with the technical requirements set forth in the FCC Rules Part 15 Subpart C Section 15.249. Applicant : CIDMATE International Technology Inc. Product Name : 2.4Hz Analog Cordless Phone Model No. : XG2400xx, XG2401xx FCC ID : PIZXG24001 Report No. : C5015384 Test Date : February 20, 2003 Prepared by: Approved by: JACK TSAI FRANK TSAI Test by : Training Research Co., Ltd. TEL : 886-2-26935155 FAX : 886-2-26934440 No. 255, Nan-yang Street, Shijr, Taipei Hsien 221, Taiwan, R.O.C. Test Report ------------------------------------------------------------------------------ 3/28 Report No.: C5015384, 2.4GHz Analog Cordless Phone, FCC Part 15 Class B Training Research Co., Ltd. TEL:886-2-26935155, Fax:886-2-26934440 Tables of Contents I. GENERAL 1.1 Introduction .................................................................................................................. 5 1.2 Description of EUT ...................................................................................................... 5 1.3 Description of Support Equipment ................................................................................ 6 1.4 Configuration of System Under Test .............................................................................. 7 1.5 Test Procedure ............................................................................................................. 8 1.6 Location of the Test Site ............................................................................................... 8 1.7 General Test Condition ................................................................................................. 8 II. Conducted Emissions Measurements 2.1 Test Condition & Setup ............................................................................................... 9 2.2 List of Test Instruments ................................................................................................ 9 2.3 Test Result of Conducted Emissions ............................................................................ 10 III. Radiated Emissions Measurements 3.1 Test Condition & Setup .............................................................................................. 12 3.2 List of Test Instruments ............................................................................................... 12 3.3 Test Result of Radiated Emissions ............................................................................... 14 3.4 Test Result of Spurious Radiated Emissions ................................................................. 15 IV. Verify Frequencies and Channels ............................................................................... 23 Appendix A .......................................................................................................................... 24 Appendix B .......................................................................................................................... 27 Test Report ------------------------------------------------------------------------------ 4/28 Report No.: C5015384, 2.4GHz Analog Cordless Phone, FCC Part 15 Class B Training Research Co., Ltd. TEL:886-2-26935155, Fax:886-2-26934440 TABLES Table 1 Power Line Conducted Emissions [Channel 01]................................................... 10 Table 2 Power Line Conducted Emissions [Channel 40]................................................... 11 Table 3 Fundamental Emissions ...................................................................................... 14 Table 4 Radiated Emissions [Base Channel 01 Horizontal 30MHz to1GHz]...................... 15 Table 5 Radiated Emissions [Base Channel 01 Vertical 30MHz to1GHz] ...................... 15 Table 6 Radiated Emissions [Base Channel 01 Horizontal 1GHz to 25GHz] .................... 16 Table 7 Radiated Emissions [Base Channel 01 Vertical 1GHz to 25GHz] ....................... 16 Table 8 Radiated Emissions [Base Channel 40 Horizontal 30MHz to 1GHz] .................. 17 Table 9 Radiated Emissions [Base Channel 40 Vertical 30MHz to 1GHz]........................ 17 Table 10 Radiated Emissions [Base Channel 40 Horizontal 1GHz to 25GHz] ................... 18 Table 11 Radiated Emissions [Base Channel 40 Vertical 1GHz to 25GHz] ...................... 18 Table 12 Radiated Emissions [Handset Channel 01 Horizontal 30MHz to 1GHz]............... 19 Table 13 Radiated Emissions [Handset Channel 01 Vertical 30MHz to 1GHz]................... 19 Table 14 Radiated Emissions [Handset Channel 01 Horizontal 1GHz to 25GHz]................ 20 Table 15 Radiated Emissions [Handset Channel 01 Vertical 1GHz to 25GHz].......…

Text truncated - open the document above for the full version.

Test Setup Photos ------------------------------------------------------------------------- 1/3 FCC ID: PIZXG24001 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Conducted Test Setup Placement: (Operating mode) Front View of the Test Configuration Rear View of the Test Configuration Test Setup Photos ------------------------------------------------------------------------- 2/3 FCC ID: PIZXG24001 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Radiated Test Setup Placement: (BASE) Front View of the Test Configuration of Y-axis of Base Front View of the Test Configuration of X-axis of Base Test Setup Photos ------------------------------------------------------------------------- 3/3 FCC ID: PIZXG24001 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Radiated Test Setup Placement: (Handset) Front View of the Test Configuration of X-axis Front View of the Test Configuration of Y-axis
