PJ7-1150GPRS+GPS Module

Neo_GM650 User Manual Version V1.0 Shenzhen Neoway Technology Co.,Ltd Neo_GM650 User Manual V1.0 All rights reserved by Shenzhen Neoway Technology Co., Ltd Page 2 Total 14 Copyright Statement Copyright © 2008 Neoway Technology All rights reserved by Shenzhen Neoway Technology Co.,Ltd. The trademark belongs to Shenzhen Neoway Technology Co.,Ltd. Other trademarks in this manual belongs to their owners. Clarification This specification is for system engineer, research engineer and test engineer. As the upgrading of the product version or some other reasons, we’ll do some necessity updating to the content of this specification without advance notice. Unless we have other additional assumpsit, all statements, information and suggestions in this manual do not constitute any express or implied guarantees. Shenzhen Neoway Technology Co.,Ltd can supply all the technological support. If you have any problem, please feel free to contact to the sales representative or send E-mail to these two mailboxes: [email protected] [email protected] Website: www.neoway.com.cn Neo_GM650 User Manual V1.0 All rights reserved by Shenzhen Neoway Technology Co., Ltd Page 3 Total 14 Contents 1 Overview 2 Figuration 3 Block Diagram 4 Character 5 Pin Definition & Encapsulation 5.1 Pin Definition ...........................................................................9 5.2 PCB Packaging .....................................................................12 6 General AT Commends 7 Call Control Commends 8 TCP/UDP AT Commends 9 GPS AT Commends 10 Assembling Neo_GM650 User Manual V1.0 All rights reserved by Shenzhen Neoway Technology Co., Ltd Page 4 Total 14 Revision Record Version Content Revised Effective date V1.0 Initial version 2012-06 Neo_GM650 User Manual V1.0 All rights reserved by Shenzhen Neoway Technology Co., Ltd Page 5 Total 14 1 Overview GM650 is an open platform that supports GSM/GPRS+GPS wireless industry module, reserved CPU resources and a wealth of hardware interface which is widely used in various industrial and commercial fields to provide high quality voice, message, data business, GPS Location and other functions. GM650 provide two kinds of GPS data interface mode: single-port and dual-port. If the user’s MCU has only one UART interface, while need to support both GPRS communications and GPS positioning function, that GM650 single-port mode provides the perfect solution. 2 Figuration Table 2-1 GM650 Figuration Specification Specifications Description Dimensions 30.0mm*24.0mm*2.7mm( length*width*height) Weight 3.7g Overview Neo_GM650 User Manual V1.0 All rights reserved by Shenzhen Neoway Technology Co., Ltd Page 6 Total 14 3 Block Diagram 4 Character Table 4-1 General parameters Description Operating temperature -30+70 Operating voltage 3.5V4.3Vrecommendation 3.9V Operating Current See table 4-2 and 4-3 Storage temperature -40+80 Humidity range 0%95% Table 4-2 GSM Specifications Description Frequency 900/1800/850/1900 Sensitivity -106dBm 850/900 Class4(2W) The Maximum transmission Power 1800/1900 Class1(1W) Protocol Compatible with GSM/GPRS Phase2/2+ GSM07.07 AT Extended command sets Audio FREFRHRAMR voice coding GSM Baseband Controller PA Power Manager Application Interface RF Section GPSSection Audio Section SIM x 2 UART x 2 I2C MMC USB ADC/PW LCD Flash Neo_GM650 User Manual V1.0 All rights reserved by Shenzhen Neoway Technology Co., Ltd Page 7 Total 14 TEXT/PDU SMS Point to point/cell broadcast Grouped Data GPRS CLASS 12 Coding scheme CS1~CS4 Mobile Station type Class B Support CSD data service Circuit Switched Data Support USSD Call forwardCFB,CFNA,CFU Call waiting Supplement Service Threeway calling Main Processor ARM7-EJ@104MHz, 32Mbits SRAM,32~64Mbits Nor Flash Reserved software resource 16Mbits RAM16~32Mbits Flash Reserved software resource UART x 2I2CLCDSPIMMCUSBADCPWM GPIO x 20Keypad Instantaneous Current Max 1.8A Average working Current 300mA Standby Current 2.5mA typ. Table 4-3 GPS Specifications Description GPS C/A coding 1.023 MHz chip rate GPS Channel 48 channels tracking GPS Sensitivity -162dBm Position Accuracy 10m Speed Accuracy 0.01 m/s Time Accuracy Synchro with GPS Satellite time<60ns Time of hot start <1s Time of warm start <35s Time of cold start <35s Time of recapture <0.1s Neo_GM650 User Manual V1.0 All rights reserved by Shenzhen Neoway Technology Co., Ltd Page 8 Total 14 GPS data updating frequency 2HZ Height limit 18288m Speed limit 515 m/s or 1854Km/h Acceleration limit <4g Average working current tracking mode 38mA Average working current getting posotion 45mA Note: The starting time, working current and other parameters of GPS is related to testing environment, including whether is under open sky, the thickness of the clouds and so on. Neo_GM650 User Manual V1.0 All rights reserved by Shenzhen Neoway Technology Co., Ltd Page 9 Total 14 5 Pin Definition & Encapsulation 5.1 Pin Definition The signal connection uses 74pin SMD pad of stamp hole(half hole). Note: GM650 module IO interface level is 2.8V. Because the module IO uses 2.8V power supply system, the maximum input voltage of all the IO interface can not exceed the maximum 3.3V, otherwise it may damage the module IO. Considering the signal integrality designing reasons,while the external circuit use 3.3V power system the IO interface output voltage will exceed 3.3V because of overshoot phenomenon, sometimes can even reach 3.5V.Therefore,the IO pin of the module will be damaged if 3.3V IO signal is connected to 2.8V IO of the module directly.So it is needed to adopt level matching measures.Please refer to chapter 6.2. Table 5-1 GM650 Pin Definition Pin Signal Name I/O Function Description Remark 1 GND PWR Ground 2 Reserved Reserved 3 Reserved Reserved 4 URXD1 DI UART1 data receiving 5 UTXD1 DO UART1 data transmitting Used to GPRS communications and AT commands 6 NC Reserved suspend, without any signal input. 7 UTXD2 DO UART2 data transmitting, baud rate = 9600 Dual-port mode, used to receive GPS data; Single-…

Text truncated - open the document above for the full version.

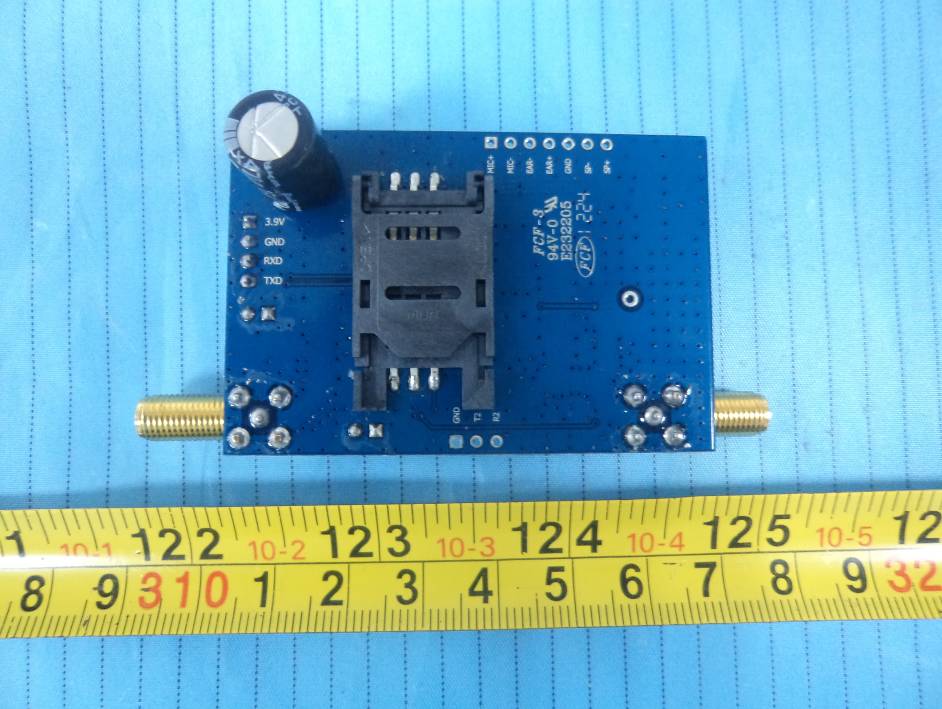

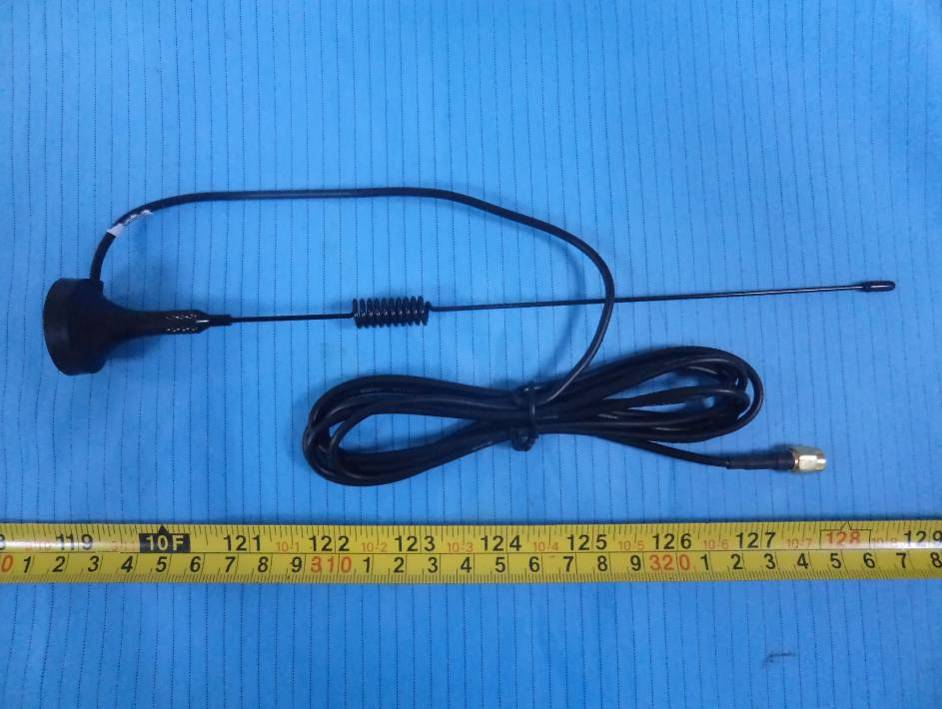

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS EUT – Top View EUT – Bottom View Test Board with EUT View Test Board Bottom View GSM Antenna View GPS Antenna View

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS EUT Cover off View EUT – Top Shielding off View EUT Bottom View

Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ120816005-00 FCC Part 22H/24E Page 9 of 30 FCC §1.1307 (b) (1) & §2.1091 - MAXIMUM PERMISSIBLE EXPOSURE (MPE) Applicable Standard According to subpart 1.1307 (b)(1), 2.1091systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Limits for Maximum Permissible Exposure (MPE) (§1.1310, §2.1091) (B) Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minutes) 0.3–1.34 614 1.63 *(100) 30 1.34–30 824/f 2.19/f *(180/f²) 30 30–300 27.5 0.073 0.2 30 300–1500 / / f/1500 30 1500–100,000 / / 1.0 30 f = frequency in MHz; * = Plane-wave equivalent power density; According to §1.1310 and §2.1091 RF exposure is calculated. RF Exposure Evaluations Predication of MPE limit at a given distance S = PG/4πR² Where S= power density (in appropriate units, e.g. mW/cm 2 ) P = power input to the antenna (in appropriate units, e.g., mW) G = Antenna Gain in linear scale R = distance to the center of radiation of the antenna (appropriate units, e.g., cm) Maximum Permissible Exposure (MPE) Calculations Frequency (MHz) Max Ant. Gain (dBi) Max Conducted Output Power (dBm) Duty Cycle Evaluation Distance (cm) Power Density (mW/cm 2 ) MPE Limit (mW/cm 2 ) Results 824 7 33 25% 20 0.498 0.549 Pass 1850 3 30 25% 20 0.099 1.0 Pass Note: FCC Part 22H Limit = 7 Watts = 38.45 dBm (ERP), Part 24E Limit =2 Watts = 33 dBm (EIRP) Conclusion: Based on FCC §1.1310 and §1.1091, the EUT will comply with FCC rules on RF exposure for mobile devices if the antenna gain does not exceed 7 dBi in cellular band and 3 dBi in PCS band. An appropriate RF exposure compliance statement will be placed in the user’s guide.

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP*, or any agency of the Federal Government. * This report contains data that are not covered by the NVLAP accreditation and are marked with an asterisk “★” (Rev.2) FCC PART 22H, PART 24E MEASUREMENT AND TEST REPORT For Shenzhen Neoway Technology Co., Ltd. 4F-2#, Lianjian Science & Industry Park, Huarong Road, Dalang, Longhua, Bao’an District, Shenzhen, Guangdong, China FCC ID: PJ7-1150 Report Type: Original Report Product Type: GPRS+GPS Module Test Engineer: Brown Lu Report Number: RSZ120816005-00 Report Date: 2012-08-31 Reviewed By: Sula Huang EMC Engineer Test Laboratory: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F, the 3rd Phase of WanLi Industrial Building ShiHua Road, FuTian Free Trade Zone Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ120816005-00 FCC Part 22H/24E Page 2 of 30 TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) .....................................................................................4 OBJECTIVE...................................................................................................................................................................4 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................4 TEST METHODOLOGY..................................................................................................................................................4 TEST FACILITY.............................................................................................................................................................5 SYSTEM TEST CONFIGURATION ..........................................................................................................................6 JUSTIFICATION.............................................................................................................................................................6 EQUIPMENT MODIFICATIONS.......................................................................................................................................6 SUPPORT EQUIPMENT LIST AND DETAILS....................................................................................................................6 EXTERNAL I/O CABLE..................................................................................................................................................6 BLOCK DIAGRAM OF TEST SETUP................................................................................................................................7 SUMMARY OF TEST RESULTS ...............................................................................................................................8 FCC §1.1307 (B) (1) & §2.1091 - MAXIMUM PERMISSIBLE EXPOSURE (MPE)..................................................9 APPLICABLE STANDARD..............................................................................................................................................9 RF EXPOSURE EVALUATIONS......................................................................................................................................9 FCC §2.1047 - MODULATION CHARACTERISTIC ............................................................................................10 FCC §2.1046, §22.913 (A) & §24.232 (C) - RF OUTPUT POWER.........................................................................11 APPLICABLE STANDARD............................................................................................................................................11 TEST PROCEDURE......................................................................................................................................................11 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................11 TEST DATA................................................................................................................................................................12 FCC §2.1049, §22.917, §22.905 & §24.238 - OCCUPIED BANDWIDTH ..............................................................14 APPLICABLE STANDARD............................................................................................................................................14 TEST PROCEDURE......................................................................................................................................................14 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................14 TEST DATA................................................................................................................................................................14 FCC §2.1051, §22.917(A) & §24.238(A) - SPURIOUS EMISSIONS AT ANTENNA TERMINALS ..................18 APPLICABLE STANDARD............................................................................................................................................18 TEST PROCEDURE......................................................................................................................................................18 TEST EQUIPMENT LIST AND DETAILS...................................................................…

Text truncated - open the document above for the full version.

EXHIBIT D - TEST SETUP PHOTOGRAPHS Radiated Emission Test View Frequency Stability Test View
