PKLWBG-1000Bluetooth Network Access Point, Bluegate1000

Wireless Internet and Data Communication 9645 Scranton Road, Suite 205 San Diego, CA 92121 Phone: 858.453.8400 Fax: 858.453.5735 Email Technical Support: [email protected] Information: [email protected] Media Access BlueGate 1000 Administrator’s Guide May 8, 2001 Document Number: 010501-0619-BG-AdminGuide Version: 2.0 Confidential and Proprietary Information BlueGate 1000 May 8, 2001WIDCOMM, Inc, Proprietary and Confidential i FCC Statement Widcomm Inc., 9645 Scranton Road, Suite 205, San Diego, CA 92121, 858-453-8400. BlueGate , WDC-WBG-1000. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and, (2) This device must accept any interference received including interference that may cause undesired operation. Per CFR 47, PART 15, Paragraph 15.21: User changes or modifications not expressly approved by the party responsible for compliance could void the users authority to operate the equipment. Application PKLWBG-1000 Additional Information for the FCC approval of Widcomm Inc.’s BlueGate 1000 RF Exposure Statement IMPORTANT NOTE: To comply with FCC RF exposure compliance requirements the following antenna installation and device operating configurations must be satisfied: The BlueGate 1000 unit must be placed on a desk or table such that a minimum normal operating distance of 20 cm is maintained from the body at all times. Copyright and Trademark Notices Copyright 2000 – 2001, Widcomm, Inc. (“Widcomm”). All rights reserved. This documentation may be printed and copied solely in connection with developing products in accordance with the license agreement provided to you with this documentation. Only two (2) copies of this documentation may be made for archival and backup purposes. Except for the foregoing, no part of this documentation may be reproduced or transmitted in any form or by any means or used to make any derivative work (such as translation, transformation or adaptation) without the express written consent of Widcomm. Widcomm, the Widcomm logo, BlueGate, and BlueConnect are trademarks of Widcomm. Handspring and Visor are registered trademarks of Handspring, Inc. HotSync, Palm Computing, and Palm OS are registered trademarks of Palm, Inc. Microsoft and Windows are registered trademarks of Microsoft Corporation. Other brand and product names may be registered trademarks or trademarks of their respective holders. BlueGate 1000Table of Contents May 8, 2001WIDCOMM, Inc, Proprietary and Confidential ii Table of Contents 1INTRODUCTION.........................................................................................................1 2KIT CONTENTS..........................................................................................................2 3INSTALLATION..........................................................................................................3 4RESET BLUEGATE 1000............................................................................................4 5ACCESS THE INTERNAL WEB SERVER.................................................................5 5.1IP ADDRESS IN A DHCP ENVIRONMENT.................................................................5 5.1.1Java Run-time Environment............................................................................6 1.IP ADDRESS IN A NON-DHCP ENVIRONMENT........................................................8 6INTERNAL WEB SERVER.......................................................................................11 6.1HELP.....................................................................................................................12 6.2STATUS.................................................................................................................12 6.2.1BG Configuration.........................................................................................12 6.2.2ARP Table...................................................................................................14 6.2.3Routing Table...............................................................................................15 6.2.4NS Lookup...................................................................................................15 6.2.5Authentication Table.....................................................................................16 6.3STATISTICS...........................................................................................................16 6.3.1IP................................................................................................................17 6.3.2COM1 & COM2..........................................................................................17 6.3.3MAC...........................................................................................................18 6.3.4History of Active BT Connections.................................................................19 6.4SHOW DHCP TABLE.............................................................................................19 6.5PING.....................................................................................................................20 6.6CONFIGURE BLUEGATE 1000...............................................................................20 6.6.1Main Page....................................................................................................22 6.6.1.1Please Enter Command: Field.........................................................23 6.6.1.2Setup (BlueGate)............................................................................23 6.6.1.2.1Device Name.........................................................................................24 6.6.1.2.2Service Name........................................................................................24 6.6.1.2.3IP Addr....................................................................................................24 6.6.1.2.4Gateway...........…

Text truncated - open the document above for the full version.

Page 1 Rev.No 1.0 ATTESTATION STATEMENT GENERAL REMARKS: SUMMARY: All tests were performed per CFR 47, FCC Part 15, Paragraphs 15.109(a); 15.205; 15.209; 15.209(a); 15.247(a)(1)(ii); 15.247(c) n - Performed The Equipment Under Test n - Fulfills the requirements of CFR 47, FCC Part 15, Paragraphs 15.107(a); 15.205; 15.209; 15.209(a); 15.247(c); 15.247(a)(1)(ii); 15.247(c) - TÜV PRODUCT SERVICE, INC. - Responsible Engineer: Jim Owen (EMC Engineer)

PLL Clock Generator 16MHz, 20ppm Crystal 10MHz 16MHz 25MHz Network Processor 16MHz Memory SDRAM 50MHz 10/100 Ethernet Phy 25MHz Field Programmable Gate Array 10MHz Bluetooth RF Transciever Application PKLWBG-1000 Additional Information for the FCC approval of Widcomm Inc.'s BLUEGATE 1000 Oscillator Block Diagram May 22, 2001 Widcomm Inc.5/31/2001 FCC Application XXX-WBC-10001Oscillator Block Diagram Application PKLWBG-1000 Additional Information for the FCC approval of Widcomm Inc.’s Bluegate 1000 Oscillator Block Diagram May 22, 2001 Springboard Interface Connector (To Handspring Visor) UART 14.7456 MHz Oscillator Ericsson ROK-101-007 RF Module

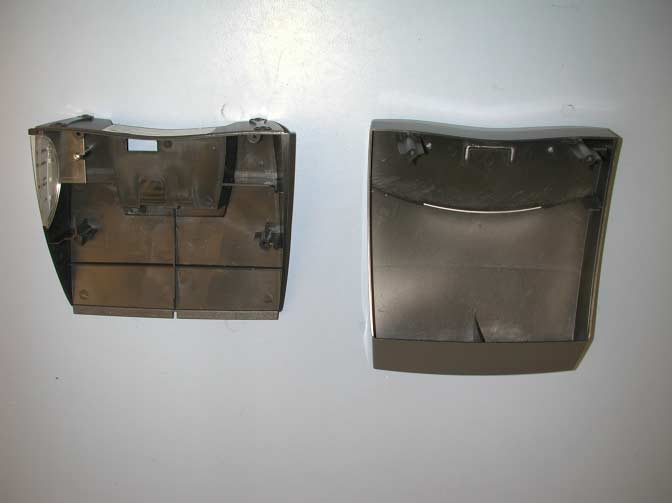

CASE BOTTOM CASE FRONT CASE REAR CASE ASSEMBLY

PCB ASSEMBLY INCASE FRONT PCB ASSEMBLY INCASE REAR PCB ASSEMBLY BOTTOM PCB ASSEMBLY TOP MAIN PCB NO SHIELD BOTTOM MAIN PCB NO SHIELD TOP MAIN PCB WITH SHIELD TOP TAKE LABEL OFF MAIN PCB WITH SHIELD BOTTOM MAIN PCB SHIELD INSIDE MAIN PCB SHIELD OUTSIDE RF PCB NO SHIELD BOTTOM RF PCB NO SHIELD TOP RF PCB WITH SHIELD TOP TOO DARK RF PCB WITH SHIELD BOTTOM ALPS RF MODULE NO SHIELD BOTTOM ALPS RF MODULE NO SHIELD TOP LIGHT PIPE ASSEMBLY RANGESTAR ANTENNA BOTTOM RANGESTAR ANTENNA TOP RF BOARD NO ANTENNA

Widcomm Inc.6/1/2001 FCC Application XXX-WBC-10001Operating Description Application PKLWBG-1000 Additional Information for FCC approval of Widcomm Inc.’s Bluegate 1000 Operating Description May 22, 2001 The Bluegate 1000 is a network access product designed to provide a concurrent wireless bi-directional link between a 10/100 Base-T Ethernet port and up to 7 other Bluetooth devices. The Bluegate 1000 device contains an Alps integrated Bluetooth transceiver component, network processor, field programmable gate array, interface components, and power management. The device field programmable gate array, and software work in conjunction allowing a seamless connection that is designed to operate simultaneously with neighboring wireless Bluetooth devices. The Bluetooth topology, concept, and algorithms handle multiple user environments. The transceiver is implemented using Bluetooth radio module from Alps(see “Item 6-BG FCC-Alps Module DS.pdf”). This module contains a 2.4GHz Bluetooth radio which is designed for fast frequency hopping over 79 one megahertz channels. The design is separated into two circuit boards, one containing the baseband components and one containing the analog components, RF components, and connectors. These two circuit boards are interconnected using board to board connectors. The RF board contains one antenna in a vertical polarization and one antenna in a horizontal polarization. The antenna’s are from Rangestar and are PCB mounted(see “Item 6-BG FCC-Rangestar Antenna DS.pdf”). Antenna selection is performed by the user and is a static operating mode. The unit is powered from a 6VDC/2A wall wart. Major support IC’s internal to the device are, a network processor, Flash memory, synchronous DRAM, 10/100 Base-T Ethernet Phy, a crystal oscillator at 16 MHz, PLL based clock generator, Bluetooth RF Transceiver, and interface components. XD05B UGSA4 1 ALPS Radio Module Specification for 2.4GHz BLUETOOTH Model number Function Specification revision UGSA4XD05B With antenna diversity REV.1.3.5 2 / SYMB. DATA OR NO. APPD. CHKD. DSGD. ALPS ELECTRIC CO., LTD. DSGD. CHKD. APPD. TITLE DOCUMENT NO. PRODUCT SPECIFICATION ( / ) 23 XD05B UGSA4 2 Contents 1 PURPOSE AND SCOPE...............................................................................................4 2 ABBREVIATIONS......................................................................................................4 3 ABSOLUTE MAXIMUM RATINGS.................................................................................4 3-1 POWER SUPPLY VOLTAGE........................................................................................................4 3-2 VOLTAGE ON I/O PIN..................................................................................................................4 3-3 STORAGE TEMPERATURE RANGE............................................................................................4 3-4 DUTY CYCLE OF POWER AMP...................................................................................................4 4 STANDARD OPERATING CONDITIONS.........................................................................4 4-1 OPERATING TEMPERATURE RANGE...................................................................................................4 4-2 POWER SUPPLY VOLTAGE........................................................................................................4 4-3 REFERENCE OSCILLATOR.................................................................................................................4 5 MECHANICAL CHARACTERISTICS..............................................................................5 5-1 ASPECT........................................................................................................................................5 5-2 DIMENSIONS...............................................................................................................................5 5-3 WEIGHT.......................................................................................................................................5 6 ANTENNA CONNECTION...........................................................................................5 7 GENERAL ELECTRICAL CHARACTERISTICS.................................................................5 7-1 COMMON SPECIFICATIONS......................................................................................................5 7-1-1 Operating Frequency Bands...................................................................................................5 7-1-2 Channel Spacing.....................................................................................................................5 7-1-3 Duplexing...............................................................................................................................5 7-1-4 Bit Rate..................................................................................................................................5 7-1-5 Modulation Method................................................................................................................5 7-1-6 Impedance..............................................................................................................................5 7-1-7 VSWR.....................................................................................................................................5 7-1-8 Diversity Isolation..................................................................................................................5 7-1-9 PA On Delay Time..................................................................................................................5 7-2 TX SPECIFICATIONS..................................................................................................................6 7-2-1 TX Initial Center Frequency Accuracy....................................................................................6 7-2-2 TX Center…

Text truncated - open the document above for the full version.

Widcomm Inc.5/31/2001 FCC Application XXX-WBC-10001Sample Label FCC Statement: RF Exposure Compliance Widcomm Inc. 9645 Scranton Road, Suite 205 San Diego, CA 92121 858-453-8400 Bluegate 1000 RF exposure compliance issues regarding FCC ID: “PKLWBG-1000" The maximum RF output of the Bluegate product is 20dBm(10mW), and the internal PCB mounted antenna has a maximum gain less than 3 dBi. The product RF output is below the SAR and MPE limits.

TÜV PRODUCT SERVICE 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone 858 546 3999 FAX 858 546 0364 Report No. SC103413-03 Page 1 Rev.No 1.0 MEASUREMENT AND TECHNICAL REPORT WIDCOMM, INC. 9645 Scranton Road, Suite 205 San Diego, CA 92121 DATE: 31 May 2001 This Report Concerns:Original Grant: XClass II Change: Equipment Type:Blue Connect, Model Blue Connect Deferred grant requested per 47 CFR 0.457(d)(1)(ii)?Yes: Defer until: No: X Company Name agrees to notify the Commission by:N/A of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37?Yes:No: X* (*) FCC Part 15, Paragraphs 15.205; 15.209; 15.209(a); 15.247; 15.247(a)(1)(ii); 15.247(c) Report Prepared by: TÜV PRODUCT SERVICE 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone: 858 546 3999 Fax: 858 546 0364 TÜV PRODUCT SERVICE 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone 858 546 3999 FAX 858 546 0364 Report No. SC103413-03 Page 2 Rev.No 1.0 TABLE OF CONTENTS Pages 1 GENERAL INFORMATION3 1.1Product Description3 1.2Related Submittal Grant4 1.3Tested System Details4 1.4Test Methodology4 1.5Test Facility4 1.6Part 2 Information 2 SYSTEM TEST CONFIGURATION6 2.1Justification6 2.2EUT Exercise Software6 2.3Special Accessories6 2.4Equipment Modifications6 2.5Configuration of Tested System6 3RADIATED EMISSION EQUIPMENT/DATA7 Field Strength Calculation14 4 CONDUCTED EMISSION EQUIPMENT/DATA15 5Attestation Statement24 TÜV PRODUCT SERVICE 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone 858 546 3999 FAX 858 546 0364 Report No. SC103413-03 Page 3 Rev.No 1.0 1 GENERAL INFORMATION 1.1Product Description TÜV PRODUCT SERVICE 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone 858 546 3999 FAX 858 546 0364 Report No. SC103413-03 Page 11 Rev.No 1.0 1 GENERAL INFORMATION (continued) 1.2Related Submittal/Grant None 1.3Tested System Details The FCC IDs for all equipment, plus descriptions of all cables used in the tested system are: None 1.4Test Methodology Purpose of Test:To demonstrate compliance with the ANSI C63.4 setup. Test Performed:X1. Conducted Emissions, FCC Part 15, Paragraph 15.107(a); 15.247(a)(1)(ii); 15.247(c) 2. Radiated Emissions EN55022: 1992 Class B limit, 30 - 1,000 MHz, 10 meters X3. Radiated Emission per FCC Part 15, Paragraphs 15.109(a); 15.205; 15.209(a); and 15.247 4. Engineering evaluations 5. Frequency Stability, Part 2, Paragraph 2.995, and Part 87, Paragraph 87.133 X6. RF Output Power, Part 2, Paragraph 2.1046 Both Conducted and radiated testing were performed according to the procedures in FCC/ANSI C63.4 and CSA 108.8 - M1983. Radiated testing was performed at an antenna-to-EUT distance of 3 meters (1 - 10 GHz). 1.5Test Facility The open area test site and conducted measurement data were tested by: TÜV PRODUCT SERVICE 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone: 858 546 3999 Fax: 858 546 0364 The Test Site Data and performance comply with ANSI 63.4 and are registered with the FCC, 7435 Oakland Mills Rd, Columbia Maryland 21046. All Measurement Data is acquired according to the content of FCC Measurement Procedure and ANSI C63.4, unless supplemented with additional requirements as noted in the test report. 1.6Part 2 Information Direct sequence spread spectrum - N/A Scanning receivers - N/A 59 - 64 GHz transmitters - N/A Tune-up procedure - N/A TÜV PRODUCT SERVICE 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone 858 546 3999 FAX 858 546 0364 Report No. SC103413-03 Page 12 Rev.No 1.0 2.SYSTEM TEST CONFIGURATION 2.1Justification The EUT was initially tested for FCC emission in the following configuration: See Block Diagram. 2.2EUT Exercise Software None 2.3Special Accessories None 2.4Modification None 2.5Configuration of Tested System See Block Diagram. TÜV PRODUCT SERVICE 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone 858 546 3999 FAX 858 546 0364 Report No. SC103413-03 Page 13 Rev.No 1.0 3RADIATED EMISSION EQUIPMENT/DATA The following data lists the significant emission frequencies, measured levels, correction factor (which includes cable and antenna corrections), the corrected reading, and the limit. See following page(s). See test setup photos for radiated emissions test setup. TÜV PRODUCT SERVICE 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone 858 546 3999 FAX 858 546 0364 Report No. SC103413-03 Page 22 Rev.No 1.0 Emissions Test Conditions: RADIATED EMISSIONS The RADIATED EMISSIONS measurements were performed at the following test location : o - Test not applicable n - Canyon #3 (Open Area Test Site), Carroll Canyon, San Diego Testing was performed at a test distance of: o - 1 meters n - 3 meters o - 10 meters Test Equipment Used : Model No.Prop. No.DescriptionManufacturerSerial No.Cal Date 3115251Antenna, Double Ridge GuideEMCO249510/01 LPB 2520/A738Antenna, LPBAntenna Research116905/30/01 8566B10308Spectrum AnalyzerHewlett Packard2332A275103/17/01 ESVS30427ReceiverRohde & Schwarz830350/00611/01 Remarks: TÜV PRODUCT SERVICE 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone 858 546 3999 FAX 858 546 0364 Report No. SC103413-03 Page 23 Rev.No 1.0 Field Strength Calculation If a preamplifier was used during the Radiated Emission Testing, it is required that the amplifier gain must be subtracted from the Spectrum Analyzer (Meter) Reading. In addition, a correction factor for the antenna , cable used and a distance factor, if any, must be applied to the Meter Reading before a true field strength reading can be obtained. In the automatic measurement, these considerations are automatically presented as a part of the print out. In the case of manual measurements and for greater efficiency and convenience, instead of using these correlation factors for each meter reading, the specification limit was modified to reflect these correlation factors at each frequency value so that the meter readings can be compared directly to the modified specification limit. This modified specification limit is referred to as the "Corrected Meter Reading Limit…

Text truncated - open the document above for the full version.

Table EUT Spectrum Analyzer 15.247(a)(i); 15.247(a)(1)(ii); 15.247(b)(1) test setup
