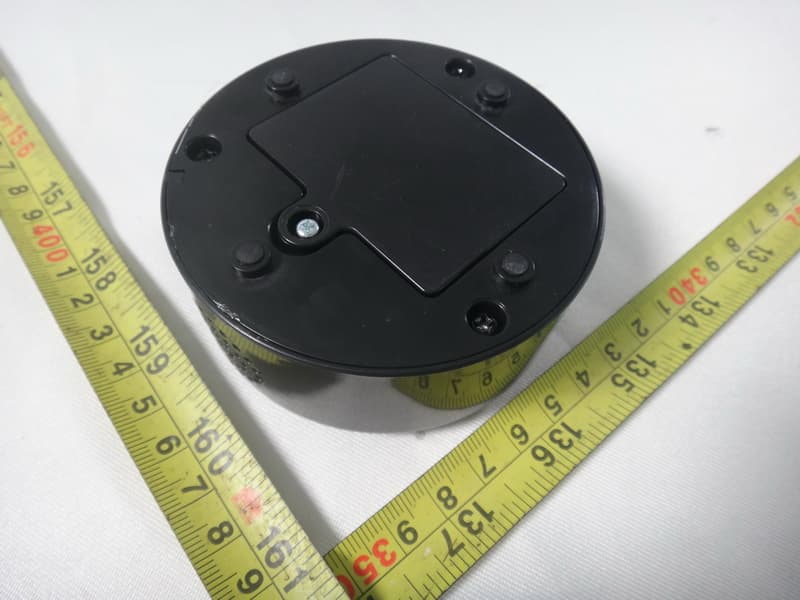

PKX1301GAMFZFacilitator Control Unit

Instructions “Me First” Personal Answer Domes ™ Congratulations on your purchase of Me First P.A.D.s! We’re confident that this buzzer system will be the key to unlocking your group’s energy, generating excitement and adding “game show spirit” to your question and answer activities. Included in your package: ♦ 1 Facilitator Control Unit --including 3 AAA batteries ♦ 12 P.A.D.s (Personal Answer Domes) --including 3 AAA batteries in each dome Simple Set-up! 1. Turn on the Facilitator Control Unit by pressing and holding the ON/OFF button on the top of the unit for 1-2 seconds until it lights up RED. 2. Distribute one Player P.A.D. to each participant and direct participants to press and hold the ON/OFF button at the bottom of the P.A.D. for 1-2 seconds until it lights up RED. 3. Once all P.A.D.s. are turned on: Press the RESET button on the Facilitator’s Control Unit to place the system in “Ready” mode. The participant P.A.D.s will display a YELLOW light and the Facilitator’s light will stay RED. Easy to Play! 1. Ask your question. 2. Students “buzz in” with their answers by pressing lightly on the dome of their P.A.D. 3. As soon as someone buzzes in first, the Facilitator Unit will light up GREEN. The first responder’s P.A.D. will BLINK GREEN, signaling that he or she has the “go-ahead” to answer the question. All other participant P.A.D.s will light up RED to signify that their P.A.D.s are deactivated. 4. If answer is wrong: Press WRONG button on the Facilitator Unit with sound to signal the student get the wrong answer.Then press the CONTINUE button on the Facilitator Unit. The Facilitator Unit will turn to light up RED. The first responder’s P.A.D. will light up RED, signifying that this player is “locked out” for the remainder of the question session. All other P.A.D.s will light up YELLOW, signifying that players may attempt to buzz in again with their answers. If answer is correct: Press RIGHT button on the Facilitator Unit with sound to signal the student get the right answer; Then press the RESET button, the Facilitator Unit will light up RED. All the Participant P.A.D.s will light up YELLOW and a new question session can begin. End of Play: Press and hold the ON/OFF button on the Facilitator Control Unit to turn off all the P.A.D.s. This convenient feature helps to prolong battery life. P.A.D.s will turn off automatically after 45 minutes of non-use mode. Optional Sound Buzzer on Facilitator Unit: It defaults to be SOUND ON mode when power-on. Press SOUND ON/OFF button to toggle between 4 different optional sounds . Press and hold this button for 3-5 seconds to toggle between Sound ON/OFF. Facilitator Unit “beeps” when first responder buzzes in if sound feature is activated. The effective control distance: 25M. Storage: To prolong battery life, unit should be stored without depressing the four buttons on the feet of each pad. To prolong battery life, P.A.D.s will turn off automatically in 5 seconds by blinking red light if the Facilitator Control Unit is OFF. Have Fun!!! Please call us if you have questions. 800-299-3770 Patent Pending FCC COMPLIANCE INFORMATION for Me First P.A.D.s: FCC ID: PKX1301GAMFX and FCC ID: PKX1301GAMFZ THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHROIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT. FCC Radiation Exposure Statement THIS EQUIPMENT COMPLIES WITH FCC RF RADIATION EXPOSURE LIMITS SET FORTH FOR AN UNCONTROLLED ENVIRONMENT. THIS TRANSMITTER MUST NOT BE CO-LOCATED OR OPERATING IN CONJUNCTION WITH ANY OTHER ANTENNA OR TRANSMITTER. Caution! THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER AUTHORITY TO OPERATE THE EQUIPMENT. Troubleshooting This product has been 100% inspected. If you do experience a problem, try these quick fixes. Problem 1: P.A.D.s do not light up at all Fix: 1. Check that the P.A.D. has been turned on. 2. Check that the P.A.D. is placed within the optimal range: 5 to 50 feet from the Facilitator Control Unit. 3. If P.A.D. is on a metal table or shielded by metal walls, move elsewhere 4. Press batteries back into place: Unscrew the battery compartment. Press batteries back into place. Close compartment back up. 5. Replace the batteries: Remove the screw fastening the battery shield of the P.A.D. Replace with 3 new AAA’s. Problem 2: A P.A.D. lights up red, but does not change to green or yellow. Fix: Move Facilitator PAD closer to the problematic PAD. Hit RESET on the Facilitator PAD. Before pressing any other player PAD, depress the problematic PAD dome to light it to green. Once it changes color, the Facilitator PAD can move away again. Problem 3: Unit is not working reliably Fix: Be sure unit is not sitting on a metal table or behind metal partitions If you continue to run into any difficulty, or, if you have a great success story, please don’t hesitate to contact us. 800-299-3770

Neutron Engineering Inc. Project No.: 1210C032 Page 2 of 6

Neutron Engineering Inc. Project No.: 1210C032 Page 3 of 6 Neutron Engineering Inc. Project No.: 1210C032 Page 4 of 6 Neutron Engineering Inc. Project No.: 1210C032 Page 5 of 6 Neutron Engineering Inc. Project No.: 1210C032 Page 6 of 6

Neutron Engineering Inc. Report No.: NEI-FCCP-1-1210C032 Page 1 of 56 FCC Radio Test Report FCC ID: PKX1301GAMFZ This report concerns (check one) : Original Grant Class II Change Issued Date : Oct. 24, 2012 Project No. : 1210C032 Equipment : Facilitator Control Unit Model Name : N/A Applicant : Trainers Warehouse Address : 89 Washington Ave., Suite K, Natick, MA 01760-3441,USA Tested by: Neutron Engineering Inc. EMC Laboratory Date of Receipt: Oct. 12, 2012 Date of Test: Oct. 12, 2012 ~ Oct. 23, 2012 Testing Engineer : (David Mao) Technical Manager : (Leo Hung) Authorized Signatory : (Steven Lu) Neutron Engineering Inc. No.3,Jinshagang 1st Road, ShiXia, Dalang Town, Dong Guan, China. TEL : (0769) 8318-3000 FAX : (0769) 8319-6000 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1210C032 Page 2 of 56 Declaration Neutron represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with the standards traceable to National Measurement Laboratory (NML) of CHINA, or National Institute of Standards and Technology (NIST) of U.S.A. Neutron's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. Neutronshall have no liability for any declarations, inferences o r generalizations drawn by the client or others from Neutron issued reports. Neutron’s reports must not be used by the client to claim product endorsement by the authorities or any agency of the Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and Neutron-self, extracts from the test report shall not be reproduced except in full with Neutron’s authorized written approval. Neutron’s laboratory quality assurance procedures are in compliance with the ISO Guide 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Neutron Engineering Inc. Report No.: NEI-FCCP-1-1210C032 Page 3 of 56 Table of Contents Page 1 . CERTIFICATION 5 2 . SUMMARY OF TEST RESULTS 6 2.1 TEST FACILITY 7 2.2 MEASUREMENT UNCERTAINTY 7 3 . GENERAL INFORMATION 8 3.1 GENERAL DESCRIPTION OF EUT 8 3.2 DESCRIPTION OF TEST MODES 11 3.3 TABLE OF PARAMETERS OF TEXT SOFTWARE SETTING 11 3.4 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 12 3.5 DESCRIPTION OF SUPPORT UNITS 13 4 . EMC EMISSION TEST 14 4.1 CONDUCTED EMISSION MEASUREMENT 14 4.1.1 POWER LINE CONDUCTED EMISSION LIMITS 14 4.1.2 MEASUREMENT INSTRUMENTS LIST AND SETTING 14 4.1.3 TEST PROCEDURE 15 4.1.4 DEVIATION FROM TEST STANDARD 15 4.1.5 TEST SETUP 15 4.1.6 EUT OPERATING CONDITIONS 15 4.1.7 TEST RESULTS 16 4.2 RADIATED EMISSION MEASUREMENT 17 4.2.1 RADIATED EMISSION LIMITS 17 4.2.2 MEASUREMENT INSTRUMENTS LIST ANS SETTING 18 4.2.3 TEST PROCEDURE 19 4.2.4 DEVIATION FROM TEST STANDARD 19 4.2.5 TEST SETUP 20 4.2.6 EUT OPERATING CONDITIONS 21 4.2.7 TEST RESULTS (BETWEEN30 – 1000 MHZ) 22 4.2.8 TEST RESULTS (ABOVE 1000 MHZ) 24 5 . NUMBER OF HOPPING CHANNEL 36 5.1 APPLIED PROCEDURES / LIMIT 36 5.1.1 MEASUREMENT INSTRUMENTS LIST AND SETTING 36 5.1.2 TEST PROCEDURE 36 5.1.3 DEVIATION FROM STANDARD 36 5.1.4 TEST SETUP 36 5.1.5 EUT OPERATION CONDITIONS 36 5.1.6 TEST RESULTS 37 6 . AVERAGE TIME OF OCCUPANCY 38 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1210C032 Page 4 of 56 Table of Contents Page 6.1 APPLIED PROCEDURES / LIMIT 38 6.1.1 MEASUREMENT INSTRUMENTS LIST 38 6.1.2 TEST PROCEDURE 38 6.1.3. TEST SETUP LAYOUT 38 6.1.4. TEST DEVIATION 38 6.1.5. EUT OPERATION DURING TEST 38 6.1.6. TEST RESULTS 39 7 . HOPPING CHANNEL SEPARATION MEASUREMENT 41 7.1 APPLIED PROCEDURES / LIMIT 41 7.1.1 MEASUREMENT INSTRUMENTS LIST AND SETTING 41 7.1.2 TEST PROCEDURE 41 7.1.3 DEVIATION FROM STANDARD 41 7.1.4 TEST SETUP 41 7.1.5 EUT OPERATION CONDITIONS 41 7.1.6 TEST RESULTS 42 8 . BANDWIDTH TEST 43 8.1 APPLIED PROCEDURES / LIMIT 43 8.1.1 MEASUREMENT INSTRUMENTS LIST AND SETTING 43 8.1.2 TEST PROCEDURE 43 8.1.3 DEVIATION FROM STANDARD 43 8.1.4 TEST SETUP 43 8.1.5 EUT OPERATION CONDITIONS 43 8.1.6 TEST RESULTS 44 9 . PEAK OUTPUT POWER TEST 46 9.1 APPLIED PROCEDURES / LIMIT 46 9.1.1 MEASUREMENT INSTRUMENTS LIST AND SETTING 46 9.1.2 TEST PROCEDURE 46 9.1.3 DEVIATION FROM STANDARD 46 9.1.4 TEST SETUP 46 9.1.5 EUT OPERATION CONDITIONS 46 9.1.6 TEST RESULTS 47 10 . ANTENNA CONDUCTED SPURIOUS EMISSION 49 10.1 APPLIED PROCEDURES / LIMIT 49 10.1.1 MEASUREMENT INSTRUMENTS LIST AND SETTING 49 10.1.2 TEST PROCEDURE 49 10.1.3 DEVIATION FROM STANDARD 49 10.1.4 TEST SETUP 49 10.1.5 EUT OPERATION CONDITIONS 49 10.1.6 TEST RESULTS 50 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1210C032 Page 5 of 56 1. CERTIFICATION Equipment : Facilitator Control Unit Brand Name : N/A Model Name : N/A Applicant : Trainers Warehouse Date of Test : Oct. 12, 2012 ~ Oct. 23, 2012 Test Item : ENGINEERING SAMPLE Standards : FCC Part15, Subpart C(15.247) / ANSI C63.4 : 2009 FCC Public Notice DA 00-705, March 30, 2000. The above equipment has been tested and found compliance with the requirement of the relative standards by Neutron Engineering Inc. EMC Laboratory. The test data, data evaluation, and equipment configuration contained in our test report (Ref No. NEI-FCCP-1-1210C032) were obtained utilizing the test procedures, test instruments, test sites that has been accredited by the Authority of NVLAP and TAF according to the ISO-17025 quality assessment standard and technical standard(s). Neutron Engineering Inc. Report No.: NEI-FCCP-1-1210C032 Page 6 of 56 2. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: APPLIED STANDARD: 47 CFR Part 15, Subpart C Standard S…
