PLJRT601Light Sensor

GETTING STARTED battery installation COUNTDOWN TIMER RANDOM FUNCTION TROUBLESHOOTING 1 2 remove the battery cover from the back of the timer place two button cell batteries between terminals observing proper polarity then replace cover PROGRAM ON/OFF CD SET RANDOM RESET 3 5 79 2468 10 1 PROGRAM ON/OFF CD SET RANDOM RESET 3 2 1 short/long random programmable random PROGRAM ON/OFF CD SET RANDOM RESET 2 1 4 3 LCD display seems “frozen”. Buttons won’t respond. Timer loses programs when unplugged Programmed ON/OFF times don’t execute Programmed ON/OFF times don’t execute at specified times. Transmitter stops turning receiver on and off. Press reset button to reset timer. Replace batteries. Ensure that the program disable feature is not enabled. Ensure that the random function is not enabled. Use the LEARN function to reprogram the receiver or check the batteries. problemsolution TECHNICAL SPECIFICATIONS Programmable Timer RCT100 Ratings: 120V AC, 15A Max Load: 1800W resistive; 600W tungsten Photocell Transmitter RT601 Transmission Range: up to 40m in open area Transmission Frequency: 433.92 MHz 1 4 2 5 6 7 8 Press SET Start ON or OFF select with Press SET Hour select with Press SET Minute select with 9 10 3 Press SET Second select with Press SET The to-the-second countdown feature of this timer starts from the ON or OFF position and counts down to zero when activated. Press once from LEARN PROGRAM ON/OFF CD SET RANDOM RESET Stop countdown timer function with CD or ON/OFF remove the battery cover from the transmitter place two AA size batteries into compartment observing proper polarity then replace cover 1 2 button descriptions RANDOM RESET PHOTOCELL TRANSMITTER 2 Repeat and for additional timers (available at your local retailer). Press and hold ON/OFF and together on timer while simultaneously pressing the RF button on the transmitter. (The green LED indicator on the transmitter will flash when RF is pressed). 1 1 Plug timer into wall socket 2 LEARN PROGRAM ON/OFF CD SET RANDOM RESET 1 * 1 PROGRAM SETTINGS disable program/master disable PROGRAM ON/OFF CD SET RANDOM RESET 1 3 5 7 2468 PROGRAM ON/OFF CD SET RANDOM RESET 1 4 3 Press SET Day select with Press SET Hour select with Press SET Minute select with Press SET Program select with Press SET Press ON/OFF to disable ( X ) For single disable select PROGRAM with For master disable go to using 2 Press SET 3 times to exit (single disable) OR press SET 4 times to exit (master) CLOCK Programs are arranged in a circular pattern with the clock and countdown functions: CLOCK Program 1-20 CD Repeat steps to to undo disable ( X ) 1 4 Press CD to start the countdown function TIMING CONTROL DIAL MODE SWITCH BRIGHTNESS DIAL NEW CODE BUTTON RF “TRANSMIT” BUTTON LED INDICATOR PHOTOCELL The transmitter uses an intelligent code system to prevent interference from other sources. But if you do experience such interference, you can press the NEW CODE button to generate a new random house code. However, after pressing the NEW CODE button, you will need to redo the LEARNING procedure as described above. The photocell transmitter can control multiple remote programmable timers. PHOTOCELL TRANSMITTER * The LED INDICATOR of the transmitter will: 1 Once you insert batteries into the transmitter, you will automatically enter the user setting mode. This mode will last for two minutes in which you can easily adjust the brightness or light sensitivity of the photocell sensor. Alternately, you can press the RF button on the transmitter to enter the user setting mode. 2 In user setting mode, turn the BRIGHTNESS DIAL to adjust the light sensitivity of the photocell sensor. 2 user setting mode > TURN ON - when the photocell sensor detects that it is bright Use the LED INDICATOR (on front of transmitter) as a reference, so that you can fine tune the light sensitivity as desired. > TURN OFF - when the photocell sensor detects that it is dark * 1 2 * 1 learn function PHOTOCELL TRANSMITTER Transmits an “ON” command to the timer when photocell senses a change from dark to bright. Transmits an “OFF” command after the time delay as set by the Timing Control Dial or when it turns from bright to dark. 3 Once the learn function has been successfully executed, the symbol will flash on the top right corner of the LCD on the timer, every time the transmitter sends a signal or when the RF button is pressed. 3 day mode / night mode The photocell transmitter works by detecting the brightness level of its surroundings and sends ON or OFF commands to the timer. The transmitter can be set to trigger the timer to run for 30mins, 1, 2, 4, 6, 8, 10hrs or continuously, and will automatically turn the timer OFF when the photocell senses a change from dark to bright (in NIGHT mode) or bright to dark (in DAY mode). Transmits an “ON” command to the timer when photocell senses a change from bright to dark. Transmits an “OFF” command after the time delay as set by the Timing Control Dial or when it turns from dark to bright. DAY MODE: NIGHT MODE: Turn TIMING CONTROL DIAL to select delay off time. (30 minutes, 1, 2, 4, 6, 8, 10 hours, or continuous) Slide MODE SWITCH: up for DAY mode and down for NIGHT mode 2 2 This device complies with Part 15 of the FCC Rules and RSS-210 of Industry Canada. Operation is subject to the following two conditions: FCC / RSS-210 COMPLIANCE 1. this device may not cause harmful interference, and 2. this device must accept any interference received, including interference that may cause undesired operation. Flashing for short random Flashing for long random 1 2 Press RANDOM 3 Short random from OR Long random from CD RND L RND - * Short random 1-2 hours, long random 2-3 hours 1 2 Press RANDOM Set program 20 to desired random time 3 3 Select program 20 with Solid for programmable random RND * Programmable random only works with program 20; 1-2 hours 4 Deactivate random function with RANDOM or ON/OFF PROGRAM ON/OFF CD SET RANDOM RESET 1 1 2 3 5 79 2468 10 CLOCK Go to using CLOCK…

Text truncated - open the document above for the full version.

CETECOM ICT Services GmbH Test report No.: 2-3253-01-01/03Date: 2003.05.24Page 29 (31) Photo No.: 08 CETECOM ICT Services GmbH Test report No.: 2-3253-01-01/03Date: 2003.05.24Page 30 (31) Photo No.: 09 CETECOM ICT Services GmbH Test report No.: 2-3253-01-01/03Date: 2003.05.24Page 31 (31) Photo No.: 10

CETECOM ICT Services GmbH Radio Satellite Communication Untertürkheimer Straße 6–10, D-66117 Saarbrücken, Telephone +49 (0) 681 598- 0, Fax +49 (0) 598 9075 Test report No.: 2-3253-01-01/03This test report consists of 31 pagesPage 1 (31) Recognized by the Federal Communications Commission FCC–Identification Number TCB ID: DE 0001 Accredited by the German Accreditation Council DAR–Registration Number TTI–P–G 166/98 Independent ETSI Compliance test house ETSI Accredited Bluetooth™ Test Facility (BQTF) Test report No. : 2-3253-01-01/03 Applicant : Mandolyn Int. Ltd. Type : RT601 FCC–ID No : PLJRT601 BLUETOOTH is a trademark owned by Bluetooth SIG, Inc. and licensed to CETECOM CETECOM ICT Services GmbH Test report No.: 2-3253-01-01/03Date: 22.05.2003Page 2 (31) Table of contents 1 General information 1.1 Notes 1.2 Testing laboratory 1.3 Details of applicant 1.4 Application details 1.5 Test item 1.6 Test specifications 1.7Test equipment utilized and test set-up 1.8Test results 2 Technical test 2.1 Summary of test results 2.2 Test report CETECOM ICT Services GmbH Test report No.: 2-3253-01-01/03Date: 2003.05.24Page 3 (31) 1 General information 1.1 Notes The test results of this test report relate exclusively to the test item specified in 1.5. The CETECOM ICT Services GmbH does not assume responsibility for any conclusions and generalisations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the CETECOM ICT Services GmbH. Test laboratory manager: 2003-05-23RSC - 8431Gillmann D. DateSectionNameSignature Technical responsibility for area of testing: 2003-05-23RS - 8412Hausknecht D. DateSectionNameSignature CETECOM ICT Services GmbH Test report No.: 2-3253-01-01/03Date: 2003.05.24Page 4 (31) 1.2 Testing laboratory CETECOM ICT Services GmbH Untertürkheimer Straße 6 - 10 66117 Saarbrücken Germany Telephone: + 49 681 598 - 0 Telefax : + 49 681 598 - 9075 E-mail: [email protected] Internet: www.cetecom-ict.de Accredited testing laboratory Accredited by: Regulierungsbehörde für Telekommunikation und Post (RegTP) Listed by: Federal Communications Commission (FCC) AuthorityIdentification/Registration No. RegTPTTI-P-G 166/98-30 FCC90462 1.3Details of applicant Name :W.H. Mandolyn International Ltd. Street :Unit 1003-8 Landmark North 39 Lung Sum Avenue; Sheung Shui City :N.T. Hong Kong Country :N.T. Hong Kong Telephone:(852) 2670 9733 Telefax :(852) 2673 0337 E-mail :[email protected] Contact person: Name : Shirley Telephone : + 852 2670 9733 Telefax : + 852 2673 0337 E-mail : [email protected] 1.4Application details Date of receipt of test item : 2003-05-09 Date of test: 2003-05-22 CETECOM ICT Services GmbH Test report No.: 2-3253-01-01/03Date: 2003.05.24Page 5 (31) 1.5Test item Type of equipment : Remote control transmitter Type designation:Model RT601 Manufacturer:see applicant Street: City: Country: Serial number:- / - Additional information : Frequency:433.92 MHz Type of modulation:10K0A1D Channel spacing:>25 kHz Number of channels :1 Antenna:Integral antenna Power supply (DC)3.0V FCC ID :PLJRT601 1.6 Test specifications: Test standard : Code of Federal Regulations (CFR 47) FCC Part 15 Section 15.31 Measurement standards FCC Part 15 Section 15.209 Radiation emission limits, general requirements FCC Part 15 Section 15.231 (a)(1) Periodic operation in the band 40.66 – 40.70 MHz and above 70 MHz (timing of the Transmitter) FCC Part 15 Section 15.231 (c)(1) Periodic operation in the band 40.66 – 40.70 MHz and above 70 MHz (Occupied bandwith) CANADA RSS-210 CETECOM ICT Services GmbH Test report No.: 2-3253-01-01/03Date: 2003.05.24Page 6 (31) 1.7Test equipment utilized and test set-up 1.7.1Field strength and spurious radiation in the frequency range 4 GHz to 40 GHz FrequencyDistance Standard gainDist. correctionAntenna factorCable loss f [GHz]d [m]Horn ant. (SGH)dc (3 m/X m) [dB] k [dB 1/m]a [dB] 3.8 ... 6.01.0narda 643-9.5427.221.8 5.3 ... 8.20.5narda 642-15.5629.942.0 8.2 ... 12.40.5narda 640-15.5633.642.5 12.4 ... 18.00.25narda 639-21.5836.882.9 18 ... 260.25narda 638-21.5840.364.5 26 ... 400.25narda V637-21.5843.944.8 24.1253.0narda 640n.a.33.644.8 Calculation :Field strength = Analyser reading + Cable loss + Antenna factor + Distance correction e=u+a+k+dc Test equipmentManufacturerTypeCETECOM reference Spectrum AnalyserHPHP 8565E300001665 SGH 3.8 ... 6.0 GHznarda643300002447 SGH 5.3 ... 8.2 GHznarda642300000767 SGH 8.2 ... 12.4 GHznarda640300002213 SGH 12.4 ... 18.0 GHznarda639300000786 SGH 18 ... 27 GHznarda638300002442 SGH 27 ... 40 GHznardaV637300000510 SGH 27 ... 40 GHzThomsonCOR 27_40300000797a Power supplyHP6032A300002115 RF-cableHP5061-5359300002033 Measurement uncertainty Test parameterMeasurement uncertainty Power supply ±0.1 VDC Temperature ±0.2 °C Frequency ±0.01 ppm eirp ±1.4 dB cable Power supply Climatic chamber EUT Spectrum analyzer SGH Standard gain horn d a(fs)ak CETECOM ICT Services GmbH Test report No.: 2-3253-01-01/03Date: 2003.05.24Page 7 (31) 1.7.2Field strength and spurious radiation in the frequency range 33 GHz to 110 GHz FrequencyDistanceDistance correctionAntenna factor f [GHz]d [m]dc (3 m/Xm) [dB]k [dB 1/m] 42.01.0-9.5438.98 52.51.0-9.5439.66 63.00.5-15.5645.5 73.50.5-15.5641.5 84.00.5-15.5640.0 Calculation :Field strength = Analyser reading + Cable loss + Antenna factor + Distance correction e=u+a+k+dc Test equipmentManufacturerTypeCETECOM reference Spectrum AnalyserHPHP 8565E300001665 Power supplyHP6032A300002115 SGH 33 ... 50 GHzThomsonCOR 33_50300000812 Mixer 33 ... 50 GHzHP11970Q300000781i SGH 50 ... 75 GHzThomsonCOR 50_75300000789k Mixer 50 ... 75 GHzHP11970V300000871o SGH 75 ... 110 GHzThomsonCOR 75_110300000789m Mixer 50 ... 110 GHzHP11970W300000871v Measurement uncertainty Test parameterMeasurement uncertainty P…

Text truncated - open the document above for the full version.

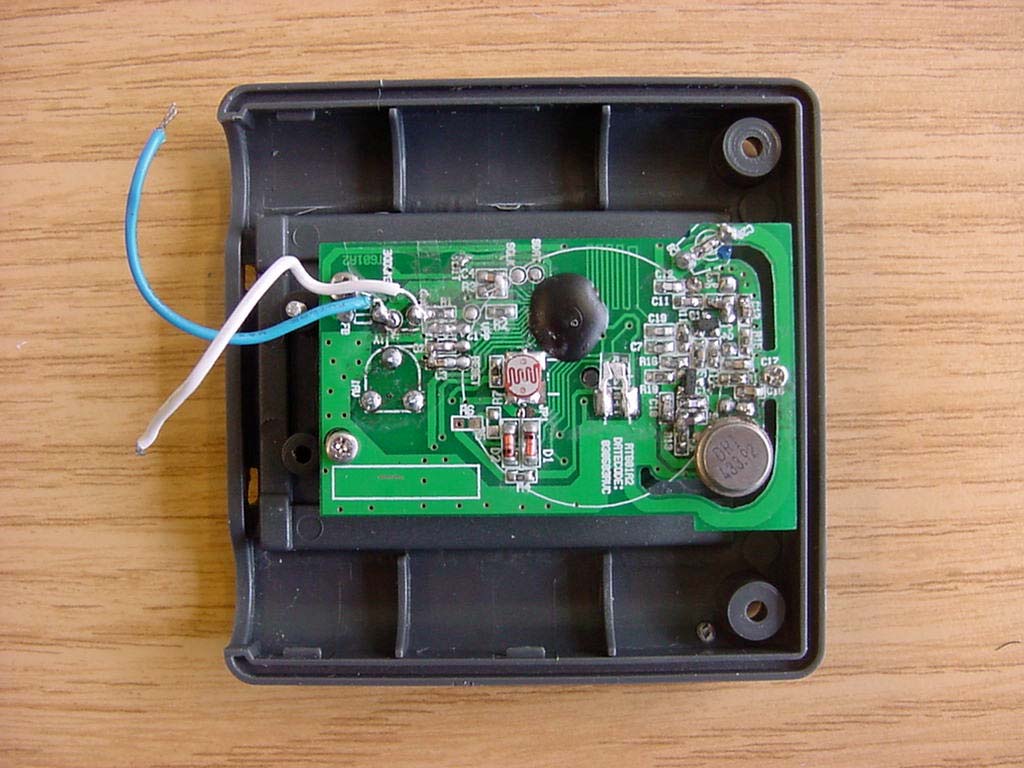

CETECOM ICT Services GmbH Test report No.: 2-3253-01-01/03Date: 2003.05.24Page 22 (31) Photo No.: 01 CETECOM ICT Services GmbH Test report No.: 2-3253-01-01/03Date: 2003.05.24Page 23 (31) Photo No.: 02 CETECOM ICT Services GmbH Test report No.: 2-3253-01-01/03Date: 2003.05.24Page 24 (31) Photo No.: 03 CETECOM ICT Services GmbH Test report No.: 2-3253-01-01/03Date: 2003.05.24Page 25 (31) Photo No.: 04
