PLJWD633Weather Station Receiver

GETTING STARTED button placement 1 7 6 8 9 2 3 4 5 MINUTE/-/MIN: shows minimum temperature; adjusts clock, alarm, date & year and temperature alarm values MODE/SNOOZE: scrolls through Clock 1 & 2, Alarm 1 & 2, Date & Year, and Temperature Alarm (high & low) mode; snooze for alarm SET: changes channel and house code; toggle between C and F RESET: resets channel and house code Battery compartment LCD display ALARM/(C/F): toggles between C and F, 12 and 24 hour format, Alarm 1 & 2 on and off; disables (resets) high & low temperature alarms CHN: scrolls through remote channels (1 to 4); scrolls through local and remote channels (1 to 4) in (high & low) temperature alarm mode HOUR/+/MAX: shows maximum temperature; adjusts clock, alarm, date & year and temperature alarm values S E T R E S E T 7 6 8 WD633 + WT260H Wireless Weather Station battery installation GETTING STARTED 1 1 2 2 3 4 remove battery cover 2 AA size batteries (WD633) 2 AAA size batteries (WT260H) (included) Insert between terminals observing proper polarity then replace cover LOW BATTERY INDICATION: SETUP Clock 1 Setting: Press and hold MODE for 3 seconds to enter the clock setting mode (the CLOCK 1 symbol appears and the time will flash) Press HOUR to set the hour and MINUTE to set the minute; Press ALARM/(C/F) during clock setting, to change between 12 and 24 hour display. This also will end clock setting. Press MODE or do not press any key for 1 minute to finish clock setting. Clock 2 Setting: Scroll to Clock 2 mode using MODE Press + or - key to change the hour (in one hour increments/decrements relative to Clock 1) Automatic Learn Function: Manual-Learn (Searching for Remote Signals): Learn function executes automatically and runs for approximately 3 minutes when batteries are first installed in the receiver. Press and hold CHN for 3 seconds to start If a new remote transmitter is added or if signal is lost (outdoor display blinking), learn function must be executed again. Within these 3 minutes, receiver picks up the temperature & humidity signals from remote transmitter and displays the readings. Beep sound indicates that learn function has started 'Channel' symbol will flash and unit will beep as each remote transmitter is detected Temperature & humidity readings of remote transmitter displays on the receiver. Alarm 1and Alarm 2 Setting Scroll to Alarm1 mode (Alarm2 mode) using MODE Press HOUR to set hour Press MINUTE to set minute Press ALARM to toggle alarm on and off When the alarm is set ON, the 'on' symbol will appear When Alarm Sounds or will flash Press SNOOZE to snooze the alarm for 5 minutes. After that the alarm will sound again. Press ANY other key will shut off the alarm. Without interruption, alarm will shut off automatically after one minute. Date Setting: Scroll to date mode using MODE Press HOUR/+/MAX to set month Press MINUTE/-/MIN to set date Weekday is automatically determined from the year/month/day setting S E T R E S E T setting remote transmitters S E T R E S E T 1 2 35 4 1 1 Press RESET to start House code will flash for 10 seconds 2 2 * Use a different house code if your weather station detects other signals from neighboring sources * Factory default: house code = 01 and channel = 01 DATE, YEAR & ALARM SETTING 1 1 a 2 2 b 3 3 c 4 d 5 3 3 4 4 5 Select house code (1-15) by pressing SET Channel will flash for 10 seconds Select channel(1-4) by pressing SET Remote transmitters for each receiver must be set to the same house code. February will have either 28 or 29 days depending on the year setting Receiver: Low battery indicator will flash continuously when batteries need replacing Remote transmitter: Lo bat will appear on transmitter’s LCD along with a low battery indication next to the corresponding channel on the receiver’s LCD Year Setting Scroll to YEAR mode using MODE Press + or - key to adjust year e f WD633 receiver 1 2 3 5 4 f b a c e f d 2 1 3 f 2 3 4 5 1 Check Remote Temperature & Humidity Check Local Temperature C or F Temperature Display Min and Max Temperature & Humidity A * B C D WEATHER DISPLAY Press CHN to toggle between Channel 1, 2, 3 and 4. Temperature and humidity readings will alternate on the receiver. Local temperature displays instantly after batteries are inserted. Toggle between C and F by pressing C/F in either Clock 1 or Clock 2 mode. Press MIN in Clock 1 mode to display minimum temperature and humidity Press MAX in Clock 1 mode to display maximum temperature and humidity 1 9 Moon Phase Display MOON PHASE The moon phase is automatically updated according to the year/month/day. New Moon 9 New Moon 1 Young Crescent 2 First Quarter Waxing Gibbous Full Moon Waning Gibbous Last Quarter Old Crescent 8 7 6 5 4 3 MOON PHASE MOON PHASE MOON PHASE MOON PHASE MOON PHASE MOON PHASE MOON PHASE MOON PHASE MOON PHASE 1 45 26 3 MOON PHASE Congratulations on your purchase of this weather station set, WD633 + WT260H. Please take the time to read and understand this manual so you can begin to enjoy the convenience and features this product has to offer. FEATURES Main Display Unit WD633: * dual clock and dual alarm * calendar (day/month/year) * local temperature display * receives and displays temperature and humidity from up to 4 remote transmitters via RF technology of 433MHz * maximum/minimum temperature records * temperature and humidity trend indicator * weather report symbols * moon phase symbols * user-selectable C or F * battery type: 2 x AA size Remote Transmitter WT260H: * drip-proof design with LCD * temperature display in user-selectable C or F * humidity display * transmission range: up to 40 meters in open area * battery type: 2 x AAA size synchronization CLOCK SETTING WT260H remote transmitter Note: Min/Max readings are automatically cleared daily at 00:00 * 2 2 4 1 3 MONDAY CLOCK1 OUT IN TREND TREND OWNERS MANUAL C B A D 1 2 3 4 5 6 IN TREND MONDAY Repeat steps to for all other channels if desired Scroll to high temperature alarm mode using MODE Press + or - key to set the …

Text truncated - open the document above for the full version.

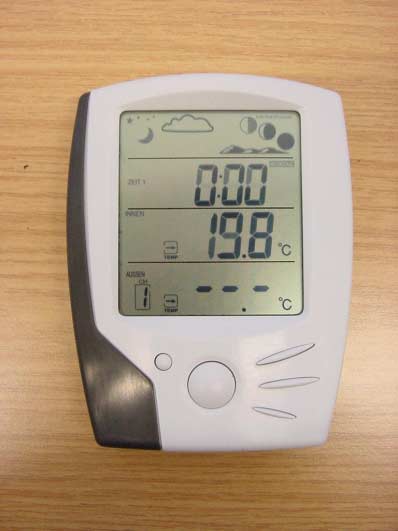

CETECOM ICT Services GmbH Test report no.: 2_3083-01-02/02Issue Date: 2002-12-03Page 16 (20) Photographs of the equipment Photograph no.: 1 CETECOM ICT Services GmbH Test report no.: 2_3083-01-02/02Issue Date: 2002-12-03Page 17 (20) Photographs of the equipment Photograph no.: 2

CETECOM ICT Services GmbH Test report no.: 2_3083-01-02/02Issue Date: 2002-12-03Page 18 (20) Photographs of the equipment Photograph no.: 3 CETECOM ICT Services GmbH Test report no.: 2_3083-01-02/02Issue Date: 2002-12-03Page 19 (20) Photographs of the equipment Photograph no.: 4

CETECOM ICT Services GmbH Radio Satellite Communication Untertürkheimer Straße 6–10, D-66117 Saarbrücken, Telephone +49 (0) 681 598- 0, Fax +49 (0) 598 9075 Test report No.: 2_3083-01-02/02This test report consists of 27 pagesPage 1 (20) Recognized by the Federal Communications Commission FCC–Identification Number: 90462 TCB ID: DE 001 Accredited by the German Accreditation Council DAR–Registration Number TTI–P–G 166/98 Independent ETSI compliance test house ETSI Accredited Bluetooth™ Test Facility (BQTF) Test report No. : 2_3083-01-02/02 Applicant : Mandolyn Int. Ltd. Type : WD633 FCC–ID No : PLJWD633 BLUETOOTH is a trademark owned by Bluetooth SIG, Inc. and licensed to CETECOM CETECOM ICT Services GmbH Test report No.: 2_3083-01-02/02Date: 2002-12-03Page 2 (20) Table of contents 1 General information 1.1 Notes 1.2 Testing laboratory 1.3 Details of applicant 1.4 Application details 1.5 Test item 1.6 Test specifications 2 Technical test 2.1 Summary of test results 2.2 Test report CETECOM ICT Services GmbH Test report no.: 2_3083-01-02/02Issue Date: 2002-12-03Page 3 (20) 1 General information 1.1 Notes The test results of this test report relate exclusively to the test item specified in 1.5. The CETECOM ICT Services GmbH does not assume responsibility for any conclusions and generalisations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the CETECOM ICT Services GmbH. Test laboratory manager: 2002-12-03RSC - 8411Berg M.. DateSectionNameSignature Technical responsibility for area of testing: 2002-12-03RS - 8412Hausknecht D. DateSectionNameSignature CETECOM ICT Services GmbH Test report no.: 2_3083-01-02/02Issue Date: 2002-12-03Page 4 (20) 1.2 Testing laboratory CETECOM ICT Services GmbH Untertürkheimer Straße 6 - 10 66117 Saarbrücken Germany Telephone: + 49 681 598 - 0 Telefax : + 49 681 598 - 9075 E-mail: [email protected] Internet: www.cetecom-ict.de Accredited testing laboratory Accredited by: Regulierungsbehörde für Telekommunikation und Post (RegTP) Listed by: Federal Communications Commission (FCC) AuthorityIdentification/Registration No. RegTPTTI-P-G 166/98-30 FCC90462 1.3Details of applicant Name :W.H. Mandolyn International Ltd. Street :Unit 1003-8 Landmark North 39 Lung Sum Avenue; Sheung Shui City :N.T. Hong Kong Country :N.T. Hong Kong Telephone:+(852) 2670 9733 Telefax :+(852) 2673 0337 E-mail :[email protected] Contact person: Name : Shirley Chan Telephone : +(852) 2670 9733 Telefax : +(852) 2673 0337 E-mail : [email protected] 1.4Application details Date of receipt of test item : 2002-11-14 Date of test: 2002-12-03 Person(s) who have been : -.- present during the test CETECOM ICT Services GmbH Test report no.: 2_3083-01-02/02Issue Date: 2002-12-03Page 5 (20) 1.5Test item Type of equipment : Receiver Type designation:Model WD633 Manufacturer:Same as applicant Street: City: Country: Serial number:- / - Additional information : Frequency:433.92 MHz Type of modulation:A1D Channel spacing:>25 kHz Number of channels :1 Antenna:Integral antenna Power supply:2x 1.5 V Alkaline Batteries Temperature range :-20°C - +55°C FCC ID :PLJWD633 1.6Test specifications: FCC Part 15 §15.109 CANADA ICES0003 CETECOM ICT Services GmbH Test report no.: 2_3083-01-02/02Issue Date: 2002-12-03Page 6 (20) 2 Technical test 2.1 Summary of test results The radiated measurements were performed vertical and horizontal over the whole frequency range. We start at 1 m high with vertical receiving antenna and rotate the dish continuously. During rotation we use the antenna lift system to vary the high from 1 to 4 m. So we find maximum radiation output. At this points we do manual re-measurements. After this we do the same measurements in horizontal position of the receiving antenna. This (horizontal and vertical) is made for all the three planes of the test sample. We use the maximum received results. The detector function and selection of bandwidth are according ANSI C63.2-1996 item 8.2.1 and ANSI C63.4-1992 Item 4.2. Antennas are conform with ANSI C63.2-1996 item 15. 150 kHz - 30 MHz: Quasi Peak measurement, 9kHz Bandwidth, passive loop antenna. 30 MHz - 200 MHz: Quasi Peak measurement, 120KHz Bandwidth, biconical antenna 200MHz - 1GHz: Quasi Peak measurement, 120KHz Bandwidth, log periodic antenna 1GHz: Average, RBW 1MHz, VBW 10 MHz, waveguide horn All measurement settings are according to FCC 15.35, 15.205, 15.209, 15.109 . The product fulfills also the requirements for CANADA ICES0003 No deviations from the technical specification(s) were ascertained in the course of the tests performed. CETECOM ICT Services GmbH Test report no.: 2_3083-01-02/02Issue Date: 2002-12-03Page 7 (20) 2.2Test report TEST REPORT Test report no. : 2_3083-01-02/02 CETECOM ICT Services GmbH Test report no.: 2_3083-01-02/02Issue Date: 2002-12-03Page 8 (20) TEST REPORT REFERENCE LIST OF MEASUREMENTS ParagraphPARAMETER TO BE MEASUREDPAGE RECEIVER PARAMETERS § 15.109Spurious radiation - Radiated9 Test equipment listing13 Photographs of the equipment15 CETECOM ICT Services GmbH Test report No.: 2_3083-01-02/02Date: 2002-12-03Page 9 (20) Receiver EMISSION LIMITATIONS- Radiated § 15.109 EMISSION LIMITATIONS f (MHz) polari- zation amplitude of emission (dBμV/m) QUASIPEAK amplitude of emission (dBμV/m) average limit max. allowed emmision power (dBμV/m) results Therewereno peaksfound see plotnext page Measurement uncertainty± 3dB Limits SUBCLAUSE § 15.109 Frequency (MHz)Field strength (μV/m)Measurement distance (m) 0.009 - 0.4902400/F(kHz)300 0.490 - 1.70524000/F(kHz)30 1.705 - 30.03030 30 - 881003 88 - 2161503 216 - 9602003 above 9605003 CETECOM ICT Services GmbH Test report no.: 2_3083-01-02/02Issue Date: 2002-12-03Page 10 (20) EMISSION LIMITATIONS- Radiated < 30 MHz § 15.109 Rec…
