PLQENC900Transmitter Module

Operating Manual Model: ENC-900 900 MHz Spread Spectrum OEM Transceiver Revision 1.00, February 23, 2005 Encom Wireless Data Solutions Inc. #7-640, 42 nd Ave. N.E. Calgary, Alberta T2E 7J9 Phone: (403) 230-1122 Fax: (403) 276-9575 http://www.encomwireless.com/ RF EXPOSURE This module has been designed to comply with FCC RF exposure requirements outlined in Parts 2.1091, 2.1093, and 15.247(b)(4). Deviation from the recommended installation may violate RF exposure requirements. The manual for end users of the final product which incorporates the ENC-900 module must contain the following statement in a prominent location: To comply with FCC RF exposure requirements for mobile transmitting devices, this transmitter should only be used or installed at locations where there is at least 20cm separation distance between the antenna and all persons. FCC NOTIFICATIONS The ENC-900 module generates radio frequency energy. It must be installed according to the manufacturer’s guidelines or it has the potential to cause interference with other radio devices. Testing has been performed to assure that it conforms with the FCC Part 15 rules for intentional and unintentional radiators. No further EMI compliance testing of the transmitter is required as long as the 20 cm separation and co- location requirements are observed. Each new use of the module will, however, always need to be scanned for unintentional radiation from digital clocks, etc. All necessary calibration has been performed at the time of manufacture. Any modification of the device after it leaves the factory is a violation of FCC rules. Compliance Statement (Part 15.19) This device complies with Part 15 of the FCC Rules and with RSS-210 of Industry Canada. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. Warning (Part 15.21) Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. RF Exposure (OET Bulletin 65) To comply with FCC RF exposure requirements for mobile transmitting devices, this transmitter should only be used or installed at locations where there is at least 20cm separation distance between the antenna and all persons. LABELING REQUIREMENTS The FCC requires that the Part 15 statement be installed on the outside of the final product in a manner which allows it to be seen and read. The accepted statement and a sample label format are as follows: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. Contains TX FCC ID: PLQENC900 Canada: 3966A-ENC900 S/N: XXXYYYZZZ MODEL: ENC-900 Made in Canada The label should be printed or molded into the case using a type front and size that is readable with the unaided eye. The FCC identification number is required. Industry Canada Statement The term “IC” before the certification / registration number only signifies that the Industry Canada technical specifications were met. 900 MHz Spread-Spectrum OEM Radio Modem WARNING In order to comply with the FCC/IC adopted RF exposure requirements, this transmitter system will only be installed according to manufacturer’s Installation Guidelines. Installation of all antennas must be performed in a manner that will provide at least 20cm clearance from the front radiating aperture, to any user or member of the public. EQUIPMENT LABELING The manufacturer, product name, and FCC and Industry Canada identifiers of this product must appear on the outside label of the end-user equipment. This manual contains information of proprietary interest to Encom Wireless Data Solutions Inc. It has been supplied in confidence to purchasers an d users of the ENC-900,and by accepting this material the recipient agrees that the contents will not be copied or reproduced, in whole or in part, withou t prior written consent of Encom Wireless Data Solutions Inc. Encom Wireless Data Solutions Inc. has made every effort to assure that this document is accurate an d complete. However, the company reserves the right to make changes or enhancements to the manual and/or the product described herein at any time and without notice. Furthermore, Encom Wireless Data Solutions Inc. assumes no liability resulting from any omissions in this document, or out of the application or use of the device described herein. Encom’ products are appropriate for home, office, o r industrial use, but are not authorized for utilization in applications where failure could result in damage to property or human injury or loss of life. The electronic equipment described in this manual generates, uses, and radiates radio frequency energy. Operation of this equipment in a residential area may cause radio interference, in which case the user, a t his own expense, will be required to take whatever measures necessary to correct the interference. FCC Declaration of Conformity This device complies with Part 15 of the FCC Rules. Operation is sub ject to the following two conditions: (1) this device ma y not cause harmful interference, and (2) this device must accept an y interference received including interference that may cause undesired operation. Encom Wireless Data Solutions Inc., products are warrante d against all failures which occur as a result of defective material or workmanship within 24 months of purchase by the user. This warranty does not extend to products that, in the opinion of Encom Wireless Data Solutions Inc.., have been subject to misuse, accidents, lightning strikes, improper installation o r application, nor shall it extend to units which have, in Encom Wireless Data Solutions Inc.’s opinion, been opened, tampered with or …

Text truncated - open the document above for the full version.

ENCOM Wireless Data Solutions Inc. #7, 640 - 42 Avenue NE Calgary, Alberta, Canada T2E 7J9 Phone (403) 230-1122 Fax (403) 276-9575 www.encomwireless.com Wireless Solutions for Traffic Monitoring and Control Date: May 31, 2004 To: FEDERAL COMMUNICATIONS COMMISSION 7435 Oakland Mills Road Columbia, MD 21046 Subject: Request for Non disclosure for FCC ID: PLQ - ENC900. To Whom It May Concern: Pursuant to 47 CFR Section 0.459, ENCOM Wireless Data Solutions Inc. hereby requests non disclosure and confidential treatment of the following materials submitted in support of FCC certification application for FCC ID # PLQ - ENC900. a. Schematic Diagrams b. Operational Description c. Block Diagram Above materials contain trade secrets, proprietary and technical information which would customarily be guarded from competitors under 47 CFR section 0.457(d)(2). Disclosure or publication of any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. ENCOM Wireless Data Solutions Inc. understands that pursuant to 47 CFR section 0.457(d)(1)(ii) disclosure of the applicant and all accompanying documentation will not be made before the date of the grant. Sincerely yours, Mike Kwan Vice President, Engineering ENCOM Wireless Data Solutions Inc.

Page 1 of 2 Loc: P:\Radio Project\FCC Testing\FCC Documents\Antenex Omni FG9026 spec.doc Orig: Created on 1998/10/22 PM 12:00:00 Rev: 1998/10/22 PM 12:00:00 Confidential Information ANTENNA SPECIFICATIONS MODEL FG9026 ELECTRICAL SPECIFCATIONS Frequency Range: 902-928 MHz Gain: 6 dBd gain, requires no ground plane VSWR: 1.5:1 Input Impedance: 50 ohms, DC grounded Maximum Power input: 200 Watts Lightning Protection: DC grounded MECHANICAL SPECIFICATIONS Construction: No site assembly required. All copper radiating structure enclosed in a weather-sealed, UV suppressed fiberglass tube. Gold anodized mounting sleeve and end cap. Mounting Sleeve: Heavy wall epoxy coated aluminum Overall Length: 65 inches Weight: 6 lbs. Termination Type: Type N female Rated Wind Velocity: 125 mph Shipping: UPS shippable Page 2 of 2 Loc: P:\Radio Project\FCC Testing\FCC Documents\Antenex Omni FG9026 spec.doc Orig: Created on 1998/10/22 PM 12:00:00 Rev: 1998/10/22 PM 12:00:00 Confidential Information

ELECTRICAL SPECIFICATIONS BW947Y 806-985 MHz ORDERING INFORMATION PART# FREQUENCY RANGE806-985 MHz NOMINAL GAIN (typical) 10 dBd BANDWIDTH VSWR 1.5 70-90 MHz FRONT TO BACK RATIO20 dB HORIZONTAL BEAMWIDTH (at half power points) for vertical polarization50 ° VERTICAL BEAMWIDTH (at half power points) for vertical polarization45 POWER RATING 200 W LIGHTNING PROTECTION DC ground TERMINATION N-Male ° MECHANICAL SPECIFICATIONS LENGTH24" (610 mm) WIDTH @ 806 MHz6.8" (173 mm) WEIGHT1.5 lbs. (.7kg.) RATED WIND VELOCITY 125 mph (201 kph) RATED WIND VELOCITY (with .5 inch radial ice) 120mph (193 kph) LATERAL THRUST @ 100 mph WIND VELOCITY 6 lbs. (2.7 kg) PROJECTED AREA (flat plane equivalent) .24 ftsq (.022 msq) BW947Y-1 BW947Y-2 BW947Y-3 FREQUENCY 806-896 MHz 890-960 MHz 945-985 MHz HORIZONTAL PATTERN FOR HORIZONTAL POLARIZATION HORIZONTAL PATTERN FOR VERTICAL POLARIZATION The has been engineered to meet the requirements of a high gain, broadband, premium quality antenna. This antenna provides 10 dBd gain and operates in the range. The is manufactured using high strength 6061-T6 aluminum to withstand heavy ice, high wind and other extreme conditions. Our patented dipole design has an integral feed line and is welded to the boom for extra strength. This also eliminates misalignment or fastener problems. The entire antenna is anodized for appearance and corrosion resistence. A heavy duty clamp is supplied which easily permits horizontal or vertical polarization. The is available with custom feed-line lengths up to 50 ft on special order. BW947Y 806-985 MHzBW947Y BW947Y MOUNTING INFORMATION C1001 mounting bracket complete with hardware is supplied to mount BW947Y on a 1.50-2.38” Dia. mast. Allows horizontal or vertical polarization. © Bluewave Antenna Systems Ltd. 7935 - 8 Street N.E. CALGARY, ABCANADAT2E 8A2PHONE: 403.291.4422FAX; 403.219.3644 EMAIL: [email protected] WEBSITE: www.bluewaveantenna.com TOLL FREE: 1.888.334.9244

ENCOM Wireless Data Solutions Inc. #7, 640 - 42 Avenue NE Calgary, Alberta, Canada T2E 7J9 Phone (403) 230-1122 Fax (403) 276-9575 www.encomwireless.com Wireless Solutions for Traffic Monitoring and Control Re: Modular Transmitter Approval FCC ID: PLQENC900 Gentlemen, The following information is being provided per the requirements of DA00-1407 regarding modular approval of Part 15 devices. This transceiver is a complete RF module with an integral reference oscillator. External connections are provided for power, data communication, and antenna. The following numbered items correspond to similarly numbered paragraphs in DA00- 1407. Each item is a response to the requirements of that document. 1) The module has integral RF shielding to isolate it from surrounding equipment and the larger environment in general. 2) All inputs are processed as data by the on-board microcontroller. The outside user has no direct control of transmit modulation. 3) There is not a hardware voltage regulator on board. Instead, the microcontroller monitors power supply voltage on a continuous basis. Should the supply voltage be found to be outside of the normal specified operating parameters the unit will refuse to transmit. Further, conducted testing has shown that that unit operates within the stated Part 15 requirements when operated within the specified supply voltage range. (For FCC information only, the allowable operating voltage range is from 3.75VDC to 3.85VDC, the embedded microprocessor will refuse to transmit if supply voltage outside this range). 4) A NON standard MCX style connector is employed to prevent the use of antennas other than the type specified. ENCOM is also offering an RF jumper cable from MCX to RPTNC and permanently connected RPTNC pigtail in all the approved antennas. This is in accordance with Part 15.203. 5) The module was tested in a stand-alone configuration and found to be compliant with Part 15 regulations. ENCOM Wireless Data Solutions Inc. #7, 640 - 42 Avenue NE Calgary, Alberta, Canada T2E 7J9 Phone (403) 230-1122 Fax (403) 276-9575 www.encomwireless.com Wireless Solutions for Traffic Monitoring and Control 6) An FCC ID label is affixed to each unit at the time of manufacture. Information is also clearly presented in the user guide about labeling requirements for the final assembly. 7) This unit is compliant with Part 15.247. Installation and other requirements are presented in the user guide to allow the unit to be correctly installed. 8) The unit is compliant with the RF exposure requirements of Parts 15.247, 15.1091, and 15.1093. Further information may be obtained from Encom Wireless Data Solutions Inc. Sincerely, Mike Kwan VP-Engineering ENCOM Wireless Data Solutions Inc

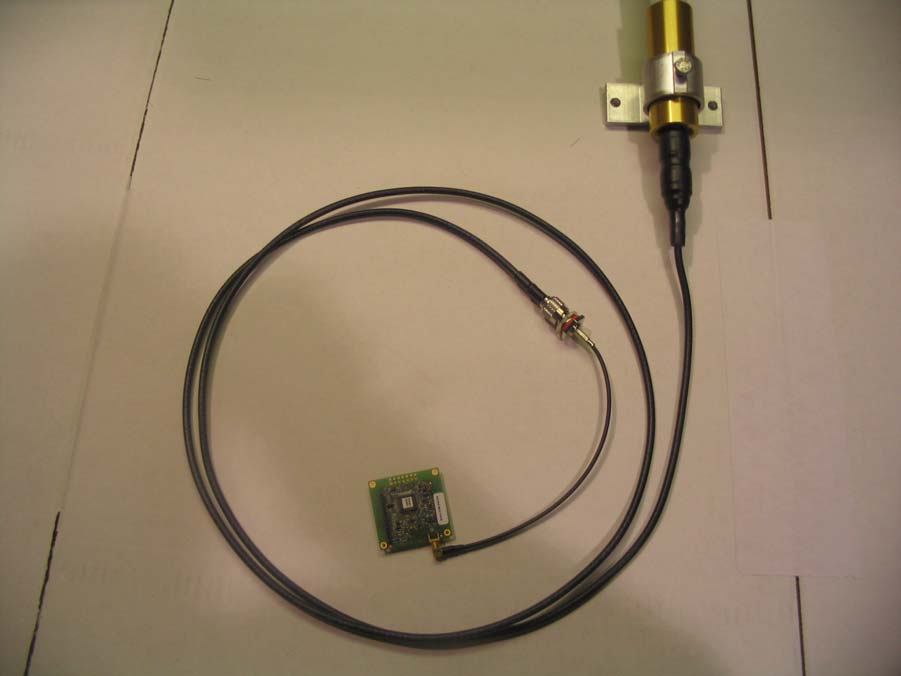

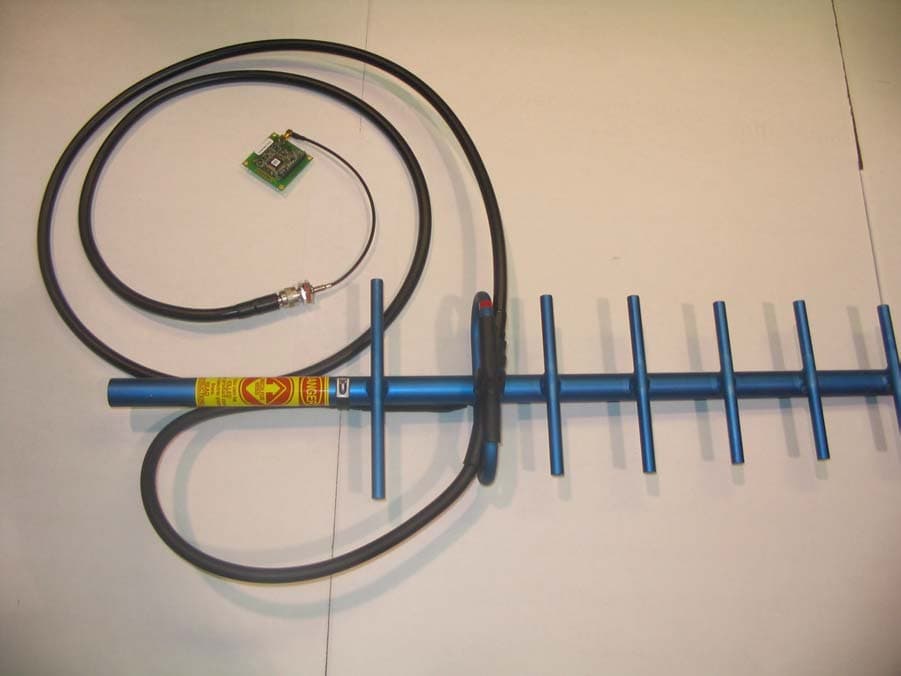

Encom Wireless Data Solutions, Inc. 900MHz Spread Spectrum Module 902 – 928 MHz FCC ID: PLQ-ENC900 Photo One – External Shielded Radio Module with No Antennas Connected Encom Wireless Data Solutions, Inc. 900MHz Spread Spectrum Module 902 – 928 MHz FCC ID: PLQ-ENC900 Photo Two – External Radio Module with Shielding Removed Encom Wireless Data Solutions, Inc. 900MHz Spread Spectrum Module 902 – 928 MHz FCC ID: PLQ-ENC900 Photo Three – External Flip Side of Radio Module Encom Wireless Data Solutions, Inc. 900MHz Spread Spectrum Module 902 – 928 MHz FCC ID: PLQ-ENC900 Photo Four – External Radio Module with FCC ID Label and Coax Antenna Cable Encom Wireless Data Solutions, Inc. 900MHz Spread Spectrum Module 902 – 928 MHz FCC ID: PLQ-ENC900 Photo Five – External Close-up of FCC ID Label Encom Wireless Data Solutions, Inc. 900MHz Spread Spectrum Module 902 – 928 MHz FCC ID: PLQ-ENC900 Photo Six – External Nearson Antenna attached by Coax Cable Encom Wireless Data Solutions, Inc. 900MHz Spread Spectrum Module 902 – 928 MHz FCC ID: PLQ-ENC900 Photo Seven – External Nearson Antenna overview of Connection

Encom Wireless Data Solutions, Inc. 900MHz Spread Spectrum Module 902 – 928 MHz FCC ID: PLQENC900 Photo Eleven – External Unique - Mono Pole Antenna Connection Encom Wireless Data Solutions, Inc. 900MHz Spread Spectrum Module 902 – 928 MHz FCC ID: PLQENC900 Photo Twelve – External Unique - Mono Pole Antenna Connection Close Up Encom Wireless Data Solutions, Inc. 900MHz Spread Spectrum Module 902 – 928 MHz FCC ID: PLQENC900 Photo Eight – External Unique - Yagi Antenna Connection Encom Wireless Data Solutions, Inc. 900MHz Spread Spectrum Module 902 – 928 MHz FCC ID: PLQENC900 Photo Nine – External Unique - Yagi Antenna Connection Close Up

ENCOM Wireless Data Solutions Inc. #7, 640 - 42 Avenue NE Calgary, Alberta, Canada T2E 7J9 Phone (403) 230-1122 Fax (403) 276-9575 www.encomwireless.com Wireless Solutions for Traffic Monitoring and Control FCC ID Label File and Material Specifications Technical Data Sheet Fasson Roll North America Phone: 800-944-8511 www.fasson.com Fasson® 2 Mil Matte Chrome Polyester TC/S333/50# SCK ABC Spec# 72826 Facestock: Fasson® 2 Mil Matte Chrome Polyester TC is a matte finished metallic film featuring excellent tear strength, heat resistance, dimensional stability, opacity and chemical resistance. Designed for printing with most solvent and some water-based flexographic inks. Suitable for thermal transfer printing applications with select thermal transfer ribbons. Specific testing required. Caliper: 0.002 inches ± 10% Tensile: MD 18,000 psi CD 18,000 psi Adhesive: Fasson® S333 is an excellent, general purpose industrial grade clear adhesive. Features high initial tack, ultimate adhesion and low adhesive ooze. Minimum Application Temperature: +25° F ENCOM Wireless Data Solutions Inc. #7, 640 - 42 Avenue NE Calgary, Alberta, Canada T2E 7J9 Phone (403) 230-1122 Fax (403) 276-9575 www.encomwireless.com Wireless Solutions for Traffic Monitoring and Control Service Temperature Range: -40° F to 300° F (-40° C to 149° C) Typical Performance Data: Typical values, not for specification use (see attached Appendix 1 and 2). Liner: 50# SCK is a bleached, super calendered paper stock with very good die-cutting and matrix stripping properties. Supplied with an Anti Block Coating on the backside of the liner to control adhesive and label transfer to the backside of the liner in finished, wound rolls. This liner should not be used in fanfolded label applications and is not recommended for back printability. Basis Weight: 56.5# per ream ±10% (24" X 36" 500 sheets) Caliper: 0.0032 inches ± 10% Tensile: MD 51# per inch width CD 23# per inch width Tear: MD 56 grams per sheet CD 71 grams per sheet Total Construction Caliper: 0.0061 inches ± 10% Printing/Converting The topcoat allows for printing by flexography without the need for specially formulated inks. However, testing is recommended prior to ink selection. This product can be die-cut and stripped at high speeds on standard web-fed presses. Sample labels in a variety of shapes have been dispensed and applied successfully with standard labeling systems. Applications and Uses This product is suitable for use in a wide range of durable labeling applications. This product is also UL recognized for indoor/outdoor service. See file #MH8212 and MH 17205 for specific details. Also recognized component of CSA (Canadian Standards Association). Shelf Life Unless specified otherwise in this document, one year when stored at 72°F at 50% RH Statement of Practical Use As with all pressure sensitive materials, this product should be tested thoroughly under end-use conditions to ensure it meets the requirements of the specific application. ENCOM Wireless Data Solutions Inc. #7, 640 - 42 Avenue NE Calgary, Alberta, Canada T2E 7J9 Phone (403) 230-1122 Fax (403) 276-9575 www.encomwireless.com Wireless Solutions for Traffic Monitoring and Control ENCOM Wireless Data Solutions Inc. #7, 640 - 42 Avenue NE Calgary, Alberta, Canada T2E 7J9 Phone (403) 230-1122 Fax (403) 276-9575 www.encomwireless.com Wireless Solutions for Traffic Monitoring and Control Appendix 1: Performance Data Fasson® 2 Mil Matte Chrome Polyester TC/S333/50# SCK ABC Spec# 72826 Note: The following technical data should be considered representative or typical only and should not be used for specification purposes. Peel Adhesion: 180 o and 90 o peel test. Initial (15 minute dwell) 72 Hours at Room Temperature 180 o Peel 90 o Peel 180 o Peel 90 o Peel Surface: oz/in N/100mmoz/in N/100mmoz/in N/100mm oz/in N/100mm Stainless Steel 36.5 40.1 24 26.4 61.1 67.2 30.4 33.4 Aluminum 40.5 44.5 20.8 22.8 75.4 82.9 32 35.2 Enamel 32 35.2 19.2 21.1 30.4 33.4 25.6 28.2 Polypropylene 15 15.8 6.4 7 27.2 29.9 13.8 15.1 HDPE 17 18.7 9.6 10.6 22.2 24.5 17.3 19 LDPE 1.9 2.1 1.6 1.8 7.5 8.3 3.2 3.5 ABS 27.2 29.9 22.4 24.6 43.2 47.5 25.6 28.2 72 Hours 96 Hours at 120 o F at 150 o F (65 o C) 80% Relative Humidity 180 o Peel 90 o Peel 180 o Peel Surface: oz/in N/100mmoz/in N/100mmoz/in N/100mm Stainless Steel 75.6 82 54.4 59.8 48 52.8 Aluminum 80.2 88.2 46.4 51 54.4 59.8 Enamel 51.2 56.3 41.6 45.8 48 52.8 Polypropylene 25.3 27.8 12.8 14.1 19.2 21.1 HDPE 21.8 23.9 15.5 17.1 22.4 24.6 ENCOM Wireless Data Solutions Inc. #7, 640 - 42 Avenue NE Calgary, Alberta, Canada T2E 7J9 Phone (403) 230-1122 Fax (403) 276-9575 www.encomwireless.com Wireless Solutions for Traffic Monitoring and Control LDPE 2.4 2.6 3.2 3.5 4.8 5.3 ABS 20.8 22.9 17.6 19.4 32 35.2 Liner Release: 90 o removal of Liner from Facestock. Loop Tack: LoopTack Rate of Removal Grams/2" Width oz/in N/100mm 400 inches/min. 80.16 Stainless Steel 32 35 ENCOM Wireless Data Solutions Inc. #7, 640 - 42 Avenue NE Calgary, Alberta, Canada T2E 7J9 Phone (403) 230-1122 Fax (403) 276-9575 www.encomwireless.com Wireless Solutions for Traffic Monitoring and Control Appendix 2: Environmental Performance Data Fasson® 2 Mil Matte Chrome Polyester TC/S333/50# SCK ABC Spec# 72826 Chemical Resistance: The performance results are based on 4 hour immersions at room temperature unless otherwise noted (gasoline is 1 hour). Samples were applied to stainless steel panels and conditioned for 24 hours before immersion and evaluated immediately upon removal. Adhesion measured at 180° peel. Adhesion to Stainless Steel Visual Edge Chemical oz/in N/100mm Appearance Penetration mm Isopropyl Alcohol 30.4 33.4 No Change 0.89 Tide® Detergent 32.0 35.2 No Change 0.00 Engine Oil (10W30) 41.6 45.8 No Change 0.00 Water 38.4 42.2 No Change 0.00 Ammonia Not Recommended 409® Cleaner 22.4 24.6 No Change 0.00 Toluene 27.2 29.9 No Change 7.24 Brake Fluid 36.0 39.6 No Change 2.16 Gasoline 24.8 27.3 No Change 4.19 Kerosene K1 32.6 …
