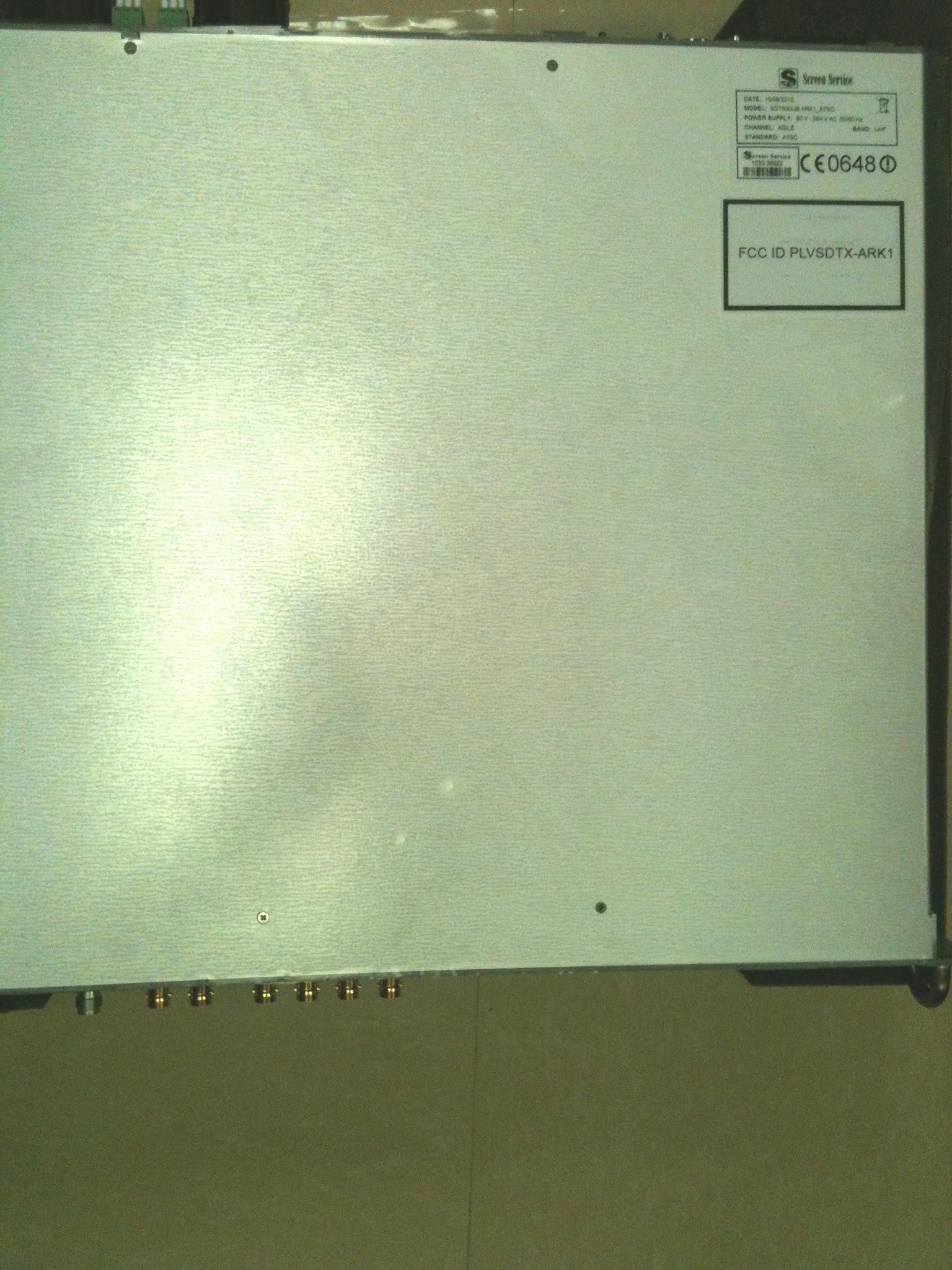

PLVSDTX-ARK120 Watt Multimode SDR Transmitter

SDT 200UB – SDT 500UB ARK-1 ATSC Software Defined Transmitter Screen Service OPERATION MANUAL July 2009 - Version 1.0 © 1997 - 2009. Copyright by: Screen Service Broadcasting Technologies S.p.A. Via Giuseppe Di Vittorio, 17 25125 Brescia, Italy All rights reserved. All specifications, characteristics and circuit descriptions set forth in this manual are subject to change without notice. SDT 200UB - 500UB ARK-1 ATSC Software Defined Transmitter OPERATION MANUAL July 2009 - Version 1.0 © 1997 – 2009. Copyright by: Screen Service Broadcasting Technologies S.p.A. Via Giuseppe Di Vittorio, 17 25125 Brescia, Italy All rights reserved. All specifications, characteristics and circuit descriptions set forth in this manual are subject to change without notice. Screen Service SDT 500UB ARK-1 ATSC Contents July, 2009 v 1.0 ii SDT 500UB ARK-1 ATSC Software Definable Transmitter OPERATION MANUAL LIST OF CONTENTS CHAPTER 1: GENERAL INFORMATION Gives information on safety procedures and good practices to follow using the equipment. CHAPTER 2: PURPOSE AND PLANNING Introduction to the manual, technical specifications, brief functional description with block diagram. CHAPTER 3: OPERATIONS Installation and unpacking instructions, mounting specifications, controls and connections, first time operating procedures and channel changing procedures. CHAPTER 4: TECHNICAL INFORMATION Provides technical information on all modules including schematic diagrams and components layouts. CHAPTER 5: MANUAL CHANGE INFORMATION Contents of this publication may not be reproduced in any form without the written permission of Screen Service Broadcasting Technologies S.p.A. No representation or warranty is given and no liability is assumed by Screen Service Broadcasting Technologies S.p.A. with respect to the accuracy or use of such information, or infringement of patents or other intellectual property rights arising from such use or otherwise. All trademarks mentioned herein are the property of their respective companies. Screen Service SDT 200UB - 500UB ARK-1 ATSC General information July, 2009 v 1.0 Page 1 - 1 SDT 200UB - 500UB ARK-1 ATSC Software Defined Transmitter OPERATION MANUAL 1 GENERAL INFORMATION CONTENTS 1.1 SAFETY SUGGESTIONS ...................................................................................................................... 2 1.2 GENERAL SAFETY RECOMMENDATIONS ......................................................................................... 3 1.3 GOOD PRACTICES ............................................................................................................................... 3 1.4 PROCEDURE FOR ESTABLISH THE ABSENCE OF VOLTAGE......................................................... 4 1.4.1 PROCEDURE FOR DETERMINATION OF THE ABSENCE OF VOLTAGE ................................. 4 1.5 FIRST AID IN CASE OF ELECTRICAL SHOCK.................................................................................... 5 1.5.1 EMERGENCY RESUSCITATION TECHNIQUE............................................................................. 5 1.5.2 TREATMENT FOR BURNS ............................................................................................................6 1.5.3 ELECTRIC SAFETY PRECAUTIONS............................................................................................. 7 1.5.4 COMPONENTS CONTAINING TOXIC MATERIAL HANDLING PRECAUTION ........................... 7 1.5.5 ELECTROSTATIC PRECAUTIONS................................................................................................ 7 1.6 R&TTE DIRECTIVE 1999/5/EC.............................................................................................................. 8 1.7 WASTE ELECTRICAL AND ELECTONIC EQUIPMENT (WEEE) ......................................................... 9 1.8 RADIO LINK SYSTEM SPECIAL ADVISE: EN 50385 STANDARD ...................................................... 9 Screen Service SDT 200UB - 500UB ARK-1 ATSC General information July, 2009 v 1.0 Page 1 - 2 1.1 SAFETY SUGGESTIONS Regardless of how well electrical equipment is designed, personnel can be exposed to dangerous electrical shock when protective covers are removed for maintenance or other activities. Therefore, it is incumbent on the user to see that all safety regulations are consistently observed and that each individual assigned to the equipment has a clear understanding of the first aid related to electrical shocks. (see next pages) In addition these safety practices must be followed: ¾ Do not attempt to adjust unprotected circuit controls or to dress leads with power on. ¾ Always avoid placing parts of the body in series between ground and circuit points. ¾ To avoid burns, do not touch heavily loaded or overheated components without precautions. ¾ Remember that some semiconductor cases and solid-state circuits carry high voltages. ¾ Do not assume that all danger of electrical shock is removed when the power is off. Charged capacitors can retain dangerous voltages for a long time after power is turned off. These capacitors should be discharged trough a suitable resistor before any circuit points are touched. ¾ Don't take chances. Be fully trained. Screen Service Italia equipment should be operated and maintained by fully qualified personnel. ¾ Do not service alone and do not perform internal adjustments of this unit unless another person capable of rendering first aid and resuscitation is present. ¾ Some components used in the construction of this equipment contain Beryllium Oxide (BeO). This substance is harmless as it is, but becomes highly dangerous if it is ground to powder. Special procedures of disposal must be observed in case of failure of these devices. NOTE: This section is not intended to contain a complete statement of all safety precautions which should be observed by personnel in using this electronic equipment or others. Screen Service shall not be responsible for injury or damage resulted from improper pro…

Text truncated - open the document above for the full version.

Screen Service V 1.0 Page 1 - 1 SDT 500 UB ARK 1 FCC SOFTWARE CLARIFICATION CONTENTS 1.1 Summary................................................................................................Error! Bookmark not defined. 1.2 FCC QUESTION....................................................................................Error! Bookmark not defined. 1.3 SCREEN SERVICE ANSWER TO FCC QUESTION.............................Error! Bookmark not defined. 1.3.1 STANDARDS..................................................................................Error! Bookmark not defined. 1.3.2 PARAMETER SETTING.................................................................Error! Bookmark not defined. 1.3.3 SOFTWARE UPGRADING.............................................................Error! Bookmark not defined. Screen Service V 1.0 Page 1 - 2 1.1 INTRODUCTION This note describes the high level software architecture. For each block only few sentence will be given. More detailed description will be provided if required 1.2 BLOCK DIAGRAM Screen Service V 1.0 Page 1 - 3 1.3 BLOCK DESCRIPTION 1 MAIN PROGRAM Initialize the System at the Switch On By the operative system it manages the tasks hereunder described. The tasks run all in parallel mode: a) FILE SYSTEM MANAGEMENT o Management of the configuration files o Any save transmitter action creates a file to be saved o Any reload transmitter action o Any parameters modification transmitter action b) EXTERNAL UART MANAGEMENT o By a proprietary protocol it manages, via serial line (232 level), all the W/R equipment registers c) COMMUNICATION MANAGEMENT o Communication management between microprocessor and the function forming the equipment: o Up converter o Down converter o Modulator d) TLC MANAGEMENT o It manages by the opto (four) the whole equipment o RF on/off o Remote standby o Change mode o Alarm reset e) TLS MANAGEMENT o It manages by the relais (four) the whole equipment o RF on/off (or selected alarm) o Mode selcted (or selected alarm) o Alarm defined by web interface mask (two relais) f) TCP MANAGEMENT o Communication management between microprocessor and web interface: o Micro answer to java request g) SNMP MANAGEMENT o It manages by snmp protocol the following standard SNMP operations o Get operation o Get next operation o Walk operation o Set operation o Trap h) DISPLAY MANAGEMENT o By a communication protocol between main micro and display micro it manages the following operations: o Menu Navigation o Data Settings o Data Refresh

SCREEN SERVICE BROADCASTING TECHNOLOGIES VIA Giuseppe Di Vittorio, 17 25 125 BRESCIA, ITALIA 1 FUNCTIONAL BLOCK DIAGRAM Screen Service Functional Block Diagram Purpose July, 2009 v 1.0 Page 1 - 2 1.1 FUNCTIONAL BLOCK DIAGRAM BOARD MODE SELECTOR RF IN DOWNCONVERTER IF IN 36 MHz ALARM PROCESSOR EVENT PROCESSOR RELAYS MANAGEMENT SNMP TRAP PROCESSOR GbE MANAGEMENT RELAYS AM/PM PRECORRECTION RF Output AMPLIFIER AMPL PWR OFF UPCONVERTER CHANNEL RF 1 PPS external 10 MHz external GPS input GPS Rx CLOCK SELECTION 10 M & 1 PPS GPS 10 M & 1 PPS ATSC Modulator ITU470 Modulator SDI Input 1 SDI Input 2 ATSC MODE ALARMS UPCONVERTER ALARMS CLOCK ALARMS AMPLI/POWER ALARMS SYSTEM ALARMS DOWNCONVERTER ALARMS ALARMS DETECTION Board mode Management OPTO RS 232 LOCAL INTERFACE COMMANDS MAILBOX SNMP SERVER JAVA SERVER OPTO INPUT MANAGEMENT STAND-BY STAND-BY Processor STD-BY command NETWORK MANAGEMENT COMMANDS PROCESSOR SNMP SERVER JAVA SERVER MANAGEMENT COMMANDS RESET COMMANDS OPTO command EVENTS Monitoring IF OUT GPS unlocked alarm 10MHz unlocked alarm GPS communication error alarm 129 MHz unlocked alarm 960 MHz unlocked alarm Down-conv. oscillator unlock alarm Rf input Squelch alarm File system error alarm Bad file in file system alarm No TS Input Up-conv. oscillator unlocked alarm Up-conv commmunication error alarm PSU voltage out of range alarm PSU current out of range alarm High case temperature alarm Absolute power limiter alarm Case temperature warning Case temperature alarm High forward power alarm Low forward power warning Low forward power alarm High reflected power alarm FAN speed alarm AMPLI POWER ALARMS UPCONVERTER ALARMS ATSC MODE ALARMS SYSTEM ALARMS DOWNCONVERTER ALARMS CLOCK ALARMS Warm UP Alarm FPGA Boot Alarm RX ATSC ALARMS ASI output ASI/SSI Input 1 GBe Input ASI/SSI Input 2 ASI/SSI Input 3 ASI/SSI Input 4 ADAPTIVE FILTER I/Q base band IF to AM/PM PRECORRECTION No SDI Input ITU 470 MODE ALARMS Wrong input standard

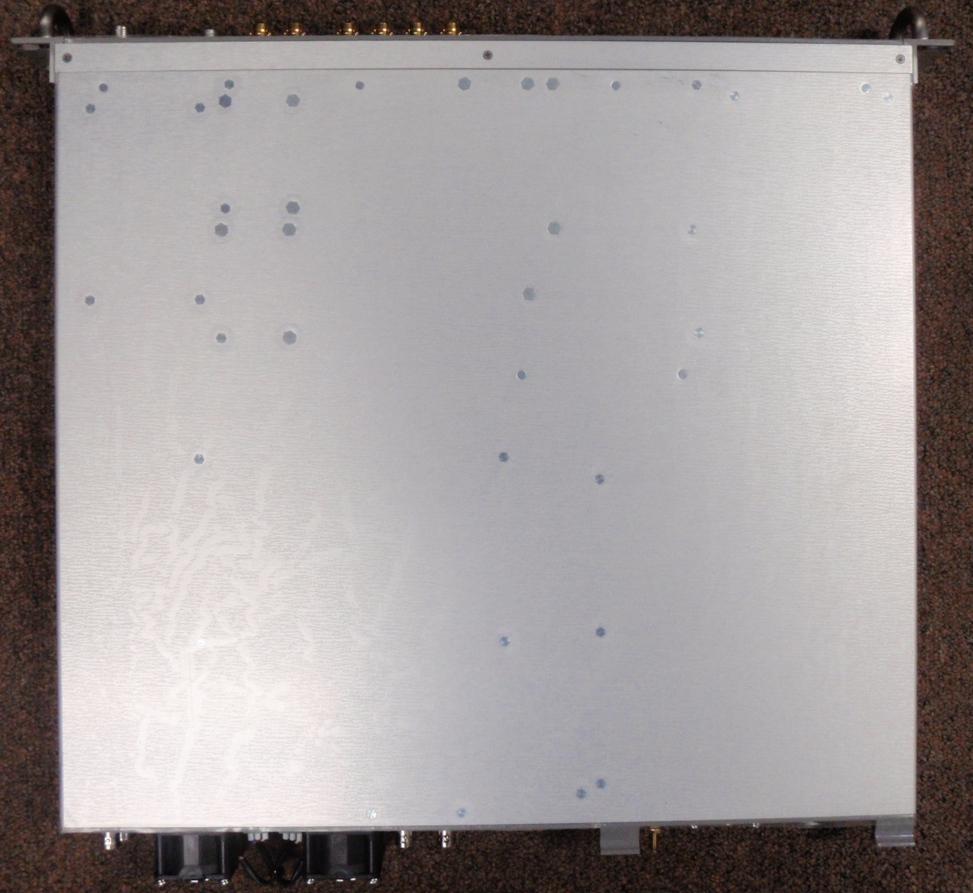

SCREEN SERVICE BROADCASTING TECHNOLOGIES VIA Giuseppe Di Vittorio, 17 25 125 BRESCIA, ITALIA Pagina 1 di 5 1 EXTERNAL PICTURES SCREEN SERVICE BROADCASTING TECHNOLOGIES VIA Giuseppe Di Vittorio, 17 25 125 BRESCIA, ITALIA Pagina 2 di 5 CONTENTS 1.1 PURPOSE .............................................................................................................................................. 3 SCREEN SERVICE BROADCASTING TECHNOLOGIES VIA Giuseppe Di Vittorio, 17 25 125 BRESCIA, ITALIA Pagina 3 di 5 1.1 PURPOSE FRONT VIEW LEFT VIEW RIGHT VIEW REAR VIEW SCREEN SERVICE BROADCASTING TECHNOLOGIES VIA Giuseppe Di Vittorio, 17 25 125 BRESCIA, ITALIA Pagina 4 di 5 TOP VIEW (CLOSED) SCREEN SERVICE BROADCASTING TECHNOLOGIES VIA Giuseppe Di Vittorio, 17 25 125 BRESCIA, ITALIA Pagina 5 di 5 BOTTOM VIEW (CLOSED)

SCREEN SERVICE BROADCASTING TECHNOLOGIES VIA Giuseppe Di Vittorio, 17 25 125 BRESCIA, ITALIA Pagina 1 di 3 1 INTERNAL PICTURES SCREEN SERVICE BROADCASTING TECHNOLOGIES VIA Giuseppe Di Vittorio, 17 25 125 BRESCIA, ITALIA Pagina 2 di 3 CONTENTS 1.1 PURPOSE..............................................................................................................................................3 SCREEN SERVICE BROADCASTING TECHNOLOGIES VIA Giuseppe Di Vittorio, 17 25 125 BRESCIA, ITALIA Pagina 3 di 3 1.1 PURPOSE INTERNAL VIEW (OPEN).

SCREEN SERVICE BROADCASTING TECHNOLOGIES VIA Giuseppe Di Vittorio, 17 25 125 BRESCIA, ITALIA Pagina 1 di 3 1 OPERATIONAL DESCRIPTION SCREEN SERVICE BROADCASTING TECHNOLOGIES VIA Giuseppe Di Vittorio, 17 25 125 BRESCIA, ITALIA Pagina 2 di 3 CONTENTS 1.1 PURPOSE..............................................................................................................................................3 SCREEN SERVICE BROADCASTING TECHNOLOGIES VIA Giuseppe Di Vittorio, 17 25 125 BRESCIA, ITALIA Pagina 3 di 3 1.1 PURPOSE The SDTx ARK1 Transmitter is composed of a sophisticated software controlled ATSC exciter, a linear UHF amplifier, and an emission mask filter. The ATSC exciter is an ATSC professional exciter, designed for the most demanding digital broadcasting applications. It receives the input transport stream and processes the signal. It integrates a modulator module that incorporates modulus/group delay software precorrection as well as AM/PM software pre- correction for the power amplifier and emission mask filter. Very high linearity performance is possible thanks to very careful RF design over the entire UHF band and with an optimal digital precorrection engine working simultaneously in the time and frequency domains. A high degree of reliability is guaranteed, moreover, by the use of four amplifiers operating in parallel and soft- fail operation. Multiple power supplies are operated in parallel to reduce the possibility of single-point failure modes. Also, multiple cooling fans are used to keep the operational temperature of critical components Due to the unique design, the transmitter amplifier is suitable to any digital TV standard: ATSC, ATSC-MH, ISDB-T, DVB-T, DVB-H and DMB-T. It is only necessary to reconfigure the modulator and use the appropriate RF output band pass filter. The remaining components may be used without any change. The emission mask filter is a low-loss filter that reduces the out-of-channel radiation to limits that are acceptable to prevent interference to other services and eliminate harmonic radiation.

Bill of Material for 486S07 Arqiva Front End rev_H On 23/09/2009 at 14.32.46 Comment Pattern Quantity Components --------------------------------------------------------------------------- --- 0 0603R 10 R15, R18, R28, R32, R34, R44 5 % 1/16W Resistor R49, R75, R87, R105 100n 0603R 34 C1, C3, C6, C20, C31, C32 Multilayer Ceramic Capacitor C49, C51, C56, C59, C71, C80 C84, C88, C96, C103, C107 C108, C109, C110, C113, C114 C123, C129, C130, C132, C133 C140, C141, C142, C143, C144 C145, C146 100n 1206 1 C124 Multilayer Ceramic Capacitor 100nH 0603R 5 L7, L8, L17, L18, L24 SMD Inductor 100p 0603R 16 C4, C10, C15, C16, C17, C18 Multilayer Ceramic Capacitor C19, C39, C44, C45, C47, C48 C61, C65, C67, C151 100u-6.3V 1210 1 C120 Thin layer, high capacitance, monolithic ceramic capacitor 10K 0603R 20 R1, R2, R3, R4, R5, R6, R7 5 % 1/16W Resistor R8, R9, R10, R11, R12, R13 R14, R16, R17, R21, R22, R25 R26 10n 0603R 10 C14, C27, C28, C62, C76, C90 Multilayer Ceramic Capacitor C91, C99, C115, C136 10p 0603R 17 C21, C22, C23, C42, C46, C55 Multilayer Ceramic Capacitor C81, C85, C86, C89, C92, C93 C94, C95, C105, C116, C149 10u-16V TANT-B 7 C2, C7, C25, C40, C121, C125 Tantalum Electrolytic Capacitor Type B C137 10u-6V3 0603R 3 C83, C87, C117 Multilayer Ceramic Capacitor 110 0603R 4 R23, R31, R48, R64 5 % 1/16W Resistor 120 0603R 1 R118 5 % 1/16W Resistor 12p 0603R 1 C158 Multilayer Ceramic Capacitor 150 0603R 2 R60, R67 5 % 1/16W Resistor 150nH 0603R 1 L6 SMD Inductor 18 0603R 3 R40, R59, R74 5 % 1/16W Resistor 18nH 0603R 2 L4, L9 SMD Inductor 18p 0603R 1 C155 Multilayer Ceramic Capacitor 1K 0603R 3 R24, R47, R52 5 % 1/16W Resistor 1K5 0603R 1 R51 5 % 1/16W Resistor 1K6 1206 1 R41 5% 1/4W Resistor 1n 0603R 26 C5, C11, C26, C35, C36, C38 Multilayer Ceramic Capacitor C52, C53, C64, C68, C72, C73 C74, C75, C78, C82, C98, C100 C118, C119, C122, C127, C128 C131, C139, C147 1p 0603R 1 C152 Multilayer Ceramic Capacitor 1p5 0603R 1 C150 Multilayer Ceramic Capacitor 1u 0603R 4 C13, C34, C63, C79 Multilayer Ceramic Capacitor 1u-6.3V TANT-A 2 C24, C50 Tantalum Electrolytic Capacitor Type A 220 0603R 1 R54 5 % 1/16W Resistor 220p 0603R 5 C8, C9, C12, C29, C54 Multilayer Ceramic Capacitor 22p 0603R 2 C102, C106 Multilayer Ceramic Capacitor 270 0603R 2 R61, R62 5 % 1/16W Resistor 27p 0603R 1 C148 Multilayer Ceramic Capacitor 330 0603R 4 R20, R37, R38, R39 5% 1/16W Resistor 33nH 0603R 1 L22 SMD Inductor 33p 0603R 2 C153, C154 Multilayer Ceramic Capacitor 39 0603R 1 R63 5 % 1/16W Resistor 390nH 0603R 4 L1, L2, L10, L15 SMD Inductor 39nH 0603R 2 L11, L12 SMD Inductor 3p3 0603R 2 C37, C77 Multilayer Ceramic Capacitor 470 0603R 1 R57 5 % 1/16W Resistor 470nH 0603R 2 L20, L21 SMD Inductor 470p 0603R 4 C43, C69, C97, C112 Multilayer Ceramic Capacitor 47u-6.3V 1210 3 C33, C66, C111 Multilayer Ceramic Capacitor 49,9 0603R 5 R35, R43, R45, R46, R58 5% 1/16W Resistor 4K7 0603R 1 R42 5% 1/16W Resistor 560 0603R 4 R19, R27, R53, R116 5 % 1/16W Resistor 6,8nH 0603R 5 L3, L5, L16, L19, L25 SMD Inductor 68 0603R 2 R121, R122 5 % 1/16W Resistor 680p 0603R 1 C60 Multilayer Ceramic Capacitor 68p 0603R 6 C30, C41, C101, C104, C126 Multilayer Ceramic Capacitor C138 6n8 0603R 1 C57 Multilayer Ceramic Capacitor 820 0603R 1 R36 5% 1/16W Resistor 82nH 0603R 1 L23 SMD Inductor 8p2 0603R 3 C156, C157, C159 Multilayer Ceramic Capacitor ADF4350-BCPZ CP-32-3 1 IC10 Analog Devices - Wideband Synthesizer With Integrated VCO - CI0641 DAT-31R5-SP+ CP-20 2 IC3, IC7 MiniCircuits - Digital Step Attenuator 31.5 dB, 0.5 dB Step 6 Bit - CI0604 DSW_2 DIP SWITCH 2 P 1 SW1 DIP Switches 2 poles, Half Pitch, Low Profile - INTE0012 HB3601S HB3601S 1 U2 HopeRF - SAW Filter 36 MHz - FILTRO0527 LT5521EUF QFN16-TAB 2 IC2, IC9 Linear Technologies - Very High Linear Activity Mixer 3.7GHz - CI0391 LTC6400CUD-20 QFN16_3x3 1 IC13 Linear Technologies - 1.8GHz Low Distortion Differential ADC Driver IF - CI0643 MABA008639 ETC4 3 T1, T2, T5 MA/ COM- E-Series RF 1:4 Transmission Line Transf 6-1000 MHz - TRAS0048 MABACT0059 SM-22 2 T4, T6 MA/ COM - Matching transformer 1:1 4.5-3000MHz - TRAS0036 MGA-62563 SOT-363 4 IC4, IC6, IC12, IC17 Agilent Technologies - Current Adj. Low Noise Amplifier 3GHz - CI0355 N coax 1 P1 N Coaxial cable RG316 lenght 14 cm - CAVO00377/A N.M. 0603R 19 C58, C70, C134, C135, L13 Multilayer Ceramic Capacitor L14, L26, L27, L28, R29, R30 R33, R50, R78, R80, R82, R99 R111, R112 SBP-6R4-997BP8A SBP-6R4 1 U1 SGC Technologies - 6 poles DR Filter 997 MHz +-4 MHz - FILT0066 Sc30x50 Schermo_30x50 3 SCH1, SCH2, SCH3 Metal Screen 30x50 mm - MECC2153 SMB SMB-CS-S 4 P2, P3, P4, P6 SMB Straight Male Connnector - CONN0200 SOCKET_90∞ SOCKET16_90 1 J1 Socket 2x8 pin 90∞ 2,54mm - CONN1050 TPS76850Q-PWP HTSSOP20-TAB 1 IC16 Texas Instruments - Fast-Transient-Response 1A Low-Dropout Voltage Regulator -CI0544 TPS79933DDC SOT23-5 4 IC5, IC11, IC14, IC15 Texas Instruments - LDO Linear regulator 200mA ultra low noise - CI0543 WL1008 RFHIC CP-16 2 IC1, IC8 RFHIC - Wideband LNA - CI0603

DesignatorCommentFootprint C1100n0603R C210u-16VTANT-B C3100n0603R C4100p0603R C51n0603R C6100n0603R C710u-16VTANT-B C8220p0603R C9220p0603R C10100p0603R C111n0603R C12220p0603R C131u0603R C1410n0603R C15100p0603R C16100p0603R C17100p0603R C18100p0603R C19100p0603R C20100n0603R C2110p0603R C2210p0603R C2310p0603R C241u-6.3VTANT-A C2510u-16VTANT-B C261n0603R C2710n0603R C2810n0603R C29220p0603R C3068p0603R C31100n0603R C32100n0603R C3347u-6.3V1210 C341u0603R C351n0603R C361n0603R C373p30603R C381n0603R C39100p0603R C4010u-16VTANT-B C4168p0603R C4210p0603R C43470p0603R C44100p0603R C45100p0603R C4610p0603R C47100p0603R C48100p0603R C49100n0603R C501u-6.3VTANT-A C51100n0603R C521n0603R C531n0603R C54220p0603R C5510p0603R C56100n0603R C576n80603R C58N.M.0603R C59100n0603R C60680p0603R C61100p0603R C6210n0603R C631u0603R C641n0603R C65100p0603R C6647u-6.3V1210 C67100p0603R C681n0603R C69470p0603R C70N.M.0603R C71100n0603R C721n0603R C731n0603R C741n0603R C751n0603R C7610n0603R C773p30603R C781n0603R C791u0603R C80100n0603R C8110p0603R C821n0603R C8310u-6V30603R C84100n0603R C8510p0603R C8610p0603R C8710u-6V30603R C88100n0603R C8910p0603R C9010n0603R C9110n0603R C9210p0603R C9310p0603R C9410p0603R C9510p0603R C96100n0603R C97470p0603R C981n0603R C9910n0603R C1001n0603R C10168p0603R C10222p0603R C103100n0603R C10468p0603R C10510p0603R C10622p0603R C107100n0603R C108100n0603R C109100n0603R C110100n0603R C11147u-6.3V1210 C112470p0603R C113100n0603R C114100n0603R C11510n0603R C11610p0603R C11710u-6V30603R C1181n0603R C1191n0603R C120100u-6.3V1210 C12110u-16VTANT-B C1221n0603R C123100n0603R C124100n1206 C12510u-16VTANT-B C12668p0603R C1271n0603R C1281n0603R C129100n0603R C130100n0603R C1311n0603R C132100n0603R C133100n0603R C134N.M.0603R C135N.M.0603R C13610n0603R C13710u-16VTANT-B C13868p0603R C1391n0603R C140100n0603R C141100n0603R C142100n0603R C143100n0603R C144100n0603R C145100n0603R C146100n0603R C1471n0603R C14827p0603R C14910p0603R C1501p50603R C151100p0603R C1521p0603R C15333p0603R C15433p0603R C15518p0603R C1568p20603R C1578p20603R C15812p0603R C1598p20603R FID1FIDFIDUCIAL FID2FIDFIDUCIAL FID3FIDFIDUCIAL FID4FIDFIDUCIAL IC1WL1008RFHIC CP-16 IC2LT5521EUFQFN16-TAB IC3DAT-31R5-SP+CP-20 IC4MGA-62563SOT-363 IC5TPS79933DDCSOT23-5 IC6MGA-62563SOT-363 IC7DAT-31R5-SP+CP-20 IC8WL1008RFHIC CP-16 IC9LT5521EUFQFN16-TAB IC10ADF4350-BCPZCP-32-3 IC11TPS79933DDCSOT23-5 IC12MGA-62563SOT-363 IC13LTC6400CUD-20QFN16_3x3 IC14TPS79933DDCSOT23-5 IC15TPS79933DDCSOT23-5 IC16TPS76850Q-PWPHTSSOP20-TAB IC17MGA-62563SOT-363 J1SOCKET_90∞SOCKET16_90 L1390nH0603R L2390nH0603R L36,8nH0603R L418nH0603R L56,8nH0603R L6150nH0603R L7100nH0603R L8100nH0603R L918nH0603R L10390nH0603R L1139nH0603R L1239nH0603R L13N.M.0603R L14N.M.0603R L15390nH0603R L166,8nH0603R L17100nH0603R L18100nH0603R L196,8nH0603R L20470nH0603R L21470nH0603R L2233nH0603R L2382nH0603R L24100nH0603R L256,8nH0603R L26N.M.0603R L27N.M.0603R L28N.M.0603R P1N coax P2SMBSMB-CS-S P3SMBSMB-CS-S P4SMBSMB-CS-S P5Test point P6SMBSMB-CS-S R110K0603R R210K0603R R310K0603R R410K0603R R510K0603R R610K0603R R710K0603R R810K0603R R910K0603R R1010K0603R R1110K0603R R1210K0603R R1310K0603R R1410K0603R R1500603R R1610K0603R R1710K0603R R1800603R R195600603R R203300603R R2110K0603R R2210K0603R R231100603R R241K0603R R2510K0603R R2610K0603R R275600603R R2800603R R29N.M.0603R R30N.M.0603R R311100603R R3200603R R33N.M.0603R R3400603R R3549,90603R R368200603R R373300603R R383300603R R393300603R R40180603R R411K61206 R424K70603R R4349,90603R R4400603R R4549,90603R R4649,90603R R471K0603R R481100603R R4900603R R50N.M.0603R R511K50603R R521K0603R R535600603R R542200603R R574700603R R5849,90603R R59180603R R601500603R R612700603R R622700603R R63390603R R641100603R R671500603R R74180603R R7500603R R78N.M.0603R R80N.M.0603R R82N.M.0603R R8700603R R99N.M.0603R R10500603R R111N.M.0603R R112N.M.0603R R1165600603R R1181200603R R121680603R R122680603R SCH1Sc30x50Schermo_30x50 SCH2Sc30x50Schermo_30x50 SCH3Sc30x50Schermo_30x50 SW1DSW_2DIP SWITCH 2 POLES T1MABA008639ETC4 T2MABA008639ETC4 T4MABACT0059SM-22 T5MABA008639ETC4 T6MABACT0059sm-22 TP1MINITP_1 TP2MINITP_1 TP3MINITP_1 TP4MINITP_1 TP5TEST_POINT_1MINITP TP6TEST_POINT_1MINITP TP7MINITP_1 U1SBP-6R4-997BP8ASBP-6R4 U2HB3601SHB3601S DescriptionQuantity Multilayer Ceramic Capacitor1 Tantalum Electrolytic Capacitor Type B1 Multilayer Ceramic Capacitor1 Multilayer Ceramic Capacitor1 Multilayer Ceramic Capacitor1 Multilayer Ceramic Capacitor1 Tantalum Electrolytic Capacitor Type B1 Multilayer Ceramic Capacitor1 Multilayer Ceramic Capacitor1 Multilayer Ceramic Capacitor1 Multilayer Ceramic Capacitor1 Multilayer Ceramic Capacitor1 Multilayer Ceramic Capacitor1 Multilayer Ceramic Capacitor1 Multilayer Ceramic Capacitor1 Multilayer Ceramic Capacitor1 Multilayer Ceramic Capacitor1 Multilayer Ceramic Capacitor1 Multilayer Ceramic Capacitor1 Multilayer Ceramic Capacitor1 Multilayer Ceramic Capacitor1 Multilayer Ceramic Capacitor1 Multilayer Ceramic Capacitor1 Tantalum Electrolytic Capacitor Type A1 Tantalum Electrolytic Capacitor Type B1 Multilayer Ceramic Capacitor1 Multilayer Ceramic Capacitor1 Multilayer Ceramic Capacitor1 Multilayer Ceramic Capacitor1 Multilayer Ceramic Capacitor1 Multilayer Ceramic Capacitor1 Multilayer Ceramic Capacitor1 Multilayer Ceramic Capacitor1 Multilayer Ceramic Capacitor1 Multilayer Ceramic Capacitor1 Multilayer Ceramic Capacitor1 Multilayer Ceramic Capacitor1 Multilayer Ceramic Capacitor1 Multilayer Ceramic Capacitor1 Tantalum Electrolytic Capacitor Type B1 Multilayer Ceramic Capacitor1 Multilayer Ceramic Capacitor1 Multilayer Ceramic Capacitor1 Multilayer Ceramic Capacitor1 Multilayer Ceramic Capacitor1 Multilayer Ceramic Capacitor1 Multilayer Ceramic Capacitor1 Multilayer Ceramic Capacitor1 Multilayer Ceramic Capacitor1 Tantalum Electrolytic Capacitor Type A1 Multilayer Ceramic Capacitor1 Multilayer Ceramic Capacitor1 Multilayer Ceramic Capacitor1 Multilayer Ceramic Capacitor1 Multilayer Ceramic Capacitor1 Multilayer Cera…

Text truncated - open the document above for the full version.

DesignatorCommentDescriptionFootprintMagazzino C1100nCeramic Capacitor0603Not Available C2330nCeramic Capacitor1206Not Available C315nCeramic Capacitor1206Not Available C422u-35VTantalum Electrolytic capacitorENot Available C522u-35VTantalum Electrolytic capacitorENot Available C6100nCeramic Capacitor0603Not Available C7100nCeramic Capacitor0603Not Available C8470u-6.3VTantalum Electrolytic capacitorDNot Available C9100u-6.3VThin layer, high capacitance, monolithic ceramic capacitor1210Not Available C10100u-6.3VThin layer, high capacitance, monolithic ceramic capacitor1210Not Available C1110u-10VTantalum Electrolytic capacitorBNot Available C12100nCeramic Capacitor0603Not Available C13330nCeramic Capacitor0603Not Available C14N.M.Ceramic Capacitor0603Not Available C1547nCeramic Capacitor0603Not Available C16100u-6.3VThin layer, high capacitance, monolithic ceramic capacitor1210Not Available C17100u-6.3VThin layer, high capacitance, monolithic ceramic capacitor1210Not Available C1847nCeramic Capacitor0603Not Available C1947nCeramic Capacitor0603Not Available C20Not MountThin layer, high capacitance, monolithic ceramic capacitor1210Not Available C21680u-6VTantalum Electrolytic capacitorENot Available C2247nCeramic Capacitor0603Not Available C234n7Ceramic Capacitor0603Not Available C2447nCeramic Capacitor0603Not Available C25100nCeramic Capacitor0603Not Available C282n2Ceramic Capacitor0603Not Available C29Not MountCeramic Capacitor0603Not Available C30Not MountTantalum Electrolytic capacitorDNot Available C31Not MountThin layer, high capacitance, monolithic ceramic capacitor1210Not Available C32Not Mount1210Not Available C33100u-6.3VThin layer, high capacitance, monolithic ceramic capacitor1210Not Available C34Not MountTantalum Electrolytic capacitorENot Available C35Not MountLow ESR Tantalium capacitorENot Available C36Not MountCeramic Capacitor1206Not Available C37Not MountCeramic Capacitor0603Not Available C38Not MountCeramic Capacitor0603Not Available C39Not MountCeramic Capacitor0603Not Avaible C4722u-35VTantalum Electrolytic capacitorDNot Available C4822u-35VTantalum Electrolytic capacitorDNot Available C491u-25VCeramic Capacitor1206Not Available C5022u-35VTantalum Electrolytic capacitorDNot Available C511u-25VCeramic Capacitor1206Not Available C5222u-35VTantalum Electrolytic capacitorDNot Available C53100u-6.3VThin layer, high capacitance, monolithic ceramic capacitor1210Not Available C54220nCeramic Capacitor0603Not Available C70100u-6.3VThin layer, high capacitance, monolithic ceramic capacitor1210Not Available C71100nCeramic Capacitor0603Not Available C93100nCeramic Capacitor0603Not Available C9447nCeramic Capacitor0603Not Available C95100u-6.3VThin layer, high capacitance, monolithic ceramic capacitor1210Not Available C96100u-6.3VThin layer, high capacitance, monolithic ceramic capacitor1210Not Available C101Not MountThin layer, high capacitance, monolithic ceramic capacitor1210Not Available C102100nCeramic Capacitor0603Not Available C161100nCeramic Capacitor0603Not Available C162100nCeramic Capacitor0603Not Available C167100u-6.3VThin layer, high capacitance, monolithic ceramic capacitor1210Not Available C170Not MountThin layer, high capacitance, monolithic ceramic capacitor1210Not Available C17947nCeramic Capacitor0603Not Available C182100u-6.3VThin layer, high capacitance, monolithic ceramic capacitor1210Not Available C1864n7Ceramic Capacitor0603Not Available C215680u-6VTantalum Electrolytic capacitorENot Available C216680u-6VTantalum Electrolytic capacitorENot Available C218470uFTantalum Electrolytic capacitorENot Available C429Not MountCeramic Capacitor1206Not Available C430Not MountCeramic Capacitor0603Not Available C431Not MountTantalum Electrolytic capacitorDNot Available C446100nCeramic Capacitor0603Not Available C447100nCeramic Capacitor0603Not Available C44810u-35VTantalum Electrolytic capacitorDNot Available C449100u-16V_LowESRTantalum Electrolytic capacitorDNot Available D2MBRS360T3Ultra Fast Recovery Rectifier Schottky DiodeDIODE403-03Not Avaible D31PS76SBDiode SchottkySOD323Not Available D4Not MountHigh Speed DiodeSOD323Not Available D22LED_SMD_GREENLight Emitter Diode SMD (Green)DIODESMDNot Available D23LED_SMD_GREENLight Emitter Diode SMD (Green)DIODESMDNot Available D24LED_SMD_GREENLight Emitter Diode SMD (Green)DIODESMDNot Available D25MBRS360T3Ultra Fast Recovery Rectifier Schottky DiodeDIODE403-03Not Available D26MBRS360T3Ultra Fast Recovery Rectifier Schottky DiodeDIODE403-03Not Available D27MBR130T1Surface Mount 1A 30V Schottky Power RectifierSOD-123Not Available D28LED_SMD_GREENLight Emitter Diode SMD (Green)DIODESMDNot Available D29LED_SMD_GREENLight Emitter Diode SMD (Green)DIODESMDNot Avaible D30Not MountLight Emitter Diode SMD (Green)DIODESMDNot Available D31LED_SMD_GREENLight Emitter Diode SMD (Green)DIODESMDNot Avaible D38Not MountLight Emitter Diode SMD (Green)DIODESMDNot Available D39LED_SMD_GREENLight Emitter Diode SMD (Green)DIODESMDNot Available D40Not MountUltra Fast Recovery Rectifier Schottky DiodeDIODE403-03Not Available D42Not MountUltra Fast Recovery Rectifier Schottky DiodeDIODE403-03Not…

Text truncated - open the document above for the full version.
