PMUMP100RXMagic Presenter

InsideTNC Co., Ltd.

Click to zoom

Application Details

Equipment Class: CYY - Communications Receiver used w/Pt 15 Transmitter
Date of Grant: Mar 29, 2004
Application Purpose: Original Equipment
Date of Application: Mar 29, 2004
Equipment Note: Magic Presenter
Frequency Range: 311.06200000 - 311.06200000
Company: InsideTNC Co., Ltd.
Country: South Korea

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

● To make it your Presentation better, the new Magic Presenter integrates the function of a laser pointing and slide Next/Previous/search. The Magic Presenter compact and complete design gives you the easy control if presentation slide and mobility needed concentrate on your presentation at a range of over 10m. ● Any software and PC programming is not required and a few second is taken of installation to use -Slide Next/Previous/Search -Plug and play function (No PC Programming and software) -Working on any computers using a USB port -Remote control range within 10m with a very low power (Eliminates line-of-sight problems encountered with infrared systems) -Transmitter identification (Use thousands of ID number to avoid multi-user interferences) General Description Key Features Transmitter Receiver Radio Frequency 433Mhz(Europ e), 311Mhz(Korea,USA) Laser Module Wavelength : 670nm(Class llla) Output Power : 2.5+-0.5mW Interface USB HID Spec., Ver.1.1 Support OS Win98/Me/2000XP,Mac,Linux,WinCE Battery CR2032 x1 or x2 USB bus-powered Operating Current LM(25mA) and RF<<LM <20mA Enclosure Molded Plastic wi th Silicon Grip(many colors) Dimension 127mm(L)x23mm(H)x25mm( W) 67mm(L)x11mm(H)x25mm(W) Weight 25grams(w/o battery) 13grams Key Features Terms and Explanation Transmitter Receiver Laser Button : Laser on/off control Next Button : Slide Next control Previews Button ; Slide Previous control Search Button(S ) : Slide search control LED Indicator Blinking : Connected and waiting for ID Off : ID received and waiting for CMD Off-On-Off : Everytime CMD received Laser Hole Laser Next Previous Search Receiver Indicator USB Connector General Description INFORMATION TO THE USER USB Port Desktop or Notebook PC USB Port 1. When you plug a receiver into a USB port, You will see LED indicator is blinking.. 2. Push a either Next or Previews button In the transmitter to implant user ID. When ID is set, LED goes to command waiting state. 3. Begin your presentation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communic ations. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, whi ch can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one more of the following measures: -. Reorient or relocate the receiving antenna. -. Increase the separation between the equipment and receiver. -. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -. Consult the dealer or an experienced radio/TV technician for help. WARNING Any Changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operations.

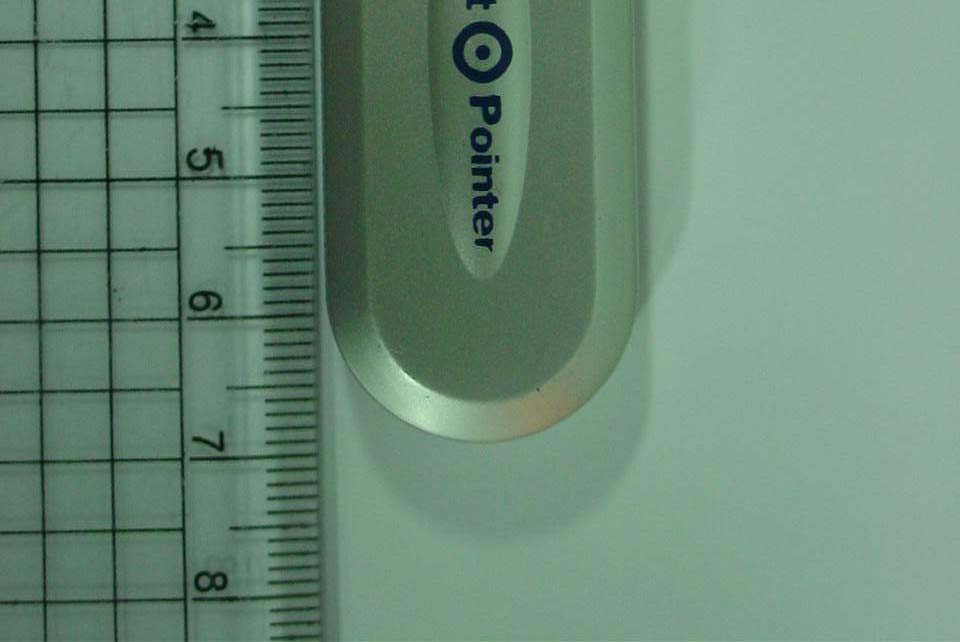

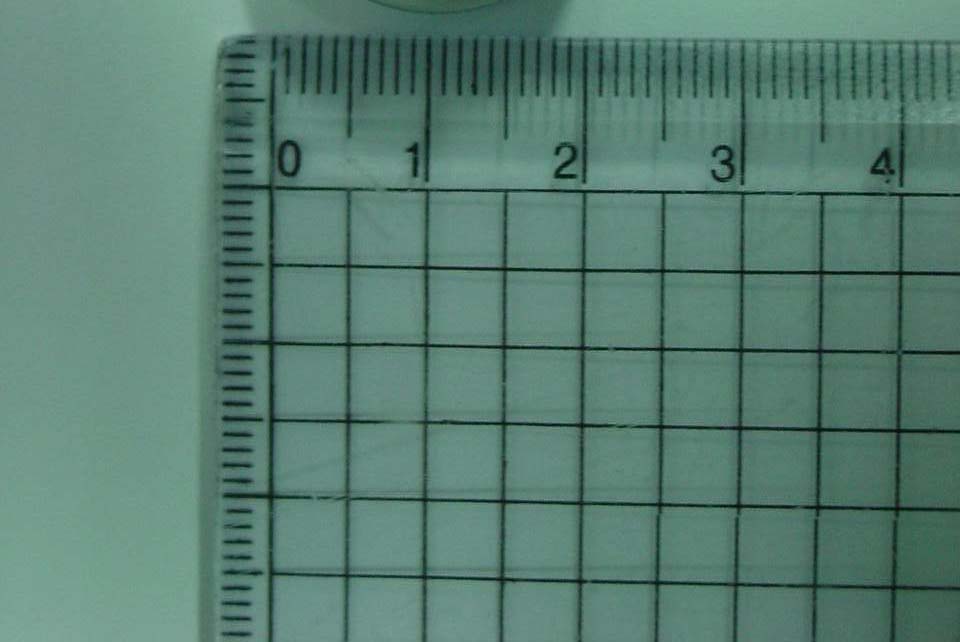

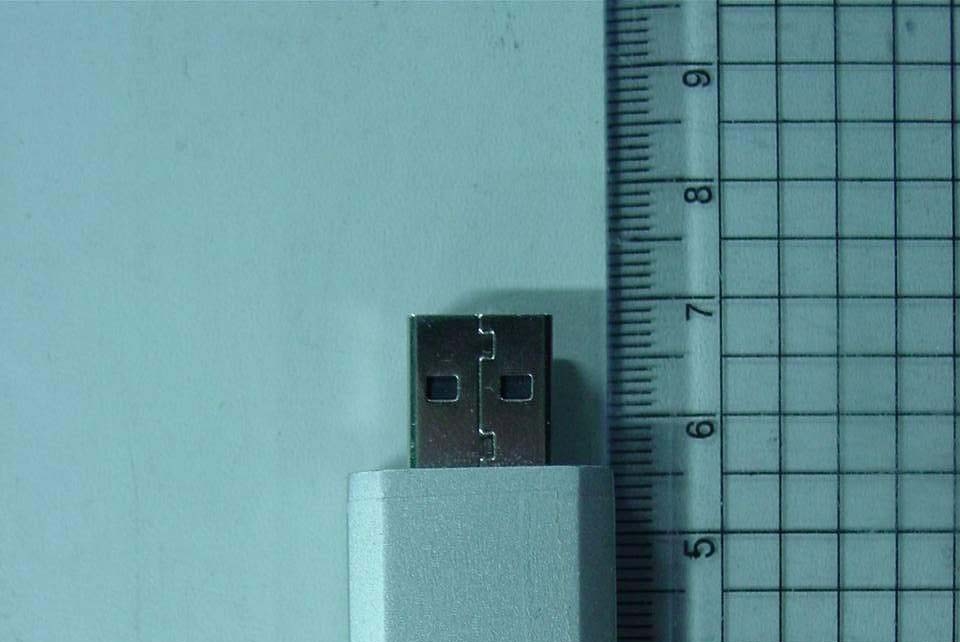

External Photos

FCC ID. : PMUMP100RX File No. : E043R-076 It should not reproduced except in full, written approval of ONETECH. FCC-003 (Rev.0) HEAD OFFICE : #505 SK APT. Factory 223-28, Sangdaewon 1 Dong, Jungwon-Gu, Seongnam-City, Gyunggi-Do, 462-121, Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 426-1 Daessangryung-Ri, Chowol-Myun, Gwangju-City, Gyunggi-Do 464-860 Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) ONETECH Testing & Evaluation Lab. FCC ID. : PMUMP100RX File No. : E043R-076 It should not reproduced except in full, written approval of ONETECH. FCC-003 (Rev.0) HEAD OFFICE : #505 SK APT. Factory 223-28, Sangdaewon 1 Dong, Jungwon-Gu, Seongnam-City, Gyunggi-Do, 462-121, Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 426-1 Daessangryung-Ri, Chowol-Myun, Gwangju-City, Gyunggi-Do 464-860 Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) ONETECH Testing & Evaluation Lab. FCC ID. : PMUMP100RX File No. : E043R-076 It should not reproduced except in full, written approval of ONETECH. FCC-003 (Rev.0) HEAD OFFICE : #505 SK APT. Factory 223-28, Sangdaewon 1 Dong, Jungwon-Gu, Seongnam-City, Gyunggi-Do, 462-121, Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 426-1 Daessangryung-Ri, Chowol-Myun, Gwangju-City, Gyunggi-Do 464-860 Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) ONETECH Testing & Evaluation Lab.

ID Label/Location Info

Internal Photos

Operational Description

Operational Description USB Port Desktop or Notebook PC USB Port 1. When you plug a receiver into a USB port, You will see LED indicator is blinking.. 2. Push a either Next or Previews button on the transmitter to implant user ID. When ID is set, LED goes to command waiting state. 3. Begin your presentation.

Test Report

Page 1 of 12 FCC ID. : PMUMP100RX File No. : E043R-076 It should not reproduced except in full, written approval of ONETECH. FCC-003 (Rev.0) HEAD OFFICE : #505 SK APT. Factory 223-28, Sangdaewon 1 Dong, Jungwon-Gu, Seongnam-City, Gyunggi-Do, 462-121, Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 426-1 Daessangryung-Ri, Chowol-Myun, Gwangju-City, Gyunggi-Do, 464-860, Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) ONETECH Testing & Evaluation Lab. ELECTROMAGNETIC EMISSION C OMPLIANCE REPORT FOR FCC CLASS B CERTIFICATION Test report file number : E043R-076 Applicant : InsideTNC Co., Ltd. Address : #899-6, Hogye-Dong, Dongan-Gu, Anyang-City, Kyungki-Do, Korea Manufacturer : InsideTNC Co., Ltd. Address : #899-6, Hogye-Dong, Dongan-Gu, Anyang-City, Kyungki-Do, Korea Type of Equipment : MAGIC PRESENTER FCC ID : PMUMP100RX Model Name : MP-R100 Serial number : N/A Total page of Report : 12 pages (including this page) Date of Incoming : March 04, 2004 Date of Issuing : March 24, 2004 SUMMARY The equipment complies with the requirements of FCC CFR 47 PART 15 SUBPART B, SECTION 15.101. This test report contains only the results of a single test of the sample supplied for the examination. It is not a general valid assessment of the features of the respective products of the mass-production. Prepared by: Reviewed by: G. W. Lee/ Chief Engineer Y. K. Kwon/ Director EMC Div. EMC Div. ONETECH Corp. ONETECH Corp. Page 2 of 12 FCC ID. : PMUMP100RX File No. : E043R-076 It should not reproduced except in full, written approval of ONETECH. FCC-003 (Rev.0) HEAD OFFICE : #505 SK APT. Factory 223-28, Sangdaewon 1 Dong, Jungwon-Gu, Seongnam-City, Gyunggi-Do, 462-121, Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 426-1 Daessangryung-Ri, Chowol-Myun, Gwangju-City, Gyunggi-Do, 464-860, Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) ONETECH Testing & Evaluation Lab. CONTENTS Page 1. VERIFICATION OF COMPLIANCE 3 2. GENERAL INFORMATION 4 2.1 PRODUCT DESCRIPTION.................................................................................................................................................4 2.2 MODEL DIFFERENCES:..................................................................................................................................................4 2.3 RELATED SUBMITTAL(S) / GRANT(S)............................................................................................................................4 2.4 TEST SYSTEM DETAILS..................................................................................................................................................5 2.5 TEST METHODOLOGY....................................................................................................................................................5 2.6 TEST FACILITY...............................................................................................................................................................5 3. SYSTEM TEST CONFIGURATION 6 3.1 JUSTIFICATION...............................................................................................................................................................6 3.2 EUT EXERCISE SOFTWARE............................................................................................................................................6 3.3 EQUIPMENT MODIFICATIONS........................................................................................................................................6 3.4 CONFIGURATION OF TEST SYSTEM...............................................................................................................................6 4. PRELIMINARY TEST 7 4.1 AC POWER LINE CONDUCTED EMISSIONS TESTS.........................................................................................................7 4.2 RADIATED EMISSIONS TESTS.........................................................................................................................................7 5. FINAL RESULT OF MEASURMENT 8 5.1 CONDUCTED EMISSION TEST.........................................................................................................................................8 5.1 RADIATED EMISSION TEST..........................................................................................................................................10 6. FIELD STRENGTH CALCULATION 11 7. LIST OF TEST EQUIPMENT 12 Page 3 of 12 FCC ID. : PMUMP100RX File No. : E043R-076 It should not reproduced except in full, written approval of ONETECH. FCC-003 (Rev.0) HEAD OFFICE : #505 SK APT. Factory 223-28, Sangdaewon 1 Dong, Jungwon-Gu, Seongnam-City, Gyunggi-Do, 462-121, Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 426-1 Daessangryung-Ri, Chowol-Myun, Gwangju-City, Gyunggi-Do, 464-860, Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) ONETECH Testing & Evaluation Lab. 1. VERIFICATION OF COMPLIANCE -. APPLICANT : InsideTNC Co., Ltd. -. ADDRESS : #899-6, Hogye-Dong, Dongan-Gu, Anyang-City, Kyungki-Do, Korea -. CONTACT PERSON : Mr. Kyung-Sik, Jeon / Manager -. TELEPHONE NO : +82-31-424-1900 -. FCC ID : PMUMP100RX -. MODEL NO/NAME : MP-R100 -. SERIAL NUMBER : N/A -. DATE : March 24, 2004 DEVICE TYPE Peripheral Device for Class B Computing device and Receiver - Unintentional Radiator E.U.T. DESCRIPTION Remote Control & Laser Pointer for Presentation THIS REPORT CONCERNS ORIGINAL GRANT MEASUREMENT PROCEDURES ANSI C63.4: 2001 TYPE OF EQUIPMENT TESTED PRE-PRODUCTION KIND OF EQUIPMENT AUTHORIZATION REQUESTED CERTIFICATION EQUIPMENT WILL BE OPERATED UNDER FCC RULES PART(S) FCC PART 15, SECTION 15.101 MODIFICATIONS ON THE EQUIPMENT TO ACHIEVE COMPLIANCE No FINAL TEST WAS CONDUCTED ON 3 METER OPEN AREA TEST SITE The above equipment was tested by ONETECH Corp. for compliance with the requirement set forth in the FCC Rules and Regulations. This said equipment in the configuration described in this …

Text truncated - open the document above for the full version.

Test Setup Photos

FCC ID. : PMUMP100RX File No. : E043R-076 It should not be reproduced except in full, without the written approval of ONETECH. FCC-003 (Rev.0) HEAD OFFICE : #505 SK APT. Factory 223-28, Sangdaewon 1 Dong, Jungwon-Gu, Seongnam-City, Kyunggi-Do, 462-121, Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 426-1 Daessangryung-Ri, Chowol-Myun, Kwangju-City, Kyunggi-Do, 464-860, Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) ONETECH Testing & Evaluation Lab. Conducted Emission Test FCC ID. : PMUMP100RX File No. : E043R-076 It should not be reproduced except in full, without the written approval of ONETECH. FCC-003 (Rev.0) HEAD OFFICE : #505 SK APT. Factory 223-28, Sangdaewon 1 Dong, Jungwon-Gu, Seongnam-City, Kyunggi-Do, 462-121, Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 426-1 Daessangryung-Ri, Chowol-Myun, Kwangju-City, Kyunggi-Do, 464-860, Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) ONETECH Testing & Evaluation Lab. Radiated Emission Test
