PNK2G4-CMWireless Video Camera

2.4 GHz WIRELESS SURVEILLANCE SYSTEM USER’S MANUAL SAFETY INFORMATION CAUTION: RISK OF ELECTRONIC SHOCK DO NOT OPEN CAUTION: DO NOT REMOVE THE COVER FOR REDUCING THE RISK OF ELECTRIC SHOCK. NO USER-SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVIEC PERSONNEL. WARNING: To prevent fire or shock hazard, do not expose the unit to rain or moisture. Safety term and Symbols Warning: Warning statements identify conditions or practices that could result in injury or loss of life. Caution: Caution statements identify conditions or practices that could result in damage to this product or other property. Danger: Do not remove the cover for reducing the risk of electric shock. IMPORTANT SAFETY INSTRUCTIONS 1. All the safety and operating instructions should be read before the product is operated. 2. The safety and operating instructions should be retained for future reference. 3. All warnings on the product and in the operating instructions should be adhered to. 4. All operating and use instructions should be followed. 5. Unplug this products from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for the cleaning. 6. Do not use attachments not recommended by the products manufacturer if they may cause hazards. 7. Do not use this product near water – for example, near a bath tub, wash bowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool; and the like. 8. Any mounting of the product should follow the manufacturer’s instructions, and ! ! should use a mounting accessory recommended by the manufacturer. 9. This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type or power supply to your home, consult your product dealer or local power company. For products intended to operate form battery power, or other sources, refer to the operating instruction. 10. Power supply cord should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, or other sources, refer to the operating instructions. 11. For added protection for this product during a lightning storm, or it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the product due to lightning and power-line surges. 12. Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electronic shock. Never spill liquid of any of any kind on the product. 13. Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock. 14. Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions. -When the power-supply cord or plug is damaged. -If liquid have been spilled, or objects have fallen into the products -If the product does not operate normally by following the operating instructions, adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore this product to its normal operation. -If the products has been dropped or damaged in any way. -When the product exhibits a distinct change in performance – this indicates a need for service. 15. When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or that have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards. 16. Upon completion of any service or repair to this product, ask the service technician to perform safety checks to determine that the product is in proper operating condition. 17. The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products including amplifiers that produce heat. FCC This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. The users manual or instruction manual for an intentional or unintentional radiator shall caution the user that changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. TABLE OF CONTENTS 1. Introduction 1.1. Overview 1.2. Main features 2. Check Package before Use 2.1. One unit of Wireless Camera 2.2. One unit of Rechargeable Battery 2.3. One unit of Receiver 2.4. Two units of Power Adaptors 2.5.…

Text truncated - open the document above for the full version.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 October 25, 2001 RE: ELANsat Technologies, Inc. FCC ID: PNK2G4-CM After a review of the submitted information, I have a few comments on the above referenced Application. 1) The label on the EUT displays both the FCC ID as well as the FCC Logo. The use of the FCC logo (for products authorized under Part 15) is reserved for products authorized using a Declaration of Conformity route to compliance. Please remove the logo from the label. 2) The label does not include the information specified by 15.19(a)(3), although this information was presented in the manual. Please note that use of section 15.19(a)(5) for the labeling statements is typically reserved for extremely small devices (i.e. pacemaker, keychain remotes, etc.) where the space limitations are obvious. For this product there appears to be plenty of space to provide a label on the device. Please comment on this issue. 3) The power cords should typically tied to 30-40 cm bundles during conducted testing, however the photographs show that the cables were not tied in this fashion during the test. Please check to ensure that the previous results obtained are still valid in this configuration, or provide new data. 4) The test report states that the EUT was tested to 25 GHz, however the test equipment does not contain any antenna's valid for testing above 18 GHz. Please comment on this issue. 5) The test data for > 1 GHz was taken with an average detector only. Although the limits given by the table in 15.249(c) are average limits, there is also a limit for the peak emission (20 dB above the average emission). The test report did not present any peak data or information regarding the peak to average ratio for this device. Please provide further information to prove compliance with the peak limits. 6) The power ratings in the manual (800-1600 mW) seem high and do not appear to match the expected levels from this device and the radiated results provided. Please provide further information regarding this discrepancy. 7) The required statements given in 15.21 and 15.105 should be added to the users manual as applicable. Timothy R. Johnson Examining Engineer mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

Dear Timothy, Enclosed please find the answer of review comments (FCC ID: PNK2G4-CM ) Answer : 1. Our client has modified the label and take off the FCC logo. The file name: Label.pdf 2. Our client has added the information specified by 15.19(a)(3) at the label, but the description on the label is too small to see clearly. Is this description essential? The file name: Label.pdf 3. The set-up photo and test data were modified as attached. The file name: Ce.pdf 4. We used two type of antanna for this testing, one is EMCO 3115(1-18GHz) an other is Schwarzbeck BBHA9170 ( 14-40GHz), the details of antana please see section 2.4 of report.. Refer to the file name:010791 5. The data has been update. Please see section 3.5 of report. refer to the attach file name: 010791 6. 800~1600mW is Power Consumption of the EUT, not RF output power, the update manual was attached as filename: manual. 7. The FCC require statements has been added in manual of page 4, please see the attached filename: manual. If you need more information please fell free to contact me. Best regards. Lyn Yang ETL Semko TWN EMC Lab Tel +886-3-519-1411 Ext 303 Fax +886-3-519-1410 E-mail: [email protected] -----Original Message----- From: William Graff [mailto:[email protected]] Sent: Wednesday, November 07, 2001 9:19 AM To: JT Chen Subject: FW: FCC TCB Application Error Notification JT, Please refer to my emailed comments on FCC ID:PNK2G4-CM. Please do not send to my email box. I need the Schematics uploaded to the AmericanTCB website. To: <[email protected]> Cc: <[email protected]>, "'Tulip Hu ITS/EMC-TPE'" <[email protected]>, "Elton Chan ITS/EMC-TPE" <[email protected]>, "Cindy Chu ITS/EMC-TPE" <[email protected]>, <[email protected]> Subject: RE: FCC TCB Application Error Notification Page 1 of 3In 11/9/2001Printed for "Timothy R. Johnson" <[email protected]>

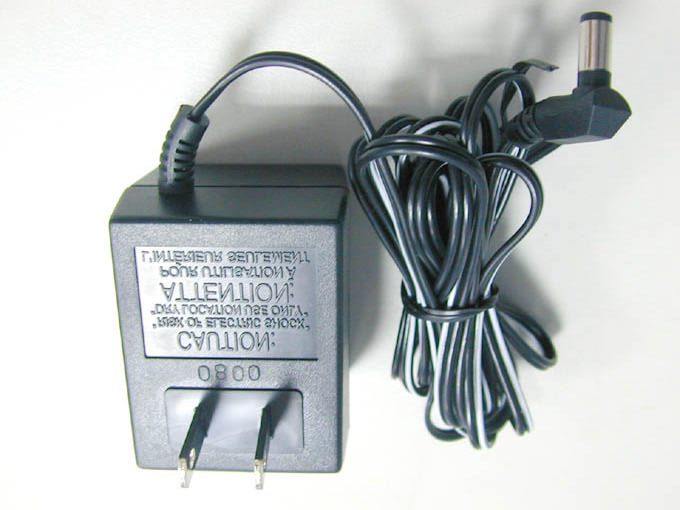

FCC ID: PNK2G4-CM FCC ID: PNK2G4-CM FCC ID: PNK2G4-CM

FCC ID: PNK2G4-CM FCC ID: PNK2G4-CM FCC ID: PNK2G4-CM FCC ID: PNK2G4-CM

FCC ID: PNK2G4-CM FCC ID: PNK2G4-CM FCC ID: PNK2G4-CM FCC ID: PNK2G4-CM FCC ID: PNK2G4-CM FCC ID: PNK2G4-CM FCC ID: PNK2G4-CM FCC ID: PNK2G4-CM FCC ID: PNK2G4-CM FCC ID: PNK2G4-CM FCC ID: PNK2G4-CM FCC ID: PNK2G4-CM FCC ID: PNK2G4-CM FCC ID: PNK2G4-CM FCC ID: PNK2G4-CM

Intertek Testing Services ETL SEMKO FCC ID. : PNK2G4-CM Report No.: EME-010791 Page 1 of 1 EMC TEST REPORT Report No. : EME-010791 Model No. : VC-T2G4 Issued Date : September 27, 2001 Applicant : ELANsat Technologies Inc. No. 11, Lane 19, Pateh Road, Hsinchu, Taiwan, R.O.C. Test By : Intertek Testing Services Taiwan Ltd. No. 11, Ko-Tze-Nan Chia-Tung Li, Shiang-Shan District, Hsinchu, Taiwan, R.O.C. This test report consists of 19 pages in total. It may be duplicated completely for legal use with the allowance of the applicant. It shall not be reproduced except in full, without the written approval of ITS Laboratory. The test result in this report only applies to the tested sample. Test Engineer Approved By Kaysi Chen Intertek Testing Services ETL SEMKO FCC ID. : PNK2G4-CM Report No.: EME-010791 Page 2 of 2 Table of Contents 1. Summary of tests..........................................................................................................3 1.1 General information................................................................................................4 1.2 Identification of the EUT........................................................................................4 1.3 Additional information about the EUT...................................................................4 2. Test specifications.........................................................................................................5 2.1 Test standard...........................................................................................................5 2.2 Operation mode......................................................................................................5 2.3 Modifications required for compliance..................................................................5 2.4 Test equipment........................................................................................................6 3. Radiated emission test FCC 15.249 (C).......................................................................7 3.1 Operating environment...........................................................................................7 3.2 Test setup & procedure...........................................................................................7 3.3 Emission limit.........................................................................................................8 3.3.1 Fundamental and harmonics emission limits.......................................................8 3.3.2 General radiated emission limits.........................................................................8 3.4 Radiated emission test data FCC 15.249................................................................9 3.5.1 Fundamental & harmonics radiated emission data..............................................9 3.6 Radiated emission configuration photograph.......................................................13 4. Conducted emission test FCC 15.207.........................................................................14 4.1 Operating environment.........................................................................................14 4.2 Test setup & procedure.........................................................................................14 4.3 Emission limit.......................................................................................................14 4.4 Conducted emission data FCC 15.207..................................................................15 4.4.1 Conducted emission configuration photograph.................................................18 5. Radiated emission on the band edge FCC 15.249(C).................................................19 Intertek Testing Services ETL SEMKO FCC ID. : PNK2G4-CM Report No.: EME-010791 Page 3 of 3 1. Summary of tests 2.4GHz Wireless CMOS Camera -Model: VC-T2G4 FCC ID: PNK2G4-CM Test Reference Results Conducted Emission 15.207 Complies Radiated Emission 15.249 Complies Spurious Emission 15.209 Complies Band-edge test 15.249(c) Complies Intertek Testing Services ETL SEMKO FCC ID. : PNK2G4-CM Report No.: EME-010791 Page 4 of 4 1.1 General information 1.2 Identification of the EUT Manufacturer : ELANsat Technologies Inc. Product : 2.4GHz Wireless CMOS Camera Model No. : VC-T2G4 FCC ID. : PNK2G4-CM Frequency Range : 2400MHz to 2483.5MHz Channel Number : 4 channels Frequency of Each Channel : 2414MHz, 2432MHz, 2450MHz, 2468MHz Type of Modulation : FM Power Supply : 120Vac, 60Hz with adapter (DV-9300S) Power Cord : N/A Sample Received : September 24, 2001 Test Date(s) : September 20, 2001 to September 24, 2001 The fixed antenna on Print Circuit Board is an internal antenna, no consideration of replacement. (Please refer to the photo attached as an appendix.) 1.3 Additional information about the EUT The main function of VC-T2G4 Wireless Surveillance is to send the video and audio signals to receiver unit by 2.4GHz RF signal and do the FM demodulation, then put the video and audio signals to TV, or other AV device. For more detail features, please refer to users Manual. Intertek Testing Services ETL SEMKO FCC ID. : PNK2G4-CM Report No.: EME-010791 Page 5 of 5 2. Test specifications 2.1 Test standard The EUT was performed according to the procedures in FCC Part 15 Subpart C Section 15.249. 2.2 Operation mode The EUT was supplied with 120Vac to 9Vdc adapter, and the EUT will be in the transmitter mode after push the power button. All the tests were performed according to the procedure above. 2.3 Modifications required for compliance No modification were installed during test performance to bring the product into compliance (Please note that this list does not include changes made specifically by ELANsat Technologies Inc. Prior to compliance testing.) Intertek Testing Services ETL SEMKO FCC ID. : PNK2G4-CM Report No.: EME-010791 Page 6 of 6 2.4 Test equipment Conducted emission Equipment Brand Model No. Series No. EMI Receiver Rohde & Schwarz ESCS 30 825788/014 EMI R…
