PNKVC-TAWireless Camera Transmitter

USER'S MANUAL SURVEILLANCE SYSTEM 2.4 G z WIRELESS H . INTRODUCTION 1. INTRODUCTION . PACKAGE CONTENTS 2. PACKAGE CONTENTS . CONTROLS 3. CONTROLS . SYSTEM INSTALLATION 4. SYSTEM INSTALLATION . OPERATION 5. OPERATION . TROUBLE SHOOTING 6. TROUBLE SHOOTING 9 4 5 6 8 1 CAUTION RISK OF ELECTRONIC SHOCK DO NOT OPEN CAUTION: DO NOT REMOVE THE COVER FOR REDUCING THE RISK OF ELECTRIC SHOCK. NO USER-SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. GENERAL SAFETY SUMMARY WARNING To prevent fire or shock hazard , do not expose the unit to rain or moisture. IMPORTANT SAFETY INSTRUCTIONS All the safety and operating instructions should be read before the product is operated. The safety and operating instructions should be retained for future reference. All warnings on the product and in the operating instructions should be adhered to. All operating and use instructions should be followed. Unplug this products from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for the cleaning. Do not use attachments not recommended by the products manufacturer if they may cause hazards. Do not use this product near water - for example, near a bath tub, wash bowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool; and the like. Any mounting of the product should follow the manufacturer's instructions, and should use a mounting accessory recommended by the manufacturer. . This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type or power supply to your home, consult your product dealer or local Power Company. For products intended to operate from battery power, or other sources, refer to the operating instruction. . Power supply cord should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, or other sources, refer to the operating instructions. 1. 2. 5. 3. 4. 6. 7. 8. 9. 10. Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock. Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions. When the power- supply cord or plug is damaged. If liquid have been spilled, or objects have fallen into the products Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electronic shock. Never spill liquid of any kind on the product. 12. 13. 14. When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or that have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards. Upon completion of any service or repair to this product ask the service technician to perform safety checks to determine that the product is in proper operating condition. The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products including amplifiers that produce heat. 15. 16. 17. If the product does not operate normally by following the operating instructions, adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore this product to its normal operation. When the product exhibits a distinct change in performance - this indicates a need for service. If the products has been dropped or damaged in any way. For added protection for this product during a lightning storm, or it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect cable system. This will prevent damage to the product due to lightning and powerline surges. 11. Overview The Wireless Surveillance System with CMOS/CCD Images and four channels available is just as your baby sitter, home/camp guard and company monitoring. Easy to install, unequalled quality and reliability make you have delighted and secure life. Features High Resolution Color CMOS/CCD Camera( Optional ) Range up to 300 feet (L. O. S ) Baby / Medical care monitor Easy installation 1 1. INTRODUCTION 4 channels selectable Weather Proof Built-In Microphone for Audio Monitoring Outdoor and home surveillance system Building and office surveillance system Video camera recording purpose (connected to VCR) Operating frequency of ISM band 2.4 - 2.4835 G z H Applications High Performance Audio/Video Receiver Antenna embedded Specifications 2 Synchronize Resolution Min. Illumination S/N Ratio Video Input Auto Electronic Exposure Auto White Balance Supply Voltage Power Consumption Operation Environment Lens (Optional) Audio Input Weight Size 2:1 Interlace NTSC 1/3" CMOS Image Sensor 510 (H) X 492 (V) 15750 Hz 60 Hz Wireless Camera - CMOS Specification 2:1 Interlace PAL 628 (H) X 582 (V) 15625 Hz 50 Hz Internal More Than 300 TV Lines 3 LUX (F1.2) More Than 45 dB (AGC OFF) 1.0 Vpp / 75 composite Video signal Auto 9V 120 mA -15 C ~ +55 C F3.6 mm, F2.0 (Fix Board Lens) 1.0Vpp / 600 load for Mono Approximate 160g 116 L x 45W x 52.5H (mm) Model Characteristic Scanning System Image Sensor Efficiency Pixels Horizontal Scan Frequency Vertical Scan Frequency 1/60 ~ 1/2000 1/50 ~ 1/2000 Sec. Sec. Synchronize Resolution Min. Illumination S/N Ratio Video Input Auto Electronic Exposure Auto White Balance Supply Voltage Power Consumption Operation Environment Lens (Optional) Audio Input Weight Size 2:1 Interlace NTSC 1/4" CCD Image Sensor 512 (H) X 492 (V) 15750 Hz 60 Hz Wireless Camera - CCD Specification 2:1 Interlace PAL 512 (H) X 582 (V) 15625 Hz 50 Hz Internal More Than 420TV Lines 0.3 LUX (F1.2) More Than 48 dB (AGC OFF) 1.0 Vpp / 75 composite Video signal A…

Text truncated - open the document above for the full version.

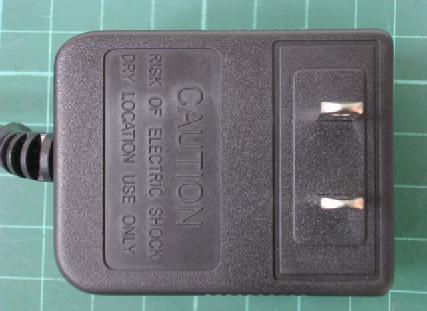

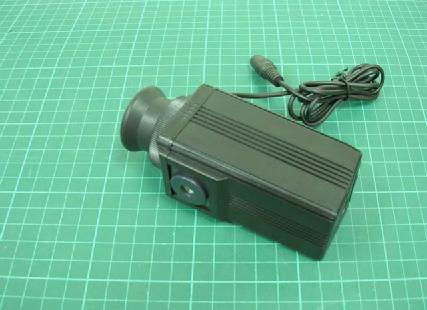

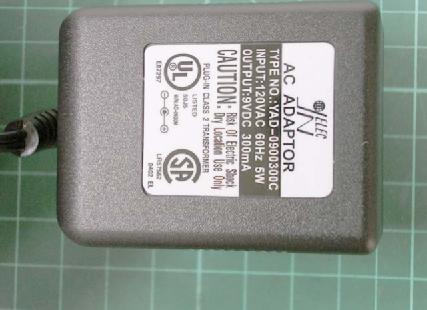

Photo 1: External photo VC-T101 VC-T101 Photo 2: Photo of Adapter

FCC ID Label Location

Photo 1: Inner view VC-T101 VC-T101 Photo 2: Inner view VC-T101 VC-T101 Photo 3: Inner view VC-T101 VC-T101 Photo 4: Inner view VC-T101 VC-T101 Photo 5: Inner view VC-T101 VC-T101 Photo 6: Photo of Antenna

Intertek Testing Services ETL SEMKO FCC ID. : PNKVC-TA Report No.: EME-030449 Page 1 of 23 EMC TEST REPORT Report No. : EME-030449 Model No. : VC-T101 Issued Date : April 30, 2003 Applicant : ELANsat Technologies Inc. 5F, No. 12, Innovation Rd. 1 Science-Based Industrial Park, Hsinchu, 300, Taiwan Test By : Intertek Testing Services Taiwan Ltd. No. 11, Lane 275, Ko-Nan 1 Street, Chia-Tung Li, Shiang-Shan District, Hsinchu City, Taiwan This test report consists of 23 pages in total. It may be duplicated completely for legal use with the allowance of the applicant. It shall not be reproduced except in full, without the written approval of ITS Laboratory. The test result in this report only applies to the tested sample. Jerry Liu Project Engineer Reviewed By Elton Chen Intertek Testing Services ETL SEMKO FCC ID. : PNKVC-TA Report No.: EME-030449 Page 2 of 23 Table of Contents Summary of Tests.........................................................................................................3 1. General information..................................................................................................4 1.1 Identification of the EUT....................................................................................4 1.2 Additional information about the EUT................................................................4 1.3 Antenna description............................................................................................5 2. Test specifications.....................................................................................................6 2.1 Test standard.......................................................................................................6 2.2 Operation mode...................................................................................................6 2.4 Test equipment....................................................................................................7 3. Radiated emission test FCC 15.249 (C).....................................................................8 3.1 Operating environment........................................................................................8 3.2 Test setup & procedure........................................................................................8 3.3 Emission limit.....................................................................................................9 3.3.1 Fundamental and harmonics emission limits.....................................................9 3.3.2 General radiated emission limits.......................................................................9 3.4 Radiated emission test data FCC 15.249............................................................10 3.4.1 Measurement results: frequencies equal to or less than 1 GHz........................10 3.4.2 Fundamental & Harmonics Radiated Emission Data.......................................13 4. Conducted emission test FCC 15.207......................................................................19 4.1 Operating environment......................................................................................19 4.2 Test setup & procedure......................................................................................19 4.3 Emission limit...................................................................................................19 4.4 Conducted emission data FCC 15.207...............................................................20 5. Radiated emission on the band edge FCC 15.249(C)...............................................23 Intertek Testing Services ETL SEMKO FCC ID. : PNKVC-TA Report No.: EME-030449 Page 3 of 23 Summary of Tests 2.4GHz Wireless Camera Transmitter Model: VC-T101 FCC ID: PNKVC-TA Test Reference Results Conducted Emission of AC Power 15.207 Complies Radiated Emission test 15.249(c), 15.209 Complies Intertek Testing Services ETL SEMKO FCC ID. : PNKVC-TA Report No.: EME-030449 Page 4 of 23 1. General information 1.1 Identification of the EUT Applicant : ELANsat Technologies Inc. Product : 2.4GHz Wireless Camera Transmitter Model No. : VC-T101 FCC ID. : PNKVC-TA Frequency Range : 2414MHz to 2468MHz Channel Number : 4 channels Frequency of Each Channel : 2414MHz, 2432MHz, 2450MHz, 2468MHz Type of Modulation : FM Rated Power : 9V Power Cord : N/A Test Voltage : 120Vac, 60Hz with adapter (YAD-0900300C) Sample Received : April 9, 2003 Test Date(s) : April 11, 2003 to April 16, 2003 A DoC report has been generated for the client. 1.2 Additional information about the EUT The Wireless Surveillance System with CMOS/CCD Images and four channels available is just as baby sitter, home/camp guard and company monitoring. The main function of VC-T101 Video Sender is to send the video and audio signals to receiver unit by 2.4GHz RF signal and do the FM demodulation, then put the video and audio signals to monitor, or other AV device. We verified that VC-T102 is identical to VC-T101 (EUT), the difference model number serves as marketing strategy. For more detail features, please refer to User's manual as file name “Installation guide.pdf” Intertek Testing Services ETL SEMKO FCC ID. : PNKVC-TA Report No.: EME-030449 Page 5 of 23 1.3 Antenna description The EUT uses a permanently connected antenna. Antenna Gain : 0dBi Antenna Type : Invert-F antenna Connector Type : N/A Intertek Testing Services ETL SEMKO FCC ID. : PNKVC-TA Report No.: EME-030449 Page 6 of 23 2. Test specifications 2.1 Test standard The EUT was performed according to the procedures in FCC Part 15 Subpart C Paragraph 15.249 for non-spread spectrum devices. The test of radiated measurements according to FCC Part15 Section 15.33(a) had been conducted and the field strength of this frequency band were all meet limit requirement, thus we evaluate the EUT pass the specified test. 2.2 Operation mode The EUT was tested in normal operation mode. The EUT was transmitted continuously during the test. Intertek Testing Services ETL SEMKO FCC …
