PNXLT-0331LANTERN

CAMP ROCKER OPERATION INSTRUCTION MANUAL READ ALL INSTRUCTIONS BEFORE FIRST USE KEEP THIS MANUAL FOR REFERENCE. instructions on “HOW TO CHARGE”. When the battery is not in use for a long period, the runtime of the light will be shortened due to the self-discharge of the battery. Before First Use 1 2 3 Product Features Integrated wireless Bluetooth speaker connection, Bluetooth 3.0 Audio Built in 3.7V 2600mAh Lithium Battery DC 5V/2.1A USB output, suitable for battery charge on electronic devices with USB input. DC 5V/1A micro-USB input (Charger Port) Connect audio cable (not included) directly to AUX audio plug to play music without Bluetooth connection. Intergraded handle with hook Main Button (Power and mode selection) Battery Power Indicator (BPI) USB cover Micro-USB Charger Port USB Output Speaker AUX audio plug (not included) Micro-USB charging cable 1 2 3 4 5 6 7 8 9 10 8 CAUTION RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS. Model : LT-003 (FCC ID : PNXLT-0331) 5 6 7 9 4 10 Ill umination (Lumens) 6 hrs 15 mins (High) 22 hrs (Low) 30 hrs (Red) Runtime w/Light 3.7V 2600mAh Lithium battery Battery Type -20 ̊c to 45 ̊c Operating Temperature ≤ 90% Operating Humidity Runtime w/Light & Bluetooth void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instr uctions may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. connected. Consult the dealer or an experienced radio/TV technician for help. IMPORTANT! WARNING! DO NOT DO NOT disassembly the product. Pl ease charging the lantern at least once per 1 month in order to keep the battery in normal stage. Pl ease always handle the battery in safe way. If the lantern has been destroyed or crashed, do not use it again or consult your product provider The USB charging cable is for indoor use only. Never short-circuit the terminal of the battery and the plug of the USB charging cable. It may If the USB charging cable, USB plug, or lantern body is damaged. DO NOT use it. Use the Micro-USB charging cable included for charging only. Lithium batteries in the product can easily rupture, ignite, or explode when exposed to high temperatures, or direct sunlight. The product should be stored and charged under well ventilated environment. Short-circuiting a battery can also cause it to ignite or explode. Never open a battery's casing. Batteries contain safety devices that, protect the cells insi de fr om abuse. If damaged, these can cause the battery to ignite or exploded DO NOT charge the lantern and charge an electronic device at the same time. This will shorten the lantern’s battery life. Securely close the USB cover at the back of the lantern so that it will not be damage while water splash/ rain, or the water resistance will be compromised. Safely and properly dispose of the battery lantern according to your loca l r egulations when it comes to the end of its useful life. This lantern is NOT a toy. Children should be supervised to ensure that they do not play with this lantern. A long period of non-use will lower the voltage of the battery due to natural self-discharge. If the light is kept on until the power is completely gone (i.e. over discharge), it may sho rten the battery life. Even when you do not use the lantern. Charge the battery every month. DO NOT charge the lantern for more than 8 hours. If the lantern does not serve the proper running time even though the battery is fully charged, the battery may have reached the end of its useful life. Bluetooth Speaker Lantern 125 (High) 45 (Low) 4 hrs 45 mins (High) 9 hrs 30 mins (Low) This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The Bluetooth® word mark and logos are registered trademakrs owned by Bluetooh SIG, Inc. and any use of such marks by Brunton Group, Inc. is under license.

Fully charge the lantern using the supplied Micro-USB charging cable. 1. Connect the micro-USB charing cable into the lanterns charging port at the back of the lantern, and the USB end of the micro-USB charging cable into your home power outlet (DC5V power sources). Or use a computer or other 5V/1A power source. Plug the USB charging cable into the USB port. 2. Standard charging time is around 4.5 hours. (Depending on the life of the battery, the charging time will vary). Be careful not to charge it for more than 8 hours. Over charging will damage the battery. NOTE: The charging time and the operation time may vary depending on the use environment. Status indicator: The battery power indicator light indicates how much battery life remains for the mode in use. Light ashing = Charging All lights on = Fully charged 100% battery life Three light on = Around 75% battery life Two light on = Around 50% battery life One light on = Low battery > Around 25% battery life How To Charge Trouble Shooting The lantern speaker doesn’t work or it won’t pair • Try moving your device closer. • Is the lantern turned on and charged? • Turn the Bluetooth o and then on to wake it. • Is Bluetooth enabled on your device or computer? • Try repeating the setup procedure in this guide or pair with a dierent Bluetooth device. • The speaker plays music from one device at a time. Unpair the device not being used. (Refer to your device documentation for help.) Pair a new device using the setup procedure. • If pairing with a computer, specify the lantern speaker as the audio out device on the computer. Operation with audio function To play audio from a Bluetooth device, you need to pair the device with the lantern speaker. 1. On your Bluetooth device, turn on Bluetooth and scan for devices in its Bluetooth menu. 2. Turn on the Bluetooth when powering up for the rst time, the lantern speaker is discoverable for 2 minutes and is ready for pairing. A short sound will indicate the Bluetooth is on. 3. The device code of this lantern “BRUNTON C-ROCKER” will appear on the device list of your Bluetooth device, select the lantern. The Bluetooth status will show on your Bluetooth menu after pairing is established. The lantern speaker is ready to play music. Note: If the Bluetooth turns o after ve minutes, it enters power saving mode. Slide the power switch o and then turn on to wake the Bluetooth, and try pairing your device again. Repeat step 3. Note: The lantern speaker operates with a single pair devices mode. If you pair the speaker with another device, the device least recently connected needs to be un-paired with the speaker rst. Repeat steps 2 and 3 above Remark: Connect audio cable (not included) directly to AUX audio plug to play music without Bluetooth connection. Operation with power bank function 1. Select the suitable USB charging cable (dierent devices require dierent charging cables for charging). 2. Put the USB cable into lantern USB output port, then put the other side of the cable into the charging device (mobile, tablet, etc.) The device will then start charging. 3. When the lantern battery is discharged, it will stop charging. Operation with light function To turn the lantern ON, press the main button. Adjust the light mode (High / Low / Red / O ) by pressing the main button. To turn the lantern OFF, press the main button once after Red light mode. Operation Instruction Status indicator : 2 3 Turn on Bluetooth > > Bluetooth devices SEARCHING (Dierent devices require dierent charging cables for charging - Cable(s) not included.) Charging100% battery life75% battery life50% battery life25% battery life 100% battery life 75% battery life 50% battery life 25% battery life Status indicator “Low, High, Red, O ” light switch 1 Bluetooth devices ON Bluetooth devices Select this CONNECT BRUNTON C-ROCKER Bluetooth devices PAIRED 09012015 V1

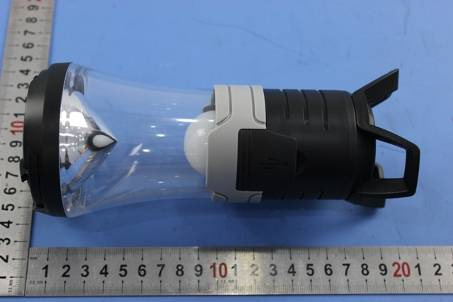

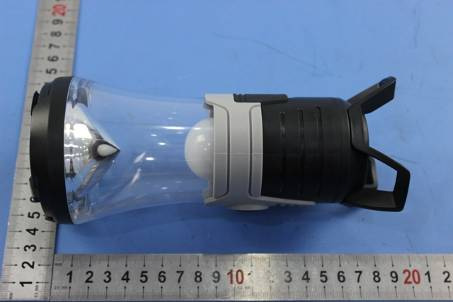

1 Photographs - EUT Constructional Details Test model No.:LT-003 “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.”

For European Market (EEC market) For US Market: FCC Wor ding “Made in Chin a” CE logo, WEEE logo, model No. and Company trade mark Model n umber: LT-0331 Company trademar k 1 1 1 1

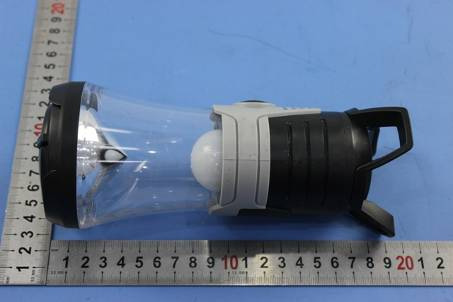

1 Photographs - EUT Constructional Details Test model No.:LT-003 “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of …

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch No. 1 W orkshop, M-10, Middle section, Science & Technology Park, Nanshan District, Shenzhen, Guangdong, China 518057 Telephone: +86 (0) 755 2601 2053 Fax: +86 (0) 755 2671 0594 Email: [email protected] Report No.: SZEM150600383702 Page: 1 of 6 Authorized Signature: Jack Zhang EMC Laboratory Manager The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. All test results in this report can be traceable to National or International Standards. “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” 1 Cover page SAR Evaluation Report Application No.: SZEM1506003837CR Applicant: Flying Dragon Development Limited Manufacturer: Flying Dragon Development Limited Factory: Flying Dragon Development Limited Product Name: LANTERN Model No.(EUT): LT-003 FCC ID: PNXLT-0331 Standards: 47 CFR Part 1.1307 (2014) 47 CFR Part 2.1093 (2014) KDB447498D01 General RF Exposure Guidance v05r02 Date of Receipt: 2015-07-01 Date of Test: 2015-07-14 to 2015-07-22 Date of Issue: 2015-07-27 Test Result : PASS* * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM150600383701 Page: 2 of 6 “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” 1.1 Version Revision Record Version Chapter Date Modifier Remark 00 2015-07-27 Original Authorized for issue by: Tested By 2015-07-22 (Chris Zhong) /Project Engineer Date Prepared By 2015-07-27 (Joyce Shi) /Clerk Date Checked By 2015-07-27 (Owen Zhou) /Reviewer Date SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM150600383701 Page: 3 of 6 “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” 2 Contents Page 1 COVER PAGE ................…

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch No. 1 W orkshop, M-10, Middle section, Science & Technology Park, Nanshan District, Shenzhen, Guangdong, China 518057 Telephone: +86 (0) 755 2601 2053 Fax: +86 (0) 755 2671 0594 Email: [email protected] Report No.: SZEM150600383701 Page: 1 of 115 Authorized Signature: Jack Zhang EMC Laboratory Manager The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. All test results in this report can be traceable to National or International Standards. “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” 1 Cover page FCC REPORT Application No: SZEM1506003837CR Applicant: Flying Dragon Development Limited Manufacturer: Flying Dragon Development Limited Factory: Flying Dragon Development Limited Product Name: LANTERN Model No.(EUT): LT-003 FCC ID: PNXLT-0331 Standards: 47 CFR Part 15, Subpart C (2014) Date of Receipt: 2015-07-01 Date of Test: 2015-07-14 to 2015-07-22 Date of Issue: 2015-07-27 Test Result: PASS * * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM150600383701 Page: 2 of 115 “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” 2 Version Revision Record Version Chapter Date Modifier Remark 00 2015-07-27 Original Tested By 2015-07-22 (Chris Zhong) /Project Engineer Date Prepared By 2015-07-27 (Joyce Shi) /Clerk Date Checked By 2015-07-27 (Owen Zhou) /Reviewer Date SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM150600383701 Page: 3 of 115 “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligation…
