PO9-HTM65WRTWireless Optical Mouse

Wireless optical Mouse Model Name: HTM-65WRT User’s Manual Sleep 15.105 Federal Communications Commi ssion (FCC) Requirements, Part 15 This equipment has been tested and found to comply wi th the limits for a class B digital device, pursuant to part 15 of the FCC Rules. These limits are desi gned to provide reasonable protection against harmful interference in a resi dential installation. This equipment generates, uses a nd can radiate radio frequency energy an d, if not installed and used in accordance with the instructions , may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular in stallation. If this equipment does cause harmful interference to radio or television r eception, which can be determined by turning the equipment off and on, the user is encouraged to tr y to correct the interference by one or more of the following measures: ---Reorient or relocate the receiving antenna. ---Increase the separation between the equipment and receiver. ---Connect the equipment into an ou tlet on a circuit different from that to which the receiver is connected. ---Consult the dealer or an experienced radio/TV technician for help. Regulatory information / Disclaimers Installation and use of this Wireless Keyboard Mous e device must be in strict accordance with the instructions included in the user documentation provi ded with the product. Any changes or modifications (including the antennas) made to this device that are not expressly approved by the manufacturer may void the user’s authority to operate the equipment. The manufacturer is not responsible for any radio or television interference caused by una uthorized modification of this de vice, or the substitution of the connecting cables and equipment other than manufacturer specified. It is the responsibility of the user to correct any interference caused by such unauthori zed modification, substitution or attachment. Manufacturer and its authorized re sellers or distributors will assume no liability for any damage or violation of government regulations arising fr om failing to comply with these guidelines. This device complies with Part 15 of the FCC Ru les. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept an y interference received, includi ng interference that may cause undesired operation.

Mike Kuo From: [email protected] Sent: February10 2004 Tuesday 12:42 AM To: Mike Kuo Cc: [email protected]; [email protected] Subject: FW: Horng Technical Enterprise Co., Ltd., FCC ID:PO9-HTM65WRT, AN 04T3646 2/13/2004 Hi Mike, Here are our responses to the issues. Question #1: This device is wireless keyboard with fundamental frequency of 27MHz. This wireless keyboard is powered with 2 AA batteries. With this understanding, in the test report, AC line conducted emission test was performed with emission plots. In addition, in the AC line conducted measurement procedure mentioned Bluetooth device . Please explain how this wireless keyboard will be connected to AC main. What is the Bluetooth function related to this device? Our Response #1: We revise the test report (as attached). Please refer to it. Question #2: In the test setup photo, photo 3 and 4 are labeled as AC line conducted setup photo. Please explain. Our Response #2: We revise the test report (as attached). Please refer to it. Question #3: What is the detector function used to measure the fundamental frequency ? Our Response #3: "Peak detector" is used. Question #4: Please confirm that loop antenna was used to measure radiated emission below 30MHz. Our Response #4: Yes, we used the loop antenna. I hope the above response would conclude this case and receive your grant soon. Thank you. Best Rgds, WK Mike Kuo <[email protected]> 2004/02/07 04:28 AM "'[email protected]'" <[email protected]> "Lai, Harris (E-mail)" <[email protected]> -----Original Message----- From: CERTADM Sent: Friday, February 06, 2004 12:27 PM To: Mike Kuo Subject: Horng Technical Enterprise Co., Ltd., FCC ID:PO9-HTM65WRT, AN04T3646 Notice_content ------------- Question #1: This device is wireless mouse with fundamental frequency of 27MHz. This wireless mouse is powered with 3 AAA batteries. With this understanding, in the test report, AC line conducted emission test was performed with emission plots. In addition, in the AC line conducted measurement procedure mentioned USB device . Please explain how this wireless mouse will be connected to AC main. What is the USB function related to this device ? Question #2: In the test setup photo, photo 3 and 4 are labeled as AC line conducted setup photo. Please explain . Question #3: What is the detector function used to measure the fundamental frequency ? Question #4: Please confirm that loop antenna was used to measure radiated emission below 30MHz. Best Regards Mike Kuo The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender. 2/13/2004

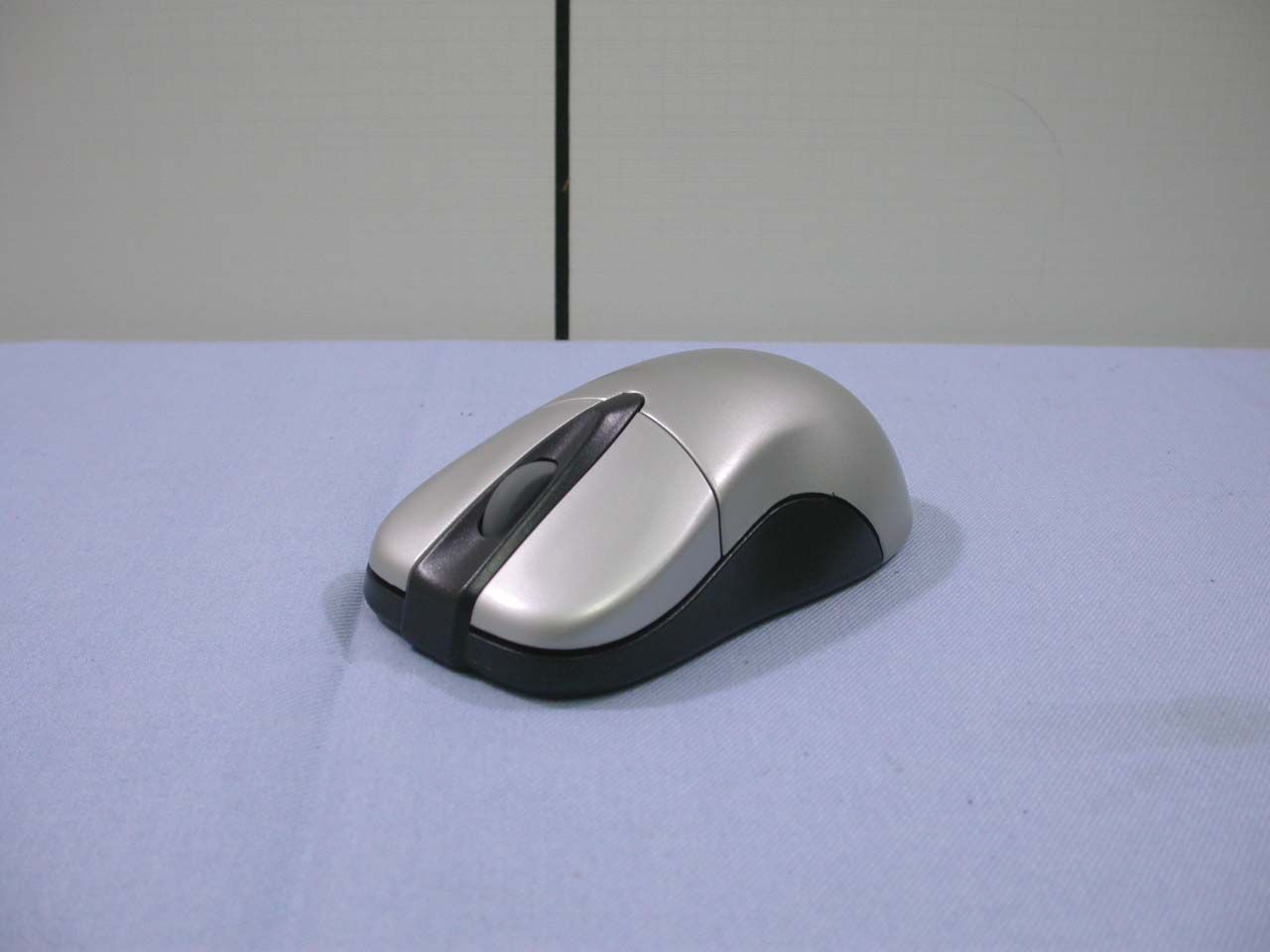

Compliance Certification Services Inc. Report No: B40106203 Date of Issue: January 29, 2004 Page 1 EXTERNAL PHOTOGRPHS OF EUT

Compliance Certification Services Inc. Report No: B40106203 Date of Issue: January 29, 2004 Page 2 INTERNAL PHOTOGRPHS OF EUT Compliance Certification Services Inc. Report No: B40106203 Date of Issue: January 29, 2004 Page 3

Compliance Certification Services Inc. Report No: B40106203-RP FCC ID: PO9-HTM65WRT Date of Issue: January 29, 2004 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 of 17 FCC 47 CFR PART 15 SUBPART C TEST REPORT For HORNG TECHNICAL ENTERPRISE CO., LTD Wireless optical Mouse Model: HTM-65WRT Trade Name: HORNGTECH Prepared for HORNG TECHNICAL ENTERPRISE CO., LTD No. 1-5 Hsin-Pi, Chiu-Pi Li, Tai-Bao City, Cha-Yi Hsien, Taiwan, R. O. C. Prepared by Compliance Certification Services Inc. No. 81-1, Lane 210, Bade Rd. 2, Luchu Hsiang, Taoyuan Hsien, (338) Taiwan, R.O.C. TEL: 886-3-324-0332 FAX: 886-3-324-5235 Compliance Certification Services Inc. Report No: B40106203-RP FCC ID: PO9-HTM65WRT Date of Issue: January 29, 2004 Page 2 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION ................................................................................ 3 2. EUT DESCRIPTION ........................................................................................................ 4 3. TEST METHODOLOGY................................................................................................. 5 3.1 EUT CONFIGURATION................................................................................................... 5 3.2 EUT EXERCISE.............................................................................................................. 5 3.3 GENERAL TEST PROCEDURES........................................................................................ 5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS.................................. 6 3.5 DESCRIPTION OF TEST MODES....................................................................................... 6 4. INSTRUMENT CALIBRATION .................................................................................... 7 5. FACILITIES AND ACCREDITATIONS ...................................................................... 8 5.1 FACILITIES................................................................................................................... 8 5.2 EQUIPMENT.................................................................................................................. 8 5.3 LABORATORY ACCREDITATIONS AND LISTING.............................................................. 8 5.4 TABLE OF ACCREDITATIONS AND LISTINGS.................................................................. 9 6. SETUP OF EQUIPMENT UNDER TEST ................................................................... 10 6.1 SUPPORT EQUIPMENT................................................................................................. 10 7. FCC PART 15.227 REQUIREMENTS ......................................................................... 11 7.1 RADIATED EMISSIONS................................................................................................. 11 7.2 POWERLINE CONDUCTED EMISSIONS.......................................................................... 15 Compliance Certification Services Inc. Report No: B40106203-RP FCC ID: PO9-HTM65WRT Date of Issue: January 29, 2004 Page 3 1. TEST RESULT CERTIFICATION Applicant: HORNG TECHNICAL ENTERPRISE CO., LTD No. 1-5 Hsin-Pi, Chiu-Pi Li, Tai-Bao City, Cha-Yi Hsien, Taiwan, R. O. C. Equipment Under Test: Wireless optical Mouse Trade Name: HORNGTECH Model: HTM-65WRT Model Difference N/A Report Number: B40106203-RP Date of Test: December 23, 2003 ~ January 7, 2004 APPLICABLE STANDARDS STANDARD TEST RESULT FCC Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (2001) and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15.227. The test results of this report relate only to the tested sample identified in this report. Approved by: Reviewed by: Harris W.Lai Miro Chueh Executive Vice President Section Manager Compliance Certification Services Inc. Compliance Certification Services Inc. Compliance Certification Services Inc. Report No: B40106203-RP FCC ID: PO9-HTM65WRT Date of Issue: January 29, 2004 Page 4 2. EUT DESCRIPTION Product Wireless optical Mouse Trade Name HORNGTECH Model Number HTM-65WRT Power Supply Powered by AAA batteries (Rating: 2 × 1.5Vdc) Frequency Range 27 MHz Modulation Technique FSK Antenna Gain -10dBi (Max) Antenna Designation PCBAntenna Note: This submittal(s) (test report) is intended for FCC ID: PO9-HTM65WRT filing to comply with Section 15.227 of the FCC Part 15, Subpart C Rules. Compliance Certification Services Inc. Report No: B40106203-RP FCC ID: PO9-HTM65WRT Date of Issue: January 29, 2004 Page 5 3. TEST METHODOLOGY The tests documented in this report were performed in accordance with ANSI C63.4 and FCC CFR 47 2.1046, 2.1047, 2.1049, 2.1051, 2.1053, 2.1055, 2.1057, and 15.227. 3.1 EUT CONFIGURATION The EUT configuration for testing is installed on RF field strength measurement to meet the Commissions requirement and operating in a manner that intends to maximize its emission characteristics in a continuous normal application. 3.2 EUT EXERCISE The EUT (Wireless optical Mouse) was operated in the engineering mode to fix the TX frequency that was for the purpose of the measurements. 3.3 GENERAL TEST PROCEDURES Conducted Emissions The EUT is placed on the turntable, which is 0.8 m above ground plane. According to the requirements in Section 13.1.4.1 of ANSI C63.4-2001.Conducted emissions from the EUT measured in the frequency range between 0.15 MHz and 30MHz using CISPR Quasi-peak and average detector…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No: B40106203-RP FCC ID: PO9- HTM65WRT Date of Issue: January 29, 2004 Page 17 APPENDIX 1 PHOTOGRPHS OF TEST SETUP Radiated Emission Set up Photos
