POD-ADB5Analog Transceiver

Tx:144-148 & 420-450MH z R x:136-174 & 400-480MHz Tx:144-148 & 420-450MH z NOTE: This equipment has been te sted and found to comply with the limits for a Class B digital, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions,may cause harmful interference to radio communications. However, there is no guarantee thatinterference will not occur in a particular installation. If this equipment does cause harmful inter- ference to radio or television reception, which can be determind by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the follwing measures: - Reorient or relocate the receiving antenna. - Increase the separation betw een the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with Part 15B of the FCC Rules. Operation is sub- ject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. SERVICE SIGNALS IS PROHIBIITED UNDER FCC RULES AND FEDERRAL LAW. WARNING: MODIFICATION OF THIS DEVICE TO RECEIVE CELLULAR RADIOTELEPHONE

TYT ELECTRONICS CO., LTD Block 39-1, Optoelectronics-information industry base, Nan’an, Quanzhou, Fujian, China Dec. 31, 2019 Statement We, TYT ELECTRONICS CO., LTD (FCC ID: POD-ADB5), puts the label inside the battery compartment of this device. It is visible to the users as they purchase the products and install the battery. Regards TYT ELECTRONICS CO., LTD Contact person: Jiamao Lin Title: General Manager

TYT ELECTRONICS CO., LTD Block 39-1, Optoelectronics-information industry base, Nan’an, Quanzhou, Fujian, China PHOENIX TESTLAB GmbH Date: Dec. 31, 2019 Product Certification Königswinkel 10 D 32825 Blomberg FCC ID: POD-ADB5 Subject: Declaration of compliance to the requirements of §15.121 We declare that, this scanning receiver is incapable of operating (tuning), or readily being altered by the users to operate, within the frequency bands allocated to the Cellular Radiotelephone Service in part 22 of this chapter (cellular telephone bands). This device will not be able to receive transmissions in the cellular telephone bands by means of clipping the leads of, or installing, a simple component such as a diode, resistor or jumper wire; replacing a plug-in semiconductor chip; or programming a semiconductor chip using special access codes or an external device, such as a personal computer. This device is also incapable of converting digital cellular communication transmissions to analog voice audio. This device is designed so that the tuning, control and filtering circuitry is inaccessible. Any attempts to modify the equipment to receive transmissions from the Cellular Radiotelephone Service will render the receiver inoperable. This scanning receiver rejects any signals from the Cellular Radiotelephone Service frequency bands that are 38 dB or lower based upon a 12 dB SINAD measurement. We are aware that the modification of this device to receive transmissions from Cellular Radiotelephone Service frequency bands will be considered to constitute manufacture of such equipment. This includes any individual, individuals, entity or organization that modifies one or more scanners. Any modification to receive transmissions from the Cellular Radiotelephone Service frequency bands voids the certification of the scanning receiver, regardless of the date of manufacture of the original unit. If you have any questions, please feel free to contact me. Thank you. Sincerely, Signatory [Jiamao Lin, General Manager]

TYT ELECTRONICS CO., LTD Block 39-1, Optoelectronics-information industry base, Nan’an, Quanzhou, Fujian, China Dec. 31, 2019 Federal Communication Commission Authorization and Evaluation Division FCC ID: POD-ADB5 Re: Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the applicant hereby requests confidential treatment of information applied this application as outlined below: 1: Block Diagram 2: Schematics 3: Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rules 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, TYT ELECTRONICS CO., LTD Contact person: Jiamao Lin Title: General Manager

TYT ELECTRONICS CO., LTD Block 39-1, Optoelectronics-information industry base, Nan’an, Quanzhou, Fujian, China PHOENIX TESTLAB GmbH Date: Dec. 31, 2019 Product Certification Königswinkel 10 D 32825 Blomberg FCC ID: POD-ADB5 Subject: Declaration of compliance to the requirements of §15.121 We declare that, this scanning receiver is incapable of operating (tuning), or readily being altered by the users to operate, within the frequency bands allocated to the Cellular Radiotelephone Service in part 22 of this chapter (cellular telephone bands). This device will not be able to receive transmissions in the cellular telephone bands by means of clipping the leads of, or installing, a simple component such as a diode, resistor or jumper wire; replacing a plug-in semiconductor chip; or programming a semiconductor chip using special access codes or an external device, such as a personal computer. This device is also incapable of converting digital cellular communication transmissions to analog voice audio. This device is designed so that the tuning, control and filtering circuitry is inaccessible. Any attempts to modify the equipment to receive transmissions from the Cellular Radiotelephone Service will render the receiver inoperable. This scanning receiver rejects any signals from the Cellular Radiotelephone Service frequency bands that are 38 dB or lower based upon a 12 dB SINAD measurement. We are aware that the modification of this device to receive transmissions from Cellular Radiotelephone Service frequency bands will be considered to constitute manufacture of such equipment. This includes any individual, individuals, entity or organization that modifies one or more scanners. Any modification to receive transmissions from the Cellular Radiotelephone Service frequency bands voids the certification of the scanning receiver, regardless of the date of manufacture of the original unit. If you have any questions, please feel free to contact me. Thank you. Sincerely, Signatory [Jiamao Lin, General Manager]

TYT ELECTRONICS CO., LTD Block 39-1, Optoelectronics-information industry base, Nan’an, Quanzhou, Fujian, China Dec. 31, 2019 Statement We, TYT ELECTRONICS CO., LTD (FCC ID: POD-ADB5), puts the label inside the battery compartment of this device. It is visible to the users as they purchase the products and install the battery. Regards TYT ELECTRONICS CO., LTD Contact person: Jiamao Lin Title: General Manager

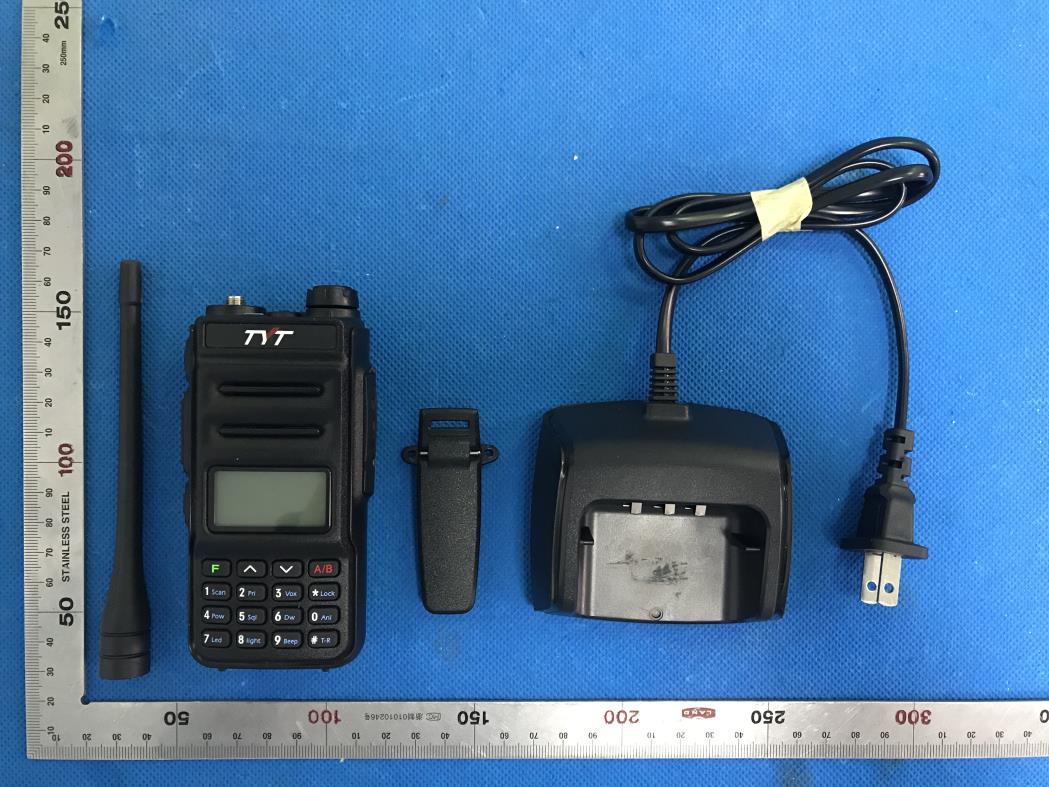

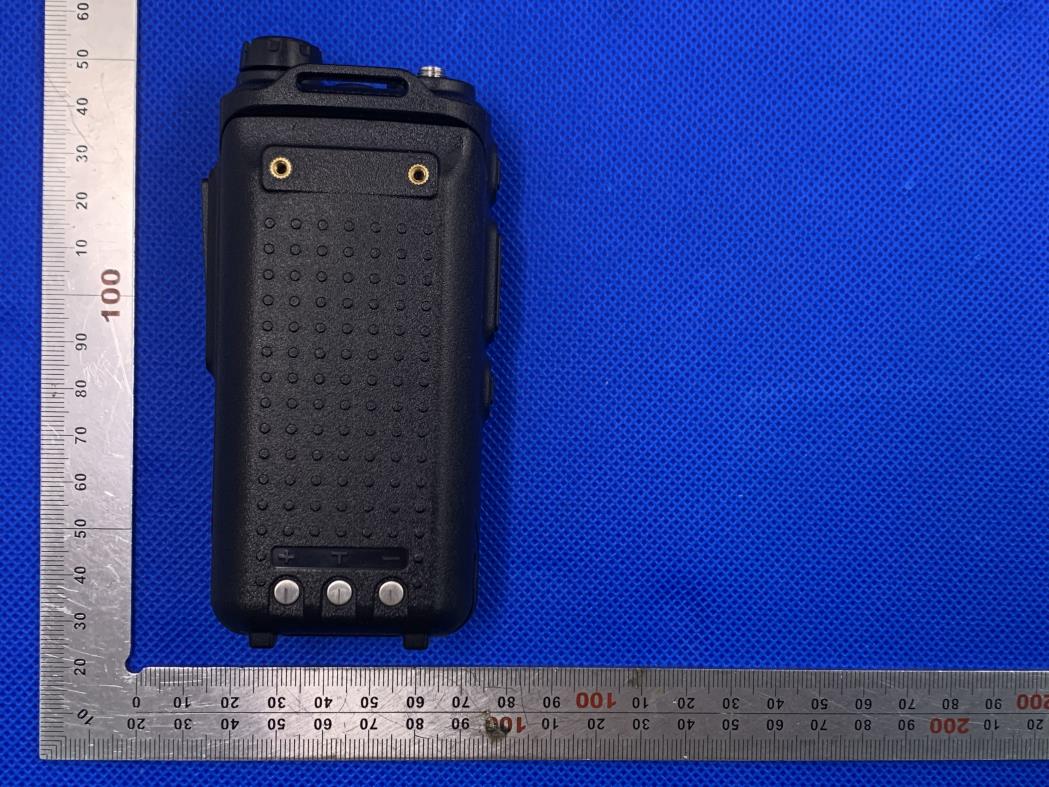

External Photos WHOLE VIEW OF EUT TOP VIEW OF EUT Antenna BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT

FCC ID Label Location FCC ID: POD-ADB5 WARNING: MODIFICATION OF THIS DEVICE TO RECEIVE CELLULAR RADIOTELEPHONE SERVICE SIGNALS IS PROHIBITED UNDER FCC RULES AND FEDERAL LAW.

Internal Photos OPEN VIEW-1 OF EUT OPEN VIEW-2 OF EUT OPEN VIEW-3 OF EUT INTERNAL VIEW-1 OF EUT INTERNAL VIEW-2 OF EUT INTERNAL VIEW-3 OF EUT INTERNAL VIEW-4 OF EUT INTERNAL VIEW-5 OF EUT INTERNAL VIEW-6 OF EUT INTERNAL VIEW-7 OF EUT INTERNAL VIEW-8 OF EUT INTERNAL VIEW-9 OF EUT

Page 1 of 34 FCC ID : POD-ADB5 PRODUCT DESIGNATION : Analog Transceiver BRAND NAME : TYT MODEL NAME : TH-UV88, TH-UV89, TH-5R, TH-8R, TH-9R, TH-10R APPLICANT : TYT ELECTRONICS CO., LTD DATE OF ISSUE : Dec. 30, 2019 STANDARD(S) : FCC Part 15 Rules REPORT VERSION : V 1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd CAUTION: This report shall not be reproduced except in full without the written permission of the test laboratory and shall not be quoted out of context. FCC Test Report Report No.: AGC02931191002FE08 Report No.: AGC02931191002FE08 Page 2 of 34 Report Revise Record Report Version Revise Time Issued Date Valid Version Notes V1.0 / Dec. 30, 2019 Valid Initial Release Report No.: AGC02931191002FE08 Page 3 of 34 TABLE OF CONTENTS 1. VERIFICATION OF COMPLIANCE ............................................................................................................. 4 2. PRODUCT INFORMATION.......................................................................................................................... 5 3. IDENTIFICATION OF THE RESPONSIBLE TESTING LOCATION ............................................................. 6 4. SUPPORT EQUIPMENT LIST ..................................................................................................................... 7 5. SYSTEM DESCRIPTION ............................................................................................................................. 7 6. SUMMARY OF TEST RESULTS ................................................................................................................. 8 7. FCC RADIATED EMISSION TEST .............................................................................................................. 9 7.1. TEST EQUIPMENT OF RADIATED EMISSION ................................................................................. 9 7.2. LIMITS OF RADIATED EMISSION TEST ........................................................................................... 9 7.3 BLOCK DIAGRAM OF RADIATED EMISSION TEST .......................................................................... 9 7.4 PROCEDURE OF RADIATED EMISSION TEST ............................................................................... 11 7.5 TEST RESULT OF RADIATED EMISSION TEST ............................................................................. 12 8. CONDUCTED EMISSION TEST ................................................................................................................ 14 8.1 PROVISIONS APPLICABLE ............................................................................................................. 14 8.2 MEASUREMENT PROCEDURE ....................................................................................................... 14 8.3 TEST SETUP BLOCK DIAGRAM ...................................................................................................... 15 8.4 TEST RESULT .................................................................................................................................. 16 9. ANTENNA CONDUCTED POWER FOR RECEIVERS .............................................................................. 18 10. SANNING RECEIVERS AND FREQUENCY CONVERTERS USED WITH SANNING RECEIVERS. ....... 21 APPENDIX 1 PHOTOGRAPHS OF TEST SETUP ......................................................................................... 23 Report No.: AGC02931191002FE08 Page 4 of 34 1. VERIFICATION OF COMPLIANCE Applicant TYT ELECTRONICS CO., LTD Address Block 39-1, Optoelectronics-information industry base, Nan'an, Quanzhou, Fujian, China. Manufacturer TYT ELECTRONICS CO., LTD Address Block 39-1, Optoelectronics-information industry base, Nan'an, Quanzhou, Fujian, China. Factory TYT ELECTRONICS CO., LTD Address Block 39-1, Optoelectronics-information industry base, Nan'an, Quanzhou, Fujian, China. Product Designation Analog Transceiver Brand Name TYT Test Model TH-UV88, Serial Model TH-UV89, TH-5R, TH-8R, TH-9R, TH-10R Difference Description All the same except the model name. Hardware Version AUV88BK VER 1.1 Software Version V1.00 Measurement Procedure ANSI C63.4: 2014 Date of test Oct. 24, 2019~Dec. 30, 2019 Deviation No any deviation from the test method. Condition of Test Sample Normal The above equipment was tested by Attestation Of Global Compliance (Shenzhen) Co., Ltd. for compliance with the requirements set forth in the FCC Rules and Regulations Part 15, the measurement procedure according to ANSI C63.4:2014. This said equipment in the configuration described in this report shows the maximum emission levels emanating from equipment are within the compliance requirements. The test results of this report relate only to the tested sample identified in this report. Prepared By Calvin Liu (Project Engineer) Dec. 30, 2019 Reviewed By Max Zhang (Reviewer) Dec. 30, 2019 Approved By Forrest Lei (Authorized Officer) Dec. 30, 2019 Report No.: AGC02931191002FE08 Page 5 of 34 2. PRODUCT INFORMATION The EUT is a Analog Transceiver designed for voice communication. It is designed by way of utilizing the F3E modulation achieves the system operating. A major technical description of EUT is described as following: Communication Type Voice / Tone only Modulation FM RX Frequency Range Rx:136 MHz -174 MHz, 400MHz -480MHz Emission Type F3E Antenna Designation Detachable Antenna Gain 1.5dBi Power Supply DC 7.4V, 1400mAh by battery, Charger for 8.4V Charger Parameter INPUT:AC 100-240V 50/60Hz 0.2A OUTPUT:DC 8.4V 500mA I/O Port Information (Applicable Not Applicable) I/O Port of EUT I/O Port Type Q’TY Cable Tested with Antenna Connect Port 1 0 1 Report No.: AGC02931191002FE08 Page 6 of 34 3. IDENTIFICATION OF THE RESPONSIBLE TESTING LOCATION List Of Test Equipment: TEST EQUIPMENT OF CONDUCTED EMISSION TEST Equipment Manufacturer Model S/N Cal. Date Cal. Due TEST RECEIVER R&S ESCI 100096 Jul. 12, 2019 Jul. 11, 2020 AMN/LISN R&S ESH2-Z5 100086 Aug. 22, 2019 Aug. 21, 2020 TEST SOFTWARE FR EZ-EMC AGC-C…

Text truncated - open the document above for the full version.

Test Setup Photos CONDUCTED EMISSION TEST SETUP RADIATED EMISSION TEST SETUP-BELOW 1GHZ RADIATED EMISSION TEST SETUP-ABOVE 1GHZ
