POQWPE-2300PCS Band Cellular Transceiver


                                             FCC RF EXPOSURE INFORMATION In August 1996 the Federal Communications Commission (FCC) of the United States with its action in Report and Order FCC 96-326 adopted an updated safety standard for human exposure to radio frequency (RF) electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the safety standard previously set by both U.S. and international standards bodies. The design of this phone complies with the FCC guidelines and these international standards. Use only the supplied or an approved antenna. Unauthorized antennas, modifications, or attachments could impair call quality, damage the phone, or result in violation of FCC regulations. Do not use the phone with a damaged antenna. If a damaged antenna comes into contact with the skin, a minor burn may result. Please contact your local dealer for replacement antenna. Body-worn Operation This device has been tested for body-worn operation and meets FCC RF exposure guidelines when used with an accessory that contains no metal components, and positions the handset at a minimum of 1.5cm from the body. Use of other body-worn accessories may not ensure compliance with FCC RF exposure guidelines and should be avoided. For more information about RF exposure, please visit the FCC website at www.fcc.gov Read this information before using your phone



















   ! "##$# %&&#'#( #)*+ ,- .)*  / ,0 ! .0 1 0     %!!  ,1  2)* 3)*  0!)*  ,)*  .)* ! 4
5      6
6
6
6
   73   8
    /   ,/ 0 %9: 9%&& .; 173120  <*      , ! , !, ! , !    !1* !97-97-= !9 *   !7 .   , !1 &&     .  . .  .    0 7 .      >1 2   ,
* %9%&&   %9%&&    2:*  2:* 2:*  2:*     !%&&9 9/9%   -

 , ,
 *'9
 .!!!9 * 27    40 8        4 * 4 *4 * 4 *   /  %&&9 9 9,  //3%&&929 9  ,/$*%9%&&

        ./0   %9%&& 2





                  9%3<*93  0 ,     6! ,%!! .0
 0 !     ,6
 2!5,- 4
   0 %   0 %   ,/    %9%&&    8:   8:  8:   8:    6%
9
#'  6!
 %&&9'/ 3 , 30 $9;9 9; 3


        1. Basic Phone Setup 1.1 Keypad Configuration Diagram 1.2 Role of Each Key 1.3 Display 1.4 Power On 1.5 IDLE Mode 1.6 Definition of Figure Icon 2. Basic Function 2.1 Processing in IDLE state 2.2 Getting a call 2.3 Making a call 2.4 Busy menu 2.5 Absentee service 2.6 Auto redial function 2.7 Touch tone dialing 2.8 Speed key function 2.9 Use restriction 3. Menu Configuration 3.1 Phone Book 3.2 PIM 3.3 Ring 3.4 Sounds 3.5 Display 3.6 Setup 3.7 Security 3.8 Data Service 4. Phone Book 4.1 Find Entry 4.2 Add Entry 4.3 Call Log 4.4 Call Timer 4.3 Edit Group 4.4 My Phone #

        5. PIM 5.1 View Schedule 5.2 Add Schedule 5.3 Alarm Clock 5.4 World Time 6. Ring 6.1 Ring Type 6.2 Ring Volume 6.3 Ring Tone 7. Sounds 7.1 Call Volume 7.2 Key Pad Tones 7.3 1 Minute Beep 7.5 No Service 8. Display 8.1 Backlight 8.2 Standby 8.3 Banner 8.4 Language 8.5 Version 8.6 Contrast 9. Setup 9.1 Auto Redial 9.2 Auto Answer 9.3 Auto Hyphen 9.4 Area Code Rules 9.5 My Menu

        10 Security 10.1 Lock 10.2 Lock code 10.3 Restrict 10.4 Clear Memory 10.5 Emergency # 10.6 Select System 10.7 Reset Phone 11 Data Service 11.1 SIO Mode 11.2 Incoming Mode 11.3 Flow Control

        1. Basic Phone Setup 1.1 Keypad Configuration Diagram - Keypad is composed of 0 ~ 9 key, *(Star), #(Pound), Send, CLR(Clear), End, Menu, Conform key, Internet Hot key (also for…

Text truncated - open the document above for the full version.

Celltech Research Inc. 1955 Moss Court, Kelowna, B.C. Canada V1Y 9L3 Tel. 250-860-3130 • Fax. 250-860-3110 • e-mail: [email protected] www.celltechlabs.com April 10, 2002 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 SUBJECT: Modottel Co., Ltd. FCC ID: POQWPE-2300 FCC Part 24 Certification Gentlemen: On behalf of Modottel Co., Ltd. is an application for Part 24 Certification of WPE-2300 PCS CDMA handset as follows: FCC ID: POQWPE-2300 Model(s): WPE-2300 Equipment Class: Part 24 Licensed Portable Transmitter Held to Ear (PCE) Equipment Type: Single-Mode PCS CDMA Handset Tx Freq. Range: 1851.25 - 1908.75 MHz Rated Conducted Power: 24.5 dBm Max. RF Output Power: 0.416 Watts (EIRP) Emission Designator: 1M25F9W Attached is the Letter of Authorization, Confidentiality Request, Part 24 EMC measurement report test data and photographs, SAR RF exposure measurement report test data and photographs, FCC ID label and location, internal and external photographs, block diagram (confidential), circuit diagrams (confidential), circuit description (confidential), parts list (confidential), tune-up procedure (confidential), antenna specifications (confidential), operational description (confidential), and the user's manual. If you have any questions or comments concerning the above, please contact the undersigned. Sincerely, Shawn McMillen General Manager Celltech Research Inc. Testing & Engineering Lab cc: Modottel Co., Ltd.

Celltech Research Inc. 1955 Moss Court, Kelowna, B.C. Canada V1Y 9L3 Tel. 250-860-3130 • Fax. 250-860-3110 • e-mail: [email protected] www.celltechlabs.com May 13, 2002 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 Attn: Martin Perrine SUBJECT: Modottel Co., Ltd. FCC ID: POQWPE-2300 731 Confirmation No.: TC356221 Correspondence Ref. No.: 4152 Dear Martin: On behalf of Modottel Co., Ltd., is our response to your e-mail dated May 10, 2002 requesting additional information for the subject application. 1. Attached is new SAR data and test plots using tissue parameters measured at the center frequency of the device and certified probe conversion factors determined by certification from the manufacturer. The revised SAR plots include ambient and liquid temperatures and the full coarse scan data. If you have any questions or comments concerning the above, please do not hesitate to contact me. Sincerely, Shawn McMillen General Manager Celltech Research Inc. Testing & Engineering Lab cc: Modottel Co., Ltd. American TCB

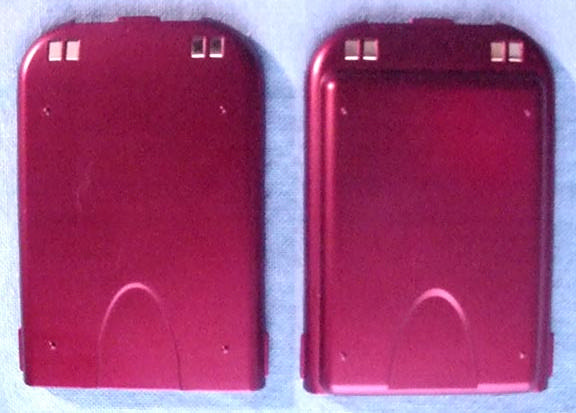

CELLTECH RESEARCH INC. Test Report S/N: 012802-203POQ 1955 Moss Court, Kelowna Test Dates: January 28-31, 2002 B.C. Canada V1Y 9L3 FCC Part 24 Certification © 2002 Celltech Research Inc. MODOTTEL CO., LTD. FCC ID: POQWPE-2300 Single-Mode PCS CDMA Phone (1851.25-1908.75MHz) EXTERNAL EUT PHOTOGRAPHS CELLTECH RESEARCH INC. Test Report S/N: 012802-203POQ 1955 Moss Court, Kelowna Test Dates: January 28-31, 2002 B.C. Canada V1Y 9L3 FCC Part 24 Certification © 2002 Celltech Research Inc. MODOTTEL CO., LTD. FCC ID: POQWPE-2300 Single-Mode PCS CDMA Phone (1851.25-1908.75MHz) EXTERNAL EUT PHOTOGRAPHS CELLTECH RESEARCH INC. Test Report S/N: 012802-203POQ 1955 Moss Court, Kelowna Test Dates: January 28-31, 2002 B.C. Canada V1Y 9L3 FCC Part 24 Certification © 2002 Celltech Research Inc. MODOTTEL CO., LTD. FCC ID: POQWPE-2300 Single-Mode PCS CDMA Phone (1851.25-1908.75MHz) EXTERNAL EUT PHOTOGRAPHS CELLTECH RESEARCH INC. Test Report S/N: 012802-203POQ 1955 Moss Court, Kelowna Test Dates: January 28-31, 2002 B.C. Canada V1Y 9L3 FCC Part 24 Certification © 2002 Celltech Research Inc. MODOTTEL CO., LTD. FCC ID: POQWPE-2300 Single-Mode PCS CDMA Phone (1851.25-1908.75MHz) EXTERNAL EUT PHOTOGRAPHS CELLTECH RESEARCH INC. Test Report S/N: 012802-203POQ 1955 Moss Court, Kelowna Test Dates: January 28-31, 2002 B.C. Canada V1Y 9L3 FCC Part 24 Certification © 2002 Celltech Research Inc. MODOTTEL CO., LTD. FCC ID: POQWPE-2300 Single-Mode PCS CDMA Phone (1851.25-1908.75MHz) EXTERNAL EUT PHOTOGRAPHS

CELLTECH RESEARCH INC. Test Report S/N: 012802-203POQ 1955 Moss Court, Kelowna Test Dates: January 28-31, 2002 B.C. Canada V1Y 9L3 FCC Part 24 Certification © 2002 Celltech Research Inc. MODOTTEL CO., LTD. FCC ID: POQWPE-2300 Single-Mode PCS CDMA Phone (1851.25-1908.75MHz) FCC ID LABEL & LOCATION LABELLING REQUIREMENTS PER §§ 2.925 The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. Modottel WPE-2300 FCC ID: POQWPE-2300- 220 MODOTTEL Co., Ltd. MADE IN KOREA

CELLTECH RESEARCH INC. Test Report S/N: 012802-203POQ 1955 Moss Court, Kelowna Test Dates: January 28-31, 2002 B.C. Canada V1Y 9L3 FCC Part 24 Certification © 2002 Celltech Research Inc. MODOTTEL CO., LTD. FCC ID: POQWPE-2300 Single-Mode PCS CDMA Phone (1851.25-1908.75MHz) INTERNAL EUT PHOTOGRAPHS CELLTECH RESEARCH INC. Test Report S/N: 012802-203POQ 1955 Moss Court, Kelowna Test Dates: January 28-31, 2002 B.C. Canada V1Y 9L3 FCC Part 24 Certification © 2002 Celltech Research Inc. MODOTTEL CO., LTD. FCC ID: POQWPE-2300 Single-Mode PCS CDMA Phone (1851.25-1908.75MHz) INTERNAL EUT PHOTOGRAPHS CELLTECH RESEARCH INC. Test Report S/N: 012802-203POQ 1955 Moss Court, Kelowna Test Dates: January 28-31, 2002 B.C. Canada V1Y 9L3 FCC Part 24 Certification © 2002 Celltech Research Inc. MODOTTEL CO., LTD. FCC ID: POQWPE-2300 Single-Mode PCS CDMA Phone (1851.25-1908.75MHz) INTERNAL EUT PHOTOGRAPHS CELLTECH RESEARCH INC. Test Report S/N: 012802-203POQ 1955 Moss Court, Kelowna Test Dates: January 28-31, 2002 B.C. Canada V1Y 9L3 FCC Part 24 Certification © 2002 Celltech Research Inc. MODOTTEL CO., LTD. FCC ID: POQWPE-2300 Single-Mode PCS CDMA Phone (1851.25-1908.75MHz) INTERNAL EUT PHOTOGRAPHS CELLTECH RESEARCH INC. Test Report S/N: 012802-203POQ 1955 Moss Court, Kelowna Test Dates: January 28-31, 2002 B.C. Canada V1Y 9L3 FCC Part 24 Certification © 2002 Celltech Research Inc. MODOTTEL CO., LTD. FCC ID: POQWPE-2300 Single-Mode PCS CDMA Phone (1851.25-1908.75MHz) INTERNAL EUT PHOTOGRAPHS

CELLTECH RESEARCH INC. Test Report S/N: 012802-204POQ 1955 Moss Court, Kelowna Test Dates: January 28-30, 2002 B.C. Canada V1Y 9L3 FCC SAR Evaluation ____________________________________________________________________________________________________________ © 2002 Celltech Research Inc. CERTIFICATE OF COMPLIANCE SAR EVALUATION Celltech Research Inc. declares under its sole responsibility that this device was found to be in compliance with the Specific Absorption Rate (SAR) RF exposure requirements specified in OET Bulletin 65, Supplement C, Edition 01-01 (General Population/Uncontrolled Exposure), and was tested in accordance with the appropriate measurement standards, guidelines, and recommended practices specified in American National Standards Institute C95.1-1992. I attest to the accuracy of data. All measurements were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. This test report shall not be reproduced partially, or in full, without the prior written approval of Celltech Research Inc. The results and statements contained in this report pertain only to the device(s) evaluated. Shawn McMillen General Manager Celltech Research Inc. Test Lab: CELLTECH RESEARCH INC. Testing and Engineering Lab 1955 Moss Court Kelowna, B.C. Canada V1Y 9L3 Phone: 250 - 860-3130 Fax: 250 - 860-3110 e-mail: [email protected] web site: www.celltechlabs.com Applicant Information: MODOTTEL CO., LTD. 2F. DongNam Bldg. 448-16 Shingil-5Dong, YongDungPo-Ku, Seoul, Korea FCC Rule Part(s): 2.1093; ET Docket 96.326 FCC ID: POQWPE-2300 Model(s): WPE-2300 Equipment Type: Single-Mode PCS CDMA Phone Classification: Part 24 Licensed Portable Transmitter Held to Ear (PCE) Tx Frequency Range: 1851.25 - 1908.75 MHz Rx Frequency Range: 1931.25 - 1988.75 MHz Rated RF Conducted Power: 24.5 dBm (+/- 0.2 dBm) Max. RF Output Power: 0.416 Watts (EIRP) Antenna Type: Retractable Whip (1/4λ) Battery Type(s): Standard Life (3.7V 550 mAh) Extended Life (3.7V 950 mAh) CELLTECH RESEARCH INC. Test Report S/N: 012802-204POQ 1955 Moss Court, Kelowna Test Dates: January 28-30, 2002 B.C. Canada V1Y 9L3 FCC SAR Evaluation ____________________________________________________________________________________________________________ © 2002 Celltech Research Inc. TABLE OF CONTENTS 1.0 INTRODUCTION.................................................................. 1 2.0 DESCRIPTION OF EUT.......................................................... 1 3.0 SAR MEASUREMENT SYSTEM ............................................. 2 4.0 MEASUREMENT SUMMARY.................................................. 3-7 5.0 DETAILS OF SAR EVALUATION........................................... 8-9 6.0 EVALUATION PROCEDURES................................................. 10-11 7.0 SYSTEM VALIDATION.......................................................... 12 8.0 TISSUE PARAMETERS......................................................... 12 9.0 SIMULATED EQUIVALENT TISSUES...................................... 13 10.0 SAR LIMITS........................................................................ 13 11.0 SYSTEM SPECIFICATIONS.................................................... 14 12.0 SAM PHANTOM.................................................................... 15 13.0 DEVICE HOLDER................................................................. 15 14.0 PROBE SPECIFICATION....................................................... 15 15.0 TEST EQUIPMENT LIST........................................................ 16 16.0 MEASUREMENT UNCERTAINTIES........................................ 17 17.0 REFERENCES...................................................................... 18 APPENDIX A - SAR MEASUREMENT DATA......................................... 19 APPENDIX B - SYSTEM VALIDATION................................................ 20 APPENDIX C - PROBE CALIBRATION................................................ 21 APPENDIX D - MEASURED LIQUID DIELECTRIC PARAMETERS.......... 22 APPENDIX E - SAM PHANTOM CERTIFICATE OF CONFORMITY......... 23 APPENDIX F - SAR TEST SETUP PHOTOGRAPHS................................ 24 CELLTECH RESEARCH INC. Test Report S/N: 012802-204POQ 1955 Moss Court, Kelowna Test Dates: January 28-30, 2002 B.C. Canada V1Y 9L3 FCC SAR Evaluation ____________________________________________________________________________________________________________ © 2002 Celltech Research Inc. MODOTTEL CO., LTD. FCC ID: POQWPE-2300 1 Single-Mode PCS CDMA Phone (1851.25-1908.75MHz) 1.0 INTRODUCTION This measurement report shows that the MODOTTEL CO., LTD. Model: WPE-2300 Single-Mode PCS CDMA Phone FCC ID: POQWPE-2300 complies with FCC Part 2.1093, ET Docket 96-326 Rules for mobile and portable devices. The test procedures, as described in American National Standards Institute C95.1-1992 (see reference [1]), and FCC OET Bulletin 65, Supplement C, Edition 01-01 (see reference [2]) were employed. A description of the product and operating configuration, detailed summary of the test results, methodology and procedures used in the evaluation, equipment used, and the various provisions of the rules are included within this test report. 2.0 DESCRIPTION OF EQUIPMENT UNDER TEST (EUT) EUT Type Single-Mode PCS CDMA Phone FCC ID POQWPE-2300 Equipment Class Licensed Portable Transmitter Held to Ear (PCE) Model No.(s) WPE-2300 FCC Rule Part(s) § 2.1093, Docket 96-326 Application Type FCC Part 24 Certification Tx Frequency Range 1851.25 - 1908.75 MHz Serial No. Pre-production Unit Rx Frequency Range 1931.25 - 1988.75 MHz Battery Type(s) 3.7V 550mA/h Lithium-Ion 3.7V 950mA/h Lithium-Ion Modulation PCS CDMA Antenna Type Retractable Whip (1/4λ) Max. RF Output Power 0.416 Watts (EIRP) Antenna Length 99 mm CELLTECH RESEARCH INC. Test Report S/N: 012802-204POQ 1955 Moss Court, Kelowna Test Dates: Janua…

Text truncated - open the document above for the full version.

FCC RF EXPOSURE INFORMATION In August 1996 the Federal Communications Commission (FCC) of the United States with its action in Report and Order FCC 96-326 adopted an updated safety standard for human exposure to radio frequency (RF) electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the safety standard previously set by both U.S. and international standards bodies. The design of this phone complies with the FCC guidelines and these international standards. Use only the supplied or an approved antenna. Unauthorized antennas, modifications, or attachments could impair call quality, damage the phone, or result in violation of FCC regulations. Do not use the phone with a damaged antenna. If a damaged antenna comes into contact with the skin, a minor burn may result. Please contact your local dealer for replacement antenna. Body-worn Operation This device has been tested for body-worn operation and meets FCC RF exposure guidelines when used with an accessory that contains no metal components, and positions the handset at a minimum of 1.5cm from the body. Use of other body-worn accessories may not ensure compliance with FCC RF exposure guidelines and should be avoided. For more information about RF exposure, please visit the FCC website at www.fcc.gov Read this information before using your phone

Modottel Co., Ltd. FCC ID: POQWPE-2300 SAM Phantom; Flat Section; Position: (270°,270°) Probe: ET3DV6 - SN1590; ConvF(5.36,5.36 ,5.36); Crest factor: 1.0 1880 MHz Muscle: σ = 1.61 mho/m ε r = 53.2 ρ = 1.00 g/cm 3 Coarse: Dx = 15.0, Dy = 15.0, Dz = 10.0 Cube 5x5x7; Powerdrift: -0.19 dB SAR (1g): 0.371 mW/g, SAR (10g): 0.220 mW/g Ambient Temperature: 24.4°C Fluid Temperature: 23°C Body SAR at 1.5 cm Separation Distance Antenna In Model: WPE-2300 PCS CDMA Mode Extended Battery Channel 600 [1880.00 MHz] Conducted Power: 24.51 dBm Date Tested: January 30, 2002 SAR Tot [mW/g] 2.88E-2 8.64E-2 1.44E-1 2.02E-1 2.59E-1 3.17E-1 3.74E-1 Celltech Research Inc. Celltech Research Inc. Modottel Co., Ltd. FCC ID: POQWPE-2300 SAM Phantom; Flat Section; Position: (270°,270°) Probe: ET3DV6 - SN1590; ConvF(5.36,5.36,5.36); Crest factor: 1.0 1880 MHz Muscle: σ = 1.61 mho/m ε r = 53.2 ρ = 1.00 g/cm 3 Coarse: Dx = 15.0, Dy = 15.0, Dz = 10.0 Cube 5x5x7; Powerdrift: -0.15 dB SAR (1g): 0.976 mW/g, SAR (10g): 0.566 mW/g Ambient Temperature: 24.4°C Fluid Temperature: 23°C Body SAR at 1.5 cm Separation Distance Antenna out Model: WPE-2300 PCS CDMA Mode Extended Battery Channel 600 [1880.00 MHz] Conducted Power: 24.51 dBm Date Tested: January 30, 2002 SAR Tot [mW/g] 7.24E-2 2.17E-1 3.62E-1 5.07E-1 6.51E-1 7.96E-1 9.41E-1 Celltech Research Inc. Celltech Research Inc. Modottel Co., Ltd. FCC ID: POQWPE-2300 SAM Phantom; Flat Section; Position: (270°,270°) Probe: ET3DV6 - SN1590; ConvF(5.36,5.36,5.36); Crest factor: 1.0 1880 MHz Muscle: σ = 1.61 mho/m ε r = 53.2 ρ = 1.00 g/cm 3 Coarse: Dx = 15.0, Dy = 15.0, Dz = 10.0 Cube 5x5x7; Powerdrift: -0.17 dB SAR (1g): 0.410 mW/g, SAR (10g): 0.239 mW/g Ambient Temperature: 24.4°C Fluid Temperature: 23°C Body SAR at 1.5 cm Separation Distance Antenna In Model: WPE-2300 PCS CDMA Mode Standard Battery Channel 600 [1880.00 MHz] Conducted Power: 24.51 dBm Date Tested: January 30, 2002 SAR Tot [mW/g] 3.19E-2 9.56E-2 1.59E-1 2.23E-1 2.87E-1 3.50E-1 4.14E-1 Celltech Research Inc. Celltech Research Inc. Modottel Co., Ltd. FCC ID: POQWPE-2300 SAM Phantom; Flat Section; Position: (270°,270°) Probe: ET3DV6 - SN1590; ConvF(5.36,5.36,5.36); Crest factor: 1.0 1880 MHz Muscle: σ = 1.61 mho/m ε r = 53.2 ρ = 1.00 g/cm 3 Coarse: Dx = 15.0, Dy = 15.0, Dz = 10.0 Cube 5x5x7; Powerdrift: -0.06 dB SAR (1g): 1.41 mW/g, SAR (10g): 0.800 mW/g Ambient Temperature: 24.4°C Fluid Temperature: 23°C Body SAR at 1.5 cm Separation Distance Antenna out Model: WPE-2300 PCS CDMA Mode Standard Battery Channel 600 [1880.00 MHz] Conducted Power: 24.52 dBm Date Tested: January 30, 2002 SAR Tot [mW/g] 1.23E-1 3.70E-1 6.17E-1 8.64E-1 1.11E+0 1.36E+0 1.60E+0 Celltech Research Inc. Celltech Research Inc. Modottel Co., Ltd. FCC ID: POQWPE-2300 SAM Phantom; Flat Section Probe: ET3DV6 - SN1590; ConvF(5.36,5.36,5.36); Crest factor: 1.0 1880 MHz Muscle: σ = 1.61 mho/m ε r = 53.2 ρ = 1.00 g/cm 3 Z-Axis Extrapolation at Peak SAR Location Ambient Temperature: 24.4°C Fluid Temperature: 23°C Body SAR at 1.5 cm Separation Distance Antenna out Model: WPE-2300 PCS CDMA Mode Standard Battery Channel 600 [1880.00 MHz] Conducted Power: 24.52 dBm Date Tested: January 30, 2002 01/30/02 Celltech Research Inc. 0.0 1.0 2.0 3.0 0 1020 3040506070 8090100 SAR tot [mW/g] [mm] Modottel Co., Ltd. FCC ID: POQWPE-2300 SAM Phantom; Flat Section; Position: (270°,270°) Probe: ET3DV6 - SN1590; ConvF(5.36,5.36,5.36); Crest factor: 1.0 1880 MHz Muscle: σ = 1.61 mho/m ε r = 53.2 ρ = 1.00 g/cm 3 Coarse: Dx = 15.0, Dy = 15.0, Dz = 10.0 Cube 5x5x7; Powerdrift: 0.00 dB SAR (1g): 0.973 mW/g, SAR (10g): 0.505 mW/g Ambient Temperature: 24.4°C Fluid Temperature: 23°C Body SAR at 1.5 cm Separation Distance Antenna out Model: WPE-2300 PCS CDMA Mode Standard Battery Channel 25 [1851.25 MHz] Conducted Power: 24.52 dBm Date Tested: January 30, 2002 SAR Tot [mW/g] 6.67E-2 2.00E-1 3.34E-1 4.67E-1 6.00E-1 7.34E-1 8.67E-1 Celltech Research Inc. Celltech Research Inc. Modottel Co., Ltd. FCC ID: POQWPE-2300 SAM Phantom; Flat Section; Position: (270°,270°) Probe: ET3DV6 - SN1590; ConvF(5.36,5.36,5.36); Crest factor: 1.0 1880 MHz Muscle: σ = 1.61 mho/m ε r = 53.2 ρ = 1.00 g/cm 3 Coarse: Dx = 15.0, Dy = 15.0, Dz = 10.0 Cube 5x5x7; Powerdrift: -0.20 dB SAR (1g): 0.972 mW/g, SAR (10g): 0.552 mW/g Ambient Temperature: 24.4°C Fluid Temperature: 23°C Body SAR at 1.5 cm Separation Distance Antenna out Model: WPE-2300 PCS CDMA Mode Standard Battery Channel 1175 [1908.75 MHz] Conducted Power: 24.52 dBm Date Tested: January 30, 2002 SAR Tot [mW/g] 6.66E-2 2.00E-1 3.33E-1 4.66E-1 5.99E-1 7.32E-1 8.65E-1 Celltech Research Inc. Celltech Research Inc.

Modottel Co., Ltd. FCC ID: POQWPE-2300 SAM Phantom; Left Hand Section; Position: (75°,180°) Probe: ET3DV6 - SN1590; ConvF(5.78,5.78,5.78); Crest factor: 1.0 1880 MHz Brain: σ = 1.48 mho/m ε r = 39.7 ρ = 1.00 g/cm 3 Coarse: Dx = 15.0, Dy = 15.0, Dz = 10.0 Cube 5x5x7; Powerdrift: -0.12 dB SAR (1g): 1.57 mW/g, SAR (10g): 0.845 mW/g Ambient Temperature: 22.8°C Fluid Temperature: 23°C Head SAR - Left Cheek/Touch Position Antenna In Model: WPE-2300 PCS CDMA Mode Extended Battery Channel 25 [1851.25 MHz] Conducted Power: 24.56 dBm Date Tested: January 28, 2002 SAR Tot [mW/g] 1.11E-1 3.33E-1 5.55E-1 7.76E-1 9.98E-1 1.22E+0 1.44E+0 Celltech Research Inc. Celltech Research Inc. Modottel Co., Ltd. FCC ID: POQWPE-2300 SAM Phantom; Left Hand Section Probe: ET3DV6 - SN1590; ConvF(5.78,5.78,5.78); Crest factor: 1.0 1880 MHz Brain: σ = 1.48 mho/m ε r = 39.7 ρ = 1.00 g/cm 3 Z-Axis Extrapolation at Peak SAR Location Ambient Temperature: 22.8°C Fluid Temperature: 23°C Head SAR - Left Cheek/Touch Position Antenna In Model: WPE-2300 PCS CDMA Mode Extended Battery Channel 25 [1851.25 MHz] Conducted Power: 24.56 dBm Date Tested: January 28, 2002 01/28/02 Celltech Research Inc. 0.0 1.0 2.0 3.0 0 1020 3040506070 8090100 SAR tot [mW/g] [mm] Modottel Co., Ltd. FCC ID: POQWPE-2300 SAM Phantom; Left Hand Section; Position: (75°,180°) Probe: ET3DV6 - SN1590; ConvF(5.78,5.78,5.78); Crest factor: 1.0 1880 MHz Brain: σ = 1.48 mho/m ε r = 39.7 ρ = 1.00 g/cm 3 Coarse: Dx = 15.0, Dy = 15.0, Dz = 10.0 Cube 5x5x7; Powerdrift: -0.19 dB SAR (1g): 0.289 mW/g, SAR (10g): 0.167 mW/g Ambient Temperature: 22.8°C Fluid Temperature: 23°C Head SAR - Left Cheek/Touch Position Antenna Out Model: WPE-2300 PCS CDMA Mode Extended Battery Channel 25 1851.25 MHz] Conducted Power: 24.52 dBm Date Tested: January 28, 2002 SAR Tot [mW/g] 2.31E-2 6.94E-2 1.16E-1 1.62E-1 2.08E-1 2.55E-1 3.01E-1 Celltech Research Inc. Celltech Research Inc. Modottel Co., Ltd. FCC ID: POQWPE-2300 SAM Phantom; Left Hand Section; Position: (75°,180°) Probe: ET3DV6 - SN1590; ConvF(5.78,5.78,5.78); Crest factor: 1.0 1880 MHz Brain: σ = 1.48 mho/m ε r = 39.7 ρ = 1.00 g/cm 3 Coarse: Dx = 15.0, Dy = 15.0, Dz = 10.0 Cube 5x5x7; Powerdrift: -0.17 dB SAR (1g): 1.18 mW/g, SAR (10g): 0.642 mW/g Ambient Temperature: 22.8°C Fluid Temperature: 23°C Head SAR - Left Cheek/Touch Position Antenna In Model: WPE-2300 PCS CDMA Mode Extended Battery Channel 600 [1880.00 MHz] Conducted Power: 24.51 dBm Date Tested: January 28, 2002 SAR Tot [mW/g] 8.92E-2 2.68E-1 4.46E-1 6.25E-1 8.03E-1 9.81E-1 1.16E+0 Celltech Research Inc. Celltech Research Inc. Modottel Co., Ltd. FCC ID: POQWPE-2300 SAM Phantom; Left Hand Section; Position: (75°,180°) Probe: ET3DV6 - SN1590; ConvF(5.78,5.78,5.78); Crest factor: 1.0 1880 MHz Brain: σ = 1.48 mho/m ε r = 39.7 ρ = 1.00 g/cm 3 Coarse: Dx = 15.0, Dy = 15.0, Dz = 10.0 Cube 5x5x7; Powerdrift: -0.10 dB SAR (1g): 0.557 mW/g, SAR (10g): 0.307 mW/g Ambient Temperature: 22.8°C Fluid Temperature: 23°C Head SAR - Left Cheek/Touch Position Antenna Out Model: WPE-2300 PCS CDMA Mode Extended Battery Channel 600 [1880.00 MHz] Conducted Power: 24.55 dBm Date Tested: January 28, 2002 SAR Tot [mW/g] 4.06E-2 1.22E-1 2.03E-1 2.84E-1 3.65E-1 4.46E-1 5.27E-1 Celltech Research Inc. Celltech Research Inc. Modottel Co., Ltd. FCC ID: POQWPE-2300 SAM Phantom; Left Hand Section; Position: (75°,180°) Probe: ET3DV6 - SN1590; ConvF(5.78,5.78,5.78); Crest factor: 1.0 1880 MHz Brain: σ = 1.48 mho/m ε r = 39.7 ρ = 1.00 g/cm 3 Coarse: Dx = 15.0, Dy = 15.0, Dz = 10.0 Cube 5x5x7; Powerdrift: -0.0 9 dB SAR (1g): 1.25 mW/g, SAR (10g): 0.661 mW/g Ambient Temperature: 22.8°C Fluid Temperature: 23°C Head SAR - Left Cheek/Touch Position Antenna In Model: WPE-2300 PCS CDMA Mode Extended Battery Channel 1175 [1908.75 MHz] Conducted Power: 24.53 dBm Date Tested: January 28, 2002 SAR Tot [mW/g] 9.24E-2 2.77E-1 4.62E-1 6.47E-1 8.32E-1 1.02E+0 1.20E+0 Celltech Research Inc. Celltech Research Inc. Modottel Co., Ltd. FCC ID: POQWPE-2300 SAM Phantom; Left Hand Section; Position: (75°,180°) Probe: ET3DV6 - SN1590; ConvF(5.78,5.78,5.78); Crest factor: 1.0 1880 MHz Brain: σ = 1.48 mho/m ε r = 39.7 ρ = 1.00 g/cm 3 Coarse: Dx = 15.0, Dy = 15.0, Dz = 10.0 Cube 5x5x7; Powerdrift: -0.10 dB SAR (1g): 0.464 mW/g, SAR (10g): 0.265 mW/g Ambient Temperature: 22.8°C Fluid Temperature: 23°C Head SAR - Left Cheek/Touch Position Antenna Out Model: WPE-2300 PCS CDMA Mode Extended Battery Channel 1175 [1908.75 MHz] Conducted Power: 24.57 dBm Date Tested: January 28, 2002 SAR Tot [mW/g] 3.64E-2 1.09E-1 1.82E-1 2.55E-1 3.27E-1 4.00E-1 4.73E-1 Celltech Research Inc. Celltech Research Inc. Modottel Co., Ltd. FCC ID: POQWPE-2300 SAM Phantom; Left Hand Section; Position: (90°,65°) Probe: ET3DV6 - SN1590; ConvF(5.78,5.78,5.78); Crest factor: 1.0 1880 MHz Brain: σ = 1.48 mho/m ε r = 39.7 ρ = 1.00 g/cm 3 Coarse: Dx = 15.0, Dy = 15.0, Dz = 10.0 Cube 5x5x7; Powerdrift: -0.18 dB SAR (1g): 0.180 mW/g, SAR (10g): 0.108 mW/g Ambient Temperature: 22.8°C Fluid Temperature: 23°C Head SAR - Left Ear/Tilt Position Antenna In Model: WPE-2300 PCS CDMA Mode Extended Battery Channel 600 [1880.00 MHz] Conducted Power: 24.55 dBm Date Tested: January 28, 2002 SAR Tot [mW/g] 1.43E-2 4.29E-2 7.14E-2 1.00E-1 1.29E-1 1.57E-1 1.86E-1 Celltech Research Inc. Celltech Research Inc. Modottel Co., Ltd. FCC ID: POQWPE-2300 SAM Phantom; Left Hand Section; Position: (90°,65°) Probe: ET3DV6 - SN1590; ConvF(5.78,5.78,5.78); Crest factor: 1.0 1880 MHz Brain: σ = 1.48 mho/m ε r = 39.7 ρ = 1.00 g/cm 3 Coarse: Dx = 15.0, Dy = 15.0, Dz = 10.0 Cube 5x5x7; Powerdrift: -0.14 dB SAR (1g): 0.164 mW/g, SAR (10g): 0.0973 mW/g Ambient Temperature: 22.8°C Fluid Temperature: 23°C Head SAR - Left Ear/Tilt Position Antenna Out Model: WPE-2300 PCS CDMA Mode Extended Battery Channel 600 [1880.00 MHz] Conducted Power: 24.54 dBm Date Tested: January 28, 2002 SAR Tot [mW/g] 1.29E-2 3.…

Text truncated - open the document above for the full version.
