POQWTE-320Tri-Mode Dual-band CDMA Phone

Modottel Co Ltd

Click to zoom

Application Details

Equipment Class: PCE - PCS Licensed Transmitter held to ear
Date of Grant: Sep 17, 2003
Application Purpose: Original Equipment
Date of Application: Sep 17, 2003
Equipment Note: Tri-Mode Dual-band CDMA Phone
Frequency Range: 1851.25000000 - 1908.75000000
Company: Modottel Co Ltd
Country: South Korea

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Modottel – WTE-320 User’s Manual –Draft Table of Contents Getting Started n Warnings and Precautions n What is Supplied in the Box n Dictionary of Icons n Identifying the Parts of the Phone n How to Install, Remove and Charge the Battery Basic Phone Operation n Powering the Phone On and Off n Standby Mode n Receiving a Call n Making a Call n Ending a Call n Missed Calls n Pause Dialing n Short-cut keys Advanced Features ® Call History ? Incoming Calls ? Outgoing Calls ? Missed Calls ? Call Timer ? Call Memo ® Phone Book ? Find Entry ? New Entry ? Edit Group ® Message ? Inbox ? Write Message ? Info Alert ? Outbox ? Message Folder ? Delete Messages ? Message Settings ® Organizer ? Schedule ? Alarm Clock ? Voice Memo ? Calculator ? Stop Watch ? World Time ? World Code ® Settings ? Display ÿ Backlight ÿ Screen Setting ÿ Banner ? Sounds ÿ Ringer Tones ÿ Ring Settings ÿ Alerts/Tones ÿ Volume ? Security ÿ Lock ÿ Change Code ÿ Restrict ÿ Emergency #s ÿ Clear Memory ÿ Reset Phone ? System ÿ Roaming ÿ Preferred Mode ÿ Auto Nam ÿ Set Nam ÿ Location ÿ TTY ? Phone Settings ÿ Language ? Call Settings ÿ Auto Redial ÿ Auto Answer ÿ Auto Hyphen ÿ Answer Call ? Data Settings ÿ Data Rate ÿ Incoming Mode ? Phone Info ÿ My phone # ÿ Phone Version ® Games ? BrickHero ? FireHexa ? Snake ® Web Browser ? Start Browser ? Connect Time ? Trans. Rate ? Web Settings ® Brew Entering text, numbers and/or symbols Appendix Flow Chart of Phone Features Safety Information Getting Started Warnings and Precautions What Is Supplied in the Box Thank you for purchasing this Modottel WTE-320 cell phone. To ensure ease of use please make sure the following items are packaged in the box with your device. - Handset - Standard Battery - Travel Charger - User’s manual - Warranty Card Dictionary of Display Icons : Location on mode : E911 only mode P – Voice privacy D : Digital indicator A : Analog indicator Identifying the Parts of your WTE-320 Phone Antenna Lamp Earpiece LCD screen MENU key CLEAR key SEND key END/Power key 4-way Navigation key Numeric/Alphanumeric keypad Vibrate mode short-cut key Phone lock short-cut key Microphone Schedule SMS MessagePhone Book Brew 1. Voice Memo key 2. Side keys 3. Headset jack How to Install, Remove and Charge the Battery Please make sure your battery has been fully charged before commencing to use your new phone. ? Installing your battery - Place the battery into the groove at the bottom of the phone. The battery contacts should be facing the phone’s back housing. - Snap the battery forward into place until it clicks, as illustrated. ? Removing your battery - Push up on the battery release latch, located on the top of your phone. The battery will spring forward for easy removal. - Pull battery forward away from the phone’s back housing to remove as illustrated ? Charging your battery - Connect the charger to the accessory port of your phone. (The arrow side of the charger should be pointing at your keypad). - Plug the charger into a 220V or 110V wall outlet. - If the Red LED is lit on the charger that means that your phone is in the process of charging. - If the Green LED is lit on the charger your phone is fully charged and ready for use. - When your phone is ready to be recharged, it will begin to beep and the battery status icon will flash empty. Basic Phone Operation ? Powering the Phone On and Off ? Standby Mode ? Receiving a Call ? Making a Call ? Ending a Call ? Phone Operation While a Call is in Process ? Missed Calls / Automatic Redial ? Pause Dialing ? Short-cut keys Powering the Phone on To power your phone on, press and hold END key until the display backlighting comes on. - Your phone will emit wakeup chimes and the word searching will be displayed as the phone initiates with a cellular tower. - The phone will then revert to Standby Mode - (If the display shows a padlock icon when you power the phone on, you will be required to enter a four digit unlock code before the phone can be used. The factory unlock code is set to 0000.) Powering your phone off - To power the phone off, press and hold END key. - Your phone will emit shut down chimes and the display will go blank. Standby Mode - You are able to access your full feature menu, when your phone is in standby mode. Merely press MENU key. - Once inside your feature menu you can select from any of the displayed menu icons by navigating with the joystick until the desired menu option is bracketed then press OK key. - Insert graphic of the joystick being pushes OK as described While the phone is in standby mode the joystick can be used for quick access to the following features: SMS Phone Book Brew Scheduler Push the joystick left to enter SMS, right to enter the Phone Book, down to enter the Scheduler and up to enter Brew. Receiving a phone call - When your phone receives an incoming call, it will either: Ring Blink (in lamp mode) Vibrate ?Ring and Vibrate Or Vibrate then Ring - You can press any key (except END key) to answer an incoming call. Even when your phone is locked. - Pressing the END key will silence the ringer or stop the vibration when a call comes in. Making a call - In order to make a phone call your cell phone must be on, unlocked and have a network connection with adequate signal strength. - Dial the number that you wish to call - Press SEND key on the left side of your key pad. - Phone will display the word dialing until your call connects. Calling from Recent Call List - Press SEND key . - 21 recent call numbers will be displayed. - Select the number you want to dial and press SEND key again to make an outgoing call to the number. Speed dialing - All Memory Locations on this phone can be speed dialed. n To speed dial a number located in memory location 001-009, press and hold the third number of the memory location until the display shows that number and begins to dial. n To speed dial a number located in memory location 010 – 099, press the second digit of the memory location briefly then hold down the third digit …

Text truncated - open the document above for the full version.

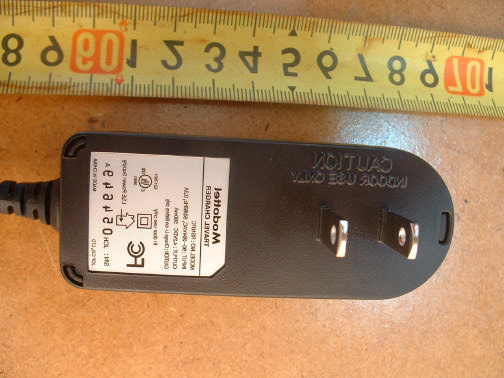

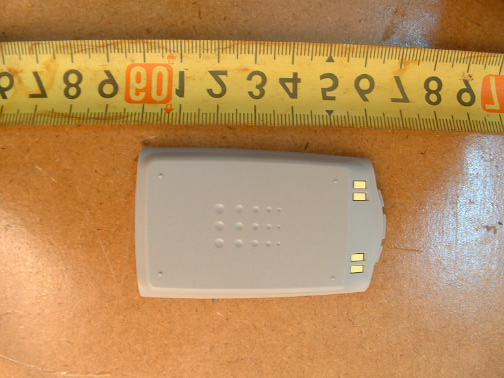

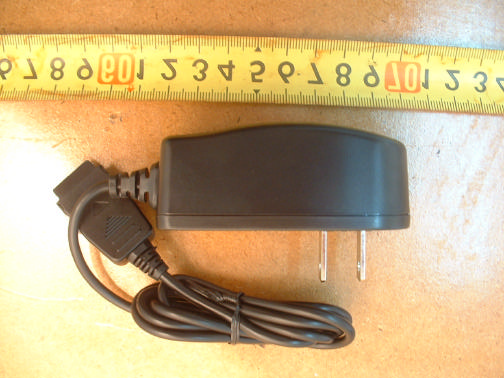

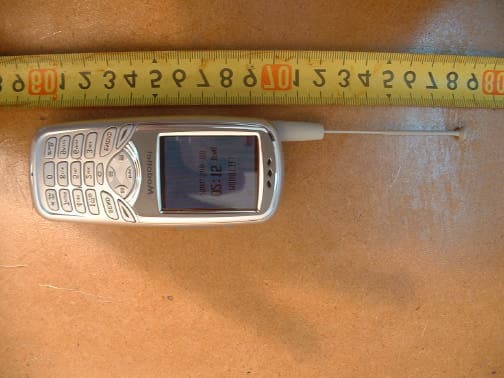

External Photos

FCC ID : POQWTE-320 ATTACHMENT G - External Photographs DIGITAL EMC FCC ID : POQWTE-320 FCC ID : POQWTE-320 FCC ID : POQWTE-320 FCC ID : POQWTE-320

ID Label/Location Info

ATTACHMENT E – FCC ID LABEL & LOCATION DIGITAL EMC FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER 2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase (SEE NEXT PAGE) APPENDIX - 2 HANDSET SPEC LABEL (WTE-320) Modottel Co., Ltd. MODEL : WTE - 320 FCC ID : POQWTE - 320 II IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII HEX 55000000 S/N 111111 DG IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII DEC 08500000001 XXXX Made in Korea

Internal Photos

FCC ID : POQWTE-320 ATTACHMENT H – Internal Photographs DIGITAL EMC FCC ID : POQWTE-320 FCC ID : POQWTE-320 FCC ID : POQWTE-320 FCC ID : POQWTE-320

RF Exposure Info

FCC ID : POQWTE-320 ATTACHMENT Q DIPOLE VALIDATION(S) DIGITAL EMC FCC ID : POQWTE-320 FCC ID : POQWTE-320

RF Exposure Info

FCC RF EXPOSURE INFORMATION Read this information before using your phone In August 1996 the Federal Communications Commission (FCC) of the United States with its action in Report and Order FCC 96-326 adopted an updated safety standard for human exposure to radio frequency (RF) electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the safety standard previously set by both U.S. and international standards bodies. The design of this phone complies with the FCC guidelines and these international standards. Use only the supplied or an approved antenna. Unanthorized antennas, modifications, or attachments could impair call quality, damaged the phone, or result in violation of FCC regulations. Do not use the phone with a damaged antenna. If a damaged antenna comes into contact with the skin, a minor burn may result. Please contact your local dealer for replacement antenna. Body-worn Operation This device has been tested for body-worn operation and meets FCC RF exposure guidelines when used with an accessory that contains no metal components, and positions the handset at a minimum of 1.5m from the body. Use of other body-worn accessories may not ensure compliance with FCC RF exposure guidelines and should be avoided. For more information about RF exposure, please visit the FCC website an www.fcc.gov Specific Absorption Rate (SAR) for Wireless Phones The SAR is a value that corresponds to the relative amount of RF energy absorbed in the head of a user for a wireless handset. The SAR value of a phone is the result of an extensive testing, measuring and calculation process. It does not represent how much RF the phone emits. All phone models are tested at their highest value in strict laboratory settings. But when in operation, the SAR of a phone can be substantially less that the level reported to the FCC. This is because of a variety of factors including its proximity to a base station antenna, phone design and other factors. What is important to remember is that each phone meets strict federal guidelines. Variations in SARs do not represent a variation in safety. All phones must meet the federal standard, which incorporates a substantial margin of safety. As stated above, variations in SAR values between different model phones do not mean variations in safety. SAR values at or below the federal standard of 1.6W/kg are considered safe for use by the public. The highest reported SAR values of WTE-320 are: AMPS mode (Part 22) – Head: 1.46 W/kg; Body-worn: 0.875 W/kg CDMA mode (Part 22)- Head: 1.32 W/kg; Body-worn: 0.740 W/kg PCS mode (Part 24) – Head: 1.20 W/kg; Body-worn: 0.517 W/kg FCC Radio Frequency Emission This phone meets the FCC Radio Frequency Emission Guidelines. FCC ID number: POQWTE-320. More information on the phone’s SAR can be found from the following FCC website: http://www.fcc.gov/oet/fccid

RF Exposure Info

FCC ID : POQWTE-320 ATTACHMENT P SAR TEST SETUP PHOTOGRAPHS DIGITAL EMC FCC ID : POQWTE-320 FCC ID : POQWTE-320 FCC ID : POQWTE-320 FCC ID : POQWTE-320 FCC ID : POQWTE-320 FCC ID : POQWTE-320 FCC ID : POQWTE-320 FCC ID : POQWTE-320 FCC ID : POQWTE-320 FCC ID : POQWTE-320 FCC ID : POQWTE-320 FCC ID : POQWTE-320 FCC ID : POQWTE-320 FCC ID : POQWTE-320 FCC ID : POQWTE-320 FCC ID : POQWTE-320 FCC ID : POQWTE-320 FCC ID : POQWTE-320 FCC ID : POQWTE-320 FCC ID : POQWTE-320

RF Exposure Info

MODOTTEL -- WTE-320(Trimode Phone PCS Hesd SAR ) SAM(1900M) Phantom; Right Hand Section; Probe: ET3DV6 - SN1703; ConvF(5.40,5.40,5.40); Med. parameter 1900 MHz Brain: σ = 1.39 mho/m ε r = 38.3 ρ = 1.00 g/cm 3 ; Crest factor: 1.0; SAR (1g): 0.465 mW/g, SAR (10g): 0.280 mW/g Modottel PCS CDMA Phone Model : WTE-320 PCS CDMA Mode, Ch.25[1851.25MHz];Standard Battery; Ambient Temp = 23 °C /Meas. Tissue Temp. = 21 °C Conducted Power = 24dBm; Right Head Phantom, 15 ̊ Degree Tilt position; Antenna Out Test Date -- 09 / 15 / 2003 [FCC/OET Bulletin65 - Supplement C, July 2001] SAR Tot [mW/g] 5.44E-21.09E-11.63E-12.18E-12.72E-13.26E-13.81E-14.35E-14.90E-15.44E-1 Digital EMC Co.,Ltd MODOTTEL -- WTE-320(Trimode Phone PCS Hesd SAR ) SAM(1900M) Phantom; Right Hand Section; Probe: ET3DV6 - SN1703; ConvF(5.40,5.40,5.40); Med. parameter 1900 MHz Brain: σ = 1.39 mho/m ε r = 38.3 ρ = 1.00 g/cm 3 ; Crest factor: 1.0; SAR (1g): 0.545 mW/g, SAR (10g): 0.324 mW/g Modottel PCS CDMA Phone Model : WTE-320 PCS CDMA Mode, Ch.25[1851.25MHz];Standard Battery; Ambient Temp = 23 °C /Meas. Tissue Temp. = 21 °C Conducted Power = 24dBm; Right Head Phan tom, Cheek/Touch position; Antenna Out Test Date -- 09 / 15 / 2003 [FCC/OET Bulletin65 - Supplement C, July 2001] SAR Tot [mW/g] 6.63E-21.33E-11.99E-12.65E-13.32E-13.98E-14.64E-15.30E-15.97E-16.63E-1 Digital EMC Co.,Ltd MODOTTEL -- WTE-320(Trimode Phone PCS Hesd SAR ) SAM(1900M) Phantom; Right Hand Section; Probe: ET3DV6 - SN1703; ConvF(5.40,5.40,5.40); Med. parameter 1900 MHz Brain: σ = 1.39 mho/m ε r = 38.3 ρ = 1.00 g/cm 3 ; Crest factor: 1.0; SAR (1g): 0.476 mW/g, SAR (10g): 0.288 mW/g Modottel PCS CDMA Phone Model : WTE-320 PCS CDMA Mode, Ch.600[1880MHz];Standard Battery; Ambient Temp = 23 °C /Meas. Tissue Temp. = 21 °C Conducted Power = 24dBm; Right Head Phan tom, Cheek/Touch position; Antenna Out Test Date -- 09 / 15 / 2003 [FCC/OET Bulletin65 - Supplement C, July 2001] SAR Tot [mW/g] 5.43E-21.09E-11.63E-12.17E-12.72E-13.26E-13.80E-14.34E-14.89E-15.43E-1 Digital EMC Co.,Ltd MODOTTEL -- WTE-320(Trimode Phone PCS Hesd SAR ) SAM(1900M) Phantom; Right Hand Section; Probe: ET3DV6 - SN1703; ConvF(5.40,5.40,5.40); Med. parameter 1900 MHz Brain: σ = 1.39 mho/m ε r = 38.3 ρ = 1.00 g/cm 3 ; Crest factor: 1.0; SAR (1g): 0.536 mW/g, SAR (10g): 0.323 mW/g Modottel PCS CDMA Phone Model : WTE-320 PCS CDMA Mode, Ch.600[1880MHz];Standard Battery; Ambient Temp = 23 °C /Meas. Tissue Temp. = 21 °C Conducted Power = 24dBm; Right Head Phan tom, Cheek/Touch position; Antenna Out Test Date -- 09 / 15 / 2003 [FCC/OET Bulletin65 - Supplement C, July 2001] SAR Tot [mW/g] 6.62E-21.32E-11.99E-12.65E-13.31E-13.97E-14.63E-15.30E-15.96E-16.62E-1 Digital EMC Co.,Ltd MODOTTEL -- WTE-320(Trimode Phone PCS Hesd SAR ) SAM(1900M) Phantom; Right Hand Section; Probe: ET3DV6 - SN1703; ConvF(5.40,5.40,5.40); Med. parameter 1900 MHz Brain: σ = 1.39 mho/m ε r = 38.3 ρ = 1.00 g/cm 3 ; Crest factor: 1.0; SAR (1g): 0.410 mW/g, SAR (10g): 0.240 mW/g Modottel PCS CDMA Phone Model : WTE-320 PCS CDMA Mode, Ch.1175[1908.75MHz];Standard Battery; Ambient Temp = 23 °C /Meas. Tissue Temp. = 21 °C Conducted Power = 24dBm; Right Head Phan tom, Cheek/Touch position; Antenna Out Test Date -- 09 / 15 / 2003 [FCC/OET Bulletin65 - Supplement C, July 2001] SAR Tot [mW/g] 4.77E-29.54E-21.43E-11.91E-12.39E-12.86E-13.34E-13.82E-14.29E-14.77E-1 Digital EMC Co.,Ltd MODOTTEL -- WTE-320(Trimode Phone PCS Hesd SAR ) SAM(1900M) Phantom; Right Hand Section; Probe: ET3DV6 - SN1703; ConvF(5.40,5.40,5.40); Med. parameter 1900 MHz Brain: σ = 1.39 mho/m ε r = 38.3 ρ = 1.00 g/cm 3 ; Crest factor: 1.0; SAR (1g): 0.399 mW/g, SAR (10g): 0.238 mW/g Modottel PCS CDMA Phone Model : WTE-320 PCS CDMA Mode, Ch.11751908.75MHz];Standard Battery; Ambient Temp = 23 °C /Meas. Tissue Temp. = 21 °C Conducted Power = 24dBm; Right Head Phan tom, Cheek/Touch position; Antenna Out Test Date -- 09 / 15 / 2003 [FCC/OET Bulletin65 - Supplement C, July 2001] SAR Tot [mW/g] 5.12E-21.02E-11.54E-12.05E-12.56E-13.07E-13.58E-14.10E-14.61E-15.12E-1 Digital EMC Co.,Ltd MODOTTEL -- WTE-320(Trimode Phone PCS Hesd SAR ) SAM(1900M) Phantom; Right Hand Section; Probe: ET3DV6 - SN1703; ConvF(5.40,5.40,5.40); Med. parameter 1900 MHz Brain: σ = 1.39 mho/m ε r = 38.3 ρ = 1.00 g/cm 3 ; Crest factor: 1.0; SAR (1g): 0.838 mW/g, SAR (10g): 0.485 mW/g Modottel PCS CDMA Phone Model : WTE-320 PCS CDMA Mode, Ch.600[1880MHz];Standard Battery; Ambient Temp = 23 °C /Meas. Tissue Temp. = 21 °C Conducted Power = 24dBm; Right Head Phantom, 15 ̊ Degree Tilt position; Antenna Out Test Date -- 09 / 15 / 2003 [FCC/OET Bulletin65 - Supplement C, July 2001] SAR Tot [mW/g] 1.02E-12.04E-13.06E-14.08E-15.11E-16.13E-17.15E-18.17E-19.19E-11.02E+0 Digital EMC Co.,Ltd MODOTTEL -- WTE-320(Trimode Phone PCS Hesd SAR ) SAM(1900M) Phantom; Right Hand Section; Probe: ET3DV6 - SN1703; ConvF(5.40,5.40,5.40); Med. parameter 1900 MHz Brain: σ = 1.39 mho/m ε r = 38.3 ρ = 1.00 g/cm 3 ; Crest factor: 1.0; SAR (1g): 0.717 mW/g, SAR (10g): 0.423 mW/g Modottel PCS CDMA Phone Model : WTE-320 PCS CDMA Mode, Ch.600[1880MHz];Standard Battery; Ambient Temp = 23 °C /Meas. Tissue Temp. = 21 °C Conducted Power = 24dBm; Right Head Phantom, 15 ̊ Degree Tilt position; Antenna Out Test Date -- 09 / 15 / 2003 [FCC/OET Bulletin65 - Supplement C, July 2001] SAR Tot [mW/g] 9.34E-21.87E-12.80E-13.74E-14.67E-15.60E-16.54E-17.47E-18.41E-19.34E-1 Digital EMC Co.,Ltd

RF Exposure Info

DIGITALEMC SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager Test report S/N : DR50110309E Test Date: September,4-8, 2003 Phone Type: Tri-Mode Dual-Band Phone FCC ID: POQWTE-320 Page 1 of 35 DIGITAL EMC CO., LTD. 683-3, Yubang-Dong, Yongin-Si, Kyunggi-Do, Korea. 449-080 Tel: +82-31-321-2664 Fax: +82-31-321-1664 http://www.digitalemc.com CERTIFICATE OF COMPLIANCE(SAR EVALUATION) MODOTTEL Co.,Ltd. Dates of Tests: September 04-08,2003 2F.,DongNam B/D,448-16,Shingil-5Dong, Test Report S/N:DR50110309E YoungDeungPo-Ku,Seoul 150-851,Korea Test Site : DIGITAL EMC CO., LTD. Attn:Joong-Ill Hwang(Principle Engineer) FCC ID APPLICANT EUT Type: Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) TX Frequency Range: 824.04 ~ 848.97 MHz (AMPS) ; 824.70 ~ 848.31 MHz (CDMA) 1851.25 ~1908.75 MHz (PCS CDMA) RX Frequency Range: 869.04 ~ 893.97MHz (AMPS) ; 869.70 ~893.31 MHz (CDMA) 1931.25~1988.75MHz (PCS CDMA) Max.RF Output Power: 0.386W ERP AMPS (25.87dBm)/ 25.5dBm conducted(AMPS) 0.315W ERP CDMA (24.98dBm)/25dBm conducted(CDMA) 0.337W ERP PCS (25.27dBm)/24dBm conducted(PCS) Max. SAR Measurement: 1.46W/kg AMPS Head SAR ; 0.875W/kg AMPS Body SAR 1.32W/kg CDMA Head SAR ; 0.740W/kg CDMA Body SAR 1.20W/kg PCS CDMA Head SAR ; 0.517W/kg PCS CDMA Body SAR Model(s): WTE-320 FCC Classification: Licensed Portable Transmitter Held to Ear (PCE) FCC Rule Part(s): §2.1093; FCC/OET Bulletin 65 Supplement C[July 2001] Application Type: Certification Test Device Serial No.: Identical prototype This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528-200X (Draft 6.4, July 2001). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. . D.M.JUNG (Manager) POQWTE-320 MODOTTEL Co.,Ltd. DIGITALEMC SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager Test report S/N : DR50110309E Test Date: September,4-8, 2003 Phone Type: Tri-Mode Dual-Band Phone FCC ID: POQWTE-320 Page 2 of 35 1. INTRODUCTION ...................................................................................................... 3 SAR DEFINITION .................................................................................................... 3 2. SAR MEASUREMENT SETUP......................................................................................... 4 Robotic System.......................................................................................................... 4 System Hardware ....................................................................................................... 4 System Electronics...................................................................................................... 4 3. DASY3 E-FIELD PROBE SYSTEM................................................................................... 5 Probe Measurement System......................................................................................... 5 Probe Specifications .................................................................................................... 5 4. Probe Calibration Process............................................................................................ 6 Dosimetric Assessment Procedure.................................................................................. 6 Free Space Assessment ............................................................................................... 6 Temperature Assessment ............................................................................................ 6 5. PHANTOM & EQUIVALENT TISSUES.............................................................................. 7 SAM Phantom ........................................................................................................... 7 Brain & Muscle Simulating Mixture Characterization ....................................................... 7 Device Holder for Transmitters..................................................................................... 7 6. TEST SYSTEM SPECIFICATIONS.................................................................................. 8 Automated Test System Specifications.......................................................................... 8 7. DOSIMETRIC ASSESSMENT & PHANTOM SPECS ........................................................... 9 Measurement Procedure............................................................................................. 9 Specific Anthropomorphic Mannequin (SAM) Specifications.............................................. 9 8. DEFINITION OF REFERENCE POINTS .......................................................................... 10 EAR Reference Point................................................................................................... 10 Handset Reference Points............................................................................................ 10 9. TEST CONFIGURATION POSITIONS ............................................................................. 11 Positioning for Cheek/Touch ........................................................................................ 11 Positioning for Ear /15° Tilt ......................................................................................... 11 Body Holster /Belt Clip Configurations .......................................................................... 13 10. ANSI/IEEE C95.1 - 1992 RF EXPOSURE LIMITS.......................................................... 14 Uncontrolled Environment .......................................…

Text truncated - open the document above for the full version.

RF Exposure Info

FCC ID : POQWTE-320 ATTACHMENT R PROBE CALIBRATION DIGITAL EMC FCC ID : POQWTE-320 FCC ID : POQWTE-320 FCC ID : POQWTE-320 FCC ID : POQWTE-320 FCC ID : POQWTE-320 FCC ID : POQWTE-320 FCC ID : POQWTE-320 FCC ID : POQWTE-320 FCC ID : POQWTE-320 FCC ID : POQWTE-320 FCC ID : POQWTE-320 FCC ID : POQWTE-320 FCC ID : POQWTE-320 FCC ID : POQWTE-320

RF Exposure Info

FCC ID : POQWTE-320 FCC ID : POQWTE-320 FCC ID : POQWTE-320 FCC ID : POQWTE-320 FCC ID : POQWTE-320 FCC ID : POQWTE-320 FCC ID : POQWTE-320 FCC ID : POQWTE-320 FCC ID : POQWTE-320 FCC ID : POQWTE-320 FCC ID : POQWTE-320 FCC ID : POQWTE-320 FCC ID : POQWTE-320 FCC ID : POQWTE-320 FCC ID : POQWTE-320 FCC ID : POQWTE-320 FCC ID : POQWTE-320 FCC ID : POQWTE-320 FCC ID : POQWTE-320 FCC ID : POQWTE-320 FCC ID : POQWTE-320 FCC ID : POQWTE-320 FCC ID : POQWTE-320 FCC ID : POQWTE-320 FCC ID : POQWTE-320 FCC ID : POQWTE-320 FCC ID : POQWTE-320 FCC ID : POQWTE-320 FCC ID : POQWTE-320 FCC ID : POQWTE-320 FCC ID : POQWTE-320 FCC ID : POQWTE-320 FCC ID : POQWTE-320

RF Exposure Info

Chris Harvey From: Chris Harvey Sent: Saturday, September 13, 2003 3:13 PM To: '[email protected]'; '[email protected]' Cc: Marianne Bosley Subject: Request for Information for Modottel FCCID POQWTE-320 MT#14370 9/13/2003 Charlie and KT, the following items need to be clarified in the TCB application for the Modottel Tri-Band phone FCC ID: POQWTE-320 1) The Users Manual Statements for RF Exposure have the FCC ID number of a previously approved device and locations to include the SAR numbers, but the numbers have been replaced with x's. Please correct the users manual RF Exposure section. Although these items are not requi9red for FCC Certification, incorrect information in the users manual is misleading and must be corrected or removed for FCC Compliance. 2) Several of the SAR distribution plots for the PCS mode Right Head position have second peaks on the extended antenna that are clipped. It can not be determined from the plots if the maximum SAR position was measured. Either explain how the maximum peaks were measured or re-measure to determine the position and value of the maximum SAR. Please submit the responses to these issues to [email protected]. Best regards, Chris Harvey EMC Lab Director MET Laboratories, Inc. 1-800-638-6057 x-310

RF Exposure Info

Chris Harvey From: Kyung-Taek LEE [[email protected]] Sent: Monday, September 15, 2003 9:11 PM To: [email protected] Subject: RE: Request for Information for Modottel FCCID POQWTE-320 MT#14370 9/16/2003 Hello, please refer to the attached file. Best regards kyung taek LEE DIGITAL EMC -----Original Message----- From: [email protected] [mailto:[email protected]] Sent: Tuesday, September 16, 2003 6:56 AM To: [email protected]; [email protected] Cc: [email protected] Subject: RE: Request for Information for Modottel FCCID POQWTE-320 MT#14370 KT, I have received your additional SAR plots. It appears as though you re-measured one peak and then a second peak if it appeared as though there was a significant second peak on the coarse scan at the edges of the plot. The FCC requirement is that the course scan be used to determine if there are multiple peaks. If Multiple peaks that are within 3dB of the highest peak are found, each additional peak must be measured and reported in the application (in the tables). It does appear as though there are significant second peaks in several plots. Please provide data in the report for all significant second peaks. I would suggest that in the future, if there appear to be second peaks on the coarse scan, that the scan area be adjusted to clearly identify all significant peaks and then zoom scans be performed on each of the significant peaks. All 2nd SAR spots should also be reported in the tables. We still need the corrected RF Exposure information for item Number 1 below. Best regards, Chris Harvey -----Original Message----- From: Kyung-Taek LEE [mailto:[email protected]] Sent: Monday, September 15, 2003 7:36 AM To: [email protected] Cc: MET Lab (Mr. Marianne Bosley) Subject: RE: Request for Information for Modottel FCCID POQWTE-320 MT#14370 SUBJECT: Modottel Co., Ltd. - FCC Part 22 /24 Application for Certification Product Name: Tri-Mode Dual-band Analog/PCS Phone(AMPS/CDMA) FCC ID: POQWTE-320 Dear Chris harvey: I measured to determine the position and value of the maximum SAR. please refer to the attach file. Thanks and best regards Kyung-Taek LEE DIGITAL EMC Co., Ltd. -----Original Message----- From: [email protected] [mailto:[email protected]] Sent: Sunday, September 14, 2003 4:13 AM To: [email protected]; [email protected] Cc: [email protected] Subject: Request for Information for Modottel FCCID POQWTE-320 MT#14370 Charlie and KT, the following items need to be clarified in the TCB application for the Modottel Tri-Band phone FCC ID: POQWTE-320 1) The Users Manual Statements for RF Exposure have the FCC ID number of a previously approved device and locations to include the SAR numbers, but the numbers have been replaced with x's. Please correct the users manual RF Exposure section. Although these items are not requi9red for FCC Certification, incorrect information in the users manual is misleading and must be corrected or removed for FCC Compliance. 2) Several of the SAR distribution plots for the PCS mode Right Head position have second peaks on the extended antenna that are clipped. It can not be determined from the plots if the maximum SAR position was measured. Either explain how the maximum peaks were measured or re-measure to determine the position and value of the maximum SAR. Please submit the responses to these issues to [email protected]. Best regards, Chris Harvey EMC Lab Director MET Laboratories, Inc. 1-800-638-6057 x-310 9/16/2003

RF Exposure Info

Chris Harvey From: Chris Harvey Sent: Monday, September 15, 2003 5:56 PM To: 'Kyung-Taek LEE'; Chris Harvey Cc: Marianne Bosley Subject: RE: Request for Information for Modottel FCCID POQWTE-320 MT#14370 9/15/2003 KT, I have received your additional SAR plots. It appears as though you re-measured one peak and then a second peak if it appeared as though there was a significant second peak on the coarse scan at the edges of the plot. The FCC requirement is that the course scan be used to determine if there are multiple peaks. If Multiple peaks that are within 3dB of the highest peak are found, each additional peak must be measured and reported in the application (in the tables). It does appear as though there are significant second peaks in several plots. Please provide data in the report for all significant second peaks. I would suggest that in the future, if there appear to be second peaks on the coarse scan, that the scan area be adjusted to clearly identify all significant peaks and then zoom scans be performed on each of t…

Text truncated - open the document above for the full version.

Contact Information

Applicant

David Oh(General Manager)

[email protected]82-2-829-7013Fax: 82-2-847-9992

Test Firm

DT&C Co.,Changho Lee

[email protected]82-31-321-2664Fax: 82-31-321-1664

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
4	24E	1.85 GHz - 1.91 GHz	378.00 mW	1M25F9W	2.5 ppm

Confidentiality

Long Term

Grant Notes

Output is ERP for Part 22 and EIRP for Part 24. SAR compliance for body- worn operating configuration is based on a separation distance of 1.5 cm between the back of the unit and the body of the user. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. Belt clips or holsters may not contain metallic components. The highest reported SAR values are: Part 22 � Head: 1.46 W/kg; Body-worn: 0.88 W/kg, Part 24 � Head: 1.20 W/kg; Body-worn: 0.52 W/kg.
