POSEF-6630iPod FM Transmitter

Product Introduction EF—6630 LCD FM transmitter, a high quality product that adopted advanced PLL technology, stable frequency, crisp sound, has 200 transmitting channel. Unique streamline appearance, smart, user-friendly. When you travel outside or stay at home with it, beautiful music will always surround you, with royal enjoyment. Function Introduction 1、 Searching-channel Function, The button UP and DOWN, searching and fixing available transmitting channel between 88.1~107.9MH Z; 2、 E-switch Function, with delayed function of starting or shutting after a second. 3、 Lighting-indication Function, the LED will shut off automatically after a few seconds to save energy. 4、 Not need battery and car power, operate power from Ipode) 5、 Memory Function, when restarting, the unit can memorize your last channel used before. Technical Parameter 1、 Working Conditions： Environment Temperature：-10~+60°C， 2、Major technical Specs： Working Voltage：3V； Working Current：50mA±5mA； Working Channel：88.1~107.9M or 76~90M Receiving Distance：About 5 meters Installation Instruction and Caution 1、 Avoid high temperature, humidity and dust, and avoid using chemical solution to clean the unit, please clean it with soft-wet wipe. Operation Instruction： 1、 connect to its DC jack into ipod jack. 2、 Insert the audio connector into the audio output or earphone jack of MP3、CD、MD、IPOD player. 3、 Play the ipod music to start it. 4、 Press the searching channel button“↑”or“↓”to search your favorite channel. If you keep on pressing the button, the channel will skip fast. 5、 “88.1 When the channel indicates “88.1 MH Z ”, if you press the button “↓”,it will skip to“107.9MH Z ”.but the channel will not be stable untill a few seconds, and vice versa. 6、 When you fix a channel, turn on your MP3、CD、MD、IPOD player, and then tune your radio channel to match the channel of the unit, you will hear the music played from your player. 7、 If you hear noisy or unclear sound from radio, please switch the channel to another one, which had better is not occupied by the local station.

PROCARE INTERNATIONAL CO 5F, NO.88 JOUHZIH STREE, NEIHU DISTRICT, TAIPEI, TAIWAN TEL 886 2 2627 2168 FAX 886 2 2627 6568 Confidentility Letter (Permanent) Attention: Application Examiner Re: Request for confidentiality Applicant: Procare International Co. FCC ID: POSEF-6630 To whom it may concern, Request is hereby submitted by Procare International Co. to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR 0.457(d) of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential: • Schematics • Detailed Block diagrams • Detailed Operational/Functional Description Rationale for request for confidentiality: Procare International Co. has invested considerable time and materials in research and development to produce the referenced product. Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us. If you have questions or need further information, please contact the undersigned. Sincerely,

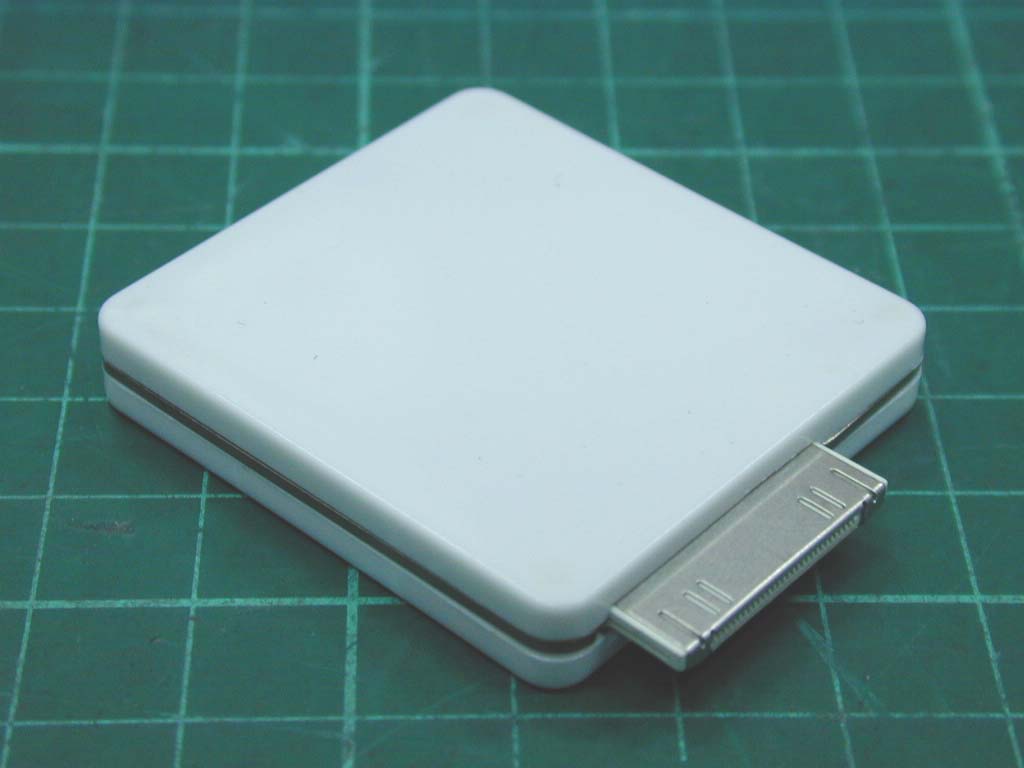

Photo 1: External photo of EUT EF-6630 Antenna Photo 2: External photo of EUT EF-6630

25.8mm 20mm FCC ID Label Location <PROCARE> Model No: EF-6630 FCC ID: POSEF-6630 IC: 4839A-EF6630 Made in China

Photo 1: Internal photo of EUT EF-6630 Photo 2: Internal photo of EUT EF-6630 Photo 3: Internal photo of EUT EF-6630 Photo 4: Internal photo of EUT EF-6630 Photo 5: Internal photo of EUT EF-6630

FCC ID. : POSEF-6630 Report No.: EME-061182 Page 1 of 19 EMC TEST REPORT Report No.: EME-061182 Model No.: EF-6630 Issued Date: Jan. 26, 2007 Applicant: Procare International Co. 5F., No. 88, Jhou Zih Street, Nei Hu District, Taipei, Taiwan Test By: Intertek Testing Services Taiwan Ltd. No. 11, Lane 275, Ko-Nan 1 Street, Chia-Tung Li, Shiang-Shan District, Hsinchu City, Taiwan This test report consists of 19 pages in total. It may be duplicated completely for legal use with the allowance of the applicant. It shall not be reproduced except in full, without the written approval of Intertek Laboratory. The test result(s) in this report only applies to the tested sample(s). Rico Deng Project Engineer Reviewed By Jerry Liu FCC ID. : POSEF-6630 Report No.: EME-061182 Page 2 of 19 Table of Contents Summary of Tests ............................................................................................................. 3 1. General information...................................................................................................... 4 1.1 Identification of the EUT ....................................................................................... 4 1.2 Additional information about the EUT .................................................................. 4 1.3 Antenna description ............................................................................................... 5 1.4 Peripherals equipment............................................................................................ 5 2. Test specifications.........................................................................................................6 2.1 Test standard .......................................................................................................... 6 2.2 Operation mode...................................................................................................... 6 2.3 Test equipment ....................................................................................................... 7 3. Radiated emission test FCC 15.239 (b)/(c) .................................................................. 8 3.1 Operating environment .......................................................................................... 8 3.2 Test setup & procedure .......................................................................................... 8 3.3 Emission limit ........................................................................................................ 9 3.3.1 Fundamental and harmonics emission limits...................................................... 9 3.3.2 General radiated emission limits....................................................................... 10 3.4 Radiated emission test data.................................................................................. 11 3.4.1 Fundamental Radiated Emission Data .............................................................. 11 3.4.2 Radiated Emission Data.................................................................................... 12 4. Bandwidth of fundamental frequency FCC 15.239(a) ............................................... 15 FCC ID. : POSEF-6630 Report No.: EME-061182 Page 3 of 19 Summary of Tests iPod FM Transmitter -Model: EF-6630 FCC ID: POSEF-6630 Test Reference Results Bandwidth of fundamental frequency 15.239(a) Pass Field strength of fundamental frequency 15.239(b) Pass Radiated emission 15.239(c), 15.209 Pass FCC ID. : POSEF-6630 Report No.: EME-061182 Page 4 of 19 1. General information 1.1 Identification of the EUT Applicant: Procare International Co. Product: iPod FM Transmitter Model No.: EF-6630 FCC ID.: POSEF-6630 Frequency Range: 88.1MHz to 107.9MHz Channel Number: 199 channels Frequency of Each Channel: 88.1 + 0.1k MHz, k=0-198 Type of Modulation: FM Power Supply: DC 3V from iPod Power Cord: N/A Sample Received: Jan. 20, 2007 Test Date(s): Jan. 22, 2007 A DoC report has been generated for the client. 1.2 Additional information about the EUT The EUT is an iPod FM Transmitter, and was defined as information technology equipment. For more detail features, please refer to Users manual as file name “Installation guide.pdf” FCC ID. : POSEF-6630 Report No.: EME-061182 Page 5 of 19 1.3 Antenna description The EUT uses a permanently connected antenna. Antenna Gain: 0dBm Antenna Type: PCB Printed Connector Type: N/A 1.4 Peripherals equipment Peripherals ManufacturerProduct No. Serial No. FCC ID iPod Apple A1137 5U606C4KUPR FCC DoC Approved FCC ID. : POSEF-6630 Report No.: EME-061182 Page 6 of 19 2. Test specifications 2.1 Test standard The EUT was performed according to the procedures in FCC Part 15 Subpart C Section 15.23915.207 and ANSI C63.4/2003. The test of radiated measurements according to FCC Part15 Section 15.33(a) had been conducted and the field strength of this frequency band were all meet limit requirement, thus we evaluate the EUT pass the specified test. 2.2 Operation mode The EUT was supplied with DC 3V from iPod and was tested in normal operation mode. The EUT was operated in continuously transmitting status during all the tests. The configuration of EUT was set up by the Client. FCC ID. : POSEF-6630 Report No.: EME-061182 Page 7 of 19 2.3 Test equipment Equipment Brand Frequency rangeModel No. Intertek ID No. Next Cal. Date EMI Test Receiver Rohde & Schwarz9kHz~2.75GHzESCS 30 EC303 04/13/2007 EMI Test Receiver Rohde & Schwarz20Hz~26.5GHzESMI EC317 07/14/2007 Spectrum Analyzer Rohde & Schwarz9kHz~30GHz FSP 30 EC353 07/13/2007 Bilog Antenna SCHWARZBECK25MHz~1.7GHz VULB 9160EC368 05/20/2007 Controller HDGmbH N/A HD 100 EP317-1 N/A Antenna Tower HDGmbH N/A MA 240 EP317-2 N/A Turn Table HDGmbH N/A DS 420S EP317-3 N/A LISN Rohde & Schwarz9KHz~30MHzESH3-Z5 EC344 01/14/2007 Function Generator HP N/A 33120A EC334 08/27/2007 Note: The above equipments are within the valid calibration period. FCC ID. : POSEF-6630 Report No.: EME-061182 Page 8 of 19 3. Radiated emission test FCC 15.23…

Text truncated - open the document above for the full version.

FCC ID. : POSEF-6630 Report No.: EME-061182 Page 1 of 19 EMC TEST REPORT Report No.: EME-061182 Model No.: EF-6630 Issued Date: Jan. 26, 2007 Applicant: Procare International Co. 5F., No. 88, Jhou Zih Street, Nei Hu District, Taipei, Taiwan Test By: Intertek Testing Services Taiwan Ltd. No. 11, Lane 275, Ko-Nan 1 Street, Chia-Tung Li, Shiang-Shan District, Hsinchu City, Taiwan This test report consists of 19 pages in total. It may be duplicated completely for legal use with the allowance of the applicant. It shall not be reproduced except in full, without the written approval of Intertek Laboratory. The test result(s) in this report only applies to the tested sample(s). Rico Deng Project Engineer Reviewed By Jerry Liu FCC ID. : POSEF-6630 Report No.: EME-061182 Page 2 of 19 Table of Contents Summary of Tests ............................................................................................................. 3 1. General information...................................................................................................... 4 1.1 Identification of the EUT ....................................................................................... 4 1.2 Additional information about the EUT .................................................................. 4 1.3 Antenna description ............................................................................................... 5 1.4 Peripherals equipment............................................................................................ 5 2. Test specifications.........................................................................................................6 2.1 Test standard .......................................................................................................... 6 2.2 Operation mode...................................................................................................... 6 2.3 Test equipment ....................................................................................................... 7 3. Radiated emission test FCC 15.239 (b)/(c) .................................................................. 8 3.1 Operating environment .......................................................................................... 8 3.2 Test setup & procedure .......................................................................................... 8 3.3 Emission limit ........................................................................................................ 9 3.3.1 Fundamental and harmonics emission limits...................................................... 9 3.3.2 General radiated emission limits....................................................................... 10 3.4 Radiated emission test data.................................................................................. 11 3.4.1 Fundamental Radiated Emission Data .............................................................. 11 3.4.2 Radiated Emission Data.................................................................................... 12 4. Bandwidth of fundamental frequency FCC 15.239(a) ............................................... 15 FCC ID. : POSEF-6630 Report No.: EME-061182 Page 3 of 19 Summary of Tests iPod FM Transmitter -Model: EF-6630 FCC ID: POSEF-6630 Test Reference Results Bandwidth of fundamental frequency 15.239(a) Pass Field strength of fundamental frequency 15.239(b) Pass Radiated emission 15.239(c), 15.209 Pass FCC ID. : POSEF-6630 Report No.: EME-061182 Page 4 of 19 1. General information 1.1 Identification of the EUT Applicant: Procare International Co. Product: iPod FM Transmitter Model No.: EF-6630 FCC ID.: POSEF-6630 Frequency Range: 88.1MHz to 107.9MHz Channel Number: 199 channels Frequency of Each Channel: 88.1 + 0.1k MHz, k=0-198 Type of Modulation: FM Power Supply: DC 3V from iPod Power Cord: N/A Sample Received: Jan. 20, 2007 Test Date(s): Jan. 22, 2007 A DoC report has been generated for the client. 1.2 Additional information about the EUT The EUT is an iPod FM Transmitter, and was defined as information technology equipment. For more detail features, please refer to Users manual as file name “Installation guide.pdf” FCC ID. : POSEF-6630 Report No.: EME-061182 Page 5 of 19 1.3 Antenna description The EUT uses a permanently connected antenna. Antenna Gain: 0dBm Antenna Type: PCB Printed Connector Type: N/A 1.4 Peripherals equipment Peripherals ManufacturerProduct No. Serial No. FCC ID iPod Apple A1137 5U606C4KUPR FCC DoC Approved FCC ID. : POSEF-6630 Report No.: EME-061182 Page 6 of 19 2. Test specifications 2.1 Test standard The EUT was performed according to the procedures in FCC Part 15 Subpart C Section 15.23915.207 and ANSI C63.4/2003. The test of radiated measurements according to FCC Part15 Section 15.33(a) had been conducted and the field strength of this frequency band were all meet limit requirement, thus we evaluate the EUT pass the specified test. 2.2 Operation mode The EUT was supplied with DC 3V from iPod and was tested in normal operation mode. The EUT was operated in continuously transmitting status during all the tests. The configuration of EUT was set up by the Client. FCC ID. : POSEF-6630 Report No.: EME-061182 Page 7 of 19 2.3 Test equipment Equipment Brand Frequency rangeModel No. Intertek ID No. Next Cal. Date EMI Test Receiver Rohde & Schwarz9kHz~2.75GHzESCS 30 EC303 04/13/2007 EMI Test Receiver Rohde & Schwarz20Hz~26.5GHzESMI EC317 07/14/2007 Spectrum Analyzer Rohde & Schwarz9kHz~30GHz FSP 30 EC353 07/13/2007 Bilog Antenna SCHWARZBECK25MHz~1.7GHz VULB 9160EC368 05/20/2007 Controller HDGmbH N/A HD 100 EP317-1 N/A Antenna Tower HDGmbH N/A MA 240 EP317-2 N/A Turn Table HDGmbH N/A DS 420S EP317-3 N/A LISN Rohde & Schwarz9KHz~30MHzESH3-Z5 EC344 01/14/2007 Function Generator HP N/A 33120A EC334 08/27/2007 Note: The above equipments are within the valid calibration period. FCC ID. : POSEF-6630 Report No.: EME-061182 Page 8 of 19 3. Radiated emission test FCC 15.23…

Text truncated - open the document above for the full version.

Photo 1: Spurious Emission Test Set-up photo EF-6630 Photo 2: Spurious Emission Test Set-up photo EF-6630

Photo 1: Spurious Emission Test Set-up photo EF-6630 Photo 2: Spurious Emission Test Set-up photo EF-6630
