POSEM-6210FM Transmitter

Product Introduction EF—6210C LCD FM transmitter, a high quality product that adopted advanced PLL technology, stable frequency, crisp sound, has 200 transmitting channel. Unique streamline appearance, smart, user-friendly. When you travel outside or stay at home with it, beautiful music will always surround you, with royal enjoyment. Function Introduction 1、 Searching-channel Function, The button UP and DOWN, searching and fixing available transmitting channel between 88.1~107.9MH Z; 2、 E-switch Function, with delayed function of starting or shutting after a second. 3、 Lighting-indication Function, the LED will shut off automatically after a few seconds to save energy. 4、 Alternative function: switchable automatically between battery and car powe r,(EF-6210 can only be powered by car charger) 5、 Memory Function, when restarting, the unit can memorize your last channel used before. Technical Parameter 1、 Working Conditions： Environment Temperature：-10~+60°C， 2、Major technical Specs： Working Voltage：3V； Working Current：50mA±5mA； Working Channel：88.1~107.9MH Z Receiving Distance：About 15 meters Installation Instruction and Caution 1、 Insert 2 AAA batteries, or connect the unit to the car cha rger 2、 Please insert the audio connector directly to the audio output or earphone jack. 3、 Please take out the batteries if not using the unit for long time. 4、 Avoid high temperature, humidity and dust, and avoid using chemical solution to clean the unit, please clean it with soft-wet wipe. Operation Instruction： 1、 Insert 2AAA batteries or connect to its DC jack with a 3V car adaptor from car power. 2、 Insert the audio connector into the audio output or earphone jack of MP3、CD、MD、IPOD player. 3、 Press the power button 1 second to start it. 4、 Press the searching channel button“↑”or“↓”to search your favorite channel. If you keep on pressing the button, the channel will skip fast. 5、 “88.1 When the channel indicates “88.1 MH Z ”, if you press the button “↓”,it will skip to“107.9MH Z ”.but the channel will not be stable untill a few seconds, and vice versa. 6、 When you fix a channel, turn on your MP3、CD、MD、IPOD player, and then tune your radio channel to match the channel of the unit, you will hear the music played from your player. 7、 If you hear noisy or unclear sound from radio, please switch the channel to another one, which had better is not occupied by the local station.

Cover Letter To whom it may concern, We, Intertek Testing Services Taiwan Ltd , hereby would like to declare below product has been tested in an automobile and works properly. Brand name: Procare International Co Model number: EF-6210 Should you have any further query, please contact us directly. Sincerely, Signature: ___________________ Printed Name: _Jerry Liu ______ Title: _Supervisor_____________________ Company name: Intertek Testing Services Taiwan Ltd Date signed: __Jan. 16, 2007 ____________

KDB Inquiry Tracking Number - 481337

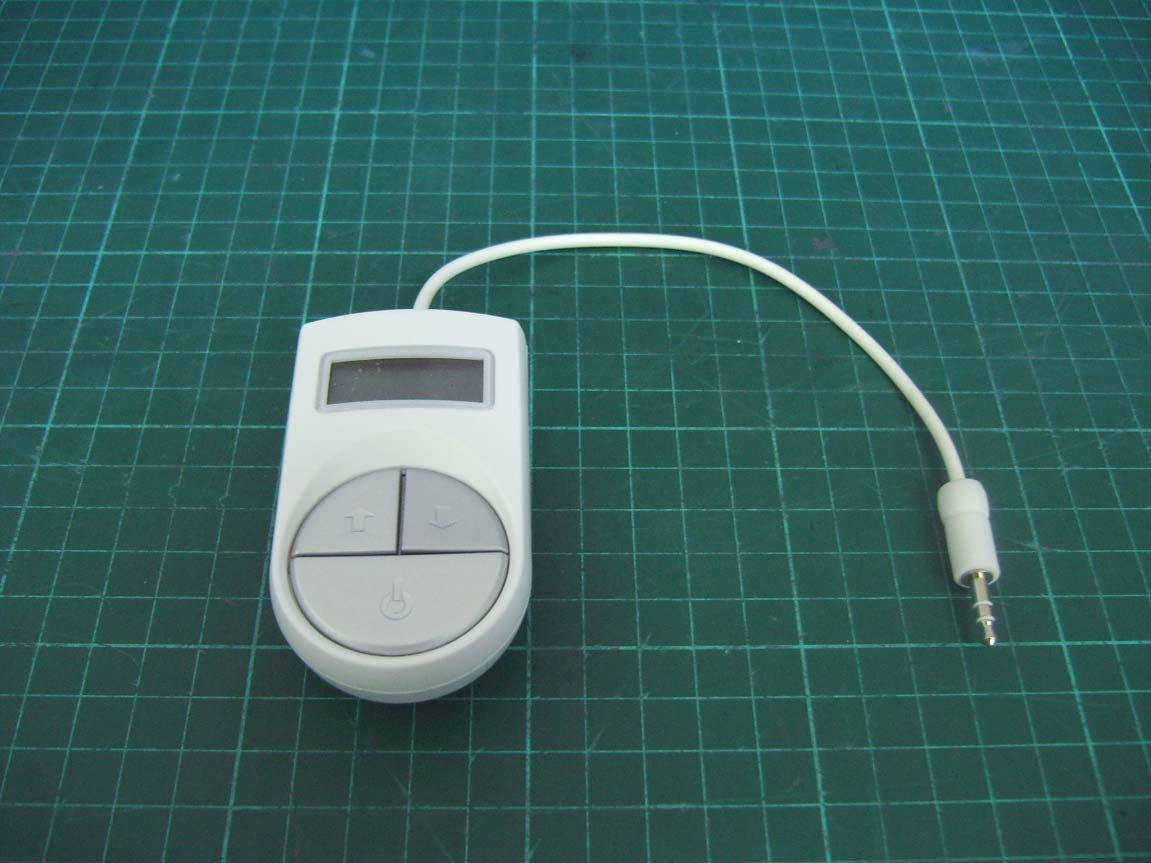

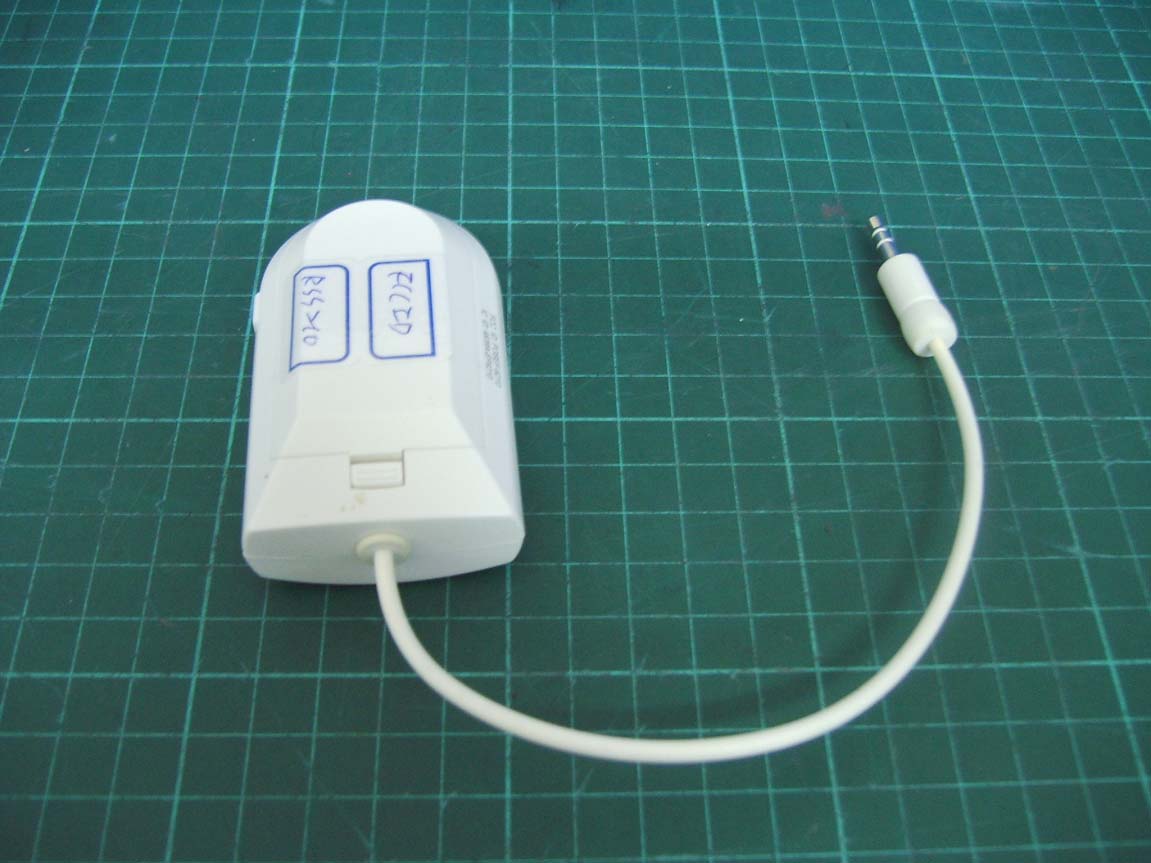

Photo 1: External photo of EUT EF-6210C Photo 2: External photo of EUT EF-6210C Photo 3: External photo of EUT EF-6210C Photo 4: External photo of EUT EF-6210C Photo 5: External photo of EUT EF-6210C

FCC ID & IC Label Location

Photo 1: Internal photo of EUT EF-6210C Photo 2: Internal photo of EUT EF-6210C Photo 3: Internal photo of EUT EF-6210C Photo 4: Internal photo of EUT EF-6210C Antenna Photo 5: Internal photo of EUT EF-6210C

FCC ID. : POSEF-6210 Report No.: EME-061133 Page 1 of 16 EMC TEST REPORT Report No.: EME-061133 Model No.: EF-6210C, EF-6210 Issued Date: Oct. 2, 2006 Applicant: Procare International Co. 11F. –6, 410, Chung Hsiao E. Rd., Sec. 5, Taipei, Taiwan Test By: Intertek Testing Services Taiwan Ltd. No. 11, Lane 275, Ko-Nan 1 Street, Chia-Tung Li, Shiang-Shan District, Hsinchu City, Taiwan This test report consists of 16 pages in total. It may be duplicated completely for legal use with the allowance of the applicant. It shall not be reproduced except in full, without the written approval of Intertek Laboratory. The test result(s) in this report only applies to the tested sample(s). Marx Yan Project Engineer Reviewed By Jerry Liu FCC ID. : POSEF-6210 Report No.: EME-061133 Page 2 of 16 Table of Contents Summary of Tests ............................................................................................................. 3 1. General information...................................................................................................... 4 1.1 Identification of the EUT ....................................................................................... 4 1.2 Additional information about the EUT .................................................................. 4 1.3 Antenna description ............................................................................................... 5 1.4 Peripherals equipment............................................................................................ 5 2. Test specifications.........................................................................................................6 2.1 Test standard .......................................................................................................... 6 2.2 Operation mode...................................................................................................... 6 2.3 Test equipment ....................................................................................................... 7 3. Radiated emission test FCC 15.239 (b)/(c) .................................................................. 8 3.1 Operating environment .......................................................................................... 8 3.2 Test setup & procedure .......................................................................................... 8 3.3 Emission limit ........................................................................................................ 9 3.3.1 Fundamental and harmonics emission limits...................................................... 9 3.3.2 General radiated emission limits......................................................................... 9 3.4 Radiated emission test data.................................................................................. 10 3.4.1 Fundamental Radiated Emission Data .............................................................. 10 4. Bandwidth of fundamental frequency FCC 15.239(a) ............................................... 13 FCC ID. : POSEF-6210 Report No.: EME-061133 Page 3 of 16 Summary of Tests FM Transmitter -Model: EF-6210C FCC ID: POSEF-6210 Test Reference Results Bandwidth of fundamental frequency 15.239(a) Pass Field strength of fundamental frequency 15.239(b) Pass Radiated emission 15.239(c), 15.209 Pass FCC ID. : POSEF-6210 Report No.: EME-061133 Page 4 of 16 1. General information 1.1 Identification of the EUT Applicant: Procare International Co. Product: FM Transmitter Model No.: EF-6210C FCC ID.: POSEF-6210 Frequency Range: 88.1MHz to 107.9MHz Channel Number: 199 channels Frequency of Each Channel: 88.1 + 0.1k MHz, k=0-198 Type of Modulation: FM Power Supply: DC 12V from Car charger, DC 3V from battery Power Cord: N/A Sample Received: Sep. 15, 2006 Test Date(s): Sep. 26, 2006 ~ Sep. 27, 2006 A DoC report has been generated for the client. 1.2 Additional information about the EUT The EUT is a USB FM Transmitter, and was defined as information technology equipment. The model EF-6210 is identical to model EF-6210C (EUT), the different as following: Model No. Difference EF-6210C Be powered by battery or car charger EF-6210 Can only be powered by car charger : For more detail features, please refer to User's manual as file name “Installation guide.pdf” FCC ID. : POSEF-6210 Report No.: EME-061133 Page 5 of 16 1.3 Antenna description The EUT uses a permanently connected antenna. Antenna Gain: 0dBm Antenna Type: PCB Printed Connector Type: N/A 1.4 Peripherals equipment Peripherals ManufacturerProduct No. Serial No. FCC ID iPOD Apple N/A N/A FCC DoC Approved FCC ID. : POSEF-6210 Report No.: EME-061133 Page 6 of 16 2. Test specifications 2.1 Test standard The EUT was performed according to the procedures in FCC Part 15 Subpart C Section §15.239、§15.207 and ANSI C63.4/2003. The test of radiated measurements according to FCC Part15 Section 15.33(a) had been conducted and the field strength of this frequency band were all meet limit requirement, thus we evaluate the EUT pass the specified test. 2.2 Operation mode The EUT was supplied with DC 12V from Car charger. In radiated emission test, the EUT was tested in the status of continuously transmitting. The configuration of EUT was set up by the Client. FCC ID. : POSEF-6210 Report No.: EME-061133 Page 7 of 16 2.3 Test equipment Function Generator Equipment Brand Frequency rangeModel No. Intertek ID No. Next Cal. Date EMI Test Receiver Rohde & Schwarz9kHz~2.75GHzESCS 30 EC303 04/13/2007 EMI Test Receiver Rohde & Schwarz20Hz~26.5GHzESMI EC317 07/14/2007 Spectrum Analyzer Rohde & Schwarz9kHz~30GHz FSP 30 EC353 07/13/2007 Bilog Antenna SCHWARZBECK25MHz~1.7GHz VULB 9160EC368 05/20/2007 Controller HDGmbH N/A HD 100 EP317-1 N/A Antenna Tower HDGmbH N/A MA 240 EP317-2 N/A Turn Table HDGmbH N/A DS 420S EP317-3 N/A LISN Rohde & Schwarz9KHz~30MHzESH3-Z5 EC344 01/14/2007 Function Generator HP N/A 33120A EC334 08/27/2007 Note: The above equipments are within the valid ca…

Text truncated - open the document above for the full version.

FCC ID. : POSEM-6210 Report No.: EME-061133 Page 1 of 16 EMC TEST REPORT Report No.: EME-061133 Model No.: EF-6210C, EF-6210 Issued Date: Oct. 2, 2006 Applicant: Procare International Co. 11F. –6, 410, Chung Hsiao E. Rd., Sec. 5, Taipei, Taiwan Test By: Intertek Testing Services Taiwan Ltd. No. 11, Lane 275, Ko-Nan 1 Street, Chia-Tung Li, Shiang-Shan District, Hsinchu City, Taiwan This test report consists of 16 pages in total. It may be duplicated completely for legal use with the allowance of the applicant. It shall not be reproduced except in full, without the written approval of Intertek Laboratory. The test result(s) in this report only applies to the tested sample(s). Marx Yan Project Engineer Reviewed By Jerry Liu FCC ID. : POSEM-6210 Report No.: EME-061133 Page 2 of 16 Table of Contents Summary of Tests ............................................................................................................. 3 1. General information...................................................................................................... 4 1.1 Identification of the EUT ....................................................................................... 4 1.2 Additional information about the EUT .................................................................. 4 1.3 Antenna description ............................................................................................... 5 1.4 Peripherals equipment............................................................................................ 5 2. Test specifications.........................................................................................................6 2.1 Test standard .......................................................................................................... 6 2.2 Operation mode...................................................................................................... 6 2.3 Test equipment ....................................................................................................... 7 3. Radiated emission test FCC 15.239 (b)/(c) .................................................................. 8 3.1 Operating environment .......................................................................................... 8 3.2 Test setup & procedure .......................................................................................... 8 3.3 Emission limit ........................................................................................................ 9 3.3.1 Fundamental and harmonics emission limits...................................................... 9 3.3.2 General radiated emission limits......................................................................... 9 3.4 Radiated emission test data.................................................................................. 10 3.4.1 Fundamental Radiated Emission Data .............................................................. 10 4. Bandwidth of fundamental frequency FCC 15.239(a) ............................................... 13 FCC ID. : POSEM-6210 Report No.: EME-061133 Page 3 of 16 Summary of Tests FM Transmitter -Model: EF-6210C FCC ID: POSEM-6210 Test Reference Results Bandwidth of fundamental frequency 15.239(a) Pass Field strength of fundamental frequency 15.239(b) Pass Radiated emission 15.239(c), 15.209 Pass FCC ID. : POSEM-6210 Report No.: EME-061133 Page 4 of 16 1. General information 1.1 Identification of the EUT Applicant: Procare International Co. Product: FM Transmitter Model No.: EF-6210C FCC ID.: POSEF-6210 Frequency Range: 88.1MHz to 107.9MHz Channel Number: 199 channels Frequency of Each Channel: 88.1 + 0.1k MHz, k=0-198 Type of Modulation: FM Power Supply: DC 12V from Car charger, DC 3V from battery Power Cord: N/A Sample Received: Sep. 15, 2006 Test Date(s): Sep. 26, 2006 ~ Sep. 27, 2006 A DoC report has been generated for the client. 1.2 Additional information about the EUT The EUT is a USB FM Transmitter, and was defined as information technology equipment. The model EF-6210 is identical to model EF-6210C (EUT), the different as following: Model No. Difference EF-6210C Be powered by battery or car charger EF-6210 Can only be powered by battery : For more detail features, please refer to User's manual as file name “Installation guide.pdf” FCC ID. : POSEM-6210 Report No.: EME-061133 Page 5 of 16 1.3 Antenna description The EUT uses a permanently connected antenna. Antenna Gain: 0dBm Antenna Type: PCB Printed Connector Type: N/A 1.4 Peripherals equipment Peripherals ManufacturerProduct No. Serial No. FCC ID iPOD Apple N/A N/A FCC DoC Approved FCC ID. : POSEM-6210 Report No.: EME-061133 Page 6 of 16 2. Test specifications 2.1 Test standard The EUT was performed according to the procedures in FCC Part 15 Subpart C Section §15.239、§15.207 and ANSI C63.4/2003. The test of radiated measurements according to FCC Part15 Section 15.33(a) had been conducted and the field strength of this frequency band were all meet limit requirement, thus we evaluate the EUT pass the specified test. 2.2 Operation mode The EUT was supplied with DC 12V from Car charger. In radiated emission test, the EUT was tested in the status of continuously transmitting. The EUT was tested and worked properly in an automobile. The configuration of EUT was set up by the Client. FCC ID. : POSEM-6210 Report No.: EME-061133 Page 7 of 16 2.3 Test equipment Equipment Brand Frequency rangeModel No. Intertek ID No. Next Cal. Date EMI Test Receiver Rohde & Schwarz9kHz~2.75GHzESCS 30 EC303 04/13/2007 EMI Test Receiver Rohde & Schwarz20Hz~26.5GHzESMI EC317 07/14/2007 Spectrum Analyzer Rohde & Schwarz9kHz~30GHz FSP 30 EC353 07/13/2007 Bilog Antenna SCHWARZBECK25MHz~1.7GHz VULB 9160EC368 05/20/2007 Controller HDGmbH N/A HD 100 EP317-1 N/A Antenna Tower HDGmbH N/A MA 240 EP317-2 N/A Turn Table HDGmbH N/A DS 420S EP317-3 N/A LISN Rohde & Schwarz9KHz~30MHzESH3-Z5 EC344 01/14/2007 Function Generator HP N/A 33120A EC334 08/27/2007 Note: The above …

Text truncated - open the document above for the full version.

Photo 1: Radiated Emission Test Set-up photo EF6217 Photo 2: Radiated Emission Test Set-up photo EF6217
