POZCPEMDS004324Subscriber Terminal

SOMAport Setup Guide Release 2.0 Part 003776A revision 04 TM Copyright 2001, 2002, 2003 SOMA Networks, Inc. All Rights Reserved. SOMA Networks, Inc. 185 Berry Street Suite 2000 San Francisco, CA 94107 U.S.A. Phone +1.415.882.6500 Fax+1.415.882.6501 SOMA, SOMA Networks and the star-and-circle logo are trademarks of SOMA Networks, Inc. All SOMA Networks product names are trademarks of SOMA Networks, Inc. All other company and product names may be trademarks or registered trademarks of their respective owners. Products and services of SOMA Networks, Inc. may be protected by one or more pending or issued U.S. or foreign patents. A list of third-party software used in the production of or included in this product, as well as any available documentation for such software, can be obtained at www.somanetworks.com/thirdparty.html. This product contains intellectual property which is provided to you subject to the enclosed Enduser License Agreement (EULA). Your rights and obligations are defined in this EULA, which you must review. SOMA Networks, Inc. assumes no responsibility for the accuracy or completeness of the information presented or for any use of the information contained in this document. SOMA Networks, Inc. reserves the right to, without notice, make changes to its products as progress in engineering or manufacturing methods or circumstances may warrant. SOMA NETWORKS INC. ENDUSER PRODUCT LICENSE AGREEMENT THE SOMAPORT™ SUBSCRIBER STATION AND PROVIDED SOFTWARE CONTAIN CERTAIN COMPUTER PROGRAMS AND OTHER PROPRIETARY MATERIAL OF SOMA NETWORKS INC. OR LICENSED TO SOMA NETWORKS, INC., THE USE OF WHICH IS SUBJECT TO THIS AGREEMENT. BY: (A) SIGNING AN AGREEMENT FOR SERVICE WITH YOUR SERVICE PROVIDER; (B) OPENING THE SEALED ENVELOPE CONTAINING THE SOMAPORT; OR (C) USING THE SOMAPORT, YOU ASSENT TO AND ACCEPT THIS ENDUSER PRODUCT LICENSE AGREEMENT. IF YOU DO NOT AGREE WITH ALL THE TERMS OF THIS AGREEMENT YOU MUST RETURN THIS PRODUCT (WITH THE ENVELOPE STILL SEALED), ALL MANUALS AND DOCUMENTATION, ANY SOFTWARE PACKAGES PROVIDED WITH THE SOMAPORT AND PROOF OF PAYMENT TO THE PLACE YOU OBTAINED THEM FOR A FULL REFUND WITHIN THIRTY (30) DAYS OF FIRST ACQUIRING THE SOMAPORT, OTHERWISE YOU ARE DEEMED TO HAVE ACCEPTED AND AGREED TO THESE TERMS AND CONDITIONS. UNAUTHORIZED REPRODUCTION, DISTRIBUTION, DECOMPILATION OR OTHER REVERSE ENGINEERING OF THIS PRODUCT INCLUDING ITS HARDWARE AND/OR SOFTWARE, OR ANY PORTION OF IT, IS PROHIBITED AND MAY RESULT IN SEVERE CIVIL AND CRIMINAL PENALTIES, AND WILL BE PROSECUTED TO THE MAXIMUM EXTENT POSSIBLE UNDER THE LAW. 1. GRANT OF LICENSE: Subject to the terms of this Enduser Product License Agreement (the “Agreement”), SOMA Networks, Inc. (“SOMA”) grants you (the “Licensee”) a non-sub-licensable, non-exclusive right (“License”) to use the Product. “Product” means, collectively, the Software and the provided hardware, and specifically the SOMAport™ subscriber station and its accessories, if any, together with documentation provided to you by SOMA or your service provider. “Software” means, collectively, the version of the SOMA software program in object code format and all updates to that program distributed to you by SOMA, directly or indirectly, by any means and includes any firmware provided to you with the Product. You have no right, unless otherwise explicitly permitted, to receive any source code or design documentation relating to the Product. SOMA retains ownership of all Software copies. The Software and this License is only provided to you to be used in conjunction with the SOMAport provided to you by SOMA or your service provider when you subscribed to services that utilize the SOMA wireless air interface technology and is not licensed to you to be used for any other purpose. 2. RESTRICTIONS: Except as reasonably required to use the Product strictly in accordance with the License and this Agreement, you may not copy any Software. Licensee shall not (and shall not allow any third party to): (I) decompile, disassemble, or otherwise reverse engineer or attempt to reconstruct or discover any source code or underlying ideas or algorithms or file formats or programming or interoperability interfaces of the Product by any means whatsoever; (II) remove any Product identification, copyright or other notices; (III) modify, incorporate into or with other software or create a derivative work of any part of the Software or Product; or (IV) modify or otherwise alter the operation of the Product. Various components, functions, routines and/or portions of the Product may be protected by Intellectual Property Rights (“IPR”) including, but not limited to, designs, copyrights, trade secrets and one or more patents or pending patent applications. Licensee is licensed under such IPR, if any, only to the extent that such a license is required by the licensee to operate the Product in the manner intended by SOMA. No other rights are granted under such IPR and no right to repair or replace the Product is intended or provided and specifically, no right of reconstruction, substitution or repair is provided. 3. TERMINATION: This License is effective until terminated. This License will terminate automatically if you fail to cure any material breach, as determined at the sole discretion of SOMA, of this Agreement within thirty (30) days after such breach first occurs (or immediately in the case of a breach of § 2). Upon termination, you shall immediately cease all use of the Product and return all of the Product including Software, hardware, manuals, documentation of any kind accompanying Product to the place where you first obtained such Product or such other location as may be designated from time to time. Except for this License and except as otherwise expressly provided herein, the terms of the Agreement shall survive termination. 4. WARRANTY DISCLAIMER: THE SOFTWARE IS PROVIDED “AS IS” WITHOUT WARRANTY OF ANY KIND INCLUDING, WITHOUT LIMITATION, ANY WARRANTY OF MERCHANTABILITY OR F…

Text truncated - open the document above for the full version.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 September 15, 2003 RE: FCC ID: POZCPEMDS004324 Attention: Juan Martinez I have a few comments on this Application. 1. Please note that while certain frequencies in Part 21 K exist on a shared basis with certain frequency allocations in Part 74 I, certification of any particular device must meet the intent and criteria for the specific part being applied. Please note that this MDS application under part 21K does not appear to meet the Part 74 Subpart I—Instructional Television Fixed Service. Please note that while 21.901 states shared frequencies exist, it also states that the licensing (and thus certification) is done under part 21 or part 74 of the Commission's Rules, as applicable. Since this is an MMDS client premises equipment for the purpose of data transfer over the network, it should be certified and subsequently licensed under part 21K not part 74 I. If the device is an instructional television fixed service device, please provide evidence of how this rule part applies. 2. FYI - no action needed. Please note that the term ‘intentional radiator’ is generally used for reference to a part 15 device. Since this is a licensed device it should be designated as a transmitter or licensed transmitter instead of an ‘intentional radiator’. Dennis Ward mailto:[email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

dward From: Documentation Department [[email protected]] Sent: Wednesday, September 17, 2003 9:54 AM To: dward Cc: [email protected]; [email protected]; [email protected]; [email protected] Subject: Soma FCC ID: POZCPEMDS004324 9/17/2003 RE: FCC ID: POZCPEMDS004324 1. Please note that while certain frequencies in Part 21 K exist on a shared basis with certain frequency allocations in Part 74 I, certification of any particular device must meet the intent and criteria for the specific part being applied. Please note that this MDS application under part 21K does not appear to meet the Part 74 Subpart I—Instructional Television Fixed Service. Please note that while 21.901 states shared frequencies exist, it also states that the licensing (and thus certification) is done under part 21 or part 74 of the Commission's Rules, as applicable. Since this is an MMDS client premises equipment for the purpose of data transfer over the network, it should be certified and subsequently licensed under part 21K not part 74 I. If the device is an instructional television fixed service device, please provide evidence of how this rule part applies. Response: All references to part 74 has been removed. Only part 21 approval is desired. 2. FYI - no action needed. Please note that the term ‘intentional radiator’ is generally used for reference to a part 15 device. Since this is a licensed device it should be designated as a transmitter or licensed transmitter instead of an ‘intentional radiator’. Response: Understood. Juan Martinez EMC Engineer Elliott Laboratories

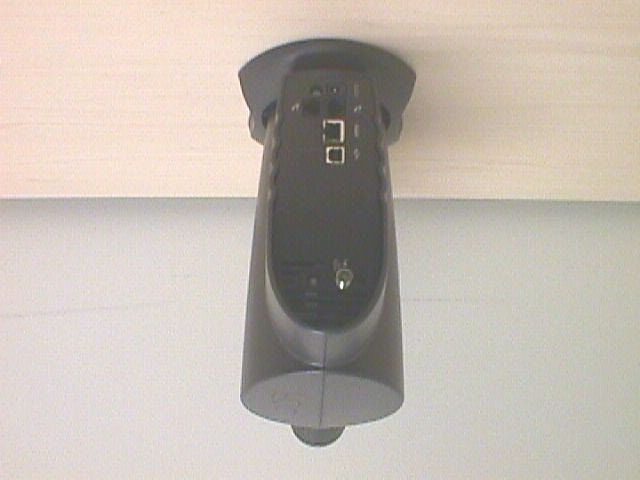

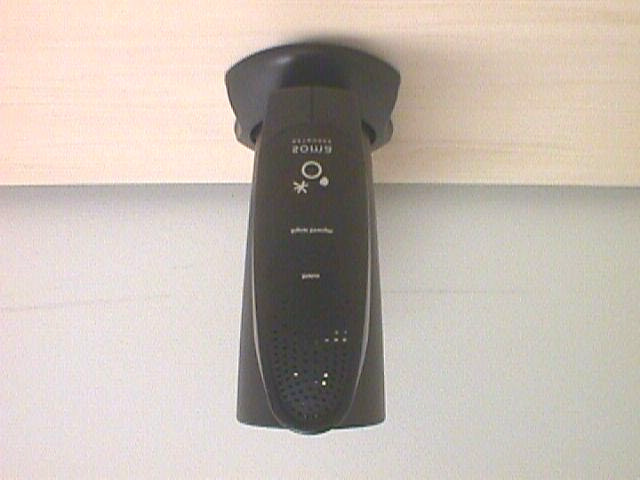

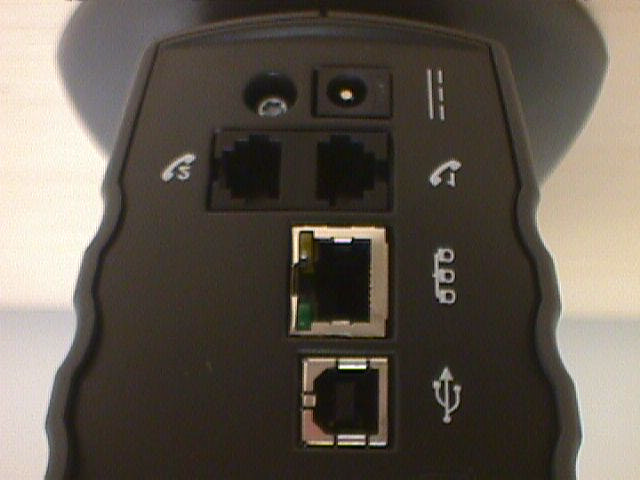

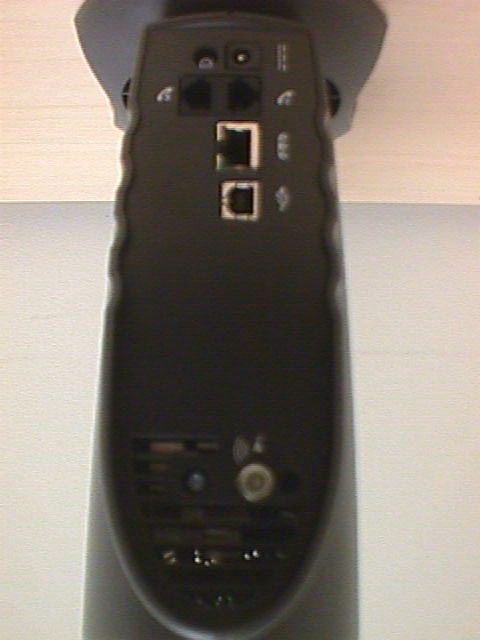

External Photos

1.960 ±0.010 3.400±0.010 R 0.150 DRAWING SCALE 2:1 3 4 5 6 7 9 7 10 7 13 9 15 D C B A A B C D NETWORKS CAD GENERATED DRAWING, DO NOT MANUALLY UPDATE SCALE SIZE CAD FILE: DWG. NO. B SHEET1OF1 REV. DATE APPROVALS DRAWN CHECKED RESP ENG MFG ENG QUAL ENG UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE IN INCHES TOLERANCES ARE: FRACTIONS DECIMALS ANGLES + .XX+ .XX + 1 .XXX+.XXX MATERIAL FINISH -- -- DO NOT SCALE DRAWING APPLICATION USED ONNEXT ASSY ITEM NO. PART OR IDENTIFYING NO. NOMENCLATURE OR DESCRIPTION MATERIAL SPECIFICATION QTY REQD PARTS LIST 123 456 7 8 8 7 6 5 4 32 1 THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF SOMA NETWORKS. ANY REPRODUCTION IN PART OR WHOLE WITHOUT THE WRITTEN PERMISSION OF SOMA NETWORKS IS PROHIBITED. REVISIONS REV.DESCRIPTIONDATEAPPROVED 004710A 01 LABEL,REGULATORY,USA,SP,MMDS, [SOMAPORT 100 MODEL CPE-100-220] 01 INITIAL RELEASE 8/19/03 J.CRIM J.CRIM 8/19/03 8/19/03 INCORP. EC-02865 2:1 1. MARK VENDOR NAME, LABEL DESIGNATION, AND SOMA NETWORKS PART NUMBER ON EACH SHEET OF LABELS. 2. BACKGROUND TO BE DARK GRAY (PANTONE COLOR 432C) LETTERING AND GRAPHICS TO BE SILVER. 3. REFER TO APPROPRIATE AGENCY LISTING MARK INFORMATION TO REPLACE REFERENCE SYMBOLS WITH APPROPRIATE REGISTERED MARKS. 4. FONT: ARIAL 28 POINT 5. FONT: ARIAL NARROW 26 POINT 6. FONT: ARIAL 34 POINT 7. FONT: ARIAL 13 POINT 8. FONT: ARIAL 8 POINT 9. FONT: ARIAL 6 POINT 10. FONT: ARIAL 5 POINT 11. LABEL CONSTRUCTION TO CONSIST OF A 0.010" THICK POLYCARBONATE LABEL STOCK WITH A 0.002" THICK 3M #467 PRESSURE SENSITIVE ADHESIVE. LABEL MUST BE A COMPONENT MARKING AND LABELING SYSTEM APPROVED BY UL AND CSA FOR THE FOLLOWING CONDITIONS: A) INDOOR B) TEMPERATURE RANGE: -40C TO +55C WHEN AFFIXED TO GE CYCOLOY C6200 (PC/ABS BLEND) 12. APPROVED SOURCES OF SUPPLY: BAY AREA LABELS 13. PRINT “FCC ID: POZCPEMDS004324” AT NOTED LOCATION. 14. INDICATES CHANGES PER THIS REVISION. (NOT USED ON REV 01) 15. PLACE FCC LOGO (FCCEMBLM.GIF) IN NOTED LOCATION.

ISOMETRIC VIEW REF ONLY 11 6 13 14 2 3 5 12 10 9 7 13 15 D C A A B C D 3 4 5 6 7 8 8 7 6 5 4 3 2 1 TITLE: SIZE D DWG. NO. REV SHEET 2 OF 2 SCALE: 1:1 DO NOT SCALE DRAWING ASSY DWG MX,SYSTEM,SP,2-LINE ADM-000016 03 DWG. NO. REV SH ADM-000016 03 2 2 1

Internal Antenna (Solder Side) Internal Antenna (Component Side) Back side no shield Back Side with shield Front side no shield RF Portion Back Side RF portion Front side

MPE Calculations FCC part 1.1310, Table 1 limits the power density for uncontrolled exposure to 1mW/ cm 2 for systems operating in FCC Part 21. The distance, d(cm) from the antenna at which the power density, P d (mW/cm 2 ) is below this limit is calculated from the maximum EIRP, P t (mW) using the equation: P d = P t /(4 πd 2 ) Re-arranging for the distance at which the power density is 1mW/cm2 gives: d = √ (P t /(4 π)) Frequency Maximum Output Power (dBm) Max. Antenna Gain (dBi) EIRP (mW) Pd at 20cm Calculated distance (in cm) where Pd < 1mW/ cm2 2500 – 2566 MHz 26.5 4 1120 0.223 9.447 The minimum distance from the antenna that the power density is 1mW/ cm 2 and the calculated minimum distance is 9.447 cm. This information is detailed in the user manual..

File: R52049 Page 1 of 16 Electromagnetic Emissions Test Report In Accordance With FCC Part 21 Subpart K on the Soma Networks Model: SOMAport (TM) subscriber terminal FCC ID: POZCPEMDS004324 GRANTEE: Soma Networks 185 Berry Street, Suite 2000 San Francisco, CA 94107 TEST SITE: Elliott Laboratories, Inc. 684 W. Maude Ave Sunnyvale, CA 94086 REPORT DATE: July 29, 2003 FINAL TEST DATE: July 24, 2003 AUTHORIZED SIGNATORY: ______________________________ Juan Martinez Sr. EMC Engineer Elliott Laboratories, Inc. is accredited by the A2LA, certificate number 2016-01, to perform the test(s) listed in this report. This report shall not be reproduced, except in its entirety, without the written approval of Elliott Laboratories, Inc. Elliott Laboratories, Inc. -- EMC Department Test Report Report Date: July 29, 2003 File: R52049 Page 2 of 16 TABLE OF CONTENTS COVER PAGE........................................................................................................................1 TABLE OF CONTENTS..............................................................................................................................................................2 FCC CERTIFICATION INFORMATION...............................................................................................................................3 DECLARATIONS OF COMPLIANCE.....................................................................................................................................5 SCOPE..............................................................................................................................................................................................6 OBJECTIVE....................................................................................................................................................................................6 SUMMARY OF TEST RESULTS...............................................................................................................................................7 Part 21K and 74I Test Summary.........................................................................................................................................7 EQUIPMENT UNDER TEST (EUT) DETAILS....................................................................................................................8 GENERAL.................................................................................................................................................................................8 ENCLOSURE............................................................................................................................................................................8 MODIFICATIONS..................................................................................................................................................................8 SUPPORT EQUIPMENT......................................................................................................................................................8 EUT INTERFACE PORTS...................................................................................................................................................8 EUT OPERATION DURING TESTING..........................................................................................................................8 TEST SITE.......................................................................................................................................................................................9 GENERAL INFORMATION...............................................................................................................................................9 CONDUCTED EMISSIONS CONSIDERATIONS.......................................................................................................9 RADIATED EMISSIONS CONSIDERATIONS............................................................................................................9 MEASUREMENT INSTRUMENTATION............................................................................................................................10 RECEIVER SYSTEM..........................................................................................................................................................10 INSTRUMENT CONTROL COMPUTER.....................................................................................................................10 POWER METER...................................................................................................................................................................10 FILTERS/ATTENUATORS...............................................................................................................................................10 ANTENNAS.............................................................................................................................................................................10 ANTENNA MAST AND EQUIPMENT TURNTABLE.............................................................................................11 INSTRUMENT CALIBRATION......................................................................................................................................11 TEST PROCEDURES.................................................................................................................................................................12 SPECIFICATION LIMITS AND SAMPLE CALCULATIONS........................................................................................16 RADIATED EMISSIONS SPECIFICATION LIMITS..............................................................................................16 CALCULATIONS – EFFECTIVE RADIATED POWER.........................................................................................16 EXHIBIT 1: Test Equipment Calibration Data................................................…

Text truncated - open the document above for the full version.
