Amosphere NPM Installation Procedures (MMDS) Release 1.3 Part 004071A revision 00b installation.book Page 1 Wednesday, August 6, 2003 6:06 PM Copyright 2001, 2002, 2003 SOMA Networks, Inc. All Rights Reserved. SOMA Networks, Inc. 185 Berry Street Suite 2000 San Francisco, CA 94107 U.S.A. Phone +1.415.882.6500 Fax+1.415.882.6501 SOMA, SOMA Networks and the star-and-circle logo are trademarks of SOMA Networks, Inc. All SOMA Networks product names are trademarks of SOMA Networks, Inc. All other company and product names may be trademarks or registered trademarks of their respective owners. Products and services of SOMA Networks, Inc. may be protected by one or more pending or issued U.S. or foreign patents. A list of third-party software used in the production of or included in this product, as well as any available documentation for such software, can be obtained at www.somanetworks.com/thirdparty.html. SOMA Networks, Inc. assumes no responsibility for the accuracy or completeness of the information presented or for any use of the information contained in this document. SOMA Networks, Inc. reserves the right to, without notice, make changes to its products as progress in engineering or manufacturing methods or circumstances may warrant. installation.book Page 2 Wednesday, August 6, 2003 6:06 PM August 6, 2003Part 004071A revision 00b3 Chapter 0 PREFACE This book explains how to install an Amosphere NPM basestation. Installation includes installing the racks, connecting the basestation to the network core, and powering on the system. This book is intended for field technicians with experience installing and configuring telecommunications equipment at cellular basestations and network operations centers. How This Book Is Organized Table 1 shows how information in this book is organized. ChapterTitleDescription Chapter 1Installation OverviewProvides an overview of the installation process Chapter 2Site PreparationLists the physical, environmental, electrical, and network requirements of an NPM basestation Chapter 3Pre-Installation ActivitiesLists activities that must be performed prior to installing an NPM basestation Chapter 4Installation ProceduresProvides procedures for installing an NPM basestation Chapter 5Power-On ProceduresProvides procedures for applying power to the NPM basestation Table 1Book Organization (1 of 2) installation.book Page 3 Wednesday, August 6, 2003 6:06 PM 4Part 004071A revision 00bAugust 6, 2003 Amosphere NPM Installation Procedures (MMDS) Related Documentation SOMA Networks documentation is modular, so users need to read or carry only those components relevant to a particular job function. This guide makes cross- references to the following documents: „Amosphere NPM Maintenance Procedures – provides procedures for performing maintenance on the NPM basestation. „Amosphere OAMP Guide – provides installation and configuration instructions for the initial commissioning of an NPM basestation. Additional SOMA Networks Documentation Table 2 shows the other guides in the SOMA Networks customer documentation suite. Chapter 6On-Site Software Installation and Configuration Procedures Provides procedures for installing and configuring the software on the NPM basestation Appendix ANPM DecommissioningDescribes how to power off and decommission the NPM basestation ChapterTitleDescription Table 1Book Organization (2 of 2) ComponentDescriptionAudience Amosphere Alarms and Events Reference Comprehensive list of all alarms and events Network operations center operators and field technicians Amosphere Diagnostics Reference Procedures for isolating and fixing network problems Network operations center operators and field technicians Amosphere NPM Hardware Reference Description of the NPM hardware architecture Network operations center operators, field technicians, and network engineers Amosphere Core Server Installation and Maintenance Procedures Procedures for installing core server software Network operations center operators and field technicians Amosphere System Overview Complete solution overviewNetwork operations center operators and network engineers Table 2Amosphere Customer Documentation Components (1 of 2) installation.book Page 4 Wednesday, August 6, 2003 6:06 PM August 6, 2003 Part 004071A revision 00b5 Third-Party Documentation Table 3 shows third-party documents that provide additional information which may be useful when installing the NPM basestation. Conventions This section outlines the conventions used in this guide. Measurement Conventions Measurements in this guide are expressed according to the Systeme International d’Unites (SI) standards for metric units and abbreviation. Equivalent Imperial measurements (used in the United States) are provided in parentheses, except when Imperial is the international standard. SAU Installation GuideInstallation instructions for optional SOMAport external antenna Subscribers SOMAport Setup GuideInstallation and maintenance guide for subscriber premises equipment Subscribers DocumentDescription Central Office Environment Installation/Removal Generic Requirements (GR-1275-CORE) Available from Telcordia Technologies, Inc. Provides generic installation requirements for telecommunication suppliers and carriers. Zyfer AccuSync-R GPS Synchronized Time and Frequency Instrument User’s Manual (377-8006) Available from Zyfer, Inc. Provides installation, configuration, and operational information about the GPS clock module. XIP68 Installation and Use Manual Available from Motorola, Inc. The manual describe the utility bus controllers, radio sector controllers, and application hosts in detail. CPC4400 Ethernet Switching Platform User’s and System Integrator’s Guide Available from Performance Technologies Inc. The manual describe the Ethernet switch and rear I/O card in detail. Table 3Third-Party Documentation ComponentDescriptionAudience Table 2Amosphere Customer Documentation Components (2 of 2) installation.book Page 5 Wednesday, August 6,…

Text truncated - open the document above for the full version.

August 6, 2003Part 004071A revision 00b49 Chapter 4 Chapter 4INSTALLATION PROCEDURES This chapter provides procedures for installing the racks and their internal components. It also provides an overview about installing the antennas used with the NPM basestation. Before proceeding with this chapter, you must complete all the tasks described in Chapter 3. Contents Installing the NPM Racks ......................................................................................... 51 Attaching Ground and Power Cables ....................................................................... 57 Attaching the Shelves and Modules ......................................................................... 67 Populating the Shelves ............................................................................................ 77 Connecting the Cables ............................................................................................. 89 Installing the Antennas ........................................................................................... 105 installation.book Page 49 Wednesday, August 6, 2003 6:06 PM 50Part 004071A revision 00bAugust 6, 2003 Amosphere NPM Installation Procedures (MMDS) installation.book Page 50 Wednesday, August 6, 2003 6:06 PM August 6, 2003 Part 004071A revision 00b51 Chapter 4: Installation Procedures INSTALLING THE NPM RACKS These procedures describe how to prepare the floor for rack installation, move the racks into place, and secure the racks to each other, to the floor, and to the ceiling. Table 4.1 shows the actions described in this section. NOTE: When you install the NPM racks, finish positioning and leveling the first rack before proceeding to the second rack. This makes leveling the racks easier and minimizes the potential for errors that may occur during rack placement. The racks are suitable for mounting on concrete or other non-combustible surfaces only. ActionPage Prepare the Installation Location52 Position the Racks54 Secure the Racks55 Table 4.1Installing the NPM Racks Procedure Summary installation.book Page 51 Wednesday, August 6, 2003 6:06 PM 52Part 004071A revision 00bAugust 6, 2003 Amosphere NPM Installation Procedures (MMDS) Prepare the Installation Location This procedure applies to installing the NPM basestation on a concrete floor and securing the racks using 4-inch concrete expansion bolts (called anchor bolts in this document). These anchor bolts are designed for sites in level 4 seismic zones and may not be suitable for your site. See your field engineering package (FEP) for rack installation procedures specific to your site. To prepare the installation location 1Mark with a chalk line the location where you will install the racks. Refer to your field engineering package (FEP) for the required location. If there are overhead requirements, use a plumb line to align the rack vertically. Placed together, the NPM racks have a footprint of 1.2 m by 0.6 m (47 1/4 inches by 23 5/8 inches). The racks are 2.11 m (83 inches) in height. 2Verify that there is adequate space for the racks: iMove both racks to the intended installation location. iiEnsure that you have room for both racks, their cabling, and enough space for airflow and the insertion and removal of components. See page 28 for airflow requirements. iiiRemove the racks. 3Place the isolation pad in the precise location designated for the first rack using the chalk line as your guide. The base of each rack hangs over the edge of its isolation pad by 1 mm (1/32 inch). 4Trace the anchor hole locations on the concrete floor using the cutouts on the isolation pad as your guide. Use the four outer locations and trace the entire shape of the anchor holes. 5Remove the isolation pad. 6Punch the concrete in the outer edge of each anchor guide using the concrete punch. This will make drilling the anchor holes easier. 7Drill an anchor hole 101 mm (4 inches) deep on the outer edge of each anchor hole using a hammer drill with an 3/4-inch carbide-tipped masonry bit. 8If the drill bit hits a metal reinforcement bar, move the hole location to the inner edge of the anchor guide and repeat steps 6 and 7. 9Ensure that the holes are 101 mm (4 inches) deep; otherwise, the anchor bolts will not sit properly. installation.book Page 52 Wednesday, August 6, 2003 6:06 PM August 6, 2003 Part 004071A revision 00b53 Chapter 4: Installation Procedures 10Clean each anchor hole thoroughly using a vacuum cleaner with a narrow nozzle attachment that can reach into the hole and remove the debris. 11Cover the anchor holes with tape to prevent debris from entering them. 12Repeat steps 3 to 11 for the second rack. installation.book Page 53 Wednesday, August 6, 2003 6:06 PM 54Part 004071A revision 00bAugust 6, 2003 Amosphere NPM Installation Procedures (MMDS) Position the Racks This procedure describes how to position and level the racks. To position the racks 1Install two eyelet bolts in the top of each rack if you intend to use a crane to move the racks. 2If you are using anchor bolts, remove the tape from the anchor holes. 3Place the isolation pad back in the precise location designated for the rack using the chalk line and optional drilled holes as your guide. 4Position the rack directly over the isolation pad. Take care not to move the isolation pad. When viewed from the front, the radio rack must be installed to the left of the RF rack. Figure 4.1 shows the correct positions of the NPM racks. Figure 4.1NPM Rack Positions 5Ensure that the rack is vertically aligned, side-to-side and front-to-rear within 0.25 cm (0.1 inches), using a torpedo level. Add shims as needed until the rack is level. 6Repeat steps 3 to 5 for the second rack. 00553 RF Rack Radio Rack installation.book Page 54 Wednesday, August 6, 2003 6:06 PM August 6, 2003 Part 004071A revision 00b55 Chapter 4: Installation Procedures Secure the Racks This procedure describes how to secure the radio and RF racks in place. The racks may be secured to the ground,…

Text truncated - open the document above for the full version.

106Part 004071A revision 00bAugust 6, 2003 Amosphere NPM Installation Procedures (MMDS) Install the GPS Antennas This procedure describes how to install two Zyfer GPS antennas on top of 1-inch-diameter, hollow pipes using the supplied hardware. Consult your field engineering package (FEP) for any site-specific GPS antenna installation requirements. The NPM basestation uses two GPS antennas for redundancy purposes—they do not affect each other’s operation and they can be installed in close proximity to each other. Figure 4.20 shows the Zyfer GPS antenna assembly. Figure 4.20GPS Antenna Assembly 00293 TNC Connector Set Screw GPS Clock Module Coaxial Cable Allen Key Pipe Pipe Adapter installation.book Page 106 Wednesday, August 6, 2003 6:06 PM August 6, 2003 Part 004071A revision 00b107 Chapter 4: Installation Procedures Before You Begin Before you begin to install the GPS antennas: „Select an installation location away from any objects that might obstruct satellite visibility to 10° of the horizon. Obstructions may cause a degradation of the GPS clock module’s performance. „Ensure that the type and length of cabling used to connect the GPS antenna to the GPS clock module meets your attenuation and shielding requirements. To install the GPS antennas 1Run the two coaxial cables supplied with each antenna from the NPM racks to the intended location of the GPS antennas, such as the basestation’s roof or tower. NOTE: Ensure that the cable remains clear of any sources of potential interference, such as transmitting equipment or power lines. 2Vertically install two 1-inch-diameter pipes in a location that provides the maximum unobstructed view of the sky. 3Run a coaxial cable through the center of each pipe. 4Attach a pipe adapter to the top of each pipe. Ensure that the pipe adapters are connected tightly to the pipes by tightening the set screw. Use a 5/32-inch Allen key to tighten the set screw. 5Attach a GPS antenna to the end of each coaxial cable. The GPS antennas use female TNC connectors. 6Attach the GPS antennas to each pipe adapter. installation.book Page 107 Wednesday, August 6, 2003 6:06 PM 108Part 004071A revision 00bAugust 6, 2003 Amosphere NPM Installation Procedures (MMDS) Install the Main and Diversity Antennas This procedure describes the general process for installing the main and diversity antennas. Consult your field engineering package (FEP) for any site-specific antenna installation requirements. Figure 4.21 shows the configuration of the main or diversity antenna). Figure 4.21RFSS with TMA Antenna Configuration Before You Begin Before you install the antennas: „Select an installation location away from any objects that might obstruct the RF signals. Although the NPM basestation has non-line-of-site RF capability, obstructions may reduce the strength of the transmission or reception signals. „Ensure that the type and length of cabling used to connect the main and diversity antennas to the RFSS modules meet your attenuation and shielding requirements. BT 00376 Antenna Cable connects antenna to ANT port on TMA Cable connects BTS port on TMA to TMA port on bias tee Cable connects BTS port on bias tee to ANT port on RFSS module Cable connects DC port on bias tee to Vout port on RFSS module RFSS Module TMA BiasTee installation.book Page 108 Wednesday, August 6, 2003 6:06 PM August 6, 2003 Part 004071A revision 00b109 Chapter 4: Installation Procedures To install the main and diversity antennas 1Verify that you have the right type of antennas, both in terms of frequency and direction. 2Run the antenna cable from the NPM racks to the intended location of each antenna. See your field engineering package (FEP) and installation MOP for antenna cable specifics. NOTE: Ensure that the cable remains clear of any sources of potential interference, such as transmitting equipment or power lines. 3Attach each antenna to your tower or building using the required mounting hardware. 4Orient each antenna to the correct azimuth (direction) and tilt. See your field engineering package (FEP) to determine the antenna’s correct orientation. 5Tighten and secure each antenna. 6Connect the antenna to the RFSS module: iInstall each TMA within 3 m (10 feet) of its antenna. The TMAs should be installed as close to the antennas as possible in order to ensure optimal NPM performance. Consult the documentation that ships with the TMA for the correct mounting procedures. iiConnect the ANT port on each TMA to its antenna using a suitable coaxial cable. Torque each 7/16 DIN connector to 17 foot-pounds and ensure each connector is properly weatherproofed. iiiInstall each bias tee (also called a CIN) inside or outside the basestation building, as specified in your field engineering package (FEP). Connect the ANT port on each bias tee to the BTS port on each TMA. Torque ! CAUTION: Failure to orient the antennas according to the specifications listed in the installation MOP may seriously affect the performance of your wireless network. ! CAUTION: Do not over-tighten connectors. Overtightening the connectors may damage the cable and degrade the RF signal. installation.book Page 109 Wednesday, August 6, 2003 6:06 PM 110Part 004071A revision 00bAugust 6, 2003 Amosphere NPM Installation Procedures (MMDS) each 7/16 DIN connector to 17 foot-pounds and ensure each connector is properly weatherproofed. ivConnect the BTS port on each bias tee to the ANT port on each RFSS module. The ANT port is located on the rear side of the RFSS module. vConnect the CIN port (also called Vout) on the rear side of the RFSS module to the DC port on the bias tee. ! CAUTION: Do not over-tighten connectors. Overtightening the connectors may damage the cable and degrade the RF signal. installation.book Page 110 Wednesday, August 6, 2003 6:06 PM August 6, 2003 Part 004071A revision 00b111 Chapter 4: Installation Procedures Measuring VSWR and Return Loss Voltage standing wave ratio (VSWR) is a ratio of the maximum to minimum voltage as measured …

Text truncated - open the document above for the full version.

August 6, 2003 Part 004071A revision 00b77 Chapter 4: Installation Procedures POPULATING THE SHELVES These procedures describe how to install the CompactPCI power supplies and cards into the utility and radio shelves. Table 4.4 lists the actions described in this section. NOTE: Your NPM basestation may arrive with the shelves already populated. If this is the case, ensure that the cards are properly secured in the shelf and proceed to the next section. Depending on the configuration of your basestation, the exact number, layout, model, and faceplates of the cards may vary. See your field engineering package (FEP) for the specific layout. ActionPage Insert CompactPCI Power Supplies82 Test CompactPCI Power Supplies83 Insert the Radio and Utility Shelf Cards85 Cover Unused Card Slots87 Table 4.4Populating the Shelves Procedure Summary WARNING: Failure to insert a card in the correct slot may result in damage to or destruction of the card or shelf. Ensure that all the cards are in the correct slots before powering on the shelves. installation.book Page 77 Wednesday, August 6, 2003 6:06 PM 78Part 004071A revision 00bAugust 6, 2003 Amosphere NPM Installation Procedures (MMDS) Shelf Layout Utility Shelf Layout Table 4.5 and Figure 4.11 show the layout of the front-facing cards on the utility shelf. Figure 4.11Utility Shelf Layout (Front View) SlotFront-Facing CardSlotFront-Facing Card 0–1Power supply 012Alarm card 0 2–3Power supply 113Alarm card 1 4–5Power supply 214Utility bus controller 1 6Ethernet switch 015–16Hard disk drive 1 7–8Hard disk drive 017Application host 3 9Application host 018Application host 1 10Utility bus controller 019Ethernet switch 1 11Application host 220— Table 4.5Utility Shelf Layout (Front-Facing Cards) 00530 0-12-34-567-89101112131415-16 17 1920 HDD Activity SCSI Activity HDD Activity SCSI Activity 18 POWER GOOD INPUT OUTPUT POWER GOOD INPUT OUTPUT HDD Activity SCSI Activity HDD Activity SCSI Activity POWER GOOD INPUT OUTPUT installation.book Page 78 Wednesday, August 6, 2003 6:06 PM August 6, 2003 Part 004071A revision 00b79 Chapter 4: Installation Procedures Table 4.6 and Figure 4.12 show the layout of the rear-facing cards on the utility shelf. Figure 4.12Utility Shelf Layout (Rear View) SlotRear-Facing CardSlotRear-Facing Card 6–7Ethernet switch rear I/O card14Utility bus controller rear I/O card 8—15— 9Application host rear I/O card16— 10Utility bus controller rear I/O card17Application host rear I/O card 11Application host rear I/O card18Application host rear I/O card 12–13Alarm wiring card19–20Ethernet switch rear I/O card Table 4.6Utility Shelf Layout (Rear-Facing Cards) 00528 20-19181413-1211 10987-61716 15 installation.book Page 79 Wednesday, August 6, 2003 6:06 PM 80Part 004071A revision 00bAugust 6, 2003 Amosphere NPM Installation Procedures (MMDS) Radio Shelf Layout Table 4.7 and Figure 4.13 show the layout of the front-facing cards on the radio shelf. Figure 4.13Radio Shelf Layout (Front View) SlotFront-Facing CardSlotFront-Facing Card 0–1Power supply 012Radio sector controller 2–3Power supply 113— 4–5Power supply 214Radio sector controller 6Radio modem 315–16IF/RF card 7Radio modem 217Radio modem 0 8Radio modem 118Radio modem 1 9Radio modem 019Radio modem 2 10–11IF/RF card20Radio modem 3 Table 4.7Radio Shelf Layout (Front-Facing Cards) 00531 0-12-34-56910-1112131415-161920 POWER GOOD INPUT OUTPUT POWER GOOD INPUT OUTPUT POWER GOOD INPUT OUTPUT 781817 installation.book Page 80 Wednesday, August 6, 2003 6:06 PM August 6, 2003 Part 004071A revision 00b81 Chapter 4: Installation Procedures Table 4.8 and Figure 4.14 show the layout of the rear-facing cards on the radio shelf. Figure 4.14Radio Shelf Layout (Rear View) SlotRear-Facing CardSlotRear-Facing Card 6—14Radio sector controller rear I/O card 7—15— 8—16Clock wiring card 9—17— 10—18— 11Clock wiring card19— 12Radio sector controller rear I/O card20— 13— Table 4.8Radio Shelf Layout (Rear-Facing Cards) 00529 718121110201914 13121098617 16 15 installation.book Page 81 Wednesday, August 6, 2003 6:06 PM 82Part 004071A revision 00bAugust 6, 2003 Amosphere NPM Installation Procedures (MMDS) Insert CompactPCI Power Supplies The radio and utility shelves each contain two or three identical CompactPCI power supplies. See pages 78 and 80 for the locations of the power supplies. Utility shelves and completely filled radio shelves use three power supplies each; half-full radio shelves require only two power supplies. This ensures that the shelves will continue to operate should one of the power supplies fail. To insert CompactPCI power supplies 1Ensure that there are no obstructions in the slot or on the guide rails. 2Remove a CompactPCI power supply from its antistatic bag. 3Set the two ejector handles on the power supply in the open position by turning the handles away from the center of the front panel while pressing the locking tabs located at the end of each handle. In the open position, the ejector handles are at an approximately 30° angle from the front panel. 4Ensure that the two mounting screws located under and beside each ejector handle are withdrawn enough to allow for the insertion of the power supply. 5Orient the power supply so that the text on the front panel is right-side up. 6Slide the power supply into the left-most unoccupied power slot. Use the guide rails to ensure the connectors are aligned. Apply sufficient pressure to fully mate the power supply with the shelf. 7Lock the power supply in the slot by pressing down on the ejector handles until the handles are flush with the front panel. You can hear a click when the lock engages. 8Secure the power supply in the slot using four 2.5-mm mounting screws. Torque each screw to 4 inch-pounds. 9Repeat steps 1 to 8 for the remaining power supplies. WARNING: The power supplies use components that are sensitive to electrostatic discharges (ESD). Make sure you are wearing an approved and regularly tested grounded wrist strap connected to the grounding poin…

Text truncated - open the document above for the full version.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 September 15, 2003 RE: FCC ID: POZNPMMDS004699 Attention: Juan Martinez I have a few comments on this Application. 1. Please note that the documentation does not indicate Instructional Television services use under Part 74 I. The “What is the NPM Base station” section of the theory of operation states the device is for the purpose of “ air interface to deliver QoS managed broadband services” and “resource to execute Internet access and telephony applications”. Please note that the 731 for this device only mentions Part 21. While the testing appears to show frequencies that are shared with part 74 bands (i.e. 2596–2644MHz), and while channels I21, I29, I22 and I30 are grand fathered, there is nothing evident within the application to show that the device provides “instructional television” services. Therefore the appropriate part would appear to be only part 21. Please explain (provide evidence) as to how this device fits into the Part 74 Subpart I - Instructional Television Fixed Services. Alternately, please clarify if the purpose of providing part 74I data. 2. Please note that since the antenna gain of the transmit antenna has not been provided (the only gain given is that of the 38dBi GPS antenna and it is not clear if this is the same gain as the transmit antenna) it is not clear if the ERP of this device actually meets the exclusion from MPE calculations in 1.1307b1. Please provide gain information for the transmit antenna so comparison to 1.1307 can be made for applicability to rf exposure. Alternately, if available, please provide any MPE data for this device showing the device meets the exclusion of rf exposure. Dennis Ward mailto:[email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

Page 1 of 1 RE: FCC ID: POZNPMMDS004699 1. Please note that the documentation does not indicate Instructional Television services use under Part 74 I. The “What is the NPM Base station” section of the theory of operation states the device is for the purpose of “air interface to deliver QoS managed broadband services” and “resource to execute Internet access and telephony applications”. Please note that the 731 for this device only mentions Part 21. While the testing appears to show frequencies that are shared with part 74 bands (i.e. 2596–2644MHz), and while channels I21, I29, I22 and I30 are grand fathered, there is nothing evident within the application to show that the device provides “instructional television” services. Therefore the appropriate part would appear to be only part 21. Please explain (provide evidence) as to how this device fits into the Part 74 Subpart I - Instructional Television Fixed Services. Alternately, please clarify if the purpose of providing part 74I data. Response: Report has been revised to only request approval to part 21K only. All references to Part 74 have been removed. 2. Please note that since the antenna gain of the transmit antenna has not been provided (the only gain given is that of the 38dBi GPS antenna and it is not clear if this is the same gain as the transmit antenna) it is not clear if the ERP of this device actually meets the exclusion from MPE calculations in 1.1307b1. Please provide gain information for the transmit antenna so comparison to 1.1307 can be made for applicability to rf exposure. Alternately, if available, please provide any MPE data for this device showing the device meets the exclusion of rf exposure. Response: Soma will be using antennas gains ranging from 10 to 19 dBi. An MPE calculation has been uploaded. Also the label that will be placed on the antennas has been uploaded. For purpose of avoiding making multiple labels for each antenna gain, the worst-case distance, which was calculated with the highest gain antenna, has been used in the RF exposure statement. This label will be used and placed on all the other gain antennas visible to all persons that will be expose to the transmitter antenna. Please let us know if this will be ok. Also, SOMA is aware that the system will have to be evaluated for RF exposure compliance, since the total EIRP is 1683 Watts, which is over the 1640 W (EIRP) threshold. But per FCC, exposure survey, of the base station site, is taken care by the licensee with the FCC Wireless Telecommunication Bureau at the time of license approval. Regards, Juan Martinez Sr. EMC Engineer

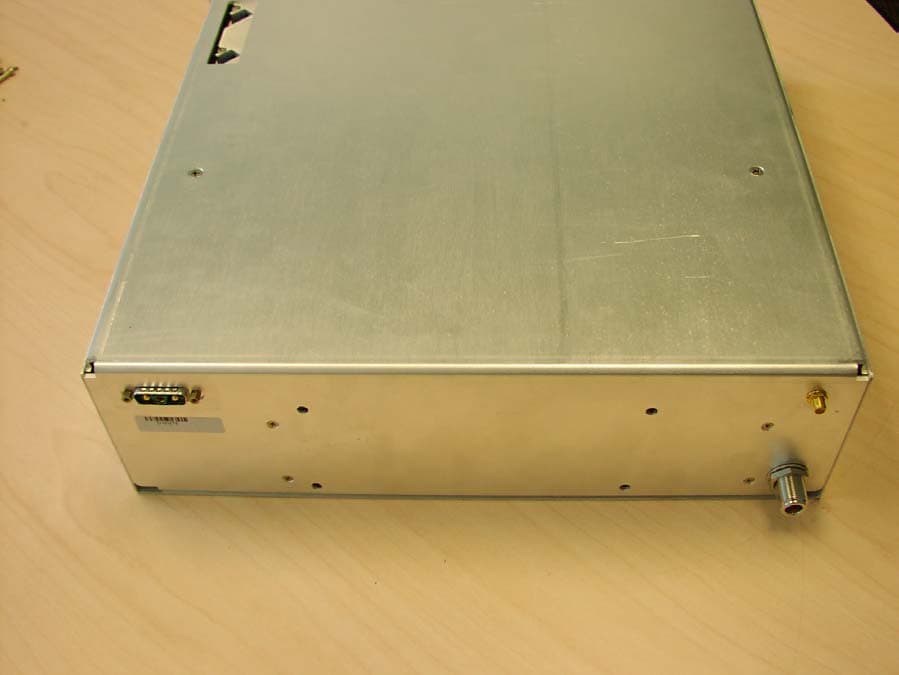

FRONT SIDE OF AMPLIFIER BACK SIDE OF AMPLIFIER

5.25 2.50 R.125 (4X) 3 4 5 6 2 8 10 6 9 9 9 9 9 9 9 9 D C A A B C D 1 3 4 5 6 78 8 7 6 5 4 3 2 1 THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF SOMA NETWORKS, INC. ANY REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF SOMA NETWORKS IS PROHIBITED. PROPRIETARY AND CONFIDENTIAL MATERIAL: FINISH: DRAWN DATE NAME TITLE: SIZE B DWG. NO. REV SHEET 1 OF 1 SCALE: 2:3 REVISIONS REV. COMMENT UNLESS OTHERWISE SPECIFIED: DO NOT SCALE DRAWING LABEL,REGULATORY,USA,NPM,24V,MMDS 004703A 01 jcrim DIMENSIONS ARE IN INCHES TOLERANCES: ANGULAR: 1 ONE PLACE DECIMAL .1 TWO PLACE DECIMAL .01 THREE PLACE DECIMAL .005 DWG. NO. REV SH 004703A 01 1 8/14/2003 8/14/2003 Checked By ENG APPR. 01 2 EC-02859 RELEASE PER 1. MARK VENDOR NAME, LABEL DESIGNATION, AND SOMA NETWORKS PART NUMBER ON EACH SHEET OF LABEL…
