POZSPW0402420004SOMAPort

SOMAport Setup Guide Release 2.0 Part 003776A revision 02 TM Copyright 2001, 2002 SOMA Networks, Inc. All Rights Reserved. SOMA Networks, Inc. 185 Berry Street Suite 2000 San Francisco, CA 94107 U.S.A. Phone +1.415.882.6500 Fax +1.415.882.6501 SOMA, SOMA Networks and the star-and-circle logo are trademarks of SOMA Networks, Inc. All of SOMA Networks’ product names are trademarks of SOMA Networks, Inc. All other company and product names may be trademarks or registered trademarks of their respective owners. Products and services of SOMA Networks, Inc. and those of its licensors may be protected by one or more pending or issued U.S. or foreign patents. A list of third-party software used in the production of or included in this product, as well as any available documentation for such software, can be obtained at www.somanetworks.com/thirdparty.html. This product contains intellectual property which is provided to you subject to the enclosed Enduser License Agreement (EULA). Your rights and obligations are defined in this EULA, which you must review. SOMA Networks, Inc. assumes no responsibility for the accuracy or completeness of the information presented or for any use of the information contained in this document. SOMA Networks, Inc. reserves the right to, without notice, make changes to its products as progress in engineering or manufacturing methods or circumstances may warrant. SOMA NETWORKS INC. ENDUSER PRODUCT LICENSE AGREEMENT THE SOMAPORT™ SUBSCRIBER STATION AND PROVIDED SOFTWARE CONTAIN CERTAIN COMPUTER PROGRAMS AND OTHER PROPRIETARY MATERIAL OF SOMA NETWORKS INC. OR LICENSED TO SOMA NETWORKS, INC., THE USE OF WHICH IS SUBJECT TO THIS AGREEMENT. BY: (A) SIGNING AN AGREEMENT FOR SERVICE WITH YOUR SERVICE PROVIDER; (B) OPENING THE SEALED ENVELOPE CONTAINING THE SOMAPORT; OR (C) USING THE SOMAPORT, YOU ASSENT TO AND ACCEPT THIS ENDUSER PRODUCT LICENSE AGREEMENT. IF YOU DO NOT AGREE WITH ALL THE TERMS OF THIS AGREEMENT YOU MUST RETURN THIS PRODUCT (WITH THE ENVELOPE STILL SEALED), ALL MANUALS AND DOCUMENTATION, ANY SOFTWARE PACKAGES PROVIDED WITH THE SOMAPORT AND PROOF OF PAYMENT TO THE PLACE YOU OBTAINED THEM FOR A FULL REFUND WITHIN THIRTY (30) DAYS OF FIRST ACQUIRING THE SOMAPORT, OTHERWISE YOU ARE DEEMED TO HAVE ACCEPTED AND AGREED TO THESE TERMS AND CONDITIONS. UNAUTHORIZED REPRODUCTION, DISTRIBUTION, DECOMPILATION OR OTHER REVERSE ENGINEERING OF THIS PRODUCT INCLUDING ITS HARDWARE AND/OR SOFTWARE, OR ANY PORTION OF IT, IS PROHIBITED AND MAY RESULT IN SEVERE CIVIL AND CRIMINAL PENALTIES, AND WILL BE PROSECUTED TO THE MAXIMUM EXTENT POSSIBLE UNDER THE LAW. 1. GRANT OF LICENSE: Subject to the terms of this Enduser Product License Agreement (the "Agreement"), SOMA Networks, Inc. ("SOMA") grants you (the "Licensee") a non-sub-licensable, non-exclusive right ("License") to use the Product. "Product" means, collectively, the Software and the provided hardware, and specifically the SOMAport™ subscriber station and its accessories, if any, together with documentation provided to you by SOMA or your service provider. "Software" means, collectively, the version of the SOMA software program in object code format and all updates to that program distributed to you by SOMA, directly or indirectly, by any means and includes any firmware provided to you with the Product. You have no right, unless otherwise explicitly permitted, to receive any source code or design documentation relating to the Product. SOMA retains ownership of all Software copies. The Software and this License is only provided to you to be used in conjunction with the SOMAport provided to you by SOMA or your service provider when you subscribed to services that utilize the SOMA Air Interface™ wireless technology and is not licensed to you to be used for any other purpose. 2. RESTRICTIONS: Except as reasonably required to use the Product strictly in accordance with the License and this Agreement, you may not copy any Software. Licensee shall not (and shall not allow any third party to): (I) decompile, disassemble, or otherwise reverse engineer or attempt to reconstruct or discover any source code or underlying ideas or algorithms or file formats or programming or interoperability interfaces of the Product by any means whatsoever; (II) remove any Product identification, copyright or other notices; (III) modify, incorporate into or with other software or create a derivative work of any part of the Software or Product; or (IV) modify or otherwise alter the operation of the Product. Various components, functions, routines and/or portions of the Product may be protected by Intellectual Property Rights ("IPR") including, but not limited to, designs, copyrights, trade secrets and one or more patents or pending patent applications. Licensee is licensed under such IPR, if any, only to the extent that such a license is required by the licensee to operate the Product in the manner intended by SOMA. No other rights are granted under such IPR and no right to repair or replace the Product is intended or provided and specifically, no right of reconstruction, substitution or repair is provided. 3. TERMINATION: This License is effective until terminated. This License will terminate automatically if you fail to cure any material breach, as determined at the sole discretion of SOMA, of this Agreement within thirty (30) days after such breach first occurs (or immediately in the case of a breach of § 2). Upon termination, you shall immediately cease all use of the Product and return all of the Product including Software, hardware, manuals, documentation of any kind accompanying Product to the place where you first obtained such Product or such other location as may be designated from time to time. Except for this License and except as otherwise expressly provided herein, the terms of the Agreement shall survive termination. 4. WARRANTY DISCLAIMER: THE SOFTWARE IS PROVIDED "AS IS" WITHOUT WARRANTY OF ANY KIND INCLUDING, WITHOUT LIMITATION, ANY WARRA…

Text truncated - open the document above for the full version.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 December 23, 2002 RE: FCC ID: POZSPW0402420004 Attention: Juan Martinez I have a few comments on this Application. 1 Neither the label location nor the label information have the actual FCC ID contained in the drawings. Please provide a label drawing that has the actual FCC ID number on the label. Dennis Ward mailto:[email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

185 Berry Street #2000 San Francisco, CA 94107 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 January 8, 2003 CONFIDENTIAL Dear Examiner: Re: Request pursuant to 47 C.F.R § 0.457(d)(1) and (2) I am writing to the Commission pursuant to 47 C.F.R § 0.457 (d)(1) and (2) requesting that the records provided to the Commission with regard to the accompanying 731application by SOMA Networks Inc. (“SOMA”) and submitted on its behalf of by Elliott Laboratories Inc. will not be disclosed or made routinely available to the public (the “Request”). The material being provided to the Commission in support of the Application contains both trade secrets and contains commercial information that is confidential and contains information such that any disclosure would result in substantial competitive harm. Elliott Laboratories, Inc., is a consulting and testing laboratory, and is filing a Form 731 Application as authorized under 47 C.F.R § 2.1033 with the Commission on our behalf. Included with the Application as exhibits to Application are block diagrams, schematics, and a detailed description of the theory of operation of the device that are the subject of the Request. In accordance with 47 C.F.R. § 0.459 (a) and (b) and in support of its Request, SOMA submits the following facts to be considered by the Commission. SOMA submits that the facts as presented shall enable the Commission to grant the Request that the material provided by SOMA in support of its Application shall neither be disclosed or made generally available to the public pursuant to 47 C.F.R. § 0.460 and § 0.461. As part of SOMA’s operations and compliance with the Commission’s governing statues and regulations, SOMA is submitting to the Commission pursuant to 47 C.F.R § 2.1033 an Application regarding certain SOMA technologies. Included therein are exhibits with the enclosed application are block diagrams, schematics, and a detailed description of the theory of operation of the device. Each of these block diagrams, schematics and detailed descriptions of the theory of operation of the devices and/components are Proprietary and Confidential. The material provided in the Application constitute trade secrets in that any competitor obtaining the material through a third-party such as the Commission would obtain a commercial advantage that they would not have had through their own research and development efforts. The materials provided in support of the Application describe the proprietary operation of SOMA’s products. These details are not readily discernable, even to technically sophisticated individuals. As such any disclosure of any of this material shall cause substantial competitive harm to SOMA. Any disclosure will remove the market lead that SOMA has developed in focusing its resources into research and development and now commercial exploitation of its research and development efforts. SOMA has taken great strengths to protect its intellectual property by maintaining strict rules and practices concerning the protection of confidential and proprietary information. Please note that the material provided to the Commission in support of the Application are trade secrets and that any disclosure of this material would be detrimental to SOMA. In the event that the Commission finds that it is unable to grant the Request, SOMA requests that pursuant 47 C.F.R § (e) that the materials be forwarded from the Commission to SOMA to the attention of the undersigned; and that in the event that the Commission decide to not grant the Request that it make a temporary supplemental order to maintain confidentiality for the period to file a review of the application with the Commission and during the Commission’s review period. I thank you in advance of the Commission’s consideration of this Request. Should the Commission require any further information or to advise SOMA of its decision please direct all inquiries to the undersigned. Sincerely, Moataz Drebika Head of Regulatory Compliance SOMA Networks, Inc.

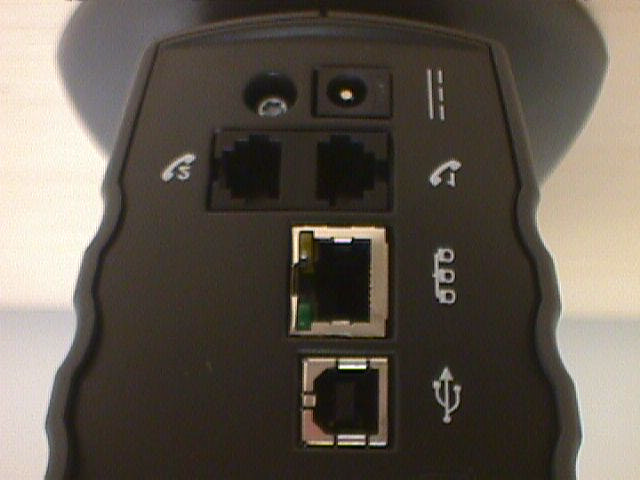

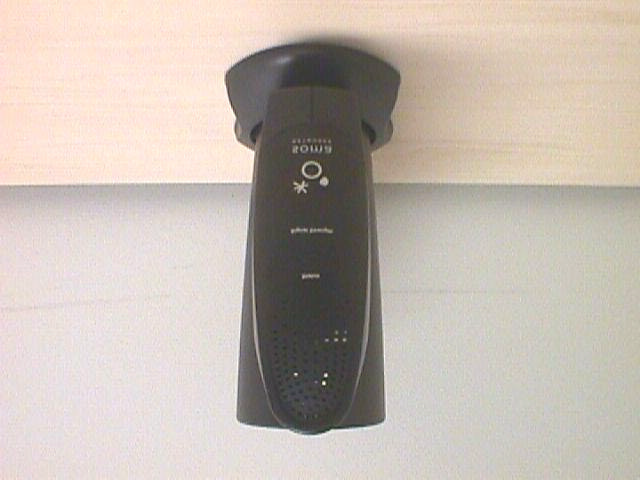

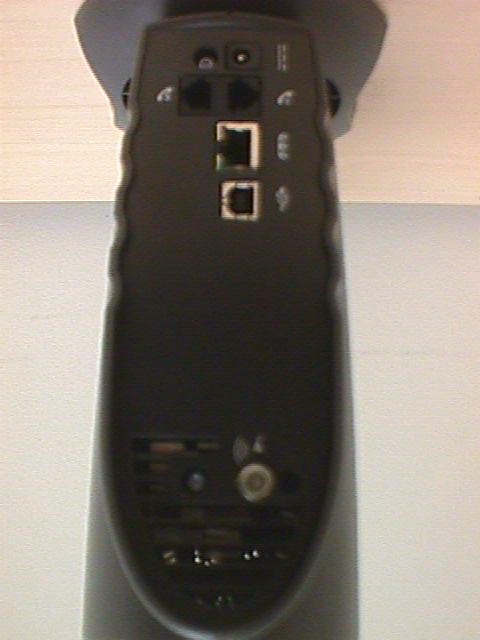

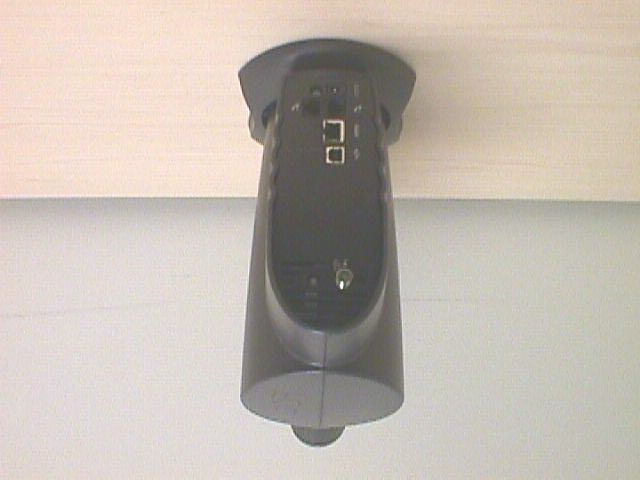

External Photos

Regulatory Label Information for SOMA Port 100 Model CPE-100-230 December 11, 2002 NOTE: INFORMATION FOR LABEL DWG IS FROM DWG. NO. 003753A REV 01, LABEL, REGULATORY, U.S.A., SP, WCS, [SOMAPORT 100, MODEL CPE-100-230], NTERIM. LABEL PLACEMENT INFORMATION WAS EXTRACTED FROM DRAWING NUMBER AD-100001-000, ASSY DWG MX,SYSTEM,SP,2-LINE, REV 02.

1.960±.010 3.400±.010 .581.25 .16 .25 DRAWING SCALE 2:1 3 4 5 6 7 8 9 10 10 9 15 13 D C B A A B C D NETWORKS CAD GENERATED DRAWING, DO NOT MANUALLY UPDATE SCALE SIZE CAD FILE: DWG. NO. B SHEET1OF1 REV. DATE APPROVALS DRAWN CHECKED RESP ENG MFG ENG QUAL ENG UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE IN INCHES TOLERANCES ARE: FRACTIONS DECIMALS ANGLES + .XX+ .XX + 1 .XXX+.XXX MATERIAL FINISH -- -- DO NOT SCALE DRAWING APPLICATION USED ONNEXT ASSY ITEM NO. PART OR IDENTIFYING NO. NOMENCLATURE OR DESCRIPTION MATERIAL SPECIFICATION QTY REQD PARTS LIST 123 456 7 8 8 7 6 5 4 32 1 THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF SOMA NETWORKS. ANY REPRODUCTION IN PART OR WHOLE WITHOUT THE WRITTEN PERMISSION OF SOMA NETWORKS IS PROHIBITED. REVISIONS REV.DESCRIPTION DATEAPPROVED 003753A 01 LABEL,REGULATORY,USA, SP,WCS [SOMAPORT 100 MODEL CPE-100-230], INTERIM 01 INITIAL RELEASE FOR QUOTATION / PROTOTYPE PRODUCTION11/07/02 A. HUDSON A. HUDSON 11/7/02 11/7/02 INCORP. EC-01950 2:1 1. MARK VENDOR NAME, LABEL DESIGNATION, AND SOMA NETWORKS PART NUMBER ON EACH SHEET OF LABELS. 2. BACKGROUND TO BE DARK GRAY (PANTONE COLOR 432C) LETTERING AND GRAPHICS TO BE SILVER. 3. REFER TO APPROPRIATE AGENCY LISTING MARK INFORMATION TO REPLACE REFERENCE SYMBOLS WITH APPROPRIATE REGISTERED MARKS. 4. FONT: ARIAL 32 POINT 5. FONT: ARIAL 28 POINT 6. FONT: ARIAL NARROW 28 POINT 7. FONT: ARIAL 13 POINT 8. FONT: ARIAL 8 POINT 9. FONT: ARIAL 6 POINT 10. FONT: ARIAL 5 POINT 11. LABEL CONSTRUCTION TO CONSIST OF A 0.010" THICK POLYCARBONATE LABEL STOCK WITH A 0.002" THICK 3M #467 PRESSURE SENSITIVE ADHESIVE. LABEL MUST BE A COMPONENT MARKING AND LABELING SYSTEM APPROVED BY UL AND CSA FOR THE FOLLOWING CONDITIONS: A) INDOOR B) TEMPERATURE RANGE: -40C TO +55C WHEN AFFIXED TO GE CYCOLOY C6200 (PC/ABS BLEND) 12. APPROVED SOURCES OF SUPPLY: BAY AREA LABELS 13. NO TEXTURE ON NOTED REGION. NOTED AREA TO BE SILVER. 14. INDICATES CHANGES PER THIS REVISION. NOT USED ON REV 01. 15. PLACE FCC LOGO (FCCEMBLM.GIF) IN NOTED LOCATION.

Internal Photos

SOMAport, with a 3 dBi internal antenna LogLinear Gain (dBi/linear)32.0 Power (dBm/mW) 29.4871.0 EIRP (dBm/mW) 32.41737.8 Limit 1.000 mW/cm 2 MPE Distance: 11.8cm ERP (mW)30.261059.6

III) Mobile Transmitters identified in §2.1091 Transmitters identified in §2.1091, unless categorically excluded, are required to demonstrate MPE compliance by routine evaluation. TCB may approve mobile devices that satisfy MPE Categorical Exclusion Requirements of §2.1091 provided the transmitter does not transmit simultaneously in multiple frequency bands. Categorically Exclution Statement In § 2.1091(b), a mobile device is defined as a transmitting device designed to be used in other than fixed locations and to generally be used in such a way that a separation distance of at least 20 centimeters is normally maintained between the transmitter's antenna and the body of the user or nearby persons. In accordance with § 2.1091(c), mobile PCS devices are categorically excluded from routine environmental evaluation for RF exposure prior to equipment authorization or use if their ERP is less than 3 W (34.77 dBm), if the device transmits above 1.5 GHz or 1.5 W (31.76 dBm) if the device transmits below 1.5 GHz. The SOMAport user manual mandates a separation distance of at least 20 cm between the unit's antenna and the body of the user and nearby persons for ALL uses and applications. The SOMAport is not designed for or intended to be used in portable applications, as defined in § 2.1093 (within 20 cm of the body of the user), and the user manual and OEM instructions contains specific language prohibiting such uses. Finally, to provide proof that the SOMAport is categorically excluded from a routine environmental evaluation for RF exposure, an MPE calculation is provided and has been uploaded, which is label “MPE calculation”. The maximum gain of the internal antenna is 3 dBi. The maximum power at the antenna terminal is 870.96 mW. The device will transmit above 1.5 GHz. Using the provided information the following EIRP or ERP can be calculated. 870.96 mW (29.4 dBm) EIRP = 29.4 dBm + 3 dBi = 32.4 dBm ERP = 32.4 dBm – 2.14 dB = 30.26 dBm or 1.06 Watts Using the provided antenna gain, the total power, in ERP, comes out to be 1.06 Watts. This is below the 3 Watts (ERP), which excludes the SOMAport from routine environmental evaluation for RF exposure. Warning Label Exclusion Statement According to Supplement C to OET Bulletin 65 (Edition 97-01), for MPE evaluation of mobile devices, when it is determined that the device cannot meet the applicable field strength or power density limits under normal operating conditions, operation and warning instructions and/or prominent “warning labels” may be used to caution users and nearby persons to maintain a specified distance from the transmitter and to limit their exposure durations and/or usage conditions to ensure compliance. The SOMAport is well below Section 1.1310 (Uncontrolled/Populated) limits (Please refer to the data provided) and does meet the applicable limits under normal operating conditions. With this, we request that the warning label be waived, since the SOMAport RF hazard levels are well below the MPE limit. But, an RF safety statement will be mention in the Users manual. User Manual RF Safety Statement: IMPORTANT! In order to comply with the FCC RF exposure requirements, the antenna must be installed such that a minimum distance of 20 cm away from all nearby persons is maintained.

File: R49538 Page 1 of 16 Electromagnetic Emissions Test Report In Accordance With FCC Part 27 on the Soma Networks Model: WCS SomaPort 2 FCC ID: POZSPW0402420004 GRANTEE: Soma Networks 185 Berry Street, Suite 2000 San Francisco, CA. 94107 TEST SITE: Elliott Laboratories, Inc. 684 W. Maude Ave Sunnyvale, CA 94086 REPORT DATE: November 27, 2002 FINAL TEST DATE: November 22, 2002 AUTHORIZED SIGNATORY: ______________________________ Juan Martinez Sr. EMC Engineer Elliott Laboratories, Inc. is accredited by the A2LA, certificate number 2016-01, to perform the test(s) listed in this report. This report shall not be reproduced, except in its entirety, without the written approval of Elliott Laboratories, Inc. Elliott Laboratories, Inc. -- EMC Department Test Report Report Date: November 27, 2002 File: R49538 Page 2 of 16 Pages TABLE OF CONTENTS TABLE OF CONTENTS..............................................................................................................................................................2 FCC CERTIFICATION INFORMATION..................................................................................................................................3 SCOPE............................................................................................................................................................................................5 OBJECTIVE...................................................................................................................................................................................5 EMISSION TEST RESULTS.......................................................................................................................................................6 SECTION 2.1046: RF POWER OUTPUT.................................................................................................................................6 SECTION 2.1047: MODULATION CHARACTERISTICS...................................................................................................6 Section 2.1047 (d) Other types of equipment................................................................................................................6 SECTION 2.1049: OCCUPIED BANDWIDTH.......................................................................................................................7 SECTION 2.1051: SPURIOUS EMISSION AT ANTENNA TERMINAL...........................................................................7 SECTION 2.1053: FIELD STRENGTH OF SPURIOUS RADIATION.................................................................................7 SECTION 2.1055: FREQUENCY STABILITY........................................................................................................................8 TEST SITE......................................................................................................................................................................................9 GENERAL INFORMATION.....................................................................................................................................................9 CONDUCTED EMISSIONS CONSIDERATIONS.................................................................................................................9 RADIATED EMISSIONS CONSIDERATIONS....................................................................................................................9 MEASUREMENT INSTRUMENTATION................................................................................................................................10 RECEIVER SYSTEM................................................................................................................................................................10 INSTRUMENT CONTROL COMPUTER.............................................................................................................................10 POWER METER......................................................................................................................................................................10 FILTERS/ATTENUATORS....................................................................................................................................................10 ANTENNAS.............................................................................................................................................................................10 ANTENNA MAST AND EQUIPMENT TURNTABLE.....................................................................................................11 INSTRUMENT CALIBRATION............................................................................................................................................11 TEST PROCEDURES.................................................................................................................................................................12 SPECIFICATION LIMITS AND SAMPLE CALCULATIONS...........................................................................................16 RADIATED EMISSIONS SPECIFICATION LIMITS.........................................................................................................16 CALCULATIONS – EFFECTIVE RADIATED POWER....................................................................................................16 EXHIBIT 1: Test Equipment Calibration Data.............................................................................................................1 EXHIBIT 2: Test Measurement Data...............................................................................................................................2 Elliott Laboratories, Inc. -- EMC Department Test Report Report Date: November 27, 2002 File: R49538 Page 3 of 16 Pages FCC CERTIFICATION INFORMATION The following information is in accordance with FCC Rules, 47CFR Part 2, Subpart J, Section 2.1033(C) & to Industry Canada RSP-100. 2.1033(c)(1) Appli…

Text truncated - open the document above for the full version.
