PP4COACHDual-Band CDMA Phone

COACH USER MANUAL 1 Thank you for choosing the Coach, our latest mobile phone. The Coach has many features designed to enhance your mobile experience. From its EZ to read menus, to its sleek, stylish design, we know you will enjoy the entire Coach experience. This User Guide contains important and useful information that will maximize your familiarity with all that the Coach has to offer. Specifications Design Clamshell phone with internal and external display Displays z 260k colors TFT LCD with 2.2” internal display z 4 gray STN LCD with 1.04” external display z 5 lines for text in basic mode with 22 point font z Two soft keys and four-way scroll and selection OK keys Melodies MP3, WMA, EVRC, QCP, MIDI, SP-MIDI Camera Integrated VGA (300k) CMOS Camera z Resolution up to 640 x 480 (330,000 pixels) z Self-timer function (5 seconds or 10 seconds) z Photo album Dimensions & Weight z Weight: 100 g (with standard battery) 3.52 oz z Dimensions: 98 mm x 50 mm x 20.2 mm 3.85 » X 1.96 » X 0.79 » Power Management (Performance) Battery Type Capacity Standby Time Talk Time Standard Lithium-Ion (Li-ion) Up to 920 mAh Up to 250 hours Up to 3 hours Phone overview Speaker Earpiece . ` Internal display Power on&off/Menu exit key/End key Turns phone on/off, ends calls, exits menus Send key Clear key Returns to previous screen or deletes characters in text mode. Prefix international call key Vibrate mode Navigation key Scroll through the menu options OK key Press to enter menu system Voicemail One-touch Quick Call Left/Right Soft key Perform the functions shown at the bottom line of the display. Camera Side key Speaker phone key Alarm key NOTE : Holding device at internal antenna area might affect call quality reception. Internal antenna Emergency call key Picture album key Zoom key VRC key Camera key External display Microphone Menu overview 1 Contacts 1. Emergency Contact 2. Contact List 3. Add Contact 4. Edit Contact 5. Erase Contact 6. Groups 7. Speed Dials 8. My Name & Number 2 Recent Calls 1. All Calls 2. Missed Calls 3. Dialed Calls 4. Received Calls 5. Call Timers 3 Messaging 1. Create Message 2. Inbox 3. Sent 4. Draft 5. Voicemail 6. Settings 4 Media Gallery 1. Picture Box 2. Camera 3. Sound Box 5 easyedge 1. easyedge 6 Tools 1. Alarm Clock 2. Calculator 3. Tip Calculator 4. Calendar 5. Voice Memo 6. Stop Watch 7. World Clock 8. Notepad 7 Wizard 1. Voice Commands 2. Help Balloon 3. Clear Hearing 8 Sound Settings 1. Ringtone 2. Volume Level 3. Keypad Volume 4. Voice Commands 5. Message Alert 6. Missed Call 7. Advanced 9 Phone Settings 1. Display Settings 2. Call Settings 3. Advanced 4. Phone Info ** Network dependent Quick & Easy Keys Functions / Perform the functions shown at the bottom line of the display by using these soft keys. Scroll through the menu options in Menu mode. In standby mode, Left Scroll: Access Calendar menu Right Scroll: Access Messaging menu Up Scroll: Access easyedge menu Down Scroll: Access Calculator menu Select a menu function or store user-input information, such as names. Also use this key for confirmation as the [OK] key. Delete characters from the display, or return to previous menu. Make or receive a call. Show the recent call list in standby mode. Re-dial the last call number if pressed and held in standby mode. Complete the current call. Turn on/off the phone if pressed and held. Cancel user input and return to standby mode while in Menu mode. Quickly connect to the voice mail server if pressed and held in standby mode. ~ Enters numbers, letters or sp ecial characters. Go to the dial screen if pressed in standby mode. Enter or exit from vibrate mode if pressed and held in standby mode. Enter a space if pressed and held in text input mode. Work in Word search mode if pressed in the Predictive text input mode. Enter the + sign prefix for international dialing if pressed and held. Change various text input mode s if pressed and held at the text-editing screen. Adjust the earpiece volu me while making a call. Control the Ringtone volume, vibrate mode and silent all mode in standby. Mute the ringtone of an incoming call. Turn camera capture mode on. Work as a camera shutter in capture mode. Access to AVR menu Zoom in/out the font when entering Turn the speaker mode on/off Set the alarm mode Enter to the photo album Available to contact most important 3 persons in case of emergency Make a emergency call Contents Specifications.......................................................... 3 Phone overview....................................................... 4 Menu overview ........................................................ 5 Quick & Easy ........................................................... 7 1. Getting Started .................................................. 10 Battery ..................................................................................................... 11 Turn on/off the phone .............................................................................. 11 Essential displa y indica tions.................................................................... 12 EZ quick call keys .................................................................................... 12 Entering text............................................................................................. 12 2. Calls & address book........................................ 15 Making, receiving and ending a call ........................................................ 16 Options durin g a call ................................................................................ 17 Checking all calls ..................................................................................... 18 Speed dial ing ........................................................................................... 19 Call Setti ng .............................................................................................. 19 Using addres s book .................................................................…

Text truncated - open the document above for the full version.

SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA December 22, 2009 TEL: +82 31 639 8565 Test Site: HCT CO., LTD. FAX: +82 31 639 8525 FRN: 0005866421 http://www.hct.co.kr SUBJECT: PANTECH&CURITEL COMMUNICATION, INC. FCC ID: PP4COACH / MODEL: CDM8635 Part 22(H) / 24(E) Certification Gentlemen: Submitted herewith, on behalf of PANTECH&CURITEL COMMUNICATION, INC. is an application for Part 22(H) / 24(E) Certification of the following Dual-Band CDMA Phone: Trade Name/Model(s): PANTECH&CURITEL / CDM8635 EUT Type: Dual-Band CDMA Phone Tx Frequency: 824.70 – 848.31 MHz (CDMA) 1 851.25 – 1 908.75 MHz (PCS CDMA) Rx Frequency: 869.70 – 893.31 MHz (CDMA) 1 931.25 – 1 988.75 MHz (PCS CDMA) Max. RF Output Power: 0.463 W ERP CDMA (26.66 dBm) 0.579 W EIRP PCS CDMA (27.63 dBm) Maximum SAR: 1.37 W/kg CDMA835 Head SAR / 0.575 W/kg CDMA835 Body SAR 1.39 W/kg PCS1900 Head SAR / 0.651 W/kg PCS1900 Body SAR HAC Rating: M4/ T4 Attachment exhibits are the applicant’s Letter of Authorization, Confidentiality Request, ESN Affidavit, measurement report test data and plots, RF Exposure measurement report and data, FCC ID label and location, test setup photographs, internal and external photographs, block diagram (confidential), circuit diagrams & description (confidential), operational description (confidential), parts list & tune-up procedure (confidential), and the user's manual. If you have any question or comment concerning the above, please contact the undersigned. Sincerely, ----------------------------------------------- Sun-Hee Kim - Engineer HCT Co., Ltd. / cc. PANTECH & CURITEL COMMUNICATIONS, INC.

PANTECH&CURITEL COMMUNICATIONS, INC. 110-1, ONGJEONG-RI, TONGJIN-EUP, GIMPO-SI, GYOUNGGI-DO, 415-865, KOREA Date: December 22, 2009 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: PP4COACH To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, PANTECH&CURITEL COMMUNICATIONS, INC. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give PANTECH&CURITEL COMMUNICATIONS, INC. temporary confidentiality of commercially sensitive information prior to product release. The requested Confidential and Temporary Confidential exhibits are listed as follows: CONFIDENTIAL AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Operational Descriptions 3 Parts Lists and Tune-Up Procedure CONFIDENTIAL 4 Schematics 5 External Photos 6 Internal Photos 7 Test-Setup Photos SHORT-TERM CONFIDENTIAL 8 User’s Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, ----------------------------------------------- Sun-Hee Kim-Engineer HCT Co., Ltd. cc. Ki Pyeol Son- PANTECH&CURITEL COMMUNICATIONS, INC.

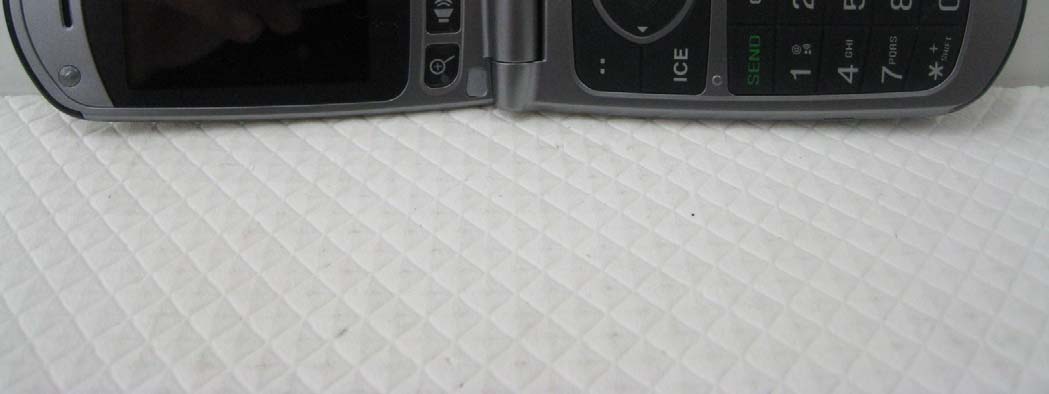

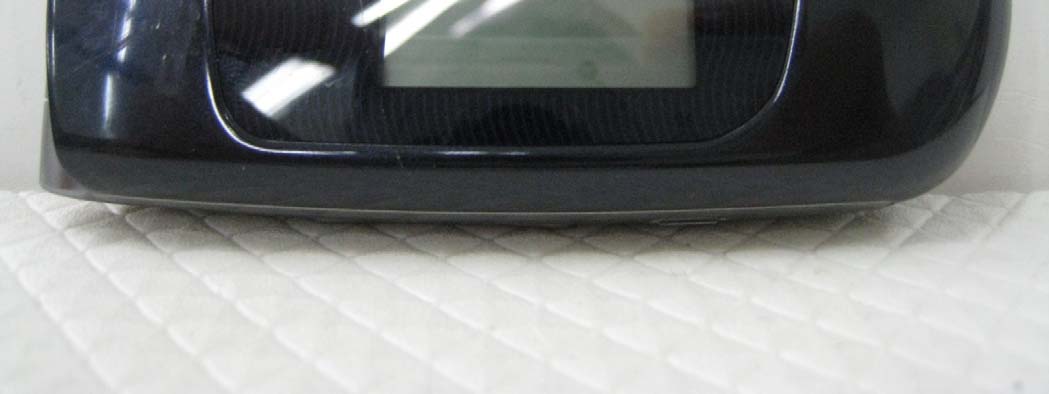

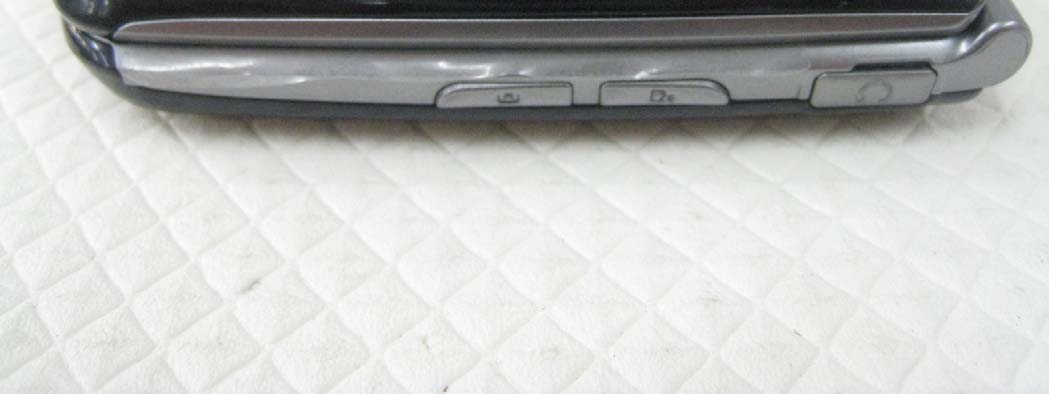

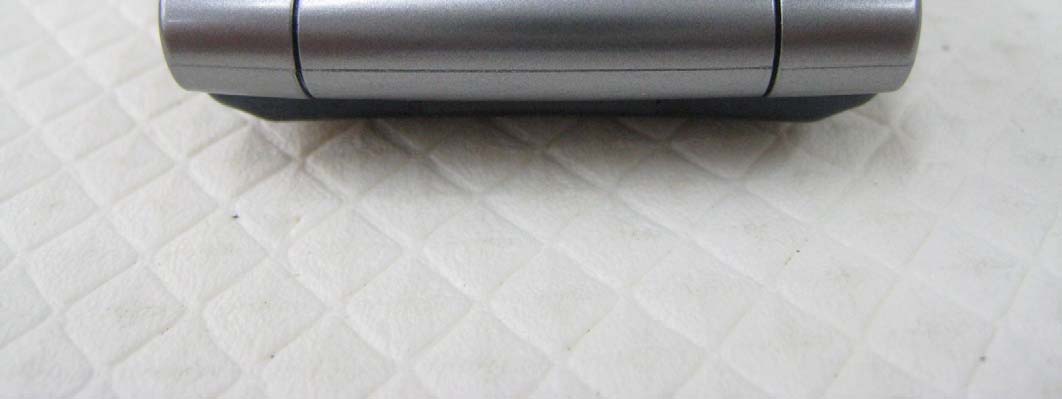

Report No.: HCTR0912FR08 FCC ID: PP4COACH DATE: December 22, 2009 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Page １ of 8 EXTERNAL PHOTOGRAPHS Report No.: HCTR0912FR08 FCC ID: PP4COACH DATE: December 22, 2009 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Page ２ of 8 ■ EXTERNAL PHOTO Report No.: HCTR0912FR08 FCC ID: PP4COACH DATE: December 22, 2009 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Page ３ of 8 ■ EXTERNAL PHOTO Report No.: HCTR0912FR08 FCC ID: PP4COACH DATE: December 22, 2009 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Page ４ of 8 ■ EXTERNAL PHOTO Report No.: HCTR0912FR08 FCC ID: PP4COACH DATE: December 22, 2009 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Page ５ of 8 ■ EXTERNAL PHOTO Report No.: HCTR0912FR08 FCC ID: PP4COACH DATE: December 22, 2009 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Page ６ of 8 ■ EXTERNAL PHOTO Report No.: HCTR0912FR08 FCC ID: PP4COACH DATE: December 22, 2009 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Page ７ of 8 ■ EXTERNAL PHOTO Report No.: HCTR0912FR08 FCC ID: PP4COACH DATE: December 22, 2009 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Page ８ of 8 ■ EXTERNAL PHOTO

Report No.: HCTR0912FR08 FCC ID: PP4COACH DATE: December 22, 2009 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Page １ of 22 INTERNAL PHOTOGRAPHS Report No.: HCTR0912FR08 FCC ID: PP4COACH DATE: December 22, 2009 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Page ２ of 22 ■ INTERNAL PHOTO Report No.: HCTR0912FR08 FCC ID: PP4COACH DATE: December 22, 2009 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Page ３ of 22 ■ INTERNAL PHOTO Report No.: HCTR0912FR08 FCC ID: PP4COACH DATE: December 22, 2009 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Page ４ of 22 ■ INTERNAL PHOTO Report No.: HCTR0912FR08 FCC ID: PP4COACH DATE: December 22, 2009 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Page ５ of 22 ■ INTERNAL PHOTO Report No.: HCTR0912FR08 FCC ID: PP4COACH DATE: December 22, 2009 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Page ６ of 22 ■ INTERNAL PHOTO Report No.: HCTR0912FR08 FCC ID: PP4COACH DATE: December 22, 2009 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Page ７ of 22 ■ INTERNAL PHOTO Report No.: HCTR0912FR08 FCC ID: PP4COACH DATE: December 22, 2009 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Page ８ of 22 ■ INTERNAL PHOTO Report No.: HCTR0912FR08 FCC ID: PP4COACH DATE: December 22, 2009 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Page ９ of 22 ■ INTERNAL PHOTO Report No.: HCTR0912FR08 FCC ID: PP4COACH DATE: December 22, 2009 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Page １０ of 22 ■ INTERNAL PHOTO Report No.: HCTR0912FR08 FCC ID: PP4COACH DATE: December 22, 2009 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Page １１ of 22 ■ INTERNAL PHOTO Report No.: HCTR0912FR08 FCC ID: PP4COACH DATE: December 22, 2009 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Page １２ of 22 ■ INTERNAL PHOTO Report No.: HCTR0912FR08 FCC ID: PP4COACH DATE: December 22, 2009 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Page １３ of 22 ■ INTERNAL PHOTO Report No.: HCTR0912FR08 FCC ID: PP4COACH DATE: December 22, 2009 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Page １４ of 22 ■ INTERNAL PHOTO Report No.: HCTR0912FR08 FCC ID: PP4COACH DATE: December 22, 2009 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Page １５ of 22 ■ INTERNAL PHOTO Report No.: HCTR0912FR08 FCC ID: PP4COACH DATE: December 22, 2009 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Page １６ of 22 ■ INTERNAL PHOTO Report No.: HCTR0912FR08 FCC ID: PP4COACH DATE: December 22, 2009 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Page １７ of 22 ■ INTERNAL PHOTO Report No.: HCTR0912FR08 FCC ID: PP4COACH DATE: December 22, 2009 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Page １８ of 22 ■ INTERNAL PHOTO Report No.: HCTR0912FR08 FCC ID: PP4COACH DATE: December 22, 2009 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Page １９ of 22 ■ INTERNAL PHOTO Report No.: HCTR0912FR08 FCC ID: PP4COACH DATE: December 22, 2009 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Page ２０ of 22 ■ INTERNAL PHOTO Report No.: HCTR0912FR08 FCC ID: PP4COACH DATE: December 22, 2009 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Page ２１ of 22 ■ INTERNAL PHOTO Report No.: HCTR0912FR08 FCC ID: PP4COACH DATE: December 22, 2009 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Page ２２ of 22 ■ INTERNAL PHOTO

Antenna Specifications DATA 2009-12-08 REV. A MODEL COACH TYPE BUILT-IN PAGE 3/21 ANTENNA SPECIFICATION KARAM Solution Antenna Specifications DATA 2009-12-08 REV. A MODEL COACH TYPE BUILT-IN PAGE 4/21 - CONTENTS - 1. Technical Items 1.1 Electrical Spec. 1.2 Mechanical Spec. 2. Test Equipments 3. Electrical Demands 3.1 V.S.W.R 3.2 Radiation Pattern 3.3 Gain 5. Environmental Demands 5.1 Thermal Shock Test 5.2 Humidity Test 5.3 Temperature Cycling Test 5.4 Salt Spray Test 6. Antenna Drawing 7. Electrical data (V.S.W.R, GAIN & Matching Circuit Diagram) 7.1 V.S.W.R 7.2 GAIN (with Matching Circuit) Antenna Specifications DATA 2009-12-08 REV. A MODEL COACH TYPE BUILT-IN PAGE 5/21 1. Technical Items 1.1 Electrical Spec. Electrical Spec. Frequency Range (MHz) Cellular US-PCS Tx1 Rx1 Tx2 Rx2 824 – 849MHz 869 - 894MHz 1850 - 1910MHz 1930 - 1990MHz Folder position Folder close Folder open Folder close Folder open Folder close Folder open Folder close Folder open V.S.W.R (Max) 3.5 4.0 4.0 2.0 5.0 5.5 4.5 4.5 GAIN (E2, Peak Min) -3.2dBi -3.0dBi -4.0dBi -1.5dBi -9.5dBi -7.5dBi -10.0dBi -7.7dBi Impedance (Nominal) 50 ohms Polarization VERTICAL Radiation Pattern OMNI-DIRECTIONAL Maximum Power 2 Watts 1.2 Mechanical Spec. Mechanical Spec. Connector CONTACT PIN TYPE Overall length See drawing Operation Temperature -30°C  +80°C Weight 0.9 g Antenna Specifications DATA 2009-12-08 REV. A MODEL COACH TYPE BUILT-IN PAGE 6/21 2. Test Equipment The test equipments for antenna are as follows Network Analyzer (Agilent E5071A) to measure the V.S.W.R and impedance of antenna Spectrum Analyzer to measure the receiving signal intensity Standard Horn antenna that is adjustable in the Cellular band Standard Horn antenna that is adjustable in the US-PCS band Anechoic Chamber installed the cables, connectors and equipments for measurement Dogmatic Caliper to measure the dimensions Torque Driver to measure the torque force of the helix Push/Pull gauge to measure the pulling force Climatic Chamber for environmental test Antenna Specifications DATA 2009-12-08 REV. A MODEL COACH TYPE BUILT-IN PAGE 7/21 3. Electrical Demands 3.1 V.S.W.R The V.S.W.R characteristics must satisfy the electrical demands. The V.S.W.R of antenna must be less than 4.0:1(824 ~ 894MHz) at Cellular, 5.5:1(1850 ~ 1990MHz) at US-PCS band on the free space. Antenna Specifications DATA 2009-12-08 REV. A MODEL COACH TYPE BUILT-IN PAGE 8/21 3.2 Radiation Pattern The radiation pattern must have the omni-directional characteristic in Cellular/ PCS Band and H-PLANE. 3.3 Gain The gain is expressed as dBi that standardizes the half-wave length dipole antenna. The minimum Gain(E2 plane) of antenna must be bigger than –4.0dBi, in Cellular, -10.0dBi, in US-PCS band. Antenna Specifications DATA 2009-12-08 REV. A MODEL COACH TYPE BUILT-IN PAGE 9/21 4. Environmental Demands 4.1 Operation Temperature Test - Test A: Place the antennas for testing in chamber. The chamber condition should be as follows: 1hours at -20°C - Final measurements: The antenna shall be visually inspected and electrically and also mechanically checked as required by products standard. - Test B: Place the antennas for testing in chamber. The chamber condition should be as follows: 1hours at 70°C - Final measurements: The antenna shall be visually inspected and electrically and also mechanically checked as required by products standard. 4.2 Humidity Test - Test: Place the antennas for testing in chamber. The chamber condition should be as follows: 24hours at +55°C, Relative humidity is 95%. - Final measurements: The antenna shall be visually inspected and electrically and also mechanically checked as required by products standard Antenna Specifications DATA 2009-12-08 REV. A MODEL COACH TYPE BUILT-IN PAGE 10/21 4.3 Temperature Cycling Test The antenna shall withstand 10 repeated cycles of 120 minutes at -40°C and 120 minutes at +85°C with a maximum transition time between temperature extremes of 120 minutes. After the test, no visual deterioration shall occur. After the test, the antenna shall satisfy the electrical demands. 120 Min120 Min 1 CYCLE +25 +85 TEMP(°C) 10 CYCLES TIME 120 Min120 Min -40 4.4 Salt spray Test In salt fog chamber, expose test antennas to a 35°C, 5% salt fog atmosphere for 48 hours. After the test, the antenna shall be continued. The antenna shall satisfy the electrical demands. Antenna Specifications DATA 2009-12-08 REV. A MODEL COACH TYPE BUILT-IN PAGE 11/21 5. Antenna Drawing Antenna Specifications DATA 2009-12-08 REV. A MODEL COACH TYPE BUILT-IN PAGE 12/21 6. Electrical data  V. S.W.R 6.1 V.S.W.R [Folder close] Antenna Specifications DATA 2009-12-08 REV. A MODEL COACH TYPE BUILT-IN PAGE 13/21 [Folder open]  Matching Network ANTENNA 56pF 0.5pF RF 1.8nH Antenna Specifications DATA 2009-12-08 REV. A MODEL COACH TYPE BUILT-IN PAGE 14/21  Radiation Gain 6.2 GAIN (with Matching Circuit) [Cellular Band : Folder close E1-plane] [Cellular Band : Folder close E2-plane] Antenna Specifications DATA 2009-12-08 REV. A MODEL COACH TYPE BUILT-IN PAGE 15/21 [Cellular Band : Folder close H-plane] Antenna Specifications DATA 2009-12-08 REV. A MODEL COACH TYPE BUILT-IN PAGE 16/21 [US-PCS Band : Folder close E1-plane] [US-PCS Band : Folder close E2-plane] Antenna Specifications DATA 2009-12-08 REV. A MODEL COACH TYPE BUILT-IN PAGE 17/21 [US-PCS Band : Folder close H-plane] Antenna Specifications DATA 2009-12-08 REV. A MODEL COACH TYPE BUILT-IN PAGE 18/21 [Cellular Band : Folder open E1-plane] [Cellular Band : Folder open E2-plane] Antenna Specifications DATA 2009-12-08 REV. A MODEL COACH TYPE BUILT-IN PAGE 19/21 [Cellular Band : Folder open H-plane] Antenna Specifications DATA 2009-12-08 REV. A MODEL COACH TYPE BUILT-IN PAGE 20/21 [US-PCS Band : Folder open E1-plane] [US-PCS Band : Folder open E2-plane] Antenna Specifications DATA 2009-12-08 REV. A MODEL COACH TYPE BUILT-IN PAGE 21/21 [US-PCS Band : Folder open H-plane]

SAR TEST REPORT HCT CO., LTD EUT Type: Dual-Band CDMA Phone FCC ID: PP4COACH Model: CDM8635 Trade Name PANTECH&CURITEL Date of Issue: Dec.16, 2009 Test report No.: HCTA0912FS04-01 Test Laboratory: HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL: +82 31 639 8565 FAX: +82 31 639 8525 Applicant : PANTECH&CURITEL COMMUNICATIONS, INC. 110-1, ONGJEONG-RI, TONGJIN-EUP, GIMPO-SI, GYOUNGGI-DO, 415-865, KOREA Tel: +82-2-2030-1220 Fax: +82-2-2030-2520 E-Mail: [email protected] Testing has been carried out in accordance with: RSS-102 Issue 2; Health Canada Safety Code 6 47CFR §2.1093 FCC OET Bulletin 65(Edition 97-01), Supplement C (Edition 01-01) ANSI/ IEEE C95.1 – 2005 IEEE 1528-2003 Test result: The tested device complies with the requirements in respect of all parameters subject to the test. The test results and statements relate only to the items tested. The test report shall not be reproduced except in full, without written approval of the laboratory. Signature Report prepared by Approved by : Sun-Hee Kim : Jae-Sang So Test Engineer of SAR Part Manager of SAR Part Report No.: HCTA0912FS04-01 FCC ID: PP4COACH Date of Issue: Dec.16, 2009 HCT CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : +82 31 639 8565 FAX : +82 31 639 8525 www.hct.co.kr 2 of 82 Table of Contents 1. INTRODUCTION..........................................................................................................................................３ 2. DESCRIPTION OF DEVICE .........................................................................................................................４ 3. DESCRIPTION OF TEST EQUIPMENT ......................................................................................................５ 3.1 SAR MEASUREMENT SETUP ....................................................................................................５ 3.2 DASY E-FIELD PROBE SYSTEM ................................................................................................６ 3.3 PROBE CALIBRATION PROCESS ..............................................................................................７ 3.4 SAM Phantom .............................................................................................................................９ 3.5 Device Holder for Transmitters .....................................................................................................９ 3.6 Brain & Muscle Simulating Mixture Characterization ..................................................................１０ 3.7 SAR TEST EQUIPMENT ..........................................................................................................１１ 4. SAR MEASUREMENT PROCEDURE .....................................................................................................１２ 5. DESCRIPTION OF TEST POSITION .......................................................................................................１３ 5.1 HEAD POSITION .....................................................................................................................１３ 5.2 Body Holster/Belt Clip Configurations ........................................................................................１４ 6. MEASUREMENT UNCERTAINTY ...........................................................................................................１５ 7. ANSI/ IEEE C95.1 - 2005 RF EXPOSURE LIMITS ..................................................................................１６ 8. SYSTEM VERIFICATION .........................................................................................................................１７ 8.1 Tissue Verification ....................................................................................................................１７ 8.2 System Validation .....................................................................................................................１７ 9. 3G MEASUREMENT PROCEDURES .....................................................................................................１８ 9.1 Procedures Used To Establish Test Signal .................................................................................１８ 9.2 SAR Measurement Conditions for CDMA2000 1x ......................................................................１８ 10. SAR TEST DATA SUMMARY .................................................................................................................２０ 10.1 Measurement Results (CDMA835 Head SAR Touch) ...............................................................２０ 10.2 Measurement Results (CDMA835 Head SAR Tilt) ....................................................................２１ 10.3 Measurement Results (PCS 1900 Head SAR Touch) ...............................................................２２ 10.4 Measurement Results (PCS 1900 Head SAR Tilt) ....................................................................２３ 10.5 Measurement Results (CDMA835 Body SAR) .........................................................................２４ 10.6 Measurement Results (PCS 1900 Body SAR) .........................................................................２５ 11. CONCLUSION ........................................................................................................................................２６ 12. REFERENCES .......................................................................................................................................２７ Attachment 1. – SAR Test Plots....................................................................................................................２８ Attachment 2. – Dipole Validation Plots........................................................................................................５３ Attachment 3. – Probe Calibration Data.......................................................................................................６０ Attachment 4. – Dipole Calibration Data....................…

Text truncated - open the document above for the full version.

HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL: +82 31 639 8565 FAX: +82 31 639 8525 www.hct.co.kr HAC RF Emission TEST REPORT FCC ID: PP4COACH APPLICANT: PANTECH&CURITEL Co., Ltd. EUT Type: Dual-Band CDMA Phone Tx Frequency: 824.70 - 848.31 MHz (CDMA) 1 851.25 - 1908.75 MHz (PCS CDMA) Maximum Conducted 0.251 W CDMA (24.0 dBm) Power (HAC): 0.251 W PCS CDMA (24.0 dBm) Trade Name/Model(s): PANTECH&CURITEL /CDM8635 FCC Classification: Licensed Portable Transmitter Held to Ear (PCE) FCC Rule Part(s): §20.19 HAC Standard: ANSI C63.19-2007 Hearing Aid Near-Field Category: M4 This wireless portable device has been shown to be hearing-aid compatible under the above rated category, specified in ANSI/IEEE Std. C63.19-2007 and had been tested in accordance with the specified measurement procedures. Hearing-Aid Compatibility is based on the assumption that all production units will be designed electrically identical to the device tested in this report. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. HCT Co., Ltd. Certifies that no party to this application has been denied FCC benefits pursuant to section 5301 of the Anti- Drug Abuse…

Text truncated - open the document above for the full version.
