PP4PX-700Dual-Band CDMA/ EVDO USB Modem

Pantech Co., Ltd.

Click to zoom

Application Details

Equipment Class: PCE - PCS Licensed Transmitter held to ear
Date of Grant: Mar 24, 2008
Application Purpose: Original Equipment
Date of Application: Mar 24, 2008
Equipment Note: Dual-Band CDMA/ EVDO USB Modem
Frequency Range: 1851.25000000 - 1908.75000000
Company: Pantech Co., Ltd.
Country: South Korea

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

1 TABLE OF CONTENTS CHAPTER 1 BEFORE USING UM175 ...................................................3 ABOUT THIS USER MANUAL ............................................................4 PRODUCT OVERVIEW ......................................................................4 WHAT’S INSIDE THE PRODUCT PACKAGE ...................................... 4 INTRODUCTION TO WIRELESS UM175 USB MODEM ......................5 PRODUCT FEATURES ........................................................................ 5 PRODUCT HANDLING ......................................................................6 CONFIGURATION ............................................................................. 6 CHAPTER 2 INSTALLING UM175 ....................................................... 7 PRECAUTIONS .................................................................................8 RECOMMENDED SYSTEM REQUIREMENTS ...................................8 INSTALLING SOFTWARE ................................................................. 9 UNPLUGGING OR EJECTING THE DEVICE .....................................10 USB MODEM EXTENSION CABLE ..................................................12 CHAPTER 3 REGULATORY AND SAFETY INFORMATION ................15 REGULATORY NOTICES .................................................................16 OPERATING CONDITIONS ............................................................. 16 WARNINGS AND CAUTIONS ......................................................... 17 SAFETY PRECAUTIONS ................................................................19 CHAPTER 4 APPENDIX ....................................................................21 GLOSSARY .....................................................................................22 SPECIFIC ABSORPTION RATES (SAR) ............................................. 25 SAFETY INFORMATION FOR RF EXPOSURE ................................... 27 2 MEMOMEMO CHAPTER 1 BEFORE USING UM175 ABOUT THIS USER’S MANUAL PRODUCT OVERVIEW WHAT’S INSIDE THE PRODUCT PACKAGE INTRODUCTION TO WIRELESS UM175 USB MODEM PRODUCT FEATURES PRODUCT HANDLING CONFIGURATION 44 ■ ABOUT THIS USER MANUAL You will find all the information you need to install and use the UM175 in this user’s manual. Before using the UM175, you must properly install the UM175 by closely following the installation instructions. INSTRUCTIONS • Install the UM175 software before inserting the UM175 USB Device into your PC. The installation software is included in the product package. Insert the CD into your CD-ROM drive. Installation may take a few minutes. • It is highly recommended that you read the safety precautions described in this manual before using the UM175. ■ PRODUCT OVERVIEW Thank you for purchasing the Verizon Wireless UM175 PC USB Modem. The UM175 is a 3G wireless device that enables high-speed wireless communication from your PC. The UM175 is simple to install and use. ■ WHAT’S INSIDE THE PRODUCT PACKAGE The following items are included in the product package. If any of the items listed below are missing, please contact the retail location where you purchased the product. • UM175 Wireless PC USB Modem • Installation CD that contains software and this user manual • USB Modem Extension Cable • Quick Reference Guide BEFORE USING UM175 ABOUT THIS USER MANUAL 5 ■ INTRODUCTION TO WIRELESS UM175 USB MODEM The Verizon Wireless UM175 is designed for your PC’s USB port, which is available in most PC models. The UM175 can be used to access the Internet, your company’s intranet, or you can use it to send and receive email. It is extremely useful when you are away from the office, on the road, or wherever a wireline Internet access is not readily available. ■ PRODUCT FEATURES • Power management: The UM175 utilizes power management and system overhead reduction functions provided by the USB interface for maximum power savings. • Antenna design: Efficient, innovative design optimizes data transfer rate and sensitivity to network signals. • Extension Y Cable connector: Simply insert the USB connector into the USB port of your computer to deliver a power boost, increased RF performance, and to solve clearance issues. • USB Modem that supports Type A USB Port interface. • Supports North American PCS (1900 MHz) and Cellular (800 MHz) bands. • Utilizes QUALCOMM MSM6800 chip set. • Supports 3G network technologies. • Average Data Rate: 600 Kbps to 1.4 Mbps download; 500 to 800Kbps upload. • Supports Windows 2000 and XP and Vista systems with installed host software and driver. • Compatible with Mac OSX 10.3.9 or higher. INTRODUCTION TO UM175 USB MODEM BEFORE USING UM175 6 • Provides Verizon Wireless BroadbandAccess and NationalAccess network service. ■ PRODUCT HANDLING 1 Do not put any adhesive label on the USB connector. It may leave a sticky residue that can cause problems inside the PC USB port. 2 The UM175 USB device should easily slide into the USB port. Do not force the UM175 into the USB port as it may cause damage to the modem and/or the port. 3 Keep the UM175 in a dry and clean place. (Storage temperature: -22°F to 149°F [- 30°C to 65°C]). Keep your device away from liquids, dust and excessive heat. ■ CONFIGURATION To use the UM175, you should install the software included in the installation CD and configure the UM175 USB device. See the next section for more infomration on software installation and USB device configuration. BEFORE USING UM175 PRODUCT HANDLING CHAPTER 2 INSTALLING UM175 PRECAUTIONS RECOMMENDED SYSTEM REQUIREMENTS INSTALLING SOFTWARE UNPLUGGING OR EJECTING THE DEVICE USB MODEM EXTENSION CABLE 8 ■ PRECAUTIONS 1 Do not insert the UM175 before installing the software on the computer. When you complete the software installation, the system will prompt you to insert the UM175 into the USB port. 2 Once the card has been inserted into the PC, do not remove it from your PC without first completing the unplugging/ejection process. ■ RECOMMENDED SYSTEM REQUIREMENTS To successfully i…

Text truncated - open the document above for the full version.

Users Manual

1 TABLE OF CONTENTS CHAPTER 1 INSTALLATION AND SETUP ............................................3 THE VZACCESS MANAGER SETUP PROGRAM ................................5 THE VZACCESS MANAGER SETUP WIZARD ....................................8 CHAPTER 2 USING VZACCESS MANAGER ......................................13 FEATURES ......................................................................................14 GETTING STARTED ......................................................................... 15 CONNECTING .................................................................................16 WARNING MESSAGES ................................................................... 22 USING DIAL UP CONNECTIONS .....................................................24 TXT MESSAGING ...........................................................................26 CHAPTER 3 VZACCESS MANAGER PREFERENCES ..........................29 WWAN PREFERENCES ...................................................................30 THE VPN TAB .................................................................................. 34 WI-FI PREFERENCES .......................................................................36 OPTIONS ........................................................................................42 TXT MESSAGING PREFERENCES ....................................................44 UPDATES PREFERENCES ................................................................ 45 2 EMEMO THE VZACCESS MANAGER SETUP PROGRAM THE VZACCESS MANAGER SETUP WIZARD CHAPTER 1 INSTALLATION AND SETUP 4 INSTALLATION AND SETUP 4 This section will guide you through the installation and setup process for VZAccess Manager. Before getting started, you should become familiar with the documentation that came with your wireless device. CD'S You purchased a UM175, there is only one CD that contains VZAccess Manager and USB modem drivers. GETTING STARTED Follow these steps to install VZAccess Manager: 1 Turn on your computer and close all applications. 2 Insert the CD-ROM into your CD drive. 3 If set up does not automatically start, click the Start button on the taskbar and choose Run. Type D:\Start (where D is the letter of your CD-ROM drive) and click OK. 4 Follow the steps in the next section. @ Important: If using a USB device, VZAccess Manager software must be installed before you insert the USB device in to the computer for the first time. Only after the software has been installed can Windows successfully install and configure the USB device. GETTING STARTED INSTALLATION AND SETUP 5 INSTALLATION AND SETUP ■ THE VZACCESS MANAGER SETUP PROGRAM STEP 1: Click the VZAccess Manager setup program. A “Welcome” Screen appears. Click the Next button to continue with the installation process. STEP 2: After the Welcome screen you will see the VZAccess Manager License Agreement. In order to install and use this product you must agree with the terms of this agreement. Select “I agree with this software license agreement,” then click the Next button to continue. If you do not agree with this agreement, click the Cancel button to exit. THE VZACCESS MANAGER SETUP PROGRAM 6 INSTALLATION AND SETUP STEP 3: You are now ready to select the location on your computer where the VZAccess Manager should be installed. It is recommended that you do not modify the default destination folder. Click the Next button to continue. STEP 4: You are now ready to begin installing VZAccess Manager components onto your computer. Click Next to continue. THE VZACCESS MANAGER SETUP PROGRAM 7 INSTALLATION AND SETUP STEP 5: During this step the components of VZAccess Manager are installed onto your computer. STEP 6: Installation is now complete. Click the Finish button to leave the VZAccess Manager setup program and to begin using your new software. The setup program will automatically create a VZAccess Manager shortcut on your desktop. THE VZACCESS MANAGER SETUP PROGRAM 8 INSTALLATION AND SETUP ■ THE VZACCESS MANAGER SETUP WIZARD After you have successfully completed the installation process of VZAccess Manager, you are ready to start the program and begin your initial setup. The steps in the Setup Wizard are critical to the proper operation of VZAccess Manager when using your WWAN or Wi-Fi device to connect to the Internet. Do not connect/insert your wireless device until instructed to do so. STEP 1: Click the Start button, select the Programs menu and choose the VZAccess Manager menu item to start the VZAccess Manager program. STEP 2: The first time you open VZAccess Manager, the Setup Wizard will run automatically. You will be presented with a Welcome screen. If you have an Internet connection, it is recommended that you check to see if you are running the latest version of VZAccess Manager. Click the “Check for Updates” button to perform this check. Click Next to continue. THE VZACCESS MANAGER SETUP WIZARD 9 INSTALLATION AND SETUP STEP 3: In this step of the Setup Wizard you must specify the type of wireless device that you intend to use with VZAccess Manager. Select either “Detect WWAN device only” or “Detect both Wi-Fi and WWAN.” For the purposes of this guide, “Detect WWAN device only” will be used. Please note that your experience in Step 4 may be different if you use a different selection. After making the appropriate selection, click Next to continue. STEP 4: The VZAccess Manager will now detect and setup your WWAN device. THE VZACCESS MANAGER SETUP WIZARD 10 INSTALLATION AND SETUP “WWAN” (Wireless Wide Area Network) denotes any UMTS, GPRS, 1xEVDO, 1xRTT or CDMA connection to the Verizon Wireless or partner networks such as VZGlobal, BroadbandAccess or NationalAccess. Click Next to continue. STEP 5: In this step you need to select the type of connectivity you wish to use with your wireless device. For the purposes of this guide, we will select “USB Modem.” Please note that this selection may not be appropriate for your type of wireless device. Once you have selected y…

Text truncated - open the document above for the full version.

Cover Letter(s)

----- Original Message ----- From: Mike Kuo To: SunHee Kim (HCT) Sent: Saturday, March 22, 2008 3:25 AM Subject: FW: PANTECH&CURITEL COMMUNICATIONS, INC., FCC ID: PP4PX-700, Assessment NO.: AN08T7717, Notice#1 Dear Sun Hee: Question #1: Based upon section 4 of Part 22/24 test report, all tests were performed with RC3/SO55 and stated at this mode of operaiton, EUT gererates the highest output power based upon pre-scan result as documented. However, as indicated in the output power measurement table in section 4, RC3/SO55 is not the highest output power. Test report refers to " SAR measurement for 3G procedures ", please note, SAR measurement is concerning the average output power but Part 22/24 test requirements are focusing on the peak oupput power. From the power table, 1xEVDO Rev.0 demonstratesd the higher output power by compariing to RC3/SO55. Please provide your engineering rational in selecting RC3/SO55 for final compliance tests but not 1xEVDO. ==> Please find the attached Part 22/24 Test Report on p. 14-15 of 49. <File name: D_RF REPORT_UM175_ Rev.1> ERP/EIRP testing in 1xEVDO mode was already performed. But we missed adding these data into the Test Report. As you can find, ERP/EIRP test result in EVDO mode is less than the CDMA mode. Question #2: Based upon 99% bandwidth measurement, the emission designator for Part 22 Celluarl CDMA should be 1M28F9W and Part 24 PCS CDMA should be 1M30F9W. I have made necessary changes on the TCB application form. Above emisison designator will be used while issuing the grant. ==> Please find the revised Part 22/24 Test Report on p. 1 of 49. <File name: D_RF REPORT_UM175_ Rev.1> Question #3: Page 12 of user manual mentioned this USB data modem will be shipped with USB extension cable. By using this USB extension cable, it can boost the ouput power and improve RF performace. By reviewing the Part 22/24 test report and test setup photos, such USB extension cable was not included in the final compliance investigation. Please explain and / or provide additional test data to verify the ouput power when this USB extension is used. ==> Please find the attached Part 22/24 Test Report on p. 14-15 of 49. <File name: D_RF REPORT_UM175_ Rev.1> We performed the additional test using the USB extension cable. Question #4: Page 25 of user mnaual, the SAR value listed does not agree with highest measured SAR values for Cellular and PCS band. Please note: measured SAR values are not required to be listed in the user manual. However, if such values are listed in the user manual, those values must be in agreement with the SAR measurement report. Please provide revised user manual with correct SAR values. ==> Please review the revised User Manual on page 25. <File name: N_HW_User's Manual_PP4PX- 700_Rev.1> Question #5: The FCC ID number listed in the turn up procedures does not agree with the FCC ID number for this filing. Please provide revised turn up procedures. ==> Please find the attached file. <File name: Q_Tune-Up Procedure_PP4PX-700_Rev.1> Best Regards Mike Kuo The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender. No virus found in this incoming message. Checked by AVG. Version: 7.5.519 / Virus Database: 269.21.8/1337 - Release Date: 3/20/2008 8:10 PM No virus found in this outgoing message. Checked by AVG. Version: 7.5.519 / Virus Database: 269.21.8/1337 - Release Date: 3/20/2008 8:10 PM

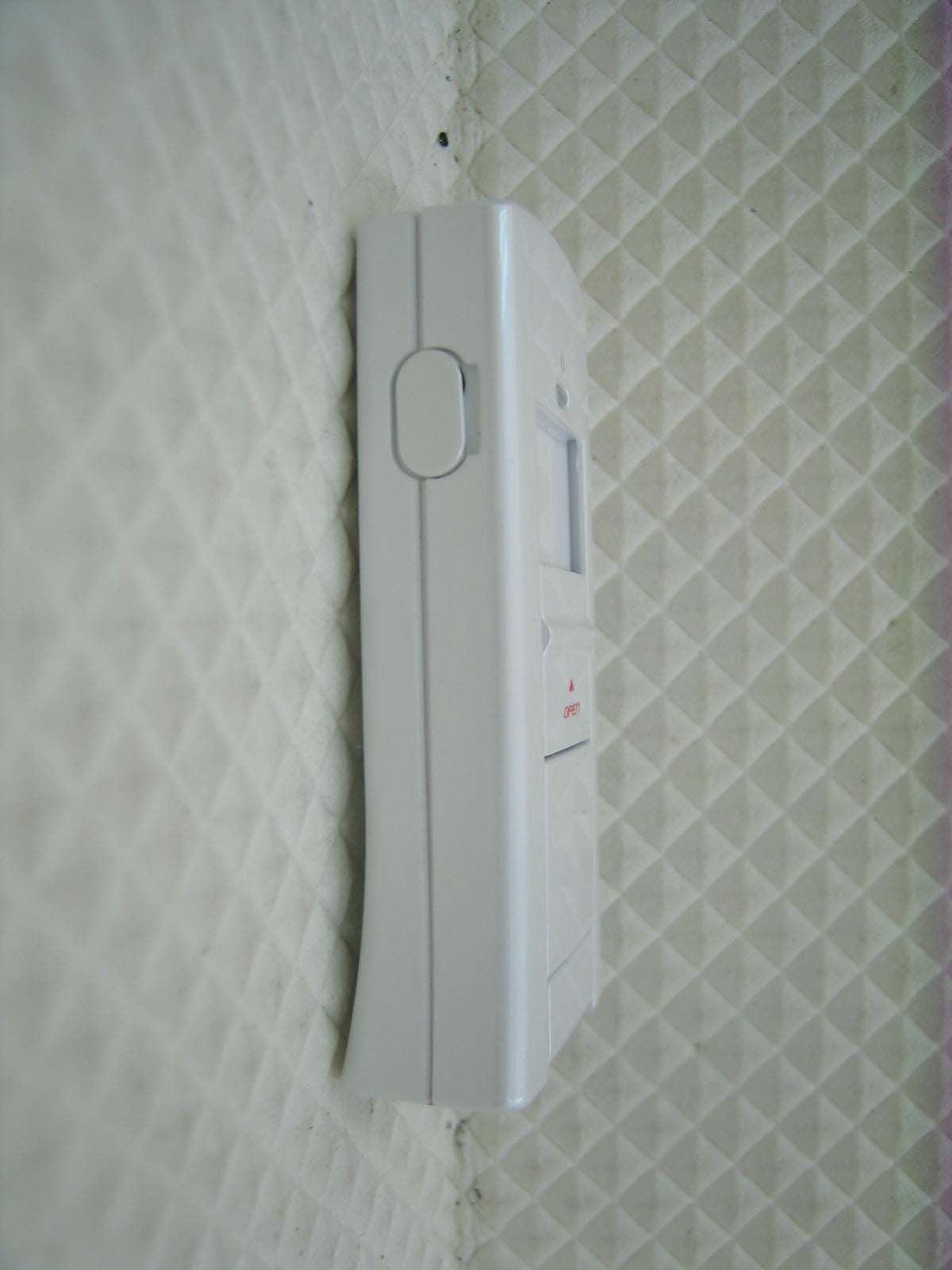

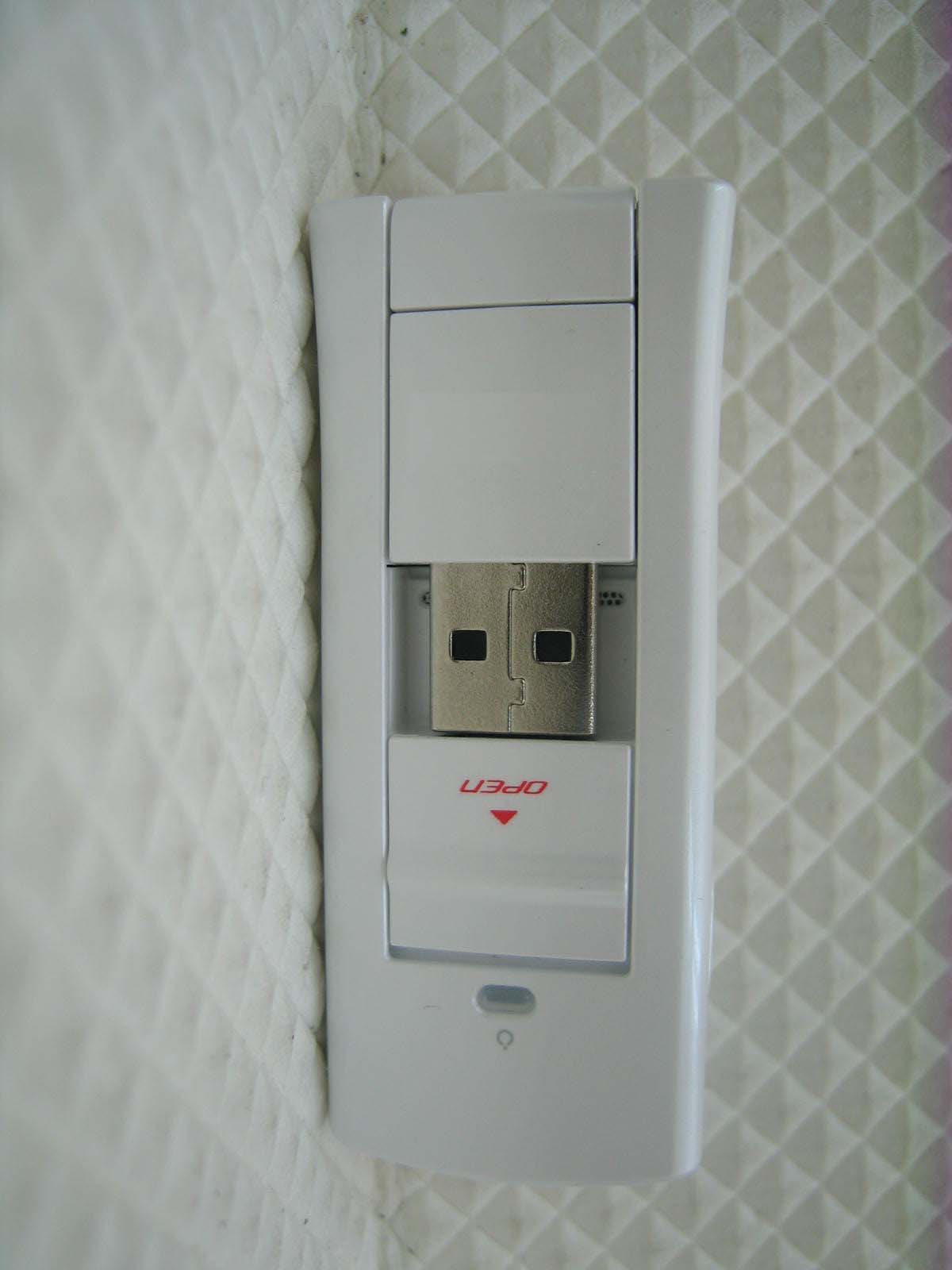

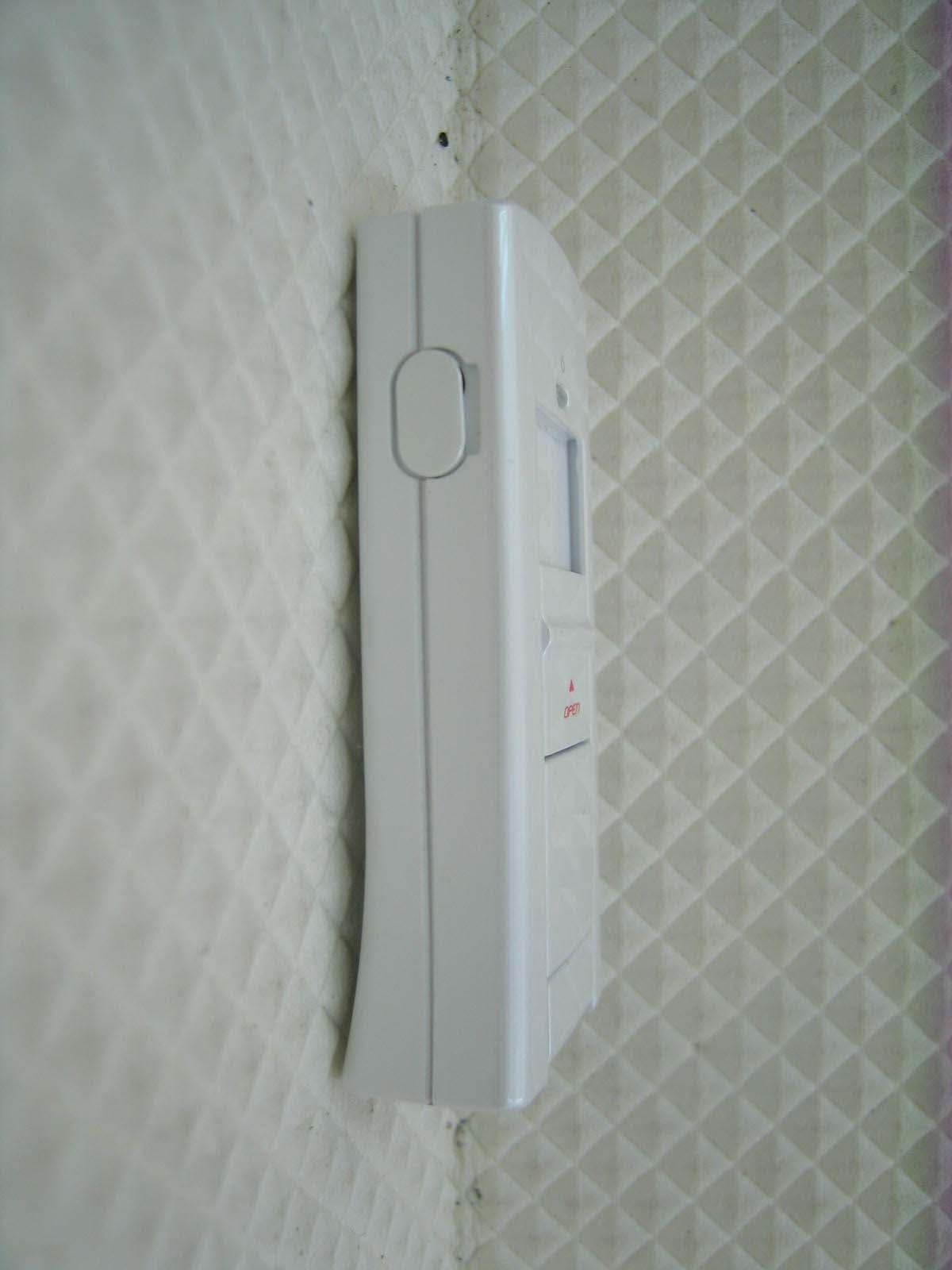

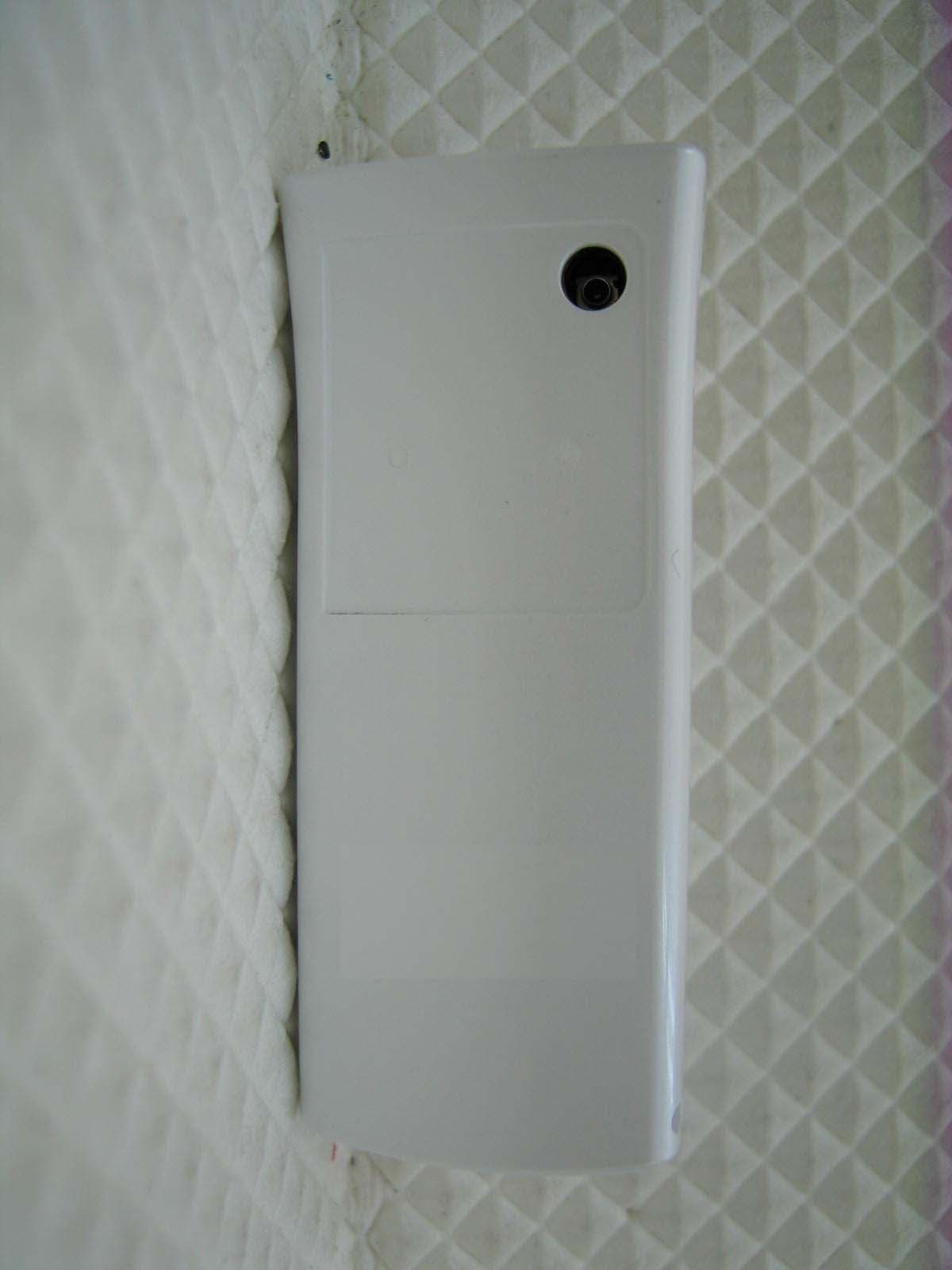

External Photos

Internal Photos

Report No.: HCT-SAR08-0304 FCC ID: PP4PX-700 Date of Issue: Mar.08, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr H . INTERNAL PHOTOGRAPHS Report No.: HCT-SAR08-0304 FCC ID: PP4PX-700 Date of Issue: Mar.08, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr ■ INTERNAL PHOTO Report No.: HCT-SAR08-0304 FCC ID: PP4PX-700 Date of Issue: Mar.08, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr ■ INTERNAL PHOTO Report No.: HCT-SAR08-0304 FCC ID: PP4PX-700 Date of Issue: Mar.08, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr ■ INTERNAL PHOTO Report No.: HCT-SAR08-0304 FCC ID: PP4PX-700 Date of Issue: Mar.08, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr ■ INTERNAL PHOTO Report No.: HCT-SAR08-0304 FCC ID: PP4PX-700 Date of Issue: Mar.08, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr ■ INTERNAL PHOTO Report No.: HCT-SAR08-0304 FCC ID: PP4PX-700 Date of Issue: Mar.08, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr ■ INTERNAL PHOTO Report No.: HCT-SAR08-0304 FCC ID: PP4PX-700 Date of Issue: Mar.08, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr ■ INTERNAL PHOTO Report No.: HCT-SAR08-0304 FCC ID: PP4PX-700 Date of Issue: Mar.08, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr ■ INTERNAL PHOTO Report No.: HCT-SAR08-0304 FCC ID: PP4PX-700 Date of Issue: Mar.08, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr ■ INTERNAL PHOTO Report No.: HCT-SAR08-0304 FCC ID: PP4PX-700 Date of Issue: Mar.08, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr ■ INTERNAL PHOTO Report No.: HCT-SAR08-0304 FCC ID: PP4PX-700 Date of Issue: Mar.08, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr ■ INTERNAL PHOTO Report No.: HCT-SAR08-0304 FCC ID: PP4PX-700 Date of Issue: Mar.08, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr ■ INTERNAL PHOTO Report No.: HCT-SAR08-0304 FCC ID: PP4PX-700 Date of Issue: Mar.08, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr ■ INTERNAL PHOTO Report No.: HCT-SAR08-0304 FCC ID: PP4PX-700 Date of Issue: Mar.08, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr ■ INTERNAL PHOTO Report No.: HCT-SAR08-0304 FCC ID: PP4PX-700 Date of Issue: Mar.08, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr ■ INTERNAL PHOTO Report No.: HCT-SAR08-0304 FCC ID: PP4PX-700 Date of Issue: Mar.08, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr ■ INTERNAL PHOTO Report No.: HCT-SAR08-0304 FCC ID: PP4PX-700 Date of Issue: Mar.08, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr ■ INTERNAL PHOTO

RF Exposure Info

Report No.: HCT-SAR08-0304 FCC ID: PP4PX-700 Date of Issue: Mar.07, 2008 HCT CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : +82 31 639 8565 FAX : +82 31 639 8525 www.hct.co.kr 2 of 85 Table of Contents 1. INTRODUCTION..........................................................................................................................................３ 2. DESCRIPTION OF DEVICE .........................................................................................................................４ 3. DESCRIPTION OF TEST EQUIPMENT ......................................................................................................５ 3.1 SAR MEASUREMENT SETUP ....................................................................................................５ 3.2 DASY E-FIELD PROBE SYSTEM ................................................................................................６ 3.3 PROBE CALIBRATION PROCESS ..............................................................................................７ 3.4 SAM Phantom .............................................................................................................................９ 3.5 Device Holder for Transmitters .....................................................................................................９ 3.6 Brain & Muscle Simulating Mixture Characterization ..................................................................１０ 3.7 SAR TEST EQUIPMENT ..........................................................................................................１１ 4. SAR MEASUREMENT PROCEDURE .....................................................................................................１２ 5. DESCRIPTION OF TEST POSITION .......................................................................................................１３ 5.1 HEAD POSITION .....................................................................................................................１３ 5.2 Body Holster/Belt Clip Configurations ........................................................................................１４ 6. MEASUREMENT UNCERTAINTY ...........................................................................................................１５ 7. ANSI/ IEEE C95.1 - 2005 RF EXPOSURE LIMITS ..................................................................................１６ 8. SYSTEM VERIFICATION .........................................................................................................................１７ 8.1 Tissue Verification ....................................................................................................................１７ 8.2 System Validation .....................................................................................................................１７ 9. 3G MEASUREMENT PROCEDURES .....................................................................................................１８ 9.1 Procedures Used To Establish Test Signal .................................................................................１８ 9.2 SAR Measurement Conditions for CDMA2000 1x ......................................................................１８ 10. SAR TEST DATA SUMMARY .................................................................................................................２０ 10.1 Measurement Results (CDMA Body SAR in PC #1) .................................................................２０ 10.2 Measurement Results (PCS Body SAR in PC #1) ....................................................................２１ 10.3 Measurement Results (CDMA Body SAR in PC #2) .................................................................２２ 10.4 Measurement Results (PCS Body SAR in PC #2) ....................................................................２３ 10.5 Measurement Results (CDMA Body SAR in PC #3) .................................................................２４ 10.6 Measurement Results (PCS Body SAR in PC #3) ....................................................................２５ 11. CONCLUSION ........................................................................................................................................２６ 12.REFERENCES ........................................................................................................................................２７ Attachment 1. – SAR Test Plots....................................................................................................................２８ Attachment 2. – Dipole Validation Plots........................................................................................................５６ Attachment 3. – Probe Calibration Data.......................................................................................................６３ Attachment 4. – Dipole Calibration Data......................................................................................................７３ Report No.: HCT-SAR08-0304 FCC ID: PP4PX-700 Date of Issue: Mar.07, 2008 HCT CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : +82 31 639 8565 FAX : +82 31 639 8525 www.hct.co.kr 3 of 85 1. INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radio frequency radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices. The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-2005 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. 1992 by the Institute of Electrical and Electronics Engineers, Inc., New York, New York 10017. The measurement procedure described in IEEE/ANSI C95.3-1992 Recommended Practice for the Measur…

Text truncated - open the document above for the full version.

Test Report

HCT CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL: +82 31 639 8565 FAX : +82 31 639 8525 www.hct.co.kr CERTIFICATE OF COMPLIANCE FCC Part 24 & 22 Certification EUT Type: Dual-Band CDMA/ EV-DO Modem Tx Frequency: 824.70 — 848.31 MHz (CDMA) 1 851.25 — 1 908.75 MHz (PCS CDMA) Rx Frequency: 869.70 — 893.31 MHz (CDMA) 1 931.25 — 1 988.75 MHz (PCS CDMA) Max. RF Output Power: 0.310 W ERP CDMA (24.92 dBm) 0.329 W EIRP PCS CDMA (25.17 dBm) Trade Name/Model(s): PANTECH&CURITEL / UM175 FCC Classification: PCS Licensed Transmitter (PCB) Application Type: Certification FCC Rule Part(s): §24(E), §22(H), §2 Antenna Specifications: Manufacturer: Four S tech Co., Ltd. Model Name.: PX-700, Gain: 2.87 dBi (Length= 24.3 ±0.2 mm) Emission Designator(s): 1M28F9W, 1M30F9W This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ∮2.947. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. HCT CO., LTD. Certifies that no party to this application has been denied FCC benefits pursuant to section 5301 of the Anti- Drug Abuse Act of 1998, 21 U.S. C. 853(a) This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the HCT Co., Ltd. PANTECH&…

Text truncated - open the document above for the full version.

Contact Information

Applicant

Ki Pyeo Son(Senior MTS)

[email protected]82-2-2030-1220Fax: 82-2-2030-2520

Test Firm

HCT Co., LTDSang Lee

[email protected]82-31-645-6420Fax: 82-31-645-6401

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
2	24E	1.85 GHz - 1.91 GHz	329.00 mW	1M30F9W	2.5 ppm

Confidentiality

Long Term

Grant Notes

Output power listed is ERP for Part 22 and EIRP for Part 24. This device has been tested with specific integral antenna for SAR compliance in multiple notebook computers and can be used in notebook computers with substantially similar physical dimensions, construction, and electrical and RF characteristics. Compliance of this device in all final host configurations is the responsibility of the Grantee. End-users must be provided with specific information required to satisfy RF exposure compliance for the final host device. The antenna(s) used for this transmitter must not be co located or operating in conjunction with any other antenna or transmitter within a host device. The highest reported SAR values are: CDMA 800 (Part 22) � body 0.789 W/kg; CDMA PCS (Part 24) � body 0.904 W/kg.
