PP4IMDDual Band CDMA Phone with Bluetooth (CDMA/PCS CDMA

Contents 1 GETTING STARTED ....................................03 Phone overview ............................................04 Menu overview ............................................. 06 Charging the battery ................................... 07 Install/Remove the microSD card ................ 08 Using sensitive touch keys ........................... 08 Turn on/off the phone ................................. 08 Display icons ................................................. 08 Entering text ................................................. 09 Activating your Virgin Mobile account ...... 10 Finding your phone’s serial number ........... 10 Programming your phone ........................... 10 MY ACCOUNT ...........................................13 Top-Up your account ....................................14 For more information .................................. 14 CALLS & CONTACTS .................................15 Making, receiving & ending a call ..............16 Caller identification ..................................... 17 Call waiting function ................................... 17 Speaker phone ............................................. 17 Vibrate on/off mode .................................... 17 Using auto keypad lock function ................ 17 Making an emergency call .......................... 17 Options during a call ................................... 17 Call setting .................................................... 18 Checking all calls .......................................... 19 Speed dialing ................................................ 19 Using contacts .............................................. 20 Voice commands (VR) ................................... 21 Using your headset ...................................... 22 MESSAGING ..............................................23 Messaging .....................................................24 Received message ......................................... 24 Voicemail ....................................................... 24 Sent message ................................................ 25 Creating and send new message ................ 26 Message templates ....................................... 26 Create and send new picture message ....... 26 Create and send new video message ......... 27 Create and send new email message ......... 28 Create and send new instant message ....... 28 Virgin alerts .................................................. 28 Erase messages ............................................. 28 Message setting ............................................ 28 MULTIMEDIA ............................................31 Camera ..........................................................32 Video camera ................................................ 33 Pictures and image album ........................... 35 Video album ................................................. 35 Music and sound album ............................... 36 Themes album .............................................. 36 Other files ..................................................... 36 Playing game ................................................ 37 Media player ................................................. 37 USEFUL FEATURES ....................................39 Calendar ........................................................40 Alarm clock ................................................... 40 Calculator, Tip calculator, Stopwatch & World clock ................................................... 41 Voice memo .................................................. 41 SETTINGS ..................................................43 Ringtones, Alerts & Tones ............................44 Decorate the display .................................... 45 Call options ................................................... 46 Security ..........................................................46 Msg settings .................................................. 47 Game settings ............................................... 47 Bluetooth ......................................................47 Memory .........................................................47 To set other options ..................................... 47 Phone info .................................................... 48 CONNECTIVITY .........................................49 Bluetooth ......................................................50 Using the internet ........................................ 52 VirginXL ........................................................ 53 My stuff ......................................................... 54 APPENDIX .................................................55 12 Month limited warranty .........................56 Safety information for wireless handheld phones ...........................................................57 Safety information for FCC RF exposure .... 60 SAR information ........................................... 60 FDA consumer update ................................. 61 Emergency calls ............................................ 66 Compliance with other FCC regulations ..... 67 General safety .............................................. 67 Antenna ........................................................67 Battery ...........................................................68 Adapter/Charger ...........................................69 Recycle your cell phone! .............................. 69 FCC Hearing-Aid Compatibility (HAC) regulations for wireless devices .................. 70 U.S.Federal Communications Commission radio frequency interference statement .... 71 FCC compliance information ....................... 72 2 Contents CHAPTER 1 GETTING STARTED Phone overview Menu overview Charging the battery Install/Remove the microSD card Using sensitive touch keys Turn on/off the phone Display icons Entering text Activating your Virgin Mobile account Finding your phone’s serial number Programming your phone CHAPTER 1 GETTING …

Text truncated - open the document above for the full version.

PANTECH&CURITEL COMMUNICATIONS, INC. 110-1, ONGJEONG-RI, TONGJIN-EUP, GIMPO-SI, GYOUNGGI-DO, 415-865, KOREA Date: April 11, 2007 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: PP4IMD To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, PANTECH&CURITEL COMMUNICATIONS, INC. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 45 days after the grant as outlined in Public Notice DA 04-1705. This provision will give PANTECH&CURITEL COMMUNICATIONS, INC. temporary confidentiality of commercially sensitive information prior to product release. The requested Confidential and Temporary Confidential exhibits are listed as follows: CONFIDENTIAL AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Operational Descriptions 3 Parts Lists and Tune-Up Procedure CONFIDENTIAL 4 Schematics 5 External Photos 6 Internal Photos 7 Test-Setup Photos SHORT-TERM CONFIDENTIAL 8 User’s Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, ----------------------------------------------- Sun-Hee Kim-Engineer HCT Co., Ltd. cc. Ki Yeoul Lee- PANTECH&CURITEL COMMUNICATIONS, INC.

SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA April 11, 2008 TEL: +82 31 639 8565 Test Site: HCT CO., LTD. FAX: +82 31 639 8525 FRN: 0005866421 http://www.hct.co.kr SUBJECT: PANTECH&CURITEL COMMUNICATION, INC. FCC ID: PP4IMD MODEL: CDM8964 Part 22(H) / 24(E) / 15(C) / 20 Certification Gentlemen: Submitted herewith, on behalf of PANTECH&CURITEL COMMUNICATION, INC. is an application for Part 22(H) / 24(E) / 15(C)/ 20 Certification of the following Dual-Band CDMA Phone with Bluetooth: Trade Name/Model(s): PANTECH&CURITEL / CDM8964 EUT Type: Dual-Band CDMA Phone with Bluetooth (CDMA/PCS CDMA) Tx Frequency: 824.70 — 848.31 MHz (CDMA) 1 851.25 — 1 908.75 MHz (PCS CDMA) 2 402 – 2 480 MHz (Bluetooth) Rx Frequency: 869.70 — 893.31 MHz (CDMA) 1 931.25 — 1 988.75 MHz (PCS CDMA) 2 402 – 2 480 MHz (Bluetooth) Max. RF Output Power: 0.270 W ERP CDMA (24.31 dBm) 0.242 W EIRP PCS CDMA (23.83 dBm) 0.00116 W Bluetooth (0.68 dBm) Maximum SAR: 1.39 W/kg CDMA835 Head SAR / 0.826 W/kg CDMA835 Body SAR 1.39 W/kg PCS1900 Head SAR / 0.240 W/kg PCS1900 Body SAR HAC Rating: M3 Attachment exhibits are the applicant’s Letter of Authorization, Confidentiality Request, ESN Affidavit, measurement report test data and plots, RF Exposure measurement report and data, FCC ID label and location, test setup photographs, internal and external photographs, block diagram (confidential), circuit diagrams & description (confidential), operational description (confidential), parts list & tune-up procedure (confidential), and the user's manual. If you have any question or comment concerning the above, please contact the undersigned. Sincerely, ----------------------------------------------- Sun-Hee Kim-Engineer HCT Co., Ltd. cc. Ki Yeoul Lee- PANTECH&CURITEL COMMUNICATIONS, INC.

The distance between Main And Bluetooth antennas FCC ID: PP4IM Distance : 1.3 cm Main Antenna Bluetooth Antenna

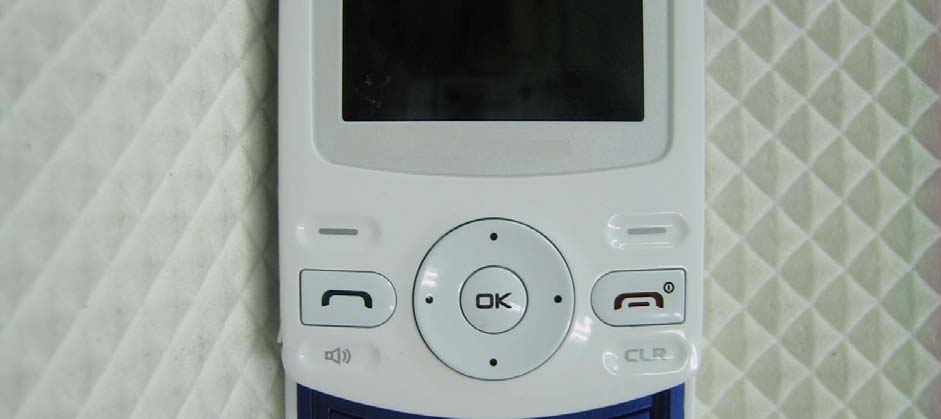

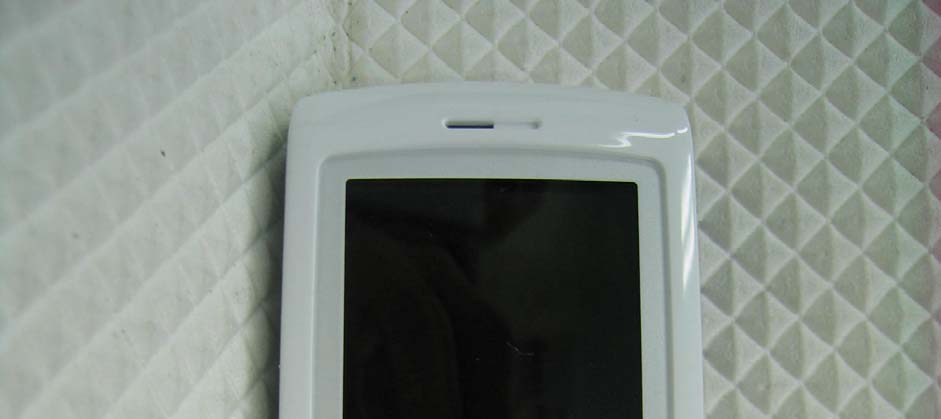

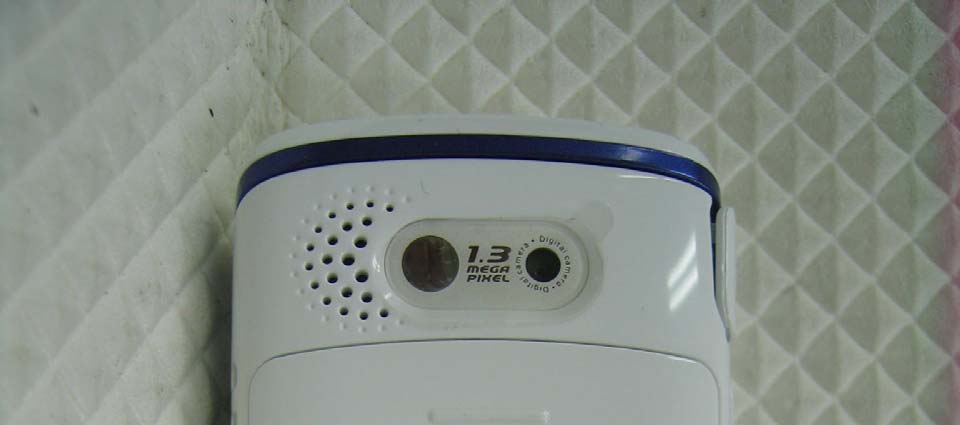

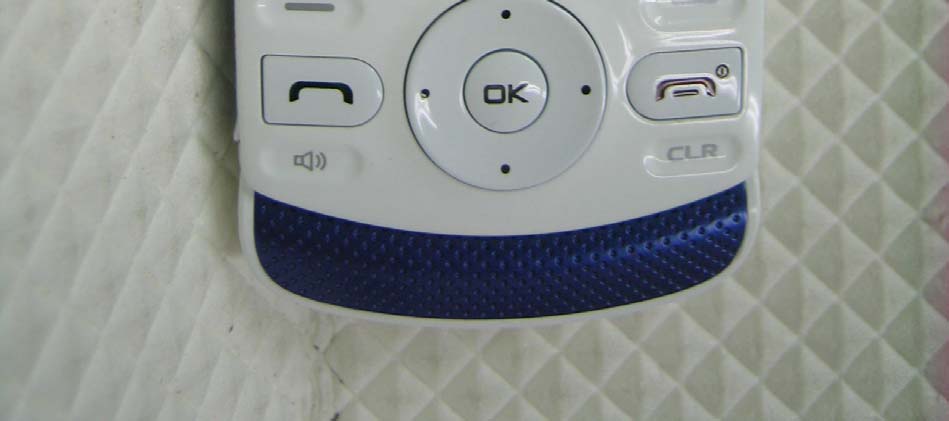

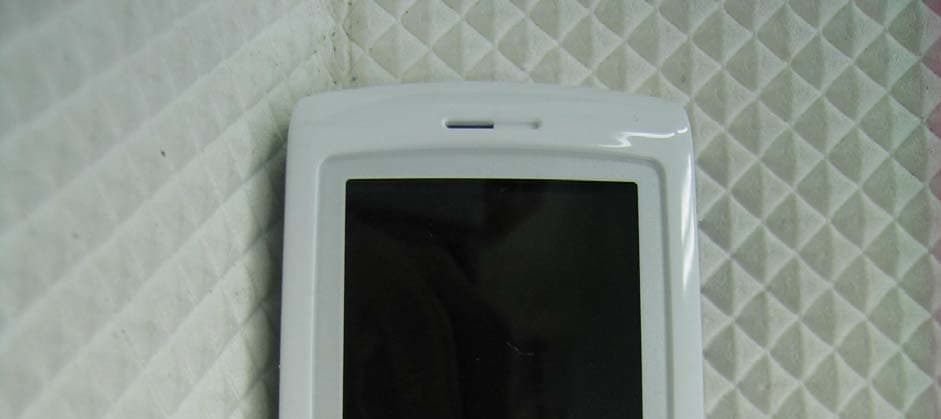

Report No.: HCT-SAR08-0402 FCC ID: PP4IMD DATE: April 6, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr 1 of 8 G . EXTERNAL PHOTOGRAPHS Report No.: HCT-SAR08-0402 FCC ID: PP4IMD DATE: April 6, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr 2 of 8 ■ EXTERNAL PHOTO Report No.: HCT-SAR08-0402 FCC ID: PP4IMD DATE: April 6, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr 3 of 8 ■ EXTERNAL PHOTO Report No.: HCT-SAR08-0402 FCC ID: PP4IMD DATE: April 6, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr 4 of 8 ■ EXTERNAL PHOTO Report No.: HCT-SAR08-0402 FCC ID: PP4IMD DATE: April 6, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr 5 of 8 ■ EXTERNAL PHOTO Report No.: HCT-SAR08-0402 FCC ID: PP4IMD DATE: April 6, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr 6 of 8 ■ EXTERNAL PHOTO Report No.: HCT-SAR08-0402 FCC ID: PP4IMD DATE: April 6, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr 7 of 8 ■ EXTERNAL PHOTO Report No.: HCT-SAR08-0402 FCC ID: PP4IMD DATE: April 6, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr 8 of 8 ■ EXTERNAL PHOTO

Report No.: HCT-SAR08-0402 FCC ID: PP4IMD DATE: April 6, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr 1 of 21 H . INTERNAL PHOTOGRAPHS Report No.: HCT-SAR08-0402 FCC ID: PP4IMD DATE: April 6, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr 2 of 21 ■ INTERNAL PHOTO Report No.: HCT-SAR08-0402 FCC ID: PP4IMD DATE: April 6, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr 3 of 21 ■ INTERNAL PHOTO Report No.: HCT-SAR08-0402 FCC ID: PP4IMD DATE: April 6, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr 4 of 21 ■ INTERNAL PHOTO Report No.: HCT-SAR08-0402 FCC ID: PP4IMD DATE: April 6, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr 5 of 21 ■ INTERNAL PHOTO Report No.: HCT-SAR08-0402 FCC ID: PP4IMD DATE: April 6, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr 6 of 21 ■ INTERNAL PHOTO Report No.: HCT-SAR08-0402 FCC ID: PP4IMD DATE: April 6, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr 7 of 21 ■ INTERNAL PHOTO Report No.: HCT-SAR08-0402 FCC ID: PP4IMD DATE: April 6, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr 8 of 21 ■ INTERNAL PHOTO Report No.: HCT-SAR08-0402 FCC ID: PP4IMD DATE: April 6, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr 9 of 21 ■ INTERNAL PHOTO Report No.: HCT-SAR08-0402 FCC ID: PP4IMD DATE: April 6, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr 10 of 21 ■ INTERNAL PHOTO Report No.: HCT-SAR08-0402 FCC ID: PP4IMD DATE: April 6, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr 11 of 21 ■ INTERNAL PHOTO Report No.: HCT-SAR08-0402 FCC ID: PP4IMD DATE: April 6, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr 12 of 21 ■ INTERNAL PHOTO Report No.: HCT-SAR08-0402 FCC ID: PP4IMD DATE: April 6, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr 13 of 21 ■ INTERNAL PHOTO Report No.: HCT-SAR08-0402 FCC ID: PP4IMD DATE: April 6, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr 14 of 21 ■ INTERNAL PHOTO Report No.: HCT-SAR08-0402 FCC ID: PP4IMD DATE: April 6, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr 15 of 21 ■ INTERNAL PHOTO Report No.: HCT-SAR08-0402 FCC ID: PP4IMD DATE: April 6, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr 16 of 21 ■ INTERNAL PHOTO Report No.: HCT-SAR08-0402 FCC ID: PP4IMD DATE: April 6, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr 17 of 21 ■ INTERNAL PHOTO Report No.: HCT-SAR08-0402 FCC ID: PP4IMD DATE: April 6, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr 18 of 21 ■ INTERNAL PHOTO Report No.: HCT-SAR08-0402 FCC ID: PP4IMD DATE: April 6, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr 19 of 21 ■ INTERNAL PHOTO Report No.: HCT-SAR08-0402 FCC ID: PP4IMD DATE: April 6, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr 20 of 21 ■ INTERNAL PHOTO Report No.: HCT-SAR08-0402 FCC ID: PP4IMD DATE: April 6, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr 21 of 21 ■ INTERNAL PHOTO

Report No.: HCT-SAR08-0402 FCC ID: PP4IMD DATE: April 6, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr 2 of 21 ■ INTERNAL PHOTO

Antenna Specifications (iM Main) Supplier: Laird Technologies Korea Address: 4 th Floor, Woorim Lions Valley A, 371-28, Gasan-dong, Geumcheon-gu, Seoul, Korea(Zip Code : 153-786) Telephone: +82 – 2 – 830 - 2095 Sales Representative : Hyuk-Jin Han Checked By R&D RF Checked By R&D Mech Checked By Reviewed By Approved By Name Pantech Co.,Ltd Signature Checked By R&D RF Checked By R&D Mech Checked By QA Approved By Name Sunny Kang Truman Lee Eugene Park Tommy Goh Laird Technologies Korea Signature Product Family: Internal Antenna Model Name : iM Main Maker Part No.: 712189.0001 Revision: 1.0 Customer : Pantech Co., Ltd Customer Part No. : 53C03000152 Revision: 1.0 Purpose This document is issued by Laird Technologies Korea in confidence, and is not to be reproduced in whole or in part without the prior written permission of Laird Technologies Korea. The information contained herein is the property of Laird Technologies Korea, and is intended solely for contractual use between Laird Technologies Korea and Pantech Co., Ltd The product specification is a complete description of the product only together with the specification drawing. Approval History REV Date Front After Reason 1.0 Mar. 14 th 2008 - - Initial release Confidential PRODUCT SPECIFICATIONS Page 3 of (47) Specification No. Description 2008-B4-PS007 iM Main- Antenna Product Specification Customer Date Rev Reference Pantech Co., Ltd Mar. 14, 2008 1.0 NA Table of Contents 1. GENERAL 1.1 Product Description 1.2 Part No. 1.3 Print Acceptance 1.4 Unit, Definitions, and Abbreviations 1.5 Interface 1.6 Conditions 1.7 Coordinate System 1.8 Operating Temperature 1.9 Storage Temperature 1.10 Handling Conditions 2. ELECTRICAL PROPERTIES 2.1 Samples Size 2.2 Frequency Bands 2.3 Impedance 2.4 The Radio (Phone / Handset) 2.5 VSWR 2.6 Gain 2.7 Power Rating 2.8 Electrical Specification & Test Data & JIG Data 3. MECHANICAL PROPERTIES 3.1 Samples Size 3.2 Appearance 3.3 CTQ 3.4 Drop 3.5 Contact Force 3.6 Contact stability 4. ENVIRONMENTAL RESISTANCE PROPERTIES 4.1 Samples Size 4.2 High Temperature 4.3 Low Temperature 4.4 Humidity 4.5 Salt Spray 4.6 Thermal Shock 5. TEST FLOWCHART 6. PACKAGING 7. SPECIFICATIONS DRAWINGS and PART INFORMATION 7.1 Part List 7.2 Product Drawing 7.3 injection mold condition table 8. STORAGE CONDITIONS 9. MANUFACTURING PROCESS Confidential PRODUCT SPECIFICATIONS Page 4 of (47) Specification No. Description 2008-B4-PS007 iM Main- Antenna Product Specification Customer Date Rev Reference Pantech Co., Ltd Mar. 14, 2008 1.0 NA 10. TEST REPORT 11. DIMENSION MEASUREMENT DATA 12. ROHS REPORT Confidential PRODUCT SPECIFICATIONS Page 5 of (47) Specification No. Description 2008-B4-PS007 iM Main- Antenna Product Specification Customer Date Rev Reference Pantech Co., Ltd Mar. 14, 2008 1.0 NA 1 GENERAL 1.1 PRODUCT DESCRIPTION An Internal Antenna System. 1.2 PART NO. Laird Technologies Korea Part No. 712189.0001 1.3 PRINT ACCEPTANCE Samples and a page one drawing was sent to customer. When they are approved, the approval form should be completed, signed, and sent back to Laird Technologies Korea before further mass production batches can be delivered. 1.4 UNITS, DEFINITIONS, AND ABBREVIATIONS Unless otherwise stated, SI units are used. Tx Transmit Band Rx Receive Band PCB Printed Circuit Board VSWR Voltage Standing Wave Ratio dBi Antenna gain in dB (Isotropic) CW Continuous Wave g Acceleration of gravity (approx. 9.8 m/s 2 ) RH Relative Humidity 1.4.1 “Without mechanical damage” Implies full mechanical functionality according to specification and compliance with visual requirements according to specification drawing. 1.4.2 “Without permanent mechanical damage” As above but allows reversible misalignment or deformation and minor visual damage (no through-cuts or holes). 1.4.3 ”Unimpaired functionality” Implies full mechanical functionality according to specification but allows visual damage (no through-cuts or holes). Confidential PRODUCT SPECIFICATIONS Page 6 of (47) Specification No. Description 2008-B4-PS007 iM Main- Antenna Product Specification Customer Date Rev Reference Pantech Co., Ltd Mar. 14, 2008 1.0 NA 1.5 INTERFACE All properties are guaranteed under the condition that antenna/handset interface is designed in accordance with instructions provided by Laird Technologies Korea. The whole interface should be included in the specification. Functionality with other equipment (such as couplers etc.) is not guaranteed unless this has been agreed upon separately. 1.6 CONDITIONS Unless otherwise stated all temperature tolerances are ±3 and all RH tolerances are ±5 % units. Unless otherwise stated all values are valid at +20 and 50% RH. Unless otherwise stated all values are valid for the radio defined in 2.4 1.7 COORDINATE SYSTEM The coordinate system for the phone is defined as follows: • Origin is in center of gravity. • Positive X axis is perpendicular to, and directed from the front plane. • Positive Y axis is perpendicular to, and directed from the right side plane (as seen from front). • Positive Z axis is perpendicular to, and directed from the top plane. a) b) c) Figure 1-1: a) E 2 -plane b) E 1 -plane c) H-plane 1.8 OPERATING TEMPERATURE Range : -30C. to 70C. 1.9 STORAGE TEMPERATURE Range : -30C. to 70C.(component only) y x Φ = 0 y z x x y z z Confidential PRODUCT SPECIFICATIONS Page 7 of (47) Specification No. Description 2008-B4-PS007 iM Main- Antenna Product Specification Customer Date Rev Reference Pantech Co., Ltd Mar. 14, 2008 1.0 NA 1.10 HANDLING CONDITIONS Operator should follow handling conditions as below. 1. Handle with care. (wear gloves) 2. Do not press too much or bend the product. 3. Do not touch the contact area. 4. Follow general instructions for handling goods in your working place in regard to others that is not mentioned above. Confidential PRODUCT SPECIFICATIONS Page 8 of (47) Specification No. Description 2008-B4-PS007 iM Main- Antenna Product Specification Customer Date Rev Reference Pantech Co., Ltd Ma…

Text truncated - open the document above for the full version.

Report No.: HCT-SAR08-0402 FCC ID: PP4IMD Date of Issue: Apr.07, 2008 HCT CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : +82 31 639 8565 FAX : +82 31 639 8525 www.hct.co.kr 2 of119 Table of Contents 1. INTRODUCTION..........................................................................................................................................３ 2. DESCRIPTION OF DEVICE .........................................................................................................................４ 3. DESCRIPTION OF TEST EQUIPMENT ......................................................................................................５ 3.1 SAR MEASUREMENT SETUP ....................................................................................................５ 3.2 DASY E-FIELD PROBE SYSTEM ................................................................................................６ 3.3 PROBE CALIBRATION PROCESS ..............................................................................................７ 3.4 SAM Phantom .............................................................................................................................９ 3.5 Device Holder for Transmitters .....................................................................................................９ 3.6 Brain & Muscle Simulating Mixture Characterization ..................................................................１０ 3.7 SAR TEST EQUIPMENT ..........................................................................................................１１ 4. SAR MEASUREMENT PROCEDURE .....................................................................................................１２ 5. DESCRIPTION OF TEST POSITION .......................................................................................................１３ 5.1 HEAD POSITION .....................................................................................................................１３ 5.2 Body Holster/Belt Clip Configurations ........................................................................................１４ 6. MEASUREMENT UNCERTAINTY ...........................................................................................................１５ 7. ANSI/ IEEE C95.1 - 2005 RF EXPOSURE LIMITS ..................................................................................１６ 8. SYSTEM VERIFICATION .........................................................................................................................１７ 8.1 Tissue Verification ....................................................................................................................１７ 8.2 System Validation .....................................................................................................................１７ 9. 3G MEASUREMENT PROCEDURES .....................................................................................................１８ 10. SAR Evaluation Considerations for Handsets with Multiple Transmitters and Antennas .......................２０ 11. SAR TEST DATA SUMMARY .................................................................................................................２１ 11.1 Measurement Results (CDMA835 Head SAR Touch Slide Up) .................................................２１ 11.2 Measurement Results (CDMA835 Head SAR Touch Slide Down) .............................................２２ 11.3 Measurement Results (CDMA835 Head SAR Tilt Slide Up) ......................................................２３ 11.4 Measurement Results (CDMA835 Head SAR Tilt Slide Down) ..................................................２４ 11.5 Measurement Results (PCS1900 Head SAR Touch Slide Up) ...................................................２５ 11.6 Measurement Results (PCS1900 Head SAR Touch Slide Down) ..............................................２６ 11.7 Measurement Results (PCS1900 Head SAR Tilt Slide Up) .......................................................２７ 11.8 Measurement Results (PCS1900 Head SAR Tilt Slide Down) ...................................................２８ 11.9 Measurement Results (CDMA835 Body SAR) ..........................................................................２９ 11.10 Measurement Results (PCS1900 Body SAR) .........................................................................３０ 12. CONCLUSION ........................................................................................................................................３１ 13. REFERENCES .......................................................................................................................................３２ Attachment 1. – SAR Test Plots....................................................................................................................３３ Attachment 2. – Dipole Validation Plots........................................................................................................８１ Attachment 3. – Probe Calibration Data.......................................................................................................９１ Attachment 4. – Dipole Calibration Data...................................................................................................１０２ Report No.: HCT-SAR08-0402 FCC ID: PP4IMD Date of Issue: Apr.07, 2008 HCT CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : +82 31 639 8565 FAX : +82 31 639 8525 www.hct.co.kr 3 of119 1. INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radio frequency radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices. The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-2005 Standard for Safety Leve…

Text truncated - open the document above for the full version.

Report No.: HCT-SAR08-0402 FCC ID: PP4IMD Date of Issue: Apr.07, 2008 HCT CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : +82 31 639 8565 FAX : +82 31 639 8525 www.hct.co.kr 71 of119 Test Laboratory: HCT CO., LTD EUT Type: Dual-Band CDMA Phone with Bluetooth (CDMA/PCS CDMA) Liquid Temperature: 21.4 °C Ambient Temperature: 21.6 °C Test Date: Apr.05, 2008 DUT: CDM8964; Type: Silde down; Serial: #1 Communication System: CDMA 835MHz FCC; Frequency: 836.52 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 836.52 MHz; σ = 0.987 mho/m; ε r = 54.7; ρ = 1000 kg/m 3 Phantom section: Flat Section ; Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 176 DASY4 Configuration: - Probe: ET3DV6 - SN1609; ConvF(6.49, 6.49, 6.49); Calibrated: 2007-08-30 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn447; Calibrated: 2007-09-13 - Phantom: 835/900 Phamtom ; Type: SAM CDMA Body 384/Area Scan (51x91x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (interpolated) = 0.814 mW/g CDMA Body 384/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 15.3 V/m; Power Drift = 0.022 dB Peak SAR (extrapolated) = 0.994 W/kg SAR(1 g) = 0.749 mW/g; SAR(10 g) = 0.529 mW/g Info: Interpolate…

Text truncated - open the document above for the full version.
