August 28, 2002 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: Hyundai Curitel, Inc. FCC ID: PP4HWP-2100 Part 22 Certification Gentlemen: Submitted herewith, on behalf of Hyundai Curitel, Inc., is an application for Part 22 Certification of the CDMA WLL Phone. Attached is the applicant’s Letter of Authorization, Confidentiality Request, measurement report data and plots, RF Exposure measurement report, FCC ID label and location, test setup photographs, internal and external photographs, block diagrams (confidential), schematic diagrams & circuit description (confidential), operational description (confidential), parts list & tune-up procedure (confidential), and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned. cc: Hyundai Curitel, Inc.

January 13, 2003 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 Attn: Tim Harrington SUBJECT: Hyundai Curitel, Inc. FCC ID: PP4HWP-2100 731 Confirmation No.: TC401759 Correspondence Reference No.: 5336 Request for Tech. Info.: 10/2/02 Dear Tim: Due to PCTEST internal audit, transmitted herewith, on behalf of Hyundai Curitel, Inc. is an amendment provided in response to the request for technical information dated October 2, 2002. 1. On October 3, 2002, the grant notes was changed to the preferred terminology of RF exposure compliance, per advised. 2. On October 3, 2002, the equipment class Licensed Non-Broadcast Transmitter Held to Ear was changed to Licensed Non-Broadcast Station Transmitter, per advised. We trust this information is sufficient to resolve FCC questions in this application. We apologize for the delay in the correspondence response. If you have any further questions, please do not hesitate to contact us. cc: Hyundai Curitel, Inc.

© 2002 PCTEST Lab HYUNDAI FCC ID: PP4HWP-2100 Wireless Local Loop Telephone (CDMA) © 2002 PCTEST Lab HYUNDAI FCC ID: PP4HWP-2100 Wireless Local Loop Telephone (CDMA) © 2002 PCTEST Lab HYUNDAI FCC ID: PP4HWP-2100 Wireless Local Loop Telephone (CDMA) © 2002 PCTEST Lab HYUNDAI FCC ID: PP4HWP-2100 Wireless Local Loop Telephone (CDMA) © 2002 PCTEST Lab HYUNDAI FCC ID: PP4HWP-2100 Wireless Local Loop Telephone (CDMA) © 2002 PCTEST Lab HYUNDAI FCC ID: PP4HWP-2100 Wireless Local Loop Telephone (CDMA) © 2002 PCTEST Lab HYUNDAI FCC ID: PP4HWP-2100 Wireless Local Loop Telephone (CDMA)

© 2002PCTEST Lab FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER §§ 2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. (SEE NEXT PAGE) IDENTIFICATION LABEL with regard to the FCC Rule Part 2.983 According to the requirement section 2.925 an 2.926, the sample label shown below shall be permanently affixed at a conspicuous location on the device supplied to the user and be readily visible to the purchaser at the time purchase. ~~ FCC ID: PP4HWP-2100 SERIAL NO. : MADE IN KOREA HYUNDAI CURITEL, INC. MODEL: HWP-2100

© 2002 PCTEST Lab HYUNDAI FCC ID: PP4HWP-2100 Wireless Local Loop Telephone (CDMA) © 2002 PCTEST Lab HYUNDAI FCC ID: PP4HWP-2100 Wireless Local Loop Telephone (CDMA) © 2002 PCTEST Lab HYUNDAI FCC ID: PP4HWP-2100 Wireless Local Loop Telephone (CDMA) © 2002 PCTEST Lab HYUNDAI FCC ID: PP4HWP-2100 Wireless Local Loop Telephone (CDMA) © 2002 PCTEST Lab HYUNDAI FCC ID: PP4HWP-2100 Wireless Local Loop Telephone (CDMA) © 2002 PCTEST Lab HYUNDAI FCC ID: PP4HWP-2100 Wireless Local Loop Telephone (CDMA) © 2002 PCTEST Lab HYUNDAI FCC ID: PP4HWP-2100 Wireless Local Loop Telephone (CDMA) © 2002 PCTEST Lab HYUNDAI FCC ID: PP4HWP-2100 Wireless Local Loop Telephone (CDMA) © 2002 PCTEST Lab HYUNDAI FCC ID: PP4HWP-2100 Wireless Local Loop Telephone (CDMA) © 2002 PCTEST Lab HYUNDAI FCC ID: PP4HWP-2100 Wireless Local Loop Telephone (CDMA) © 2002 PCTEST Lab HYUNDAI FCC ID: PP4HWP-2100 Wireless Local Loop Telephone (CDMA) © 2002 PCTEST Lab HYUNDAI FCC ID: PP4HWP-2100 Wireless Local Loop Telephone (CDMA) © 2002 PCTEST Lab HYUNDAI FCC ID: PP4HWP-2100 Wireless Local Loop Telephone (CDMA) © 2002 PCTEST Lab HYUNDAI FCC ID: PP4HWP-2100 Wireless Local Loop Telephone (CDMA)

PCTEST ENGINEERING LABORATORY, INC. 6660 — B Dobbin Road • Columbia, MD 21045 • USA Telephone 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com (email: [email protected]) CERTIFICATE OF COMPLIANCE (SAR EVALUATION) PCTEST SAR TEST REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR.220811425.PP4 Test Dates: August 20, 2002 Phone Type: WLL Telephone (CDMA) FCC ID: PP4HWP-2100 Page 1 of 21 © 2002 PCTEST Engineering Laboratory, Inc. APPLICANT NAME & ADDRESS: DATE & LOCATION OF TESTING: HYUNDAI Curitel Inc. Dates of Tests: August 20, 2002 San 136-1, Ami-Ri, Bubal-Eub Test Report S/N: SAR.220811425.PP4 Ichon-Si, Kyungki-Do, KOREA 467-701 Test Site: PCTEST Lab, Columbia MD Attn: Mr. Ki-Soo Kim, QM Dept. System Quality Assurance Office FCC ID: PP4HWP-2100 APPLICANT: SAMSUNG ELECTRONICS CO., LTD. EUT Type: WLL Telephone (CDMA) Tx Frequency: 824.70 — 848.31 MHz (CDMA) Rx Frequency: 869.70 — 893.31 MHz (CDMA) Max. RF Output Power: 0.338 W ERP CDMA (25.283 dBm) / 25.0 dBm Conducted Max. SAR Measurement: 1.30W/kg CDMA Body SAR Trade Name/Model(s): HWP-2100 FCC Classification: Licensed Non-Broadcast Transmitter Held To Ear (TNE) FCC Rule Part(s): §2.1093; FCC/OET Bulletin 65 Supplement C [July 2001] Application Type: Certification Test Device Serial No.: Identical prototype This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528-200X (Draft 6.4, July 2001). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. 220507239.A3L PCTEST SAR TEST REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR.220811425.PP4 Test Dates: August 20, 2002 Phone Type: WLL Telephone (CDMA) FCC ID: PP4HWP-2100 Page 2 of 21 © 2002 PCTEST Engineering Laboratory, Inc. TABLE OF CONTENTS 1. INTRODUCTION ................................................................................................... 3 SAR DEFINITION.................................................................................................... 3 2. SAR MEASUREMENT SETUP .................................................................................. 4 Robotic System ....................................................................................................... 4 System Hardware .................................................................................................... 4 System Electronics................................................................................................... 4 3. DASY3 E-FIELD PROBE SYSTEM............................................................................. 5 Probe Measurement System .................................................................................... 5 Probe Specifications................................................................................................ 5 4. Probe Calibration Process ....................................................................................... 6 Dosimetric Assessment Procedure........................................................................... 6 Free Space Assessment............................................................................................ 6 Temperature Assessment ......................................................................................... 6 5. PHANTOM & EQUIVALENT TISSUES .................................................................... 7 SAM Phantom ......................................................................................................... 7 Brain & Muscle Simulating Mixture Characterization .............................................. 7 Device Holder ........................................................................................................ 7 6. TEST SYSTEM SPECIFICATIONS ............................................................................. 8 Automated Test System Specifications..................................................................... 8 7. DOSIMETRIC ASSESSMENT & PHANTOM SPECS .................................................. 9 Measurement Procedure ......................................................................................... 9 Specific Anthropomorphic Mannequin (SAM) Specifications .................................. 9 8. DEFINITION OF REFERENCE POINTS .................................................................. 10 EAR Reference Point ............................................................................................. 10 Handset Reference Points ..................................................................................... 10 9. TEST CONFIGURATION POSITIONS ................................................................... 11 Positioning for Cheek/Touch ................................................................................. 11 Positioning for Ear / 15° Tilt................................................................................... 12 Body Holster /Belt Clip Configurations.................................................................. 13 10. ANSI/IEEE C95.1 - 1992 RF EXPOSURE LIMITS ................................................... 14 Uncontrolled Environment .................................................................................... 14 Controlled Environment ..............................................................................…

Text truncated - open the document above for the full version.

SAR Data Report 02082024 Start : 20-Aug-02 03:27:45 pm End : 20-Aug-02 03:34:19 pm Code Version : 4.08 Robot Version: 4.08 Product Data: Type : HYUNDAI Model Number : HWP-2100 Serial Number : 1 Frequency : 824.70 MHz Transmit Pwr : 0.320 W Antenna Type : Helical Antenna Posn. : Fixed Measurement Data: Phantom Name : SAM-FLAT Phantom Type : Uniphantom Tissue Type : Muscle Tissue Dielectric : 54.960 Tissue Conductivity : 1.000 Tissue Density : 1.000 Robot Name : CRS Probe Data: Probe Name : PCT002 Probe Type : E Fld Triangle Frequency : 835 MHz Tissue Type : Muscle Calibrated Dielectric : 55.700 Calibrated Conductivity : 0.990 Calibrated Density : 1.000 Probe Offset : 2.400 mm Conversion Factor : 4.900 Probe Sensitivity : 3.597 3.474 3.049 mV/(mW/cm^2) Amplifier Gains : 20.00 20.00 20.00 Sample: Rate: 6000 Samples/Sec Count: 100 Samples NIDAQ Gain: 5 Comments: CDMA MODE CH-1013 Body CF=1; Amb. Temp.= 22.2'C; Liq. Temp.= 21.4'C Area Scan - Max Peak SAR Value at x=5.0 y=39.0 = 1.26 W/kg Zoom Scan - Max Peak SAR Value at x=7.0 y=44.0 z=0.0 = 1.78 W/kg Max 1g SAR at x=7.0 y=40.0 z=0.0 = 1.30 W/kg Max 10g SAR at x=6.0 y=39.0 z=0.0 = 0.89 W/kg 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 SAR (mW/g) 0102030 Z Distance (mm) SAR - Z Axis at Hotspot x:7.0 y:44.0 1g SAR Values 1.296 1.265 1.234 1.203 1.171 1.140 1.109 1.078 1.046 1.015 0.984

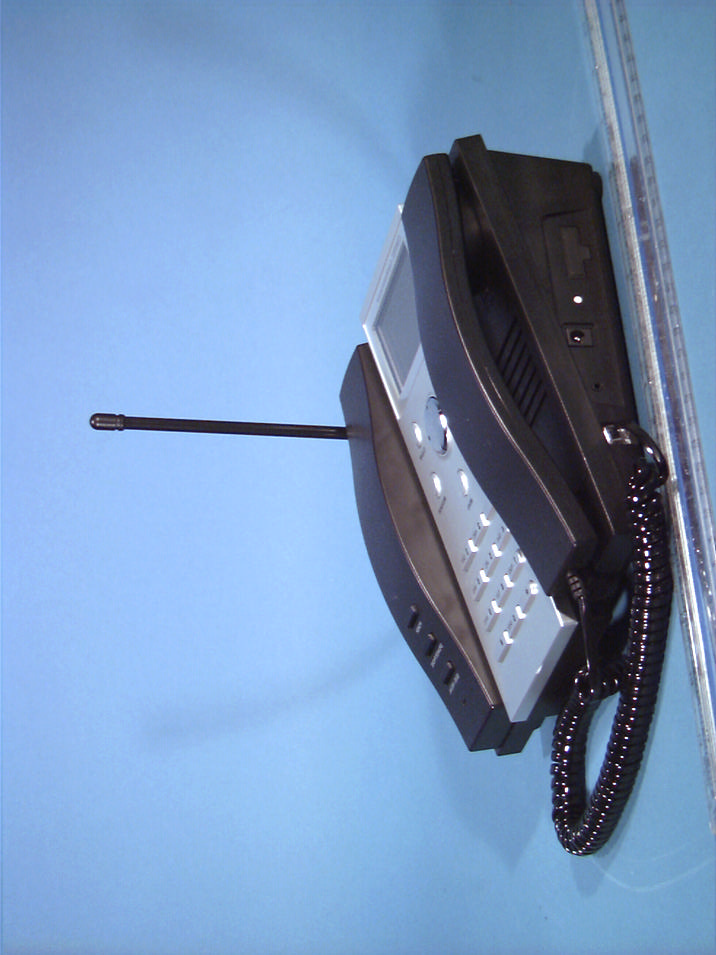

© 2002 PCTEST Lab HYUNDAI FCC ID: PP4HWP-2100 Wireless Local Loop Telephone (CDMA) © 2002 PCTEST Lab HYUNDAI FCC ID: PP4HWP-2100 Wireless Local Loop Telephone (CDMA) © 2002 PCTEST Lab HYUNDAI FCC ID: PP4HWP-2100 Wireless Local Loop Telephone (CDMA)

File: 02-04-2002.cal Date: 04-Feb-02 01:20:16 pm Probe Name: PCT002 Frequency:835 MHz Comment:PCTEST TEM CAL Amp 1 Setting: 20.000 Amp 2 Setting: 20.000 Amp 3 Setting: 20.000 0.0 0.2 0.4 0.6 0.8 1.0 1.2 050100150200250300350 Ch 0 Ch 1 Ch 2 Sum Degrees (x10) Voltage (in mV) File: 02-04-2002.cal2 Date: 04-Feb-02 03:18 :09 pm Probe Name: PCT002 Frequency:1900 MHz Comment:PCTEST TEM CAL Amp 1 Setting:20.000 Amp 2 Setting:20.000 Amp 3 Setting:20.000 0.0 0.2 0.4 0.6 0.8 1.0 1.2 050100150200250300350 Ch 0 Ch 1 Ch 2 Sum Degrees (x10) Voltage (in mV) Conversion Factor Assessment for IDX SAR Measurement System S/N: PCT002 835 MHz Brain ε r = 40.7 ± 5% σ = 0.89 ± 5% mho/m Conversion Factor = 5.8 ± 7% (k=2) 1900 MHz Brain ε r = 40.2 ± 5% σ = 1.41 ± 5% mho/m Conversion Factor = 4.7 ± 7% (k=2) Probe calibration 1900 MHz Brain (WG 1900) 0 1 2 3 4 5 6 7 8 0510152025303540 z in mm SAR in mW/cm^3 / W Analytical Measurements Probe Calibration 835 MHz Brain (WG 835) 0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 0510152025303540 z in mm SAR in (mW/cm^3)/W Analytical Measurements

SAR Data Report 02082021 Start : 20-Aug-02 01:56:51 pm End : 20-Aug-02 02:03:26 pm Code Version : 4.08 Robot Version: 4.08 Product Data: Type : Dipole Frequency : 835 MHz Transmit Pwr : 0.250 W Antenna Type : Dipole Antenna Posn. : Validation Measurement Data: Phantom Name : SAM-FLAT Phantom Type : Uniphantom Tissue Type : Brain Tissue Dielectric : 40.560 Tissue Conductivity : 0.880 Tissue Density : 1.000 Robot Name : CRS Probe Data: Probe Name : PCT002 Probe Type : E Fld Triangle Frequency : 835 MHz Tissue Type : Brain Calibrated Dielectric : 40.700 Calibrated Conductivity : 0.890 Calibrated Density : 1.000 Probe Offset : 2.400 mm Conversion Factor : 5.800 Probe Sensitivity : 3.597 3.474 3.049 mV/(mW/cm^2) Amplifier Gains : 20.00 20.00 20.00 Sample: Rate: 6000 Samples/Sec Count: 100 Samples NIDAQ Gain: 5 Comments: 835 MHz Validation CF=1; Amb. Temp= 22.2 'C; Liq. Temp=22.1 'C Area Scan - Max Peak SAR Value at x=1.0 y=-1.0 = 2.13 W/kg Zoom Scan - Max Peak SAR Value at x=1.0 y=-1.0 z=0.0 = 3.31 W/kg Max 1g SAR at x=2.0 y=0.0 z=0.0 = 2.24 W/kg Max 10g SAR at x=2.0 y=-1.0 z=0.0 = 1.44 W/kg Validation Results at 0.25 W: Peak Nominal = 3.5, Error: -6.06 % 1g Nominal = 2.4, Error: -5.49 % 10g Nominal = 1.6, Error: -7.38 % 0 1 2 3 4 SAR (mW/g) 0102030 Z Distance (mm) SAR - Z Axis at Hotspot x:1.0 y:-1.0 1g SAR Values 2.245 2.178 2.112 2.045 1.979 1.912 1.846 1.780 1.713 1.647 1.580

PCTEST PT. 22 REPORT FCC CERTIFICATION Reviewed By: Quality Manager Test Report S/N: 22.220811424.PP4 Test Dates: August 20, 2002 Phone Type: WLL Telephone (CDMA) FCC ID: PP4HWP-2100 Page 1 of 17 © 2002 PCTEST ENGINEERING LABORATORY, INC. 0 PCTEST Engineering Laboratory, Inc. 6660-B Dobbin Road • Columbia, MD 21045 • U.S.A. TEL (410) 290-6652 • FAX (410) 290-6654 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE FCC Part 22 Certification HYUNDAI Curitel Inc. Dates of Tests: August 20, 2002 San 136-1, Ami-Ri, Bubal-Eub Test Report S/N: 22.220811424.PP4 Ichon-Si, Kyungki-Do, KOREA 467-701 Test Site: PCTEST Lab, Columbia MD USA Attn: Mr. Ki-Soo Kim, QM Dept. System Quality Assurance Office FCC ID PP4HWP-2100 APPLICANT HYUNDAI CURITEL, INC. Classification: Non-Broadcast Transmitter Held to Ear (TNE) FCC Rule Part(s): §22.901(d), §2 EUT Type: WLL Telephone (CDMA) Model: HWP-2100 Tx Frequency Range: 824.70 — 848.31MHz (CDMA) Rx Frequency Range: 869.70 — 893.31MHz (CDMA) Max. RF Output Power: 0.338 W ERP CDMA (25.283 dBm) Max. SAR Measurement: 1.30W/kg CDMA Body SAR; Emission Designator(s): 1M25F9W This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. 220811424.PP4 PCTEST PT. 22 REPORT FCC CERTIFICATION Reviewed By: Quality Manager Test Report S/N: 22.220811424.PP4 Test Dates: August 20, 2002 Phone Type: WLL Telephone (CDMA) FCC ID: PP4HWP-2100 Page 2 of 17 © 2002 PCTEST ENGINEERING LABORATORY, INC. TABLE OF CONTENTS ATTACHMENT A: COVER LETTER(S) ATTACHMENT B: ATTESTATION STATEMENT(S) ATTACHMENT C: TEST REPORT 1.1 SCOPE 3 2.1 INTRODUCTION 4 3.1 INSERTS 5 4.1 DESCRIPTION OF TESTS 6-7 5.1 EFFECTIVE RADIATED POWER OUTPUT 8 6.1 RADIATED MEASUREMENTS 9-11 7.1 FREQUENCY STABILITY 12-13 8.1 PLOTS OF EMISSIONS 14 9.1 LIST OF TEST EQUIPMENT 15 10.1 SAMPLE CALCULATIONS 16 11.1 CONCLUSION 17 ATTACHMENT D: TEST PLOTS ATTACHMENT E: FCC ID LABEL / LOCATION ATTACHMENT F: TEST SETUP PHOTOGRAPHS ATTACHMENT G: EXTERNAL PHOTOGRAPHS ATTACHMENT H: INTERNAL PHOTOGRAPHS ATTACHMENT I: BLOCK DIAGRAM(S) ATTACHMENT J: OPERATIONAL / CIRCUIT DESCRIPTION ATTACHMENT K: SCHEMATIC DIAGRAM(S) ATTACHMENT L: PARTS LIST/TUNE UP PROCEDURE ATTACHMENT M: USER’S MANUAL ATTACHMENT N: SAR MEASUREMENT REPORT ATTACHMENT O: SAR TEST DATA ATTACHMENT P: SAR TEST SETUP PHOTOGRAPHS ATTACHMENT Q: DIPOLE VALIDATION ATTACHMENT R: PROBE CALIBRATION PCTEST PT. 22 REPORT FCC CERTIFICATION Reviewed By: Quality Manager Test Report S/N: 22.220811424.PP4 Test Dates: August 20, 2002 Phone Type: WLL Telephone (CDMA) FCC ID: PP4HWP-2100 Page 3 of 17 © 2002 PCTEST ENGINEERING LABORATORY, INC. MEASUREMENT REPORT 1.1 Scope Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission. §2.1033 General Information Applicant: HYUNDAI Curitel Inc. Address: San 136-1, Ami-ri, Bubal-Eub Ichon-Si, Kyungki-Do, KOREA 467-701 Attention: Mr. Ki-Soo Kim, QM Dept System Quality Assurance Office • FCC ID: PP4HWP-2100 • Quantity: Quantity production is planned • Emission Designators: 1M25F9W • Tx Freq. Range: 824.70 — 848.31 MHz (CDMA) • Rx Freq. Range: 869.70 — 893.31 MHz (CDMA) • Max. Power Rating: 0.338 W ERP CDMA (25.283 dBm) • FCC Classification(s): Non-Broadcast Transmitter Held to Ear (TNE) • Equipment (EUT) Type: WLL Telephone (CDMA) • Modulation(s): CDMA • Frequency Tolerance: ± 0.00025% (2.5 ppm) • FCC Rule Part(s): §22.901(d), §2 • Dates of Tests: August 20, 2002 • Place of Tests: PCTEST Lab, Columbia, MD U.S.A. • Test Report S/N: 22.220811424.PP4 PCTEST PT. 22 REPORT FCC CERTIFICATION Reviewed By: Quality Manager Test Report S/N: 22.220811424.PP4 Test Dates: August 20, 2002 Phone Type: WLL Telephone (CDMA) FCC ID: PP4HWP-2100 Page 4 of 17 © 2002 PCTEST ENGINEERING LABORATORY, INC. 2.1 INTRODUCTION These measurement tests were conducted at PCTEST Engineering Laboratory, Inc. facility in New Concept Business Park, Guilford Industrial Park, Columbia, Maryland. The site address is 6660-B Dobbin Road, Columbia, MD 21045. The test site is one of the highest points in the Columbia area with an elevation of 390 feet above mean sea level. The site coordinates are 39° 11'15" N latitude and 76° 49'38" W longitude. The facility is 1.5 miles North of the FCC laboratory, and the ambient signal and ambient signal strength are approximately equal to those of the FCC laboratory. There are no FM or TV transmitters within 15 miles of the site. The detailed description of the measurement facility was found to be in compliance with the requirements of § 2.948 according to ANSI C63.4 on October 19, 1992. Measurement Procedure The radiated and spurious measurements were made outdoors at a 3-meter test range (see Figure2). The equipment under test is placed on a wooden turntable 3-meters from the receive antenna. The receive antenna height and turntable rotations were adjusted for the highest reading on the receive spectrum analyzer. A half- wave dipole was substituted in place of the EUT. This dipole antenna was driven by a signal generator and the level of the signal generator was adjusted to obtain the same receive spectrum analyzer reading. This level is recorded. For readings above 1GHz, the above procedure is repeated using horn antennas and the difference between the gain o…
