PP4HWP-230PCS CDMA WLL Phone

January 16, 2002 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: Hyundai Curitel, Inc. FCC ID: PP4HWP-230 Part 24 Certification Gentlemen: Attached herewith, on behalf of Hyundai Curitel, Inc., is an application for Part 24 Certification of the following PCS CDMA WLL Phone: FCC ID: PP4HWP-230 TRADE / MODEL(s): HYUNDAI HWP-230 Classification: Licensed Base Station for Part 24 (PCB) Tx Freq. Range: 1851.25 — 1908.75 MHz (PCS CDMA) Rx Freq. Range: 1931.25 — 1988.75 MHz (PCS CDMA) Max. RF Output Power: 0.387 W EIRP PCS CDMA (25.881 dBm) Max. SAR Measurement: 1.3542 W/kg PCS Body SAR Attached is the applicant’s Letter of Authorization, Confidentiality Request, measurement report data and plots, RF Exposure measurement report, FCC ID label and location, test setup photographs, internal and external photographs, block diagrams (confidential), schematic diagrams & circuit description (confidential), operational description (confidential), parts list & tune-up procedure (confidential), and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned. cc: Hyundai Curitel, Inc.

April 18, 2002 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 Attn: Mr. Martin Perrin SUBJECT: Hyundai Curitel Inc. FCC ID: PP4HWP-230 731 Confirmation No.: EA497441 Correspondence Reference No.: 22160 Request for Tech. Info.: 3/4/2002 Dear Martin: Transmitted herewith, on behalf of Hyundai Curitel Inc., is an amendment provided in response to the request for technical information dated March 4, 2002. EMC 1. We confirmed with Hyundai that no external battery is available for this unit. Should one become available a permissive change will be filed if applicable. 2. The optional external antenna for this device is not available at this time, when one becomes available a class II Permissive Change will be applied. 3. The tuned channels at the band edges are channel 25 (1851.25 MHz) and channel 1175 (1908.75MHz). SAR 1. Please find the attached page of the user’s manual containing the RF warning statement for both internal and optional external antenna system. 2. The phone was controlled using software codes and the power was checked before and after each SAR test. 3. Please find the attached probe calibration certificate. 4. Please find the attached validation plot for the PCS band. 5. Please find attached the SAR test plots 6. Please find attached the revised uncertainty calculation. We trust this information is sufficient to issue the grant as soon as possible. If you have any further questions, please do not hesitate to contact us. cc: Hyundai Curitel Inc.

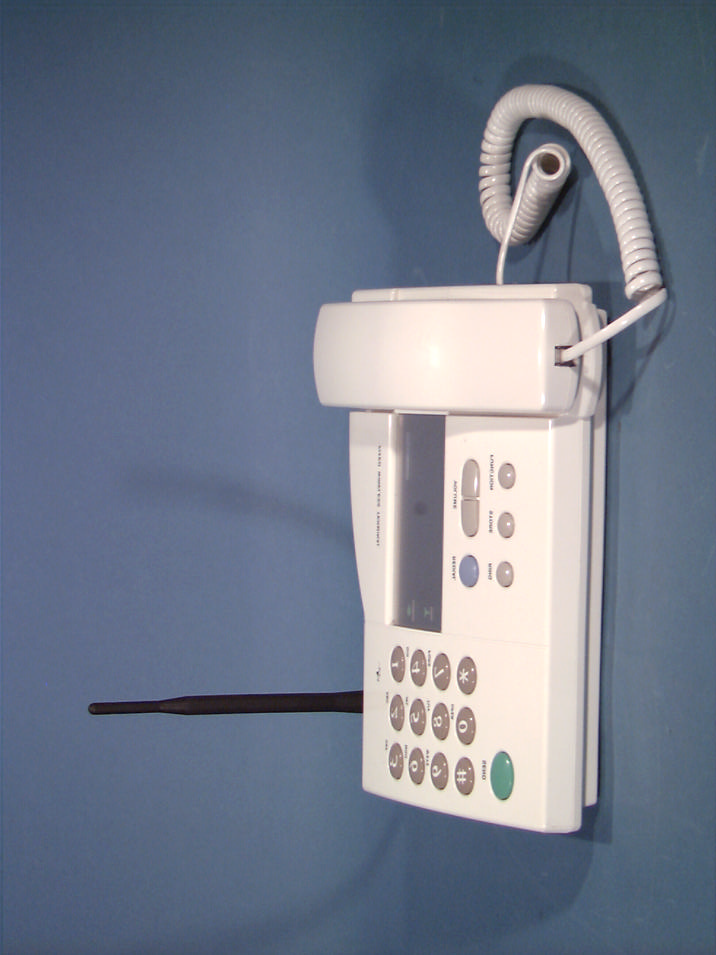

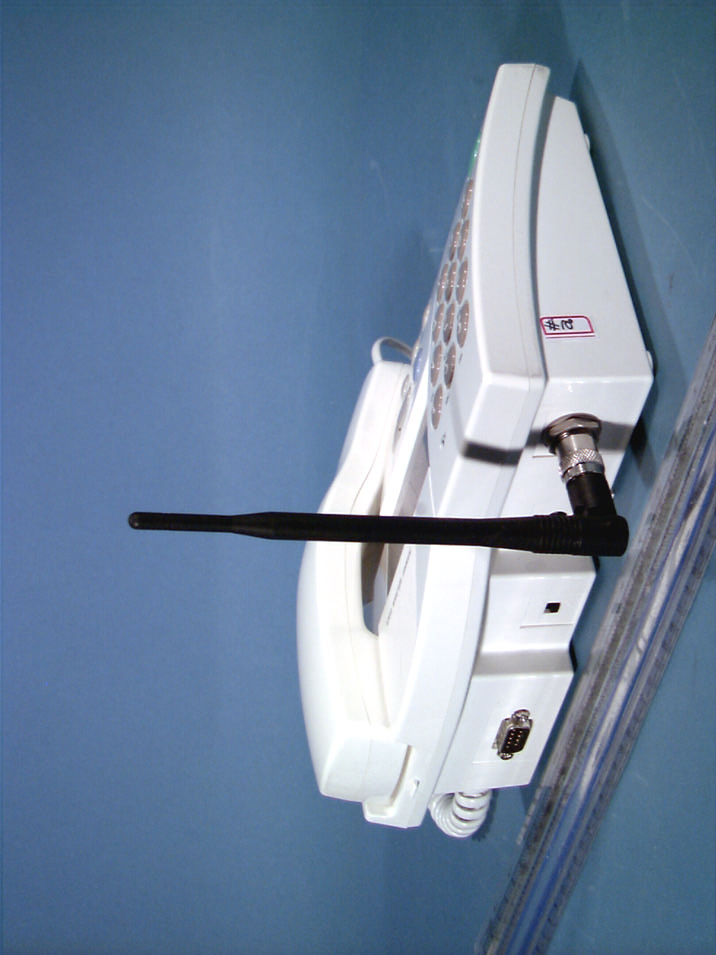

© 2002 PCTEST Lab FCC ID: PP4HWP-230 (Model: HWP-230) NVLAP Lab Code: 100431-0 Fixed Wireless Local Loop Phone (PCS CDMA) © 2002 PCTEST Lab FCC ID: PP4HWP-230 (Model: HWP-230) NVLAP Lab Code: 100431-0 Fixed Wireless Local Loop Phone (PCS CDMA) © 2002 PCTEST Lab FCC ID: PP4HWP-230 (Model: HWP-230) NVLAP Lab Code: 100431-0 Fixed Wireless Local Loop Phone (PCS CDMA) © 2002 PCTEST Lab FCC ID: PP4HWP-230 (Model: HWP-230) NVLAP Lab Code: 100431-0 Fixed Wireless Local Loop Phone (PCS CDMA)

© 2002 PCTEST Lab FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER §§ 2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. (SEE NEXT PAGE) IDENTIFICATION LABEL with regard to the FCC Rule Part 2.983 According to the requirement section 2.925 an 2.926, the sample label shown below shall be permanently affixed at a conspicuous location on the device supplied to the user and be readily visible to the purchaser at the time purchase. ~~ FCC ID: PP4HWP-230 SERIAL NO. : MADE IN KOREA HYUNDAI CURITEL, INC. MODEL: HWP-230

© 2002 PCTEST Lab FCC ID: PP4HWP-230 (Model: HWP-230) NVLAP Lab Code: 100431-0 Fixed Wireless Local Loop Phone (PCS CDMA) © 2002 PCTEST Lab FCC ID: PP4HWP-230 (Model: HWP-230) NVLAP Lab Code: 100431-0 Fixed Wireless Local Loop Phone (PCS CDMA) © 2002 PCTEST Lab FCC ID: PP4HWP-230 (Model: HWP-230) NVLAP Lab Code: 100431-0 Fixed Wireless Local Loop Phone (PCS CDMA) © 2002 PCTEST Lab FCC ID: PP4HWP-230 (Model: HWP-230) NVLAP Lab Code: 100431-0 Fixed Wireless Local Loop Phone (PCS CDMA) © 2002 PCTEST Lab FCC ID: PP4HWP-230 (Model: HWP-230) NVLAP Lab Code: 100431-0 Fixed Wireless Local Loop Phone (PCS CDMA) © 2002 PCTEST Lab FCC ID: PP4HWP-230 (Model: HWP-230) NVLAP Lab Code: 100431-0 Fixed Wireless Local Loop Phone (PCS CDMA) © 2002 PCTEST Lab FCC ID: PP4HWP-230 (Model: HWP-230) NVLAP Lab Code: 100431-0 Fixed Wireless Local Loop Phone (PCS CDMA) © 2002 PCTEST Lab FCC ID: PP4HWP-230 (Model: HWP-230) NVLAP Lab Code: 100431-0 Fixed Wireless Local Loop Phone (PCS CDMA) © 2002 PCTEST Lab FCC ID: PP4HWP-230 (Model: HWP-230) NVLAP Lab Code: 100431-0 Fixed Wireless Local Loop Phone (PCS CDMA) © 2002 PCTEST Lab FCC ID: PP4HWP-230 (Model: HWP-230) NVLAP Lab Code: 100431-0 Fixed Wireless Local Loop Phone (PCS CDMA) © 2002 PCTEST Lab FCC ID: PP4HWP-230 (Model: HWP-230) NVLAP Lab Code: 100431-0 Fixed Wireless Local Loop Phone (PCS CDMA) © 2002 PCTEST Lab FCC ID: PP4HWP-230 (Model: HWP-230) NVLAP Lab Code: 100431-0 Fixed Wireless Local Loop Phone (PCS CDMA) © 2002 PCTEST Lab FCC ID: PP4HWP-230 (Model: HWP-230) NVLAP Lab Code: 100431-0 Fixed Wireless Local Loop Phone (PCS CDMA)

© 2002 PCTEST Lab FCC ID: PP4HWP-230 (Model: HWP-230) NVLAP Lab Code: 100431-0 Fixed Wireless Local Loop Phone (PCS CDMA) © 2002 PCTEST Lab FCC ID: PP4HWP-230 (Model: HWP-230) NVLAP Lab Code: 100431-0 Fixed Wireless Local Loop Phone (PCS CDMA) © 2002 PCTEST Lab FCC ID: PP4HWP-230 (Model: HWP-230) NVLAP Lab Code: 100431-0 Fixed Wireless Local Loop Phone (PCS CDMA) © 2002 PCTEST Lab FCC ID: PP4HWP-230 (Model: HWP-230) NVLAP Lab Code: 100431-0 Fixed Wireless Local Loop Phone (PCS CDMA)

© 2001 PCTEST Engineering Lab., Inc. 6660-B Dobbin Road • Columbia, MD 21045 • U.S.A. TEL (410) 290-6652 • FAX (410) 290-6654 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE (SAR EVALUATION) Hyundai Curitel, Inc. Dates of Tests: Dec. 27, 2001 San 136-1, Ami-Ri, Bubal-Eub, Ichon-Si Test Report S/N: SAR.211207676.PP4 Kyoungki-Do, KOREA Test Site: PCTEST Lab, Columbia, MD USA 467-701 Attn: Mr. Hong-Ki Kim FCC ID PP4HWP-230 APPLICANT Hyundai Curitel, Inc. EUT Type: Fixed WLL Telephone (PCS CDMA) Tx Frequency: 1851.25 — 1908.75 MHz (PCS CDMA) Rx Frequency: 1931.25 — 1988.75 MHz (PCS CDMA) Max. RF Output Power: 0.387W EIRP PCS CDMA (25.881 dBm) Trade Name/Model(s): HYUNDAI HWP-230 FCC Classification: Licensed Portable Transmitter (PCB) Application Type: Certification FCC Rule Part(s): §2.1093; ET Docket 96.326 Maximum SAR: 1.3542 W/kg PCS Body SAR This wireless portable device has been shown to be compliant for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and has been tested in accordance with the measurement procedures specified in ANSI/IEEE Std. C95.3-1992. (See Test Report) I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. NVLAP accreditation does not constitute any product endorsement by NVLAP or any agency of the United States Government. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. SAR.211207676.PP4 Test Report S/N: SAR.211207676.PP4 SAR Measurement Report Test Dates: DEC. 27, 2001 FCC Part 24 Certification Table of Contents 1.1 SCOPE ........................................................................................................... 1 2.1 INTRODUCTION ............................................................................................ 2 2.2 SAR Definition.....................................................................................................2 3.1 SAR MEASUREMENT SET-UP ..................................................................... 3 4.1 ISOTROPIC E-FIELD PROBE SYSTEM........................................................ 4 5.1 E-FIELD PROBE CALIBRATION PROCESS ................................................ 5 6.1 PHANTOM AND EQUIVALENT TISSUES..................................................... 7 7.1 SYSTEM SPECIFICATIONS .......................................................................... 8 8.1 MEASUREMENT PROCESS ......................................................................... 9 9.1 TEST POSITIONS OF THE EUT.................................................................. 10 10.1 ANSI/IEEE C95.1 - 1992 RF EXPOSURE LIMITS .................................... 11 11.1 MEASUREMENT UNCERTAINTIES.......................................................... 12 12.1 SAR TEST DATA SUMMARY....................................................................13 13.1 SAR TEST EQUIPMENT............................................................................ 14 14.1 CONCLUSION............................................................................................ 15 Test Report S/N: SAR.211207676.PP4 SAR Measurement Report Test Dates: Dec. 27, 2001 FCC Part 24 Certification HYUNDAI FCC ID: PP4HWP-230 (Model: HWP-230) © 2001 PCTEST Fixed WLL Telephone (PCS CDMA) 1 SAR MEASUREMENT REPORT 1.1 SCOPE Environmental evaluation measurements of specific absorption rate 1 (SAR) distributions in simulated human tissues exposed to radiofrequency (RF) radiation from wireless portable devices for compliance with the rules and regulations of the U.S. Federal Communications Commission (FCC). 2 Applicant Name: Hyundai Curitel, Inc. Address: San 136-1, Ami-Ri, Bubal-Eub, Ichon-Si Kyoungki-Do, KOREA 467-701 Attention: Mr. Hong-Ki Kim EUT Type: Fixed WLL Telephone (PCS CDMA) Trade Name: HYUNDAI Model(s): HWP-230 FCC IDENTIFIER: PP4HWP-230 Tx Frequency: 1851.25 — 1908.75 MHz (PCS CDMA) Rx Frequency: 1931.25 — 1988.75 MHz (PCS CDMA) Application Type: Certification FCC Classification: Licensed Portable Transmitter (PCB) FCC Rule Part(s): § 2.1093, Docket 96-326 Modulation(s): CDMA Max RF. Output Power: 0.387W EIRP PCS CDMA (25.881 dBm) Date(s) of Tests: Dec. 27, 2001 Place of Tests: PCTEST Engineering Lab. Columbia, MD, U.S.A. Report Serial No.: SAR.211207676.PP4 1 Specific Absorption Rate (SAR) is a measure of the rate of energy absorption due to exposure to an RF transmitting source (wireless portable device). 2 IEEE/ANSI Std. C95.1-1992 limits are used to determine compliance with FCC ET-Docket 93-62. Fig. 1 SAR Test Setup Test Report S/N: SAR.211207676.PP4 SAR Measurement Report Test Dates: Dec. 27, 2001 FCC Part 24 Certification HYUNDAI FCC ID: PP4HWP-230 (Model: HWP-230) © 2001 PCTEST Fixed WLL Telephone (PCS CDMA) 2 2.1 INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radio frequency radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-1992 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. (c) 1992 by the Institute of Electrical and Electronics Engineers, Inc., New York, New York 10017.[2] The measurement procedure described in IEEE/ANSI C95.3-1992 Recommended Practice for the Measurement of Potentially Hazardous Electromagnetic Fields - RF and Microwave…

Text truncated - open the document above for the full version.

For more information about RF exposure, please visit the FCC website at www.fcc.gov FCC RF EXPOSURE INFORMATION In August 1996 the Federal Communications Commission (FCC) of the United States with its action in Report and Order FCC 96-326 adopted an updated safety standard for human exposure to radio frequency electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the safety standard previously set by both U.S. and international standards bodies. The design of this phone complies with the FCC guidelines and these international standards. Operating Requirements To comply with FCC exposure requirements, a minimum separation distance of 2.1cm must be maintained between the users/bystander and the back of the unit, including the antenna. WARNING! Read this information before using your phone

File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/01121040 _ZOOM.VLT Start : 10-Dec-101 03:46:18 pm End : 10-Dec-101 04:01:34 pm Radio Type : Validation Model Number : Serial Number : C Frequency : 1900 MHz Peak Trans. Pwr : 0.250 W Start Trans. Pwr: 0.250 W Antenna Type : Dipole Antenna Posn. : Internal Phantom Type : Flat Phantom Posn. : E Field Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Brain Mixture Dielectric Constant = 39.900 Mixture Conductivity = 1.420 Comment : 1900 MHz Brain Validation SN: C Robot : PCTEST Probe Offset = 0.20 cm Sensor Factor = 0.0108 Conversion Factor = 0.550 PCTEST Amplifier Channel Settings : 0.309 0.361 0.421 Max Location : X = 1.750, Y = -2.000, Z = 0.000 (cm) Value = 265.451 Measured Values (volts) = 2.439E-001 1.418E-001 9.500E-002 6.119E-002 4.488E-002 3.028E-002 2.141E-002 1.482E-002 1.059E-002 7.997E-003 6.023E-003 4.263E-003 3.083E-003 3.224E-003 2.444E-003 1.628E-003 1.172E-003 1.014E-003 1.043E-003 1.255E-003 1.262E-003 Calc. Voltage @ Surface (Vs) = 0.3564 Voltage @ 1.00 cm (Vt) = 0.0579 Ave. Voltage (Vs+Vt)/2 = 0.2072 Ave. SAR over 1 g (mW/g) = 10.5493 0 2 4 6 8 10 12 14 16 18 20 mW/g -1012345 Z centimeters SAR Scan File : 01121040_ZOOM Start : 10-Dec-101 03:46:18 pm End : 10-Dec-101 04:01:34 pm Validation//C;1900MHz;W;Dipole/Internal; Flat/E Field;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/39.900/1.420 File : 01121040_ZOOM Start : 10-Dec-101 03:46:18 pm End : 10-Dec-101 04:01:34 pm Validation//C;1900MHz;W;Dipole/Internal; Flat/E Field;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/39.900/1.420 13.5 12.2 10.9 9.5 8.2 6.9 5.6 4.2 2.9 1.6 File : 01121040_ZOOM Start : 10-Dec-101 03:46:18 pm End : 10-Dec-101 04:01:34 pm Validation//C;1900MHz;W;Dipole/Internal; Flat/E Field;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/39.900/1.420 13.5 12.2 10.9 9.5 8.2 6.9 5.6 4.2 2.9 1.6

Peak SAR Location © 2001 PCTEST Lab HYUNDAI FCC ID: PP4HWP-230 (Model: HWP-230) NVLAP Lab Code: 100431-0 Fixed Wireless Local Loop Telephone (PCS CDMA) Body SAR File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/01122707_ZOOM.VLT Start : 27-Dec-101 04:29:53 pm End : 27-Dec-101 04:38:39 pm Radio Type : HYUNDAI Model Number : HWP-230 Serial Number : 1 Frequency : 1851.25 MHz Peak Trans. Pwr : 0.320 W Start Trans. Pwr: 0.320 W Antenna Type : Helical Antenna Posn. : Internal Phantom Type : Flat Phantom Posn. : E Field Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Muscle Mixture Dielectric Constant = 54.200 Mixture Conductivity = 1.450 Comment : HYUNDAI WLL TELEPHONE - PCS MODE CH 0025 Conducted 25.0 dBm HYUNDAI WLL TELEPHONE Robot : PCTEST Probe Offset = 0.20 cm Sensor Factor = 0.0108 Conversion Factor = 0.496 PCTEST Amplifier Channel Settings : 0.309 0.361 0.421 Max Location : X = 4.500, Y = -3.500, Z = 0.000 (cm) Value = 36.789 Measured Values (volts) = 3.457E-002 2.339E-002 1.633E-002 1.279E-002 1.035E-002 7.838E-003 5.738E-003 4.615E-003 3.540E-003 3.138E-003 2.595E-003 2.432E-003 2.222E-003 1.909E-003 2.161E-003 1.894E-003 1.774E-003 1.941E-003 2.179E-003 2.195E-003 2.390E-003 Calc. Voltage @ Surface (Vs) = 0.0467 Voltage @ 1.00 cm (Vt) = 0.0123 Ave. Voltage (Vs+Vt)/2 = 0.0295 Ave. SAR over 1 g (mW/g) = 1.3542 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0 2.2 mW/g -1012345 Z centimeters SAR Scan File : 01122707_ZOOM Start : 27-Dec-101 04:29:53 pm End : 27-Dec-101 04:38:39 pm HYUNDAI/HWP-230/1;1851.25MHz;W;Helical/Internal; Flat/E Field;ZOOM/SAR;PCTEST/E Field/0 DegreesMuscle/54.200/1.450 File : 01122707_ZOOM Start : 27-Dec-101 04:29:53 pm End : 27-Dec-101 04:38:39 pm HYUNDAI/HWP-230/1;1851.25MHz;W;Helical/Internal; Flat/E Field;ZOOM/SAR;PCTEST/E Field/0 DegreesMuscle/54.200/1.450 1.69 1.52 1.36 1.19 1.03 0.86 0.69 0.53 0.36 0.20 File : 01122707_ZOOM Start : 27-Dec-101 04:29:53 pm End : 27-Dec-101 04:38:39 pm HYUNDAI/HWP-230/1;1851.25MHz;W;Helical/Internal; Flat/E Field;ZOOM/SAR;PCTEST/E Field/0 DegreesMuscle/54.200/1.450 1.69 1.52 1.36 1.19 1.03 0.86 0.69 0.53 0.36 0.20 File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/01122706_ZOOM.VLT Start : 27-Dec-101 04:16:57 pm End : 27-Dec-101 04:26:39 pm Radio Type : HYUNDAI Model Number : HWP-230 Serial Number : 1 Frequency : 1880.00 MHz Peak Trans. Pwr : 0.320 W Start Trans. Pwr: 0.320 W Antenna Type : Helical Antenna Posn. : Internal Phantom Type : Flat Phantom Posn. : E Field Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Muscle Mixture Dielectric Constant = 54.200 Mixture Conductivity = 1.450 Comment : HYUNDAI WLL TELEPHONE - PCS MODE CH 0600 Conducted 25.0 dBm HYUNDAI WLL TELEPHONE Robot : PCTEST Probe Offset = 0.20 cm Sensor Factor = 0.0108 Conversion Factor = 0.496 PCTEST Amplifier Channel Settings : 0.309 0.361 0.421 Max Location : X = 5.000, Y = -3.500, Z = 0.000 (cm) Value = 34.715 Measured Values (volts) = 3.380E-002 2.272E-002 1.649E-002 1.253E-002 9.080E-003 7.452E-003 5.694E-003 4.491E-003 3.570E-003 2.909E-003 3.067E-003 2.626E-003 2.466E-003 2.536E-003 2.408E-003 2.506E-003 2.568E-003 2.529E-003 2.653E-003 2.569E-003 2.746E-003 Calc. Voltage @ Surface (Vs) = 0.0451 Voltage @ 1.00 cm (Vt) = 0.0118 Ave. Voltage (Vs+Vt)/2 = 0.0285 Ave. SAR over 1 g (mW/g) = 1.3067 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0 2.2 mW/g -1012345 Z centimeters SAR Scan File : 01122706_ZOOM Start : 27-Dec-101 04:16:57 pm End : 27-Dec-101 04:26:39 pm HYUNDAI/HWP-230/1;1880.00MHz;W;Helical/Internal; Flat/E Field;ZOOM/SAR;PCTEST/E Field/0 DegreesMuscle/54.200/1.450 File : 01122706_ZOOM Start : 27-Dec-101 04:16:57 pm End : 27-Dec-101 04:26:39 pm HYUNDAI/HWP-230/1;1880.00MHz;W;Helical/Internal; Flat/E Field;ZOOM/SAR;PCTEST/E Field/0 DegreesMuscle/54.200/1.450 1.59 1.45 1.31 1.16 1.02 0.87 0.73 0.58 0.44 0.30 File : 01122706_ZOOM Start : 27-Dec-101 04:16:57 pm End : 27-Dec-101 04:26:39 pm HYUNDAI/HWP-230/1;1880.00MHz;W;Helical/Internal; Flat/E Field;ZOOM/SAR;PCTEST/E Field/0 DegreesMuscle/54.200/1.450 1.59 1.45 1.31 1.16 1.02 0.87 0.73 0.58 0.44 0.30 File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/01122708_ZOOM.VLT Start : 27-Dec-101 04:43:03 pm End : 27-Dec-101 04:49:39 pm Radio Type : HYUNDAI Model Number : HWP-230 Serial Number : 1 Frequency : 1908.75 MHz Peak Trans. Pwr : 0.320 W Start Trans. Pwr: 0.320 W Antenna Type : Helical Antenna Posn. : Internal Phantom Type : Flat Phantom Posn. : E Field Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Muscle Mixture Dielectric Constant = 54.200 Mixture Conductivity = 1.450 Comment : HYUNDAI WLL TELEPHONE - PCS MODE CH 1175 Conducted 25.0 dBm HYUNDAI WLL TELEPHONE Robot : PCTEST Probe Offset = 0.20 cm Sensor Factor = 0.0108 Conversion Factor = 0.496 PCTEST Amplifier Channel Settings : 0.309 0.361 0.421 Max Location : X = 4.500, Y = -3.500, Z = 0.000 (cm) Value = 34.379 Measured Values (volts) = 3.238E-002 2.212E-002 1.496E-002 1.143E-002 9.172E-003 6.945E-003 5.248E-003 3.860E-003 3.442E-003 2.642E-003 2.450E-003 2.167E-003 1.925E-003 1.963E-003 1.670E-003 1.857E-003 1.889E-003 1.855E-003 2.064E-003 2.024E-003 2.414E-003 Calc. Voltage @ Surface (Vs) = 0.0441 Voltage @ 1.00 cm (Vt) = 0.0110 Ave. Voltage (Vs+Vt)/2 = 0.0275 Ave. SAR over 1 g (mW/g) = 1.2648 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0 2.2 mW/g -1012345 Z centimeters SAR Scan File : 01122708_ZOOM Start : 27-Dec-101 04:43:03 pm End : 27-Dec-101 04:49:39 pm HYUNDAI/HWP-230/1;1908.75MHz;W;Helical/Internal; Flat/E Field;ZOOM/SAR;PCTEST/E Field/0 DegreesMuscle/54.200/1.450 File : 01122708_ZOOM Start : 27-Dec-101 04:43:03 pm End : 27-Dec-101 04:49:39 pm HYUNDAI/HWP-230/1;1908.75MHz;W;Helical/Internal; Flat/E Field;ZOOM/SAR;PCTEST/E Field/0 DegreesMuscle/54.200/1.450 1.58 1.42 1.27 1.12 0.96 0.81 0.65 0.50 0.35 0.19 File : 01122708_ZOOM Start : 27-Dec-101 04:43:03 pm End : 27-Dec-101 04:49:39 pm HYUNDAI/HWP-230/1;1908.75MHz…

Text truncated - open the document above for the full version.

abcde= fgh = i =k f(d,k) cxf/ecxg/e UncertaintyTol. Prob. c i c i 1 - g10 - g ComponentSec.(± %) Dist.Div.(1 - g)(10 - g) u i u i v i (± %)(± %) Measurement System Probe CalibrationE1.13.0N1116.26.2g Axial IsotropyE1.24.88Rf3(1—c p) 1/2 (1—cp) 1/2 2.02.0g Hemishperical IsotropyE1.29.6R f3 fc p fc p 3.93.9g Boundary EffectE1.311.0Rf3116.46.4g LinearityE1.44.7Rf3112.72.7g System Detection LimitsE1.51.0Rf3110.60.6g Readout ElectronicsE1.61.0R1111.01.0g Response TimeE1.70.8Rf3110.30.3g Integration TimeE1.81.7Rf3111.01.0g RF Ambient ConditionsE5.11.2Rf3110.70.7g Probe Positioner Mechanical ToleranceE5.20.4Rf3110.20.2g Probe Positioning w/ respect to PhantomE5.32.9Rf3111.71.7g Shell Extrapolation, Interpolation & IntegrationE4.23.9Rf3112.32.3g Algorithms for Max. SAR Evaluation Test Sample Related Test Sample PositioningE3.2.1Rf3116.06.011 Device Holder UncertaintyE3.1.1Rf3115.05.08 Output Power Variation - SAR drift5.6.25.0Rf3112.92.9g measurement Phantom & Tissue Parameters Phantom Uncertainty (Shape & Thickness E2.14.0Rf3112.32.3g tolerances) Liquid Conductivity - deviation fromE2.25.0Rf30.70.52.01.4g target values Liquid Conductivity - measurement E2.210.0Rf30.70.54.02.9g uncertainty Liquid Permittivity - deviation fromE2.25.0Rf30.60.51.71.4g target values Liquid Permittivity - measurement E2.25.0Rf30.60.51.71.4g uncertainty Combined Standard Uncertainty (k=1)RSS14.714.4 Expanded Uncertainty (k=2)29.428.7 (95% CONFIDENCE LEVEL) The above measurement uncertainties are according to IEEE Std. 1528-200x (July, 2001)

© 2002 PCTEST Engineering Lab., Inc. PCTEST Engineering Laboratory, Inc. 6660-B Dobbin Road • Columbia, MD 21045 • U.S.A. TEL (410) 290-6652 • FAX (410) 290-6654 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE FCC Part 24 Certification Hyundai Curitel, Inc. Dates of Tests: January 14-15, 2002 San 136-1, Ami-Ri, Bubal-Eub, Ichon-Si Test Report S/N: 24.211207677.PP4 Kyoungki-Do, KOREA 467-701 Test Site: PCTEST Lab, Columbia MD U.S.A. Attn: Hong-Ki Kim FCC ID PP4HWP-230 APPLICANT Hyundai Curitel, Inc. FCC Classification: Licensed Base Station for Part 24 (PCB) FCC Rule Part(s): §24(E), §2 EUT Type: PCS CDMA WLL Phone Trade Name/Model(s): HYUNDAI HWP-230 Tx Frequency Range: 1851.25 ~ 1908.75 MHz Rx Frequency Range: 1931.25 ~ 1988.75 MHz Max. RF Output Power: 0.387 W EIRP PCS CDMA (25.881 dBm) Frequency Tolerance: 0.00025% (2.5 ppm) Emission Designator: 1M25F9W This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in § 2.947 I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. 211207677.PP4 Certification © 2002 PCTEST Engineering Laboratory, Inc. FCC Part 24 TABLE OF CONTENTS ATTACHMENT A: COVER LETTER(S) ATTACHMENT B: ATTESTATION STATEMENT(S) ATTACHMENT C: TEST REPORT 1.1 SCOPE 1 2.1 INTRODUCTION (SITE DESCRIPTION) 2 3.1 INSERTS 3 4.1 DESCRIPTION OF TESTS 4-5 5.1 TEST DATA (Equivalent Isotropic Radiated Power) 6 6.1 TEST DATA (RADIATED) 7-9 7.1 TEST DATA (FREQUENCY STABILITY) 10-11 8.1 PLOTS OF EMISSIONS 12 9.1 LIST OF TEST EQUIPMENT 13 10.1 SAMPLE CALCULATIONS 14 11.1 CONCLUSION 15 ATTACHMENT D: TEST PLOTS ATTACHMENT E: FCC ID LABEL & LOCATION ATTACHMENT F: TEST SETUP PHOTOGRAPHS ATTACHMENT G: EXTERNAL PHOTOGRAPHS ATTACHMENT H: INTERNAL PHOTOGRAPHS ATTACHMENT I: BLOCK DIAGRAM(S) ATTACHMENT J: CIRCUIT DIAGRAMS & DESCRIPTION ATTACHMENT K: PARTS LIST/TUNE UP PROCEDURE ATTACHMENT L: OPERATIONAL DESCRIPTION ATTACHMENT M: USER’S MANUAL ATTACHMENT N: SAR MEASUREMENT REPORT ATTACHMENT O: SAR TEST DATA ATTACHMENT P: SAR TEST SETUP PHOTOGRAPHS Test Report S/N: 24.211207677.PP4 FCC Part 24 Test Dates: January 14-15, 2002 Certification © 2002 PCTEST Lab FCC ID: PP4HWP-230 (Model: HWP-230) 1 Fixed Wireless Local Loop Phone (PCS CDMA) MEASUREMENT REPORT 1.1 Scope Product Evaluation and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission. General Information Applicant Name: Hyundai Curitel, Inc. Address: San 136-1, Ami-Ri, Bubal-Eub, Ichon-Si Kyoungki-Do, KOREA 467-701 Attention: Hong-Ki Kim • FCC ID: PP4HWP-230 • Trade Name: HYUNDAI • Model(s): HWP-230 • Quantity: Quantity production is planned • Emission Designator: 1M25F9W • Tx Freq. Range: 1851.25 — 1908.75 MHz Rx Freq. Range: 1931.25 — 1988.75 MHz • Equipment Class: Licensed Base Station for Part 24 (PCB) • Equipment Type: PCS CDMA WLL Phone • Modulation: CDMA • Frequency Tolerance: ± 0.00025% (2.5 ppm) • Max. RF Output Power: 0.387 W EIRP (25.881 dBm) • FCC Rule Part(s): §24(E), §2 • AC Adapter: 120 VAC HYUNDAI Model: SIH-1312W • Dates of Tests: January 14-15, 2002 • Place of Tests: PCTEST Lab, Columbia, MD U.S.A. • Test Report S/N: 24.211207677.PP4 Test Report S/N: 24.211207677.PP4 FCC Part 24 Test Dates: January 14-15, 2002 Certification © 2002 PCTEST Lab FCC ID: PP4HWP-230 (Model: HWP-230) 2 Fixed Wireless Local Loop Phone (PCS CDMA) 2.1 INTRODUCTION These measurement tests were conducted at PCTEST Engineering Laboratory, Inc. facility in New Concept Business Park, Guilford Industrial Park, Columbia, Maryland. The site address is 6660-B Dobbin Road, Columbia, MD 21045. The test site is one of the highest points in the Columbia area with an elevation of 390 feet above mean sea level. The site coordinates are 39° 11'15" N latitude and 76° 49'38" W longitude. The facility is 1.5 miles North of the FCC laboratory, and the ambient signal and ambient signal strength are approximately equal to those of the FCC laboratory. There are no FM or TV transmitters within 15 miles of the site. The detailed description of the measurement facility was found to be in compliance with the requirements of § 2.948 according to ANSI C63.4 on October 19, 1992. PCTEST Lab is recognized under the National Voluntary Laboratory Accreditation Program for satisfactory compliance with criteria established in Title 15, Part 285 Code of Federal Regulations. These criteria encompass the requirements of ISO/IEC Guide 25 and the relevant requirements of ISO 9002 (ANSI/ASQC Q92-1987) as suppliers of calibration or test results. The Scope of PCTEST Accreditation are for Electromagnetic Compatibility and Telecommunications and FCC. 2.2 PCTEST Location The map at right shows the location of the PCTEST Lab, its proximity to the FCC Lab, the Columbia vicinity area, the Baltimore- Washington International (BWI) airport, and the city of Baltimore, and the Washington, D.C. area. (see Figure1). Figure 1. Map of the Greater Baltimore and Metropolitan Washington, D.C. area. Test Report S/N: 24.211207677.PP4 FCC Part 24 Test Dates: January 14-15, 2002 Certification © 2002 PCTEST Lab FCC ID: PP4HWP-230 (Model: HWP-230) 3 Fixed Wireless Local Loop Phone (PCS CDMA) 3.1 INSERTS Function of Active Devices (Confidential) The Function of active devices is shown in Attachment L. Circuit Diagrams & Description (Confidential) The circuit diagrams and description are show…
