PP4HWT-2150WLL Terminal ( CDMA )

Precautions in using 5 Components Check6 Function Description of Each Component7 General installation9 Wall bracket Installation13 Installation for Data Service15 Power on16 Power off 16 Call Send17 Call Receive17 Analog G3 fax service 18 Data service 18 Contents Speed Dial 21 Emergency call hold 22 Hot Line Service24 Alarm Reminder 25 Lock26 Ear-piece Volume Control 27 Reset 27 Clip Setting 28 AnalogG3 FaxStandardSetting 29 Default DataRate Setting 30 RingerFrequency& CandenceControl 31 Dial ToneFrequencyControl 32 DefaultVocoderSelection 33 TimedHot Line DialSend Waiting Time Control 33 Hook Flash Time (Click Time) Control 34 Voice Privacy Settng 35 Serial Interface Setting (None ForHWT-2150)35 AKey Value Input 38 Network Dial Tone Setting 38 System Parameter Input 37 Summary Table39 Technical Specification41 Troubleshooting42 Safety Information43 Features of the Product 2 Before Using Installation Operation Supplementary functions Appendix Safety Features of the Product 2 Features of the Product First, clear voice quality - 13Kbps & EVRC Vo c o d e r - Provides the same voice quality as that of the wired telephone service Second, elegant design and simple installation - Desktop & wall mounting structure provides simple installation at any place Third, varieties of supplementary services - System Dependent Feature : Caller ID, OTA S P, Authentication, Voice mail Notification, Voice Privacy - Stand Alone Feature : Redial, Speed dialing(up to 99), Emergency Call Hold, Hot Line, Alarm Reminder - POTS (Plain Old Telephone Service), data, etc. Fourth, varieties of interfaces - Provides high speed digital data service at 64Kbps. - Circuit Data Communicate (file send/receive) - Support PC Fax (HotFax, Wi n F a x ) - Medium Data Rate Packet Data Support (Internet & FTP file send/receive) - Analog G3 Fax (Optional) - Pay Phone Interface (16KHz, 12KHz, Metering Pulse, Polarity Reversal) F i f t y, extended call / waiting time - Adoption of up-to-date MSM5105 chip and super power-saving circuit design provides extended battery lifetime at a lower power consumption compared with other products. Sixth, varieties of tone / ring generators through simple setup - Simple setup of dial / warning tones (4 types) and call receiving alert rings (18 types) according to user's needs. HWT-2150 User Guide 3 Do not disassemble or revise the FWT terminal at your discretion Do not touch the antenna during c a l l i n g Do not use the FWT terminal at hot and humid places. It may not be repairable if wet by rain or drinks Avoid vibration or impact and keep the FWT terminal at a safe place to avoid damage while you are not using it Do not use the FWT terminal at a place where explosives or flammable liquids are p r e s e n t Do not wipe the FWT terminal with chemicals such as solvent Remove the SMPS and the backup battery if you do not use the FWT terminal for a long time P recautions in using HWT-2150 User Guide 5 B e f o re Using his product is the Fixed Wireless Terminal (FWT) designed using the up-to-date communication technology Code Division Multiple Access(CDMA) to fulfill superior communication services of users. Please, review this manual closely before using the product. Caution :As the backup battery of the FWT is not connected to the terminal upon delivery,make sure to connect it properly, referring to “General installation” of this manual. Before Using 4 Function Description of Each Component POWER LED Lighted when the external power is applied. - When the external power is applied, the L E Dis red. - When the internal power is applied, the LED is green. - If the backup battery is connected, you can use the terminal without the external power supply. S E RVICE LED Indicates status of the backup battery. - LED OFF : Indicates that the service is not available as the receive power intensity is weak. - LED blinking: Indicates that the service available although the receive power intensity is weak. - LED ON : Indicates that the receive power intensity is strong and the service is available. MODE LED - R E D:Indicates that the state is Voice Ca l l . - Green : indicates that the state isData Se r v i c e . - Yellow : Indicates that the state is FAX Ca l l . -LED OFF: Indicates that the state is stand by. Thank you for purchasing this product. Please check if the components of the product are consistent with the figure below : Components ch e ck FWT terminal Antenna Power supply (SMPS) user GuideFixation Nuts HWT-2150 User Guide 7 Before Using 6 Installation G e n e ral installat i o n 1. Set the battery switch located at the bottom of the terminal to Off . 2. As shown in the figure below, open the cover on the rear side of the terminal by pushing it along the arrow. 3. After the cover is open, you can see the backup battery and its c o n n e c t o r. As shown in the figure below, grip the connector to let the flat side look downward. Then, push the connector along the arrow to connect it to the circuit board. CHG LED - R E D: indicates that the state is in Ch a r g i n g . DC JACK Feeds power from the SMPS of the FWT terminal. - The AC input of the SMPS ranges 90~270V SERIAL PORT A port for maintenance and data communication of the FWT terminal R J - 11 JACK Used to connect normal phones. - As two jacks are presented, you can concurrently connect two telephones without security assured. - You may connect one telephone to any of the two jacks. - You may connect up to five telephones to RJ-11 jack. POWER SWITCH Connects power to the FWT terminal. HWT-2150 User Guide 9 Before Using 8 6. As shown in the figure below, connect the telephone (normal phone) to the jack RJ-11. You may use any of the two RJ-11 jacks provided by the terminal. 7. Connect the SMPS for FWT terminal to the DC-jack located on the left side of the terminal. Insert the power jack properly until it does not move f u r t h e r. N o t e :The terminal may be damaged if you attach the connector opposite to the direction shown above. Please double-…

Text truncated - open the document above for the full version.

Precautions in using 5 Components Check6 Function Description of Each Component7 General installation9 Wall bracket Installation13 Installation for Data Service15 Power on16 Power off 16 Call Send17 Call Receive17 Analog G3 fax service 18 Data service 18 Contents Speed Dial 21 Emergency call hold 22 Hot Line Service24 Alarm Reminder 25 Lock26 Ear-piece Volume Control 27 Reset 27 Clip Setting 28 AnalogG3 FaxStandardSetting 29 Default DataRate Setting 30 RingerFrequency& CandenceControl 31 Dial ToneFrequencyControl 32 DefaultVocoderSelection 33 TimedHot Line DialSend Waiting Time Control 33 Hook Flash Time (Click Time) Control 34 Voice Privacy Settng 35 Serial Interface Setting (None ForHWT-2150)35 AKey Value Input 38 Network Dial Tone Setting 38 System Parameter Input 37 Summary Table39 Technical Specification41 Troubleshooting42 Safety Information43 Features of the Product 2 Before Using Installation Operation Supplementary functions Appendix Safety Features of the Product 2 Features of the Product First, clear voice quality - 13Kbps & EVRC Vo c o d e r - Provides the same voice quality as that of the wired telephone service Second, elegant design and simple installation - Desktop & wall mounting structure provides simple installation at any place Third, varieties of supplementary services - System Dependent Feature : Caller ID, OTA S P, Authentication, Voice mail Notification, Voice Privacy - Stand Alone Feature : Redial, Speed dialing(up to 99), Emergency Call Hold, Hot Line, Alarm Reminder - POTS (Plain Old Telephone Service), data, etc. Fourth, varieties of interfaces - Provides high speed digital data service at 64Kbps. - Circuit Data Communicate (file send/receive) - Support PC Fax (HotFax, Wi n F a x ) - Medium Data Rate Packet Data Support (Internet & FTP file send/receive) - Analog G3 Fax (Optional) - Pay Phone Interface (16KHz, 12KHz, Metering Pulse, Polarity Reversal) F i f t y, extended call / waiting time - Adoption of up-to-date MSM5105 chip and super power-saving circuit design provides extended battery lifetime at a lower power consumption compared with other products. Sixth, varieties of tone / ring generators through simple setup - Simple setup of dial / warning tones (4 types) and call receiving alert rings (18 types) according to user's needs. HWT-2150 User Guide 3 Do not disassemble or revise the FWT terminal at your discretion Do not touch the antenna during c a l l i n g Do not use the FWT terminal at hot and humid places. It may not be repairable if wet by rain or drinks Avoid vibration or impact and keep the FWT terminal at a safe place to avoid damage while you are not using it Do not use the FWT terminal at a place where explosives or flammable liquids are p r e s e n t Do not wipe the FWT terminal with chemicals such as solvent Remove the SMPS and the backup battery if you do not use the FWT terminal for a long time P recautions in using HWT-2150 User Guide 5 B e f o re Using his product is the Fixed Wireless Terminal (FWT) designed using the up-to-date communication technology Code Division Multiple Access(CDMA) to fulfill superior communication services of users. Please, review this manual closely before using the product. Caution :As the backup battery of the FWT is not connected to the terminal upon delivery,make sure to connect it properly, referring to “General installation” of this manual. Before Using 4 Function Description of Each Component POWER LED Lighted when the external power is applied. - When the external power is applied, the L E Dis red. - When the internal power is applied, the LED is green. - If the backup battery is connected, you can use the terminal without the external power supply. S E RVICE LED Indicates status of the backup battery. - LED OFF : Indicates that the service is not available as the receive power intensity is weak. - LED blinking: Indicates that the service available although the receive power intensity is weak. - LED ON : Indicates that the receive power intensity is strong and the service is available. MODE LED - R E D:Indicates that the state is Voice Ca l l . - Green : indicates that the state isData Se r v i c e . - Yellow : Indicates that the state is FAX Ca l l . -LED OFF: Indicates that the state is stand by. Thank you for purchasing this product. Please check if the components of the product are consistent with the figure below : Components ch e ck FWT terminal Antenna Power supply (SMPS) user GuideFixation Nuts HWT-2150 User Guide 7 Before Using 6 Installation G e n e ral installat i o n 1. Set the battery switch located at the bottom of the terminal to Off . 2. As shown in the figure below, open the cover on the rear side of the terminal by pushing it along the arrow. 3. After the cover is open, you can see the backup battery and its c o n n e c t o r. As shown in the figure below, grip the connector to let the flat side look downward. Then, push the connector along the arrow to connect it to the circuit board. CHG LED - R E D: indicates that the state is in Ch a r g i n g . DC JACK Feeds power from the SMPS of the FWT terminal. - The AC input of the SMPS ranges 90~270V SERIAL PORT A port for maintenance and data communication of the FWT terminal R J - 11 JACK Used to connect normal phones. - As two jacks are presented, you can concurrently connect two telephones without security assured. - You may connect one telephone to any of the two jacks. - You may connect up to five telephones to RJ-11 jack. POWER SWITCH Connects power to the FWT terminal. HWT-2150 User Guide 9 Before Using 8 6. As shown in the figure below, connect the telephone (normal phone) to the jack RJ-11. You may use any of the two RJ-11 jacks provided by the terminal. 7. Connect the SMPS for FWT terminal to the DC-jack located on the left side of the terminal. Insert the power jack properly until it does not move f u r t h e r. N o t e :The terminal may be damaged if you attach the connector opposite to the direction shown above. Please double-…

Text truncated - open the document above for the full version.

HWT-2150 User Guide 4 1 Appendix 40 D e f a u l t Vocoder S.O Timed Hot Line Dial Send Waiting Tim Hook Flash Time Control Voice Privacy Serial Interface S e t t i n g A Key Value I n p u t Network Dial T o n e C h a n n e l Number Input MIN Number I n p u t Analog G3 fax r e c e i v e Data service receive mode release Fax receive mode setting (one time) Fax receive mode setting(until power off) Modem receive mode (one time) Modem receive mode(until power off) ##3233 5 Maintenance Code 6 1/ 2 ( 1 : 8K EVRC , 2 : 13K QC E L P) ##3233 5 Maintenance Code 7 4 / 5 / 6 / 7 / 8 ( 4: 4 Sec 5: 5 Sec 6: 6 Sec 7: 7 Sec 8: 8 Sec ) ##3233 5 Maintenance Code 8 1 (Min time) 05~98 ##3233 5 Maintenance Code 8 2 (Max time) 06~99 ( 05 ~ 99 : 50 msec ~ 990 msec) O n O f f 19200 bps 115200 bps ##3233 6 Maintenance Code 1 “AKEY” (26 digits) ( AKEY : 26-digit A Key value) NIU-generated Dial Tone LE-generated Dial Tone # # 3 2 3 39Maintenance Code1(Primary A CH No.) www (3digits) ( www : Primary System A Channel No.) # # 3 2 3 39Maintenance Code2(Secondary A CH No.)xxx (3digits) ( xxx : Secondary System A Channel No.) # # 3 2 3 39Maintenance Code3(Primary B CH No.)yyy (3digits) ( yyy : Primary System B Channel No.) # # 3 2 3 39Maintenance Code4(Secondary B CH No.)zzz (3digits) ( zzz : Secondary System B Channel No.) # # 3 2 3 3 9Maintenance Code5xxxxxxxxxx (10digits) ( xxxxxxxxxx : MIN No.) On (fax receive) Off (voice receive) Using the normal phone Using the emulator Using the normal phone Using the emulator Using the normal phone Using the emulator Using the normal phone Using the emulator Using the normal phone Using the emulator 1 5 1 0 1 0 [ A T +QCVAD=0] Enter key 1 1 [ A T +QCVAD=1] Enter key 1 2 [ A T +QCVAD=2] Enter key 1 3 [ A T +Q CVAD=3] Enter key 1 4 [ A T +Q CVAD=4] Enter key ##3233 5 Maintenance Code 9 1 ##3233 5 Maintenance Code 9 2 ##3233 5 Maintenance Code 0 1 ##3233 5 Maintenance Code 0 2 ##3233 6 Maintenance Code 1 1 ##3233 6 Maintenance Code 1 2 Air Interface Battery Back-up Connectors for various Service support P h y s i c a l E n v i r o n m e n t a l Power Supply A c c e s s o r i e s Common air interface standard IS-2000 FREQUENCY TX : 824 – 849MHz RX : 869 – 894MHz TX Output Power 200mW RX Sensitivity - 104dBm Vocoder 8K/13K QCELP, 8K EVRC Channel Bandwidth CDMA 1.25Mhz Spurious TX : -61dBm below RX : -81dBm below MOD/DEMOD O QPSK/QPSK Frequency Accuracy Fo°w300Hz Type Ni-MH Capacity 3.6V @ 1.8A Talk Time 2 Hours Standby Time 20Hours RJ-11 Standard wire-line telephone Analog G3 Fax (Optional) Serial port Maintenance Purpose Data Service Purpose ( Internet, PC Fax) Dimension(D xW xH) 180 x180 x57mm Weight ( including Backup battery) 546g Operating Temperature -10°C ~ +50°C Storage Temperature -20°C ~ +70°C Input Power 100 ~ 240Vw10%,48~62Hz Output Power 5.5V 1.2A Internal Antenna Di-Pole Antenna Power supply External Antenna ( Optional ) 10dbi Gain Directional Panel Antenna Te chnical Specificat i o n - 800MHz

Report No.: HCT-SAR03-0602 FCC ID : PP4HWT-2150 DATE : June 11, 2003 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr ATTACHMENT B – ATTESSTATION STATEMENT Report No.: HCT-SAR03-0602 FCC ID : PP4HWT-2150 DATE : June 11, 2003 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr Report No.: HCT-SAR03-0602 FCC ID : PP4HWT-2150 DATE : June 11, 2003 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr Report No.: HCT-SAR03-0602 FCC ID : PP4HWT-2150 DATE : June 11, 2003 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr Report No.: HCT-SAR03-0602 FCC ID : PP4HWT-2150 DATE : June 11, 2003 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr

Report No.: HCT-SAR03-0602 FCC ID : PP4HWT-2150 DATE : June 11, 2003 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr

APPROVAL SHEET MODEL : TB-800T CHECKED APPROVED SIGNATURE HYUNDAI ELECTRONICS INDUSTRIES CO., LTD APPROVAL DATE / / / / CHECKED APPROVED SIGNATURE HANKOOK ANTENNA CO., LT D APPROVAL DATE / / / / HANKOOK ANTENNA CO., LTD. Hankook Antenna Co.,LTD 2 of 9 CONTENTS 1. GENERAL 1. 1 PRODUCT DESCRIPTION 1. 2 PRODUCT NUMBER 1.3 UNIT AND DEFINITION 1.4 CONDITIONS 2. ELECTRICAL PROPERTIES 2. 1 FREQUENCY BAND 2. 2 IMPEDANCE 2. 3 V.S.W.R 2. 4 GAIN 3. MECHANICAL PROPERTIES 3. 1 APPEARANCE 3. 2 TENSILE LOAD 3. 3 DROP 4. ENVIRONMENTAL RESISTANCE PROPERTIES 4.1 OPERATIONAL TEMPERATURE 4.2 TEMPERATURE CYCLING 4.3 HUMIDITY 4.4 SINUSOIDAL VIBRATION 5. TEST EQUIPMENTS 6. DRAWING Hankook Antenna Co.,LTD 3 of 9 1. GENERAL 1.1 Product description A sleeve dipole antenna, consisting of copper cylinder and a thin radiator which is a inner conductor of a coaxial line, is a half wave dipole antenna used for a portable and base station unit for wireless communication. 1.2 Product Number Hankook Antenna Product No. : TB-800T Hyundai Product No. : HWT-2150 1.3 Units and Definitions Tx Transmit Band Rx Receive Band V.S.W.R Voltage Standing Wave Ratio dBd Antenna gain in dB relative to a dipole g Acceleration of gravity (about 9.8 m/sec 2 ) RH Relative Humidity 1.4 Conditions Unless otherwise stated all temperature tolerance are ±3°C and all RH tolerance are ±5 percentage units Unless otherwise stated all values are valid at +20°C and 50%RH. 2. ELECTRICAL PROPERTIES 2.1 Frequency Band Transmit Band (Tx) : 824 – 849 MHz Receive Band (Rx) : 869 – 894 MHz 2.2 Impedance Hankook Antenna Co.,LTD 4 of 9 Nominal Value : 50Ω 2.3 VSWR 2.3.1 Maximum Values 2.0 : 1 2.3.2 Measuring Method A 50 ohms coaxial cable is connected to the antenna connector. In the other end the coaxial cable is connected to a network analyzer. The analyzer calibrated so that the reference plane is at the end the coaxial cable connected to the antenna. 2.4 Gain 2.4.1 Minimum Gain 1.0 dBi 2.4.2 Measuring Method The connection is done according to figure. Radiation patterns are measured at the lowest, middle and highest frequency for each band (Tx and Rx band). The measurement performed so as to minimize the influence of the cables. Calibration for absolute measurements CALIBRATION PLANE NETWORK ANALYZER 2 ANTENNA 50 OHMS CABLE (30x30Cm) WOOD Hankook Antenna Co.,LTD 5 of 9 is done with a reference antenna, which is in turn calibrated by a certified calibration company. 3. MECHANICAL PROPERTIES 3.1 Appearance The appearance shall be according to specification drawing as attached. 3.2. Tensile Load 3.2.1 Force 5 Kgf 3.2.2 Demands Without mechanical damage, electrical performance according to 2.3.1 and 2.4.1 after test. 3.2.3 Measuring Method The antenna is assembled to the test equipment according to figure. The specified force is applied during 30sec to the top of the sleeve parallel to the antenna axis. Hankook Antenna Co.,LTD 6 of 9 3.3 Drop 3.3.1 Drop height 0.75 m 3.3.2 Number of Drops 1 drop to ensure set lands on antenna 3.3.3 Set weight 2 Kg 3.3.4 Demand No visual change and the fitting and mold shall be unchanged mechanically and satisfy the electrical data after test. 3.3.5 Measuring Method The antenna is attached to set (if available, otherwise to test fixture of equal weight). The set is dropped with antenna downwards onto a steel surface covered with 20 sheets of copy paper . 4. ENVIRONMENTAL RESISTANCE PROPERTIES 4.1 Operational Temperature 4.1.1 Temperature :  40  70 at 50%RH 4.1.2 Demand No visual change and the fitting and mold shall be unchanged mechanically and satisfy the electrical data during the test. Hankook Antenna Co.,LTD 7 of 9 4.1.3 Measuring method The antenna is kept at +20°C and 50%RH for at least 1 hour. The antenna is placed at low temperature. The antenna is taken out after 1 hour, and the V.S.W.R is immediately measured. The antenna is kept at +20°C and 50%RH for at least 1 hour. The antenna is placed at high temperature. The antenna is taken out after 1 hour, and the V.S.W.R is immediately measured. 4.2 Temperature Cycling 4.2.1 Cycling Temperature : 40 ~ 80 at 50%RH 4.2.2 Demand No visual change and the fitting and mold shall be unchanged mechanically and satisfy the electrical data after a 1 hour relaxing period at +20 and 50%RH . 4.2.3 Measuring method The antenna is placed in a climatic chamber. The temperature is cycled as follows: The temperature is kept constant at low cycling temperature for 1hour, increased to high cycling temperature during 1 hour, kept constant for 1hour and then decreased to low cycling temperature during 1 hour. This procedure is repeated 10 times ending at room temperature, see figure T HC T LC + 20 1111 1 cycle 10 cycle Ti me/Hours Hankook Antenna Co.,LTD 8 of 9 4.3 Humidity 4.3.1 Condition : 40 and 95%RH 4.3.2 Demand No visual change and the fitting and mold shall be unchanged mechanically and satisfy the electrical data after the test. 4.3.3 Measuring method The antenna is placed in climatic chamber for 24 hours. The antenna is taken out from the chamber and measured after another 24 hours in room temperature. 4.4 Sinusoidal Vibration 4.4.1 Vibration Frequencies : 5 - 55 - 5 Hz (1 cycle) 4.4.2 Sweep Rate : 0.5 octave/min (logarithmic) 4.4.3 Maximum Amplitude A = 1 mm 4.4.4 Maximum Acceleration : 2 g 4.4.5 Demand No visual change and the fitting and mold shall be unchanged mechanically and satisfy the electrical data after the test. 4.4.6 Measuring method The antenna is assembled in the test equipment. The vibration is done both in x- and z- directions, according to figure, with a duration of 2 hours in each direction. z x a) Vibration directions. A -A time 1 / f b) Vibration form. Hankook Antenna Co.,LTD 9 of 9 5. TEST EQUIPMENTS Network Analyzer (HP-8753C) : VSWR, Impedance RF Signal Generator(HP-8350B) : Required signal Spectrum Analyzer (HP-8563A) : Receiving signal 6. DRAWINGS As attached

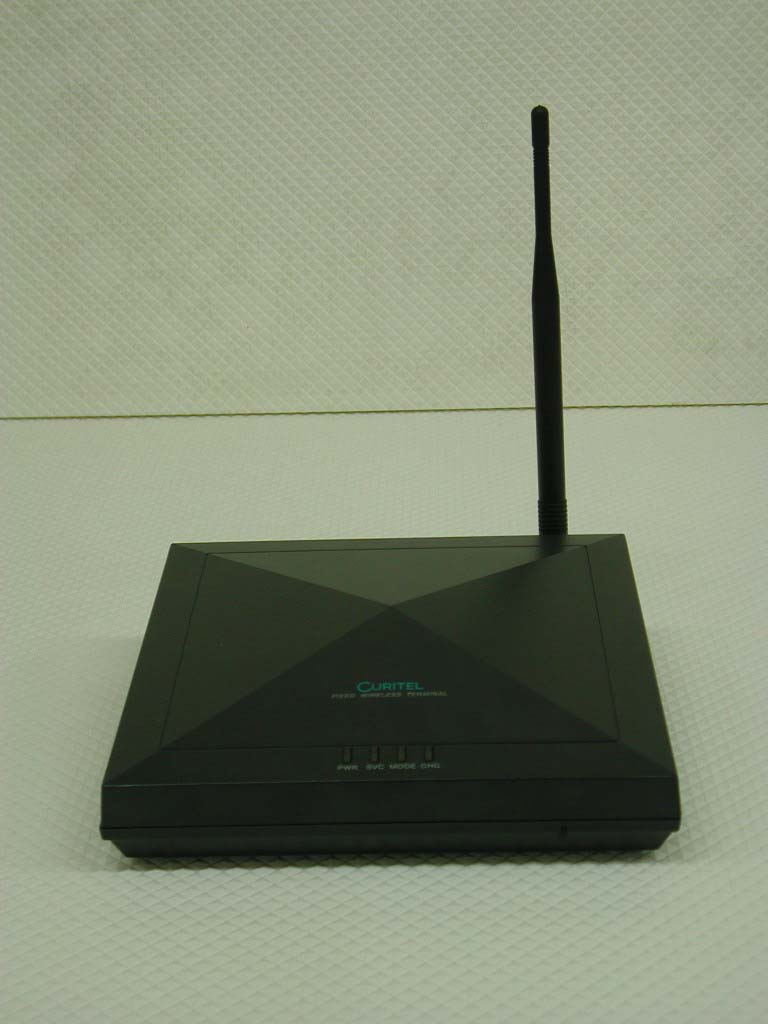

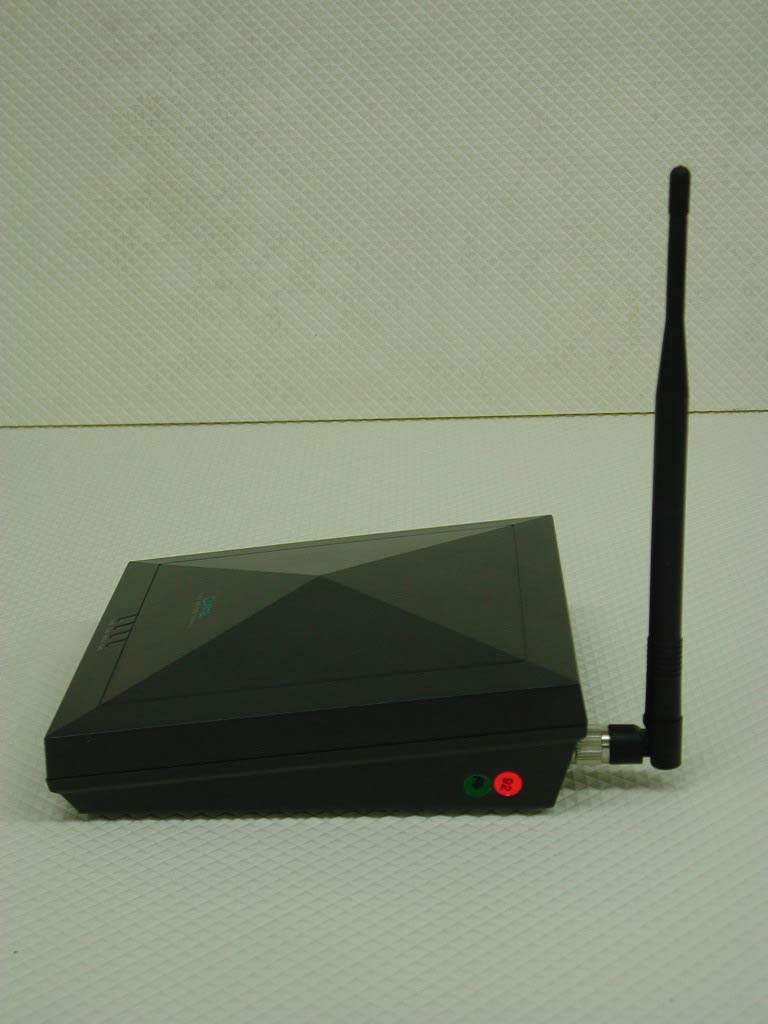

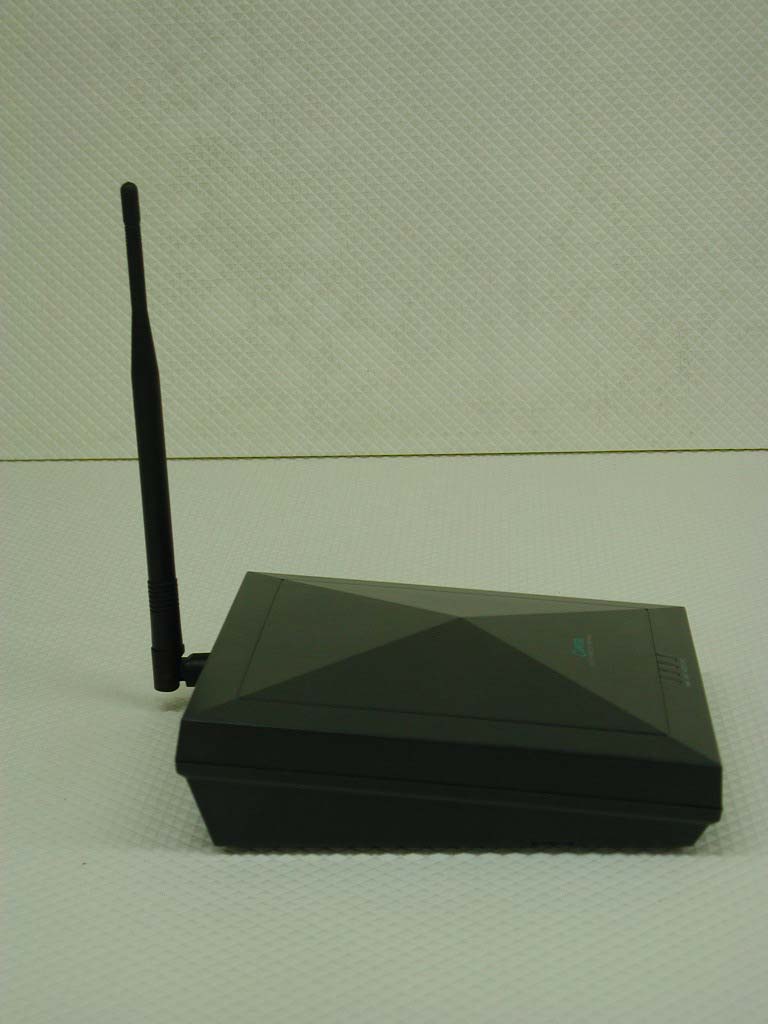

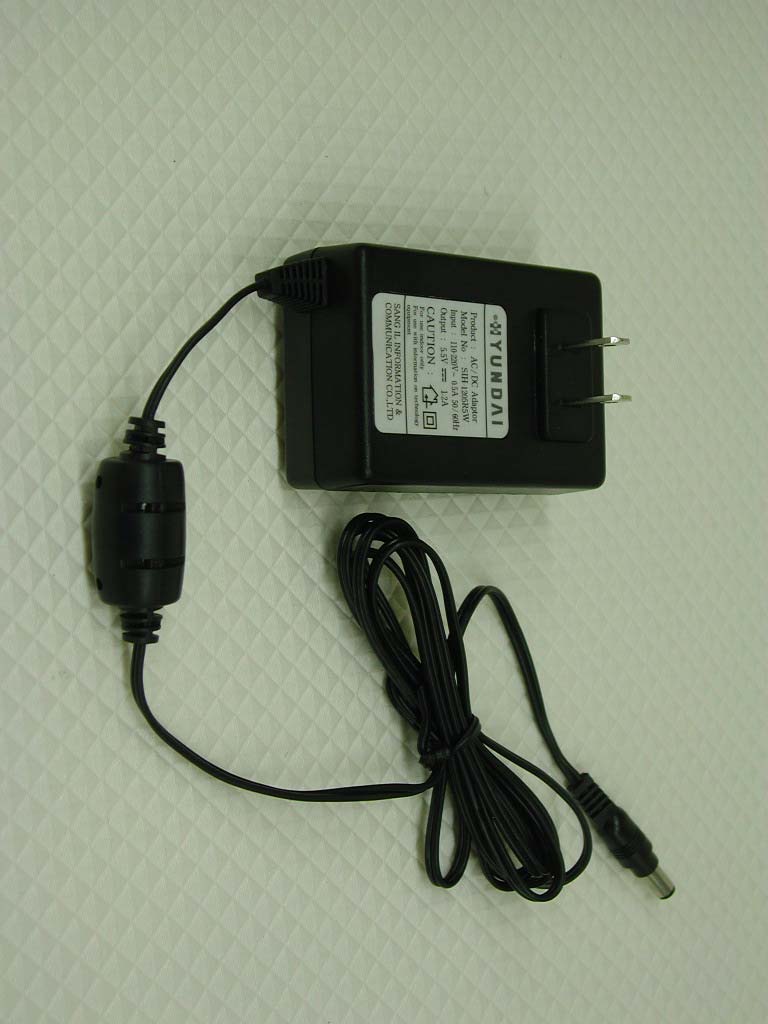

Report No.: HCT-SAR03-0602 FCC ID : PP4HWT-2150 DATE : June 11, 2003 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr ATTACHMENT G – EXTERNAL PHOTOGRAPHS ■ EXTERNAL PHOTO Report No.: HCT-SAR03-0602 FCC ID : PP4HWT-2150 DATE : June 11, 2003 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr ■ EXTERNAL PHOTO Report No.: HCT-SAR03-0602 FCC ID : PP4HWT-2150 DATE : June 11, 2003 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr ■ EXTERNAL PHOTO Report No.: HCT-SAR03-0602 FCC ID : PP4HWT-2150 DATE : June 11, 2003 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr ■ EXTERNAL PHOTO Report No.: HCT-SAR03-0602 FCC ID : PP4HWT-2150 DATE : June 11, 2003 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr ■ EXTERNAL PHOTO Report No.: HCT-SAR03-0602 FCC ID : PP4HWT-2150 DATE : June 11, 2003 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr ■ EXTERNAL PHOTO Report No.: HCT-SAR03-0602 FCC ID : PP4HWT-2150 DATE : June 11, 2003 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr ■ EXTERNAL PHOTO Report No.: HCT-SAR03-0602 FCC ID : PP4HWT-2150 DATE : June 11, 2003 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr ■ EXTERNAL PHOTO

Report No.: HCT-SAR03-0602 FCC ID : PP4HWT-2150 DATE : June 11, 2003 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr ATTACHMENT E – FCC ID LABEL/ LOCATION Report No.: HCT-SAR03-0602 FCC ID : PP4HWT-2150 DATE : June 11, 2003 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr LABELLING REQUIREMENTS PER §§ 2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. ( SEE NEXT PAGE ) Report No.: HCT-SAR03-0602 FCC ID : PP4HWT-2150 DATE : June 11, 2003 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr

Report No.: HCT-SAR03-0602 FCC ID : PP4HWT-2150 DATE : June 11, 2003 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr ATTACHMENT H – INTERNAL PHOTOGRAPHS ■ INTERNAL PHOTO Report No.: HCT-SAR03-0602 FCC ID : PP4HWT-2150 DATE : June 11, 2003 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr ■ INTERNAL PHOTO Report No.: HCT-SAR03-0602 FCC ID : PP4HWT-2150 DATE : June 11, 2003 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr ■ INTERNAL PHOTO Report No.: HCT-SAR03-0602 FCC ID : PP4HWT-2150 DATE : June 11, 2003 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr ■ INTERNAL PHOTO Report No.: HCT-SAR03-0602 FCC ID : PP4HWT-2150 DATE : June 11, 2003 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr ■ INTERNAL PHOTO Report No.: HCT-SAR03-0602 FCC ID : PP4HWT-2150 DATE : June 11, 2003 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr ■ INTERNAL PHOTO Report No.: HCT-SAR03-0602 FCC ID : PP4HWT-2150 DATE : June 11, 2003 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr ■ INTERNAL PHOTO Report No.: HCT-SAR03-0602 FCC ID : PP4HWT-2150 DATE : June 11, 2003 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr ■ INTERNAL PHOTO Report No.: HCT-SAR03-0602 FCC ID : PP4HWT-2150 DATE : June 11, 2003 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr ■ INTERNAL PHOTO Report No.: HCT-SAR03-0602 FCC ID : PP4HWT-2150 DATE : June 11, 2003 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr ■ INTERNAL PHOTO

HYUNDAI CALIBRATION & CERTIFICATION TECH. CO., LTD. PRODUCT COMPLIANCE DIVISION SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr CERTIFICATE OF COMPLIANCE (SAR EVALUATION) EUT Type: Fixed WLL Terminal (CDMA) Tx Frequency: 824.70 — 848.31 MHz (CDMA) Rx Frequency: 869.70 — 893.31 MHz (CDMA) Max. RF Output Power: 0.316W PCS CDMA (25.0dBm) (Conducted) Trade Name/Model(s): HYUNDAI / HWT-2150 FCC Classification: Licensed Non-Broadcast station Transmitter - TNB Application Type: Certification FCC Rule Part(s): §2.1093; FCC/ OET Bulletin Supplement C [July 2001] Maximum SAR: 0.808W/kg CDMA Body SAR This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/ IEEE Std. C95.1- 1992 and had been tested in accordance with the measurement procedures specified in ANSI/ IEEE Std. C95.3- 1992. (See Test Report). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Hyundai C-Tech Co., Ltd. Certifies that no party to this application has been denied FCC benefits pursuant to section 5301 of the Anti- Drug Abuse Act of 1998, 21 U.S. C. 853(a) Report prepared by : Ki-Soo Kim Manager of Product Compliance Team This re…
