PP4PN-E330Dual-Mode CDMA Phone with Bluetooth

WELCOME Thank you for choosing the PN-E330. This exceptional new phone boasts an impressive array of features that are versatile, easy to use and allows you to enjoy some of the hottest mobile services available today. All Digital and supporting the high-speed communications provided by the CDMA2000 1xEVDO network system, this phone offers lightning fast downloads for enhanced multimedia, web browsing and data services. Two LCD displays present rich full-color content on either the large inner main display screen, or the smaller outer sub-display screen. A built-in 1.3 Mega Pixel camera with embedded flash and video capture, a WAP 2.0 browser, GPS technology for quick location identification when calling 911, a built-in speaker phone and voice activated dialing for easy hands- free operation, two-way short, enhanced or multimedia messaging services so you can send and receive messages in a variety of forms, T9 predictive text input for effortless text entries and a USB port for expanded data capabilities complete this nimble device. In addition, this phone is equipped with Video on Demand and Music on Demand capabilities that allow you to select and play video or audio clips from a mobile entertainment library that is accessible right from your phone. These features give you the most of exciting Nokia services like V Cast, which allows you to download full motion video clips of breaking news, weather, sports highlights, entertainment clips and 3D games, or Get It Now, which allows you to download, ringtones, ringback tones, wallpapers, games and provides Picture Caller ID. So unleash all the powerful features of your new PN-E330 and enjoy the latest in wireless technology and mobile entertainment, all from this one awesome handset. REV.02 5U01000300A Chapter 4 TABLE OF CONTENTS 1 Chapter 1 Chapter 2 Chapter 3 CHAPTER 1. BEFORE USING YOUR PHONE .................................5 INSIDE THE PACKAGE .....................................................................................6 HANDSET DESCRIPTION.................................................................................7 DISPLAY INDICATORS ...........................................................................................9 BATTERY USAGE ...........................................................................................11 BATTERY INSTALLATION ....................................................................................11 BATTERY REMOVAL.............................................................................................12 BATTERY CHARGING ...........................................................................................13 BATTERY HANDLING INFORMATION..........................................................14 DOs.........................................................................................................................14 DON’Ts...................................................................................................................14 CHAPTER 2. BASIC OPERATION ..................................................15 TURNING THE PHONE ON / OFF ..................................................................16 TURNING THE PHONE ON...................................................................................16 TURNING THE PHONE OFF..................................................................................16 ACCESSING THE MENU ................................................................................17 MENU SUMMARY .........................................................................................18 BASIC FUNCTIONS ........................................................................................20 MAKING A CALL ...................................................................................................20 ANSWERING CALLS.............................................................................................21 SPEAKER PHONE..................................................................................................21 VIBRATE ON/OFF MODE ......................................................................................21 CALLER ID FUNCTION..........................................................................................21 WAIT/PAUSE FEATURE........................................................................................22 ANSWERING A CALL............................................................................................22 3-WAY CALLING ...................................................................................................23 CALL WAITING FUNCTION ..................................................................................23 ADJUSTING VOLUME ..........................................................................................24 MUSIC PLAYER .....................................................................................................24 DURING A CALL .............................................................................................25 MUTE (UNMUTE)..................................................................................................25 SEND TXT MSG ....................................................................................................25 CONTACTS ............................................................................................................25 RECENT CALLS .....................................................................................................25 TO PHONE/TO BLUETOOTH ................................................................................26 VOICE PRIVACY.....................................................................................................26 MAKING AN EMERGENCY CALL ..................................................................27 911 IN LOCK MODE ..............................................................................................27 911 USING ANY AVAILABLE SYSTEM ....................…

Text truncated - open the document above for the full version.

PANTECH&CURITEL COMMUNICATIONS, INC. Date: April 20, 2006 Compliance Certification Services Certification Division 561F Monterey Road Morgan Hill, CA 95037 To whom it may concern: We, the undersigned, hereby authorize Hyundai Calibration & Certification Technologies Co.,Ltd. , to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Hyundai Calibration & Certification Technologies Co.,Ltd. on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing Hyundai Calibration & Certification Technologies Co.,Ltd as our agent, we still recognize that we are responsible to: a) Comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Eui-Kwon Park - Project Manager R & D Center REMARK: 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us.

PANTECH&CURITEL COMMUNICATIONS, INC. Date: April 20, 2006 Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road, Columbia, MD 21046, U.S.A. Subject: Authorization Letter FCC ID: PP4PN-E330 Part 22/ 24/ 15C Certification To whom it may concern: We, the undersigned. hereby authorized HYUNDAI Calibration & Certification Technologies Co., Ltd. to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these manners. Any and all acts carried out by HYUNDAI Calibration & Certification Technologies Co., Ltd. on our behalf shall have the same effect as acts of our own. This authorization is valid until Dec. 31, 2006. Sincerely Yours, ---------------------------------------------- Eui-Kwon Park - Project Manager R & D Center PANTECH&CURITEL COMMUNICATIONS, INC. Date: April 20, 2006 Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road, Columbia, MD 21046, U.S.A. Subject: Request for Confidentiality FCC ID: PP4PN-E330 Part 22/ 24/ 15C Certification Gentlemen: In accordance with 0.459 of CFR 47, PANTECH&CURITEL COMMUNICATIONS, INC. hereby requests confidentiality of the Block Diagrams attachment, Schematic Diagrams attachment, Operational Description attachment, and Part List/Tune-Up Procedure attachment for the above-referenced Certification application. These documents contain detailed system and equipment description and related information about the product which PANTECH&CURITEL COMMUNICATIONS, INC. considers to be proprietary, confidential, and a custom design and, otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, PANTECH&CURITEL COMMUNICATIONS, INC. feels this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give our competitors an unfair advantage in the market. Sincerely Yours, ---------------------------------------------- Eui-Kwon Park - Project Manager R & D Center PANTECH&CURITEL COMMUNICATIONS, INC. Date: April 20, 2006 Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046, U.S.A. Subject: User's Manual RF Exposure Warning Statement FCC ID: PP4PN-E330 Part 22/ 24/ 15C Certification Gentlemen: PANTECH&CURITEL COMMUNICATIONS, INC. hereby confirms that the attached RF exposure warning page will be readily visible to the user, and will be placed at a prominent location in the front section of the user's manual. Should you have any questions or comments concerning the above, please do not hesitate contact me. Sincerely Yours, ---------------------------------------------- Eui-Kwon Park - Project Manager R & D Center PANTECH&CURITEL COMMUNICATIONS, INC. Date: April 20, 2006 We hereby certify that the Dual mode CDMA Phone with Bluetooth (FCC ID: PP4PN-E330) is so designed that it complies with all the requirements for ESN protection specified in Section 22.919 of the FCC Rules. a) The transmitter in service has a unique ESN. b) The ESN host component is permanently attached to a main circuit board of the mobile transmitter and the integrity of the unit operating software cannot be altered. The ESN is plated from fraudulent contact and tampering. The ESN is encoded using multiplication by a polynomial and the ESN data programmed in the memory with other information. c) The ESN is factory-set and cannot be altered, transferred, removed or otherwise able to be manipulated. Cellular mobile equipment is specifically designed such that any attempt to remove, tamper with, or change the ESN chip, its logic system, or firmware originally programmed by the manufacturer will render the mobile transmitter inoperative. Sincerely Yours, ---------------------------------------------- Eui-Kwon Park - Project Manager R & D Center

SUBJECT: PANTECH&CURITEL COMMUNICATION, INC. FCC ID: PP4PN-E330 MODEL: PN-E330 Part 22 / 24 / 2 / 20/ 15C Certification Gentlemen: Submitted herewith, on behalf of PANTECH&CURITEL COMMUNICATION, INC. is an application for Part 22 / 24 / 20/ 15C Certification of the following Dual- Mode CDMA Phone with Bluetooth (CDMA/ PCS CDMA): Trade Name/Model(s): PANTECH&CURITEL / PN-E330 EUT Type: Dual- Mode CDMA Phone with Bluetooth - Prototype Tx Frequency: 824.70 — 848.31 MHz (CDMA) 1851.25 — 1908.75 MHz (PCS CDMA) 2402 — 2480 MHz (Bluetooth) Rx Frequency: 869.70 — 893.31 MHz (CDMA) 1931.25 — 1988.75 MHz (PCS CDMA) 2402 — 2480 MHz (Bluetooth) Max. RF Output Power: 0.291 W ERP CDMA (24.6 dBm) 0.265 W EIRP PCS CDMA (24.2 dBm) 0.001183 W Bluetooth (0.73 dBm) Maximum SAR: 1.15 W/kg CDMA Head SAR / 0.482 W/kg CDMA Body SAR 1.37 W/kg PCS CDMA Head SAR / 0.537 W/kg PCS CDMA Body SAR HAC Rating: M4 Attached is the applicant’s Letter of Authorization, Confidentiality Request, ESN Affidavit, measurement report test data and plots, RF Exposure measurement report and data, FCC ID label and location, test setup photographs, internal and external photographs, block diagram (confidential), circuit diagrams & description (confidential), operational description (confidential), parts list & tune-up procedure (confidential), and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned. Report prepared by: Ki-Soo Kim Manager of Product Compliance Team cc: Eui-Kwon Park – PANTECH&CURITEL COMMUNICATION, INC. May 8, 2006 Test Site: HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. FRN: 0005866421

Chris Harvey From: SUN-HEE KIM (HCT) [[email protected]] Sent: Wednesday, May 17, 2006 10:55 AM To: Chris Harvey; Chris Harvey Cc: 임지영 (HCT); 정문진 (HCT); 김기수 (HCT); 신국선 \(HCT\); 김영관 (HCT); 박근호 (HCT) Subject: Re: PANTECH&CURITEL COMMUNICATIONS, INC., FCC ID: PP4PN-E330, Assessment NO.: AN06T5778, Notice#1 Attachments: ATT. L (Opertional Description) PN-E330.pdf Page 1 of 2 5/17/2006 Hello Chris, Thank you for your email. Please refer to my below comment and attachment files. Your prompt response would be much appreciated. Thank you. Best Regards, Sun- Hee KIM -----Original Message----- From: charvey [email protected] [mailto:[email protected]] Sent: Wednesday, May 17, 2006 3:50 AM To: [email protected] Cc: charvey [email protected] Subject: PANTECH&CURITEL COMMUNICATIONS, INC., FCC ID: PP4PN-E330, Assessment NO.: AN06T5778, Notice#1 Sun-Hee, I have reviewed the above referenced TCB application for FCC 22/24 portion of the handset and find that the following items need to be addressed before the review can be completed: 1. Please provide an exhibit for The Output Power by Radio Configuration as HCT has with other applications. Also there seems to be no indication which RC/SO combinations were used for RF and SAR compliance testing. Please provide this information in accordance with the FCC 3G SAR Measurement guidance document. ==> Test Mode : RC3 / SO55 EVDO : RC3 FTAP :307.2kbps RTAP :153.6kbps Cell power : -105.5 dBm / 1.23MHz 2. The SAR test photo for body-worn operation shows a white material between the handset and the phantom. Please indicate what the material is and indicate if it is RF Transparent. ==> This is a kind of styrofoam that is a nonmetalic one. And It is RF transparent. 3. The Operational Description for this application has an FCC ID number from another device. Please either remove the incorrect FCC ID number or correct the FCC ID number. ==> Please find the attachment file. The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender. Please note that the Bluetooth portion of this FCC ID is being reviewed under Assessment number AN06T5777 and will have a separate request for additional information shortly. Best regards, Chris Harvey charvey [email protected] ================================================================= (주)현대교정인증기술원 제품인증팀 경기도 이천시 부발읍 아미리 산 136-1(467-701) TEL.: 031-639-8565/ 8518 FAX: 031-639-8525/ 8535 HP: 011-9558-9875 김선희 ================================================================= Page 2 of 2 5/17/2006

Mike Kuo  8/25/2006 Hi Martin : To address your audit questions : 3G review policy in term of Radio Capabilities : CDMA 2000 1X MS protocol revision number 6 and 1xEVDO Rev. 0 EMC Consideration : Based upon information uploaded, the following radio configuration and service options are supported and measured : Cellular Band PCS band Preliminary tests performed to determine the worst case As indicated in the TCB Q and A file uploaded to the FCC, the following mode were used during final tests: CDMA 2000 1x =RC3 / SO55 1xEVDO Rev. 0= RC3 FTAP :307.2kbps; RTAP :153.6kbps The output power measurement is documented in section 4.1 of revised Part 22/24 test report. The measurement were made by using CDMA Mobile Station Test Set HP8924C. SAR Consideration : Output power verification by radio configuration and service option: Preliminary tests were performed to verify the output power.  8/25/2006 During the final SAR evaluation, head and body-worn SAR test method and test mode rational have been documented in section 12.2,and 12.3 of revised SAR test report. Since the average output power between RC1 and RC3 is within 1/4 dB and RC3/SO32 and RC/SO55 has the same average output power. As documented in the revised SAR test report, RC3/SO55 was used during final head SAR evaluation. During body-worn SAR evaluation, RC3/SO55 and 1xEVDO RC3 FTAP :307.2kbps; RTAP :153.were investigated. The highest measured SAR value for RC3/SO55 = 0.537 W/kg , 1xEVDO=0.336 W/kg. All measurement data have been included in the revised SAR test report. HAC Consideration : HAC tests were performed based upon same engineering rational as EMC and SAR. Since RC3/SO55 has the higher output power, all HAC tests were performed on RC3/SO55. If you have any question, please feel free to contact me. Best Regards Mike Kuo Compliance Certification Services 561F Monterey Road Morgan Hill CA 95037 Tel: (408)463-0885 x: 105 Fax: (408)463-0888 e-mail:[email protected] http://www.ccsemc.com  8/25/2006

Mike Kuo To: Generic Office of Engineering Technology Subject: RE: Request for additional information  8/30/2006 Hi Martin : In term of Peak Vs Average Power issues : Qualcomm has done a study to discuss Peak Vs Average power while performing regulatory testing: For regulatory testing to date, a CDMA device is typically configured in a static channel configuration where there is a degree of variation in the instantaneous output power. This variation is defined as the ratio of the instantaneous peak value of a signal to its time-averaged value and referred to as the peak to average ratio (PAR). This variation is inherent in all multiplexed systems, but in the case of CDMA reverse link, it can be minimized by appropriate modulation techniques such as HPSK in CDMA2000, 1x EVDO and in UMTS. During a dynamic network call, the PAR average will vary more since the transmit power of the mobile’s multiplexed channels change continuously as a result of the data requirements of the active link. As previously mentioned, for regulatory testing the device is configured in a fixed channel configuration such that this additional PAR variation is not present. In addition, when the device is transmitting at maximum output power, the device’s RF calibration restricts the transmit power such that the phone cannot exceed the calibrated value of maximum transmit power that is stored as a parameter in the device itself. The PAR is directly related to the physical channel structure of a CDMA transmitter. Therefore, some channel configurations result in higher PAR then others. The magnitude and frequency of the peaks is a statistical occurrence, where the typical peak is no more then 3.2-5.5 dB above the average power for 99% of the total occurrences for the highest PAR modes. These peaks appear as random narrow band spurs in the CDMA waveform. Larger peaks are possible, but will occur with no more then 1% probability. When these statistical peaks due occur, the duration is less then 1 microsecond and has negligible impact on the average power. Qualcomm did average output power with average power meter and peak output power with spectrum analyzer in various CDMA 1x configuration and EVDO Rev.0 . Below are the summary of test result from Qualcomm. Measured with average power meter Measured with spectrum analyzer : Peak output power for Configuration #1= 24.5 dBm Peak output power for Configuration #2= 24.43 dBm Peak output power for Configuration #3= 23.86 dBm Peak output power for Configuration #4= 24.41 dBm  8/30/2006 As indicated above, the Peak Vs Average is less than 1/4 dB difference. Audit questions on Pantech & Curitel Communications, Inc., FCC ID:PP4PN-E330 The average output power measured during the preliminary tests are the following : The peak output power listed in the Part 22/24 test report are the following :  8/30/2006 By comparing to the average power table and peak power table, there is almost no difference between average power and peak power. As confirmed by the test lab which performed the tests, above average output power and peak output power are the carrier output power as indicated on the Agilent 8960. Actually, they are all peak output power reading. With above statement, I do think HAC tests performed by the test lab have followed 3 G certification guideline. If you have any question, please feel free to contact me. Best Regards Mike Kuo Compliance Certification Services 561F Monterey Road Morgan Hill CA 95037 Tel: (408)463-0885 x: 105 Fax: (408)463-0888 e-mail:[email protected] http://www.ccsemc.com -----Original Message----- From: Generic Office of Engineering Technology [mailto:[email protected] ] Sent: Friday, August 25, 2006 8:04 AM To: Mike Kuo Subject: Request for additional information To: Mike Kuo From: Martin Perrine [email protected] FCC Equipment Authorization Branch Re: FCC ID: PP4PN-E330 Applicant: Pantech & Curitel Communications, Inc. Correspondence Reference Number: 31445 731 Confirmation Number: TC307001 Date of Original Email: 08/25/2006 Subject: Request for additional information Regarding your answer to question 2. HAC evaluation must account for peak power and not average. Please readdress your answer accordingly. Please provide peak power measurements associated with the various modes.  8/30/2006 The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal pursuant to Section 2.917(c). DO NOT Reply to this email by using the Reply button. In order for your response to be processed expeditiously, you must upload your response via the Internet at www.fcc.gov, E-Filing, OET TCB Electronic Filing, TCB Login. If the response is submitted through Add Attachments, a message which informs the processing staff that a new exhibit has been submitted must also be submitted via Submit Correspondence. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender.  8/30/2006

Mike Kuo Subject: FW: FCC Equipment Authorization System AN06T5778 FCC ID: PP4PN-E330  10/9/2006 From: SUN-HEE KIM (HCT) [mailto:[email protected]] Sent: Monday, October 09, 2006 12:20 AM To: Mike Kuo Cc: khpark (HCT); Scott Wang; kentkim (HCT America) Subject: Re: FCC Equipment Authorization System AN06T5778 FCC ID: PP4PN-E330 Hi Mike, Thank you for your reply. According to your request, we measeured Peak output power with Base call simulator E5515C. Plese review the following email. As you know, these are very similar. Please let us know if this is insufficient or If you have question, and continue to inform us on this project. Best Regards, SunHee, Kim ----- Original Message ----- From: Mike Kuo To: SUN -HEE KIM (HCT) Cc: kentkim (HCT America) ; Scott Wang ; khpark (HCT) Sent: Friday, October 06, 2006 5:19 PM Subject: RE: FCC Equipment Authorization System AN06T5778 FCC ID: PP4PN-E330 Hi Sun-Hee: I just came back from FCC workshop training so I have better understanding on FCC audit questions. Let us work together to satisfy FCC's questions: The only remaining issue is the justification to test only with RC3/SO55. To justify only test select modes, we need to provide PEAK output power to determine the worse case. So I need you provide the following measurements: CONDUCTED POWER Mode CDMA 800 (ch 383) CDMA 1900 (ch 600) Peak (dBm) Average (dBm) Peak (dBm) Average (dBm) RC1, SO2, Full Rate 25.0 24.9 25.0 24.8 RC1, SO55, Full Rate 25.0 24.9 25.0 24.8 RC2, SO9, Full Rate 25.0 24.9 25.0 24.9 RC2, SO55, Full Rate 25.0 24.9 25.0 24.8 RC3, SO2, Full Rate 25.0 24.8 25.0 24.9 RC3, SO55, Full Rate 25.0 24.9 25.0 24.9 RC4, SO2, Full Rate 25.0 24.9 25.0 24.9 RC4, SO55, Full Rate 25.0 24.9 25.0 24.9 RC5, SO9, Full Rate 25.0 24.9 25.0 24.8 RC5, SO55, Full Rate 25.0 24.9 25.0 24.8 RC3, SO32, (+ F-SCH) Full Rate 25.0 24.9 25.0 24.8 RC3, SO32, (+ SCH) Full Rate 25.0 24.9 25.0 24.9 After you done the measurement, if the highest PEAK output power is not RC3/SO55, then you need to do additional HAC tests on the highest PEAK output power. Do not perform HAC tests on 1xEVDO mode since it is not held to ear condition. Any question, please let me know. Best Regards Mike Kuo Compliance Certification Services 561F Monterey Road Morgan Hill CA 95037 Tel: (408)463-0885 x: 105 Fax: (408)463-0888 e-mail:[email protected] http://www.ccsemc.com  10/9/2006

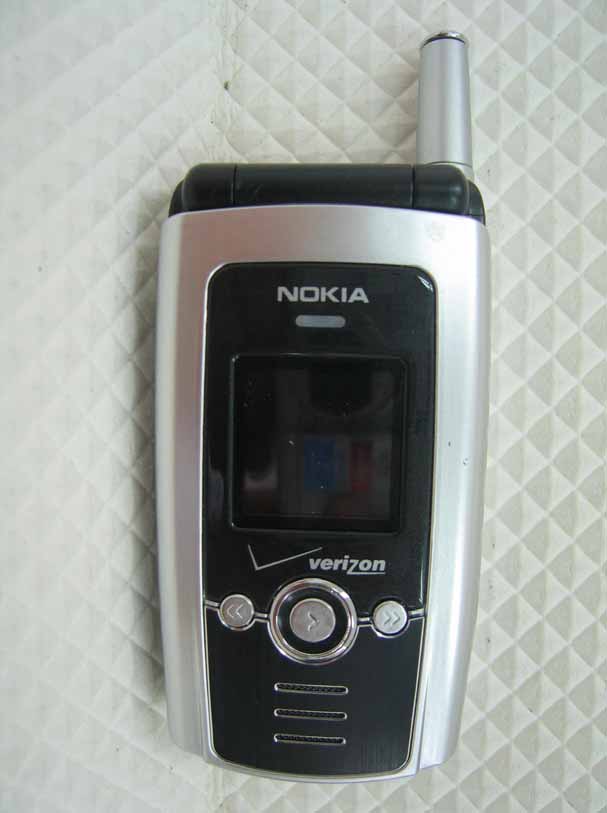

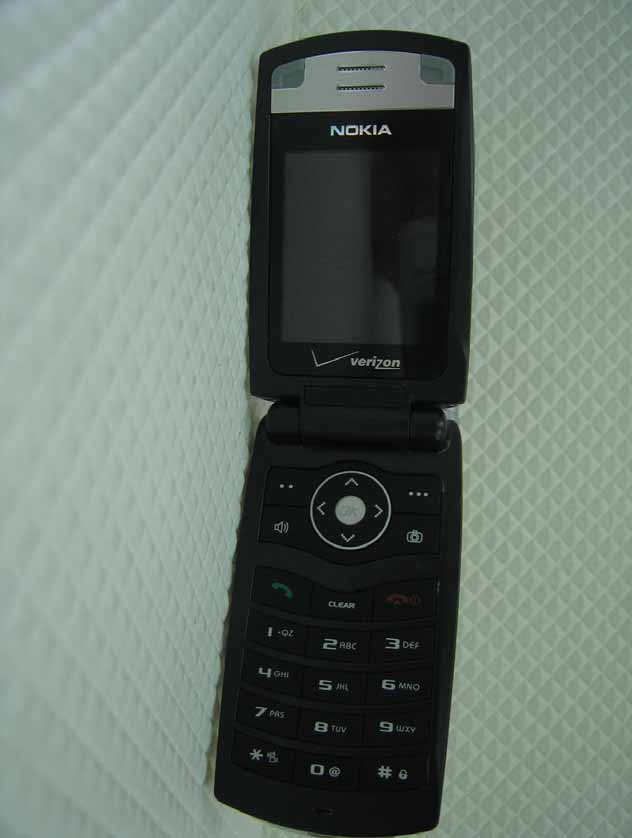

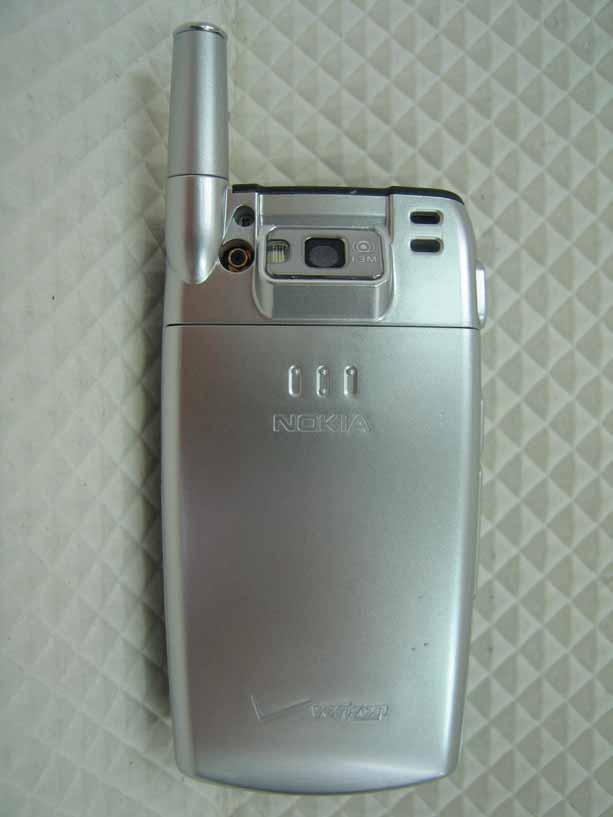

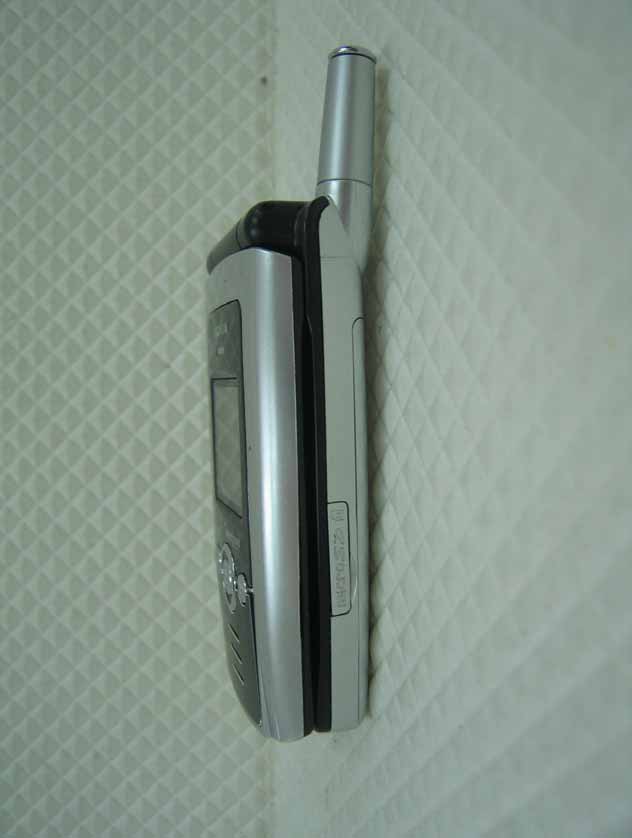

Report No.: HCT-SAR06-0508 FCC ID: PP4PN-E330 DATE: May 10, 2006 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ATTACHMENT G – EXTERNAL PHOTOGRAPHS Report No.: HCT-SAR06-0508 FCC ID: PP4PN-E330 DATE: May 10, 2006 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr EXTERNAL PHOTO Report No.: HCT-SAR06-0508 FCC ID: PP4PN-E330 DATE: May 10, 2006 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr EXTERNAL PHOTO Report No.: HCT-SAR06-0508 FCC ID: PP4PN-E330 DATE: May 10, 2006 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr EXTERNAL PHOTO Report No.: HCT-SAR06-0508 FCC ID: PP4PN-E330 DATE: May 10, 2006 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr EXTERNAL PHOTO Report No.: HCT-SAR06-0508 FCC ID: PP4PN-E330 DATE: May 10, 2006 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr EXTERNAL PHOTO Report No.: HCT-SAR06-0508 FCC ID: PP4PN-E330 DATE: May 10, 2006 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr EXTERNAL PHOTO Report No.: HCT-SAR06-0508 FCC ID: PP4PN-E330 DATE: May 10, 2006 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr EXTERNAL PHOTO Report No.: HCT-SAR06-0508 FCC ID: PP4PN-E330 DATE: May 10, 2006 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr EXTERNAL PHOTO

Report No.: HCT-SAR06-0508 FCC ID: PP4PN-E330 DATE: May 10, 2006 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ATTACHMENT E – FCC ID LABEL/ LOCATION Report No.: HCT-SAR06-0508 FCC ID: P…
