PP4PX-100Dual-Band CDMA PC Card

PX-100 User’s Manual VERIZON WIRELESS VZACCESS MANAGER 1. BEFORE USING PC57401 1.1 About this User’s Manual1 1.2 Product Overview1 1.3 What’s Inside the Product Package1 1.4 Introduction to Verizon Wireless PC5740 PC Card1 1.5 Product Features2 1.6 Product handling3 1.7 Configuration3 2. INSTALLING PC57404 2.1Precautions4 2.2 Recommended System Requirements 4 2.3 Installing Software5 2.3.1 Installation5 2.3.2 Warnings 5 2.3.3 Notes5 2.3.4 Firmware upgrade6 2.3.5 Unplugging or ejecting the card6 3. REGULATORY AND SAFETY INFORMATION8 3.1 Regulatory notices 8 3.2 Operating Conditions8 3.3 Warnings and Cautions8 3.4 Safety precautions9 4. LIMITED WARRANTY11 CONTENTS CONTENTS 1. BEFORE USING PC5740 1.1 About this User’s Manual You will find all the information you need to install and use the PC5740 in this user’s manual. Before using PC5740, you must properly install the PC5740 by closely following the installation instructions. 1.1.1 Instructions • Install the PC5740 software before inserting the PC5740 card into your laptop. The installation software is included in the product package. Insert the CD into your CD-ROM drive. Installation may take a few minutes. • It is highly recommended that you read the safety precautions described in this manual before using the PC5740. 1.2 Product Overview Thank you for purchasing Verizon Wireless PC5740 PC Card. The PC5740 is a 3G wireless card that enables high-speed wireless communication from your laptop. PC5740 is simple to install and use. 1.3 What’s Inside the Product Package Following items are included in the product package. If any of the items listed below is missing, please contact the retail location where you purchased the product. - PC5740 Wireless PC Card Modem - Installation CD that contains software and this user’s manual 1.4 Introduction to Verizon Wireless PC5740 PC Card The Verizon Wireless PC5740 is designed for type II PC card slot, which is available in most laptop models. PC5740 can be used to access the Internet, your company’s intranet, or you can use it to send and receive email. It is extremely useful when you are away from the office, on the road, or where ever a wireline Internet access is not readily available. 1 PC5740 User’s Manual 1.5 Product Features - Power management: PC5740 utilizes power management and system overhead reduction functions provided by the standard 32-bit CardBus electrical interface for maximum power savings. - Antenna design: Efficient, innovative design optimizes data transfer rate and sensitivity to network signals. - Type II PCMCIA format that supports CardBus I/O interface. - Supports North American PCS (1900 MHz) and Cellular (800 MHz) bands. - Utilizes QUALCOMM MSM6500 chip set. - Supports 3G network technologies. - Optimized data rate: Maximum 2 Mbps receiving speed and maximum 144 kbps sending speed. - Supports Win98SE, ME, 2000 and XP systems with installed host software and driver. - Provides Verizon Wireless BroadbandAccess and NationalAccess network service. 2 PC5740 User’s Manual 3 1.6 Product handling 1) Do not put any adhesive label on the PC5740 card. It may leave a sticky residue that can cause problems inside the laptop PC card slot. 2) PC5740 card should easily slide into the PC card slot. Do not force the PC5740 into the slot as it may cause damage to the card and/or the slot. 3) Keep PC5740 in a dry and clean place. (Storage temperature: - 30° to 65°C [86° to 149°F]). Keep your card away from liquids, dust and excessive heat. 1.7 Configuration To use the PC5740, you should install the software included in the installation CD and configure the PC5740 card. See the next section for more infomration on software installation and PC card configuration. PC5740 User’s Manual 4 2. INSTALLING PC5740 2.1 Precautions 1) Do not insert the PC5740 before installing the software in laptop computer. When you complete the software installation, the system will prompt you to insert the PC5740 into the Type II PC card slot. 2) Once the card has been inserted into the laptop, do not remove it from your laptop without first completing the unplugging/ejection process. (See page 6 for more information on this process.) 2.2 Recommended System Requirements To successfully install and use the PC5740 card in your laptop, the following system specifications are required. * PC5740 is not designed for hand-held or Pocket PC. SMS or voice service is not also supported. Item Operating system Card slots Processor Disk drive Memory Disk space Dial-up networking Required Specification Windows ® 98SE / Windows ® Me / Windows ® XP / Windows ® 2000 Type II PC Card slot (CardBus) Pentium 150MHz or faster CD-ROM 32 MB 14MB DUN bound to TCP/IP PC5740 User’s Manual 5 2.3 Installing Software 2.3.1 Installation • Insert the PC5740 into your laptop PC card slot. The label side should be facing up. If you use the product in any other configuration may cause it to exceed FCC RF exposure limit. • If the card is inserted properly, the Windows operation system will automatically detect the card. 2.3.2 Warnings • Make sure to complete the unplugging/ejection process before removing the PC5740. If you remove the card improperly, the product may be damaged. • Before inserting the PC5740 into your laptop’s PC Card slot, remove the Installation CD from the CD-ROM drive. 2.3.3 Notes • If you have inserted the card properly, Windows will inform you of the new hardware. Wait for a while until Windows completes “Found New Hardware” task. In Windows 98SE/2000/ME, several windows similar to “Found New Hardware” window can appear and disappear automatically. In Windows XP, several tool tips similar to the “Found New Hardware” function will appear and disappear in the system tray automatically. Once hardware detection is complete, you will be prompted to start activation. • You hear a short beep sound each time you insert or remove the PC5740, which is quite normal. It is an audible notification that your laptop recognizes the new hardware. …

Text truncated - open the document above for the full version.

SAN 136-1,AMI-RI,BUBAL-EUP, ICHEON-SI, KYOUNKI-DO, 467-701, KOREA SUBJECT: HYUNDAI Curitel Inc. FCC ID: PP4PX-100 MODEL: PX-100 Part 22 / 24 / 2 Certification Gentlemen: Submitted herewith, on behalf of HYUNDAI Curitel, Inc., is an application for Part 22 / 24 Certification of the following Dual-Mode CDMA PC Card (CDMA/PCS-CDMA): Trade Name/Model(s): HYUNDAI / PX-100 EUT Type: Dual-Mode CDMA PC Card (CDMA/PCS-CDMA) Tx Frequency: 824.70 — 848.31 MHz (CDMA) 1851.25 — 1908.75 MHz (PCS CDMA) Rx Frequency: 869.70 — 893.31 MHz (CDMA) 1931.25 — 1988.75 MHz (PCS CDMA) Max. RF Output Power: 0.266W ERP CDMA (24.3dBm) 0.292 EIRP PCS CDMA (24.7dBm) Maximum SAR: 0.440 W/kg CDMA Body SAR 1.26 W/kg PCS CDMA Body SAR Attached is the applicant’s Letter of Authorization, Confidentiality Request, ESN Affidavit, E911 compliance statement, measurement report test data and plots, RF Exposure measurement report and data, FCC ID label and location, test setup photographs, block diagram (confidential), circuit diagrams & description (confidential), operational description (confidential), parts list & tune-up procedure (confidential), and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned. Report prepared by : Ki-Soo Kim Manager of Product Compliance Team cc: Mr. Hong-Ki Kim – HYUNDAI Curitel Inc. December 14, 2004 Test Site: HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. FRN: 0005866421 TEL : +82 31 639 8518 FAX : +82 31 639 8525 http://www.hct.co.kr

HYUNDAI CURITEL INC. San 136-1, Ami-Ri, Bubal-Eub, Ichon-Si, Kyoungki-Do, 467-701, Korea Date: November 20, 2004 Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road, Columbia, MD 21046, U.S.A. Subject: Authorization Letter FCC ID: PP4PX-100 (PC Wireless Card (CDMA / PCS) HYUNDAI CURITEL INC. Part 22/ 24 Certification To whom it may concern: We, the undersigned. hereby authorized HYUNDAI Calibration & Certification Technologies Co., Ltd. to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these manners. Any and all acts carried out by HYUNDAI Calibration & Certification Technologies Co., Ltd. on our behalf shall have the same effect as acts of our own. This authorization is valid until Dec. 31, 2004. Sincerely Yours, ---------------------------------------------- Eui-Kwon Park - Project Manager R & D Center HYUNDAI CURITEL INC. San 136-1, Ami-Ri, Bubal-Eub, Ichon-Si, Kyoungki-Do, 467-701, Korea Date: November 20, 2004 Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road, Columbia, MD 21046, U.S.A. Subject: Request for Confidentiality FCC ID: PP4PX-100 (PC Wireless Card (CDMA / PCS) HYUNDAI CURITEL INC. Part 22/ 24 Certification Gentlemen: In accordance with 0.459 of CFR 47, Hyundai Curitel Inc. hereby requests confidentiality of the Block Diagrams attachment, Schematic Diagrams attachment, Operational Description attachment, and Part List/Tune-Up Procedure attachment for the above-referenced Certification application. These documents contain detailed system and equipment description and related information about the product which Hyundai Curitel Inc. considers to be proprietary, confidential, and a custom design and, otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, Hyundai Curitel Inc. feels this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give our competitors an unfair advantage in the market. Sincerely Yours, --------------------------------------------- Eui-Kwon Park - Project Manager R & D Center HYUNDAI CURITEL INC. San 136-1, Ami-Ri, Bubal-Eub, Ichon-Si, Kyoungki-Do, 467-701, Korea Date: November 20, 2004 Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046, U.S.A. Subject: User's Manual RF Exposure Warning Statement FCC ID: PP4PX-100 (PC Wireless Card (CDMA / PCS) HYUNDAI CURITEL INC. Part 22/ 24 Certification Gentlemen: Hyundai Curitel Inc. hereby confirms that the attached RF exposure warning page will be readily visible to the user, and will be placed at a prominent location in the front section of the user's manual. Should you have any questions or comments concerning the above, please do not hesitate contact me. Sincerely Yours, ----------------------------------------- Eui-Kwon Park - Project Manager R & D Center HYUNDAI CURITEL INC. San 136-1, Ami-Ri, Bubal-Eub, Ichon-Si, Kyoungki-Do, 467-701, Korea Date: November 20, 2004 AFFIDAVIT FOR ESN PROTECTION OF CELLULAR MOBILE TELEPHONES We hereby certify that the PC Wireless Card (CDMA / PCS) (FCC ID: PP4PX-100) is so designed that it complies with all the requirements for ESN protection specified in Section 22.919 of the FCC Rules. a) The transmitter in service has a unique ESN. b) The ESN host component is permanently attached to a main circuit board of the mobile transmitter and the integrity of the unit operating software cannot be altered. The ESN is plated from fraudulent contact and tampering. The ESN is encoded using multiplication by a polynomial and the ESN data programmed in the memory with other information. c) The ESN is factory-set and cannot be altered, transferred, removed or otherwise able to be manipulated. Cellular mobile equipment is specifically designed such that any attempt to remove, tamper with, or change the ESN chip, its logic system, or firmware originally programmed by the manufacturer will render the mobile transmitter inoperative. Sincerely Yours, ---------------------------------------- Eui-Kwon Park - Project Manager R & D Center

Mike Kuo From: [email protected] Sent: December30 2004 Thursday 5:20 PM To: Mike Kuo Cc: Scott Wang; 'KiSoo Kim (HCT)' Subject: Fw: HYUNDAI CURITEL INC., FCC ID: PP4PX-100, Assessment NO.: AN04T4414, Notice#1 12/30/2004 Dear Sir, We'd like to know current status on the below project ? Please this project completed as soon as possible. Best Regards, Keun- Ho Park - HCT ----- Original Message ----- From: ??? (HCT) To: MIKE KUO (CCSEMC) Cc: ??? (HCT) ; SCOTT WANG(CCS) ; ??? (HCT) ; KiSoo Kim (HCT) ; Chris Harvey (CCS) Sent: Friday, December 24, 2004 5:05 PM Subject: Re: HYUNDAI CURITEL INC., FCC ID: PP4PX-100, Assessment NO.: AN04T4414, Notice#1 Dear Sir, According to your request so resend the e-mail and attachment file. FCC ID : PP4PX -100 1) Applicant Name : HYUNDAI CURITEL INC. 2) Application Product : PC Wireless Card (CDMA/ PCS CDMA) 3) Model Name : PX-100 4) Applicant ID: T11390 5) Application Assessment Number : AN04T4414 6) Application Date: December 14, 2004 Please this project completed as soon as possible. If you have questions or comments on this application, please do not hesitate to conatct us. Thanks and Best Regards, Keun-Ho Park - HCT ----- Original Message ----- From: "Mike Kuo" <[email protected] > To: "Mike Kuo" <[email protected]>; "Ki-Soo Kim (HCT) (E-mail)" <[email protected]> Sent: Wednesday, December 22, 2004 9:43 AM Subject: RE: HYUNDAI CURITEL INC., FCC ID: PP4PX-100, Assessment NO.: AN04T4414, Notice#1 > One more queestion : > > Question #6: First page of block diagram, it indicates Bluetooth function. Please explain. ====> We've revised the Block diagram. (Non include bluetooth ) Please find the attached file submit. (File name: ATT. I (Block Diagram)) > > Best Regards > > Mike Kuo > > -----Original Message----- > From: Mike Kuo > Sent: Tuesday, December 21, 2004 4:35 PM > To: Ki-Soo Kim (HCT) (E-mail) > Subject: FW: HYUNDAI CURITEL INC., FCC ID: PP4PX-100, Assessment NO.: AN04T4414, Notice#1 > > -----Original Message----- > From: Compliance Certification Services [mailto:[email protected]] > Sent: Tuesday, December 21, 2004 4:11 PM > To: Mike Kuo > Subject: HYUNDAI CURITEL INC., FCC ID: PP4PX-100, Assessment NO.: AN04T4414, Notice#1 > > > Question #1: Page 1 of Part 22/24 test report, please change EUT description from Dual-Mode CDMA Phone (CDMA/ PCS CDMA) to Dual-Mode CDMA PC Card ( CDMA/PCS-CDMA). ====> We've revised the RF report/ SAR report acd cover letter. Please find the attached file submit. (File name: ATT. C (RF REPORT)- PX-100==> page 1, 3)/ ATT. N (SAR REPORT)==> 1, 3)/ ATT. A (COVER LETTER)- PX-100)) > Question #2: Please explain why the antenna type is " retractable " as indicated in page 3 of Part 22/24 test report and in SAR test report. ====> We've revised the RF REPORT. Please find the attached file submit. (File name: ATT. C (RF REPORT)- PX-100==> page 3) > Question #3: In the Part 22/24 test report, there are a lots of test procedures included which are not applicable to this filing. Please review 22/24 test report and delete any non-applicable sections . 12/30/2004 The necessary bandwidth on page 28 include AMPs modulation and the FCC ID number listed on the last page is not agreed with proposed FCC ID in this filing. ====> We've revised the RF REPORT. Please find the attached file submit. (File name: ATT. C (RF REPORT)- PX-100==> page 28) > Question #4: Please review the RF exposure information contains in the user manual. There are 20 cm separation distance, body worn, belt clip etc. and 1 cm from user, 1.5 cm from by stander. Please harmonize the RF exposure information to include only the separation distance is required for this device. ====> We've revised the user manual. Please find the attached file submit. (File name: ATT. M (Manual)==> page 16) > Question #5: This PC card has been investigated for SAR compliance with three different types of notebook computers. However, only one test setup photo is provided and which notebook computer is unknown. In addition, the separation distance from the bottom of notebook computer to the flat phantom are all at 20 mm. It is unlikely that all three notebook computers can have same device to lap separation distance. Please provide test setup photos for all three notebook computers with indication of separation distance and manufacturer name. ====> We've revised the SAR REPORT and SAR TEST SET-UP PHOTO. Please find the attached file submit. (File name: ATT. N (SAR REPORT) ==> page 28)/ ATT. P (SAR TEST SET-UP PHOTO)==> page 28 • PC#1 Manufacturer / Model(s): H.P / Pavilion zv5000 ===> device to lap separation distance: 20 mm / device to vertical separation distancevertical: 15 mm • PC#2 Manufacturer / Model(s): COMPAQ / Presario R300===> device to lap separation distance: 18 mm / device to vertical separation distancevertical: 15 mm • PC#3 Manufacturer / Model(s): TOSHIBA / 5205-S505===> device to lap separation distance: 20 mm / device to vertical separation distancevertical: 15 mm > > Best Regards > > Mike Kuo > > The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e- mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender. > > > 12/30/2004

. Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: PP4PX-100 To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Theory of Operation Parts List Tune-Up Procedure Antenna Specification (new request) Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments until 29 May 2005 : External Photos Internal Photos Test Setup Photos User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondence during certification review process cannot be granted as confidential documents and such information will be available for public review once the grant of equipment authorization is issued. Best Regards Sam(Sang-Youn) Hwang Exec Director Hyundai Curitel Inc. 11 March 2005

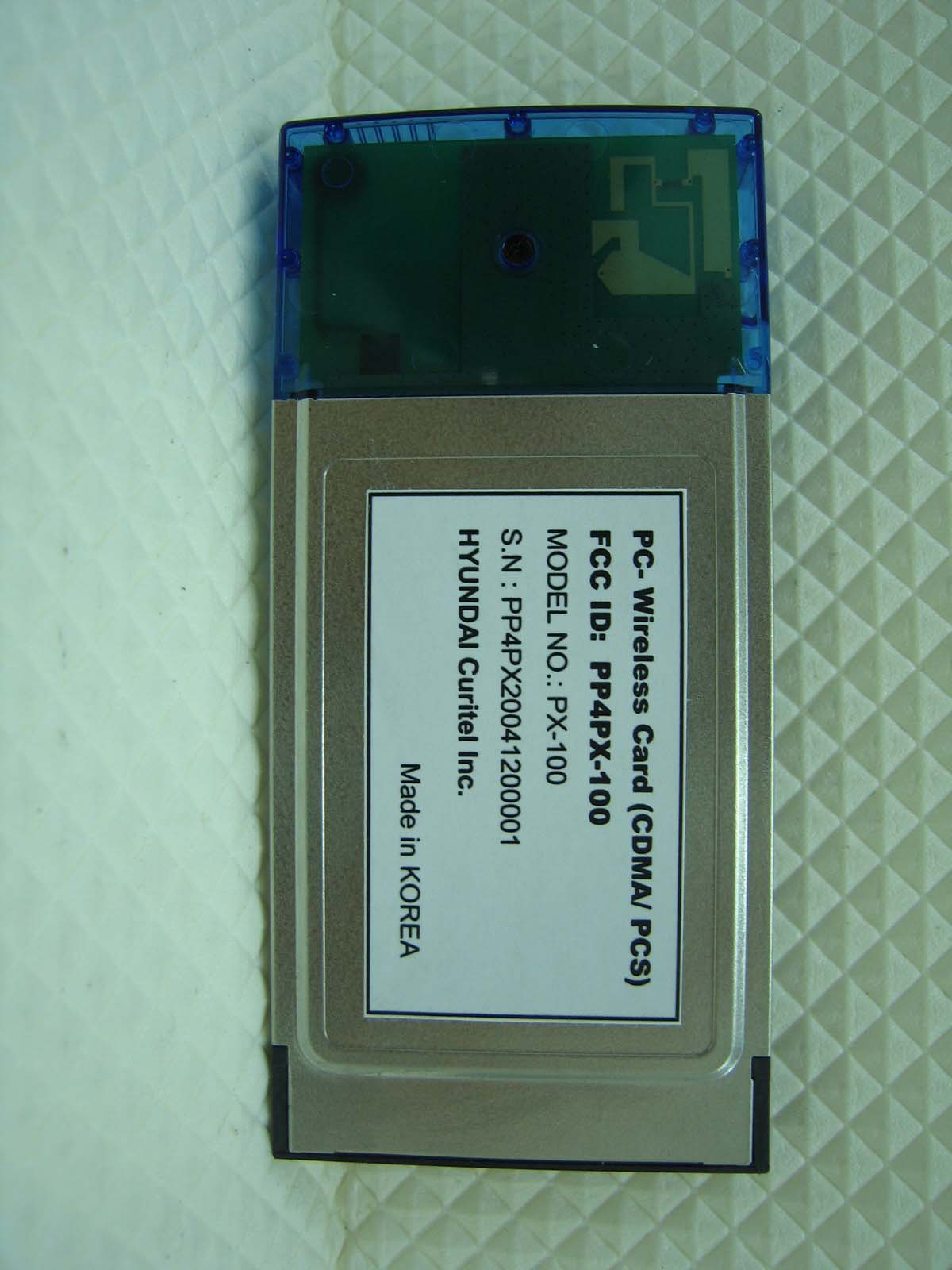

Report No.: HCT-SAR04-1206 FCC ID: PP4PX-100 DATE: December 8, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ATTACHMENT G – EXTERNAL PHOTOGRAPHS Report No.: HCT-SAR04-1206 FCC ID: PP4PX-100 DATE: December 8, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ EXTERNAL PHOTO Report No.: HCT-SAR04-1206 FCC ID: PP4PX-100 DATE: December 8, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ EXTERNAL PHOTO Report No.: HCT-SAR04-1206 FCC ID: PP4PX-100 DATE: December 8, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ EXTERNAL PHOTO Report No.: HCT-SAR04-1206 FCC ID: PP4PX-100 DATE: December 8, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ EXTERNAL PHOTO Report No.: HCT-SAR04-1206 FCC ID: PP4PX-100 DATE: December 8, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ EXTERNAL PHOTO Report No.: HCT-SAR04-1206 FCC ID: PP4PX-100 DATE: December 8, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ EXTERNAL PHOTO

Report No.: HCT-SAR04-1206 FCC ID: PP4PX-100 DATE: December 8, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ATTACHMENT E – FCC ID LABEL/ LOCATION Report No.: HCT-SAR04-1206 FCC ID: PP4PX-100 DATE: December 8, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr LABELLING REQUIREMENTS PER §§ 2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. ( SEE NEXT PAGE ) Report No.: HCT-SAR04-1206 FCC ID: PP4PX-100 DATE: December 8, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr

Report No.: HCT-SAR04-1206 FCC ID: PP4PX-100 DATE: December 8, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ATTACHMENT H – INTERNAL PHOTOGRAPHS Report No.: HCT-SAR04-1206 FCC ID: PP4PX-100 DATE: December 8, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ INTERNAL PHOTO Report No.: HCT-SAR04-1206 FCC ID: PP4PX-100 DATE: December 8, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ INTERNAL PHOTO Report No.: HCT-SAR04-1206 FCC ID: PP4PX-100 DATE: December 8, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ INTERNAL PHOTO Report No.: HCT-SAR04-1206 FCC ID: PP4PX-100 DATE: December 8, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ INTERNAL PHOTO

HYUNDAI CALIBRATION & CERTIFICATION TECH. CO., LTD. PRODUCT COMPLIANCE DIVISION SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr CERTIFICATE OF COMPLIANCE (SAR EVALUATION) EUT Type: Dual-Mode CDMA PC Card (CDMA/PCS-CDMA) Tx Frequency: 824.70 — 848.31 MHz (CDMA) 1851.25 — 1908.75 MHz (PCS CDMA) Rx Frequency: 869.70 — 893.31 MHz (CDMA) 1931.25 — 1988.75 MHz (PCS CDMA) Max. RF Output Power: 0.316W CDMA (25.0dBm) / 0.316W PCS CDMA (25.0dBm): Conducted 0.266W ERP CDMA (24.3dBm)/ 0.292 EIRP PCS CDMA (24.7dBm) Trade Name/Model(s): HYUNDAI / PX-100 FCC Classification: Licensed Portable Transmitter worn on body (PCT) Application Type: Certification FCC Rule Part(s): §2.1093; FCC/ OET Bulletin Supplement C [July 2001] Maximum SAR: 0.440W/kg CDMA Body SAR 1.260W/kg PCS CDMA Body SAR This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/ IEEE Std. C95.1- 1992 and had been tested in accordance with the measurement procedures specified in ANSI/ IEEE Std. C95.3- 1992. (See Test Report). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Hyundai C-Tech Co., Ltd. Certifies that no party to this application has been denied FCC benefits pursuant to section 5301 of the Anti- Drug Abuse Act of 1998, 21 U.S. C. 853(a) Report prepared by : Ki-Soo Kim Manager of Product Compliance Team This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the HCT Co., Ltd. FCC ID : APPLICANT : PP4PX-100 HYUNDAI CURITEL INC. Date of Issue: December 8, 2004 Test Report No.: HCT-SAR04-1206 Test Site: HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. FRN: 0005866421 HYUNDAI CURITEL INC. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701,KOREA FRN: 0006278469 Report No.: HCT-SAR04-1206 FCC ID : PP4PX-100 DATE : December 8, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ２ of 24 Table of Contents 1.1 SCOPE ---------------------------------------------------------------------------------------------------------- 2.1 INTRODUCTION / SAR DEFINITION --------------------------------------------------------------------- 3.1 SAR MEASUREMENT SET-UP --------------------------------------------------------------------------- 4.1 E-FIELD PROBE SYSTEM --------------------------------------------------------------------------------- 5.1 EUT ARRANGEMENT ------------------------------------------------------------------------------------- 6.1 E-FIELD PROBE CALIBRATION PROCESS -------------------------------------------------------- 7.1 PHANTOM, HOLDER, & EQUIVALENT TISSUE --------------------------------------------------- 8.1 SYSTEM SPECIFICATIONS ------------------------------------------------------------------------------ 9.1 MEASUREMENT PROCESS ------------------------------------------------------------------------------ 10.1 ANSI/ IEEE C95.1 - 1992 RF EXPOSURE LIMITS -------------------------------------------------------- 11.1 MEASUREMENT UNCERTAINTIES ------------------------------------------------------------------- 12.1 TEST DATA SUMMARY ---------------------------------------------------------------------------------- 13.1 SAR TEST EQUIPMENT LIST --------------------------------------------------------------------------- 14.1 CONCLUSION ------------------------------------------------------------------------------------------------ 15.1 REFERENCES -------------------------------------------------------------------------------------------- 3 4 5 6 7-8 9-10 11 12 13 14 15 16-20 22 23 24 Report No.: HCT-SAR04-1206 FCC ID : PP4PX-100 DATE : December 8, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ３ of 24 SAR MEASUREMENT REPORT 1.1 SCOPE Environmental evaluation measurements of specific absorption rate 1 (SAR) distributions in emulated human head and body tissues exposed to radio frequency (RF) radiation from wireless portable devices for compliance with the rules and regulations of the U.S. Federal Communications Commission (FCC). 2 1. 2 Applicant • EUT Type: Dual-Mode CDMA PC Card (CDMA/PCS-CDMA) • Trade Name: HYUNDAI • Model(s): PX-100 • FCC ID: PP4PX-100 • Serial Number(s): PPPX420041200001 • Tx Frequency: 824.70 – 848.31 MHz (CDMA) 1851.25 – 1908.75 MHz (PCS CDMA) • Rx Frequency: 869.70 – 893.31 MHz (CDMA) 1931.25 – 1988.75 MHz (PCS CDMA) • Application Type: Certification • FCC Classification: Licensed Portable Transmitter worn on body (PCT) • FCC Rule Part(s): §2.1093; FCC/ OET Bulletin Supplement C [July 2001] • Modulation(s): CDMA • Αntenna Type: Retractable (Retracted/Extended) • Max RF. Output Power: 0.440 W/kg CDMA Body SAR 1.26 W/kg PCS CDMA Body SAR • Date(s) of Tests: December 6, 2004 – December 7, 2004 • Place of Tests: Hyundai C-Tech. EMC Lab. Icheon, Kyounki-Do, KOREA • Report Serial No.: HCT-SAR04-1206 • PC#1 Manufacturer / Model(s): H.P / Pavilion zv5000 • PC#2 Manufacturer / Model(s): COMPAQ / Presario R300 • PC#3 Manufacturer / Model(s): TOSHIBA / 5205-S505 1 Specific Absorption Rate (SAR) is a measure of the rate of energy absorption due to exposure to an RF transmitting source (wireless portable device). 2 IEEE/ANSI Std. C95.1-1992 limits are used to determine compliance with FCC ET Docket 93-62. Company Name: HYUNDAI CURITEL INC. Address: San 136-1, Ami-Ri, Bubal-Eub, Ichon-Si,…

Text truncated - open the document above for the full version.

Report No.: HCT-SAR04-1206 FCC ID : PP4PX-100 DATE : December 8, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ATTACHMENT O – SAR TEST PLOTS (1 of 2) Report No.: HCT-SAR04-1206 FCC ID : PP4PX-100 DATE : December 8, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR04-1206 FCC ID : PP4PX-100 DATE : December 8, 2004 HYUNDAI …
