PP4PX-21BSingle-Mode PCS Phone (PCS CDMA)

Pantech Co., Ltd.

Click to zoom

Application Details

Equipment Class: PCE - PCS Licensed Transmitter held to ear
Date of Grant: Sep 06, 2001
Application Purpose: Original Equipment
Date of Application: Aug 09, 2001
Equipment Note: Single-Mode PCS Phone (PCS CDMA)
Frequency Range: 1851.25000000 - 1908.75000000
Company: Pantech Co., Ltd.
Country: South Korea

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

For more information about RF exposure, please visit the FCC website at www.fcc.gov FCC RF EXPOSURE INFORMATION In August 1996 the Federal Communications Commission (FCC) of the United States with its action in Report and Order FCC 96-326 adopted an updated safety standard for human exposure to radio frequency electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the safety standard previously set by both U.S. and international standards bodies. The design of this phone complies with the FCC guidelines and these international standards. Use only the supplied or an approved antenna. Unauthorized antennas, modifications, or attachments could impair call quality, damage the phone, or result in violation of FCC regulations. Do not use the phone with a damaged antenna. If a damaged antenna comes into contact with the skin, a minor burn may result. Please contact your local dealer for replacement antenna. Body-worn Operation This device was tested for typical body-worn operations with the back of the phone kept 1.6 cm. from the body. To maintain compliance with FCC RF exposure requirements, use only belt-clips, holsters or similar accessories that maintain a 1.6 cm. separation distance between the user’s body and the back of the phone, including the antenna, whether extended or retracted. The use of third-party belt-clips, holsters and similar accessories should not contain metallic components in its assembly. The use of accessories that do not satisfy these requirements may not comply with FCC RF exposure requirements, and should be avoided. WARNING! Read this information before using your phone

Cover Letter(s)

August 8, 2001 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: HYUNDAI Curitel Inc. FCC ID: PP4PX-21B Part 24 Certification Gentlemen: Attached herewith, on behalf of HYUNDAI Curitel Inc. is an application for Part 22 Certification of the following Single Mode PCS Phone (PCS CDMA): FCC ID: PP4PX-21B TRADE / MODEL(s): HYUNDAI PX-21B EUT TYPE: Licensed Portable Transmitter Held to Ear (PCE) Tx Freq. Range: 1851.25 — 1908.75 MHz (PCS CDMA) Rx Freq. Range: 1931.25 — 1988.75 MHz (PCS CDMA) Max. Output Power: 0.294 W EIRP PCS CDMA (24.681 dBm) Max. SAR Measurements: 1.4247 W/kg Brain SAR; 0.6298 W/kg Body SAR; Attached is the applicant’s Letter of Authorization, Confidentiality Request, ESN Affidavit, measurement report data and plots, RF Exposure measurement report, FCC ID label and location, test setup photographs, internal and external photographs, block diagrams (confidential), schematic diagrams (confidential), operational description (confidential), parts list & tune-up procedure (confidential), and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned. cc: Mr. Ki-Soo Kim, QA Dept. HYUNDAI Curitel Inc.

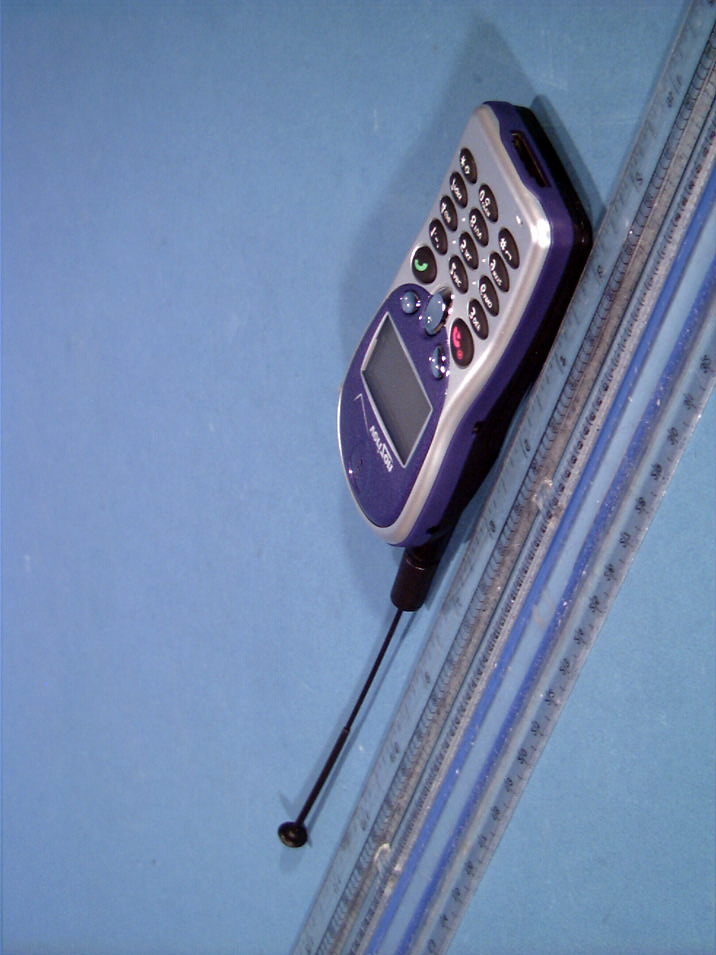

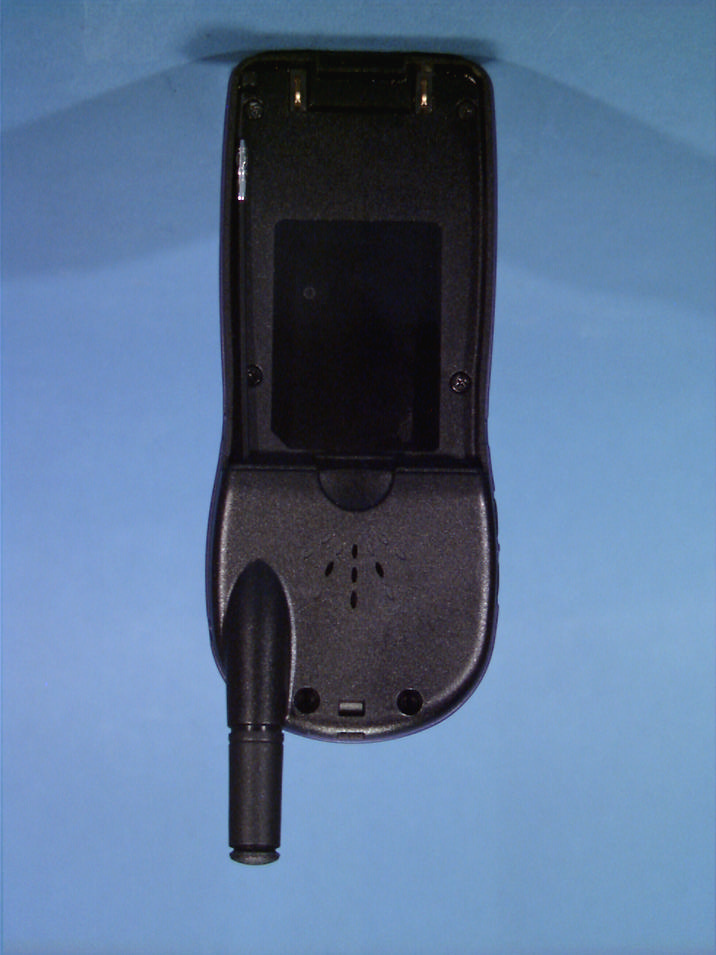

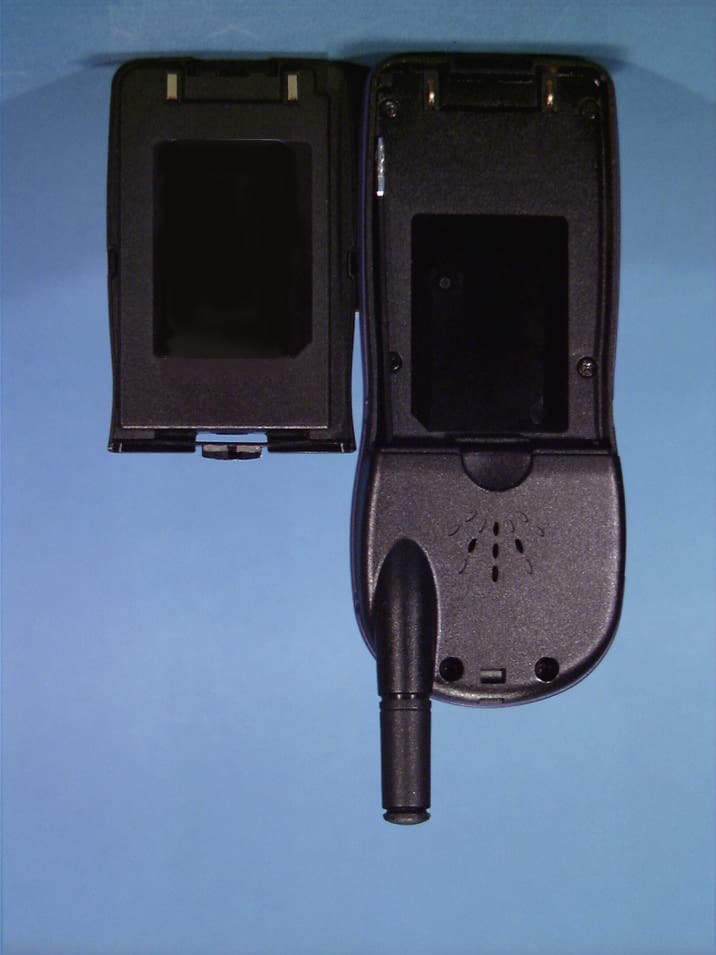

External Photos

ID Label/Location Info

© 2001 PCTEST Lab FCC ID SAMPLE LABEL & LOCATION • LABELLING REQUIREMENTS PER §§ 2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. (SEE NEXT PAGE) EXHIBIT. 4 IDENTIFICATION LABEL with regard to the FCC Rule Part 2.983 According to the requirement section 2.925 an 2.926, the sample label shown below shall be permanently affixed at a conspicuous location on the device supplied to the user and be readily visible to the purchaser at the time purchase. DEN PHONE FCC ID : PP4PX-21B SERIAL NO. : MADE IN KOREA HYUNDAI ELECTRONICS IND. CO., LTD. MODEL TX -21B

Internal Photos

© 2001 PCTEST Lab FCC ID: PP4PX-21B (Model: PX-21B) NVLAP Lab Code: 100431-0 HYUNDAI Single-Mode PCS Phone © 2001 PCTEST Lab FCC ID: PP4PX-21B (Model: PX-21B) NVLAP Lab Code: 100431-0 HYUNDAI Single-Mode PCS Phone © 2001 PCTEST Lab FCC ID: PP4PX-21B (Model: PX-21B) NVLAP Lab Code: 100431-0 HYUNDAI Single-Mode PCS Phone © 2001 PCTEST Lab FCC ID: PP4PX-21B (Model: PX-21B) NVLAP Lab Code: 100431-0 HYUNDAI Single-Mode PCS Phone © 2001 PCTEST Lab FCC ID: PP4PX-21B (Model: PX-21B) NVLAP Lab Code: 100431-0 HYUNDAI Single-Mode PCS Phone © 2001 PCTEST Lab FCC ID: PP4PX-21B (Model: PX-21B) NVLAP Lab Code: 100431-0 HYUNDAI Single-Mode PCS Phone © 2001 PCTEST Lab FCC ID: PP4PX-21B (Model: PX-21B) NVLAP Lab Code: 100431-0 HYUNDAI Single-Mode PCS Phone © 2001 PCTEST Lab FCC ID: PP4PX-21B (Model: PX-21B) NVLAP Lab Code: 100431-0 HYUNDAI Single-Mode PCS Phone © 2001 PCTEST Lab FCC ID: PP4PX-21B (Model: PX-21B) NVLAP Lab Code: 100431-0 HYUNDAI Single-Mode PCS Phone © 2001 PCTEST Lab FCC ID: PP4PX-21B (Model: PX-21B) NVLAP Lab Code: 100431-0 HYUNDAI Single-Mode PCS Phone © 2001 PCTEST Lab FCC ID: PP4PX-21B (Model: PX-21B) NVLAP Lab Code: 100431-0 HYUNDAI Single-Mode PCS Phone

RF Exposure Info

Peak SAR Location © 2001 PCTEST Lab HYUNDAI FCC ID: PP4PX-21B (Model: PX-21B) NVLAP Lab Code: 100431-0 Single-Mode PCS Phone (PCS CDMA) Head SAR File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/01072309_ZOOM.VLT Start : 23-Jul-101 12:36:23 pm End : 23-Jul-101 12:45:41 pm Radio Type : HYUNDAI Model Number : PX-21B Serial Number : 20 Frequency : 1851.25 MHz Peak Trans. Pwr : 0.280 W Start Trans. Pwr: 0.280 W Antenna Type : Helical Antenna Posn. : In Phantom Type : Head Phantom Posn. : Left Ear Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Brain Mixture Dielectric Constant = 40.400 Mixture Conductivity = 1.620 Comment : HYUNDAI PCS MODE PHONE CH 0025 24.5 dBm Conducted HYUNDAI PCS MODE PHONE Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 1.201 PCTEST Amplifier Channel Settings : 0.245 0.231 0.224 Max Location : X = 0.250, Y = -2.250, Z = 0.000 (cm) Value = 15.104 Measured Values (volts) = 1.472E-002 1.077E-002 8.061E-003 5.724E-003 4.231E-003 2.983E-003 2.235E-003 1.714E-003 1.253E-003 1.013E-003 7.194E-004 5.101E-004 3.521E-004 2.513E-004 2.473E-004 2.593E-004 1.907E-004 1.317E-004 4.775E-005 6.336E-005 4.601E-005 Calc. Voltage @ Surface (Vs) = 0.0199 Voltage @ 1.00 cm (Vt) = 0.0057 Ave. Voltage (Vs+Vt)/2 = 0.0128 Ave. SAR over 1 g (mW/g) = 1.4247 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0 2.2 2.4 mW/g -1012345 Z centimeters SAR Scan File : 01072309_ZOOM Start : 23-Jul-101 12:36:23 pm End : 23-Jul-101 12:45:41 pm HYUNDAI/PX-21B/20;1851.25MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/40.400/1.620 File : 01072309_ZOOM Start : 23-Jul-101 12:36:23 pm End : 23-Jul-101 12:45:41 pm HYUNDAI/PX-21B/20;1851.25MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/40.400/1.620 1.68 1.55 1.42 1.29 1.16 1.03 0.90 0.77 0.64 0.51 File : 01072309_ZOOM Start : 23-Jul-101 12:36:23 pm End : 23-Jul-101 12:45:41 pm HYUNDAI/PX-21B/20;1851.25MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/40.400/1.620 1.68 1.55 1.42 1.29 1.16 1.03 0.90 0.77 0.64 0.51 File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/01072308_ZOOM.VLT Start : 23-Jul-101 12:25:08 pm End : 23-Jul-101 12:34:27 pm Radio Type : HYUNDAI Model Number : PX-21B Serial Number : 20 Frequency : 1851.25 MHz Peak Trans. Pwr : 0.280 W Start Trans. Pwr: 0.280 W Antenna Type : Helical Antenna Posn. : Out Phantom Type : Head Phantom Posn. : Left Ear Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Brain Mixture Dielectric Constant = 40.400 Mixture Conductivity = 1.620 Comment : HYUNDAI PCS MODE PHONE CH 0025 24.5 dBm Conducted HYUNDAI PCS MODE PHONE Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 1.201 PCTEST Amplifier Channel Settings : 0.245 0.231 0.224 Max Location : X = 0.250, Y = -2.250, Z = 0.000 (cm) Value = 14.091 Measured Values (volts) = 1.365E-002 9.544E-003 6.936E-003 4.820E-003 3.545E-003 2.591E-003 2.040E-003 1.532E-003 1.160E-003 8.622E-004 5.705E-004 4.707E-004 3.670E-004 2.931E-004 2.679E-004 2.419E-004 2.051E-004 1.283E-004 6.835E-005 8.055E-005 1.073E-004 Calc. Voltage @ Surface (Vs) = 0.0192 Voltage @ 1.00 cm (Vt) = 0.0048 Ave. Voltage (Vs+Vt)/2 = 0.0120 Ave. SAR over 1 g (mW/g) = 1.3330 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0 2.2 mW/g -1012345 Z centimeters SAR Scan File : 01072308_ZOOM Start : 23-Jul-101 12:25:08 pm End : 23-Jul-101 12:34:27 pm HYUNDAI/PX-21B/20;1851.25MHz;W;Helical/Out; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/40.400/1.620 File : 01072308_ZOOM Start : 23-Jul-101 12:25:08 pm End : 23-Jul-101 12:34:27 pm HYUNDAI/PX-21B/20;1851.25MHz;W;Helical/Out; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/40.400/1.620 1.57 1.43 1.30 1.17 1.03 0.90 0.77 0.63 0.50 0.37 File : 01072308_ZOOM Start : 23-Jul-101 12:25:08 pm End : 23-Jul-101 12:34:27 pm HYUNDAI/PX-21B/20;1851.25MHz;W;Helical/Out; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/40.400/1.620 1.57 1.43 1.30 1.17 1.03 0.90 0.77 0.63 0.50 0.37 File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/01072307_ZOOM.VLT Start : 23-Jul-101 12:12:50 pm End : 23-Jul-101 12:22:08 pm Radio Type : HYUNDAI Model Number : PX-21B Serial Number : 20 Frequency : 1880.00 MHz Peak Trans. Pwr : 0.280 W Start Trans. Pwr: 0.280 W Antenna Type : Helical Antenna Posn. : In Phantom Type : Head Phantom Posn. : Left Ear Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Brain Mixture Dielectric Constant = 40.400 Mixture Conductivity = 1.620 Comment : HYUNDAI PCS MODE PHONE CH 0600 24.5 dBm Conducted HYUNDAI PCS MODE PHONE Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 1.201 PCTEST Amplifier Channel Settings : 0.245 0.231 0.224 Max Location : X = 0.250, Y = -2.750, Z = 0.000 (cm) Value = 11.253 Measured Values (volts) = 1.032E-002 7.938E-003 5.564E-003 4.350E-003 3.084E-003 2.330E-003 1.681E-003 1.325E-003 9.676E-004 7.406E-004 5.456E-004 3.892E-004 2.529E-004 2.083E-004 1.885E-004 1.595E-004 1.563E-004 1.027E-004 4.604E-005 8.547E-005 6.021E-005 Calc. Voltage @ Surface (Vs) = 0.0141 Voltage @ 1.00 cm (Vt) = 0.0044 Ave. Voltage (Vs+Vt)/2 = 0.0092 Ave. SAR over 1 g (mW/g) = 1.0244 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 mW/g -1012345 Z centimeters SAR Scan File : 01072307_ZOOM Start : 23-Jul-101 12:12:50 pm End : 23-Jul-101 12:22:08 pm HYUNDAI/PX-21B/20;1880.00MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/40.400/1.620 File : 01072307_ZOOM Start : 23-Jul-101 12:12:50 pm End : 23-Jul-101 12:22:08 pm HYUNDAI/PX-21B/20;1880.00MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/40.400/1.620 1.251 1.155 1.059 0.963 0.867 0.771 0.674 0.578 0.482 0.386 File : 01072307_ZOOM Start : 23-Jul-101 12:12:50 pm End : 23-Jul-101 12:22:08 pm HYUNDAI/PX-21B/20;1880.00MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/40.400/1.620 1.251 1.155 1.059 0.96…

Text truncated - open the document above for the full version.

RF Exposure Info

© 2001 PCTEST Engineering Lab., Inc. 6660-B Dobbin Road • Columbia, MD 21045 • U.S.A. TEL (410) 290-6652 • FAX (410) 290-6654 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE (SAR EVALUATION) HYUNDAI Curitel, Inc. Dates of Tests: July 23-24, 2001 San 136-1, Ami-Ri, Bubal-Eub, Ichon-Si, Test Report S/N: SAR.210802471.PP4 Kyoungki-Do, KOREA 467-701 Test Site: PCTEST Lab, Columbia, MD USA Attn: Mr. Hong-Ki Kim FCC ID PP4PX-21B APPLICANT HYUNDAI Curitel, Inc. EUT Type: Single-Mode PCS Phone (PCS CDMA) Tx Frequency: 1851.25 – 1908.75 MHz (PCS CDMA) Rx Frequency: 1931.25 – 1988.75 MHz (PCS CDMA) Max. RF Output Power: 0.294 W EIRP PCS CDMA (24.681 dBm) Trade Name/Model(s): HYUNDAI PX-21B FCC Classification: Licensed Portable Transmitter Held to Ear (PCE) Application Type: Certification FCC Rule Part(s): §2.1093; ET Docket 96.326 Maximum SAR: 1.4247 W/kg Brain SAR; 0.6298 W/kg Body SAR This wireless portable device has been shown to be compliant for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and has been tested in accordance with the measurement procedures specified in ANSI/IEEE Std. C95.3-1992. (See Test Report) I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. NVLAP accreditation does not constitute any product endorsement by NVLAP or any agency of the United States Government. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. 210802471.PP4 Test Report S/N: SAR.210802471.PP4 SAR Measurement Report Test Dates: JULY 23-24, 2001 FCC Part 24 Certification FCC ID: PP4PX-21B (Model: PX-21B) © 2001 PCTEST Lab HYUNDAI Single-Mode PCS Phone (PCS CDMA) i Table of Contents 1.1 SCOPE....................................................................................................1 2.1 INTRODUCTION......................................................................................2 2.2 SAR Definition.......................................................................................................2 3.1 SAR MEASUREMENT SET-UP................................................................3 4.1 ISOTROPIC E-FIELD PROBE SYSTEM....................................................4 5.1 E-field PROBE CALIBRATION PROCESS................................................5 6.1 PHANTOM AND EQUIVALENT TISSUES.................................................7 7.1 SYSTEM SPECIFICATIONS.....................................................................8 8.1 MEASUREMENT PROCESS.....................................................................9 9.1 TEST POSITION OF THE PHONE..........................................................10 10.1 BODY-WORN TEST SETUP................................................................11 11.1 ANSI/IEEE C95.1 - 1992 RF EXPOSURE LIMITS..................................12 12.1 MEASUREMENT UNCERTAINTIES.......................................................13 13.1 SAR TEST DATA SUMMARY...............................................................14 14.1 SAR TEST EQUIPMENT.......................................................................16 15.1 CONCLUSION.....................................................................................17 Test Report S/N: SAR.210802471.PP4 SAR Measurement Report Test Dates: July 23-24, 2001 FCC Part 24 Certification FCC ID: PP4PX-21B (Model: PX-21B) © 2001 PCTEST Lab HYUNDAI Single-Mode PCS Phone (PCS CDMA) 1 SAR MEASUREMENT REPORT 1.1 SCOPE Environmental evaluation measurements of specific absorption rate 1 (SAR) distributions in simulated human tissues exposed to radiofrequency (RF) radiation from wireless portable devices for compliance with the rules and regulations of the U.S. Federal Communications Commission (FCC). 2 Company Name: HYUNDAI Curitel, Inc. Address: San 136-1, Ami-Ri, Bubal-Eub, Ichon-Si, Kyoungki-Do, KOREA 467-701 Attention: Mr. Hong-Ki Kim • EUT Type: Single-Mode PCS Phone (PCS CDMA) • Trade Name: HYUNDAI • Model(s): PX-21B • FCC IDENTIFIER: PP4PX-21B • Tx Frequency: 1851.25 – 1908.75 MHz (PCS CDMA) • Rx Frequency: 1931.25 – 1988.75 MHz (PCS CDMA) • Application Type: Certification • FCC Classification: Licensed Portable Transmitter Held to Ear (PCE) • FCC Rule Part(s): § 2.1093, Docket 96-326 • Modulation(s): CDMA • Max RF. Output Power: 0.294W EIRP PCS CDMA (24.681 dBm) • Date(s) of Tests: July 23-24, 2001 • Place of Tests: PCTEST Engineering Lab. Columbia, MD, U.S.A. • Report Serial No.: SAR.210802471.PP4 1 Specific Absorption Rate (SAR) is a measure of the rate of energy absorption due to exposure to an RF transmitting source (wireless portable device). 2 IEEE/ANSI Std. C95.1-1992 limits are used to determine compliance with FCC ET-Docket 93-62. Fig. 1 SAR Test Setup Test Report S/N: SAR.210802471.PP4 SAR Measurement Report Test Dates: July 23-24, 2001 FCC Part 24 Certification FCC ID: PP4PX-21B (Model: PX-21B) © 2001 PCTEST Lab HYUNDAI Single-Mode PCS Phone (PCS CDMA) 2 2.1 INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radio frequency radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-1992 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. (c) 1992 by the Institute of Electrical and Electronics Engineers, Inc., …

Text truncated - open the document above for the full version.

Test Report

© 2001 PCTEST Engineering Lab., Inc. PCTEST Engineering Laboratory, Inc. 6660-B Dobbin Road • Columbia, MD 21045 • U.S.A. TEL (410) 290-6652 • FAX (410) 290-6654 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE FCC Parts 24 Certification HYUNDAI CURITEL INC. Dates of Tests: July 23-24, 2001 San 136-1, Ami-Ri, Bubal-Eub,m Ichon-Si Test Report S/N: 24.210802470.PP4 Kyoungki-Do, KOREA 467-701 Test Site: PCTEST Lab, Columbia MD Attn: Mr. Hong-Ki Kim FCC ID PP4PX-21B APPLICANT HYUNDAI CURITEL INC. Classification: Licensed Portable Transmitter Held to Ear (PCE) FCC Rule Part(s): §24(E), §2 EUT Type: Single-Mode PCS Phone (PCS CDMA) Trade Name/Model: HYUNDAI PX-21B Tx Frequency Range: 1851.25MHz — 1908.75MHz (PCS CDMA) Rx Frequency Range: 1931.25MHz — 1988.75MHz (PCS CDMA) Max. RF Output Power: 0.294 W EIRP PCS CDMA (24.681 dBm) Max. SAR Measurement: 1.4247 W/kg Brain SAR; 0.6298 W/kg Body SAR; Emission Designator(s): 1M25F9W This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in § 2.947. (See Test Report) I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. 210802470.PP4 FCC Part 24 Certification © 2001 PCTEST Engineering Laboratory, Inc. TABLE OF CONTENTS ATTACHMENT A: COVER LETTER(S) ATTACHMENT B: ATTESTATION STATEMENT(S) ATTACHMENT C: TEST REPORT 1.1 SCOPE 1 2.1 INTRODUCTION 2 3.1 INSERTS 3 4.1 DESCRIPTION OF TESTS 4-7 5.1 EQUIVALENT ISOTROPIC RADIATED POWER 8 6.1 RADIATED MEASUREMENTS 9-11 7.1 FREQUENCY STABILITY 12-13 8.1 PLOTS OF EMISSIONS 14 9.1 LIST OF TEST EQUIPMENT 15 10.1 SAMPLE CALCULATIONS 16 11.1 CONCLUSION 17 ATTACHMENT D: TEST PLOTS ATTACHMENT E: FCC ID LABEL / LOCATION ATTACHMENT F: TEST SETUP PHOTOGRAPHS ATTACHMENT G: EXTERNAL PHOTOGRAPHS ATTACHMENT H: INTERNAL PHOTOGRAPHS ATTACHMENT I: BLOCK DIAGRAM(S) ATTACHMENT J: SCHEMATIC DIAGRAM(S) ATTACHMENT K: OPERATIONAL DESCRIPTION ATTACHMENT L: PARTS LIST ATTACHMENT M: TUNE UP PROCEDURE ATTACHMENT N: ANTENNA SPECS. ATTACHMENT O: USER’S MANUAL ATTACHMENT P: SAR MEASUREMENT REPORT ATTACHMENT Q: SAR TEST DATA ATTACHMENT R: SAR TEST SETUP PHOTOGRAPHS Test Report S/N: 24.210802470.PP4 FCC Part 24 Dates of Tests: August 2-3, 2001 Certification © 2001 PCTEST Lab HYUNDAI FCC ID: PP4PX-21B (Model: PX-21B) 1 Single-Mode PCS Phone (PCS CDMA) MEASUREMENT REPORT 1.1 Scope Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission. General Information Applicant Name: HYUNDAI CURITEL INC. Address: San 146-1, Ami-Ri, Bubal-Eub, Ichon-Si Kyoungki-Do, KOREA 467-701 Attention: Mr. Hong-Ki Kim • FCC ID: PP4PX-21B • Quantity: Quantity production is planned • Emission Designator: 1M25F9W • Tx Freq. Range: 1851.25 — 1908.75 MHz (PCS CDMA) • Rx Freq. Range: 1931.25 — 1988.75 MHz (PCS CDMA) • Max. RF Power Rating: 0.294 W EIRP PCS CDMA (24.681 dBm) • Max. SAR Measurement: 1.4247W/kg Brain SAR; 0.6298W/kg Body SAR; • FCC Classification(s): Licensed Portable Tx Held to Ear (PCE) • Equipment (EUT) Type: Single-Mode PCS Phone (PCS CDMA) • Frequency Tolerance: ± 0.00025% (2.5 ppm) • FCC Rule Part(s): § 24(E), §2 • Dates of Tests: July 23-24, 2001 • Place of Tests: PCTEST Lab, Columbia, MD U.S.A. • Test Report S/N: 24.210802470.PP4 Test Report S/N: 24.210802470.PP4 FCC Part 24 Dates of Tests: August 2-3, 2001 Certification © 2001 PCTEST Lab HYUNDAI FCC ID: PP4PX-21B (Model: PX-21B) 2 Single-Mode PCS Phone (PCS CDMA) 2.1 INTRODUCTION These measurement tests were conducted at PCTEST Engineering Laboratory, Inc. facility in New Concept Business Park, Guilford Industrial Park, Columbia, Maryland. The site address is 6660-B Dobbin Road, Columbia, MD 21045. The test site is one of the highest points in the Columbia area with an elevation of 390 feet above mean sea level. The site coordinates are 39° 11'15" N latitude and 76° 49'38" W longitude. The facility is 1.5 miles North of the FCC laboratory, and the ambient signal and ambient signal strength are approximately equal to those of the FCC laboratory. There are no FM or TV transmitters within 15 miles of the site. The detailed description of the measurement facility was found to be in compliance with the requirements of § 2.948 according to ANSI C63.4 on October 19, 1992. Measurement Procedure The radiated and spurious measurements were made outdoors at a 3-meter test range (see Figure2). The equipment under testing was placed on a wooden turntable, 3-meters from the receive antenna. The receive antenna height and turntable rotations was adjusted for the highest reading on the receive spectrum analyzer. A half- wave dipole was substituted in place of the EUT. This dipole antenna was driven by a signal generator and the level of the signal generator was adjusted to obtain the same receive spectrum analyzer reading. This level was recorded. For readings above 1 GHZ, the above procedure would be repeated using horn antennas and the difference between the gain of the horn and an isotropic antenna are taken into consideration. Figure 1. Map of the Greater Baltimore and Metropolitan Washington, D.C. area. Figure 2. 3-meter Outdoor Test Site Test Report S/N: 24.210802470.PP4 FCC Part 24 Dates of Tests: August 2-3, 2001 Certification © 2001 PCTEST Lab HYUNDAI FCC ID: PP4PX-21B (Model: PX-21B) 3 Single-Mode PCS Phone (PCS CDMA) 3.1 INSERTS Function of Active Devices The Function o…

Text truncated - open the document above for the full version.

Test Setup Photos
