PP4PX-25BSingle-Mode PCS Phone

© 2001 PCTEST Lab ATTACHMENT M – USER’S MANUAL 1 PX-25B USER MANUAL Draft Version 1.0 July 21, 2001 TABLE OF CONTENTS 2 CHAPTER 1 BEFORE USING YOUR PHONE ............... 4 Handset Description .................................................... 5 Basic Functions .......................................................... 6 The Function Keys ..................................................... 6 Display Indicators ....................................................... 6 Screen Status, Display and Function ............................. 6 Important Battery Information ...................................... 6 CHAPTER 2 BASIC OPERATION ............................... 7 Turning the Phone On and Off . . . . . . . . . . . . . . . . . . . . . . .8 Turning the Phone On . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..8 Turning the Phone Off . . . . . . . . . . . . . . . . . . . . . . . . . . . ... 8 How to Use the Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Menu Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..9 Basic Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Making a Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Pause Feature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10 How to Answer Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11 Caller ID Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11 Call Waiting Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Missed Call Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11 How to Adjust Volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11 Functions During a Call . . . . . . . . . . . . . . . . . . . . . . . . . . . .12 Sending Your Number to a Pager . . . . . . . . . . . . . . . . . . . .12 Scratch Pad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Mute . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 CHAPTER 3 MEMORY FUNCTION . . . . . . . . . . . . . . . .13 How to Store a Phone Number . . . . . . . . . . . . . . . . . . . . . . 14 How to Enter Letters and Characters Using the Dial Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 How to Make a Call Using A Stored Phone Number . . . . . 15 One Touch/Two Touch Dialing . . . . . . . . . . . . . . . . . . . . . . 15 How to Find Your Call Logs . . . . . . . . . . . . . . . . . . . . . . . . .16 Missed Calls................................... . . . . . . . . . . . . . . . .16 Answered Calls.................. . . . . . . . . . . . . . . . . . . . . . . . 16 Dialed Calls................................... ... . . . . . . . . . . . . . .16 How to Find Your Phone Book . . . . . . . . . . . . . . . . . . . . . . 17 TABLE OF CONTENTS (CONT’D) Recalling by Memory Location Number . . . . . . . . . . . . . . . .17 Recalling by Name ........... . . . . . . . . . . . . . . . . . . . . . . . . .17 CHAPTER 4 MENU . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18 Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..19 Auto Retry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19 Auto Answer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 One Touch Dialing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19 Voice Privacy . . . . . . . . . . . . . . . ... . . . . . . . . . . . . . . . . . . .20 Backlight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20 Lighting Length . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20 Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21 LCD Contrast . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . .21 Logo Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21 Volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21 Ringer Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21 Ringer Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..21 Keypad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 Call Timers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22 Last Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22 All Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 Home Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22 Roam Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22 Alerts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 Min Alert ..... . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..23 Roam Alert . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23 Fade Alert . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. .23 Low Signal Alert . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. ..23 Phone Info . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 Checking My Number . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24 Checking the Phone Version . . . . . . . . . . . . . . . . . . . . . . ..24 CHAPTER 5 SECURITY FEATURES . . . . . . . . . . . . . . 24 How to Lock Your Phone . . . . . . . . . . . . . . . . . . . . . . . . . . .25 Auto Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 Lock Code Change . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 How to Change Your Banner . . . . . . . . . . . . . . . . . . . . . . . . 26 Banner Change. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26 How to Restrict Your…

Text truncated - open the document above for the full version.

© 2001 PCTEST Lab ATTACHMENT B – ATTESTATION STATEMENT(S)

August 8, 2001 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: HYUNDAI Curitel, Inc. FCC ID: PP4PX-25B Part 24 Certification Gentlemen: Submitted herewith, on behalf of HYUNDAI Curitel, Inc., is an application for Part 22/24 Certification of the following Tri-Mode Cellular Phone: FCC ID: PP4PX-25B TRADE/MODEL(s): HYUNDAI PX-25B EUT TYPE: Tri-Mode Cellular Phone (AMPS/CDMA) Tx Freq. Range(s): 824.04 — 848.97 MHz (AMPS) / 824.70 — 848.31 MHz (CDMA) 1851.25 — 1908.75 MHz (PCS CDMA) Max. RF Output Power: 0.325 W EIRP PCS CDMA (25.121 dBm) Max. SAR Measurement: 1.4120 W/g (1g) AMPS Brain SAR; 0.8331 W/g (1g) PCS CDMA Body SAR Attached is the applicant’s Letter of Authorization, Confidentiality Request, ESN Affidavit, E911 compliance statement, measurement report test data and plots, RF Exposure measurement report and data, FCC ID label and location, test setup photographs, internal and external photographs, block diagram (confidential), circuit diagrams & description (confidential), operational description (confidential), parts list & tune-up procedure (confidential), and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned. cc: Mr. Hong-Ki Kim — HYUNDAI Curitel,Inc.

October 23, 2001 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 Attn: Mr. Andy Leimer SUBJECT: Hyundai Curitel Inc. FCC ID: PP4PX-25B 731 Confirmation No.: EA102088 Correspondence Reference No.: 20713 Request for Tech. Info.: 9/24/2001 Dear Andy: Transmitted herewith, on behalf of Hyundai Curitel Inc., is an amendment provided in response to the request for technical information dated September 24, 2001. 1. Please find the attached operational description. 2. Please find the attached SAR measurements for the right side and tilt position of the head. In addition, please find the attached SAR test plots. 3. Please find the attached RF exposure warning statement. We trust this information is sufficient to issue the grant as soon as possible. If you have any further questions, please do not hesitate to contact us. cc: Hyundai Curitel Inc.

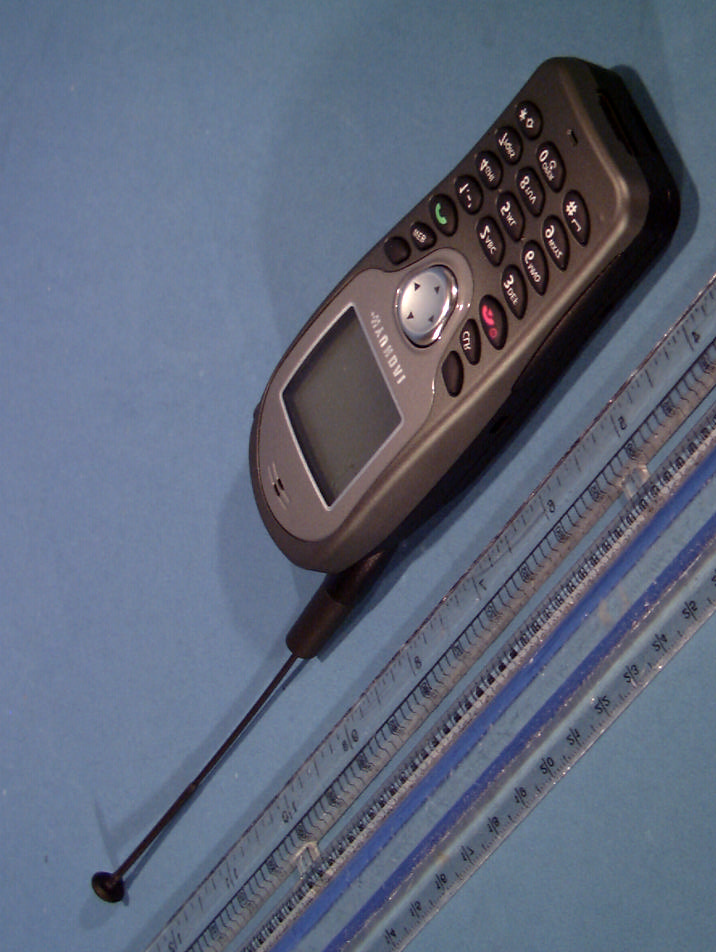

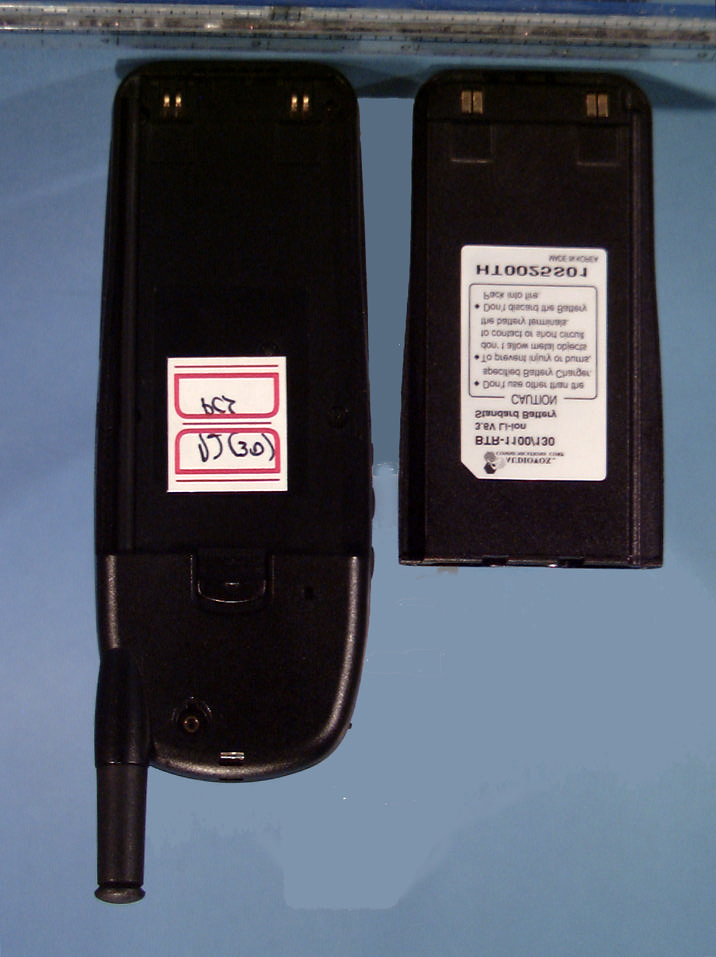

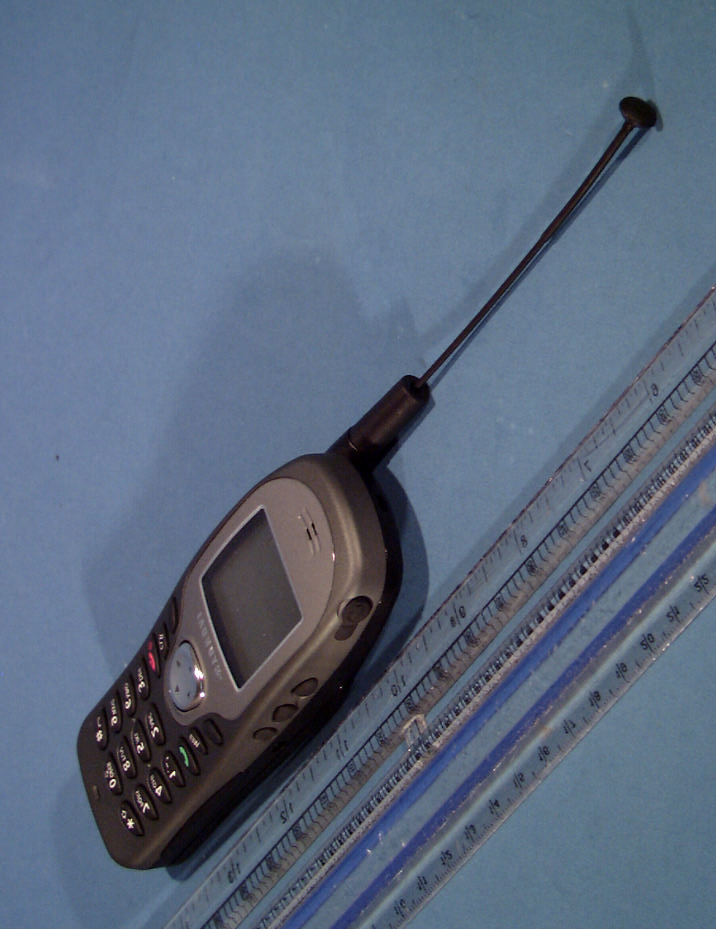

© 2001 PCTEST Lab ATTACHMENT G – EXTERNAL PHOTOGRAPHS © 2001 PCTEST Lab FCC ID: PP4PX-25B (Model: PX-25B) NVLAP Lab Code: 100431-0 HYUNDAI Single-Mode PCS Phone (PCS CDMA) © 2001 PCTEST Lab FCC ID: PP4PX-25B (Model: PX-25B) NVLAP Lab Code: 100431-0 HYUNDAI Single-Mode PCS Phone (PCS CDMA) © 2001 PCTEST Lab FCC ID: PP4PX-25B (Model: PX-25B) NVLAP Lab Code: 100431-0 HYUNDAI Single-Mode PCS Phone (PCS CDMA) © 2001 PCTEST Lab FCC ID: PP4PX-25B (Model: PX-25B) NVLAP Lab Code: 100431-0 HYUNDAI Single-Mode PCS Phone (PCS CDMA) © 2001 PCTEST Lab FCC ID: PP4PX-25B (Model: PX-25B) NVLAP Lab Code: 100431-0 HYUNDAI Single-Mode PCS Phone (PCS CDMA) © 2001 PCTEST Lab FCC ID: PP4PX-25B (Model: PX-25B) NVLAP Lab Code: 100431-0 HYUNDAI Single-Mode PCS Phone (PCS CDMA)

© 2001 PCTEST Lab ATTACHMENT E – FCC ID LABEL / LOCATION © 2000 PCTEST Lab FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER §§ 2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. (SEE NEXT PAGE) EXHIBIT. 4 IDENTIFICATION LABEL with regard to the FCC Rule Part 2.983 According to the requirement section 2.925 an 2.926, the sample label shown below shall be permanently affixed at a conspicuous location on the device supplied to the user and be readily visible to the purchaser at the time purchase. Single-Mode PCS PHONE FCC ID : PP4PX-25B SERIAL NO. : MADE IN KOREA HYUNDAI ELECTRONICS IND. CO., LTD. MODEL PX -25B

© 2001 PCTEST Lab ATTACHMENT H – INTERNAL PHOTOGRAPHS © 2001 PCTEST Lab FCC ID: PP4PX-25B (Model: PX-25B) NVLAP Lab Code: 100431-0 HYUNDAI Single-Mode PCS Phone (PCS CDMA) © 2001 PCTEST Lab FCC ID: PP4PX-25B (Model: PX-25B) NVLAP Lab Code: 100431-0 HYUNDAI Single-Mode PCS Phone (PCS CDMA) © 2001 PCTEST Lab FCC ID: PP4PX-25B (Model: PX-25B) NVLAP Lab Code: 100431-0 HYUNDAI Single-Mode PCS Phone (PCS CDMA) © 2001 PCTEST Lab FCC ID: PP4PX-25B (Model: PX-25B) NVLAP Lab Code: 100431-0 HYUNDAI Single-Mode PCS Phone (PCS CDMA) © 2001 PCTEST Lab FCC ID: PP4PX-25B (Model: PX-25B) NVLAP Lab Code: 100431-0 HYUNDAI Single-Mode PCS Phone (PCS CDMA) © 2001 PCTEST Lab FCC ID: PP4PX-25B (Model: PX-25B) NVLAP Lab Code: 100431-0 HYUNDAI Single-Mode PCS Phone (PCS CDMA)

1. Section 2.983 (d)(3). Range of operating power levels and description of means for variation of operating power 1. Range of operating power levels The operating power levels is divided into 16 steps in CDMA mode 1-1PCS mode : -53.4 dBm ~ 24.6 dBm ± 0.2 dB Level 0 : 24.6 dBm ± 0.2 dB Level 8 : -16.3 dBm ± 0.2 dB Level 1 : 20.8 dBm ± 0.2 dB Level 9 : -21.6 dBm ± 0.2 dB Level 2 : 15.5 dBm ± 0.2 dB Level 10 : -26.9 dBm ± 0.2 dB Level 3 : 10.2 dBm ± 0.2 dB Level 11 : -32.2 dBm ± 0.2 dB Level 4 : 4.9 dBm ± 0.2 dB Level 12 : -37.5 dBm ± 0.2 dB Level 5 : -0.4 dBm ± 0.2 dB Level 13 : -42.8 dBm ± 0.2 dB Level 6 : -5.7 dBm ± 0.2 dB Level 14 : -48.1 dBm ± 0.2 dB Level 7 : -11.0 dBm ± 0.2 dB Level 15 : -53.4 dBm ± 0.2 dB 2. Means for variation of operating power The RF interface of MSM communicates with the RF analog circuitry. This RF interface performs gain controls of Power amplifier(PA) and AGC(automatic gain control) amplifier using digital control signals. The circuit functions of the IFR300 include the Rx AGC amplifier with 90dB dynamic range, quadrature IF mixer, down-conversion from IF to analog baseband, low-pass filters, and analog-to-digital converters(ADC) for converting to digital baseband. The RF power output level is detected and then this information is sent to the MSM. The software controlled power management in MSM controls the Tx-AGC adjust signal. 2. Section 2.983 (d)(5) : The DC voltages supplied to and DC currents into the final RF amplifying device. The final RF amplifier circuitry is consisted of RF amplifier module and DC voltage control transistor. The PCS Amplifier Module DC voltage and current supplied into the power amp module (PAM) is typical 3.4V and 300mA. In this hand-held device, power amp is directly activated using the battery cell 3. Section 2.983 (d)(6) : Function of each electron tube, semiconductor or other active device The function of main component is as follows. The other active device is described in the attached material, part list. 1. RF part RF part consists of power part, synthesizing part, transmission and reception part. 1-1. Frequency synthesizing Part Frequency synthesizing part called Dual Digital PLL Synthesizer consists of two synthesizer circuit which is first local synthesizer, Dual Tx IF synthesizer and Rx IF synthesizer. Case of PCS Part, The first local synthesizer generates the primary local system oscillation frequency, operating over 2113.6 ~ 2173.6 MHz frequency range. Tx IF and Rx IF synthesizer generate the second local oscillation frequency, 527.2 MHz and 367.2 MHz respectively. 1-2. Receiving Part n PCS Duplexer(U502) : The duplexer filters the RF signal transmitted through ANT (frequency range:1850~1910MHz) and sends the signals to LNA (frequency range:1930~1990MHz) n RF2489(U601): The RF2489 is a high performance CDMA dual-band /tri-mode integrated LNA/mixer. The operating voltage is 2.7V and is compatible with 1.8V logic for control lines. The RF2489 integrates the dual-band LNA/downconverters with 30dB of gain control and TX LO buffers. Additionally, a divide-by-2 prescaler is integrated to allows the use single-band VCO. n IFR3000(U661): This part is designed to control the gain of the dynamic range of midrange frequency produced in down converter according 90 dB dynamic range. 1-3. Transmission Part n RFT3100 (U731) : This part includes an IF mixer for upconverting analog baseband to IF to RF, a programmable PLL for generating Tx IF frequency, single sideband up conversion from IF to RF, two Cellular and two PCS driver amplifiers, and Tx power control through an 85dB VGA. n PCS Power AMP module (U811) : This part is designed to work in 1850 MHz ~ 1910 MHz frequency range in the CDMA mode and can generate the proper power n PCS Up converter (FIL721): This part mixes the mid-range transmission frequency 130.38 MHz and the first local 2113.6 ~ 2173.6MHz to generate transmission frequency of 1850 ~ 1910 MHz. 2. Logic Part Logic part consists of power supply part, digital and audio part, LCD module part. The Fig 1-2 is the block diagram of logic part. 2-1. Power supply Part Power is supplied by battery, operating over 3.2V to 4.2V range, or external source. And also battery power is input about 4 low-dropout voltage regulators. n U101 : voltage regulator for digital and analog circuit ( 2.7V DC ) n U151 : voltage regulator for TCXO part( 3.0V DC ) n U161 : voltage regulator for RF Rx part ( 3.0V DC ) n U171 : voltage regulator for RF Tx part ( 3.0V DC ) 2-2. Digital and Audio Part n MSM 5105 (U102) : ASIC is a chip responsible for CDMA/FM mobile station’s base-band digital signal processing. For this chip to function, CHIPx8(9.8304MHz) and TCXO(19.2MHz) are required as basic clocks. n And sleep crystal(32.768KHz) is used as clock source of SBI. n MSM consists of a CDMA processor, a Digital FM(DFM) processor, a multi-standard Vocoder, an integrated CODEC with earpiece and microphone amplifiers, general-purpose ADC for system monitoring, an ARM7TDMI microprocessor. n The integrated Codec contains all of the required conversion stages for the audio front end n The Codec interface includes the amplification stages for both the microphone and earphone. The interface support two differential microphone inputs and a differential auxiliary input, each of which can be configured as single-ended if desired. In addition, the interface supports one differential earphone output, one single ended earphone output, and one differential auxiliary output. 4. Section 2.983 (d)(9). Tune-up procedure over the power range. Cellular Telephone Adjustment and Test Procedure 1. Overview With ordinary use in clean, dry environments, no periodical alignment should be necessary for PX-25B. 2. Test equipment The equipment listed below are required for proper test and maintenance. No. Equipment Specifications 1 DC Power supply Capable of 6V/2A Max. and has built-in Amphere meter 2 Radio Test l HP 8924C CDMA Mobile Test Station l MARCONI 2957, 2960 l Replacem…

Text truncated - open the document above for the full version.

© 2001 PCTEST Lab ATTACHMENT N – SAR MEASUREMENT REPORT © 2001 PCTEST Engineering Lab., Inc. 6660-B Dobbin Road • Columbia, MD 21045 • U.S.A. TEL (410) 290-6652 • FAX (410) 290-6654 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE (SAR EVALUATION) HYUNDAI Curitel, Inc.Dates of Tests: Aug. 1 & 7, 2001 San 136-1, Ami-Ri, Bubal-Eub, Ichon-Si,Test Report S/N: SAR.210730449.PP4 Kyoungki-Do, KOREA 467-701Test Site: PCTEST Lab, Columbia, MD USA Attn:Mr. Hong-Ki Kim FCC ID PP4PX-25B APPLICANT HYUNDAI Curitel, Inc. EUT Type:Single-Mode PCS Phone (PCS CDMA) Tx Frequency:1851.25 – 1908.75 MHz (PCS CDMA) Rx Frequency:1931.25 – 1988.75 MHz (PCS CDMA) Max. RF Output Power:0.325 W EIRP PCS CDMA (25.121 dBm) Trade Name/Model(s): HYUNDAI PX-25B FCC Classification:Licensed Portable Transmitter Held to Ear (PCE) Application Type:Certification FCC Rule Part(s):§2.1093; ET Docket 96.326 Maximum SAR:1.4120 W/kg Brain SAR; 0.8331 W/kg Body SAR This wireless portable device has been shown to be compliant for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and has been tested in accordance with the measurement procedures specified in ANSI/IEEE Std. C95.3-1992. (See Test Report) I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. NVLAP accreditation does not constitute any product endorsement by NVLAP or any agency of the United States Government. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. 210730449.PP4 Test Report S/N: SAR.210730449.PP4SAR Measurement Report Test Dates: AUG. 1 & 7, 2001FCC Part 24 Certification FCC ID: PP4PX-25B (Model: PX-25B) © 2001 PCTEST LabHYUNDAI Single-Mode PCS Phone (PCS CDMA)i Table of Contents 1.1 SCOPE..........................................................................................................................1 2.1 INTRODUCTION........................................................................................................2 2.2 SAR Definition........................................................................................................2 3.1 SAR MEASUREMENT SET-UP..............................................................................3 4.1 ISOTROPIC E-FIELD PROBE SYSTEM...............................................................4 5.1 E-field PROBE CALIBRATION PROCESS..........................................................5 6.1 PHANTOM AND EQUIVALENT TISSUES............................................................7 7.1 SYSTEM SPECIFICATIONS....................................................................................8 8.1 MEASUREMENT PROCESS...................................................................................9 9.1 TEST POSITION OF THE PHONE........................................................................10 10.1 BODY-WORN TEST SETUP...............................................................................11 11.1 ANSI/IEEE C95.1 - 1992 RF EXPOSURE LIMITS..........................................12 12.1 MEASUREMENT UNCERTAINTIES..................................................................13 13.1 SAR TEST DATA SUMMARY.............................................................................14 14.1 SAR TEST EQUIPMENT.......................................................................................16 15.1 CONCLUSION........................................................................................................17 Test Report S/N: SAR.210730449.PP4SAR Measurement Report Test Dates: Aug. 1 & 7, 2001FCC Part 24 Certification FCC ID: PP4PX-25B (Model: PX-25B) © 2001 PCTEST LabHYUNDAI Single-Mode PCS Phone (PCS CDMA)1 SAR MEASUREMENT REPORT 1.1 SCOPE Environmental evaluation measurements of specific absorption rate 1 (SAR) distributions in simulated human tissues exposed to radiofrequency (RF) radiation from wireless portable devices for compliance with the rules and regulations of the U.S. Federal Communications Commission (FCC). 2 Company Name: HYUNDAI Curitel, Inc. Address: San 136-1, Ami-Ri, Bubal-Eub, Ichon-Si, Kyoungki-Do, KOREA 467-701 Attention:Mr. Hong-Ki Kim • EUT Type:Single-Mode PCS Phone (PCS CDMA) • Trade Name:HYUNDAI • Model(s):PX-25B • FCC IDENTIFIER:PP4PX-25B • Tx Frequency:1851.25 – 1908.75 MHz (PCS CDMA) • Rx Frequency:1931.25 – 1988.75 MHz (PCS CDMA) • Application Type: Certification • FCC Classification:Licensed Portable Transmitter Held to Ear (PCE) • FCC Rule Part(s):§ 2.1093, Docket 96-326 • Modulation(s):CDMA • Max RF. Output Power:0.325W EIRP PCS CDMA (25.121 dBm) • Date(s) of Tests:Aug. 1 & 7, 2001 • Place of Tests:PCTEST Engineering Lab. Columbia, MD, U.S.A. • Report Serial No.:SAR.210730449.PP4 1 Specific Absorption Rate (SAR) is a measure of the rate of energy absorption due to exposure to an RF transmitting source (wireless portable device). 2 IEEE/ANSI Std. C95.1-1992 limits are used to determine compliance with FCC ET-Docket 93-62. Fig. 1 SAR Test Setup Test Report S/N: SAR.210730449.PP4SAR Measurement Report Test Dates: Aug. 1 & 7, 2001FCC Part 24 Certification FCC ID: PP4PX-25B (Model: PX-25B) © 2001 PCTEST LabHYUNDAI Single-Mode PCS Phone (PCS CDMA)2 2.1 INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radio frequency radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorpt…

Text truncated - open the document above for the full version.

© 2001 PCTEST Lab ATTACHMENT O – SAR TEST DATA Peak SAR Location © 2001 PCTEST Lab HYUNDAI FCC ID: PP4PX-25B (Model: PX-25B) NVLAP Lab Code: 100431-0 Single-Mode PCS Phone (PCS CDMA) Head SAR File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/01080107_ZOOM.VLT Start : 1-Aug-101 11:00:23 am End : 1-Aug-101 11:09:40 am Radio Type : HYUNDAI Model Number : PX-25B Serial Number : 72 Frequency : 1851.25 MHz Peak Trans. Pwr : 0.300 W Start Trans. Pwr: 0.300 W Antenna Type : Helical Antenna Posn. : In Phantom Type : Head Phantom Posn. : Left Ear Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Brain Mixture Dielectric Constant = 40.400 Mixture Conductivity = 1.620 Comment : HYUNDAI PCS-MODE PHONE - PCS MODE CH 0025 24.8 dBm Conducted HYUNDAI PCS-MODE PHONE Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 1.201 PCTEST Amplifier Channel Settings : 0.245 0.231 0.224 Max Location : X = 0.000, Y = -2.750, Z = 0.000 (cm) Value = 7.082 Measured Values (volts) = 6.509E-003 4.587E-003 3.359E-003 2.603E-003 1.861E-003 1.452E-003 1.068E-003 8.848E-004 6.271E-004 5.174E-004 3.515E-004 3.548E-004 2.304E-004 1.956E-004 1.699E-004 1.363E-004 1.002E-004 8.693E-005 9.773E-005 1.087E-004 8.226E-005 Calc. Voltage @ Surface (Vs) = 0.0091 Voltage @ 1.00 cm (Vt) = 0.0026 Ave. Voltage (Vs+Vt)/2 = 0.0058 Ave. SAR over 1 g (mW/g) = 0.6487 0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0 1.1 mW/g -1012345 Z centimeters SAR Scan File : 01080107_ZOOM Start : 1-Aug-101 11:00:23 am End : 1-Aug-101 11:09:40 am HYUNDAI/PX-25B/72;1851.25MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/40.400/1.620 File : 01080107_ZOOM Start : 1-Aug-101 11:00:23 am End : 1-Aug-101 11:09:40 am HYUNDAI/PX-25B/72;1851.25MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/40.400/1.620 0.788 0.728 0.669 0.609 0.550 0.490 0.431 0.371 0.312 0.252 File : 01080107_ZOOM Start : 1-Aug-101 11:00:23 am End : 1-Aug-101 11:09:40 am HYUNDAI/PX-25B/72;1851.25MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/40.400/1.620 0.788 0.728 0.669 0.609 0.550 0.490 0.431 0.371 0.312 0.252 File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/01080102_ZOOM.VLT Start : 1-Aug-101 09:56:03 am End : 1-Aug-101 10:05:18 am Radio Type : HYUNDAI Model Number : PX-25B Serial Number : 72 Frequency : 1851.25 MHz Peak Trans. Pwr : 0.300 W Start Trans. Pwr: 0.300 W Antenna Type : Helical Antenna Posn. : Out Phantom Type : Head Phantom Posn. : Left Ear Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Brain Mixture Dielectric Constant = 40.400 Mixture Conductivity = 1.620 Comment : HYUNDAI PCS-MODE PHONE - PCS MODE CH 0025 24.8 dBm Conducted HYUNDAI PCS-MODE PHONE Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 1.201 PCTEST Amplifier Channel Settings : 0.245 0.231 0.224 Max Location : X = 0.500, Y = -2.750, Z = 0.000 (cm) Value = 14.178 Measured Values (volts) = 1.341E-002 8.871E-003 6.572E-003 4.796E-003 3.576E-003 2.745E-003 1.970E-003 1.482E-003 1.144E-003 9.188E-004 7.199E-004 5.508E-004 4.435E-004 3.178E-004 2.803E-004 2.335E-004 2.143E-004 1.854E-004 1.943E-004 1.437E-004 1.310E-004 Calc. Voltage @ Surface (Vs) = 0.0192 Voltage @ 1.00 cm (Vt) = 0.0048 Ave. Voltage (Vs+Vt)/2 = 0.0120 Ave. SAR over 1 g (mW/g) = 1.3337 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0 2.2 mW/g -1012345 Z centimeters SAR Scan File : 01080102_ZOOM Start : 1-Aug-101 09:56:03 am End : 1-Aug-101 10:05:18 am HYUNDAI/PX-25B/72;1851.25MHz;W;Helical/Out; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/40.400/1.620 File : 01080102_ZOOM Start : 1-Aug-101 09:56:03 am End : 1-Aug-101 10:05:18 am HYUNDAI/PX-25B/72;1851.25MHz;W;Helical/Out; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/40.400/1.620 1.58 1.43 1.29 1.14 1.00 0.85 0.71 0.56 0.42 0.27 File : 01080102_ZOOM Start : 1-Aug-101 09:56:03 am End : 1-Aug-101 10:05:18 am HYUNDAI/PX-25B/72;1851.25MHz;W;Helical/Out; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/40.400/1.620 1.58 1.43 1.29 1.14 1.00 0.85 0.71 0.56 0.42 0.27 File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/01080106_ZOOM.VLT Start : 1-Aug-101 10:46:59 am End : 1-Aug-101 10:56:15 am Radio Type : HYUNDAI Model Number : PX-25B Serial Number : 72 Frequency : 1880.00 MHz Peak Trans. Pwr : 0.300 W Start Trans. Pwr: 0.300 W Antenna Type : Helical Antenna Posn. : In Phantom Type : Head Phantom Posn. : Left Ear Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Brain Mixture Dielectric Constant = 40.400 Mixture Conductivity = 1.620 Comment : HYUNDAI PCS-MODE PHONE - PCS MODE CH 0600 24.8 dBm Conducted HYUNDAI PCS-MODE PHONE Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 1.201 PCTEST Amplifier Channel Settings : 0.245 0.231 0.224 Max Location : X = 0.500, Y = -2.500, Z = 0.000 (cm) Value = 8.067 Measured Values (volts) = 8.039E-003 5.648E-003 4.102E-003 2.911E-003 2.133E-003 1.565E-003 1.245E-003 9.221E-004 7.052E-004 5.404E-004 4.236E-004 3.611E-004 2.996E-004 2.217E-004 1.673E-004 1.290E-004 1.678E-004 1.423E-004 1.567E-004 1.453E-004 1.294E-004 Calc. Voltage @ Surface (Vs) = 0.0113 Voltage @ 1.00 cm (Vt) = 0.0029 Ave. Voltage (Vs+Vt)/2 = 0.0071 Ave. SAR over 1 g (mW/g) = 0.7878 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 mW/g -1012345 Z centimeters SAR Scan File : 01080106_ZOOM Start : 1-Aug-101 10:46:59 am End : 1-Aug-101 10:56:15 am HYUNDAI/PX-25B/72;1880.00MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/40.400/1.620 File : 01080106_ZOOM Start : 1-Aug-101 10:46:59 am End : 1-Aug-101 10:56:15 am HYUNDAI/PX-25B/72;1880.00MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/40.400/1.620 0.897 0.832 0.768 0.703 0.638 0.573 0.509 0.444 0.379 0.314 File : 01080106_ZOOM Start : 1-Aug-101 10:46:59 am End : 1-Aug-101 10:56:15 am HYUNDAI/PX-25B/72;1880.00MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR…

Text truncated - open the document above for the full version.

© 2001 PCTEST Lab ATTACHMENT P – SAR TEST SETUP PHOTOGRAPHS © 2001 PCTEST Lab FCC ID: PP4PX-25B (Model: PX-25B) NVLAP Lab Code: 100431-0 HYUNDAI Single-Mode PCS Phone (PCS CDMA) © 2001 PCTEST Lab FCC ID: PP4PX-25B (Model: PX-25B) NVLAP Lab Code: 100431-0 HYUNDAI Single-Mode PCS Phone (PCS CDMA) © 2001 PCTEST Lab FCC ID: PP4PX-25B (Model: PX-25B) NVLAP Lab Code: 100431-0 HYUNDAI Single-Mode PCS Phone (PCS CDMA) © 2001 PCTEST Lab FCC ID: PP4PX-25B (Model: PX-25B) NVLAP Lab Code: 100431-0 HYUNDAI Single-Mode PCS Phone (PCS CDMA) © 2001 PCTEST Lab FCC ID: PP4PX-25B (Model: PX-25B) NVLAP Lab Code: 100431-0 HYUNDAI Single-Mode PCS Phone (PCS CDMA) © 2001 PCTEST Lab FCC ID: PP4PX-25B (Model: PX-25B) NVLAP Lab Code: 100431-0 HYUNDAI Single-Mode PCS Phone (PCS CDMA)

SAR Measurement Report Part 24 Certification HYUNDAI FCC ID: PP4PX-25B (Model: PX-25B) Single-Mode PCS Phone (PCS CDMA) © 2001 PCTEST SAR TEST DATA SUMMARY Ambient TEMPERATURE (°C) 19.3 Relative HUMIDITY (%) 43.1 Atmospheric PRESSURE (kPa) 100.0 Mixture Type: Brain Dielectric Constant: 40.4 Conductivity: 1.62 Closest Distance (between E-Probe & Phone): 2.0 cm Measurement Results (PCS Head SAR) FREQUENCY Modulation POWER Phantom Antenna SAR MHz Ch. (dBm) Position Position (W/kg) 1851.25 25 CDMA 24.8 Right Ear IN 0.6181 1851.25 25 CDMA 24.8 Right Ear OUT 1.0712 1880.00 600 CDMA 24.8 Right Ear IN 0.8007 1880.00 600 CDMA 24.8 Right Ear OUT 0.9129 1908.75 1175 CDMA 24.8 Right Ear IN 0.7223 1908.75 1175 CDMA 24.8 Ri…

Text truncated - open the document above for the full version.
