PP4TX-110CADual-Mode CDMA Cellular Phone

TABLE OF CONTENTS 1 Chapter 1Chapter 2Chapter 3Chapter 4 CHAPTER 1. BEFORE USING YOUR PHONE .................................5 INSIDE THE PACKAGE .....................................................................................6HANDSET DESCRIPTION.................................................................................7 THE FUNCTION KEYS.............................................................................................8DISPLAY INDICATORS ...........................................................................................9 BATTERY USAGE ...........................................................................................10 BATTERY INSTALLATION ....................................................................................10BATTERY REMOVAL.............................................................................................10BATTERY CHARGING ...........................................................................................11 POWER CONNECTION ......................................................................................11BATTERY TALK TIMES .......................................................................................11BATTERY STANDBY TIMES ...............................................................................11 BATTERY HANDLING INFORMATION..........................................................12 DOs.........................................................................................................................12DON’Ts...................................................................................................................12 CHAPTER 2. BASIC OPERATION ..................................................13 TURNING THE PHONE ON / OFF ..................................................................14 TURNING THE PHONE ON...................................................................................14TURNING THE PHONE OFF..................................................................................14 ACCESSING THE MENU ................................................................................15MENU SUMMARY .........................................................................................16BASIC FUNCTIONS ........................................................................................19 MAKING A CALL ...................................................................................................19SPEAKER PHONE..................................................................................................20PAUSE FEATURE ..................................................................................................20ANSWERING A CALL............................................................................................21CALLER ID FUNCTION..........................................................................................21CALL WAITING FUNCTION ..................................................................................21ADJUSTING VOLUME ..........................................................................................22ETIQUETTE ............................................................................................................22LOCK ......................................................................................................................22 DURING A CALL .............................................................................................23 MESSAGING .........................................................................................................23MUTE(UNMUTE)...................................................................................................23SCRATCHPAD .......................................................................................................23SEND MY PHONE # ..............................................................................................23MY PHONE NUMBER ...........................................................................................24VOICE PRIVACY.....................................................................................................24LOCATION .............................................................................................................24PHONE INFO..........................................................................................................24 MAKING AN EMERGENCY CALL ..................................................................25 911 IN LOCK MODE ..............................................................................................25911 USING ANY AVAILABLE SYSTEM ...............................................................25 CHAPTER 3. MEMORY FUNCTION ...............................................27 STORING A PHONE NUMBER ......................................................................28ENTERING LETTERS, NUMBERS & SYMBOLS ...........................................29 STANDARD INPUT MODE....................................................................................30T9 INPUT MODE....................................................................................................31NUMERIC MODE...................................................................................................32SYMBOL MODE ....................................................................................................32 MAKING A CALL THROUGH THE PHONE BOOK ........................................33 SPEED DIALING ....................................................................................................33 CHAPTER 4. MENU FUNCTION ....................................................35 PHONE BOOK .................................................................................................36 FIND .......................................................................................................................36 BY NAME.....................................................................…

Text truncated - open the document above for the full version.

Report No.: HCT-SAR04-0202 FCC ID : PP4TX-110CA DATE : February 11, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ATTACHMENT B – ATTESSTATION STATEMENT Report No.: HCT-SAR04-0202 FCC ID : PP4TX-110CA DATE : February 11, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR04-0202 FCC ID : PP4TX-110CA DATE : February 11, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR04-0202 FCC ID : PP4TX-110CA DATE : February 11, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR04-0202 FCC ID : PP4TX-110CA DATE : February 11, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR04-0202 FCC ID : PP4TX-110CA DATE : February 11, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr

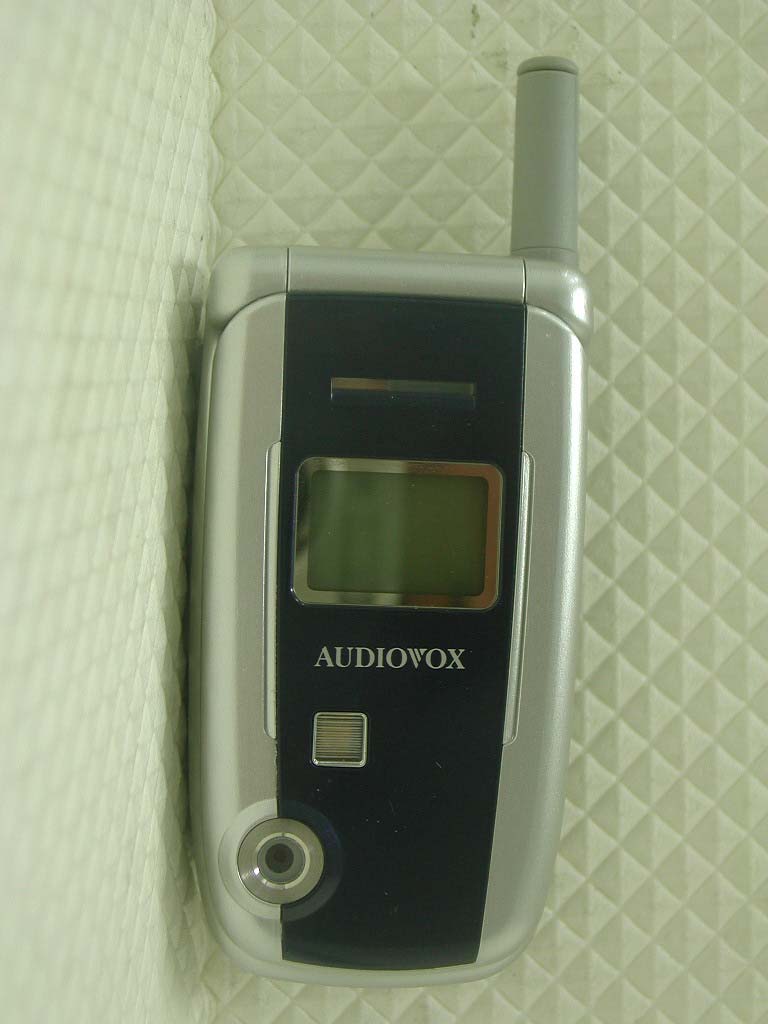

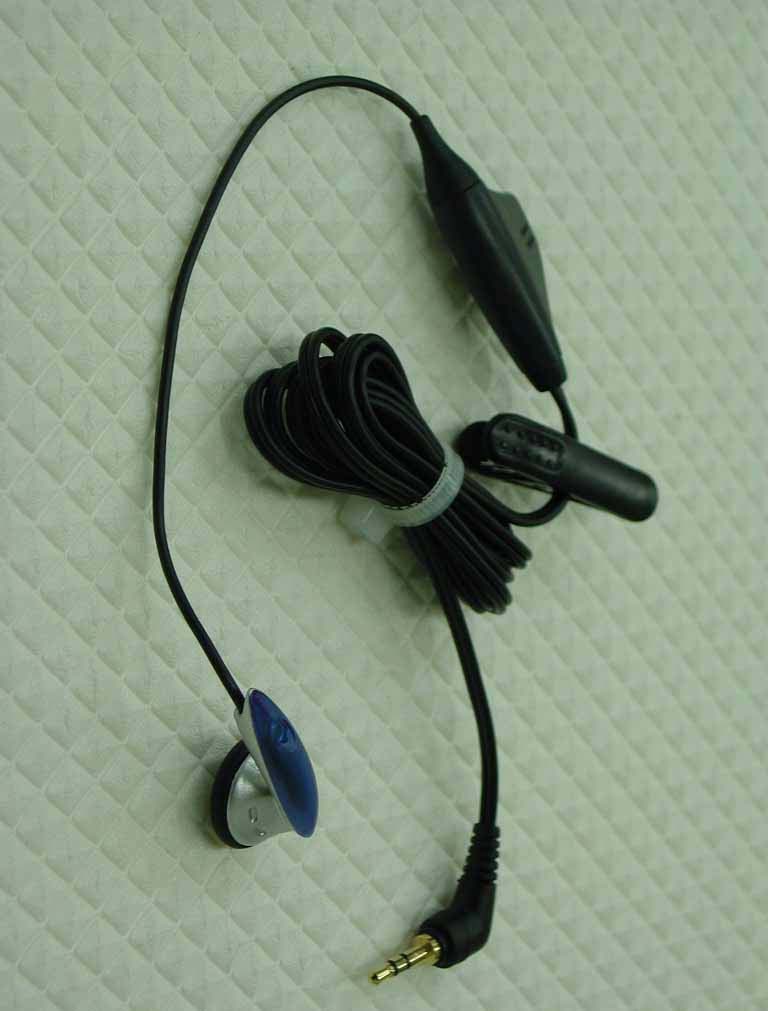

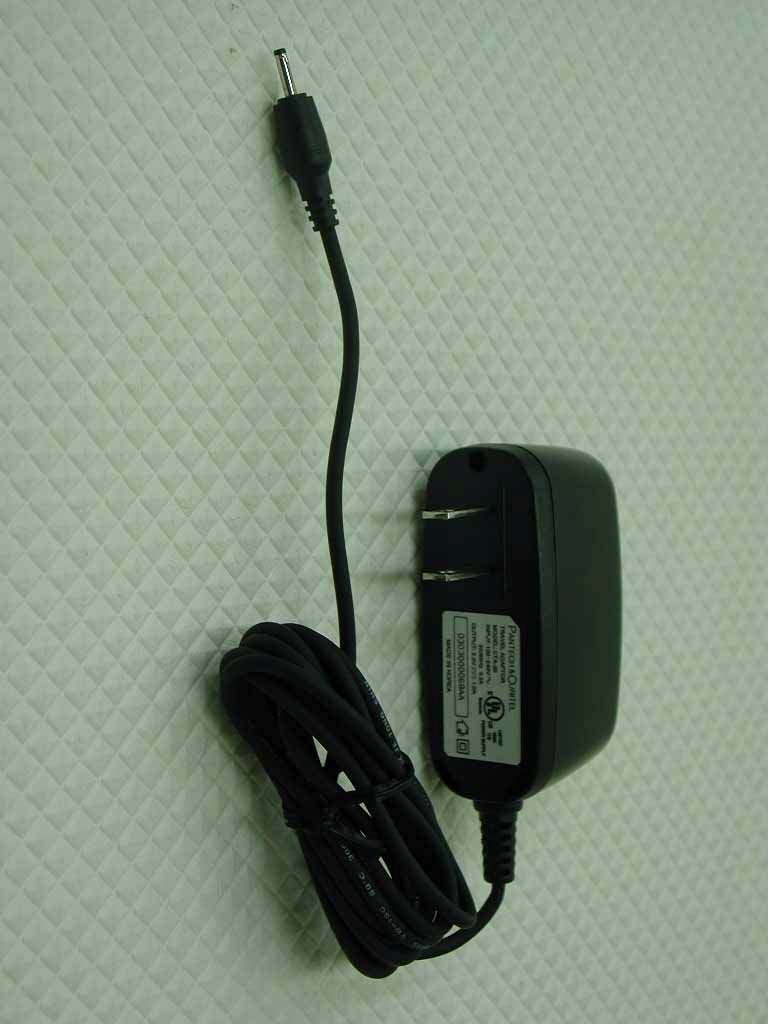

Report No.: HCT-SAR04-0202 FCC ID : PP4TX-110CA DATE : February 11, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ATTACHMENT G – EXTERNAL PHOTOGRAPHS ■ EXTERNAL PHOTO Report No.: HCT-SAR04-0202 FCC ID : PP4TX-110CA DATE : February 11, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ EXTERNAL PHOTO Report No.: HCT-SAR04-0202 FCC ID : PP4TX-110CA DATE : February 11, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ EXTERNAL PHOTO Report No.: HCT-SAR04-0202 FCC ID : PP4TX-110CA DATE : February 11, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ EXTERNAL PHOTO Report No.: HCT-SAR04-0202 FCC ID : PP4TX-110CA DATE : February 11, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ EXTERNAL PHOTO Report No.: HCT-SAR04-0202 FCC ID : PP4TX-110CA DATE : February 11, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ EXTERNAL PHOTO Report No.: HCT-SAR04-0202 FCC ID : PP4TX-110CA DATE : February 11, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ EXTERNAL PHOTO Report No.: HCT-SAR04-0202 FCC ID : PP4TX-110CA DATE : February 11, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ EXTERNAL PHOTO Report No.: HCT-SAR04-0202 FCC ID : PP4TX-110CA DATE : February 11, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ EXTERNAL PHOTO Report No.: HCT-SAR04-0202 FCC ID : PP4TX-110CA DATE : February 11, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ EXTERNAL PHOTO

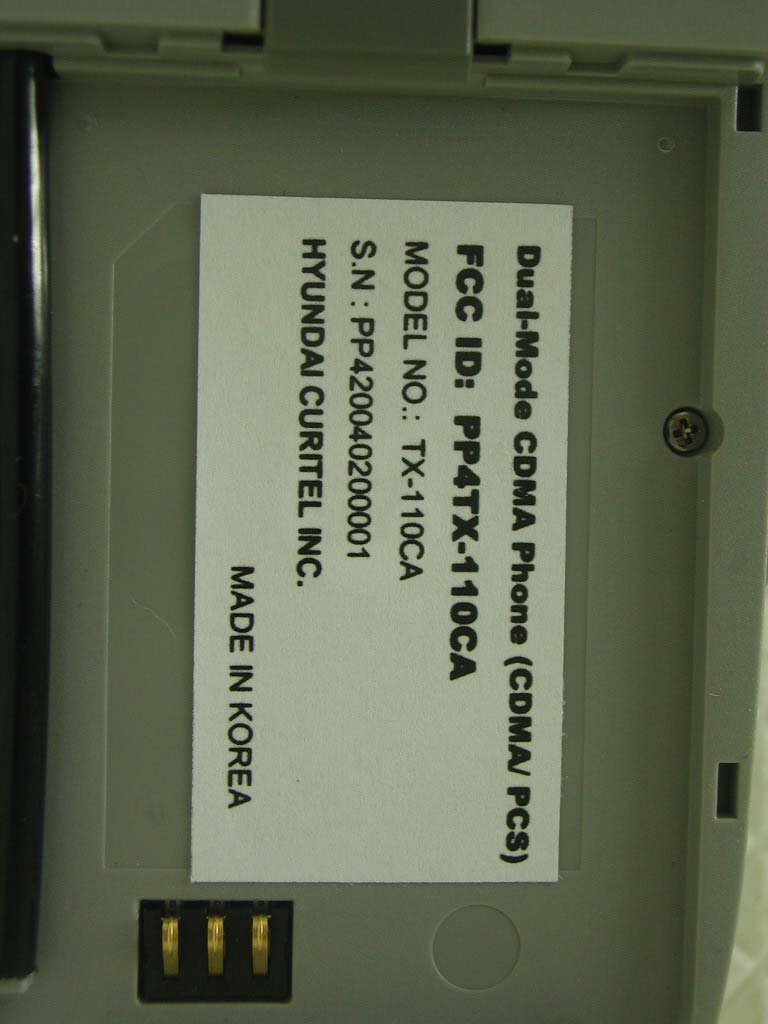

Report No.: HCT-SAR04-0202 FCC ID : PP4TX-110CA DATE : February 11, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ATTACHMENT E – FCC ID LABEL/ LOCATION Report No.: HCT-SAR04-0202 FCC ID : PP4TX-110CA DATE : February 11, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr LABELLING REQUIREMENTS PER §§ 2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. ( SEE NEXT PAGE ) Report No.: HCT-SAR04-0202 FCC ID : PP4TX-110CA DATE : February 11, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr

Report No.: HCT-SAR04-0202 FCC ID : PP4TX-110CA DATE : February 11, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ATTACHMENT H – INTERNAL PHOTOGRAPHS ■ INTERNAL PHOTO Report No.: HCT-SAR04-0202 FCC ID : PP4TX-110CA DATE : February 11, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ INTERNAL PHOTO Report No.: HCT-SAR04-0202 FCC ID : PP4TX-110CA DATE : February 11, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ INTERNAL PHOTO Report No.: HCT-SAR04-0202 FCC ID : PP4TX-110CA DATE : February 11, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ INTERNAL PHOTO Report No.: HCT-SAR04-0202 FCC ID : PP4TX-110CA DATE : February 11, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ INTERNAL PHOTO Report No.: HCT-SAR04-0202 FCC ID : PP4TX-110CA DATE : February 11, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ INTERNAL PHOTO

ANTENNA SPECIFICATION GA L T RONIC S C ONFIDENT IA L A ND PROPRIET A RY INFORM A T ION - M A Y NOT BE COPIED OR DISCLOSED. Document: 2372Spec.DOC Page of 12 Form No.: FM016 Rev C 2 Revision : S1 Part No. : 020678114-2372 Proje ct No. : 237200 PRELIMINARY DESIGN SPECIFICATION FOR ANTENNA M4.5 BASE HELICAL RETRACTABLE CDMA / GPS / PCS FOR CURITEL TX-110CA GALTRONICS PROJECT: 237200 PART NUMBER: 020678114-2372 2003 © COPYRIGHT GALTRONICS LTD. This docum ent is issued by Galtronics Ltd. (hereinafter called Galtronics) in confidence, and is not to be reproduced in w hole or in part w ithout the prior w ritten perm ission of Galtronics. The inform ation contained herein is the property of Galtronics and is to be used only for the purpose for w hich it is subm itted and is not to be released in w hole or in part w ithout the prior w ritten perm ission of Galtronics. ANTENNA SPECIFICATION GA L T RONIC S C ONFIDENT IA L A ND PROPRIET A RY INFORM A T ION - M A Y NOT BE COPIED OR DISCLOSED. Document: 2372Spec.DOC Page of 12 Form No.: FM016 Rev C 3 Revision : S1 Part No. : 020678114-2372 Proje ct No. : 237200 CONTENTS 1. PURPOSE AND SCOPE 2. RELATED DOCUMENTS 3. ABBREVIATIONS AND DEFINITIONS 4. DESCRIPTION AND PART NUMBERS 4.1 Description 4.2 Part Numbers 5. ELECTRICAL SPECIFICATIONS 5.1 Frequency Band 5.2 Impedance 5.3 Matching Requirements 5.4 VSWR 5.4.1 Requirements in Free Space 5.4.2 Test Methods (Engineering) 5.4.3 Test Methods (Production) 5.5 Gain 5.5.1 Gain Values 5.5.2 Test Method 5.6 Power Rating 5.6.1 Requirements 5.6.2 Test Methods 6. MECHANICAL SPECIFICATIONS 6.1 Mechanical Configuration 6.2 Connector Type 6.3 Retraction Forces 6.3.1 Requirements for Initial Values 6.3.2 Test Method 6.4 Pull Test 6.4.1 Requirements 6.4.2 Test Method 6.5 Drop Test 6.6 Helix Torque 6.6.1 Requirements 6.6.2 Test Method 6.7 Helix Bending 6.8 Helix Tensile Load 7. ENVIRONMENTAL SPECIFICATIONS 7.1 Temperature Shock 7.2 Salt Spray 7.3 Static Humidity 7.4 Temperature Soak 8. RELIABILITY SPECIFICATIONS 8.1 Connector Reliability 8.2 Whip Bending Endurance 9. QUALIFICATION 10. PACKAGING 11. PRODUCTION SITE 12. QUALIFICATION FLOW CHART ANTENNA SPECIFICATION GA L T RONIC S C ONFIDENT IA L A ND PROPRIET A RY INFORM A T ION - M A Y NOT BE COPIED OR DISCLOSED. Document: 2372Spec.DOC Page of 12 Form No.: FM016 Rev C 4 Revision : S1 Part No. : 020678114-2372 Proje ct No. : 237200 1. PURPOSE AND SCOPE The purpose of this document is to establish a design specification for the antenna product that Galtronics is developing for Curitel, for their wireless handset. This specification is preliminary. Any changes or additions to this specification can affect schedule and/or cost of the product and should be negotiated between Galtronics and Curitel before being incorporated into the specification. Upon agreement of this specification Galtronics will make no changes without the written approval from Curitel. Any changes requested by Curitel will be given to Galtronics with sufficient time to evaluate the cost impact and react as required. The development of the product in Galtronics is conducted according to the Design Control Procedure SOP006E. 2. RELATED DOCUM ENTS SOP006E Product Launch Procedure (Design Control) EN006E Reliability Guidelines EIA-STD-556 Outer Shipping Container Bar Code Label Standard 3. ABBREVIATIONS AND DEFINITIONS Ω Ohm ° Degree °C Celsius (degrees Centigrade) cm Centimeter g Grams Hz Hertz MHz Megahertz m Meter mm Millimeter N Newton PCB Printed Circuit Board RH Rel ati ve Hum i di ty W Wa tt Design specification: A preliminary target specification to guide design process Product specification: A final specification for the qualified product 4. DESCRIPTION AND PART NUM BERS 4.1 DESCRIPTION This antenna is a base helical retractable for use on a wireless handset. This antenna shall consist of two electromechanical pieces: A whip and a base. The whip shall extend and retract through the center of a fixed base lower helical, which is mounted to the handset via a screw thread interface. The whip element shall function in the full up position and the base helical shall function in the down position. The electrical, mechanical, and industrial design parameters required for this antenna are described below. 4.2 PART NUM BER Galtronics Part Number Frequency Bands 020678114-2372 CDMA / GPS / PCS ANTENNA SPECIFICATION GA L T RONIC S C ONFIDENT IA L A ND PROPRIET A RY INFORM A T ION - M A Y NOT BE COPIED OR DISCLOSED. Document: 2372Spec.DOC Page of 12 Form No.: FM016 Rev C 5 Revision : S1 Part No. : 020678114-2372 Proje ct No. : 237200 5. ELECTRICAL SPECIFICATION 5.1 FREQUENCY BANDS Band Name Frequency Band CDMA/AMPS 824 - 894 MHz GPS 1575 MHz PCS 1850-1990 MHz 5.2 IM PEDANCE Nominal impedance (including matching circuit): 50Ω. 5.3 M ATCHING REQUIREM ENTS In order to assure the best performance of the antenna, the matching will be evaluated in free space and in talk position for both extended and retracted position. The antenna will comply with the Electrical Specification requirements, as set out below, while mounted on the handset containing the PCB. The handset with PCB are to be supplied by the customer and should be representative of the latest design version of all parts. Any modifications in the handset or PCB can affect the performance of the antenna and should be discussed with Galtronics to determine the affect of such changes on antenna performance and delivery requirements. 5.4 VSWR Requirements in free space Band Extended Position Retracted Position Tx 1 Rx1 Tx1 Rx1 CDM A/AM PS 2.0:1 3.0:1 3.0:1 2.0:1 Tx 2 Rx2 Tx2 Rx2 PCS 4.0:1 4.5:1 3.0:1 3.0:1 GPS 4.0 2.0 Transmit Band (Herein designated as Tx 1 ) -the frequencies of operation for the Band transmit function shall be 824 to 849 MHz. Receive Band (Herein designated as Rx1 ) -the frequencies of operation for the Band receive function shall be 869 to 894 MHz. Transmit Band (Herein designated as Tx 2 ) -the frequencies of operation for the Band transmit …

Text truncated - open the document above for the full version.

HYUNDAI CALIBRATION & CERTIFICATION TECH. CO., LTD. PRODUCT COMPLIANCE DIVISION SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr CERTIFICATE OF COMPLIANCE SAR EVALUATION EUT Type: Dual-Mode CDMA Phone (CDMA/ PCS CDMA) Tx Frequency: 824.70 — 848.31 MHz (CDMA) 1851.25 — 1908.75 MHz (PCS CDMA) Rx Frequency: 869.70 — 893.31 MHz (CDMA) 1931.25 — 1988.75 MHz (PCS CDMA) Max. RF Output Power: 0.325W ERP CDMA (25.120dBm) 0.356W EIRP PCS CDMA (25.520dBm) Max. RF Output Power: 0.355W CDMA (25.5dBm) (Conducted) 0.316W PCS CDMA (25.0dBm) Trade Name/Model(s): HYUNDAI / TX-110CA FCC Classification: Licensed Portable Transmitter Held to Ear (PCE) Application Type: Certification FCC Rule Part(s): §2.1093; FCC/ OET Bulletin Supplement C [July 2001] Maximum SAR: 0.962 W/kg CDMA Brain SAR / 0.269W/kg CDMA Body SAR 1.27 W/kg PCS CDMA Brain SAR / 0.653W/kg PCS CDMA Body SAR This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/ IEEE Std. C95.1- 1992 and had been tested in accordance with the measurement procedures specified in ANSI/ IEEE Std. C95.3- 1992. (See Test Report). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Hyundai C-Tech Co., Ltd. Certifies that no party to this application has been denied FCC benefits pursuant to section 5301 of the Anti- Drug Abuse Act of 1998, 21 U.S. C. 853(a) Report prepared by : Ki-Soo Kim Manager of Product Compliance Team This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the HCT Co., Ltd. FCC ID : APPLICANT : PP4TX-110CA HYUNDAI CURITEL INC. Date of Issue : February 11, 2004 Test Report No.: HCT-SAR04-0202 Test Site: HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. FRN: 0005-8642- 21 HYUNDAI CURITEL INC. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701,KOREA FRN: 0006-2784-69 Report No.: HCT-SAR04-0202 FCC ID : PP4TX-110CA DATE : February 11, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr  of 24 Table of Contents 1.1 SCOPE ---------------------------------------------------------------------------------------------------------- 2.1 INTRODUCTION / SAR DEFINITION --------------------------------------------------------------------- 3.1 SAR MEASUREMENT SET-UP --------------------------------------------------------------------------- 4.1 E-FIELD PROBE SYSTEM --------------------------------------------------------------------------------- 5.1 EUT ARRANGEMENT ------------------------------------------------------------------------------------- 6.1 E-FIELD PROBE CALIBRATION PROCESS -------------------------------------------------------- 7.1 PHANTOM, HOLDER, & EQUIVALENT TISSUE --------------------------------------------------- 8.1 SYSTEM SPECIFICATIONS ------------------------------------------------------------------------------ 9.1 MEASUREMENT PROCESS ------------------------------------------------------------------------------ 10.1 ANSI/ IEEE C95.1 - 1992 RF EXPOSURE LIMITS -------------------------------------------------------- 11.1 MEASUREMENT UNCERTAINTIES ------------------------------------------------------------------- 12.1 TEST DATA SUMMARY ---------------------------------------------------------------------------------- 13.1 SAR TEST EQUIPMENT LIST --------------------------------------------------------------------------- 14.1 CONCLUSION ------------------------------------------------------------------------------------------------ 15.1 REFERENCES -------------------------------------------------------------------------------------------- 3 4 5 6 7-8 9-10 11 12 13 14 15 16-21 22 23 24 Report No.: HCT-SAR04-0202 FCC ID : PP4TX-110CA DATE : February 11, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr  of 24 SAR MEASUREMENT REPORT 1.1 SCOPE Environmental evaluation measurements of specific absorption rate 1 (SAR) distributions in emulated human head and body tissues exposed to radio frequency (RF) radiation from wireless portable devices for compliance with the rules and regulations of the U.S. Federal Communications Commission (FCC). 2 1. 2 Applicant • EUT Type: Dual-Mode CDMA Phone (CDMA/ PCS CDMA) • Trade Name: HYUNDAI • Model(s): TX-110CA • FCC ID: PP4TX-110CA • Serial Number(s): PP420040200001 • Tx Frequency: 824.70 – 848.31 MHz (CDMA) 1851.25 – 1908.75 MHz (PCS CDMA) • Rx Frequency: 869.70 – 893.31 MHz (CDMA) 1931.25 – 1988.75 MHz (PCS CDMA) • Application Type: Certification • FCC Classification: Licensed Portable Transmitter Held to Ear (PCE) • FCC Rule Part(s): §2.1093; FCC/ OET Bulletin Supplement C [July 2001] • Modulation(s): CDMA/ PCS CDMA • Αntenna Type: Retractable (Retracted/Extended) • Max RF. Output Power: 0.325W ERP CDMA (25.120dBm) 0.356W EIRP PCS CDMA (25.520dBm) • Date(s) of Tests: February 02, 2004 – February 03, 2004 • Place of Tests: Hyundai C-Tech. EMC Lab. Icheon, Kyounki-Do, KOREA • Report Serial No.: HCT-SAR04-0202 Figure 1. SAR System 1 Specific Absorption Rate (SAR) is a measure of the rate of energy absorption due to exposure to an RF transmitting source (wireless portable device). 2 IEEE/ANSI Std. C95.1-1992 limits are used to determine compliance with FCC ET Docket 93-62. Company Name: HYUNDAI CURITEL INC. Address: San 136-1, Ami-Ri, Bubal-Eub, Ichon-Si, Kyoungki-Do, KOREA 467-7…

Text truncated - open the document above for the full version.

Report No.: HCT-SAR04-0202 FCC ID : PP4TX-110CA DATE : February 11, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ATTACHMENT O – SAR TEST PLOTS (1 of 3) Report No.: HCT-SAR04-0202 FCC ID : PP4TX-110CA DATE : February 11, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR04-0202 FCC ID : PP4TX-110CA DATE : February 11, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR04-0202 FCC ID : PP4TX-110CA DATE : February 11, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR04-0202 FCC ID : PP4TX-110CA DATE : February 11, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR04-0202 FCC ID : PP4TX-110CA DATE : February 11, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR04-0202 FCC ID : PP4TX-110CA DATE : February 11, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR04-0202 FCC ID : PP4TX-110CA DATE : February 11, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR04-0202 FCC ID : PP4TX-110CA DATE : February 11, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR04-0202 FCC ID : PP4TX-110CA DATE : February 11, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR04-0202 FCC ID : PP4TX-110CA DATE : February 11, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR04-0202 FCC ID : PP4TX-110CA DATE : February 11, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR04-0202 FCC ID : PP4TX-110CA DATE : February 11, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR04-0202 FCC ID : PP4TX-110CA DATE : February 11, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR04-0202 FCC ID : PP4TX-110CA DATE : February 11, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR04-0202 FCC ID : PP4TX-110CA DATE : February 11, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR04-0202 FCC ID : PP4TX-110CA DATE : February 11, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr

Report No.: HCT-SAR04-0202 FCC ID : PP4TX-110CA DATE : February 11, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ATTACHMENT O – SAR TEST PLOTS (2 of 3) Report No.: HCT-SAR04-0202 FCC ID : PP4TX-110CA DATE : February 11, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr …

Text truncated - open the document above for the full version.
