PP4TX-130CDual-Mode CDMA Cellular Phone

AUDIOVOX AUDIOVOX TX-130C TX-130C Digital CDMA2000 1X Handheld Portable Telephone Thank you for choosing the up-to-date TX-130C, our new model, developed by top researchers to support the CDMA2000 1X systemthrough Qualcomm-manufactured MSM6100 chips and CDMA tech-nologies. This product allows for high speed communication servic-es, such as web browsing, data & fax services, and a GUI animationmenu. Among its many advanced features, the T9 input mode makes it much easier to enter letters. In addition, the VR (Voice Recognition)makes it more user friendly, with proven technologies including: Full graphic display of 9 text input line and 1 icon line with variable font size.Easy to dial through the VR feature.Easy to enter letters through the T9 text input mode.Enhanced for web browsing & data services (i.e.; wireless internet Downloads, wireless fax send/receive, Openwave, UP browser)GUI & Animation display compliant with CDMA2000 1X.Full graphic main display - 260K color TFT LCD.Mobile Camera.(SXGA 1.3 Mega Pixel)Navigation key and 25 keys aligned for more convenience.Sophisticated features of speaker phone, and voice recognition. Additional services of text messaging and Web browsing on top of authentication, call forwarding, call transfer, call waiting. Important information This TX-130C user guide contains very important information about how to handle and use the product. So please read this manual thor-oughly, pay attention to the warranty on the back page and be alertto the exclusions and limitations of your warranty, which are relatedwith the unauthorized use of components. Preface TX-130 manual0227(TX-130) 2004.2.27 9:0 PM Page 1 T T ABLE OF CONTENTS ABLE OF CONTENTS CHAPTER 1 BEFORE USING YOUR PHONE .........7 Inside the Package .................................................8Handset Description ..............................................9Function Keys.......................................................10Display Indicators.................................................11Using the Battery..................................................13 Installing the Battery ...........................................13Removing the Battery .........................................13 Charging the Battery............................................14 Power Connection...............................................14Battery Standby Times ........................................15Battery Talk Times...............................................15 Battery Information ..............................................16 Dos ......................................................................16Don’ts ..................................................................16 CHAPTER 2 BASIC OPERATION ...........................17 Using the Phone ...................................................18 Turning the Phone On.........................................18Turning the Phone Off .........................................18 Using the Main Menu ...........................................19 Accessing the Menu ............................................19 Menu Summary.....................................................20Basic Functions....................................................23 Making a Call ......................................................23Pause Feature.....................................................24Speaker Phone ...................................................24 Answering a Call .................................................25 Caller ID Function ...............................................25Call Waiting Function ..........................................26 Adjusting Volume.................................................26 Etiquette ..............................................................27Lock.....................................................................27 Functions During a Call .........................................28 Messaging ...........................................................28 Table of Contents - Page 1 TX-130 manual0227(TX-130) 2004.2.27 9:0 PM Page 2 T T ABLE OF CONTENTS ABLE OF CONTENTS T T ABLE OF CONTENTS ABLE OF CONTENTS CHAPTER 4 SETTINGS ..........................................55 Settings .................................................................56 Sounds................................................................56Display ................................................................61Data SVC ............................................................64Security ...............................................................65Others .................................................................71System ................................................................75 Phone Info. .........................................................77 Media Gallery........................................................79 Images ................................................................78Photos.................................................................79 Tones ..................................................................79 Tools ......................................................................80 Name ..................................................................80Voice Memo ........................................................81Voice Dial ............................................................82 Train Words.........................................................83 Voice Setting .......................................................85 CHAPTER 5 SUPPLEMENTARY FUNCTIONS ......87 Event......................................................................88 Add Plan .............................................................88 View Event List ...................................................89 Alarm .....................................................................90Memo Pad.............................................................92Calculator.......................................…

Text truncated - open the document above for the full version.

AUDIOVOX AUDIOVOX TX-130C TX-130C Digital CDMA2000 1X Handheld Portable Telephone Thank you for choosing the up-to-date TX-130C, our new model, developed by top researchers to support the CDMA2000 1X systemthrough Qualcomm-manufactured MSM6100 chips and CDMA tech-nologies. This product allows for high speed communication servic-es, such as web browsing, data & fax services, and a GUI animationmenu. Among its many advanced features, the T9 input mode makes it much easier to enter letters. In addition, the VR (Voice Recognition)makes it more user friendly, with proven technologies including: Full graphic display of 9 text input line and 1 icon line with variable font size.Easy to dial through the VR feature.Easy to enter letters through the T9 text input mode.Enhanced for web browsing & data services (i.e.; wireless internet Downloads, wireless fax send/receive, Openwave, UP browser)GUI & Animation display compliant with CDMA2000 1X.Full graphic main display - 260K color TFT LCD.Mobile Camera.(SXGA 1.3 Mega Pixel)Navigation key and 25 keys aligned for more convenience.Sophisticated features of speaker phone, and voice recognition. Additional services of text messaging and Web browsing on top of authentication, call forwarding, call transfer, call waiting. Important information This TX-130C user guide contains very important information about how to handle and use the product. So please read this manual thor-oughly, pay attention to the warranty on the back page and be alertto the exclusions and limitations of your warranty, which are relatedwith the unauthorized use of components. Preface TX-130 manual0227(TX-130) 2004.2.27 9:0 PM Page 1 T T ABLE OF CONTENTS ABLE OF CONTENTS CHAPTER 1 BEFORE USING YOUR PHONE .........7 Inside the Package .................................................8Handset Description ..............................................9Function Keys.......................................................10Display Indicators.................................................11Using the Battery..................................................13 Installing the Battery ...........................................13Removing the Battery .........................................13 Charging the Battery............................................14 Power Connection...............................................14Battery Standby Times ........................................15Battery Talk Times...............................................15 Battery Information ..............................................16 Dos ......................................................................16Don’ts ..................................................................16 CHAPTER 2 BASIC OPERATION ...........................17 Using the Phone ...................................................18 Turning the Phone On.........................................18Turning the Phone Off .........................................18 Using the Main Menu ...........................................19 Accessing the Menu ............................................19 Menu Summary.....................................................20Basic Functions....................................................23 Making a Call ......................................................23Pause Feature.....................................................24Speaker Phone ...................................................24 Answering a Call .................................................25 Caller ID Function ...............................................25Call Waiting Function ..........................................26 Adjusting Volume.................................................26 Etiquette ..............................................................27Lock.....................................................................27 Functions During a Call .........................................28 Messaging ...........................................................28 Table of Contents - Page 1 TX-130 manual0227(TX-130) 2004.2.27 9:0 PM Page 2 T T ABLE OF CONTENTS ABLE OF CONTENTS T T ABLE OF CONTENTS ABLE OF CONTENTS CHAPTER 4 SETTINGS ..........................................55 Settings .................................................................56 Sounds................................................................56Display ................................................................61Data SVC ............................................................64Security ...............................................................65Others .................................................................71System ................................................................75 Phone Info. .........................................................77 Media Gallery........................................................79 Images ................................................................78Photos.................................................................79 Tones ..................................................................79 Tools ......................................................................80 Name ..................................................................80Voice Memo ........................................................81Voice Dial ............................................................82 Train Words.........................................................83 Voice Setting .......................................................85 CHAPTER 5 SUPPLEMENTARY FUNCTIONS ......87 Event......................................................................88 Add Plan .............................................................88 View Event List ...................................................89 Alarm .....................................................................90Memo Pad.............................................................92Calculator.......................................…

Text truncated - open the document above for the full version.

SAN 136-1,AMI-RI,BUBAL-EUP, ICHEON-SI, KYOUNKI-DO, 467-701,KOREA SUBJECT: HYUNDAI Curitel Inc. FCC ID: PP4TX-130C MODEL: TX-130C Part 22 / 24 / 2 Certification Gentlemen: Submitted herewith, on behalf of HYUNDAI Curitel, Inc., is an application for Part 22 / 24 Certification of the following Dual- Mode CDMA Phone (CDMA/ PCS CDMA): Trade Name/Model(s): HYUNDAI / TX-130C EUT Type: Dual-Mode CDMA Phone (CDMA/ PCS CDMA) Tx Frequency: 824.70 — 848.31 MHz (CDMA) 1851.25 — 1908.75 MHz (PCS CDMA) Rx Frequency: 869.70 — 893.31 MHz (CDMA) 1931.25 — 1988.75 MHz (PCS CDMA) Max. RF Output Power: 0.331W ERP CDMA (25.20dBm) 0.344W EIRP PCS CDMA (25.37dBm) Maximum SAR: 0.882 W/kg CDMA Brain SAR / 0.447 W/kg CDMA Body SAR 1.32 W/kg PCS CDMA Brain SAR / 0.615 W/kg PCS CDMA Body SAR Attached is the applicant’s Letter of Authorization, Confidentiality Request, ESN Affidavit, E911 compliance statement, measurement report test data and plots, RF Exposure measurement report and data, FCC ID label and location, test setup photographs, internal and external photographs, block diagram (confidential), circuit diagrams & description (confidential), operational description (confidential), parts list & tune-up procedure (confidential), and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned. Report prepared by : Ki-Soo Kim Manager of Product Compliance Team cc: Mr. Hong-Ki Kim – HYUNDAI Curitel Inc. February 27, 2004 Test Site: HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. FRN: 0005-8642- 21 TEL : +82 31 639 8518 FAX : +82 31 639 8525 http://www.hct.co.kr

Report No.: HCT-SAR04-0206 FCC ID : PP4TX-130C DATE : February 27, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ATTACHMENT B – ATTESSTATION STATEMENT Report No.: HCT-SAR04-0206 FCC ID : PP4TX-130C DATE : February 27, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR04-0206 FCC ID : PP4TX-130C DATE : February 27, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR04-0206 FCC ID : PP4TX-130C DATE : February 27, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR04-0206 FCC ID : PP4TX-130C DATE : February 27, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr

Mike Kuo From: kisookim Sent: March12 2004 Friday 3:26 PM To: Chris Harvey Cc: Kuo Mike Subject: Re: Information needed for FCC ID:PP4TX-130C 3/12/2004 Dear Sir, Thank you very much for your email. We'd like to inform that the sample of the EUT was a Identical Prototype. Your prompt issue of Certificate would be much appreciated. Best Regards, Mr. KiSoo Kim Manager Product Compliance Division HYUNDAI C - Tech (HCT) ----- Original Message ----- From: Chris Harvey To: 'kisookim Cc: Mike Kuo Sent: Saturday, March 13, 2004 4:31 AM Subject: Information needed for FCC ID:PP4TX-130C Mr. Kim, we have one quick question that is required in accordance with FCC 2.948. For the RF and SAR testing was the sample of the EUT considered a Production Unit or and Identical Prototype? The response of this question is needed to be included in the application, so please respond very soon. Please respond to all persons listed on the e-mail above. Best regards, Chris Harvey Charvey [email protected]

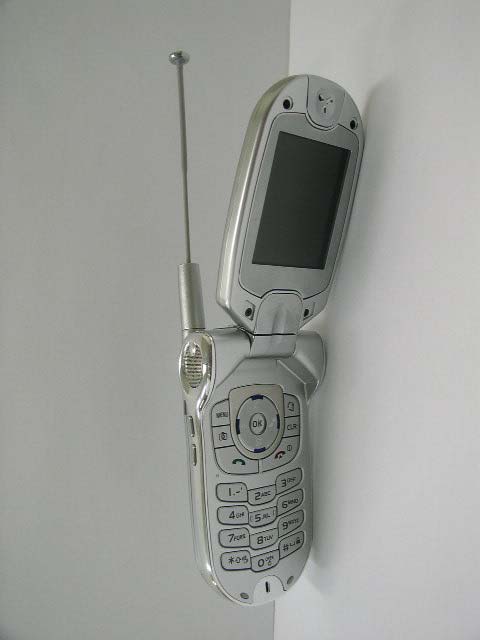

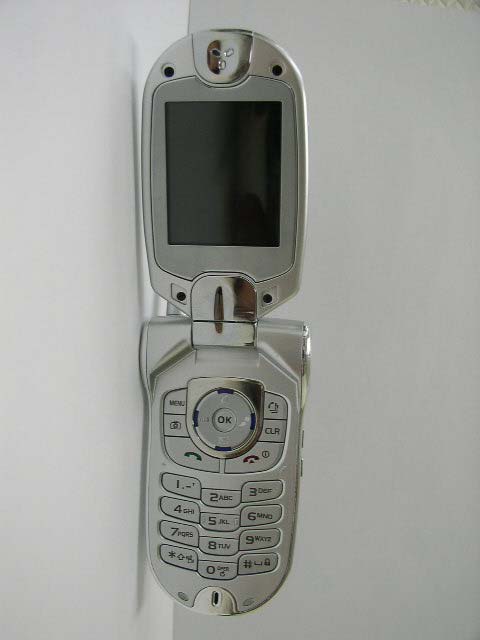

Report No.: HCT-SAR04-0206 FCC ID : PP4TX-130C DATE : February 27, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ATTACHMENT G – EXTERNAL PHOTOGRAPHS ■ EXTERNAL PHOTO Report No.: HCT-SAR04-0206 FCC ID : PP4TX-130C DATE : February 27, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ EXTERNAL PHOTO Report No.: HCT-SAR04-0206 FCC ID : PP4TX-130C DATE : February 27, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ EXTERNAL PHOTO Report No.: HCT-SAR04-0206 FCC ID : PP4TX-130C DATE : February 27, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ EXTERNAL PHOTO Report No.: HCT-SAR04-0206 FCC ID : PP4TX-130C DATE : February 27, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ EXTERNAL PHOTO Report No.: HCT-SAR04-0206 FCC ID : PP4TX-130C DATE : February 27, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ EXTERNAL PHOTO Report No.: HCT-SAR04-0206 FCC ID : PP4TX-130C DATE : February 27, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ EXTERNAL PHOTO Report No.: HCT-SAR04-0206 FCC ID : PP4TX-130C DATE : February 27, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ EXTERNAL PHOTO Report No.: HCT-SAR04-0206 FCC ID : PP4TX-130C DATE : February 27, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ EXTERNAL PHOTO Report No.: HCT-SAR04-0206 FCC ID : PP4TX-130C DATE : February 27, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ EXTERNAL PHOTO Report No.: HCT-SAR04-0206 FCC ID : PP4TX-130C DATE : February 27, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ EXTERNAL PHOTO Report No.: HCT-SAR04-0206 FCC ID : PP4TX-130C DATE : February 27, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ EXTERNAL PHOTO Report No.: HCT-SAR04-0206 FCC ID : PP4TX-130C DATE : February 27, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ EXTERNAL PHOTO Report No.: HCT-SAR04-0206 FCC ID : PP4TX-130C DATE : February 27, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ EXTERNAL PHOTO

Report No.: HCT-SAR04-0206 FCC ID : PP4TX-130C DATE : February 27, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ATTACHMENT E – FCC ID LABEL/ LOCATION Report No.: HCT-SAR04-0206 FCC ID : PP4TX-130C DATE : February 27, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr LABELLING REQUIREMENTS PER §§ 2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. ( SEE NEXT PAGE ) Report No.: HCT-SAR04-0206 FCC ID : PP4TX-130C DATE : February 27, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr

Report No.: HCT-SAR04-0206 FCC ID : PP4TX-130C DATE : February 27, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ATTACHMENT H – INTERNAL PHOTOGRAPHS ■ INTERNAL PHOTO Report No.: HCT-SAR04-0206 FCC ID : PP4TX-130C DATE : February 27, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ INTERNAL PHOTO Report No.: HCT-SAR04-0206 FCC ID : PP4TX-130C DATE : February 27, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ INTERNAL PHOTO Report No.: HCT-SAR04-0206 FCC ID : PP4TX-130C DATE : February 27, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ INTERNAL PHOTO Report No.: HCT-SAR04-0206 FCC ID : PP4TX-130C DATE : February 27, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ INTERNAL PHOTO Report No.: HCT-SAR04-0206 FCC ID : PP4TX-130C DATE : February 27, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ INTERNAL PHOTO Report No.: HCT-SAR04-0206 FCC ID : PP4TX-130C DATE : February 27, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ INTERNAL PHOTO Report No.: HCT-SAR04-0206 FCC ID : PP4TX-130C DATE : February 27, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ INTERNAL PHOTO Report No.: HCT-SAR04-0206 FCC ID : PP4TX-130C DATE : February 27, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ INTERNAL PHOTO Report No.: HCT-SAR04-0206 FCC ID : PP4TX-130C DATE : February 27, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ INTERNAL PHOTO

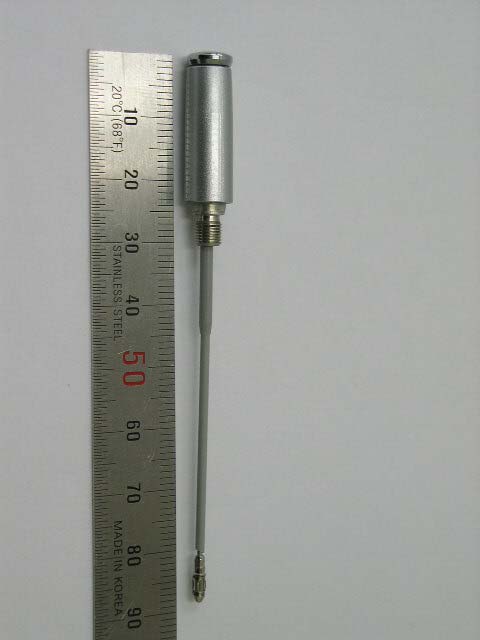

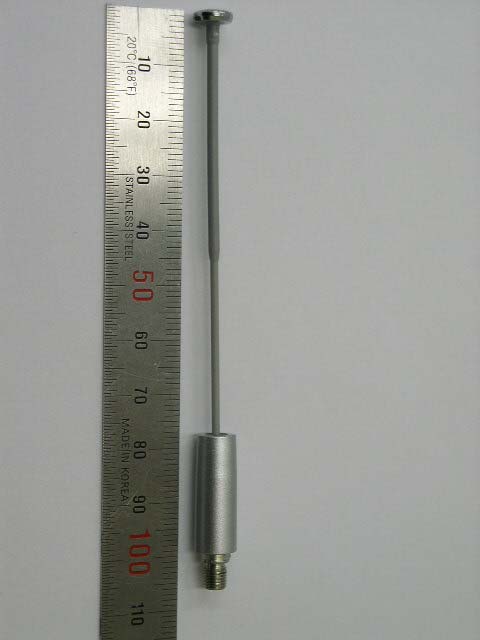

ANTENNA SPECIFICATION GA L T RONIC S C ONFIDENT IA L A ND PROPRIET A RY INFORM A T ION - M A Y NOT BE COPIED OR DISCLOSED. Document: 2615SPEC Page of 12 Form No.: FM016 Rev C 2 Re vis ion : S-1 Part No. : 020678114-2615 Proje ct No. : 261500 PRELIMINARY DESIGN SPECIFICATION FOR ANTENNA M4.5 BASE HELICAL RETRACTABLE CDMA / GPS / PCS FOR CURITEL TX130C GALTRONICS PROJECT: 261500 PART NUMBER: 020678114-2615 2004 © COPYRIGHT GALTRONICS LTD. This docum ent is issued by Galtronics Ltd. (hereinafter called Galtronics) in confidence, and is not to be reproduced in w hole or in part w ithout the prior w ritten perm ission of Galtronics. The inform ation contained herein is the property of Galtronics and is to be used only for the purpose for w hich it is subm itted and is not to be released in w hole or in part w ithout the prior w ritten perm ission of Galtronics. ANTENNA SPECIFICATION GA L T RONIC S C ONFIDENT IA L A ND PROPRIET A RY INFORM A T ION - M A Y NOT BE COPIED OR DISCLOSED. Document: 2615SPEC Page of 12 Form No.: FM016 Rev C 3 Re vis ion : S-1 Part No. : 020678114-2615 Proje ct No. : 261500 CONTENTS 1. PURPOSE AND SCOPE 2. RELATED DOCUMENTS 3. ABBREVIATIONS AND DEFINITIONS 4. DESCRIPTION AND PART NUMBERS 4.1 Description 4.2 Part Numbers 5. ELECTRICAL SPECIFICATIONS 5.1 Frequency Band 5.2 Impedance 5.3 Matching Requirements 5.4 VSWR 5.4.1 Requirements in Free Space 5.4.2 Test Methods (Engineering) 5.4.3 Test Methods (Production) 5.5 Gain 5.5.1 Gain Values 5.5.2 Test Method 5.6 Power Rating 5.6.1 Requirements 5.6.2 Test Methods 6. MECHANICAL SPECIFICATIONS 6.1 Mechanical Configuration 6.2 Connector Type 6.3 Retraction Forces 6.3.1 Requirements for Initial Values 6.3.2 Test Method 6.4 Pull Test 6.4.1 Requirements 6.4.2 Test Method 6.5 Drop Test 6.6 Helix Torque 6.6.1 Requirements 6.6.2 Test Method 6.7 Helix Bending 6.8 Helix Tensile Load 7. ENVIRONMENTAL SPECIFICATIONS 7.1 Temperature Shock 7.2 Salt Spray 7.3 Static Humidity 7.4 Temperature Soak 8. RELIABILITY SPECIFICATIONS 8.1 Connector Reliability 8.2 Whip Bending Endurance 9. QUALIFICATION 10. PACKAGING 11. PRODUCTION SITE 12. QUALIFICATION FLOW CHART ANTENNA SPECIFICATION GA L T RONIC S C ONFIDENT IA L A ND PROPRIET A RY INFORM A T ION - M A Y NOT BE COPIED OR DISCLOSED. Document: 2615SPEC Page of 12 Form No.: FM016 Rev C 4 Re vis ion : S-1 Part No. : 020678114-2615 Proje ct No. : 261500 1. PURPOSE AND SCOPE The purpose of this document is to establish a design specification for the antenna product that Galtronics is developing for Curitel, for their wireless handset. This specification is preliminary. Any changes or additions to this specification can affect schedule and/or cost of the product and should be negotiated between Galtronics and Curitel before being incorporated into the specification. Upon agreement of this specification Galtronics will make no changes without the written approval from Curitel. Any changes requested by Curitel will be given to Galtronics with sufficient time to evaluate the cost impact and react as required. The development of the product in Galtronics is conducted according to the Design Control Procedure SOP006E. 2. RELATED DOCUM ENTS SOP006E Product Launch Procedure (Design Control) EN006E Reliability Guidelines EIA-STD-556 Outer Shipping Container Bar Code Label Standard 3. ABBREVIATIONS AND DEFINITIONS Ω Ohm ° Degree °C Celsius (degrees Centigrade) cm Centimeter g Grams Hz Hertz MHz Megahertz m Meter mm Millimeter N Newton PCB Printed Circuit Board RH Rel ati ve Hum i di ty W Wa tt Design specification: A preliminary target specification to guide design process Product specification: A final specification for the qualified product 4. DESCRIPTION AND PART NUM BERS 4.1 DESCRIPTION This antenna is a base helical retractable for use on a wireless handset. This antenna shall consist of two electromechanical pieces: A whip and a base. The whip shall extend and retract through the center of a fixed base lower helical, which is mounted to the handset via a screw thread interface. The whip element shall function in the full up position and the base helical shall function in the down position. The electrical, mechanical, and industrial design parameters required for this antenna are described below. 4.2 PART NUM BER Galtronics Part Number Frequency Bands 020678114-2615 CDMA / GPS / PCS ANTENNA SPECIFICATION GA L T RONIC S C ONFIDENT IA L A ND PROPRIET A RY INFORM A T ION - M A Y NOT BE COPIED OR DISCLOSED. Document: 2615SPEC Page of 12 Form No.: FM016 Rev C 5 Re vis ion : S-1 Part No. : 020678114-2615 Proje ct No. : 261500 5. ELECTRICAL SPECIFICATION 5.1 FREQUENCY BANDS Band Name Frequency Band CDMA/AMPS 824 - 894 MHz GPS 1575 MHz PCS 1850-1990 MHz 5.2 IM PEDANCE Nominal impedance (including matching circuit): 50Ω. 5.3 M ATCHING REQUIREM ENTS In order to assure the best performance of the antenna, the matching will be evaluated in free space for both extended and retracted position. The antenna will comply with the Electrical Specification requirements, as set out below, while mounted on the handset containing the PCB. The handset with PCB are to be supplied by the customer and should be representative of the latest design version of all parts. Any modifications in the handset or PCB can affect the performance of the antenna and should be discussed with Galtronics to determine the affect of such changes on antenna performance and delivery requirements. 5.4 VSWR Requirements in free space Band Extended Position Retracted Position Tx 1 Rx1 Tx1 Rx1 CDM A/AM PS 2.0:1 2.5:1 3.0:1 2.0:1 Tx 2 Rx2 Tx2 Rx2 PCS 3.0:1 2.2:1 3.5:1 3.5:1 GPS 3.5 2.5 Transmit Band (Herein designated as Tx 1 ) -the frequencies of operation for the Band transmit function shall be 824 to 849 MHz. Receive Band (Herein designated as Rx1 ) -the frequencies of operation for the Band receive function shall be 869 to 894 MHz. Transmit Band (Herein designated as Tx 2 ) -the frequencies of operation for the Band transmit function shall be 1850 to 1…

Text truncated - open the document above for the full version.

HYUNDAI CALIBRATION & CERTIFICATION TECH. CO., LTD. PRODUCT COMPLIANCE DIVISION SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr CERTIFICATE OF COMPLIANCE SAR EVALUATION EUT Type: Dual-Mode CDMA Phone (CDMA/ PCS CDMA) Tx Frequency: 824.70 — 848.31 MHz (CDMA) 1851.25 — 1908.75 MHz (PCS CDMA) Rx Frequency: 869.70 — 893.31 MHz (CDMA) 1931.25 — 1988.75 MHz (PCS CDMA…
