PP4TX-130CA

Pantech Co., Ltd.

Tri-Mode Dual Band Cellular Phone

Click to zoom

Application Details

Equipment Class: PCE - PCS Licensed Transmitter held to ear
Date of Grant: Mar 21, 2004
Application Purpose: Original Equipment
Date of Application: Mar 21, 2004
Equipment Note: Tri-Mode Dual Band Cellular Phone
Frequency Range: 824.70000000 - 848.31000000
Company: Pantech Co., Ltd.
Country: South Korea

Documents & Files

Select a file to view

Users Manual

Cover Letter(s)

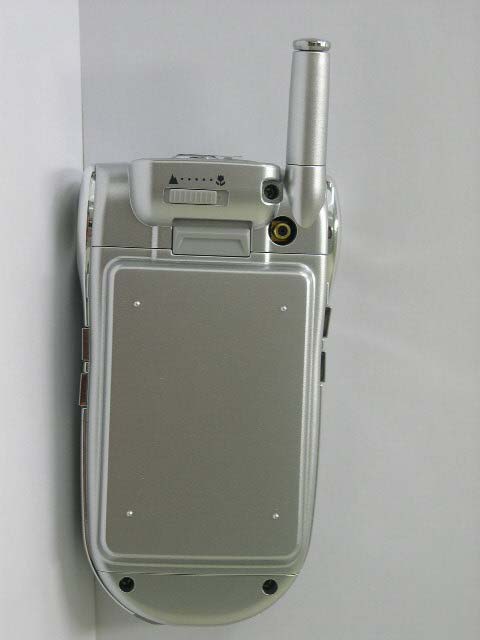

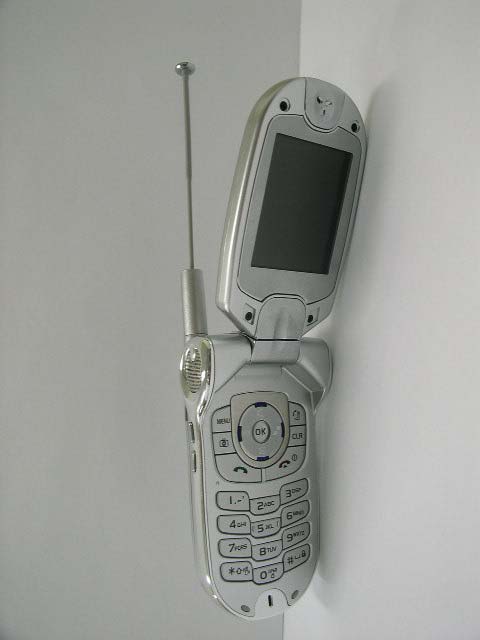

External Photos

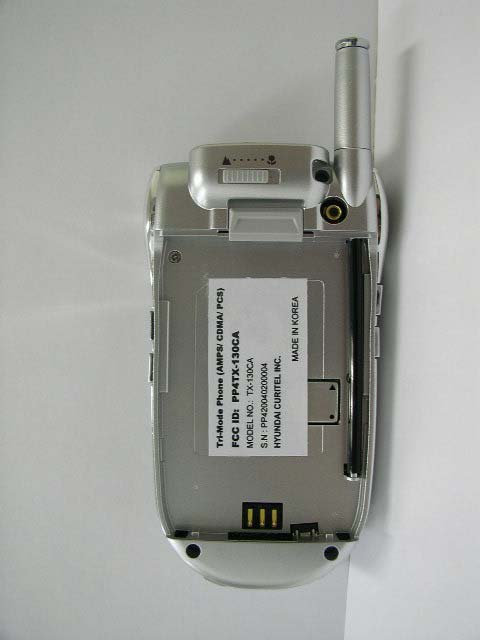

ID Label/Location Info

Internal Photos

Parts List/Tune Up Info

RF Exposure Info

Test Report

Test Setup Photos

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
4	22H	824.7 MHz - 848.31 MHz	324.00 mW	1M28F9W	2.5 ppm

Confidentiality

Long Term

Grant Notes

Output is ERP for Part 22 and EIRP for Part 24. SAR compliance for body-worn operating configurations is limited to the specific configuration tested for this filing. Body-worn operations are restricted to belt-clips, holsters or similar accessories that have no metallic component in the assembly and must provide at least 2.5 cm separation between the device, including its antenna whether extended or retracted, and the user body. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. Highest reported AMPS Part 22 SAR are head: 1.20 W/kg and body: 0.655 W/kg, CDMA Part 22 SAR are head: 0.788 W/kg and body: 0.457 W/kg, for PCS Part 24 head: 1.24 W/kg and body: 0.698 W/kg.
