PP4TX-160CDual-Mode CDMA Phone

AUDIOVOX AUDIOVOX TX-160C Digital CDMA2000 1X Handheld Portable Telephone Thank you for choosing the up-to-date TX-160C , our new model, developed by top researchers to support the CDMA2000 1X systemthrough Qualcomm-manufactured MSM6100 chips and CDMA tech-nologies. This product allows for high speed communication servic-es, such as web browsing, data & fax services, and a GUI animationmenu. Among its many advanced features, the T9 input mode makes it much easier to enter letters. In addition, the VR (Voice Recognition)makes it more user friendly, with proven technologies including: Full graphic display of 9 text input line and 1 icon line with variable font size.Easy to dial through the VR feature.Easy to enter letters through the T9 text input mode.Enhanced for web browsing & data services (i.e.; wireless internet Downloads, wireless fax send/receive, Openwave, UP browser)GUI & Animation display compliant with CDMA2000 1X.Full graphic main display - 260K color TFT LCD.Mobile Camera.(SXGA 1.3 Mega Pixel)Navigation key and 25 keys aligned for more convenience.Sophisticated features of speaker phone, and voice recognition. Additional services of text messaging and Web browsing on top of authentication, call forwarding, call transfer, call waiting. Important information This TX-160C user guide contains very important information about how to handle and use the product. So please read this man-ual thoroughly, pay attention to the warranty on the back page and bealert to the exclusions and limitations of your warranty, which arerelated with the unauthorized use of components. Preface TX-160C_CDM-8940manual0624 2004.6.24 12:49 PM Page 1 T T ABLE OF CONTENTS ABLE OF CONTENTS CHAPTER 1 BEFORE USING YOUR PHONE .........7 Inside the Package .................................................8Handset Description ..............................................9Function Keys.......................................................10Display Indicators.................................................11Using the Battery..................................................13 Installing the Battery ...........................................13Removing the Battery .........................................13 Charging the Battery............................................14 Power Connection...............................................14Battery Standby Times ........................................15Battery Talk Times...............................................15 Battery Information ..............................................16 Dos ......................................................................16Don’ts ..................................................................16 CHAPTER 2 BASIC OPERATION ...........................17 Using the Phone ...................................................18 Turning the Phone On.........................................18Turning the Phone Off .........................................18 Using the Main Menu ...........................................19 Accessing the Menu ............................................19 Menu Summary.....................................................20Basic Functions....................................................23 Making a Call ......................................................23Pause Feature.....................................................24Speaker Phone ...................................................24 Answering a Call .................................................25 3 Way Call Function ............................................25Call Waiting Function ..........................................26 Adjusting Volume.................................................26 Etiquette ..............................................................27Lock.....................................................................27Caller ID Function ...............................................27 Functions During a Call .........................................28 Messaging ...........................................................28 Table of Contents - Page 1 TX-160C_CDM-8940manual0624 2004.6.24 12:49 PM Page 2 T T ABLE OF CONTENTS ABLE OF CONTENTS T T ABLE OF CONTENTS ABLE OF CONTENTS CHAPTER 4 SETTINGS ..........................................55 Settings .................................................................56 Sounds................................................................56Display ................................................................61Data SVC ............................................................65Security ...............................................................66Others .................................................................72System ................................................................76 Phone Info ..........................................................78 Media Gallery........................................................79 Images ................................................................79Pix .......................................................................79Flix ......................................................................80 Animations ..........................................................80 Tones ..................................................................81 CHAPTER 5 SUPPLEMENTARY FUNCTIONS ......83 Voice Tools ............................................................84 Name ..................................................................84Voice Memo ........................................................85Voice Dial ............................................................86 Train Words.........................................................87 Voice Setting .......................................................89 Schedule ...............................................................90 Add New Plan .....................................................90 View Plan List .............................................…

Text truncated - open the document above for the full version.

SAN 136-1,AMI-RI,BUBAL-EUP, ICHEON-SI, KYOUNKI-DO, 467-701,KOREA SUBJECT: HYUNDAI Curitel Inc. FCC ID: PP4TX-160C MODEL: TX-160C Part 22 / 24 / 2 Certification Gentlemen: Submitted herewith, on behalf of HYUNDAI Curitel, Inc., is an application for Part 22 / 24 Certification of the following Dual- Mode CDMA Phone (CDMA/ PCS CDMA): Trade Name/Model(s): HYUNDAI / TX-160C EUT Type: Dual-Mode CDMA Phone (CDMA/ PCS CDMA) Tx Frequency: 824.70 — 848.31 MHz (CDMA) 1851.25 — 1908.75 MHz (PCS CDMA) Rx Frequency: 869.70 — 893.31 MHz (CDMA) 1931.25 — 1988.75 MHz (PCS CDMA) Max. RF Output Power: 0.343W ERP CDMA (25.35dBm) 0.360 EIRP PCS CDMA (25.56dBm) Maximum SAR: 0.943 W/kg CDMA Brain SAR / 0.416W/kg CDMA Body SAR 1.33 W/kg PCS CDMA Brain SAR / 0.536W/kg PCS CDMA Body SAR Attached is the applicant’s Letter of Authorization, Confidentiality Request, ESN Affidavit, E911 compliance statement, measurement report test data and plots, RF Exposure measurement report and data, FCC ID label and location, test setup photographs, block diagram (confidential), circuit diagrams & description (confidential), operational description (confidential), parts list & tune-up procedure (confidential), and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned. Report prepared by : Ki-Soo Kim Manager of Product Compliance Team cc: Mr. Hong-Ki Kim – HYUNDAI Curitel Inc. June 26, 2004 Test Site: HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. FRN: 0005866421 TEL : +82 31 639 8518 FAX : +82 31 639 8525 http://www.hct.co.kr

Report No.: HCT-SAR04-0604 FCC ID: PP4TX-160C DATE: June 26, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ATTACHMENT B – ATTESSTATION STATEMENT Report No.: HCT-SAR04-0604 FCC ID: PP4TX-160C DATE: June 26, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR04-0604 FCC ID: PP4TX-160C DATE: June 26, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR04-0604 FCC ID: PP4TX-160C DATE: June 26, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR04-0604 FCC ID: PP4TX-160C DATE: June 26, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr

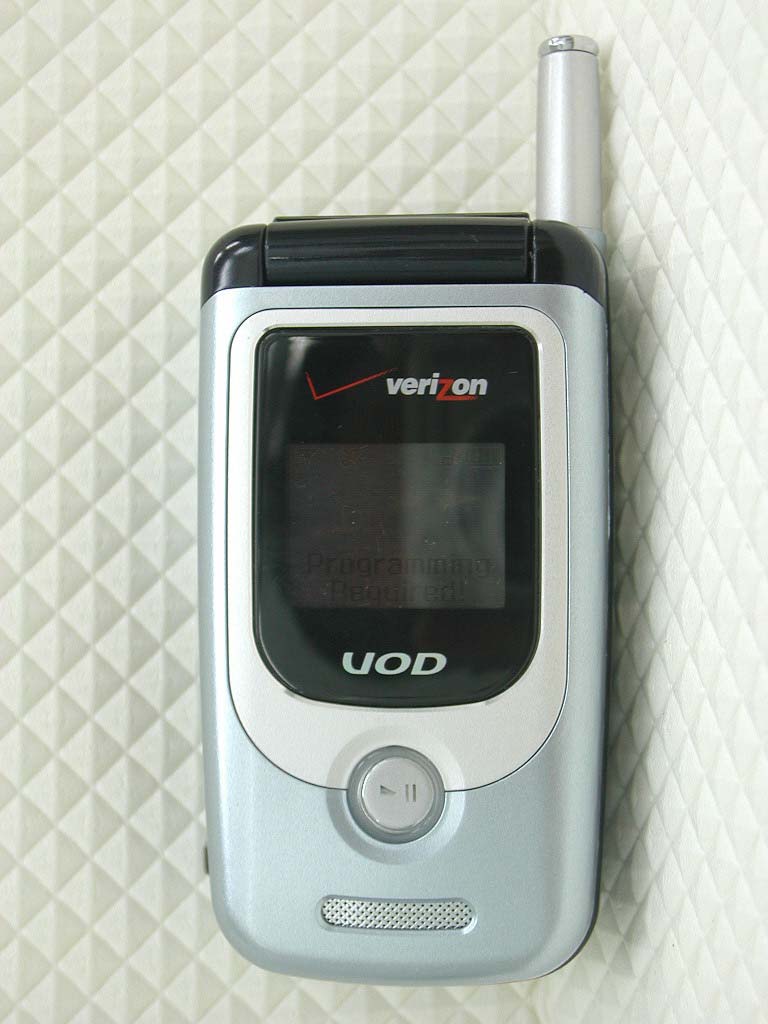

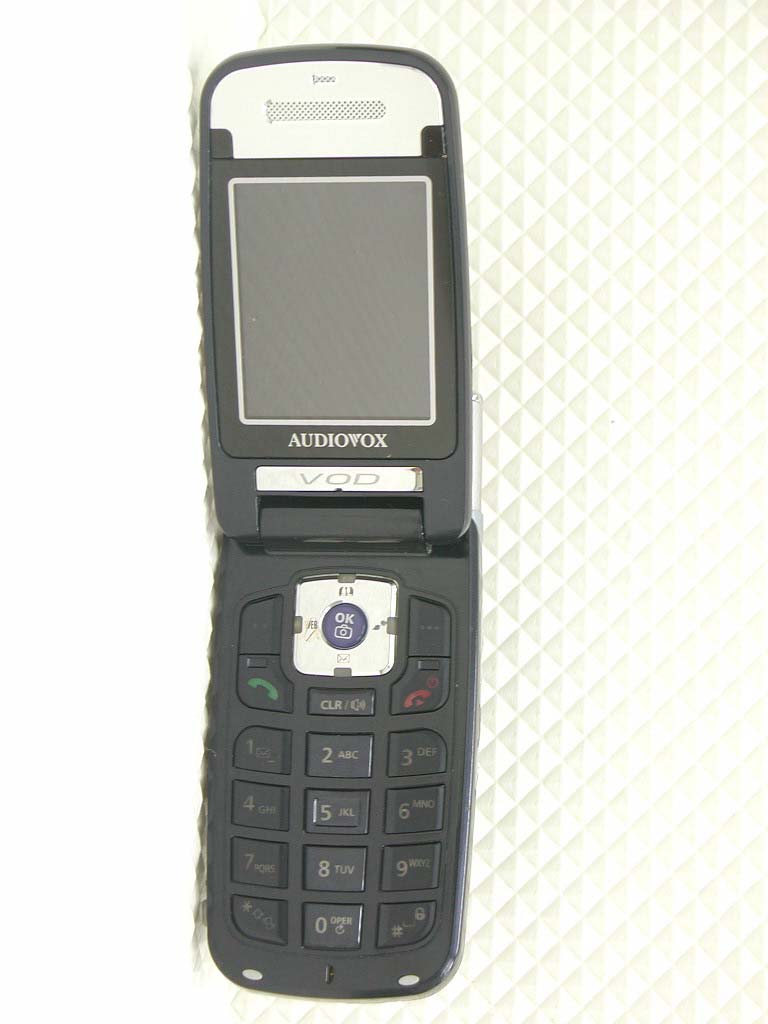

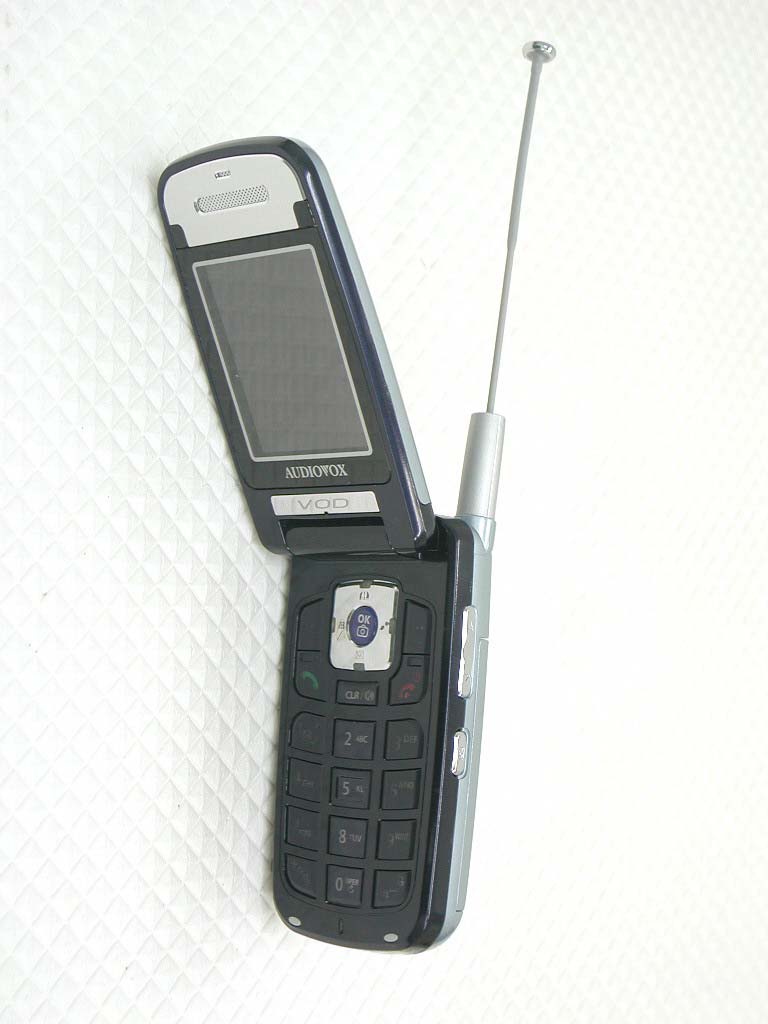

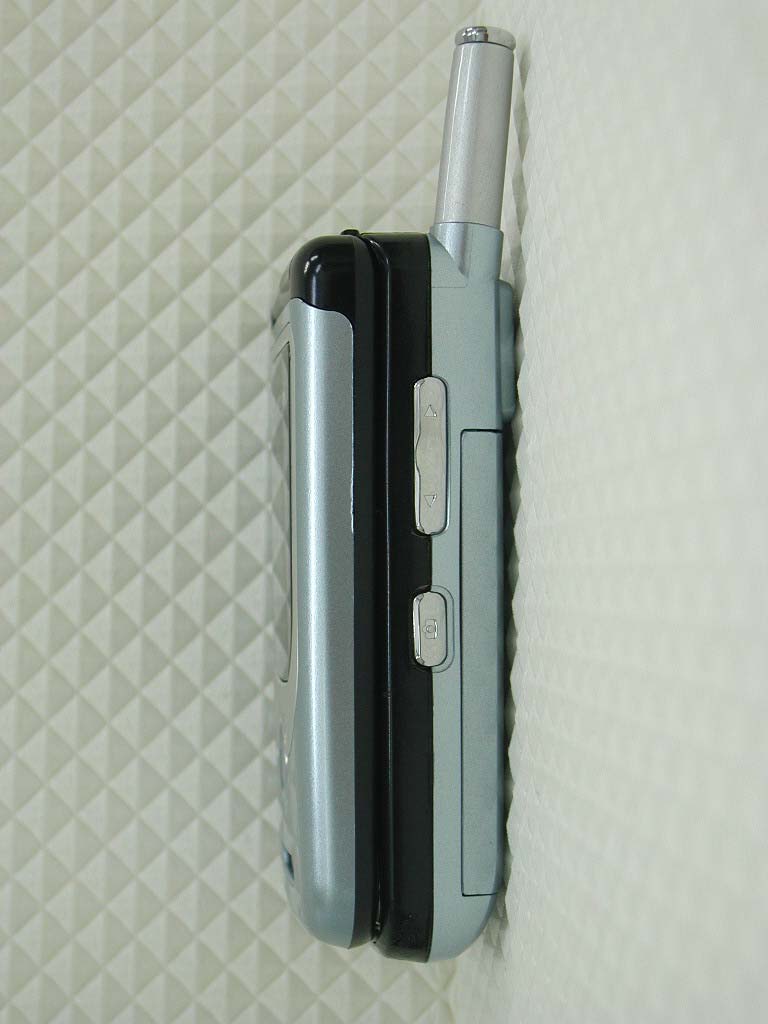

Report No.: HCT-SAR04-0604 FCC ID: PP4TX-160C DATE: June 26, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ATTACHMENT G – EXTERNAL PHOTOGRAPHS ■ EXTERNAL PHOTO Report No.: HCT-SAR04-0604 FCC ID: PP4TX-160C DATE: June 26, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ EXTERNAL PHOTO Report No.: HCT-SAR04-0604 FCC ID: PP4TX-160C DATE: June 26, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ EXTERNAL PHOTO Report No.: HCT-SAR04-0604 FCC ID: PP4TX-160C DATE: June 26, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ EXTERNAL PHOTO Report No.: HCT-SAR04-0604 FCC ID: PP4TX-160C DATE: June 26, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ EXTERNAL PHOTO Report No.: HCT-SAR04-0604 FCC ID: PP4TX-160C DATE: June 26, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ EXTERNAL PHOTO Report No.: HCT-SAR04-0604 FCC ID: PP4TX-160C DATE: June 26, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ EXTERNAL PHOTO Report No.: HCT-SAR04-0604 FCC ID: PP4TX-160C DATE: June 26, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ EXTERNAL PHOTO Report No.: HCT-SAR04-0604 FCC ID: PP4TX-160C DATE: June 26, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ EXTERNAL PHOTO Report No.: HCT-SAR04-0604 FCC ID: PP4TX-160C DATE: June 26, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ EXTERNAL PHOTO

Report No.: HCT-SAR04-0604 FCC ID: PP4TX-160C DATE: June 26, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ATTACHMENT E – FCC ID LABEL/ LOCATION Report No.: HCT-SAR04-0604 FCC ID: PP4TX-160C DATE: June 26, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr LABELLING REQUIREMENTS PER §§ 2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. ( SEE NEXT PAGE ) Report No.: HCT-SAR04-0604 FCC ID: PP4TX-160C DATE: June 26, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr

Report No.: HCT-SAR04-0604 FCC ID: PP4TX-160C DATE: June 26, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ATTACHMENT H – INTERNAL PHOTOGRAPHS ■ INTERNAL PHOTO Report No.: HCT-SAR04-0604 FCC ID: PP4TX-160C DATE: June 26, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ INTERNAL PHOTO Report No.: HCT-SAR04-0604 FCC ID: PP4TX-160C DATE: June 26, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ INTERNAL PHOTO Report No.: HCT-SAR04-0604 FCC ID: PP4TX-160C DATE: June 26, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ INTERNAL PHOTO Report No.: HCT-SAR04-0604 FCC ID: PP4TX-160C DATE: June 26, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ INTERNAL PHOTO Report No.: HCT-SAR04-0604 FCC ID: PP4TX-160C DATE: June 26, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ INTERNAL PHOTO Report No.: HCT-SAR04-0604 FCC ID: PP4TX-160C DATE: June 26, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ INTERNAL PHOTO Report No.: HCT-SAR04-0604 FCC ID: PP4TX-160C DATE: June 26, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ INTERNAL PHOTO Report No.: HCT-SAR04-0604 FCC ID: PP4TX-160C DATE: June 26, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ INTERNAL PHOTO Report No.: HCT-SAR04-0604 FCC ID: PP4TX-160C DATE: June 26, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ INTERNAL PHOTO Report No.: HCT-SAR04-0604 FCC ID: PP4TX-160C DATE: June 26, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ INTERNAL PHOTO Report No.: HCT-SAR04-0604 FCC ID: PP4TX-160C DATE: June 26, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ INTERNAL PHOTO Report No.: HCT-SAR04-0604 FCC ID: PP4TX-160C DATE: June 26, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ INTERNAL PHOTO Report No.: HCT-SAR04-0604 FCC ID: PP4TX-160C DATE: June 26, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ INTERNAL PHOTO

ANTENNA SPECIFICATION GALTRONICS CONFIDENTIAL AND PROPRIETARY INFORMATION - MAY NOT BE COPIED OR DISCLOSED. Document: 2813SPEC.DOC Page of 13 Form No.: FM016 Rev C 2 Revision : S-1 Part No. : 020678114-2813 Project No. : 281300 PRELIMINARY ENGINEERING SPECIFICATION FOR ANTENNA M4.5 BASE HELICAL RETRACTABLE CDMA / AMPS / PCS / GPS FOR CURITEL TX160C GALTRONICS PROJECT: 281300 PART NUMBER: 020678114-2813 2004 © COPYRIGHT GALTRONICS LTD. This document is issued by Galtronics Ltd. (hereinafter called Galtronics) in confidence, and is not to be reproduced in whole or in part without the prior written permission of Galtronics. The information contained herein is the property of Galtronics and is to be used only for the purpose for which it is submitted and is not to be released in whole or in part without the prior written permission of Galtronics. ANTENNA SPECIFICATION GALTRONICS CONFIDENTIAL AND PROPRIETARY INFORMATION - MAY NOT BE COPIED OR DISCLOSED. Document: 2813SPEC.DOC Page of 13 Form No.: FM016 Rev C 3 Revision : S-1 Part No. : 020678114-2813 Project No. : 281300 CONTENTS 1. PURPOSE AND SCOPE 2. RELATED DOCUMENTS 3. ABBREVIATIONS AND DEFINITIONS 4. DESCRIPTION AND PART NUMBERS 4.1 Description 4.2 Part Numbers 5. ELECTRICAL SPECIFICATIONS 5.1 Frequency Band 5.2 Impedance 5.3 Matching Requirements 5.4 VSWR 5.4.1 Requirements in Free Space 5.4.2 Test Methods (Engineering) 5.4.3 Test Methods (Production) 5.5 Gain 5.5.1 Gain Values 5.5.2 Test Method 5.6 Power Rating 5.6.1 Requirements 5.6.2 Test Methods 6. MECHANICAL SPECIFICATIONS 6.1 Mechanical Configuration 6.2 Connector Type 6.3 Retraction Forces 6.3.1 Requirements for Initial Values 6.3.2 Test Method 6.4 Pull Test 6.4.1 Requirements 6.4.2 Test Method 6.5 Drop Test 6.6 Helix Torque 6.6.1 Requirements 6.6.2 Test Method 6.7 Helix Bending 6.8 Helix Tensile Load 6.11 Tape Test 7. ENVIRONMENTAL SPECIFICATIONS 7.1 Temperature Cycling 7.2 Salt Spray 7.3 Static Humidity 7.4 Temperature Soak 8. RELIABILITY SPECIFICATIONS 8.1 Connector Reliability 8.2 Whip Bending Endurance 9. QUALIFICATION 10. PACKAGING 11. PRODUCTION SITE 12. QUALIFICATION FLOW CHART ANTENNA SPECIFICATION GALTRONICS CONFIDENTIAL AND PROPRIETARY INFORMATION - MAY NOT BE COPIED OR DISCLOSED. Document: 2813SPEC.DOC Page of 13 Form No.: FM016 Rev C 4 Revision : S-1 Part No. : 020678114-2813 Project No. : 281300 1. PURPOSE AND SCOPE The purpose of this document is to establish a design specification for the antenna product that Galtronics is developing for Curitel, for their wireless handset. This specification is preliminary. Any changes or additions to this specification can affect schedule and/or cost of the product and should be negotiated between Galtronics and Curitel before being incorporated into the specification. Upon agreement of this specification Galtronics will make no changes without the written approval from Curitel. Any changes requested by Curitel will be given to Galtronics with sufficient time to evaluate the cost impact and react as required. The development of the product in Galtronics is conducted according to the Design Control Procedure SOP006E. 2. RELATED DOCUMENTS SOP006E Product Launch Procedure (Design Control) EN006E Reliability Guidelines EIA-STD-556 Outer Shipping Container Bar Code Label Standard 3. ABBREVIATIONS AND DEFINITIONS Ω Ohm ° Degree °C Celsius (degrees Centigrade) cm Centimeter g Grams Hz Hertz MHz Megahertz m Meter mm Millimeter N Newton PCB Printed Circuit Board RH Relative Humidity W Watt Design specification: A preliminary target specification to guide design process Product specification: A final specification for the qualified product 4. DESCRIPTION AND PART NUMBERS 4.1 DESCRIPTION This antenna is a base helical retractable for use on a wireless handset. This antenna shall consist of two electromechanical pieces: A whip and a base. The whip shall extend and retract through the center of a fixed base lower helical, which is mounted to the handset via a screw thread interface. The whip element shall function in the full up position and the base helical shall function in the down position. The electrical, mechanical, and industrial design parameters required for this antenna are described below. 4.2 PART NUMBER Galtronics Part Number Frequency Bands 020678114-2813 CDMA / AMPS/PCS/GPS ANTENNA SPECIFICATION GALTRONICS CONFIDENTIAL AND PROPRIETARY INFORMATION - MAY NOT BE COPIED OR DISCLOSED. Document: 2813SPEC.DOC Page of 13 Form No.: FM016 Rev C 5 Revision : S-1 Part No. : 020678114-2813 Project No. : 281300 5. ELECTRICAL SPECIFICATION 5.1 FREQUENCY BANDS Band Name Frequency Band CDMA/AMPS 824 - 894 MHz PCS 1850-1990 MHz GPS 1575MHz 5.2 IMPEDANCE Nominal impedance (including matching circuit): 50Ω. 5.3 MATCHING REQUIREMENTS In order to assure the best performance of the antenna, the matching will be evaluated in free space and in talk position on phantom head for both extended and retracted positions. The antenna will comply with the Electrical Specification requirements, as set out below, while mounted on the handset containing the PCB. The handset with PCB are to be supplied by the customer and should be representative of the latest design version of all parts. Any modifications in the handset or PCB can affect the performance of the antenna and should be discussed with Galtronics to determine the affect of such changes on antenna performance and delivery requirements. 5.4 VSWR Requirements in free space Band Extended Position Retracted Position Tx1 Rx1 Tx1 Rx1 CDMA/AMPS 2.0:1 2.5:1 3.0:1 2.5:1 Tx2 Rx2 Tx2 Rx2 PCS 3.0:1 2.5:1 3.0:1 3.0:1 GPS 5.0:1 2.5:1 Transmit Band (Herein designated as Tx1) -the frequencies of operation for the Band transmit function shall be 824 to 849 MHz. Receive Band (Herein designated as Rx1) -the frequencies of operation for the Band receive function shall be 869 to 894 MHz. Transmit Band (Herein designated as Tx2) -the frequencies of operation for the Band transmit function shall be 1850 to 1910 MHz. Receive…

Text truncated - open the document above for the full version.

HYUNDAI CALIBRATION & CERTIFICATION TECH. CO., LTD. PRODUCT COMPLIANCE DIVISION SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr CERTIFICATE OF COMPLIANCE SAR EVALUATION EUT Type: Dual-Mode CDMA Phone (CDMA/ PCS CDMA) Prototype Tx Frequency: 824.70 — 848.31 MHz (CDMA) 1851.25 — 1908.75 MHz (PCS CDMA) Rx Frequency: 869.70 — 893.31 MHz (CDMA) 1931.25 — 1988.75 MHz (PCS CDMA) Max. RF Output Power: 0.343W ERP CDMA (25.35dBm) 0.360 EIRP PCS CDMA (25.56dBm) Max. RF Output Power: 0.355W CDMA (25.5dBm) (Conducted) 0.316W PCS CDMA (25.0dBm) Trade Name/Model(s): HYUNDAI / TX-160C FCC Classification: Licensed Portable Transmitter Held to Ear (PCE) Application Type: Certification FCC Rule Part(s): §2.1093; FCC/ OET Bulletin Supplement C [July 2001] Maximum SAR: 0.943 W/kg CDMA Brain SAR / 0.416 W/kg CDMA Body SAR 1.330 W/kg PCS CDMA Brain SAR / 0.536 W/kg PCS CDMA Body SAR This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/ IEEE Std. C95.1- 1992 and had been tested in accordance with the measurement procedures specified in ANSI/ IEEE Std. C95.3- 1992. (See Test Report). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Hyundai C-Tech Co., Ltd. Certifies that no party to this application has been denied FCC benefits pursuant to section 5301 of the Anti- Drug Abuse Act of 1998, 21 U.S. C. 853(a) Report prepared by : Ki-Soo Kim Manager of Product Compliance Team This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the HCT Co., Ltd. FCC ID : APPLICANT : PP4TX-160C HYUNDAI CURITEL INC. Date of Issue : June 26, 2004 Test Report No.: HCT-SAR04-0604 Test Site: HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. FRN: 0005866421 HYUNDAI CURITEL INC. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701,KOREA FRN: 0006278469 Report No.: HCT-SAR04-0604 FCC ID : PP4TX-160C DATE : June 26, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr  of 24 Table of Contents 1.1 SCOPE ---------------------------------------------------------------------------------------------------------- 2.1 INTRODUCTION / SAR DEFINITION --------------------------------------------------------------------- 3.1 SAR MEASUREMENT SET-UP --------------------------------------------------------------------------- 4.1 E-FIELD PROBE SYSTEM --------------------------------------------------------------------------------- 5.1 EUT ARRANGEMENT ------------------------------------------------------------------------------------- 6.1 E-FIELD PROBE CALIBRATION PROCESS -------------------------------------------------------- 7.1 PHANTOM, HOLDER, & EQUIVALENT TISSUE --------------------------------------------------- 8.1 SYSTEM SPECIFICATIONS ------------------------------------------------------------------------------ 9.1 MEASUREMENT PROCESS ------------------------------------------------------------------------------ 10.1 ANSI/ IEEE C95.1 - 1992 RF EXPOSURE LIMITS -------------------------------------------------------- 11.1 MEASUREMENT UNCERTAINTIES ------------------------------------------------------------------- 12.1 TEST DATA SUMMARY ---------------------------------------------------------------------------------- 13.1 SAR TEST EQUIPMENT LIST --------------------------------------------------------------------------- 14.1 CONCLUSION ------------------------------------------------------------------------------------------------ 15.1 REFERENCES -------------------------------------------------------------------------------------------- 3 4 5 6 7-8 9-10 11 12 13 14 15 16-21 22 23 24 Report No.: HCT-SAR04-0604 FCC ID : PP4TX-160C DATE : June 26, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr  of 24 SAR MEASUREMENT REPORT 1.1 SCOPE Environmental evaluation measurements of specific absorption rate 1 (SAR) distributions in emulated human head and body tissues exposed to radio frequency (RF) radiation from wireless portable devices for compliance with the rules and regulations of the U.S. Federal Communications Commission (FCC). 2 1. 2 Applicant • EUT Type: Dual-Mode CDMA Phone (CDMA/ PCS CDMA) Prototype • Trade Name: HYUNDAI • Model(s): TX-160C • FCC ID: PP4TX-160C • Serial Number(s): PP420040600003 • Tx Frequency: 824.70 – 848.31 MHz (CDMA) 1851.25 – 1908.75 MHz (PCS CDMA) • Rx Frequency: 869.70 – 893.31 MHz (CDMA) 1931.25 – 1988.75 MHz (PCS CDMA) • Application Type: Certification • FCC Classification: Licensed Portable Transmitter Held to Ear (PCE) • FCC Rule Part(s): §2.1093; FCC/ OET Bulletin Supplement C [July 2001] • Modulation(s): CDMA/ PCS CDMA • Αntenna Type: Retractable (Retracted/Extended) • Max RF. Output Power: 0.343W ERP CDMA (25.35dBm) 0.360 EIRP PCS CDMA (25.56dBm) • Date(s) of Tests: June 23, 2004 – June 24, 2004 • Place of Tests: Hyundai C-Tech. EMC Lab. Icheon, Kyounki-Do, KOREA • Report Serial No.: HCT-SAR04-0604 Figure 1. SAR System 1 Specific Absorption Rate (SAR) is a measure of the rate of energy absorption due to exposure to an RF transmitting source (wireless portable device). 2 IEEE/ANSI Std. C95.1-1992 limits are used to determine compliance with FCC ET Docket 93-62. Company Name: HYUNDAI CURITEL INC. Address: San 136-1, Ami-Ri, Bubal-Eub, Ichon-Si, Kyoungki-Do, KOREA 467-701 Attention: …

Text truncated - open the document above for the full version.

Report No.: HCT-SAR04-0604 FCC ID : PP4TX-160C DATE : June 26, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ATTACHMENT O – SAR TEST PLOTS (1 of 3) Report No.: HCT-SAR04-0604 FCC ID : PP4TX-160C DATE : June 26, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR04-0604 FCC ID : PP4TX-160C DATE : June 26, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR04-0604 FCC ID : PP4TX-160C DATE : June 26, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR04-0604 FCC ID : PP4TX-160C DATE : June 26, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR04-0604 FCC ID : PP4TX-160C DATE : June 26, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR04-0604 FCC ID : PP4TX-160C DATE : June 26, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES …

Text truncated - open the document above for the full version.
