PP4TX-180Dual-Mode CDMA Cellular Phone

User’s Guide TX-180 TABLE OF CONTENTS 1 Chapter 1 Chapter 2 Chapter 3 Chapter 4 CHAPTER 1. BEFORE USING YOUR PHONE .................................5 INSIDE THE PACKAGE .....................................................................................6 HANDSET DESCRIPTION.................................................................................7 THE FUNCTION KEYS.............................................................................................8 DISPLAY INDICATORS ...........................................................................................9 BATTERY USAGE ...........................................................................................11 BATTERY INSTALLATION ....................................................................................11 BATTERY REMOVAL.............................................................................................11 BATTERY CHARGING...........................................................................................12 POWER CONNECTION ......................................................................................12 PCS AND 1X BATTERY TIMES ...........................................................................13 BATTERY LIFE (FOR NEW BATTERY) ................................................................13 BATTERY HANDLING INFORMATION..........................................................14 DOs.........................................................................................................................14 DON’Ts...................................................................................................................14 CHAPTER 2. BASIC OPERATION ..................................................15 TURNING THE PHONE ON / OFF ..................................................................16 TURNING THE PHONE ON...................................................................................16 TURNING THE PHONE OFF..................................................................................16 ACCESSING THE MENU ................................................................................17 MENU SUMMARY .........................................................................................18 BASIC FUNCTIONS ........................................................................................21 MAKING A CALL ...................................................................................................21 SPEAKER PHONE..................................................................................................22 PAUSE FEATURE ..................................................................................................22 ANSWERING A CALL............................................................................................23 3-WAY CALLING ...................................................................................................23 CALLER ID FUNCTION..........................................................................................24 CALL WAITING FUNCTION ..................................................................................24 ADJUSTING VOLUME ..........................................................................................24 ETIQUETTE ............................................................................................................25 KEY GUARD...........................................................................................................25 DURING A CALL .............................................................................................26 MESSAGING .........................................................................................................26 MUTE (UNMUTE)..................................................................................................26 SCRATCHPAD .......................................................................................................26 SEND MY PHONE # ..............................................................................................26 MY PHONE # .........................................................................................................27 VOICE PRIVACY.....................................................................................................27 LOCATION .............................................................................................................27 PHONE INFO..........................................................................................................27 MAKING AN EMERGENCY CALL ..................................................................28 911 IN LOCK MODE ..............................................................................................28 911 USING ANY AVAILABLE SYSTEM ...............................................................28 CHAPTER 3. MEMORY FUNCTION ...............................................29 STORING A PHONE NUMBER ......................................................................30 ENTERING LETTERS, NUMBERS & SYMBOLS ...........................................31 STANDARD INPUT MODE....................................................................................32 T9 INPUT MODE....................................................................................................33 NUMERIC MODE...................................................................................................34 SYMBOL MODE ....................................................................................................34 MAKING A CALL THROUGH THE PHONE BOOK ........................................35 ONE-TOUCH/TWO-TOUCH DIALING...................................................................35 ONE-TOUCH DIALING: .......................................................................................35 TWO-TOUCH DIALING: ......................................................................................35 CHAPTER 4. MENU FUNCTION ..............…

Text truncated - open the document above for the full version.

HYUNDAI CURITEL INC. San 136-1, Ami-Ri, Bubal-Eub, Ichon-Si, Kyoungki-Do, 467-701, Korea Date: November 2, 2004 Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road, Columbia, MD 21046, U.S.A. Subject: Authorization Letter FCC ID: PP4TX-180 HYUNDAI CURITEL INC. Part 22/ 24 Certification To whom it may concern: We, the undersigned. hereby authorized HYUNDAI Calibration & Certification Technologies Co., Ltd. to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these manners. Any and all acts carried out by HYUNDAI Calibration & Certification Technologies Co., Ltd. on our behalf shall have the same effect as acts of our own. This authorization is valid until Dec. 31, 2004. Sincerely Yours, ---------------------------------------------- Eui-Kwon Park - Project Manager R & D Center HYUNDAI CURITEL INC. San 136-1, Ami-Ri, Bubal-Eub, Ichon-Si, Kyoungki-Do, 467-701, Korea Date: November 2, 2004 Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road, Columbia, MD 21046, U.S.A. Subject: Request for Confidentiality HYUNDAI CURITEL INC. FCC ID: PP4TX-180 Part 22/ 24 Certification Gentlemen: In accordance with 0.459 of CFR 47, Hyundai Curitel Inc. hereby requests confidentiality of the Block Diagrams attachment, Schematic Diagrams attachment, Operational Description attachment, and Part List/Tune-Up Procedure attachment for the above-referenced Certification application. These documents contain detailed system and equipment description and related information about the product which Hyundai Curitel Inc. considers to be proprietary, confidential, and a custom design and, otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, Hyundai Curitel Inc. feels this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give our competitors an unfair advantage in the market. Sincerely Yours, --------------------------------------------- Eui-Kwon Park - Project Manager R & D Center HYUNDAI CURITEL INC. San 136-1, Ami-Ri, Bubal-Eub, Ichon-Si, Kyoungki-Do, 467-701, Korea Date: November 2, 2004 Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046, U.S.A. Subject: User's Manual RF Exposure Warning Statement HYUNDAI CURITEL INC. FCC ID: PP4TX-180 Part 22/24 Certification Gentlemen: Hyundai Curitel Inc. hereby confirms that the attached RF exposure warning page will be readily visible to the user, and will be placed at a prominent location in the front section of the user's manual. Should you have any questions or comments concerning the above, please do not hesitate contact me. Sincerely Yours, ----------------------------------------- Eui-Kwon Park - Project Manager R & D Center HYUNDAI CURITEL INC. San 136-1, Ami-Ri, Bubal-Eub, Ichon-Si, Kyoungki-Do, 467-701, Korea Date: November 2, 2004 AFFIDAVIT FOR ESN PROTECTION OF CELLULAR MOBILE TELEPHONES We hereby certify that the tri-mode phone (FCC ID: PP4TX-180) is so designed that it complies with all the requirements for ESN protection specified in Section 22.919 of the FCC Rules. a) The transmitter in service has a unique ESN. b) The ESN host component is permanently attached to a main circuit board of the mobile transmitter and the integrity of the unit operating software cannot be altered. The ESN is plated from fraudulent contact and tampering. The ESN is encoded using multiplication by a polynomial and the ESN data programmed in the memory with other information. c) The ESN is factory-set and cannot be altered, transferred, removed or otherwise able to be manipulated. Cellular mobile equipment is specifically designed such that any attempt to remove, tamper with, or change the ESN chip, its logic system, or firmware originally programmed by the manufacturer will render the mobile transmitter inoperative. Sincerely Yours, ---------------------------------------- Eui-Kwon Park - Project Manager R & D Center

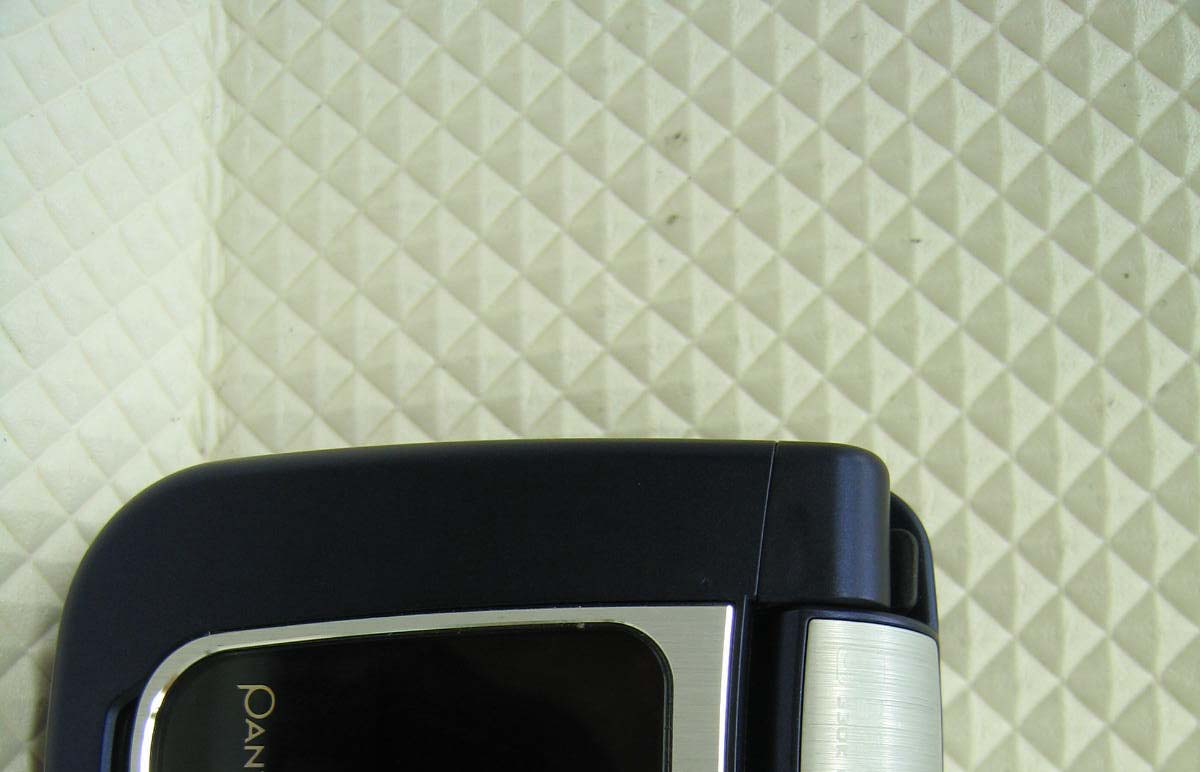

Report No.: HCT-SAR04-1105 FCC ID: PP4TX-180 DATE: November 8, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ATTACHMENT G – EXTERNAL PHOTOGRAPHS ■ EXTERNAL PHOTO Report No.: HCT-SAR04-1105 FCC ID: PP4TX-180 DATE: November 8, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ EXTERNAL PHOTO Report No.: HCT-SAR04-1105 FCC ID: PP4TX-180 DATE: November 8, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ EXTERNAL PHOTO Report No.: HCT-SAR04-1105 FCC ID: PP4TX-180 DATE: November 8, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ EXTERNAL PHOTO Report No.: HCT-SAR04-1105 FCC ID: PP4TX-180 DATE: November 8, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ EXTERNAL PHOTO Report No.: HCT-SAR04-1105 FCC ID: PP4TX-180 DATE: November 8, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ EXTERNAL PHOTO Report No.: HCT-SAR04-1105 FCC ID: PP4TX-180 DATE: November 8, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ EXTERNAL PHOTO Report No.: HCT-SAR04-1105 FCC ID: PP4TX-180 DATE: November 8, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ EXTERNAL PHOTO Report No.: HCT-SAR04-1105 FCC ID: PP4TX-180 DATE: November 8, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ EXTERNAL PHOTO Report No.: HCT-SAR04-1105 FCC ID: PP4TX-180 DATE: November 8, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ EXTERNAL PHOTO

Report No.: HCT-SAR04-1105 FCC ID: PP4TX-180 DATE: November 8, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ATTACHMENT E – FCC ID LABEL/ LOCATION Report No.: HCT-SAR04-1105 FCC ID: PP4TX-180 DATE: November 8, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr LABELLING REQUIREMENTS PER §§ 2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. ( SEE NEXT PAGE ) Report No.: HCT-SAR04-1105 FCC ID: PP4TX-180 DATE: November 8, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr

Report No.: HCT-SAR04-1105 FCC ID: PP4TX-180 DATE: November 8, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ATTACHMENT H – INTERNAL PHOTOGRAPHS Report No.: HCT-SAR04-1105 FCC ID: PP4TX-180 DATE: November 8, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ INTERNAL PHOTO Report No.: HCT-SAR04-1105 FCC ID: PP4TX-180 DATE: November 8, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ INTERNAL PHOTO Report No.: HCT-SAR04-1105 FCC ID: PP4TX-180 DATE: November 8, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ INTERNAL PHOTO Report No.: HCT-SAR04-1105 FCC ID: PP4TX-180 DATE: November 8, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ INTERNAL PHOTO Report No.: HCT-SAR04-1105 FCC ID: PP4TX-180 DATE: November 8, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ INTERNAL PHOTO Report No.: HCT-SAR04-1105 FCC ID: PP4TX-180 DATE: November 8, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ INTERNAL PHOTO Report No.: HCT-SAR04-1105 FCC ID: PP4TX-180 DATE: November 8, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ INTERNAL PHOTO Report No.: HCT-SAR04-1105 FCC ID: PP4TX-180 DATE: November 8, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ INTERNAL PHOTO

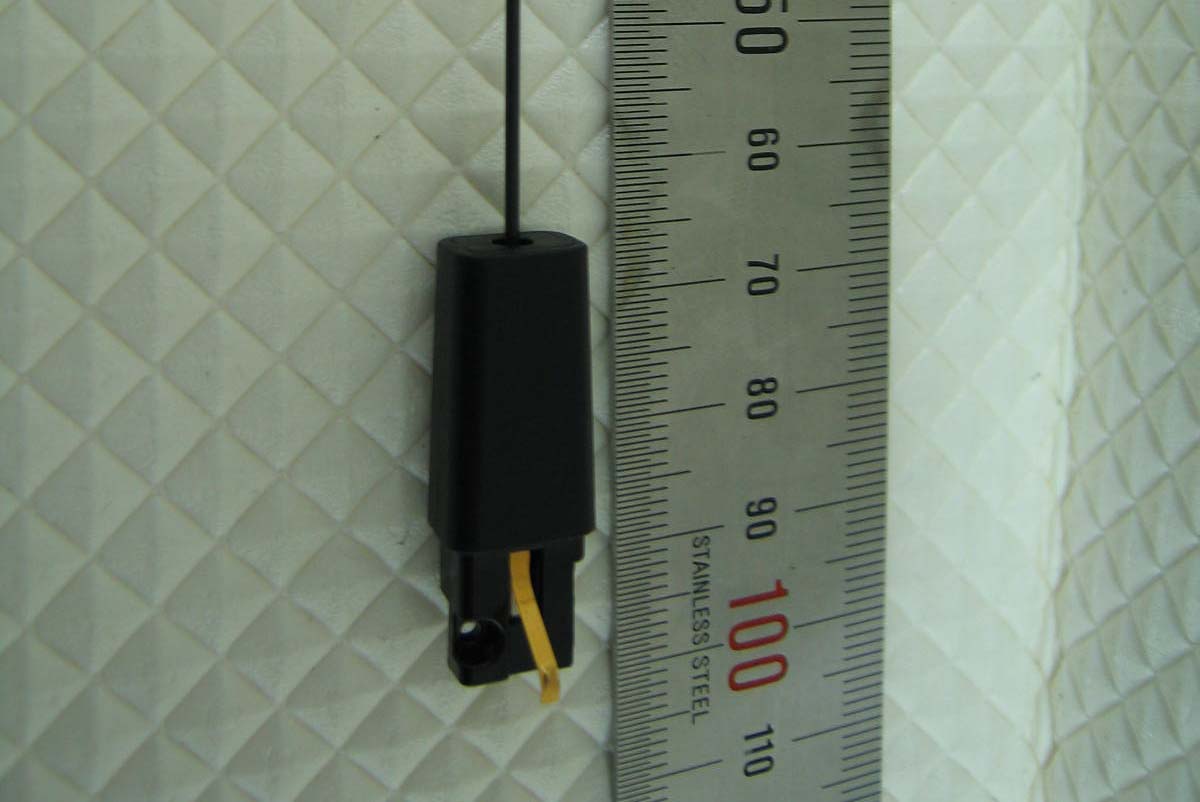

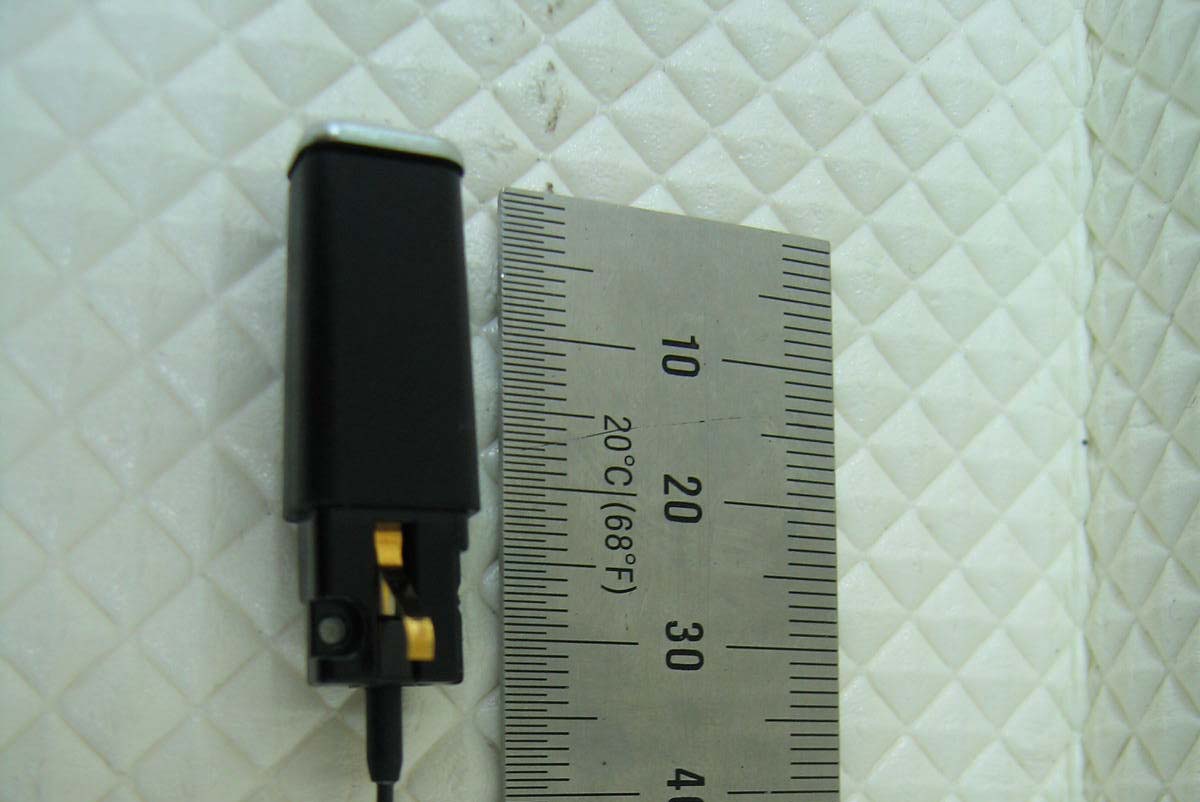

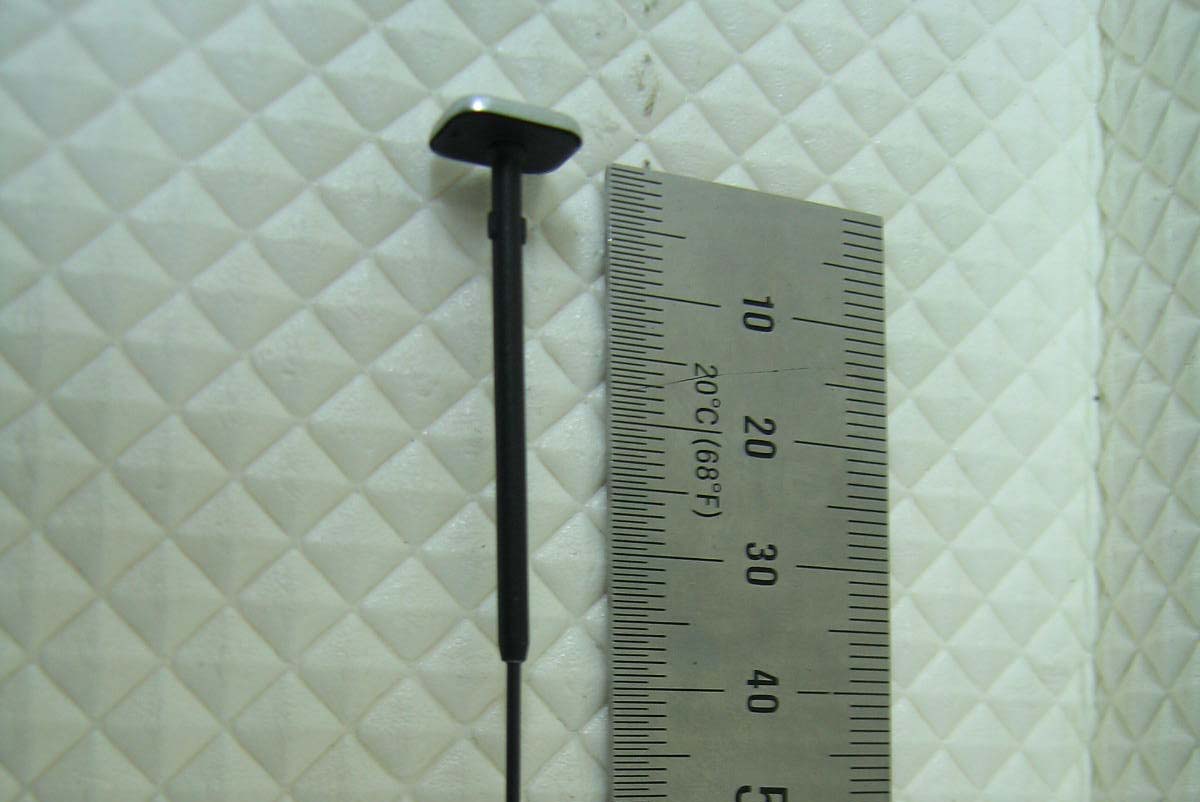

Confidential PRODUCT SPECIFICATIONS Page 1 of (31) Specification No. Description - Antenna Product Specification Customer Date Rev Reference CURITEL , KOREA Nov. 18, 2004 1.0 Antenna Specifications (TX-180) F E D C B A 11-18-04 Initial Release BH Rev. Date Changes Initiator RF approval ME approval Approval Approval Confidential PRODUCT SPECIFICATIONS Page 2 of (31) Specification No. Description - Antenna Product Specification Customer Date Rev Reference CURITEL , KOREA Nov. 18, 2004 1.0 Contents 1 General...................................................................................................................................................3 1.1 Product Description......................................................................................................................................................................3 1.2 Product Number............................................................................................................................................................................3 1.3 Print Acceptance...........................................................................................................................................................................3 1.4 Units, Definitions, and Abbreviations.......................................................................................................................................3 1.5 Interface..........................................................................................................................................................................................3 1.6 Conditions......................................................................................................................................................................................3 1.7 Coordinate System.......................................................................................................................................................................4 2 Electrical Properties.............................................................................................................................5 2.1 Samples Size.................................................................................................................................................................................5 2.2 Frequency Bands..........................................................................................................................................................................5 2.3 Impedance......................................................................................................................................................................................5 2.4 The Radio (Phone / Handset).....................................................................................................................................................5 2.5 VSWR............................................................................................................................................................................................6 2.6 Gain...............................................................................................................................................................................................16 2.7 Power Rating...............................................................................................................................................................................20 3 Mechanical Properties........................................................................................................................21 3.1 Samples Size...............................................................................................................................................................................21 3.2 Appearance..................................................................................................................................................................................21 3.3 Antenna Bending........................................................................................................................................................................21 3.4 Antenna Torque..........................................................................................................................................................................21 3.5 Antenna Tensile strength...........................................................................................................................................................22 3.6 Whip Bending Endurance....................................................................................................Error! Bookmark not defined. 3.7 Whip Tensile Strength...............................................................................................................................................................23 3.8 Whip Retraction / Extension Forces........................................................................................................................................24 3.9 Drop..............................................................................................................................................................................................24 4 Environmental Resistance Properties...............................................................................................26 4.1 Samples Size...............................................................................................................................................................................26 4.2 Storage Temperature..................................................................................................................................................................26 4.3 Electrical Operational Temperature................................................................................................................…

Text truncated - open the document above for the full version.

HYUNDAI CALIBRATION & CERTIFICATION TECH. CO., LTD. PRODUCT COMPLIANCE DIVISION SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr CERTIFICATE OF COMPLIANCE SAR EVALUATION EUT Type: Tri-Mode Dual-Band Phone (AMPS/CDMA/ PCS CDMA) Tx Frequency: 824.70 — 848.31 MHz (CDMA) 1851.25 — 1908.75 MHz (PCS CDMA) Rx Frequency: 869.70 — 893.31 MHz (CDMA) 1931.25 — 1988.75 MHz (PCS CDMA) Max. RF Output Power: 0.285W ERP CDMA (24.6dBm) 0.336 EIRP PCS CDMA (25.3dBm) Max. RF Output Power: 0.316W CDMA (25.0dBm) (Conducted) 0.316W PCS CDMA (25.0dBm) Trade Name/Model(s): HYUNDAI / TX-180 FCC Classification: Licensed Portable Transmitter Held to Ear (PCE) Application Type: Certification FCC Rule Part(s): §2.1093; FCC/ OET Bulletin Supplement C [July 2001] Maximum SAR: 1.02 W/kg CDMA Brain SAR / 0.198 W/kg CDMA Body SAR 1.43 W/kg PCS CDMA Brain SAR / 0.289 W/kg PCS CDMA Body SAR This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/ IEEE Std. C95.1- 1992 and had been tested in accordance with the measurement procedures specified in ANSI/ IEEE Std. C95.3- 1992. (See Test Report). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Hyundai C-Tech Co., Ltd. Certifies that no party to this application has been denied FCC benefits pursuant to section 5301 of the Anti- Drug Abuse Act of 1998, 21 U.S. C. 853(a) Report prepared by : Ki-Soo Kim Manager of Product Compliance Team This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the HCT Co., Ltd. FCC ID : APPLICANT : PP4TX-180 HYUNDAI CURITEL INC. Date of Issue: November 8, 2004 Test Report No.: HCT-SAR04-1105 Test Site: HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. FRN: 0005866421 HYUNDAI CURITEL INC. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701,KOREA FRN: 0006278469 Report No.: HCT-SAR04-1105 FCC ID: PP4TX-180 DATE: November 8, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr  of 27 Table of Contents 1.1 SCOPE ---------------------------------------------------------------------------------------------------------- 2.1 INTRODUCTION / SAR DEFINITION --------------------------------------------------------------------- 3.1 SAR MEASUREMENT SET-UP --------------------------------------------------------------------------- 4.1 E-FIELD PROBE SYSTEM --------------------------------------------------------------------------------- 5.1 EUT ARRANGEMENT ------------------------------------------------------------------------------------- 6.1 E-FIELD PROBE CALIBRATION PROCESS -------------------------------------------------------- 7.1 PHANTOM, HOLDER, & EQUIVALENT TISSUE --------------------------------------------------- 8.1 SYSTEM SPECIFICATIONS ------------------------------------------------------------------------------ 9.1 MEASUREMENT PROCESS ------------------------------------------------------------------------------ 10.1 ANSI/ IEEE C95.1 - 1992 RF EXPOSURE LIMITS -------------------------------------------------------- 11.1 MEASUREMENT UNCERTAINTIES ------------------------------------------------------------------- 12.1 TEST DATA SUMMARY ---------------------------------------------------------------------------------- 13.1 SAR TEST EQUIPMENT LIST --------------------------------------------------------------------------- 14.1 CONCLUSION ------------------------------------------------------------------------------------------------ 15.1 REFERENCES -------------------------------------------------------------------------------------------- 3 4 5 6 7-8 9-10 11 12 13 14 15 16-24 25 26 27 Report No.: HCT-SAR04-1105 FCC ID: PP4TX-180 DATE: November 8, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr  of 27 SAR MEASUREMENT REPORT 1.1 SCOPE Environmental evaluation measurements of specific absorption rate 1 (SAR) distributions in emulated human head and body tissues exposed to radio frequency (RF) radiation from wireless portable devices for compliance with the rules and regulations of the U.S. Federal Communications Commission (FCC). 2 1. 2 Applicant • EUT Type: Tri-Mode Dual-Band Phone (AMPS/CDMA/PCS CDMA) • Trade Name: HYUNDAI • Model(s): TX-180 • FCC ID: PP4TX-180 • Serial Number(s): PP4180200400001 • Tx Frequency: 824.70 – 848.31 MHz (CDMA) 1851.25 – 1908.75 MHz (PCS CDMA) • Rx Frequency: 869.70 – 893.31 MHz (CDMA) 1931.25 – 1988.75 MHz (PCS CDMA) • Application Type: Certification • FCC Classification: Licensed Portable Transmitter Held to Ear (PCE) • FCC Rule Part(s): §2.1093; FCC/ OET Bulletin Supplement C [July 2001] • Modulation(s): AMPS/ CDMA/ PCS CDMA • Αntenna Type: Retractable (Retracted/Extended) • Max RF. Output Power: 0.285W ERP CDMA (24.6dBm) 0.336 EIRP PCS CDMA (25.3dBm) • Date(s) of Tests: November 4, 2004 – November 5, 2004 • Place of Tests: Hyundai C-Tech. EMC Lab. Icheon, Kyounki-Do, KOREA • Report Serial No.: HCT-SAR04-1105 Figure 1. SAR System 1 Specific Absorption Rate (SAR) is a measure of the rate of energy absorption due to exposure to an RF transmitting source (wireless portable device). 2 IEEE/ANSI Std. C95.1-1992 limits are used to determine compliance with FCC ET Docket 93-62. Company Name: HYUNDAI CURITEL INC. Address: San 136-1, Ami-Ri, Bubal-Eub, Ichon-Si, Kyoungki-Do, KOREA 467-701 Attention…

Text truncated - open the document above for the full version.

Report No.: HCT-SAR04-1105 FCC ID : PP4TX-180 DATE :November 8, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ATTACHMENT P – SAR TEST SETUP PHOTOGRAPHS Report No.: HCT-SAR04-1105 FCC ID : PP4TX-180 DATE :November 8, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ Test Setup Photo Report No.: HCT-SAR04-1105 FCC ID : PP4TX-180 DATE :November 8, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ Test Setup Photo Report No.: HCT-SAR04-1105 FCC ID : PP4TX-180 DATE :November 8, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ Test Setup Photo Report No.: HCT-SAR04-1105 FCC ID : PP4TX-180 DATE :November 8, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ Test Setup Photo Report No.: HCT-SAR04-1105 FCC ID : PP4TX-180 DATE :November 8, 2004 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA T…

Text truncated - open the document above for the full version.
