PP4TX-180A

Pantech Co., Ltd.

Tri-Mode Dual-Band Phone (AMPS/ CDMA/ PCS CDMA)

Click to zoom

Application Details

Equipment Class: PCE - PCS Licensed Transmitter held to ear
Date of Grant: Dec 12, 2004
Application Purpose: Original Equipment
Date of Application: Dec 12, 2004
Equipment Note: Tri-Mode Dual-Band Phone (AMPS/ CDMA/ PCS CDMA)
Frequency Range: 824.70000000 - 848.31000000
Company: Pantech Co., Ltd.
Country: South Korea

Documents & Files

Select a file to view

Users Manual

Cover Letter(s)

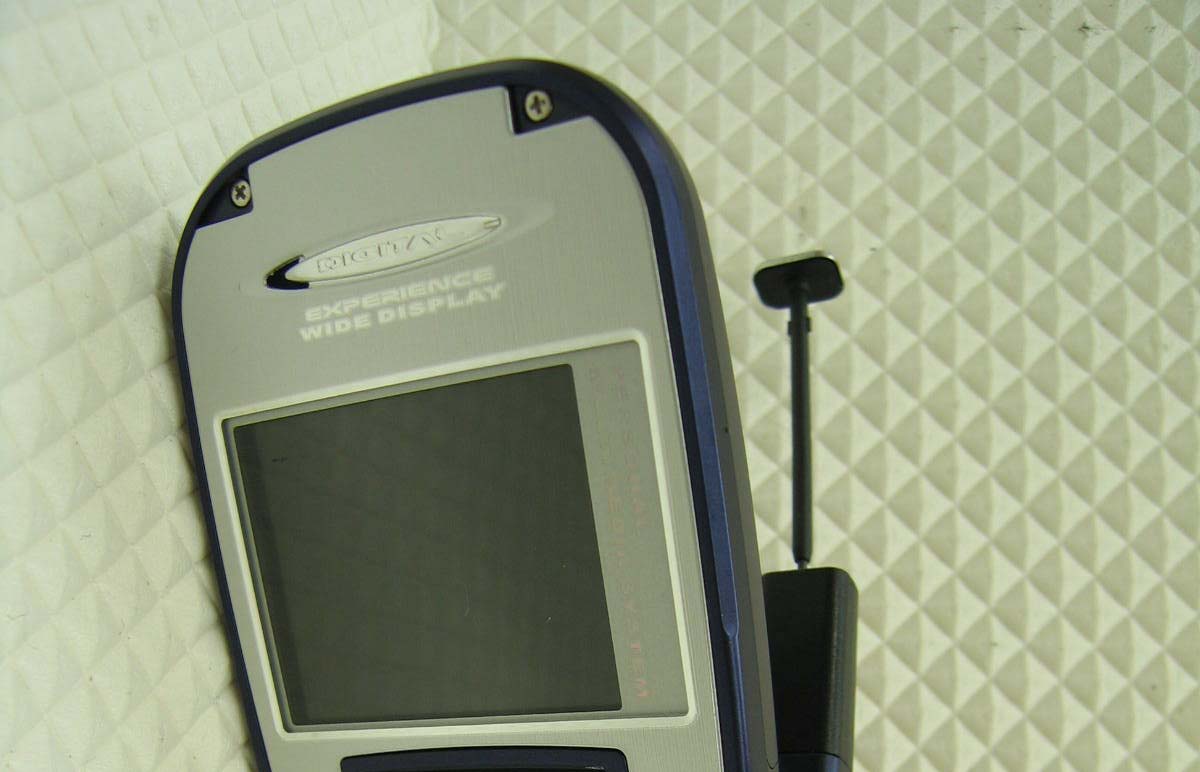

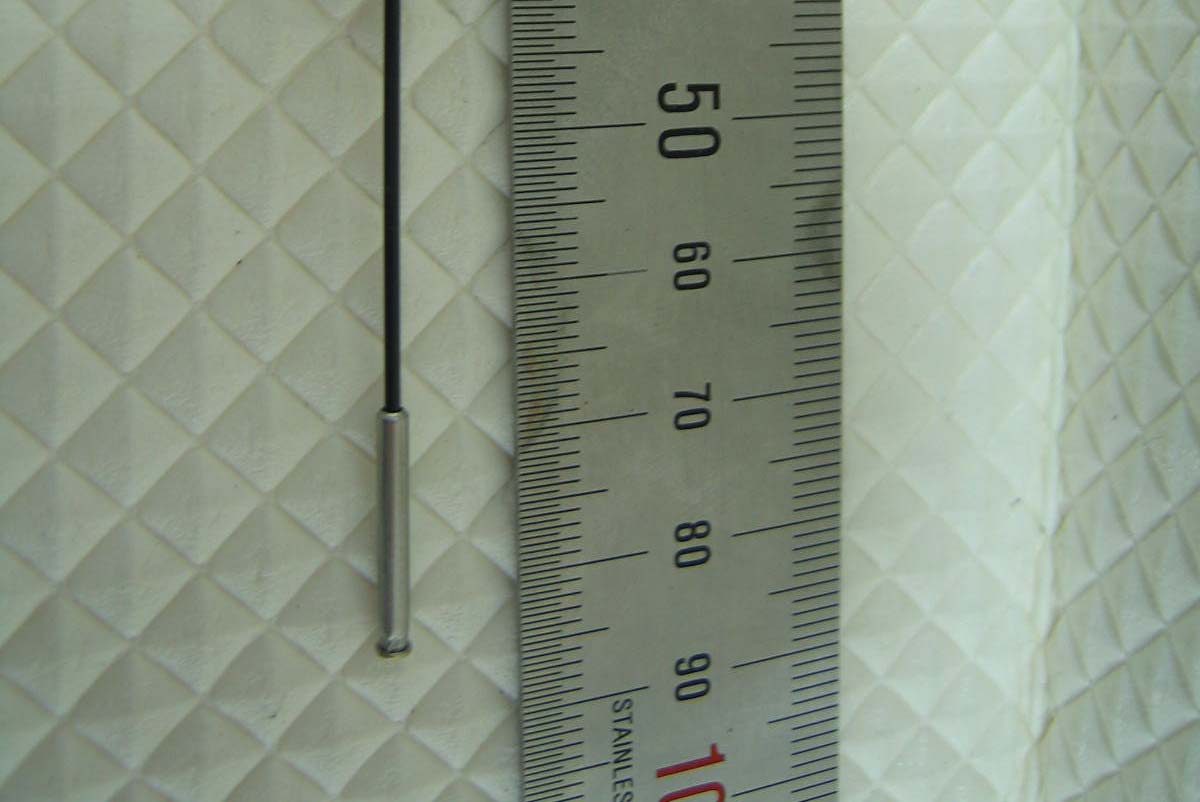

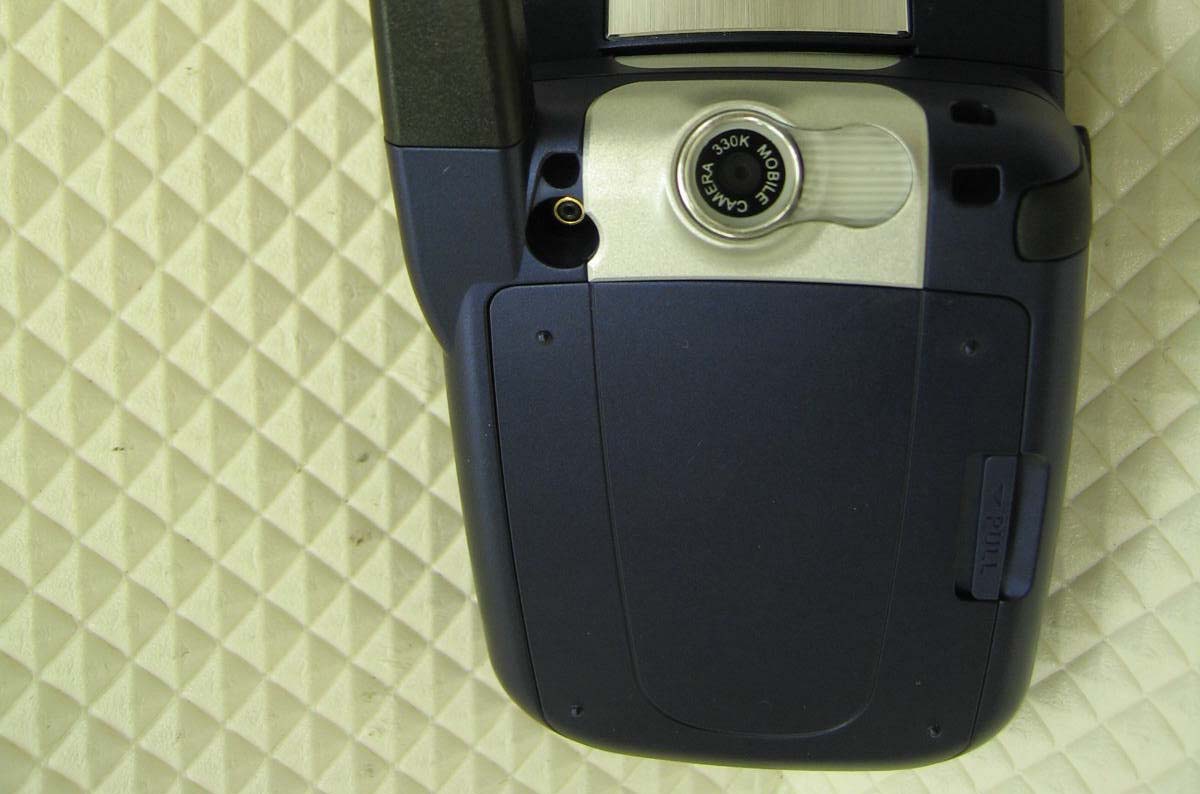

External Photos

ID Label/Location Info

Internal Photos

Parts List/Tune Up Info

RF Exposure Info

Test Report

Test Setup Photos

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
4	22H	824.7 MHz - 848.31 MHz	299.00 mW	1M28F9W	2.5 ppm

Confidentiality

Long Term

Grant Notes

Output is ERP for Part 22 and EIRP for Part 24. SAR compliance for body-worn operating configuration is based on a separation distance of 2.5 cm between the back of the unit and the body of the user. Body-worn operations are restricted to belt-clips, holsters or similar accessories that have no metallic component in the assembly and must provide at least 2.5 cm separation between the device, including its antenna whether extended or retracted, and the user body. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. The highest reported SAR values are: AMPS/CDMA modes (Part 22 AMPS) - Head: 1.42W/kg; Body-worn: 0.348 W/kg. PCS/CDMA mode (Part 24) - Head: 1.38W/kg; Body-worn: 0.270 W/kg.
