PP4TX-215ATri-Mode Dual-Band Phone (AMPS/CDMA/ PCS CDMA)

User’s Guide TX-215A TABLE OF CONTENTS 1 Chapter 1Chapter 2Chapter 3Chapter 4 CHAPTER 1. BEFORE USING YOUR PHONE .................................5 INSIDE THE PACKAGE .....................................................................................6HANDSET DESCRIPTION.................................................................................7 THE FUNCTION KEYS.............................................................................................8DISPLAY INDICATORS ...........................................................................................9 BATTERY USAGE ...........................................................................................11 BATTERY INSTALLATION ....................................................................................11BATTERY REMOVAL.............................................................................................11BATTERY CHARGING ...........................................................................................12 POWER CONNECTION ......................................................................................12PCS AND 1X BATTERY TIMES ...........................................................................13BATTERY LIFE (FOR NEW BATTERY) ................................................................13 BATTERY HANDLING INFORMATION..........................................................14 DOs.........................................................................................................................14DON’Ts...................................................................................................................14 CHAPTER 2. BASIC OPERATION ..................................................15 TURNING THE PHONE ON / OFF ..................................................................16 TURNING THE PHONE ON...................................................................................16TURNING THE PHONE OFF..................................................................................16 ACCESSING THE MENU ................................................................................17MENU SUMMARY .........................................................................................18BASIC FUNCTIONS ........................................................................................20 MAKING A CALL ...................................................................................................20ANSWERING CALLS.............................................................................................21SPEAKER PHONE..................................................................................................21WAIT/PAUSE FEATURE........................................................................................22ANSWERING A CALL............................................................................................223-WAY CALLING ...................................................................................................23CALLER ID FUNCTION..........................................................................................23CALL WAITING FUNCTION ..................................................................................24ADJUSTING VOLUME ..........................................................................................24KEY GUARD...........................................................................................................25 DURING A CALL .............................................................................................26 MUTE (UNMUTE)..................................................................................................26SEND TXT MSG ....................................................................................................26SEND PIX MSG .....................................................................................................26CONTACTS ............................................................................................................26RECENT CALLS .....................................................................................................26SEND DTMF...........................................................................................................27VOICE PRIVACY.....................................................................................................27LOCATION .............................................................................................................27 MAKING AN EMERGENCY CALL ..................................................................28 911 IN LOCK MODE ..............................................................................................28911 USING ANY AVAILABLE SYSTEM ...............................................................28 CHAPTER 3. MEMORY FUNCTION ...............................................29 STORING A PHONE NUMBER ......................................................................30ENTERING LETTERS, NUMBERS & SYMBOLS ...........................................31 STANDARD INPUT MODE....................................................................................32T9 INPUT MODE....................................................................................................33NUMERIC MODE...................................................................................................34SYMBOL MODE ....................................................................................................34 MAKING A CALL THROUGH THE PHONE BOOK ........................................35 ONE-TOUCH/TWO-TOUCH DIALING...................................................................35 ONE-TOUCH DIALING:.......................................................................................35TWO-TOUCH DIALING: ......................................................................................35 CHAPTER 4. MENU FUNCTION ....................................................37 CONTAC…

Text truncated - open the document above for the full version.

CH 4 69 SETTINGS CH 4 68 SETTINGS 1 Press [MENU], then select “Settings & Tools”menu, press “System” then select “Security”, then enter your password, press [OK]. 3 Select a location (1~3) with the Navigation Key. 4 Press [SET] and input a phone number,press [OK] again to save. 2 Select “Special #’s”. SPECIAL #’S The default password is the last 4 digit of your phone number. Stores 3 phone numbers that can be called even in the lock mode. 1 Press [MENU], then select “Settings & Tools”menu, press “System” then select “Security”, then enter your password, press [OK]. 3 Press [OK] to check “Contacts”, “Downloads”or “Pix Gallery” then press [DONE] to erase allthe items in those categories, then select “Yes”,press [OK]. 2 Select “Erase All”. ERASE ALL The default password is the last 4 digit of your phone number. Clears all contact, downloads entries and pix gallery from your phone. 1 Press [MENU], then select “Settings & Tools”menu, press “System” then select “Security”, then enter your password, press [OK]. 3 Select “Yes” or “No” with the Navigation Key.Press [OK]. 2 Select “Reset Phone”. RESET PHONE The default password is the last 4 digit of your phone number. Resets phone to default settings. When you select “Yes” and [OK], you will see “This will be reset to default settings. Reset Phone ?” on the display. 4 To reset the phone, press [OK]. Selects the language in which letters are displayed on the screen. LANGUAGE 1 Press [MENU], then select “Settings & Tools”menu, press “System” then select “Language”. 3 Press [OK] to save it. 2 Select “English” or “Spanish” with the NavigationKey. CH 4 71 SETTINGS CH 4 70 SETTINGS Calendar/Tunes & Tones/Gallery/Fun & Games/News & Info/Inbox/Sent/Email/Chat/IM/Settings & Tools/Alarm Clock,Calculator Your phone offers you the option of assigning a short-cut key (Down Navigation Key) to a favorite or often-used function. To assign a shortcut to the key: SHORT CUT KEY 1 Press [MENU], then select “Settings & Tools”menu, press “System” then select “Short Cut Key”. 3 The Shortcut can now be accessed by pressingthe “Down Navigation Key”. 2 Select your desired menu option then press[OK]. CALL SETTINGS ANSWER OPTIONS 1 Press [MENU], then select “Settings & Tools”menu, press “Call Settings” then select “Answer Options”. 2 Select one of the following with the Navigation Key. 3 To save, press [OK]. To select an answer mode: Flip OpenAny KeySend OnlyAuto Answer – HeadsetAuto Answer – HandsfreeAuto Answer – Handset CH 4 73 SETTINGS CH 4 72 SETTINGS 1 Press [MENU], then select “Settings & Tools”menu, press “Call Settings” then select “Auto Retry”. Automatically redials a call up to 5 times after a set time interval. 23 Retry time to field is shown. Press the NavigationKey left or right to choose the amount of time. (Off, 3 Seconds, 5 Seconds, 7 Seconds or 10 Seconds)When a time is chosen for retry time, the repeatfield is shown. Press the Navigation Key down tohighlight the repeat field. Press the NavigationKey left or right to choose the number ofrepeats. (1 time, 3 times or 5 times). 4 To save, press [OK]. AUTO RETRY 1 Press [MENU], then select “Settings & Tools”menu, press “Call Settings” then select “TTY”. Your phone is able to operate with a TTY (Teletypewriter) device inboth analog and digital modes. This feature is system dependent andmay not be available in all areas. 3 To save, press [OK]. TTY 2 Select one of the following with the Navigation Key. TTY Off/TTY+ TALK/TTY + HEAR/TTY Full l Enhances voice privacy and avoids tapping during a call. Enhanced : Makes it more difficult to wire tap. l 1 Press [MENU], then select “Settings & Tools”menu, press “Call Settings” then select “One Touch Dial”. ONE TOUCH DIAL 2 Select “On” or “Off” with the Navigation Key thenpress [OK] to save it. 1 Press [MENU], then select “Settings & Tools”menu, press “Call Settings” then select “Voice Privacy”. VOICE PRIVACY 2 Select “Standard” or “Enhanced” with theNavigation Key, then press [OK] to save it. 1 Press [MENU], then select “Settings & Tools”menu, press “Call Settings” then select “Data Setting”. Choose the connection mode for the usage of your phone. 3 To save, press [OK]. DATA SETTING 2 Select one of the following connection modeswith the Navigation Key. Voice Call : To receive a voice call. Data Only : To receive data when connected to PC. ll CH 4 75 SETTINGS CH 4 74 SETTINGS 1 Press [MENU], then select “Settings & Tools”menu, press “Call Settings” then select “Voice Services”, press “Voice Memo”. VOICE SERVICES VOICE MEMO 2 To record a voice memo, select “Record New”,press [OK]. 3 To start recording a voice memo, press [OK]. Voice Memo allows you to record a reminder message that can be upto 60 seconds. To record a memo: 4 To stop recording a voice memo, press [STOP]. To saved into voice memo list automatically. Voice memo order by date and recent file isuppermost. 1 Press [MENU], then select “Settings & Tools”menu, press “Call Settings” then select “Voice Services”, press “Voice Setting”. VOICE SETTING 2 Under “Set Active”, select a option “Off”, “Active Flip” or “Send Key”. 3 Under “HFK Mode”, select a option “On” or “Off”. After turning on Set Active, open the flip to go on to VR mode. Afterturning on HFK mode, put Hands-free kit and say “wake up” to go onto VR mode. 1 Press [MENU], then select “Settings & Tools”menu, press “Call Settings” then select “Voice Services”, press “Voice Dials”. 4 To save, press [OK]. Voice Dial allows you to call a person by simply saying their name.To access Voice Dial: 2.1. Press [NEW]. The phone book list will be displayed alphabetically. Select a name then press [OK]. Instructions (Please OK and say name) will be displayed and [OK]. You will hear “Name Please”. 2.2. Say the name for the voice tag and repeat the name when prompted. You will hear “Added”. To play a voice dial. Highlight the voice tag you want to play then press [PLAY].To detail a voice dial. Highlight the voice tag you want to detail viewthen press [OPTIONS] then select …

Text truncated - open the document above for the full version.

HYUNDAI CURITEL INC. San 136-1, Ami-Ri, Bubal-Eub, Ichon-Si, Kyoungki-Do, 467-701, Korea Date: February 14, 2005 Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road, Columbia, MD 21046, U.S.A. Subject: Authorization Letter FCC ID: PP4TX-215A HYUNDAI CURITEL INC. Part 22/ 24 Certification To whom it may concern: We, the undersigned. hereby authorized HYUNDAI Calibration & Certification Technologies Co., Ltd. to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these manners. Any and all acts carried out by HYUNDAI Calibration & Certification Technologies Co., Ltd. on our behalf shall have the same effect as acts of our own. This authorization is valid until Dec. 31, 2005. Sincerely Yours, ---------------------------------------------- Eui-Kwon Park - Project Manager R & D Center HYUNDAI CURITEL INC. San 136-1, Ami-Ri, Bubal-Eub, Ichon-Si, Kyoungki-Do, 467-701, Korea Date: February 14, 2005 Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road, Columbia, MD 21046, U.S.A. Subject: Request for Confidentiality HYUNDAI CURITEL INC. FCC ID: PP4TX-215A Part 22/ 24 Certification Gentlemen: In accordance with 0.459 of CFR 47, Hyundai Curitel Inc. hereby requests confidentiality of the Block Diagrams attachment, Schematic Diagrams attachment, Operational Description attachment, and Part List/Tune-Up Procedure attachment for the above-referenced Certification application. These documents contain detailed system and equipment description and related information about the product which Hyundai Curitel Inc. considers to be proprietary, confidential, and a custom design and, otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, Hyundai Curitel Inc. feels this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give our competitors an unfair advantage in the market. Sincerely Yours, --------------------------------------------- Eui-Kwon Park - Project Manager R & D Center HYUNDAI CURITEL INC. San 136-1, Ami-Ri, Bubal-Eub, Ichon-Si, Kyoungki-Do, 467-701, Korea Date: February 14, 2005 Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046, U.S.A. Subject: User's Manual RF Exposure Warning Statement HYUNDAI CURITEL INC. FCC ID: PP4TX-215A Part 22/24 Certification Gentlemen: Hyundai Curitel Inc. hereby confirms that the attached RF exposure warning page will be readily visible to the user, and will be placed at a prominent location in the front section of the user's manual. Should you have any questions or comments concerning the above, please do not hesitate contact me. Sincerely Yours, ----------------------------------------- Eui-Kwon Park - Project Manager R & D Center HYUNDAI CURITEL INC. San 136-1, Ami-Ri, Bubal-Eub, Ichon-Si, Kyoungki-Do, 467-701, Korea Date: February 14, 2005 AFFIDAVIT FOR ESN PROTECTION OF CELLULAR MOBILE TELEPHONES We hereby certify that the tri-mode phone (FCC ID: PP4TX-215A) is so designed that it complies with all the requirements for ESN protection specified in Section 22.919 of the FCC Rules. a) The transmitter in service has a unique ESN. b) The ESN host component is permanently attached to a main circuit board of the mobile transmitter and the integrity of the unit operating software cannot be altered. The ESN is plated from fraudulent contact and tampering. The ESN is encoded using multiplication by a polynomial and the ESN data programmed in the memory with other information. c) The ESN is factory-set and cannot be altered, transferred, removed or otherwise able to be manipulated. Cellular mobile equipment is specifically designed such that any attempt to remove, tamper with, or change the ESN chip, its logic system, or firmware originally programmed by the manufacturer will render the mobile transmitter inoperative. Sincerely Yours, ---------------------------------------- Eui-Kwon Park - Project Manager R & D Center HYUNDAI CURITEL INC. San 136-1, Ami-Ri, Bubal-Eub, Ichon-Si, Kyoungki-Do, 467-701, Korea Date: February 14, 2005 Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046, U.S.A. Subject: FCC E911 Requirements Per §22.921 FCC ID: PP4TX-215A HYUNDAI CURITEL INC. Part 22/ 24 Certification Gentlemen : HYUNDAI CURITEL INC. hereby certifies that the tri-mode phone(FCC ID : PP4TX-215A ), using the Automatic A/B Roaming - Intelligent Retry Method, meets the E911 requirements specified in Section 22.921 of the FCC Rules. This procedure recognizes when a “9-1-1” call is made and, at such time, will override any programming in the mobile unit that determines the handling of a non-911 call and permits the call to be handled by other analog carriers. Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely Yours, ---------------------------------------- Eui-Kwon Park - Project Manager R & D Center

SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNKI-DO, 467-701, KOREA SUBJECT: HYUNDAI Curitel Inc. FCC ID: PP4TX-215A MODEL: TX-215A Part 22 / 24 / 2 Certification Gentlemen: Submitted herewith, on behalf of HYUNDAI Curitel Inc., is an application for Part 22 / 24 Certification of the following Tri-Mode Dual-Band Phone (AMPS/CDMA/ PCS CDMA): Trade Name/Model(s): HYUNDAI / TX-215A EUT Type: Tri-Mode Dual-Band Phone (AMPS/CDMA/ PCS CDMA) Tx Frequency: 824.04 — 848.97 MHz (AMPS) / 824.70 — 848.31 MHz (CDMA) 1851.25 — 1908.75 MHz (PCS CDMA) Rx Frequency: 869.04 — 893.97 MHz (AMPS) / 869.70 — 893.31 MHz (CDMA) 1931.25 — 1988.75 MHz (PCS CDMA) Max. RF Output Power: 0.449W ERP AMPS (26.5dBm) / 0.333W ERP CDMA (25.2dBm) 0.364W EIRP PCS CDMA (25.6dBm) Maximum SAR: 1.35 W/kg AMPS Brain SAR / 0.679W/kg AMPS Body SAR 0.993 W/kg CDMA Brain SAR / 0.734 W/kg CDMA Body SAR 1.32 W/kg PCS CDMA Brain SAR / 0.554 W/kg PCS CDMA Body SAR Attached is the applicant’s Letter of Authorization, Confidentiality Request, ESN Affidavit, E911 compliance statement, measurement report test data and plots, RF Exposure measurement report and data, FCC ID label and location, test setup photographs, internal and external photographs, block diagram (confidential), circuit diagrams & description (confidential), operational description (confidential), parts list & tune-up procedure (confidential), and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned. Report prepared by: Ki-Soo Kim Manager of Product Compliance Team cc: Mr. Hong-Ki Kim – HYUNDAI Curitel Inc. March 4, 2005 Test Site: HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. FRN: 0005866421 TEL : +82 31 639 8518 FAX : +82 31 639 8525 http://www.hct.co.kr

Chris Harvey From: ¹Ú±ÙÈ£ \(HCT\) [[email protected]] Sent: Monday, March 28, 2005 12:46 AM To: Compliance Certification Services; MIKE KUO (CCSEMC) Cc: ±è¼±Èñ \(HCT\); ±è¿μ°ü \(HCT\); ±è±â¼ö Â÷Àå \(HCT\); Á¤¹®Áø °úÀå\(HCT\); SCOTT WANG(CCS); charvey- [email protected] Subject: Re: HYUNDAI CURITEL INC., FCC ID: PP4TX-215A, Assessment NO.: AN05T4628, Notice#2 Page 1 of 2 3/28/2005 Dear Sir, Thanks very much for your support. According to your request so resend the e-mail and attachment file. ====>We've revised the User's Manual . (ch.8 / page 129) Please find the attached file. (filename : ATT. M (Manual)-new 1/ ATT. M (Manual)-new 2)) This project are very urgent project for our client. Our deathline is over already. (CCS Application data: March 4, 2005) Please this project should be completed within March 28, 2004 if possible. If you have question or comment on this application, please do not hesitate to conatct us. Thanks and Best Regards, Keun- Ho Park - HCT ----- Original Message ----- From: "Compliance Certification Services" <[email protected]> To: <[email protected]> Cc: <[email protected]> Sent: Sunday, March 27, 2005 7:11 PM Subject: HYUNDAI CURITEL INC., FCC ID: PP4TX-215A, Assessment NO.: AN05T4628, Notice#2 > KH Park, > > I have reviewed the above referenced application and find that the following item needs to be addressed before this review can be completed: > > The SAR testing for Body-worn operation was performed with a belt clip that provided a 23mm separation and which appears to have a metallic hinge-pin. The User's Manual indicates that any holsters/clips used with this device should contain no metallic components. The 'no-metallic' comment in the User's manual may only be used if the handset is tested with either an air-gap or a clip/holster that contains no metallic components. Since the clip does contain metallic component(s) then the Grant will be conditioned to allow only use of the specific clip used for SAR testing. Please either provide SAR compliance documentation that shows that this handset complies with the SAR testing with an air-gap or a non-metallic clip providing 23mm separation or remove the no-metallic statement from the manual. > > Please contact me if you have any questions. > > Best regards, > > Chris Harvey > [email protected] > > > The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender. > > Page 2 of 2 3/28/2005

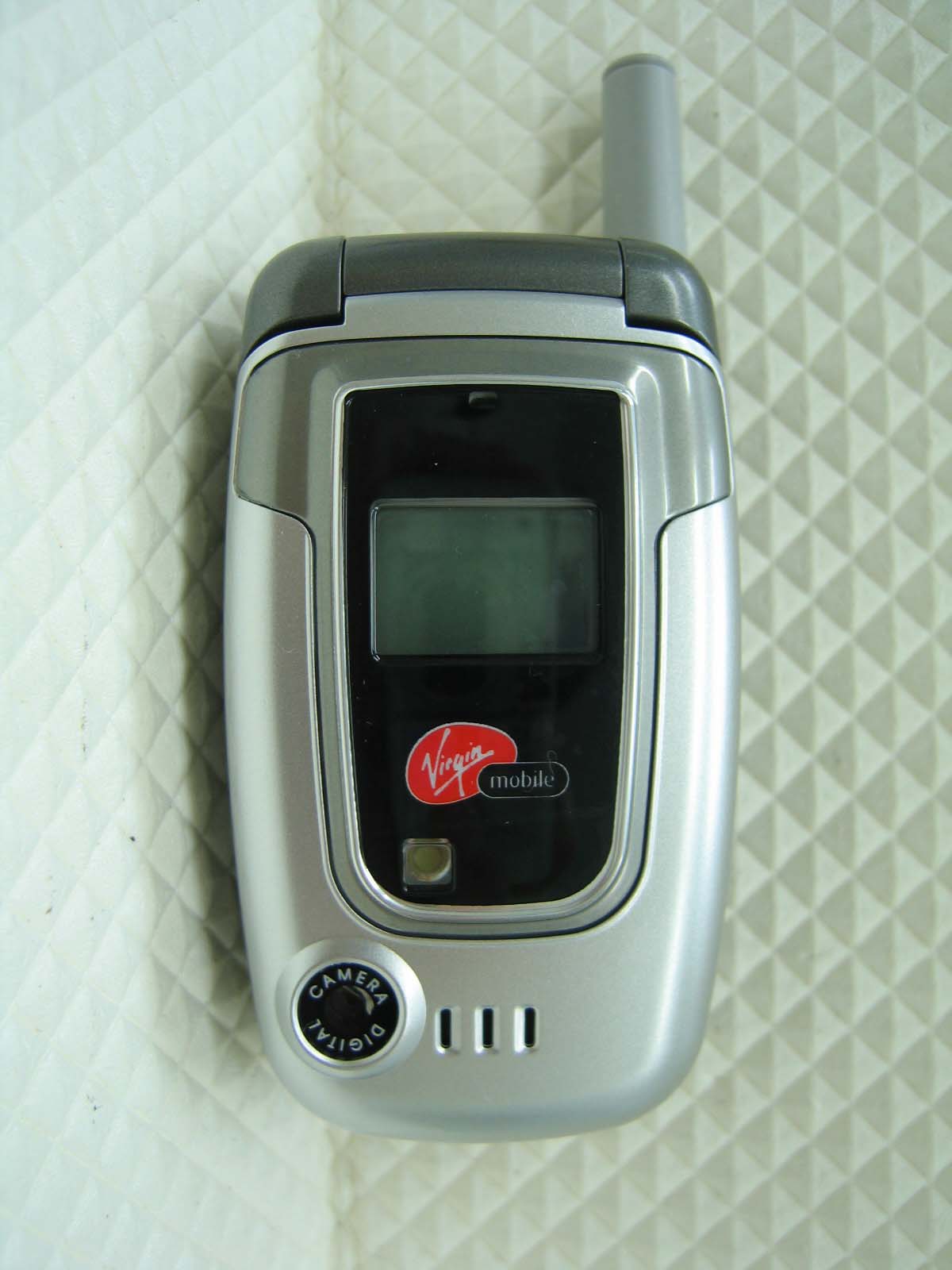

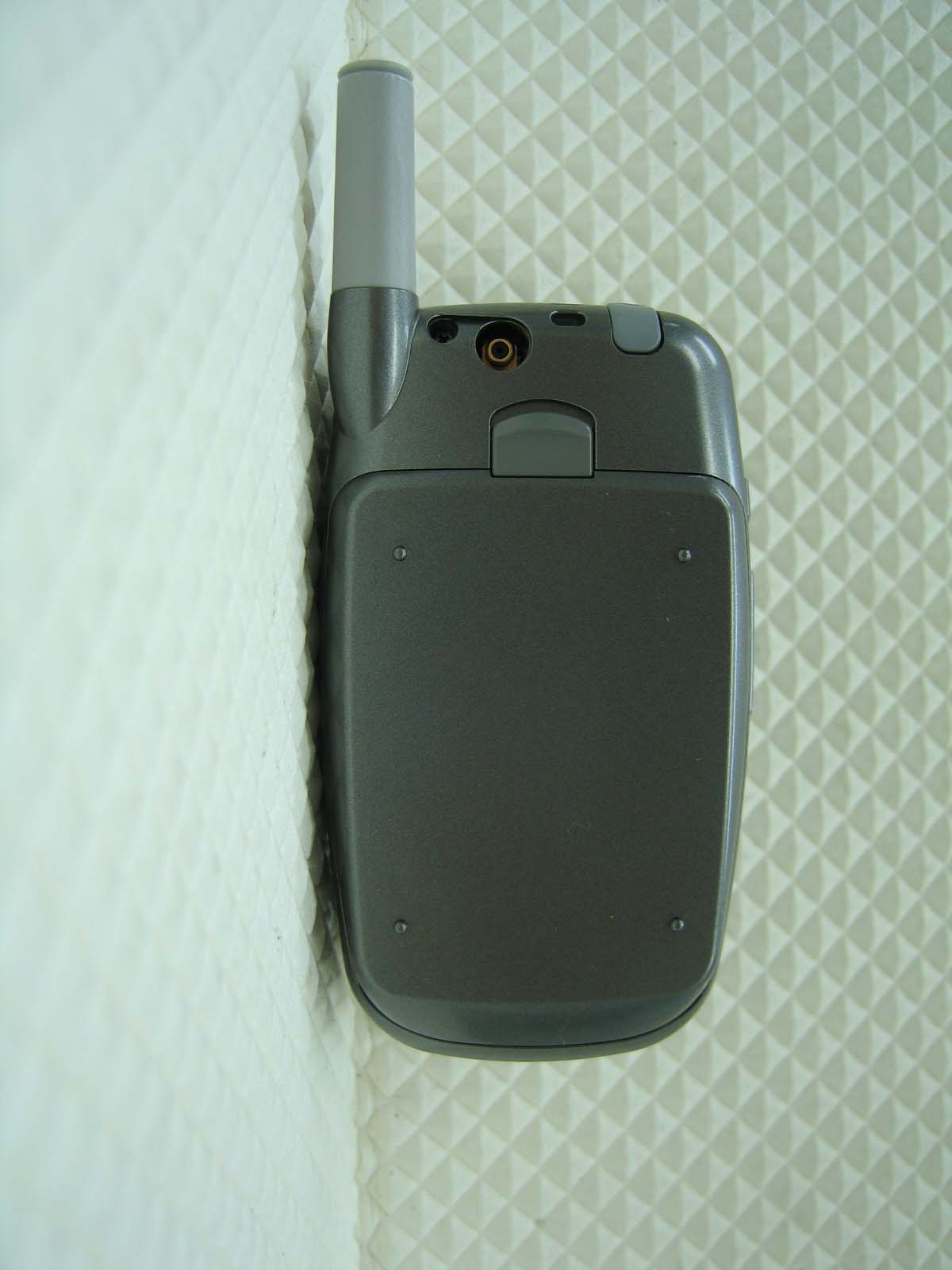

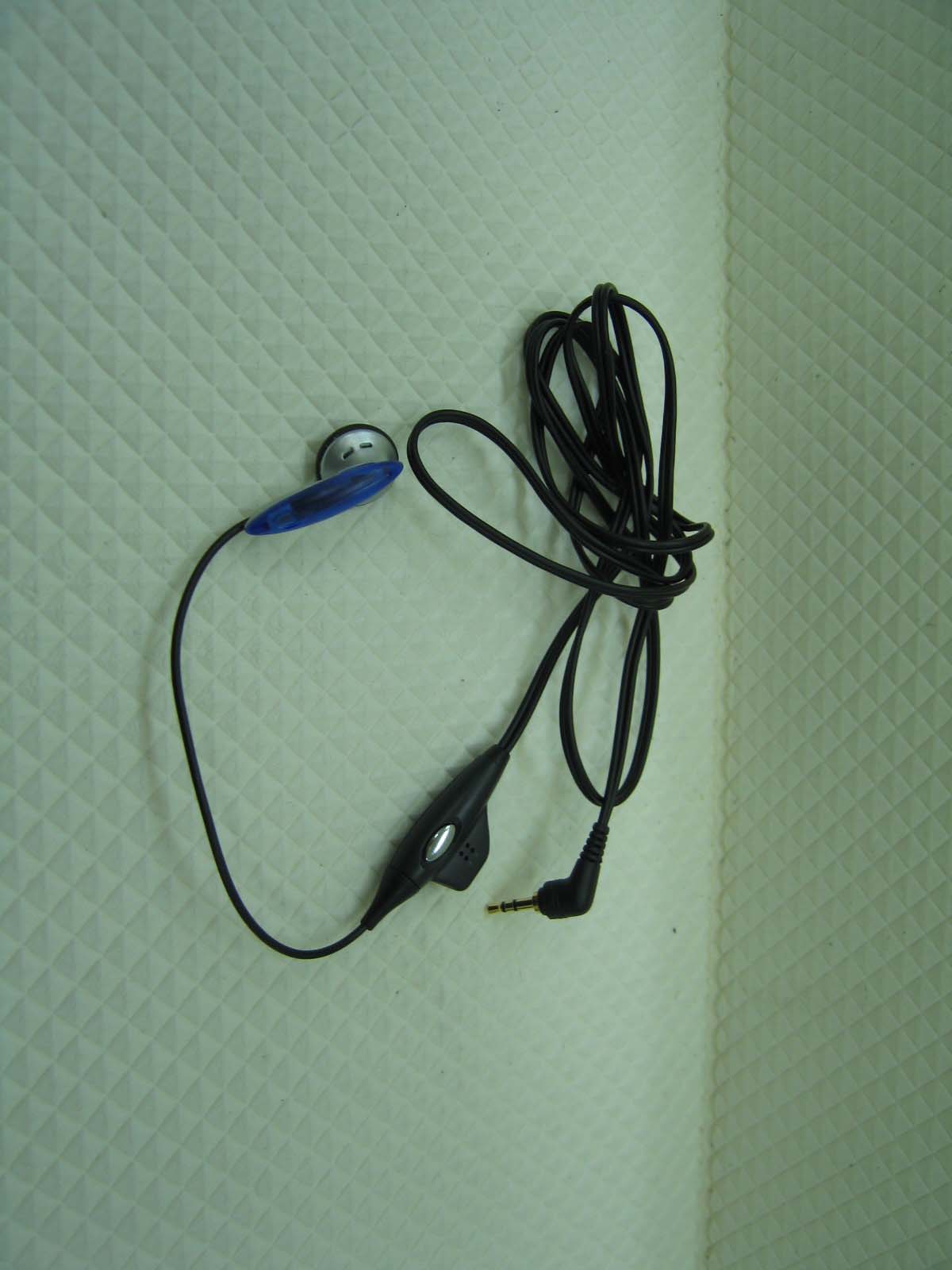

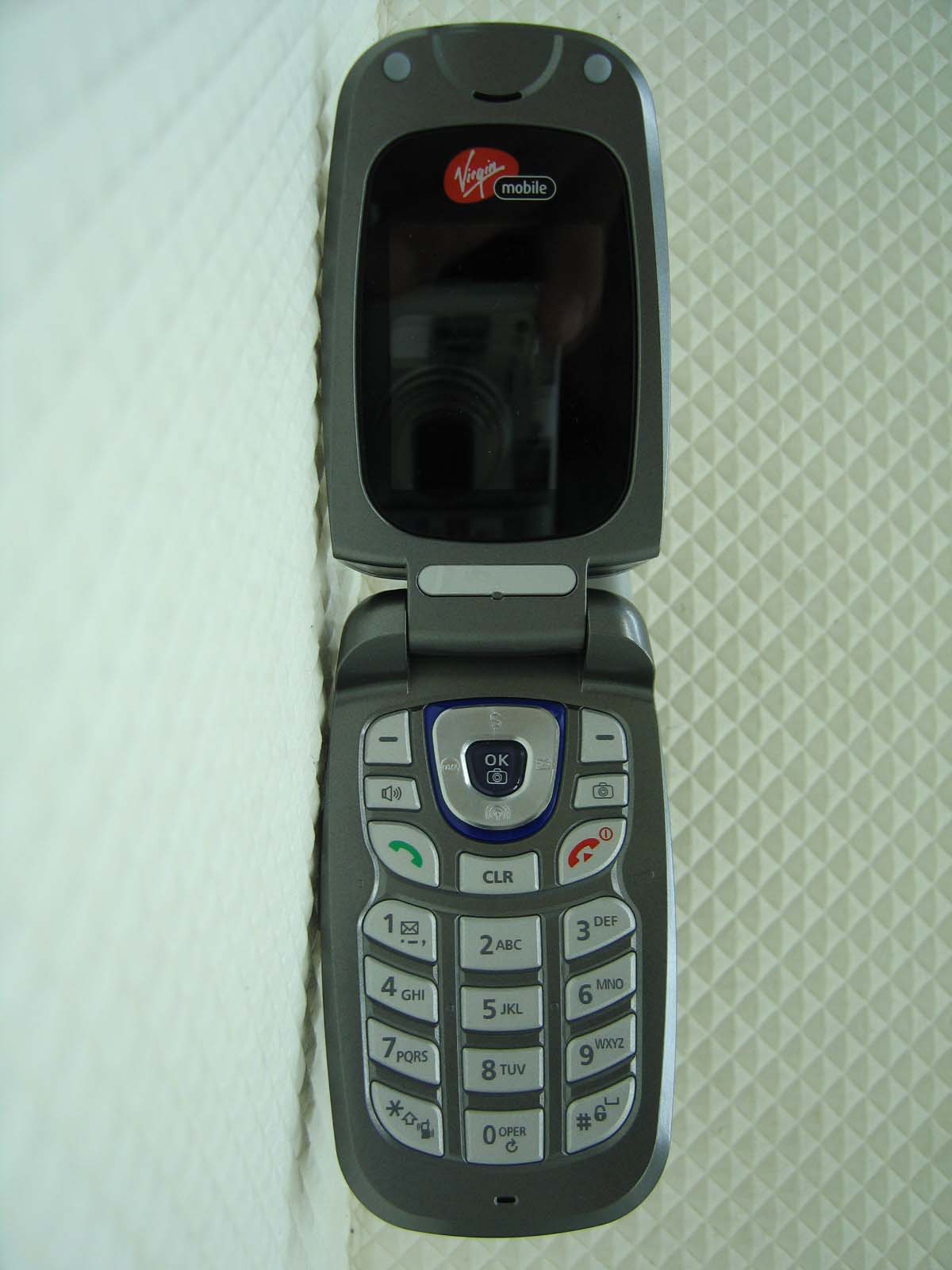

Report No.: HCT-SAR05-0211 FCC ID: PP4TX-215A DATE: February 26, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ATTACHMENT G – EXTERNAL PHOTOGRAPHS Report No.: HCT-SAR05-0211 FCC ID: PP4TX-215A DATE: February 26, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ EXTERNAL PHOTO Report No.: HCT-SAR05-0211 FCC ID: PP4TX-215A DATE: February 26, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ EXTERNAL PHOTO Report No.: HCT-SAR05-0211 FCC ID: PP4TX-215A DATE: February 26, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ EXTERNAL PHOTO Report No.: HCT-SAR05-0211 FCC ID: PP4TX-215A DATE: February 26, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ EXTERNAL PHOTO Report No.: HCT-SAR05-0211 FCC ID: PP4TX-215A DATE: February 26, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ EXTERNAL PHOTO Report No.: HCT-SAR05-0211 FCC ID: PP4TX-215A DATE: February 26, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ EXTERNAL PHOTO Report No.: HCT-SAR05-0211 FCC ID: PP4TX-215A DATE: February 26, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ EXTERNAL PHOTO Report No.: HCT-SAR05-0211 FCC ID: PP4TX-215A DATE: February 26, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ EXTERNAL PHOTO Report No.: HCT-SAR05-0211 FCC ID: PP4TX-215A DATE: February 26, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ EXTERNAL PHOTO

Report No.: HCT-SAR05-0211 FCC ID: PP4TX-215A DATE: February 26, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ATTACHMENT E – FCC ID LABEL/ LOCATION Report No.: HCT-SAR05-0211 FCC ID: PP4TX-215A DATE: February 26, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr LABELLING REQUIREMENTS PER §§ 2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. ( SEE NEXT PAGE ) Report No.: HCT-SAR05-0211 FCC ID: PP4TX-215A DATE: February 26, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr

Report No.: HCT-SAR05-0211 FCC ID: PP4TX-215A DATE: February 26, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ATTACHMENT H – INTERNAL PHOTOGRAPHS Report No.: HCT-SAR05-0211 FCC ID: PP4TX-215A DATE: February 26, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ INTERNAL PHOTO Report No.: HCT-SAR05-0211 FCC ID: PP4TX-215A DATE: February 26, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ INTERNAL PHOTO Report No.: HCT-SAR05-0211 FCC ID: PP4TX-215A DATE: February 26, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ INTERNAL PHOTO Report No.: HCT-SAR05-0211 FCC ID: PP4TX-215A DATE: February 26, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ INTERNAL PHOTO Report No.: HCT-SAR05-0211 FCC ID: PP4TX-215A DATE: February 26, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ INTERNAL PHOTO Report No.: HCT-SAR05-0211 FCC ID: PP4TX-215A DATE: February 26, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ INTERNAL PHOTO Report No.: HCT-SAR05-0211 FCC ID: PP4TX-215A DATE: February 26, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ INTERNAL PHOTO Report No.: HCT-SAR05-0211 FCC ID: PP4TX-215A DATE: February 26, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ INTERNAL PHOTO Report No.: HCT-SAR05-0211 FCC ID: PP4TX-215A DATE: February 26, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ INTERNAL PHOTO Report No.: HCT-SAR05-0211 FCC ID: PP4TX-215A DATE: February 26, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ INTERNAL PHOTO Report No.: HCT-SAR05-0211 FCC ID: PP4TX-215A DATE: February 26, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ INTERNAL PHOTO Report No.: HCT-SAR05-0211 FCC ID: PP4TX-215A DATE: February 26, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ INTERNAL PHOTO

20 Doc.No Rev. No. MRW ANTENNA SPECIFICATION MRWPQR−14114 1 Date Page Retractable Antenna 2005.02.24 1/20 COMMUNICATIONS Ltd. ANTENNA SPECIFICATION … Description: Cellular & GPS & US-PCS Triple-Band Retractable Antenna … MODEL NO: TX-215A (MST-06400) … APPROVAL NO: … APPROVED DATE: … TERM OF VALIDITY: PREPARED CHECKED APPROVED C U S T O M E R PREPARED Advanced young woo _shin CHECKED Senior engineer jin_kim APPROVED Director chang hoon_paik S U P P L I E R … SUPPLIER: MRW Communications ,Ltd … ADDRESS: 137-5, Okum-ri, Tanhyon-myon, Paju-shi,Kyunggi-do,Korea … TEL: 031-940-9001 / FAX: 031-940-9090 … PRESIDENT: M.J.Woo … CUSTOMER: Pantech & Curitel 20 Doc.No Rev. No. MRW ANTENNA SPECIFICATION MRWPQR−14114 1 Date Page Retractable Antenna 2005.02.24 2/20 COMMUNICATIONS Ltd. RETRACTABLE ANTENNA SPE…
