PP4TX-21BTri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA)

Pantech Co., Ltd.

Click to zoom

Application Details

Equipment Class: PCE - PCS Licensed Transmitter held to ear
Date of Grant: Oct 24, 2001
Application Purpose: Original Equipment
Date of Application: Aug 13, 2001
Equipment Note: Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA)
Frequency Range: 1851.25000000 - 1908.75000000
Company: Pantech Co., Ltd.
Country: South Korea

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

For more information about RF exposure, please visit the FCC website at www.fcc.gov FCC RF EXPOSURE INFORMATION In August 1996 the Federal Communications Commission (FCC) of the United States with its action in Report and Order FCC 96-326 adopted an updated safety standard for human exposure to radio frequency electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the safety standard previously set by both U.S. and international standards bodies. The design of this phone complies with the FCC guidelines and these international standards. Use only the supplied or an approved antenna. Unauthorized antennas, modifications, or attachments could impair call quality, damage the phone, or result in violation of FCC regulations. Do not use the phone with a damaged antenna. If a damaged antenna comes into contact with the skin, a minor burn may result. Please contact your local dealer for replacement antenna. Body-worn Operation This device was tested for typical body-worn operations with the back of the phone kept 2.2 cm. from the body. To maintain compliance with FCC RF exposure requirements, use only belt-clips, holsters or similar accessories that maintain a 2.2 cm. separation distance between the user’s body and the back of the phone, including the antenna, whether extended or retracted. The use of third-party belt-clips, holsters and similar accessories should not contain metallic components in its assembly. The use of accessories that do not satisfy these requirements may not comply with FCC RF exposure requirements, and should be avoided. WARNING! Read this information before using your phone

Cover Letter(s)

August 8, 2001 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: HYUNDAI Curitel, Inc. FCC ID: PP4TX-21B Part 22/24 Certification Gentlemen: Submitted herewith, on behalf of HYUNDAI Curitel, Inc., is an application for Part 22/24 Certification of the following Tri-Mode Cellular Phone: FCC ID: PP4TX-21B TRADE/MODEL(s): HYUNDAI TX-21B EUT TYPE: Tri-Mode Cellular Phone (AMPS/CDMA) Tx Freq. Range(s): 824.04 — 848.97 MHz (AMPS) / 824.70 — 848.31 MHz (CDMA) 1851.25 — 1908.75 MHz (PCS CDMA) Max. RF Output Power: 0.401 W ERP AMPS (26.033 dBm) / 0.228 W ERP CDMA (23.573 dBm) 0.277 W EIRP PCS CDMA (24.421 dBm) Max. SAR Measurement: 1.0336 mW/g (1g) AMPS Brain SAR; 0.8169 mW/g (1g) CDMA Brain SAR; 1.1807 mW/g (1g) PCS CDMA Brain SAR 1.1826 mW/g (1g) AMPS Body SAR; 0.9473 mW/g (1g) CDMA Body SAR; 0.6048 mW/g (1g) PCS CDMA Body SAR Attached is the applicant’s Letter of Authorization, Confidentiality Request, ESN Affidavit, E911 statement, measurement report test data and plots, RF Exposure measurement report and data, FCC ID label and location, test setup photographs, internal and external photographs, block diagram (confidential), circuit diagrams & description (confidential), operational description (confidential), parts list & tune-up procedure (confidential), and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned. cc: Mr. Hong-Ki Kim — HYUNDAI Curitel,Inc.

Cover Letter(s)

October 22, 2001 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 Attn: Mr. Martin Perrine SUBJECT: Hyundai Curitel Inc. FCC ID: PP4TX-21B 731 Confirmation No.: EA102018 Correspondence Reference No.: 20782 Request for Tech. Info.: 9/28/2001 Dear Martin: Transmitted herewith, on behalf of Hyundai Curitel Inc., is an amendment provided in response to the request for technical information dated September 28, 2001. 1. Please find the attached test plot for the cellular system base frequency band 870 — 890 MHz 2. Please find the attached audio modulation plots. 3. Please find the attached revised test report section 7.2 — 7.10. 4. Please find the attached occupied BW test plot for the voice modulated AMPS mode. 5. Please find the attached schematics. We trust this information is sufficient to issue the grant as soon as possible. If you have any further questions, please do not hesitate to contact us. cc: Hyundai Curitel Inc.

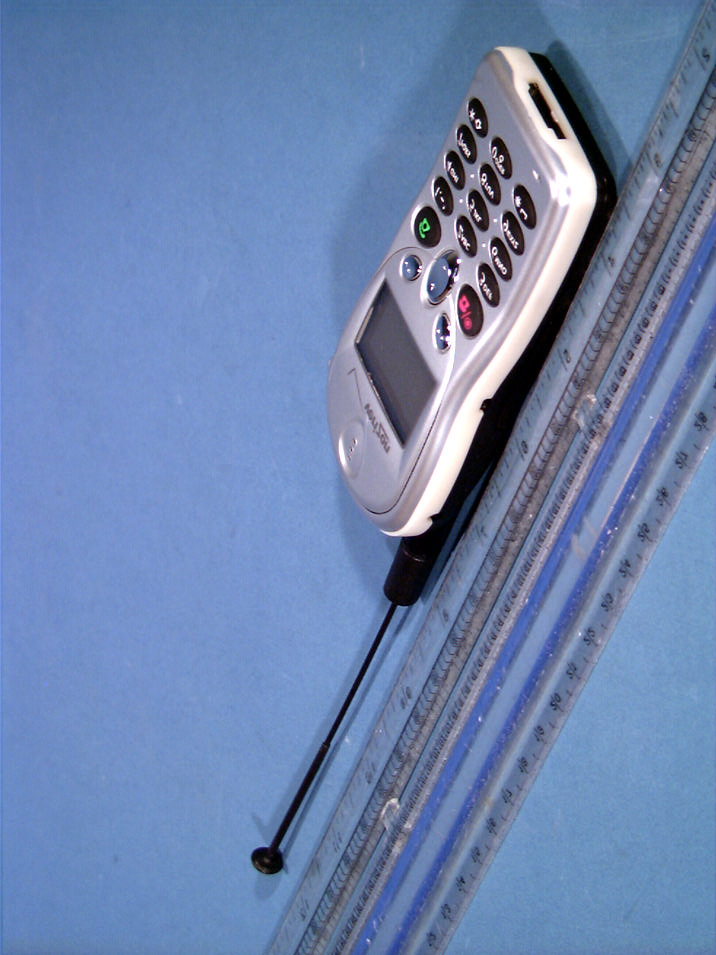

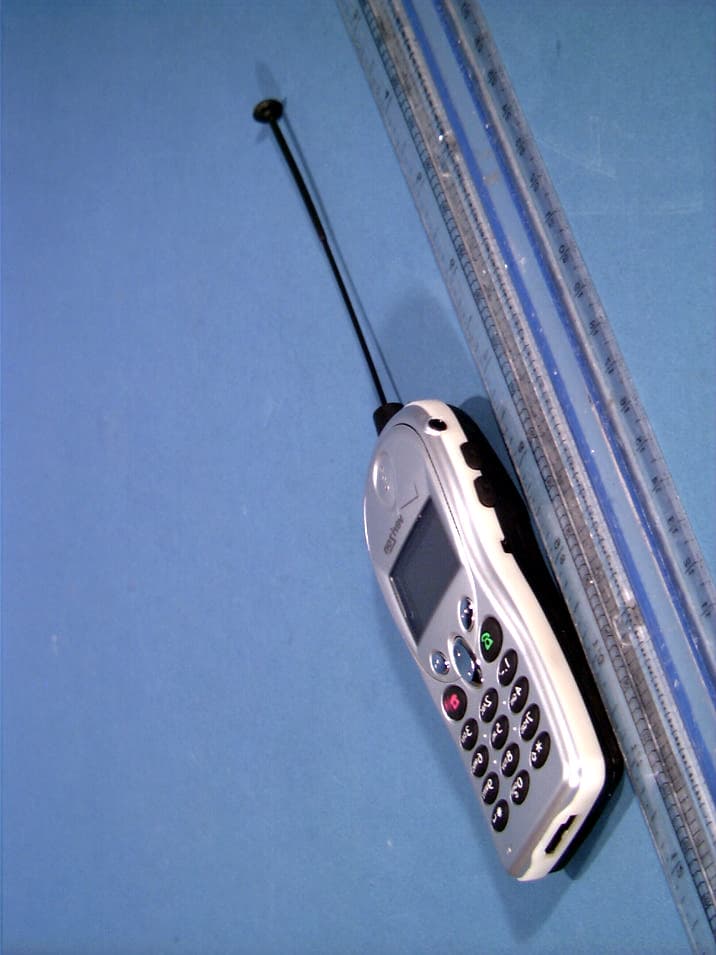

External Photos

ID Label/Location Info

© 2001 PCTEST Lab FCC ID SAMPLE LABEL & LOCATION • LABELLING REQUIREMENTS PER §§ 2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. (SEE NEXT PAGE) EXHIBIT. 4 IDENTIFICATION LABEL with regard to the FCC Rule Part 2.983 According to the requirement section 2.925 an 2.926, the sample label shown below shall be permanently affixed at a conspicuous location on the device supplied to the user and be readily visible to the purchaser at the time purchase. ~~ DCN PHONE FCC ID: PP4TX-21B SERIAL NO. : MADE IN KOREA HYUNDAI ELECTRONICS IND. CO., LTD. MODEL: TX-21B

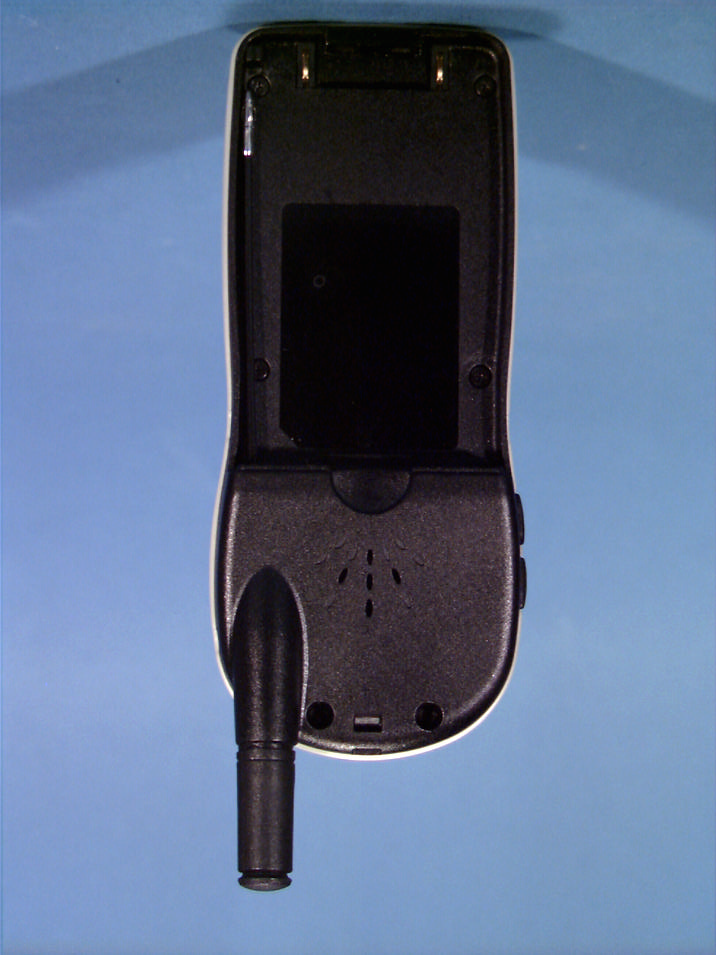

Internal Photos

© 2001 PCTEST Lab HYUNDAI FCC ID: PP4TX-21B (Model: TX-21B) NVLAP Lab Code: 100431-0 Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) © 2001 PCTEST Lab HYUNDAI FCC ID: PP4TX-21B (Model: TX-21B) NVLAP Lab Code: 100431-0 Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) © 2001 PCTEST Lab HYUNDAI FCC ID: PP4TX-21B (Model: TX-21B) NVLAP Lab Code: 100431-0 Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) © 2001 PCTEST Lab HYUNDAI FCC ID: PP4TX-21B (Model: TX-21B) NVLAP Lab Code: 100431-0 Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) © 2001 PCTEST Lab HYUNDAI FCC ID: PP4TX-21B (Model: TX-21B) NVLAP Lab Code: 100431-0 Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) © 2001 PCTEST Lab HYUNDAI FCC ID: PP4TX-21B (Model: TX-21B) NVLAP Lab Code: 100431-0 Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) © 2001 PCTEST Lab HYUNDAI FCC ID: PP4TX-21B (Model: TX-21B) NVLAP Lab Code: 100431-0 Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) © 2001 PCTEST Lab HYUNDAI FCC ID: PP4TX-21B (Model: TX-21B) NVLAP Lab Code: 100431-0 Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) © 2001 PCTEST Lab HYUNDAI FCC ID: PP4TX-21B (Model: TX-21B) NVLAP Lab Code: 100431-0 Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) © 2001 PCTEST Lab HYUNDAI FCC ID: PP4TX-21B (Model: TX-21B) NVLAP Lab Code: 100431-0 Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA)

RF Exposure Info

Peak SAR Location © 2001 PCTEST Lab HYUNDAI FCC ID: PP4TX-21B (Model: TX-21B) NVLAP Lab Code: 100431-0 Tri-Mode Analog/PCS Phone (AMPS/CDMA) 800 MHz Head SAR File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/01072321_ZOOM.VLT Start : 23-Jul-101 03:26:56 pm End : 23-Jul-101 03:36:33 pm Radio Type : HYUNDAI Model Number : TX-21B Serial Number : 10 Frequency : 824.04 MHz Peak Trans. Pwr : 0.500 W Start Trans. Pwr: 0.500 W Antenna Type : Helical Antenna Posn. : In Phantom Type : Head Phantom Posn. : Left Ear Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Brain Mixture Dielectric Constant = 41.500 Mixture Conductivity = 0.900 Comment : HYUNDAI TRI-MODE PHONE - AMPS MODE CH 0991 27.0 dBm Conducted HYUNDAI TRI-MODE PHONE Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 0.788 PCTEST Amplifier Channel Settings : 0.166 0.135 0.132 Max Location : X = 2.000, Y = -4.250, Z = 0.000 (cm) Value = 9.478 Measured Values (volts) = 8.831E-003 7.086E-003 5.835E-003 4.895E-003 4.142E-003 3.603E-003 3.179E-003 2.895E-003 2.651E-003 2.418E-003 2.120E-003 1.818E-003 1.466E-003 1.141E-003 8.379E-004 6.072E-004 4.704E-004 4.342E-004 4.939E-004 5.824E-004 7.105E-004 Calc. Voltage @ Surface (Vs) = 0.0109 Voltage @ 1.00 cm (Vt) = 0.0049 Ave. Voltage (Vs+Vt)/2 = 0.0079 Ave. SAR over 1 g (mW/g) = 0.5750 0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 mW/g -1012345 Z centimeters SAR Scan File : 01072321_ZOOM Start : 23-Jul-101 03:26:56 pm End : 23-Jul-101 03:36:33 pm HYUNDAI/TX-21B/10;824.04MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/41.500/0.900 File : 01072321_ZOOM Start : 23-Jul-101 03:26:56 pm End : 23-Jul-101 03:36:33 pm HYUNDAI/TX-21B/10;824.04MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/41.500/0.900 0.692 0.657 0.622 0.587 0.552 0.517 0.482 0.447 0.412 0.377 File : 01072321_ZOOM Start : 23-Jul-101 03:26:56 pm End : 23-Jul-101 03:36:33 pm HYUNDAI/TX-21B/10;824.04MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/41.500/0.900 0.692 0.657 0.622 0.587 0.552 0.517 0.482 0.447 0.412 0.377 File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/01072322_ZOOM.VLT Start : 23-Jul-101 03:38:21 pm End : 23-Jul-101 03:47:58 pm Radio Type : HYUNDAI Model Number : TX-21B Serial Number : 10 Frequency : 824.04 MHz Peak Trans. Pwr : 0.500 W Start Trans. Pwr: 0.500 W Antenna Type : Helical Antenna Posn. : Out Phantom Type : Head Phantom Posn. : Left Ear Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Brain Mixture Dielectric Constant = 41.500 Mixture Conductivity = 0.900 Comment : HYUNDAI TRI-MODE PHONE - AMPS MODE CH 0991 27.0 dBm Conducted HYUNDAI TRI-MODE PHONE Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 0.788 PCTEST Amplifier Channel Settings : 0.166 0.135 0.132 Max Location : X = 2.250, Y = -4.500, Z = 0.000 (cm) Value = 14.020 Measured Values (volts) = 1.333E-002 1.014E-002 8.361E-003 7.074E-003 6.102E-003 5.314E-003 4.714E-003 4.251E-003 3.845E-003 3.406E-003 3.038E-003 2.537E-003 2.029E-003 1.507E-003 1.137E-003 8.357E-004 7.175E-004 7.047E-004 8.403E-004 9.720E-004 1.037E-003 Calc. Voltage @ Surface (Vs) = 0.0168 Voltage @ 1.00 cm (Vt) = 0.0071 Ave. Voltage (Vs+Vt)/2 = 0.0120 Ave. SAR over 1 g (mW/g) = 0.8726 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 mW/g -1012345 Z centimeters SAR Scan File : 01072322_ZOOM Start : 23-Jul-101 03:38:21 pm End : 23-Jul-101 03:47:58 pm HYUNDAI/TX-21B/10;824.04MHz;W;Helical/Out; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/41.500/0.900 File : 01072322_ZOOM Start : 23-Jul-101 03:38:21 pm End : 23-Jul-101 03:47:58 pm HYUNDAI/TX-21B/10;824.04MHz;W;Helical/Out; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/41.500/0.900 1.023 0.972 0.922 0.871 0.820 0.769 0.719 0.668 0.617 0.567 File : 01072322_ZOOM Start : 23-Jul-101 03:38:21 pm End : 23-Jul-101 03:47:58 pm HYUNDAI/TX-21B/10;824.04MHz;W;Helical/Out; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/41.500/0.900 1.023 0.972 0.922 0.871 0.820 0.769 0.719 0.668 0.617 0.567 File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/01072316_ZOOM.VLT Start : 23-Jul-101 02:25:14 pm End : 23-Jul-101 02:34:50 pm Radio Type : HYUNDAI Model Number : TX-21B Serial Number : 10 Frequency : 836.49 MHz Peak Trans. Pwr : 0.500 W Start Trans. Pwr: 0.500 W Antenna Type : Helical Antenna Posn. : In Phantom Type : Head Phantom Posn. : Left Ear Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Brain Mixture Dielectric Constant = 41.500 Mixture Conductivity = 0.900 Comment : HYUNDAI TRI-MODE PHONE - AMPS MODE CH 0383 27.0 dBm Conducted HYUNDAI TRI-MODE PHONE Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 0.788 PCTEST Amplifier Channel Settings : 0.166 0.135 0.132 Max Location : X = 2.500, Y = -4.500, Z = 0.000 (cm) Value = 10.417 Measured Values (volts) = 1.042E-002 7.538E-003 6.284E-003 5.161E-003 4.415E-003 3.842E-003 3.318E-003 3.031E-003 2.769E-003 2.446E-003 2.140E-003 1.813E-003 1.454E-003 1.071E-003 7.833E-004 6.224E-004 5.357E-004 5.440E-004 6.172E-004 7.210E-004 7.716E-004 Calc. Voltage @ Surface (Vs) = 0.0135 Voltage @ 1.00 cm (Vt) = 0.0052 Ave. Voltage (Vs+Vt)/2 = 0.0093 Ave. SAR over 1 g (mW/g) = 0.6792 0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0 mW/g -1012345 Z centimeters SAR Scan File : 01072316_ZOOM Start : 23-Jul-101 02:25:14 pm End : 23-Jul-101 02:34:50 pm HYUNDAI/TX-21B/10;836.49MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/41.500/0.900 File : 01072316_ZOOM Start : 23-Jul-101 02:25:14 pm End : 23-Jul-101 02:34:50 pm HYUNDAI/TX-21B/10;836.49MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/41.500/0.900 0.760 0.724 0.687 0.651 0.615 0.578 0.542 0.506 0.470 0.433 File : 01072316_ZOOM Start : 23-Jul-101 02:25:14 pm End : 23-Jul-101 02:34:50 pm HYUNDAI/TX-21B/10;836.49MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Fiel…

Text truncated - open the document above for the full version.

RF Exposure Info

© 2001 PCTEST Engineering Lab., Inc. 6660-B Dobbin Road • Columbia, MD 21045 • U.S.A. TEL (410) 290-6652 • FAX (410) 290-6654 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE (SAR EVALUATION) HYUNDAI Curitel, Inc. Dates of Tests: July 23-24, 2001 San 136-1, Ami-Ri, Bubal-Eub, Ichon-Si, Test Report S/N: SAR.210802469.PP4 Kyoungki-Do, KOREA 467-701 Test Site: PCTEST Lab, Columbia, MD USA Attn: Mr. Hong-Ki Kim FCC ID PP4TX-21B APPLICANT HYUNDAI Curitel, Inc. EUT Type: Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) Tx Frequency: 824.04 – 848.97 MHz (AMPS) / 824.70 – 848.31 MHz (CDMA) 1851.25 – 1908.75 MHz (PCS CDMA) Rx Frequency: 869.04 – 893.97 MHz (AMPS) / 869.70 – 893.31 MHz (CDMA) 1931.25 – 1988.75 MHz (PCS CDMA) Max. RF Output Power: 0.401W ERP AMPS (26.033 dBm) / 0.228W ERP CDMA (23.573 dBm) 0.277W EIRP PCS CDMA (24.421 dBm) Trade Name/Model(s): HYUNDAI TX-21B FCC Classification: Licensed Portable Transmitter Held to Ear (PCE) Application Type: Certification FCC Rule Part(s): §2.1093; ET Docket 96.326 Maximum SAR: 1.0336 W/kg AMPS Brain SAR; 1.1826 W/kg AMPS Body SAR 0.8169 W/kg CDMA Brain SAR; 0.9473 W/kg CDMA Body SAR 1.1807 W/kg PCS Brain SAR; 0.6048 W/kg PCS Body SAR This wireless portable device has been shown to be compliant for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and has been tested in accordance with the measurement procedures specified in ANSI/IEEE Std. C95.3-1992. (See Test Report) I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. NVLAP accreditation does not constitute any product endorsement by NVLAP or any agency of the United States Government. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. 210802469.PP4 Test Report S/N: SAR.210802469.PP4 SAR Measurement Report Test Dates: JULY 23-24, 2001 FCC Part 22/24 Certification Table of Contents 1.1 SCOPE....................................................................................................1 2.1 INTRODUCTION.......................................................................................2 3.1 SAR MEASUREMENT SET-UP.................................................................3 4.1 ISOTROPIC E-FIELD PROBE SYSTEM.....................................................4 5.1 E-field PROBE CALIBRATION PROCESS.................................................5 6.1 PHANTOM AND EQUIVALENT TISSUES..................................................7 7.1 SYSTEM SPECIFICATIONS......................................................................8 8.1 MEASUREMENT PROCESS.....................................................................9 9.1 TEST POSITION OF THE PHONE..........................................................10 10.1 BODY-WORN TEST SETUP.................................................................11 11.1 ANSI/IEEE C95.1 - 1992 RF EXPOSURE LIMITS....................................12 12.1 MEASUREMENT UNCERTAINTIES.......................................................13 13.1 SAR TEST DATA SUMMARY................................................................14 14.1 SAR TEST EQUIPMENT.......................................................................18 15.1 CONCLUSION......................................................................................19 Test Report S/N: SAR.210802469.PP4 SAR Measurement Report Test Dates: July 23-24, 2001 FCC Part 22/24 Certification HYUNDAI FCC ID: PP4TX-21B (Model: TX-21B) © 2001 PCTEST Lab Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) 1 SAR MEASUREMENT REPORT 1.1 SCOPE Environmental evaluation measurements of specific absorption rate 1 (SAR) distributions in simulated human tissues exposed to radiofrequency (RF) radiation from wireless portable devices for compliance with the rules and regulations of the U.S. Federal Communications Commission (FCC). 2 Applicant Name: HYUNDAI Curitel, Inc. Address: San 136-1, Ami-Ri, Bubal-Eub, Ichon-Si, Kyoungki-Do, KOREA 467-701 Attention: Mr. Hong-Ki Kim • EUT Type: Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) • Trade Name: HYUNDAI • Model(s): TX-21B • FCC IDENTIFIER: PP4TX-21B • Tx Frequency: 824.04 – 848.97 MHz (AMPS) 824.70 – 848.31 MHz (CDMA) 1851.25 – 1908.75 MHz (PCS CDMA) • Rx Frequency: 869.04 – 893.97 MHz (AMPS) 869.70 – 893.31 MHz (CDMA) 1931.25 – 1988.75 MHz (PCS CDMA) • Application Type: Certification • FCC Classification: Licensed Portable Transmitter Held to Ear (PCE) • FCC Rule Part(s): § 2.1093, Docket 96-326 • Modulation(s): AMPS/CDMA • Max RF. Output Power: 0.401W ERP AMPS (25.13 dBm) 0.228W ERP CDMA (23.573 dBm) 0.277W EIRP PCS CDMA (24.35 dBm) • Date(s) of Tests: July 23-24, 2001 • Place of Tests: PCTEST Engineering Lab. Columbia, MD, U.S.A. • Report Serial No.: SAR.210802469.PP4 1 Specific Absorption Rate (SAR) is a measure of the rate of energy absorption due to exposure to an RF transmitting source (wireless portable device). 2 IEEE/ANSI Std. C95.1-1992 limits are used to determine compliance with FCC ET-Docket 93-62. Fig. 1 SAR Test Setup Test Report S/N: SAR.210802469.PP4 SAR Measurement Report Test Dates: July 23-24, 2001 FCC Part 22/24 Certification HYUNDAI FCC ID: PP4TX-21B (Model: TX-21B) © 2001 PCTEST Lab Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) 2 2.1 INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radio frequency radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria pub…

Text truncated - open the document above for the full version.

Test Report

© 2001 PCTEST Engineering Lab., Inc. PCTEST Engineering Laboratory, Inc. 6660-B Dobbin Road • Columbia, MD 21045 • U.S.A. TEL (410) 290-6652 • FAX (410) 290-6654 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE FCC Part 24 & 22 Certification HYUNDAI Curitel, Inc. Dates of Tests: July 23-24, 2001 San 136-1, Ami-Ri, Bubal-Eub, Ichon-Si, Test Report S/N: 22/24.210802468.BEJ Kyoungki-Do,KOREA 467-701 Test Site: PCTEST Lab, Columbia MD Attn: Mr. Hong-Ki Kim FCC ID PP4TX-21B APPLICANT HYUNDAI Curtel, Inc. Classification: Licensed Portable Transmitter Held to Ear (PCE) FCC Rule Part(s): §24(E), §22(H), §22.901(d); §2 EUT Type: Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) Trade Name/Model: HYUNDAI TX-21B Tx Frequency Range: 824.04MHz — 848.97MHz (AMPS) / 824.70 — 848.31MHz (CDMA) 1851.25MHz — 1908.75MHz (PCS CDMA) Rx Frequency Range: 869.04MHz — 893.97MHz (AMPS) / 869.70 — 893.31MHz (CDMA) 1931.25MHz — 1988.75MHz (PCS CDMA) Max. RF Output Power: 0.401 W ERP AMPS (26.033 dBm) / 0.228 W ERP CDMA (23.573 dBm) 0.277 W EIRP PCS CDMA (24.421 dBm) Max. SAR Measurement: 1.0336mW/g AMPS Brain SAR; 1.1826mW/g AMPS Body SAR; 0.8169mW/g CDMA Brain SAR; 0.9473mW/g CDMA Body SAR; 1 .1807mW/g PCS Head SAR; 0.6048mW/g PCS Body SAR; Emission Designator(s): 40K0F8W, 40K0F1D, 1M25F9W This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in § 2.947. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. 210802468.BEJ FCC Parts 24 & 22 Certification © 2001 PCTEST Engineering Laboratory, Inc. TABLE OF CONTENTS ATTACHMENT A: COVER LETTER(S) ATTACHMENT B: ATTESTATION STATEMENT(S) ATTACHMENT C: TEST REPORT 1.1 SCOPE 1 2.1 INTRODUCTION 2 3.1 INSERTS PER §2.1033(d) 3 4.1 DESCRIPTION OF TESTS 4-7 5.1 EFFECTIVE RADIATED POWER OUTPUT 8-9 6.1 EQUIVALENT ISOTROPIC RADIATED POWER 10 7.1 RADIATED MEASUREMENTS 11-19 8.1 FREQUENCY STABILITY 20-23 9.1 PLOTS OF EMISSIONS 24 10.1 LIST OF TEST EQUIPMENT 25 11.1 SAMPLE CALCULATIONS 26 12.1 CONCLUSION 27 ATTACHMENT D: TEST PLOTS ATTACHMENT E: FCC ID LABEL / LOCATION ATTACHMENT F: TEST SETUP PHOTOGRAPHS ATTACHMENT G: EXTERNAL PHOTOGRAPHS ATTACHMENT H: INTERNAL PHOTOGRAPHS ATTACHMENT I: BLOCK DIAGRAM(S) ATTACHMENT J: SCHEMATIC DIAGRAM(S) ATTACHMENT K: OPERATIONAL / CIRCUIT DESCRIPTION ATTACHMENT L: PARTS LIST/TUNE UP PROCEDURE ATTACHMENT M: USER’S MANUAL ATTACHMENT N: SAR MEASUREMENT REPORT ATTACHMENT O: SAR TEST DATA ATTACHMENT P: SAR TEST SETUP PHOTOGRAPHS Test Report S/N: 22/24.210802468.PP4 FCC Parts 22 & 24 Dates of Tests: July 23-24, 2001 Certification © 2001 PCTEST Lab HYUNDAI FCC ID: PP4TX-21B (Model: TX-21B) 1 Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) MEASUREMENT REPORT 1.1 Scope Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission. General Information Applicant Name: HYUNDAI Curitel, Inc. Address: San 136-1, Ami-Ri, Bubal-Eub, Ichon-Si, Kyoungki-Do,KOREA 467-701 Attention: Mr. Hong-Ki Kim • FCC ID: PP4TX-21B • Quantity: Quantity production is planned • Emission Designators: 1M25F9W, 40K0F8W, 40K0F1D • Tx Freq. Range: 824.04 — 848.97 MHz (AMPS) 824.70 — 848.31 MHz (CDMA) 1851.25 — 1908.75 MHz (PCS CDMA) • Rx Freq. Range: 869.04 — 893.97 MHz (AMPS) 869.70 — 893.31 MHz (CDMA) 1931.25 — 1988.75 MHz (PCS CDMA) • Max. Power Rating: 0.401 W ERP AMPS (26.033 dBm) / 0.228 W ERP CDMA (23.573 dBm) 0.277 W EIRP PCS CDMA (24.421 dBm) • FCC Classification(s): Licensed Portable Tx Held to Ear (PCE) • Equipment (EUT) Type: Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) • Modulation(s): AMPS / CDMA • Frequency Tolerance: ± 0.00025% (2.5 ppm) • FCC Rule Part(s): § 24(E), §22(H), §22.901(d) • Dates of Tests: July 23-24, 2001 • Place of Tests: PCTEST Lab, Columbia, MD U.S.A. • Test Report S/N: 22/24.210802468.PP4 Test Report S/N: 22/24.210802468.PP4 FCC Parts 22 & 24 Dates of Tests: July 23-24, 2001 Certification © 2001 PCTEST Lab HYUNDAI FCC ID: PP4TX-21B (Model: TX-21B) 2 Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) 2.1 INTRODUCTION These measurement tests were conducted at PCTEST Engineering Laboratory, Inc. facility in New Concept Business Park, Guilford Industrial Park, Columbia, Maryland. The site address is 6660-B Dobbin Road, Columbia, MD 21045. The test site is one of the highest points in the Columbia area with an elevation of 390 feet above mean sea level. The site coordinates are 39° 11'15" N latitude and 76° 49'38" W longitude. The facility is 1.5 miles North of the FCC laboratory, and the ambient signal and ambient signal strength are approximately equal to those of the FCC laboratory. There are no FM or TV transmitters within 15 miles of the site. The detailed description of the measurement facility was found to be in compliance with the requirements of § 2.948 according to ANSI C63.4 on October 19, 1992. Measurement Procedure The radiated and spurious measurements were made outdoors at a 3-meter test range (see Figure2). The equipment under testing was placed on a wooden turntable, 3-meters from the receive antenna. The receive antenna height and turntable rotations was adjusted for the highest reading on the receive spectrum analyzer. A half-wave dipole was substituted in place of the EUT. This dipole antenna was driven by a signal generator and the level of the signal generator was adjusted to obtain the same receive spec…

Text truncated - open the document above for the full version.

Test Report

PCTEST Engineering Lab., Inc. SUBJECT:Modulation Characteristics Test Report No.:24/22.210802468.BEJ FCC Part 24/22 Test Date: 07.24.2001 EUT:HYUNDAI Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) Model:TX-21B FCC ID: PP4TX-21B REFERENCE:1 kHz = 0 dB Modulation Limiting 0 2000 4000 6000 8000 10000 12000 14000 -35-30-25-20-15-10-50 Audio Input Level (dBV) Deviation (Hz) 3kHz 1kHz 300Hz HYUNDAI Tri-Mode Dual-Band ANALOG/PCS Phone (AMPS/CDMA) FCC ID: PP4TX-21B PCTEST Engineering Lab., Inc. SUBJECT:Modulation Characteristics Test Report No.:24/22.210802468.BEJ FCC Part 24/22 Test Date: 07.24.2001 EUT:HYUNDAI Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) Model:TX-21B FCC ID: PP4TX-21B REFERENCE:1 kHz = 0 dB Frequency Response of Audio Low Pass Filter -90.0 -80.0 -70.0 -60.0 -50.0 -40.0 -30.0 -20.0 -10.0 0.0 10.0 FREQUENCY (Hz) LEVEL (dB) Relative to 1kHz 10k1k 100k HYUNDAI Tri-Mode Dual-Band ANALOG/PCS Phone (AMPS/CDMA) FCC ID: PP4TX-21B PCTEST Engineering Lab., Inc. SUBJECT:Modulation Characteristics Test Report No.:24/22.210802468.BEJ FCC Part 24/22 Test Date: 07.24.2001 EUT:HYUNDAI Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) Model:TX-21B FCC ID: PP4TX-21B REFERENCE:1 kHz = 0 dB Transmitter Audio Frequency Response -60.00 -50.00 -40.00 -30.00 -20.00 -10.00 0.00 10.00 20.00 FREQUENCY (Hz) LEVEL (dB) Relative to 1kHz 1001k10k 100k HYUNDAI Tri-Mode Dual-Band ANALOG/PCS Phone (AMPS/CDMA) FCC ID: PP4TX-21B

Test Report

Test Report S/N: 22/24.210802468.PP4 FCC Parts 22 & 24 Dates of Tests: July 23-24, 2001 Certification © 2001 PCTEST Lab HYUNDAI FCC ID: PP4TX-21B (Model: TX-21B) 11 Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) 7.1 Test Data 7.2 AMPS Radiated Measurements Field Strength of SPURIOUS Radiation OPERATING FREQUENCY: 824.04MHz CHANNEL: 0991 (Low) MEASURED OUTPUT POWER: 25.773 dBm =0.378W MODULATION SIGNAL: FM (Internal) DISTANCE: 3meters LIMIT: 43 + 10 log 10 (W) = 38.77 dBc FREQ. LEVEL POL (M H z) (d B m ) (H / V ) 1648.08 -85.20 H 2472.12 -92.60 H 3296.16 -95.80 H 4120.20 -109.00 H 4944.24 < -130 NOTES: 69.5 79.1 (d B c) 66.9 70.0 Radiated Spurious Emission Measurements by Substitution Method according to ANSI/TIA/EIA-603 (rev.1998): The EUT was placed on a wooden turn table 3-meters from the receive antenna. The receive antenna height and turntable rotation was adjusted for the hi ghest reading on the receive spectrum analyzer. A half-wave dipole was substituted in place of the EUT. This dipole antenna was driven by a signal generator and the level of the signal generator was adjusted to obtain the same receive spectrum analyzer reading. This spurious level is recorded. For readings above 1GHz, the above procedure is repeated using horn antennas and the difference between the gain of the horn and an isotropic or dipole antenna are taken into consideration. Test Report S/N: 22/24.210802468.PP4 FCC Parts 22 & 24 Dates of Tests: July 23-24, 2001 Certification © 2001 PCTEST Lab HYUNDAI FCC ID: PP4TX-21B (Model: TX-21B) 12 Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) 7.1 Test Data 7.3 AMPS Radiated Measurements Field Strength of SPURIOUS Radiation OPERATING FREQUENCY: 836.49MHz CHANNEL: 0383 (Mid) MEASURED OUTPUT POWER: 25.759 dBm =0.377W MODULATION SIGNAL: FM (Internal) DISTANCE: 3meters LIMIT: 43 + 10 log 10 (W) = 38.76 dBc FREQ. LEVEL POL (M H z) (d B m ) (H / V ) 1672.98 -85.50 H 2509.47 -92.50 H 3345.96 -96.00 H 4182.45 -108.80 H 5018.94 < -130 NOTES: (d B c) 67.1 69.6 69.4 78.7 Radiated Spurious Emission Measurements by Substitution Method according to ANSI/TIA/EIA-603 (rev.1998): The EUT was placed on a wooden turn table 3-meters from the receive antenna. The receive antenna height and turntable rotation was adjusted for the hi ghest reading on the receive spectrum analyzer. A half-wave dipole was substituted in place of the EUT. This dipole antenna was driven by a signal generator and the level of the signal generator was adjusted to obtain the same receive spectrum analyzer reading. This spurious level is recorded. For readings above 1GHz, the above procedure is repeated using horn antennas and the difference between the gain of the horn and an isotropic …
