PP4TX-230CDMA/ PCS-CDMA Cellular Phone

User’s Guide TX-230 TABLE OF CONTENTS 1 Chapter 1Chapter 2Chapter 3 CHAPTER 1. BEFORE USING YOUR PHONE .................................5 INSIDE THE PACKAGE .....................................................................................6HANDSET DESCRIPTION.................................................................................7 THE FUNCTION KEYS.............................................................................................8DISPLAY INDICATORS ...........................................................................................9 BATTERY USAGE ...........................................................................................11 BATTERY INSTALLATION ....................................................................................11BATTERY REMOVAL.............................................................................................11BATTERY CHARGING ...........................................................................................12 POWER CONNECTION ......................................................................................12PCS AND 1X BATTERY TIMES ...........................................................................13BATTERY LIFE (FOR NEW BATTERY) ................................................................13 BATTERY HANDLING INFORMATION..........................................................14 DOs.........................................................................................................................14DON’Ts...................................................................................................................14 CHAPTER 2. BASIC OPERATION ..................................................15 TURNING THE PHONE ON / OFF ..................................................................16 TURNING THE PHONE ON...................................................................................16TURNING THE PHONE OFF..................................................................................16 ACCESSING THE MENU ................................................................................17MENU SUMMARY .........................................................................................18BASIC FUNCTIONS ........................................................................................20 MAKING A CALL ...................................................................................................20ANSWERING CALLS.............................................................................................21SPEAKER PHONE..................................................................................................21WAIT/PAUSE FEATURE........................................................................................22ANSWERING A CALL............................................................................................223-WAY CALLING ...................................................................................................23CALLER ID FUNCTION..........................................................................................23CALL WAITING FUNCTION ..................................................................................23ADJUSTING VOLUME ..........................................................................................24ENTER LOCK MODE .............................................................................................24 DURING A CALL .............................................................................................25 MUTE (UNMUTE)..................................................................................................25SEND TXT MSG ....................................................................................................25SEND PIX MSG .....................................................................................................25CONTACTS ............................................................................................................25RECENT CALLS .....................................................................................................25SEND DTMF...........................................................................................................26VOICE PRIVACY.....................................................................................................26LOCATION .............................................................................................................26 MAKING AN EMERGENCY CALL ..................................................................27 911 IN LOCK MODE ..............................................................................................27911 USING ANY AVAILABLE SYSTEM ...............................................................27 USING THE MINI SD CARD ...........................................................................28 INSTALLING THE MINI SD CARD ........................................................................28REMOVING THE MINI SD CARD..........................................................................28 CHAPTER 3. MEMORY FUNCTION ...............................................29 STORING A PHONE NUMBER ......................................................................30ENTERING LETTERS, NUMBERS & SYMBOLS ...........................................31 STANDARD INPUT MODE....................................................................................32T9 INPUT MODE....................................................................................................33NUMERIC MODE...................................................................................................34SYMBOL MODE ....................................................................................................34 MAKING A CALL THROUGH THE PHONE BOOK ........................................35 ONE-TOUCH/TWO-TOUCH DIALING...................................................................35 ONE-TOUCH DIA…

Text truncated - open the document above for the full version.

CH 4 69 SETTINGS CH 4 68 SETTINGS 1 Press [MENU], then select “Settings & Tools”menu, press “System” then select “Security”, then enter your password, press [OK]. 3 Select a location (1~3) with the Navigation Key. 4 Press [SET] and input a phone number,press [OK] again to save. 2 Select “Special #’s”. SPECIAL #’S The default password is the last 4 digit of your phone number. Stores 3 phone numbers that can be called even in the lock mode. 1 Press [MENU], then select “Settings & Tools”menu, press “System” then select “Security”, then enter your password, press [OK]. 3 Press [OK] to check “Contacts”, “Downloads”or “Pix Gallery” then press [DONE] to erase allthe items in those categories, then select “Yes”,press [OK]. 2 Select “Erase All”. ERASE ALL The default password is the last 4 digit of your phone number. Clears all contact, downloads entries and pix gallery from your phone. 1 Press [MENU], then select “Settings & Tools”menu, press “System” then select “Security”, then enter your password, press [OK]. 3 Select “Yes” or “No” with the Navigation Key.Press [OK]. 2 Select “Reset Phone”. RESET PHONE The default password is the last 4 digit of your phone number. Resets phone to default settings. When you select “Yes” and [OK], you will see “This will be reset to default settings. Reset Phone ?” on the display. 4 To reset the phone, press [OK]. Selects the language in which letters are displayed on the screen. LANGUAGE 1 Press [MENU], then select “Settings & Tools”menu, press “System” then select “Language”. 3 Press [OK] to save it. 2 Select “English” or “Spanish” with the NavigationKey. CH 4 71 SETTINGS CH 4 70 SETTINGS Calendar/Tunes & Tones/Gallery/Fun & Games/News & Info/Inbox/Sent/Email/Chat/IM/Settings & Tools/Tools-Alarm Clock, Calculator Your phone offers you the option of assigning a short-cut key (Down Navigation Key) to a favorite or often-used function. To assign a shortcut to the key: SHORT CUT KEY 1 Press [MENU], then select “Settings & Tools”menu, press “System” then select “Short Cut Key”. 3 The Shortcut can now be accessed by pressingthe “Down Navigation Key”. 2 Select your desired menu option then press[OK]. CALL SETTINGS ANSWER OPTIONS 1 Press [MENU], then select “Settings & Tools”menu, press “Call Settings” then select “Answer Options”. 2 Select one of the following with the Navigation Key. 3 To save, press [OK]. To select an answer mode: Flip OpenAny KeySend OnlyAuto Answer – HeadsetAuto Answer – HandsfreeAuto Answer – Handset CH 4 73 SETTINGS CH 4 72 SETTINGS 1 Press [MENU], then select “Settings & Tools”menu, press “Call Settings” then select “Auto Retry”. Automatically redials a call up to 5 times after a set time interval. 23 Retry time to field is shown. Press the NavigationKey left or right to choose the amount of time. (Off, 3 Seconds, 5 Seconds, 7 Seconds or 10 Seconds)When a time is chosen for retry time, the repeatfield is shown. Press the Navigation Key down tohighlight the repeat field. Press the NavigationKey left or right to choose the number ofrepeats. (1 Time, 3 Times or 5 Times). 4 To save, press [OK]. AUTO RETRY 1 Press [MENU], then select “Settings & Tools”menu, press “Call Settings” then select “TTY Mode”. Your phone is able to operate with a TTY (Teletypewriter) device inboth analog and digital modes. This feature is system dependent andmay not be available in all areas. 3 To save, press [OK]. TTY MODE 2 Select one of the following with the Navigation Key. TTY Off/TTY+ TALK/TTY + HEAR/TTY Full l Enhances voice privacy and avoids tapping during a call. Enhanced : Makes it more difficult to wire tap. l 1 Press [MENU], then select “Settings & Tools”menu, press “Call Settings” then select “One Touch Dial”. ONE TOUCH DIAL 2 Select “On” or “Off” with the Navigation Key thenpress [OK] to save it. 1 Press [MENU], then select “Settings & Tools”menu, press “Call Settings” then select “Voice Privacy”. VOICE PRIVACY 2 Select “Standard” or “Enhanced” with theNavigation Key, then press [OK] to save it. 1 Press [MENU], then select “Settings & Tools”menu, press “Call Settings” then select “Data Setting”. Choose the connection mode for the usage of your phone. 3 To save, press [OK]. DATA SETTING 2 Select one of the following connection modeswith the Navigation Key. Voice Call : To receive a voice call. Data Only : To receive data when connected to PC. ll CH 4 75 SETTINGS CH 4 74 SETTINGS 1 Press [MENU], then select “Settings & Tools”menu, press “Call Settings” then select “Voice Services”, press “Voice Memo”. VOICE SERVICES VOICE MEMO 2 To record a voice memo, select “Record New”,press [OK]. 3 To start recording a voice memo, press [OK]. Voice Memo allows you to record a reminder message that can be upto 60 seconds. To record a memo: 4 To stop recording a voice memo, press [STOP]. To saved into voice memo list automatically. Voice memo order by date and recent file isuppermost. 1 Press [MENU], then select “Settings & Tools”menu, press “Call Settings” then select “Voice Services”, press “Voice Setting”. VOICE SETTING 2 Under “Set Active”, select a option “Off”, “Active Flip” or “Send Key”. 3 Under “HFK Mode”, select a option “On” or “Off”. After turning on Set Active, open the flip to go on to VR mode. Afterturning on HFK mode, put Hands-free kit and say “wake up” to go onto VR mode. 1 Press [MENU], then select “Settings & Tools”menu, press “Call Settings” then select “Voice Services”, press “Voice Dials”. 4 To save, press [OK]. Voice Dial allows you to call a person by simply saying their name.To access Voice Dial: 2.1. Press [NEW]. The phone book list will be displayed alphabetically. Select a name then press [OK]. Instructions (Please OK and say name) will be displayed and [OK]. You will hear “Name Please”. 2.2. Say the name for the voice tag and repeat the name when prompted. You will hear “Added”. To play a voice dial. Highlight the voice tag you want to play then press [PLAY].To detail a voice dial. Highlight the voice tag you want to detail viewthen press [OPTI…

Text truncated - open the document above for the full version.

HYUNDAI CURITEL INC. San 136-1, Ami-Ri, Bubal-Eub, Ichon-Si, Kyoungki-Do, 467-701, Korea Date: February 4, 2005 Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road, Columbia, MD 21046, U.S.A. Subject: Authorization Letter FCC ID: PP4TX-230 HYUNDAI CURITEL INC. Part 22/ 24 Certification To whom it may concern: We, the undersigned. hereby authorized HYUNDAI Calibration & Certification Technologies Co., Ltd. to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these manners. Any and all acts carried out by HYUNDAI Calibration & Certification Technologies Co., Ltd. on our behalf shall have the same effect as acts of our own. This authorization is valid until Dec. 31, 2005. Sincerely Yours, ---------------------------------------------- Eui-Kwon Park - Project Manager R & D Center HYUNDAI CURITEL INC. San 136-1, Ami-Ri, Bubal-Eub, Ichon-Si, Kyoungki-Do, 467-701, Korea Date: February 4, 2005 Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road, Columbia, MD 21046, U.S.A. Subject: Request for Confidentiality HYUNDAI CURITEL INC. FCC ID: PP4TX-230 Part 22/ 24 Certification Gentlemen: In accordance with 0.459 of CFR 47, Hyundai Curitel Inc. hereby requests confidentiality of the Block Diagrams attachment, Schematic Diagrams attachment, Operational Description attachment, and Part List/Tune-Up Procedure attachment for the above-referenced Certification application. These documents contain detailed system and equipment description and related information about the product which Hyundai Curitel Inc. considers to be proprietary, confidential, and a custom design and, otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, Hyundai Curitel Inc. feels this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give our competitors an unfair advantage in the market. Sincerely Yours, --------------------------------------------- Eui-Kwon Park - Project Manager R & D Center HYUNDAI CURITEL INC. San 136-1, Ami-Ri, Bubal-Eub, Ichon-Si, Kyoungki-Do, 467-701, Korea Date: February 4, 2005 Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046, U.S.A. Subject: User's Manual RF Exposure Warning Statement HYUNDAI CURITEL INC. FCC ID: PP4TX-230 Part 22/24 Certification Gentlemen: Hyundai Curitel Inc. hereby confirms that the attached RF exposure warning page will be readily visible to the user, and will be placed at a prominent location in the front section of the user's manual. Should you have any questions or comments concerning the above, please do not hesitate contact me. Sincerely Yours, ----------------------------------------- Eui-Kwon Park - Project Manager R & D Center HYUNDAI CURITEL INC. San 136-1, Ami-Ri, Bubal-Eub, Ichon-Si, Kyoungki-Do, 467-701, Korea Date: February 4, 2005 AFFIDAVIT FOR ESN PROTECTION OF CELLULAR MOBILE TELEPHONES We hereby certify that the Dual-mode CDMA phone (FCC ID: PP4TX-230) is so designed that it complies with all the requirements for ESN protection specified in Section 22.919 of the FCC Rules. a) The transmitter in service has a unique ESN. b) The ESN host component is permanently attached to a main circuit board of the mobile transmitter and the integrity of the unit operating software cannot be altered. The ESN is plated from fraudulent contact and tampering. The ESN is encoded using multiplication by a polynomial and the ESN data programmed in the memory with other information. c) The ESN is factory-set and cannot be altered, transferred, removed or otherwise able to be manipulated. Cellular mobile equipment is specifically designed such that any attempt to remove, tamper with, or change the ESN chip, its logic system, or firmware originally programmed by the manufacturer will render the mobile transmitter inoperative. Sincerely Yours, ---------------------------------------- Eui-Kwon Park - Project Manager R & D Center

SAN 136-1,AMI-RI,BUBAL-EUP, ICHEON-SI, KYOUNKI-DO, 467-701, KOREA SUBJECT: HYUNDAI Curitel Inc. FCC ID: PP4TX-230 MODEL: TX-230 Part 22 / 24 / 2 Certification Gentlemen: Submitted herewith, on behalf of HYUNDAI Curitel, Inc., is an application for Part 22 / 24 Certification of the following Dual- Mode CDMA Phone (CDMA/ PCS CDMA): Trade Name/Model(s): HYUNDAI / TX-230 EUT Type: Dual-Mode CDMA Phone (CDMA/ PCS CDMA) Tx Frequency: 824.70 — 848.31 MHz (CDMA) 1851.25 — 1908.75 MHz (PCS CDMA) Rx Frequency: 869.70 — 893.31 MHz (CDMA) 1931.25 — 1988.75 MHz (PCS CDMA) Max. RF Output Power: 0.371W ERP CDMA (25.7dBm) 0.354 EIRP PCS CDMA (25.5dBm) Maximum SAR: 1.39 W/kg CDMA Brain SAR / 0.952 W/kg CDMA Body SAR 1.06 W/kg PCS CDMA Brain SAR / 0.752 W/kg PCS CDMA Body SAR Attached is the applicant’s Letter of Authorization, Confidentiality Request, ESN Affidavit, measurement report test data and plots, RF Exposure measurement report and data, FCC ID label and location, test setup photographs, block diagram (confidential), circuit diagrams & description (confidential), operational description (confidential), parts list & tune-up procedure (confidential), and the user's manual. Should you have any questions or comments concerning the above, please contact the under signed. Report prepared by: Ki-Soo Kim Manager of Product Compliance Team cc: Mr. Hong-Ki Kim – HYUNDAI Curitel Inc. February 26, 2005 Test Site: HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. FRN: 0005866421 TEL : +82 31 639 8518 FAX : +82 31 639 8525 http://www.hct.co.kr

Chris Harvey From: ¹Ú±ÙÈ£ \(HCT\) [[email protected]] Sent: Thursday, March 10, 2005 7:20 AM To: Compliance Certification Services; MIKE KUO (CCSEMC); SCOTT WANG(CCS) Cc: ±è¼±Èñ \(HCT\); ±è¿μ°ü \(HCT\); ±è±â¼ö Â÷Àå \(HCT\); Á¤¹®Áø °úÀå\(HCT\) Subject: Re: HYUNDAI CURITEL INC., FCC ID: PP4PP4TX-230, Assessment NO.: AN05T4609, Notice#1 Page 1 of 2 3/10/2005 Dear Sir, According to your requests on the below questions, we'd like to send the answers on each questions under each question as belows; FCC ID : PP4TX-230 1) Applicant Name : HYUNDAI CURITEL INC. 2) Application Product : Dual-Mode CDMA Phone (CDMA/ PCS CDMA) 3) Model Name : TX-230 4) Applicant ID: T11390 5) Application Assessment Number : AN05T4609 6) Application Date: February 28, 2005 If you have questions or comments on this application, please do not hesitate to conatct us. Thanks and Best Regards, Keun- Ho Park - HCT ----- Original Message ----- From: "Compliance Certification Services" <[email protected]> To: <[email protected]> Cc: <[email protected]> Sent: Wednesday, March 09, 2005 3:50 AM Subject: HYUNDAI CURITEL INC., FCC ID: PP4PP4TX-230, Assessment NO.: AN05T4609, Notice#1 > Dear Mr. Park, > > I have reviewed the above referenced application and find that I need the following items before I can complete this review: > > 1. The Block diagram has an error with the font and placement of text. Please correct the Block Diagram and the Operational description documents to correct the text placement/format issues. ====> We've revised the Block Diagram and Operational Description. Please find the attached file. (filename : ATT. I (Block diagram) / ATT. L (Opertional Description)) > 2. This unit has Bluetooth according to the Operational Description, but this can not be confirmed in other parts of the documentation. Please update this documentation or test documentation. ====>We've revised the Block Diagram and Operational Description. (without Bluetooth function) Please find the attached file. (filename : ATT. I (Block diagram) / ATT. L (Opertional Description)) > Please provide this replacement information. > > Best regards, > > Chris Harvey > [email protected] > > > The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender. > > Page 2 of 2 3/10/2005

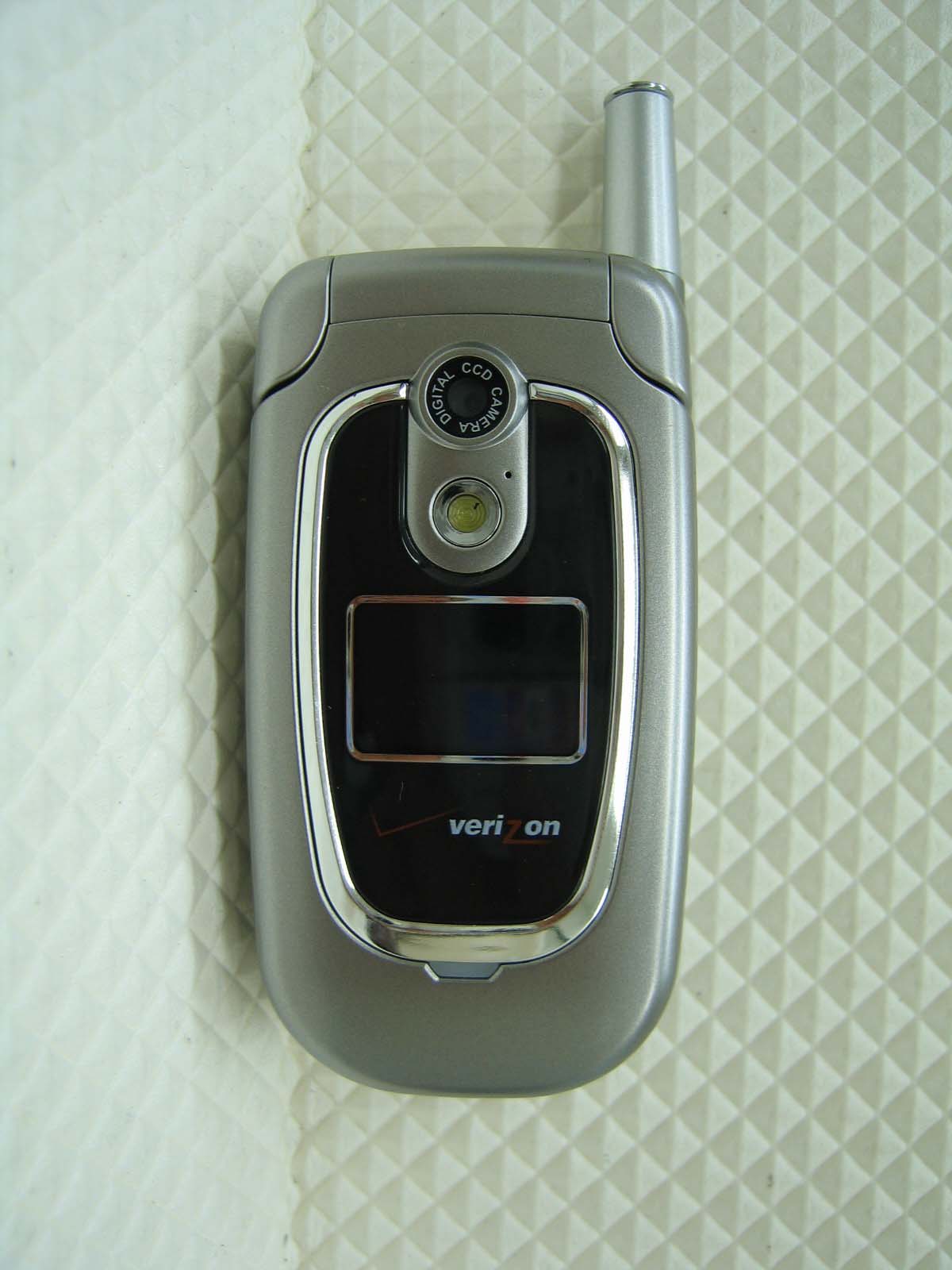

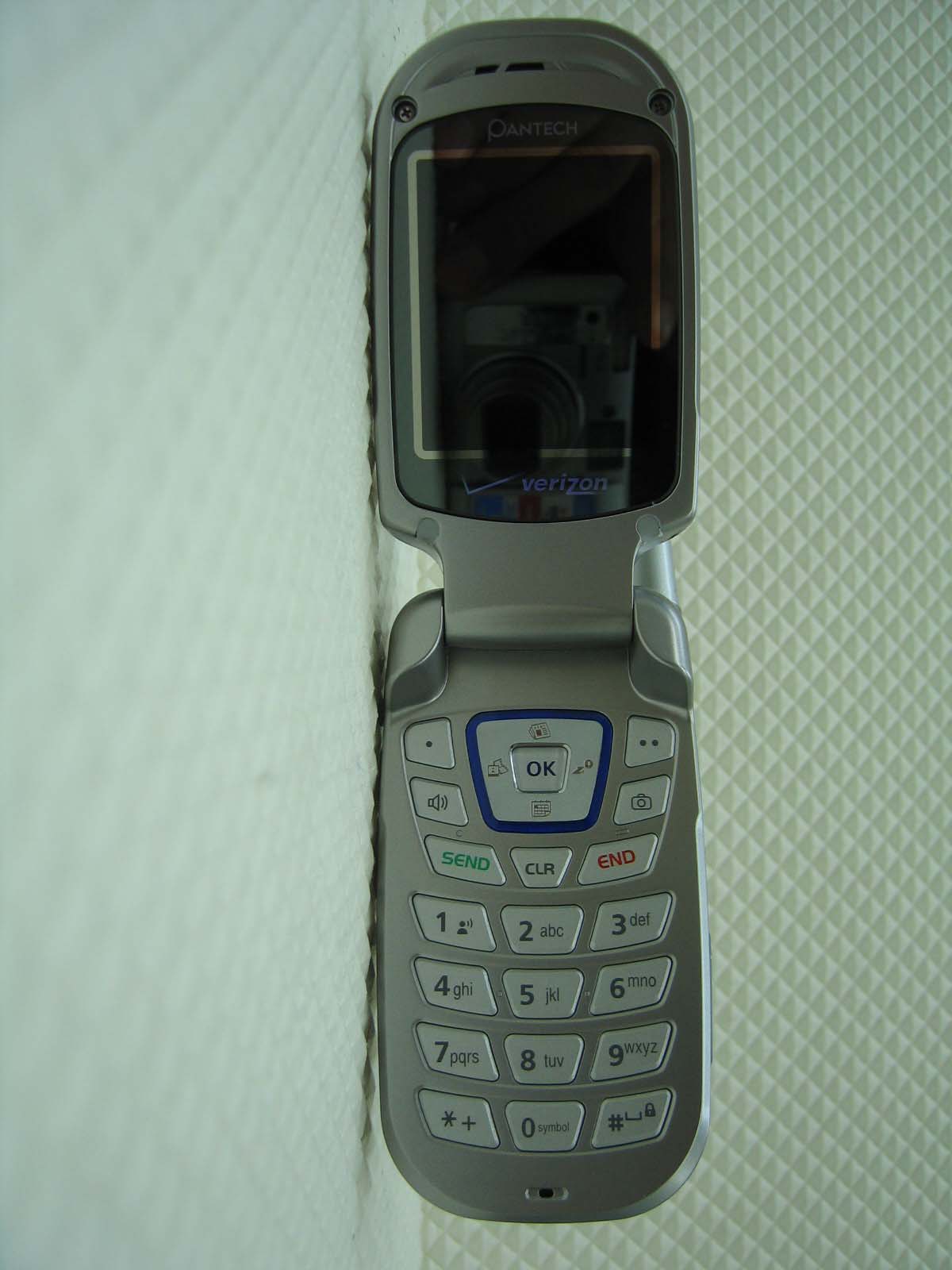

Report No.: HCT-SAR05-0208 FCC ID: PP4TX-230 DATE: February 23, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ATTACHMENT G – EXTERNAL PHOTOGRAPHS Report No.: HCT-SAR05-0208 FCC ID: PP4TX-230 DATE: February 23, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ EXTERNAL PHOTO Report No.: HCT-SAR05-0208 FCC ID: PP4TX-230 DATE: February 23, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ EXTERNAL PHOTO Report No.: HCT-SAR05-0208 FCC ID: PP4TX-230 DATE: February 23, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ EXTERNAL PHOTO Report No.: HCT-SAR05-0208 FCC ID: PP4TX-230 DATE: February 23, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ EXTERNAL PHOTO Report No.: HCT-SAR05-0208 FCC ID: PP4TX-230 DATE: February 23, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ EXTERNAL PHOTO Report No.: HCT-SAR05-0208 FCC ID: PP4TX-230 DATE: February 23, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ EXTERNAL PHOTO Report No.: HCT-SAR05-0208 FCC ID: PP4TX-230 DATE: February 23, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ EXTERNAL PHOTO Report No.: HCT-SAR05-0208 FCC ID: PP4TX-230 DATE: February 23, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ EXTERNAL PHOTO Report No.: HCT-SAR05-0208 FCC ID: PP4TX-230 DATE: February 23, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ EXTERNAL PHOTO

Report No.: HCT-SAR05-0208 FCC ID: PP4TX-230 DATE: February 23, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ATTACHMENT E – FCC ID LABEL/ LOCATION Report No.: HCT-SAR05-0208 FCC ID: PP4TX-230 DATE: February 23, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr LABELLING REQUIREMENTS PER §§ 2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. ( SEE NEXT PAGE ) Report No.: HCT-SAR05-0208 FCC ID: PP4TX-230 DATE: February 23, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr

Report No.: HCT-SAR05-0208 FCC ID: PP4TX-230 DATE: February 23, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ATTACHMENT H – INTERNAL PHOTOGRAPHS Report No.: HCT-SAR05-0208 FCC ID: PP4TX-230 DATE: February 23, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ INTERNAL PHOTO Report No.: HCT-SAR05-0208 FCC ID: PP4TX-230 DATE: February 23, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ INTERNAL PHOTO Report No.: HCT-SAR05-0208 FCC ID: PP4TX-230 DATE: February 23, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ INTERNAL PHOTO Report No.: HCT-SAR05-0208 FCC ID: PP4TX-230 DATE: February 23, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ INTERNAL PHOTO Report No.: HCT-SAR05-0208 FCC ID: PP4TX-230 DATE: February 23, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ INTERNAL PHOTO Report No.: HCT-SAR05-0208 FCC ID: PP4TX-230 DATE: February 23, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ INTERNAL PHOTO Report No.: HCT-SAR05-0208 FCC ID: PP4TX-230 DATE: February 23, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ INTERNAL PHOTO Report No.: HCT-SAR05-0208 FCC ID: PP4TX-230 DATE: February 23, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ INTERNAL PHOTO Report No.: HCT-SAR05-0208 FCC ID: PP4TX-230 DATE: February 23, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ INTERNAL PHOTO Report No.: HCT-SAR05-0208 FCC ID: PP4TX-230 DATE: February 23, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ INTERNAL PHOTO Report No.: HCT-SAR05-0208 FCC ID: PP4TX-230 DATE: February 23, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ INTERNAL PHOTO

Doc.No Rev. No. MRW ANTENNA SPECIFICATION MRWPQR−14117 1 Date Page Retractable Antenna 2005.02.22 1/37 MRW Technologies Ltd. RETRACTABLE ANTENNA SPECIFICATION ( MRT−06500) TX-230 Doc.No Rev. No. MRW ANTENNA SPECIFICATION MRWPQR−14117 1 Date Page Retractable Antenna 2005.02.22 2/37 MRW Technologies Ltd. ⊙ Contents ⊙ 1. Specification 1.1 Electrical Specification 1.2 Mechanical Specification 1.3 Packing Specification 2. Test Equipments 3. Electrical Specification 3.1 V.S.W.R 3.2 Radiation Pattern 3.3 Gain 4. Mechanical Specification 4.1 Dimension 4.2 Bending Test 4.3 Extracting and Retraction Force 4.4 Drop Test 4.5 Pull Test 4.6 Torque Test 4.7 Cycle Test 5. Environmental Specification 5.1 Thermal Shock 5.2 Temperature Cycling 5.3 Low temp. Test 5.4 High temp. Test 5.5 Humidity 5.6 Vibration 5.7 Salt Spray Test Appendix A. : Reference of test methods Doc.No Rev. No. MRW ANTENNA SPECIFICATION MRWPQR−14117 1 Date Page Retractable Antenna 2005.02.22 3/37 MRW Technologies Ltd. 1. Specification 1.1 Electrical Specification Frequency Range CELLULAR 824Mhz - 894 MHz GPS 1575 MHz US-PCS 1850MHz - 1990MHz CELLULAR CLOSE IN < 3.48 : 1 CELLULAR OPEN IN < 4.92 : 1 CELLULAR OPEN OUT< 2.36 : 1 GPS CLOSE IN < 3.29 : 1 GPS OPEN IN < 3.83 : 1 GPS OPEN OUT < 3.57 : 1 US-PCS CLOSE IN < 2.97 : 1 US-PCS OPEN IN < 2.97: 1 V.S.W.R US-PCS OPEN OUT < 3.61 : 1 Impedance 50Ω Radiation Pattern Omni-directional Polarization Vertical Max power 2W TX 824Mhz 1.01dBi AZIMUTH OPEN OUT CELLULAR GAIN (PEAK) RX 869Mhz 1.88dBi ELEVATION-2 OPEN OUT TX 1850Mhz 0.8dBi AZIMUTH OPEN OUT US – PCS GAIN (PEAK) RX 1990Mhz 0.29dBi AZIMUTH OPEN OUT GPS GAIN (PEAK) 1575Mhz -0.57dBi ELEVATION-1 OPEN OUT Doc.No Rev. No. MRW ANTENNA SPECIFICATION MRWPQR−14117 1 Date Page Retractable Antenna 2005.02.22 4/37 MRW Technologies Ltd. 1.2 Mechanical Specification Length See the drawing Temperature -40 °C - +70 °C Connector type Screw 1.3 Packing Description Q’ty Material Remark Tray 150EA P.P Air Vinyl - Polyester Inner Box 1,500EA SW 1 (A) 17.4Kgf/50mm min. Master Carton Box 7,500EA DW 1(A) 25.4Kgf/50mm min. Doc.No Rev. No. MRW ANTENNA SPECIFICATION MRWPQR−14117 1 Date Page Retractable Antenna 2005.02.22 5/37 MRW Technologies Ltd. 2. Test Equipment Description Purpose Network Analyzer V.S.W.R, Impedance Standard Horn Gain, Impedance Digital Calipers Dimension Torque Driver Torque Test Push Pull Gauge Force Test Temp. Chamber Temperature Test Thermal Shock Chamber Thermal Shock Vibration Shaker Vibration Dummy Set Drop…

Text truncated - open the document above for the full version.
