PP4TX-30BTr-Mode Dual-Band Cellular Phone

WELCOME Thank you for choosing the up-to-date CDM-8300, our new model, developed by top researchers to support the IS-95C system through Qualcom-manufactured MSM5100 (Handset based GPS) chips and CDMA technologies. This product allows for high speed communication services, such as web browsing, data & fax services, GUI animation menu, and so on. Among its many advanced features, the T9 input mode makes it much easier to enter letters. In addition, the VR (Voice Recognition) makes it more user friendly, with proven technologies in detail as follows: Full graphic display of 5 text input line and 1 icon line with variable font size. High capacity batteries allow for long talk time and 330 hours of standby time. Easy to dial through the VR feature. Easy to enter letters through the T9 text input mode. Multilingual (English and Spanish available) Enhanced for web browsing & data services (i.e. ; wireless internet access, wireless fax send/receive, Phone.com, Up browser) GUI & Animation display compliant with IS-95C. 4-Gray large LCD. Navigation key and 23 keys aligned for more convienence. Sophisticated features of speaker phone, USB, and voice recognition. Handset-based GPS feature. Additional services of SMS and Web browsing on top of authenication, call forwarding, call transfer, call waiting. IMPORTANT INFORMATION This CDM-8300 user guide contains very important information about how to handle and use the product. So please read this manual thoroughly, pay attention to the warranty on the back page and be alert to the exclusions and limitations of your warranty, which are related with the unauthorized use of components. TABLE OF CONTENTS 1 Chapter 1 Chapter 2 Chapter 3 CHAPTER 1. BEFORE USING YOUR PHONE .................................5 INSIDE THE PACKAGE .....................................................................................6 HANDSET DESCRIPTION.................................................................................7 THE FUNCTION KEYS.............................................................................................8 DISPLAY INDICATORS ...........................................................................................9 BATTERY USAGE ...........................................................................................10 BATTERY INSTALLATION ....................................................................................10 BATTERY REMOVAL.............................................................................................10 BATTERY CHARGING ...........................................................................................11 POWER CONNECTION ......................................................................................11 CHARGING THE BATTERY WITH THE HANDSET .............................................11 CHARGING THE BATTERY ONLY ......................................................................12 BATTERY LIFE (FOR NEW BATTERY) ................................................................12 BATTERY HANDLING INFORMATION..........................................................13 DOs.........................................................................................................................13 DON’Ts...................................................................................................................13 CHAPTER 2. BASIC OPERATION ..................................................15 TURNING THE PHONE ON / OFF ..................................................................16 TURNING THE PHONE ON...................................................................................16 TURNING THE PHONE OFF..................................................................................16 ACCESSING THE MENU ................................................................................17 MENU SUMMARY .........................................................................................18 BASIC FUNCTIONS ........................................................................................20 MAKING A CALL ...................................................................................................20 SPEAKER PHONE..................................................................................................21 PAUSE FEATURE ..................................................................................................21 ANSWERING A CALL............................................................................................22 CALLER ID FUNCTION..........................................................................................22 CALL WAITING FUNCTION ..................................................................................23 ANSWERING MACHINE DISPLAY .......................................................................23 ADJUSTING VOLUME ..........................................................................................24 ETIQUETTE ............................................................................................................24 LOCK ......................................................................................................................24 DURING A CALL .............................................................................................25 MUTE(UNMUTE)...................................................................................................25 SILENT(QUIT) ........................................................................................................25 SEND MY PHONE # ..............................................................................................25 MY PROFILE ..........................................................................................................26 VOICE PRIVACY.....................................................................................................26 LOCATION ..................................................................................................…

Text truncated - open the document above for the full version.

From: KISOOKIM [[email protected]] Sent: Wednesday, March 20, 2002 4:51 AM To: Mike Kuo Cc: SCOTT WANG(CCS) Subject: Re: HYUNDAI CURITEL INC., FCC ID:PP4TX-30B, An02T1884 ( Administrative review portion) Dear Mr. Kuo, Thank you for your email. Please refer to the below answers in advance for your reference. Best Regards, KiSoo Kim - HCT ----- Original Message ----- From: Mike Kuo <[email protected]> To: <[email protected]> Cc: Scott Wang <[email protected]> Sent: Wednesday, March 20, 2002 1:51 PM Subject: FW: HYUNDAI CURITEL INC., FCC ID:PP4TX-30B, An02T1884 ( Administrative review portion) > > > -----Original Message----- > From: CERTADM > Sent: Tuesday, March 19, 2002 8:50 PM > To: '[email protected]' > Subject: HYUNDAI CURITEL INC., FCC ID:PP4TX-30B, An02T1884 > > > Notice_content > ------------- > Administrative Section: > > Question #1: Please provide additional internal photos by removing the > shielding plates. > --> The internal photos will be submitted soon. > Question #2: You have provided a attachment titled " RF Exposure to user > letter" in pdf. In this letter, you stated that the attachment RF exposure > information will be provided in the user manual. There is no such > attachment was provided. However, in the user manual, there is RF exposure > inforamtion included. Do you have any other RF exposure information will be > provided to user ? Or the information contains in the user manual is the > final revision of RF exposure information. --> RF exposure information included in the user manual is that all. But, we've found that the SAR level was not correct. So, the revised one will be submitted soon. > > Question #3: In the user manual, it indicates the highest SAR for head is > 1.47W/kg and 0.499W/kg for body. The highest reported SAR values as > documented in the test report are : 1.0W/kg/AMPS/Head and > 0.381W/kg/AMPs/Body. In addition, for body worn operation, user manual > provides limitation of 1.27cm (0.5 inches ) but the separation distance with > Holster is 2.5cm. Please explain. --> Refer to the answer of Question #3 . > Question #4: Does the holster contains any metal ? --> There is no any metal except for connection pin.(refer to the photo of holster or submitted holster) > Question #5: In OET 65 supplemental C Appendix D provides the examples for > body worn operation. Please follow the examples whatever it is possible to > avoid any confusion to the end user. --> We will review it and follow it. > > FCC Part 22/24 and SAR reviews will continue. > > Best Regards > > Mike Kuo / TCB Certifier > The items indicated above must be submitted before processing can continue > on the above referenced application. Failure to provide the requested > information within 60 days of the original e-mail date may result in > application dismissal and forfeiture of the filing fee. Also, please note > that partial responses increase processing time and should not be submitted. > Any questions about the content of this correspondence should be directed to > the e-mail address listed below the name of the sender. P.S : we are now very busy for SAR Lab audit by our government, RRL, for SAR Lab accreditation from today to Mar. 23, 2002. As you may know, SAR requirement will be mandatory from Apr. 1, 2002 in Korea. -----Original Message----- From: CERTADM Sent: Thursday, March 28, 2002 12:04 PM To: '[email protected]' Subject: HYUNDAI CURITEL INC., FCC ID:PP4TX-30B, AN02T1884 Notice_content ------------- SAR Section Question #1: Please provide Dipole Calibration Certificate file from SPEAG. Question #2: On page 1 and 3 of SAR report, the conducted output power listed for each modulation are different thant the value reported in page 16-24. Please note : The conducted output power listed in the SAR test report should be those values measured before ( begin) SAR tests. Do not copy the conducted output power from Part 22/24 EMI report. Question #3: Body Worn SAR Setup : as indicated in your setup photo, you did not connect Mic/ear audio cable during the body worn SAR tests. In accordance with Page 41 of OET 65 Supplement C, " device with headset output should be tested with headset connected to the device. Question #4: FYI - ISO Guide terminology is expanded uncertainty, not extended uncertainty. Question #5: Please provide SAR Vs Z Graphs for each modulation / position with highest SAR value. Question #6: The conversion factor used for body SAR are same as convesion factor for head. Please submit SAR plots /data for body worn with corrected conversion factor. Technical review for FCC part 22/24 will continue. Best Regards Mike Kuo / TCB Certifier The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 60 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender.

From: [email protected] Sent: Tuesday, April 16, 2002 6:49 AM To: [email protected] Cc: KiSoo Kim(HCT); [email protected] Subject: Fw: Hyundai Curitel Inc. FCC ID: PP4TX-30B, AN02T1884 -2/2- Dear Mr. Kuo, Thank you very much for your kind cooperations on reviewing our projects. Please find the answer just below each questions for Hyundai Curitel Inc. FCC ID:PP4TX-30B, AN02T1884. If you have any further questions or commnets, please do not hesitate to contact me. Thanks. Best Regards, KiSoo Kim - HCT P.S. : The attahced four(4) files will be sent seperately by twice. > > ----- Original Message ----- > From: Mike Kuo <[email protected]> > To: <[email protected]> > Cc: Scott Wang <[email protected]> > Sent: Friday, April 12, 2002 8:41 AM > Subject: Hyundai Curitel Inc. FCC ID: PP4TX-30B, AN02T1884 > > > > Hi Mr. Kim: > > > > The questions below are considered as final administrative and technical > > review based upon the new attachments submitted on 04/05/2002. > > > > SAR > > Question #1: For Your Information : While doing System Validation before > > Final SAR measurement, only use Head tissue to verify the system validation. > > In IEEE SCC-34/SC-2 P1528, as mentioned in section 7.3.2, the reference SAR > > values are for Head Tissue and not for Body Tissue. In addition, Page 13 of > > SAR report, you verified both Head and Body tissue during System Validation, > > however, you used Head conversion factor for Body Tissue. ==> We've made a mistake for using conversion factor for Body Tissue for Validaion. So, we've changed the conversion factor for correction. Please find the changed plot on page #3 and #5 in the attached file (filename : ATT.Q(DIPOLE VALIDATION PLOTS).doc). > > > > As indicated in your system verification tests, the measured SAR value > > @835MHz are very close to the max. deviation (10%) allowed. This will > > result in measuring higher SAR value. Resulting in measuring higher SAR > > values have been verified via Sample Request Tests performed by CCS/TCB. > > Even though your measured SAR values are still within 10% allowable > > deviation, you may want to verify your liquid parameter for the future > > tests. > > > > Question #2: The dipole calibration report provided by the SPEAG, the > > calibration was done with 835MHz head liquid with 900MHz dipole conversion > > factor of 6.27. The measured 1g SAR is 10.64mW/g which is over the 10% of > > target value ( 9.5mW/g@835MHz) specified in P1528. Please confirm with > > Dipole manufacturer for this non-compliance issues. ==> We've contacted SPEAG through DAYSTEC in Korea ageny for getting the answer on the above question #2. We will answer it as soon as possible. -----Original Message----- From: Niels Kuster [mailto:[email protected]] Sent: Tuesday, April 16, 2002 5:30 PM To: DYMSTEC Cc: Mike Kuo; [email protected]; [email protected]; [email protected]; [email protected]; [email protected] Subject: Re: Fw: 835 dipole validation data at Hyundai-CT dear angela i thought we had explained the issue during our wonderful stay in korea. please find below a summary: - the value given in our calibration document are those for "System Performance Check" and not "System Validation" (see Chapter 7 of the IEEE 1528-200X document) - "System Performance Check" ensures that all DASY systems around the globe measures within the margin given. - since FCC has still not accepted "Advance Extrapolations" or "Boundary Effect Compensation", the values for "System Performance Check" are higher than those for "System Validation". - as IEE1528-200X will allow "Advance Extrapolations" or "Boundary Effect Compensation", the values for "System Performance Check" will become identical to those of "System Validation". DASY4 incorporates all these new features and provides superior precision unmatched by any competitor. (if any competitors claim to achieve a higher precision without boundary compensation, then they most likely calibrate the system not according to the document.) - the values for the Hyundai D835-SN441 with "Advanced Extrapolation" are: 2.43 W/kg (1g),1.60 W/kg (10g) and 3.58 for peak, i.e., well within the limits. i hope this answers yours and mike's concern. if he needs any additional information, he shall not hesitate to contact me directly. kind regards, niels kuster > > > > Question #3: Section 10.1 of SAR report, the measurement uncertainties are > > still listed as Extended Uncertainty. In my e-mail to you dated March 28, I > > have informed you that ISO guide terminology is Expanded uncertainty. > > Please make necessary correction and submit revised report. ==> We've contacted SPEAG through DAYSTEC in Korea ageny for getting the answer on the above question #3. So, we've gotten the answer and changed the measurement Uncertainty result for correction. Please find the changed data on page #15 in the attached file(filename : ATT.N(SAR REPORT).doc). > > > > Question #4: Page 1 of SAR report, the lowest TX frequency for PCS CDMA > > should be 1851.25MHz. Please make correction. > > ==> Please find the revised one on page #1 in the attached file(filename : ATT.N(SAR REPORT).doc). > > Part 22/24 Portion: > > > > Question #5: Please provide the instrument settings used ( RBW/VBW) during > > ERP/EIRP output power measurement and radiated spurious emission > > measurement. ==> The instrument settings used ( RBW/VBW) during ERP/EIRP output power measurement and radiated spurious emission are as below ; -. Below 1GHz : RBW 100KHz, VBW 300KHz -. Above 1GHz : RBW 1MHz, VBW 3MHz Please find the revised one on page #7 and #13 in the attached file(filename : ATT. C (RF REPORT).doc). > > > > Question #6: Page 30 -32 of Test plots, you provided CDMA power out spectrum > > plots, the output power listed in these plots are different than those value > > reported in the SAR report. Please explain. ==> We've checked and found that there were a little different on conducted power level between RF and SAR reports. We thought that it was OK to use t…

Text truncated - open the document above for the full version.

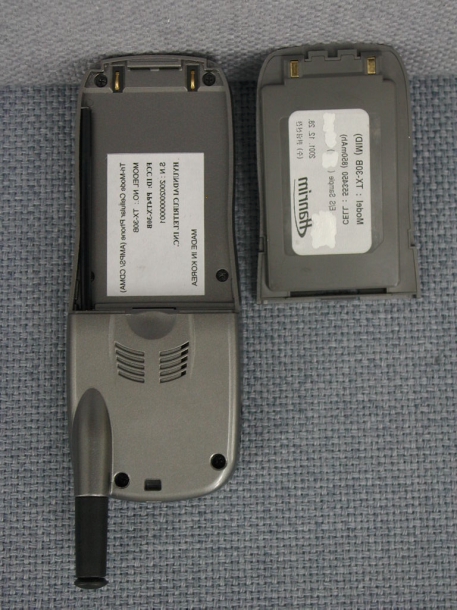

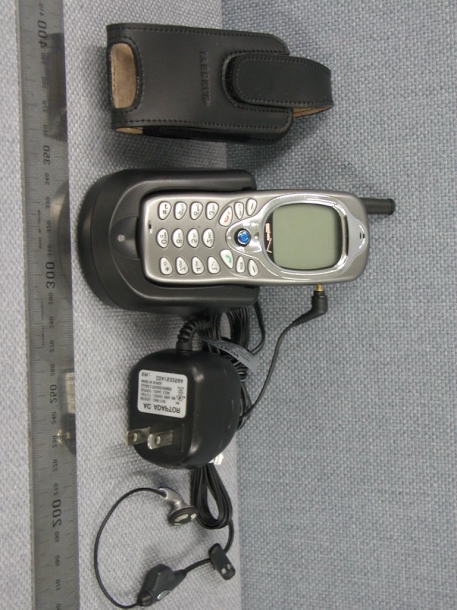

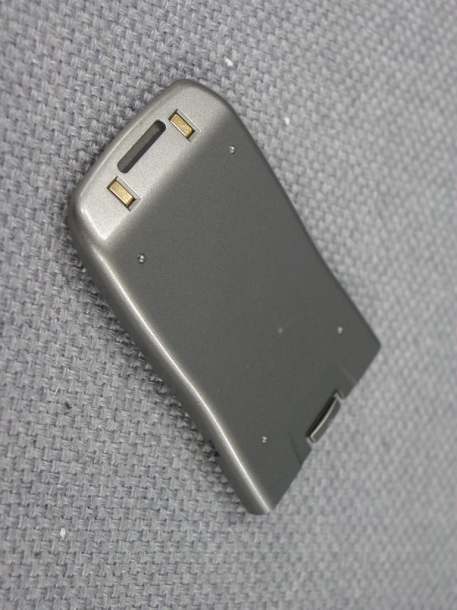

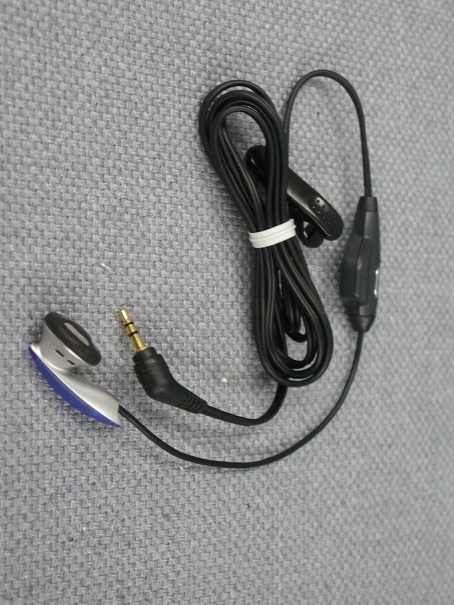

Report No.: HCT-RF02-0201 FCC ID : PP4TX-30B DATE : February 24, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr ATTACHMENT G – EXTERNAL PHOTOGRAPHS € EXTERNAL PHOTO Report No.: HCT-RF02-0201 FCC ID : PP4TX-30B DATE : February 24, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr € EXTERNAL PHOTO Report No.: HCT-RF02-0201 FCC ID : PP4TX-30B DATE : February 24, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr € EXTERNAL PHOTO Report No.: HCT-RF02-0201 FCC ID : PP4TX-30B DATE : February 24, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr € EXTERNAL PHOTO Report No.: HCT-RF02-0201 FCC ID : PP4TX-30B DATE : February 24, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr € EXTERNAL PHOTO Report No.: HCT-RF02-0201 FCC ID : PP4TX-30B DATE : February 24, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr € EXTERNAL PHOTO Report No.: HCT-RF02-0201 FCC ID : PP4TX-30B DATE : February 24, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr € EXTERNAL PHOTO Report No.: HCT-RF02-0201 FCC ID : PP4TX-30B DATE : February 24, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr € EXTERNAL PHOTO Report No.: HCT-RF02-0201 FCC ID : PP4TX-30B DATE : February 24, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr € EXTERNAL PHOTO Report No.: HCT-RF02-0201 FCC ID : PP4TX-30B DATE : February 24, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr € EXTERNAL PHOTO

Report No.: HCT-SAR02-0201 FCC ID : PP4TX-30B DATE : February 24, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr ATTACHMENT E – FCC ID LABEL/ LOCATION Report No.: HCT-SAR02-0201 FCC ID : PP4TX-30B DATE : February 24, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr LABELLING REQUIREMENTS PER §§ 2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. ( SEE NEXT PAGE ) Report No.: HCT-SAR02-0201 FCC ID : PP4TX-30B DATE : February 24, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr

Report No.: HCT-RF02-0201 FCC ID : PP4TX-30B DATE : February 24, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr ATTACHMENT H – INTERNAL PHOTOGRAPHS € INTERNAL PHOTO Report No.: HCT-RF02-0201 FCC ID : PP4TX-30B DATE : February 24, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr € INTERNAL PHOTO Report No.: HCT-RF02-0201 FCC ID : PP4TX-30B DATE : February 24, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr € INTERNAL PHOTO Report No.: HCT-RF02-0201 FCC ID : PP4TX-30B DATE : February 24, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr € INTERNAL PHOTO Report No.: HCT-RF02-0201 FCC ID : PP4TX-30B DATE : February 24, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr € INTERNAL PHOTO Report No.: HCT-RF02-0201 FCC ID : PP4TX-30B DATE : February 24, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr € INTERNAL PHOTO Report No.: HCT-RF02-0201 FCC ID : PP4TX-30B DATE : February 24, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr € INTERNAL PHOTO Report No.: HCT-RF02-0201 FCC ID : PP4TX-30B DATE : February 24, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr € INTERNAL PHOTO Report No.: HCT-RF02-0201 FCC ID : PP4TX-30B DATE : February 24, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr € INTERNAL PHOTO Report No.: HCT-RF02-0201 FCC ID : PP4TX-30B DATE : February 24, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr € INTERNAL PHOTO Report No.: HCT-RF02-0201 FCC ID : PP4TX-30B DATE : February 24, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr € INTERNAL PHOTO Report No.: HCT-RF02-0201 FCC ID : PP4TX-30B DATE : February 24, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr € INTERNAL PHOTO Report No.: HCT-RF02-0201 FCC ID : PP4TX-30B DATE : February 24, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr € INTERNAL PHOTO Report No.: HCT-RF02-0201 FCC ID : PP4TX-30B DATE : February 24, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr € INTERNAL PHOTO

ANTENNA SPECIFICATION Document: 2053spec Page of 13 Form FM016 Rev. C 2 Revision: S-1 Part No.: 020258075-2053(X) Project No.: 205300 ANTENNA PRODUCT SPECIFICATION FOR BASE HELICAL RETRACTABLE GALTRONICS PROJECT: 205300 PART NUMBER: 020258075-2053(X) 1999 © COPYRIGHT GALTRONICS LTD. This document is issued by Galtronics Ltd. (hereinafter called Galtronics) in confidence, and is not to be reproduced in whole or in part without the prior written permission of Galtronics. The information contained herein is the property of Galtronics and is to be used only for the purpose for which it is submitted and is not to be released in whole or in part without the prior written permission of Galtronics. ANTENNA SPECIFICATION Document: 2053spec Page of 13 Form FM016 Rev. C 3 Revision: S-1 Part No.: 020258075-2053(X) Project No.: 205300 CONTENTS 1. PURPOSE AND SCOPE 2. RELATED DOCUMENTS 3. ABBREVIATIONS AND DEFINITIONS 4. DESCRIPTION AND PART NUMBERS 4.1 Description 4.2 Part Numbers 5. ELECTRICAL SPECIFICATIONS 5.1 Frequency Band 5.2 Impedance 5.3 Matching Requirements 5.4 VSWR 5.4.1 Requirements in Free Space 5.4.2 Test Methods (Engineering) 5.4.3 Test Methods (Production) 5.5 Gain 5.5.1 Gain Values 5.5.2 Test Method 5.6 Power Rating 5.6.1 Requirements 5.6.2 Test Methods 6. MECHANICAL SPECIFICATIONS 6.1 Mechanical Configuration 6.2 Connector Type 6.3 Retraction Forces 6.3.1 Requirements for Initial Values 6.3.2 Test Method 6.4 Whip Tensile Load 6.4.1 Requirements 6.4.2 Test Method 6.5 Drop 6.6 Helix Torque 6.6.1 Requirements 6.6.2 Test Method 6.7 Helix Bending 6.8 Helix Tensile Load 6.9 Tube Attachment 6.10 Assembly/disassembly Cycles 7. ENVIRONMENTAL SPECIFICATIONS 7.1 Temperature Cycling 7.2 Salt Spray 7.3 Static Humidity 7.4 Random Vibration 7.5 Operating Temperature Range 7.6 Aging 7.7 UV Resistance 8. RELIABILITY SPECIFICATIONS 8.1 Connector Reliability 8.2 Whip Bending Endurance 8.3 Whip Bend 9. QUALIFICATION 10. PACKAGING 11. PRODUCTION SITE 12. QUALIFICATION FLOW CHART ANTENNA SPECIFICATION Document: 2053spec Page of 13 Form FM016 Rev. C 4 Revision: S-1 Part No.: 020258075-2053(X) Project No.: 205300 1. PURPOSE AND SCOPE The purpose of this document is to establish a product specification for the antenna product that Galtronics is developing for the Curitel, for their wireless handset. This specification is preliminary. Any changes or additions to this specification can affect schedule and/or cost of the product and should be negotiated between Galtronics and the Curitel before being incorporated into the specification. Upon agreement of this specification Galtronics will make no changes without the written approval from the Curitel. Any changes requested by the Curitel will be given to Galtronics with sufficient time to evaluate the cost impact and react as required. The development of the product in Galtronics is conducted according to the Design Control Procedure SOP006E. 2. RELATED DOCUMENTS SOP006E Product Launch Procedure (Design Control) EN006E Reliability Guidelines EIA-STD-556 Outer Shipping Container Bar Code Label Standard 3. ABBREVIATIONS AND DEFINITIONS Ω Ohm ° Degree °C Celsius(degrees Centigrade) cm Centimeter g Grams Hz Hertz MHz Megahertz m Meter mm Millimeter N Newton PCB Printed Circuit Board RH Relative Humidity W Watt Design specification: A preliminary target specification to guide design process Product specification: A final specification for the qualified product 4. DESCRIPTION AND PART NUMBERS 4.1 DESCRIPTION This antenna is a base helical retractable for use on a wireless handset. This antenna shall consist of two electromechanical pieces: A whip and a base. The whip shall extend and retract through the center of a fixed base lower helical, which is mounted to the handset via a screw thread interface. The whip element shall function in the full up position and the base helical shall function in the down position. The electrical, mechanical, and industrial design parameters required for this antenna are described below. 4.2 PART NUMBER Galtronics Part Number Frequency Band 020258075-2053(X) 824 - 894 MHz, 1850 - 1990 MHz ANTENNA SPECIFICATION Document: 2053spec Page of 13 Form FM016 Rev. C 5 Revision: S-1 Part No.: 020258075-2053(X) Project No.: 205300 5. ELECTRICAL SPECIFICATION 5.1 FREQUENCY BANDS Band Name Frequency Band CDMA/AMPS 824 - 894 MHz PCS 1850 - 1990 MHz 5.2 IMPEDANCE Nominal impedance (including matching circuit) : 50 Ω 5.3 MATCHING REQUIREMENTS In order to assure the best performance of the antenna, the matching will be evaluated in free space and in talk position for both extended and retracted position. The antenna will comply with the Electrical Specification requirements , as set out below, while mounted on the handset containing the PCB. The handset with PCB are to be supplied by the customer and should be representative of the latest design version of all parts. Any modifications in the handset or PCB can affect the performance of the antenna and should be discussed with Galtronics to determine the affect of such changes on antenna performance and delivery requirements. 5.4 VSWR 5.4.1 Requirements in free space Band Extended Position Retracted Position Tx1 Rx1 Tx1 Rx1 CDMA/AMPS 3.0 : 1 3.0 : 1 3.0 :…
