PP4TX-50CTri-Mode Dual Band Cellular Phone

AUDIOVOX AUDIOVOX [CDM-8500] [CDM-8500] [Dual/Tri Mode] Digital [CDMA/Amps] Handheld Portable Telephone In today’s fast paced world, it has become a necessity tohave access to real time information. Your communicationstools must provide you with this access from anywhereat anytime. With that in mind, Audiovox developed the[CDM-8500], a [dual/tri mode] handset with [web brows-ing and voice activated dialing] features.Operating on the [800 MHz Amps/CDMA and 1900 MHzPCS] frequencies, the [CDM-8500] allows for seamlessnationwide coverage as well as offering state-of-the-art,user-friendly features. [Voice activated dialing and 2-wayspeakerphone] are great for enhancing [hands-free use]of this phone. [T9 TM Text Input, vibrating alert and a 7-line LCD display] make the [CDM-8500] easier to use. Several optional accessories are available for the [CDM-8500], including: [hands-free devices (installed, earphonemicrophone, cigarette lighter charger), charging devices(vehicle, travel, desktop, AC), data interface cables, beltclips, and of course user-changeable faceplates.]Your new [CDM-8500] provides you with something onlyan Audiovox phone can: the proven reliability that hasmade us a leading wireless handset provider. Pleasetake a few moments to read the following pages of theowner’s manual. It will help you make the most efficientuse of this valuable communications tool. Preface 50Bmanual template7/26 2002.7.26 5:35 PM Page 1 TABLE OF CONTENTS CHAPTER 1 BEFORE USING YOUR PHONE ..........7 Package Contents...................................................8Handset Description ...............................................9Function Keys .......................................................10Display Indicators .................................................11Using the Battery ..................................................13 Installing the Battery ............................................13Removing the Battery ..........................................13 Charging the Battery ............................................14 Power Connection ...............................................14Charging the Battery Only ...................................14Battery Charging Time.........................................15Battery Talk and Standby Times..........................15 Battery Information...............................................16 CHAPTER 2 BASIC OPERATION ...........................17 Using the Phone ...................................................18 Turning the Phone On .........................................18Turning the Phone Off .........................................18 Using the Menu .....................................................19Menu Summary .....................................................20Basic Functions ....................................................23 Making a Call.......................................................23Pause Feature .....................................................24Speaker Phone ....................................................25 Answering Calls ...................................................25 Caller ID...............................................................25Call Waiting..........................................................26 Answering Machine Display.................................26Adjusting the Volume ...........................................27 Lock .....................................................................27Vibrate .................................................................28Manner Mode ......................................................28 Functions During a Call .......................................29 Mute.....................................................................29Silent(Quit)...........................................................29Sending Your Number to a Pager .......................29 Table of Contents - Page 1 50Bmanual template7/26 2002.7.26 5:35 PM Page 2 TABLE OF CONTENTS TABLE OF CONTENTS Force Analog .......................................................50NAM Setting ........................................................51Call Prompt ..........................................................52PRL ID .................................................................52Sounds.................................................................53Display .................................................................58Others ..................................................................52UP Proxy IP .........................................................67 VR Mode ................................................................68 Name ...................................................................68Dial.......................................................................69Redial...................................................................69Voice Memo .........................................................70Phone Book .........................................................70Cancel..................................................................71 VR Menu ................................................................72 Voice Memo .........................................................72Call Answer..........................................................73Voice Command ..................................................74Voice Dial.............................................................78Voice Alert............................................................80Voice Setting........................................................82 CHAPTER 5 SECURITY FEATURES.......................85 Security Features ..................................................86 Security................................................................86 CHAPTER 6 SUPPLEMENTARY FUNCTIONS.......93 Schedule ................................................................94 Event....................................................................94 Alarm.......…

Text truncated - open the document above for the full version.

Report No.: HCT-SAR02-0601 FCC ID : PP4TX-50C DATE : June 14, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr ATTACHMENT B – ATTESSTATION STATEMENT Report No.: HCT-SAR02-0601 FCC ID : PP4TX-50C DATE : June 14, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr Report No.: HCT-SAR02-0601 FCC ID : PP4TX-50C DATE : June 14, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr Report No.: HCT-SAR02-0601 FCC ID : PP4TX-50C DATE : June 14, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr Report No.: HCT-SAR02-0601 FCC ID : PP4TX-50C DATE : June 14, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr

Report No.: HCT-SAR02-0601 FCC ID : PP4TX-50C DATE : June 14, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr

From: Keun-Ho Park (HCT) [[email protected]] Sent: Tuesday, July 30, 2002 9:00 PM To: Mike Kuo(CCS) Cc: KiSoo Kim(HCT); SCOTT WANG(CCS) Subject: Fw: Request for additional information. (FCC ID: PP4TX-50C) - 1/6- Dear Mr. Kuo, How are you ? According to your requests on the below questions, we'd like to send the answers on each questions under each question as belows; If you have any questions or comments, please do not hesitate to contact us. Best Regards, KiSoo Kim - HCT > > -----Original Message----- > > From: CERTADM > > Sent: Wednesday, July 17, 2002 8:43 PM > > To: '[email protected]' > > Subject: HYUNDAI CURITEL INC., FCC ID:PP4TX-50C, Assessment no:AN02T2109 > > > > > > Notice_content > > ------------- > > Part 22/24 Portion: > > > > Question #1: Page 21 of RF test report, the high channel listed is > > 849.97MHz. Based upon the information provided, the highest frequency > > should be 848.97MHz for AMPS mode, please confirm and make necessary > > correction. ==> We've revised the frequency on page #21 in Section 7.1.4 of RF test report. Please find the attached test report. (filename : ATT. C (RF REPORT).doc) > > > > SAR Portion: > > > > Question #2:Please be specific about liquid depth of liquid. Please include > > the length unit after " 15" in the SAR report. ==> We've revised the liquid depth of liquid (15 cm) on page #17, 18, 19, 20, 21, 22, 23, 24 in Section 12.1~ 12.10 of SAR test report. Please find the attached test report. (filename : ATT. N (SAR REPORT).doc) > > > > Question #3: The conductivity of body tissue listed in page 22 and 23 as > > 0.99. The conductivity value for 835MHz listed in page 12 is 0.98. Please > > make necessary correction. ==> We've revised the conductivity value (0.98) in page #22, 23 in Section 12.8 / 12.9 of SAR test report. Please find the attached test report. (filename : ATT. N (SAR REPORT).doc) > > > > Question #4: Dipole Validation plots for 1800MHz, the conversion factor in > > accordance with calibration file should be 5.6 but 5.54 was used. However, > > the SAR Vs Z plot shows 5.6 conversion factor. The system validation plots > > for 1800MHz is powered with 250mw but SAR Vs Z for 1800MHz was powered with > > 1 W. In addition, the tissue parameter are different. The same situation > > for 835MHz plots and SAR Vs Z plot. Please explain. ==> We've revised the conversion factor ( 5.40 at 1900 MHz and 5.60 at 1800 MHz) Please find the attached probe calibration data. (filename : ATT. Q (DIPOLE VALIDATION).doc / ATT. R (PROBE CALIBRATION DATA.doc) > > > > Question #5: AMPS/Right Head/Tile/Channel 991/Antenna out: the max. SAR are > > outside your zoom scan. Please redo the tests and submit the SAR plots. ==> We've retested. Please find the attached test report. (filename : ATT. O (SAR TEST PLOT).doc) > > > > Question #6: AMPS/Right Head/Tile/Channel 799/Antenna out: the max. SAR are > > outside your zoom scan. Please redo the tests and submit the SAR plots. ==> We've retested. Please find the attached test report. (filename : ATT. O (SAR TEST PLOT).doc) > > > > Question #7: PCS/Right Head/Tile/ Channel 25/Antenna In: the zoom scan are > > outside the device, please redo the tests and submit the SAR plots. ==> We've retested . Please find the attached test report. (filename : ATT. O (SAR TEST PLOT).doc) > > > > Question #8: PCS/Right Head/Tile/ Channel 25/Antenna OUT: the zoom scan are > > outside the device, please redo the tests and submit the SAR plots. ==> We've retested. Please find the attached test report. (filename : ATT. O (SAR TEST PLOT).doc) > > > > Question #9: PCS/Right Head/Tile/ Channel 600/Antenna In: the zoom scan are > > outside the device, please redo the tests and submit the SAR plots. ==> We've retested. Please find the attached test report. (filename : ATT. O (SAR TEST PLOT).doc) > > > > Question #10:PCS/Right Head/Tile/ Channel 600/Antenna OUT: the zoom scan are > > outside the device, please redo the tests and submit the SAR plots. ==> We've retested. Please find the attached test report. (filename : ATT. O (SAR TEST PLOT).doc) > > > > Question #11: PCS/Right Head/Tile/ Channel 1175/Antenna In: the zoom scan > > are outside the device, please redo the tests and submit the SAR plots. ==> We've retested. Please find the attached test report. (filename : ATT. O (SAR TEST PLOT).doc) > > > > Question #12: PCS/Right Head/Tile/ Channel 1175/Antenna OUT: the zoom scan > > are outside the device, please redo the tests and submit the SAR plots. ==> We've retested. Please find the attached test report. (filename : ATT. O (SAR TEST PLOT).doc) > > > > Question #13: AMPS/Body/Channel 991/Antenna IN: Max. SAR value is outside > > the Zoom scan. Please redo the tests and submit the SAR plots. ==> We've retested. Please find the attached test report. (filename : ATT. O (SAR TEST PLOT).doc) > > > > Question #14: AMPS/Body/Channel 383/Antenna OUT: Max. SAR value is outside > > the Zoom scan. Please redo the tests and submit the SAR plots. ==> We've retested. Please find the attached test report. (filename : ATT. O (SAR TEST PLOT).doc) > > > > Question #15: AMPS/Body/Channel 799/Antenna OUT: Max. SAR value is outside > > the Zoom scan. Please redo the tests and submit the SAR plots. ==> We've retested. Please find the attached test report. (filename : ATT. O (SAR TEST PLOT).doc) > > > > Question #16: 22/CDMA/Body/Channel 1013/Antenna OUT: Max. SAR value is > > outside the Zoom scan. Please redo the tests and submit the SAR plots. ==> We've retested. Please find the attached test report. (filename : ATT. O (SAR TEST PLOT).doc) > > > > Question #17: 22/CDMA/Body/Channel 363/Antenna OUT: Max. SAR value is > > outside the Zoom scan. Please redo the tests and submit the SAR plots. ==> We've retested. Please find the attached test report. (filename : ATT. O (SAR TEST PLOT).doc) > > > > Question #18: 22/CDMA/Body/Channel 777/Antenna OUT: Max. SAR value is > > outside the Zoom scan. Please redo the tests and submit the SAR plots. ==> We've reteste…

Text truncated - open the document above for the full version.

From: Keun-Ho Park [[email protected]] Sent: Friday, August 09, 2002 3:37 AM To: Mike Kuo(CCS); SCOTT WANG(CCS) Cc: KiSoo Kim(HCT) Subject: Re: HYUNDAI CURITEL INC., FCC ID:PP4TX-50C (Second Notice) - 1/3 - Dear Mr. Kuo, How are you ? According to your requests on the below questions, we'd like to send the answers on each questions under each question as belows; If you have any questions or comments, please do not hesitate to contact us. Best Regards, KiSoo Kim - HCT ----- Original Message ----- From: "Mike Kuo" <[email protected]> To: <[email protected]>; <[email protected]> Sent: Thursday, August 01, 2002 10:27 AM Subject: FW: HYUNDAI CURITEL INC., FCC ID:PP4TX-50C (Second Notice) > > > -----Original Message----- > From: CERTADM > Sent: Wednesday, July 31, 2002 6:26 PM > To: '[email protected]' > Subject: HYUNDAI CURITEL INC., FCC ID:PP4TX-50C > > > Notice_content > ------------- > Question #26: The max. reported Head-SAR value for AMPS mode is 0.509W/kg > based upon the SAR plot. However, the cover page , RF report and SAR report > indicated the max. Head-SAR value for AMPS mode is 0.480W/kg. Please verify > your readings and make necessary correction. ==> We've revised the RF report and SAR report. Please find the attached test report. (filename : ATT. C (RF REPORT).doc, ATT. N (SAR REPORT).doc ) > Question #27: If the max. Head-SAR value for AMPS mode is 0.509W/kg, please > provide SAR Vs Z plot. ( SAR Vs Z plot provided is for 0.480W/kg.) ==> We've revised the SAR report. Please find the attached test report. (filename : ATT. O (SAR TEST PLOT).doc) > Question #28: Page 19 -21 of SAR test report, please change lower part of > Table from Tilt 15 degree/ Left Ear to Tile 15 degree / Right Ear. ==> We've revised the SAR report. Please find the attached test report. (filename : ATT. N (SAR REPORT).doc) > Question #30: SAR data plots 3 of 3: Page 8-13 (PCS mode/Tilt 15 > degree/Right Ear/ antenna in and out), the highest SAR is outside the > device. Please redo the tests or make necessary corrections. ==> We've revised the SAR report. Please find the attached test report. (filename : ATT. O (SAR TEST PLOT).doc) > Question #31: Page 22 of SAR report, the SAR value for channel 383/ > Antenna-in should be 0.310; Channel 383/Antenna-out should be 0.335. Please > make necessary correction. ==> We've revised the SAR report. Please find the attached test report. (filename : ATT. N (SAR REPORT).doc) > Question #32: There is no SAR plot provided for PCS/Body/channel 600/antenna > out. Please provide it. ( there are duplicate copies for channel > 1175/antenna-in.) ==> We've revised the SAR report. Please find the attached test report. (filename : ATT. O (SAR TEST PLOT).doc) > Best Regards > > Mike Kuo / TCB Certifier > The items indicated above must be submitted before processing can continue > on the above referenced application. Failure to provide the requested > information within 60 days of the original e-mail date may result in > application dismissal and forfeiture of the filing fee. Also, please note > that partial responses increase processing time and should not be submitted. > Any questions about the content of this correspondence should be directed to > the e-mail address listed below the name of the sender. >

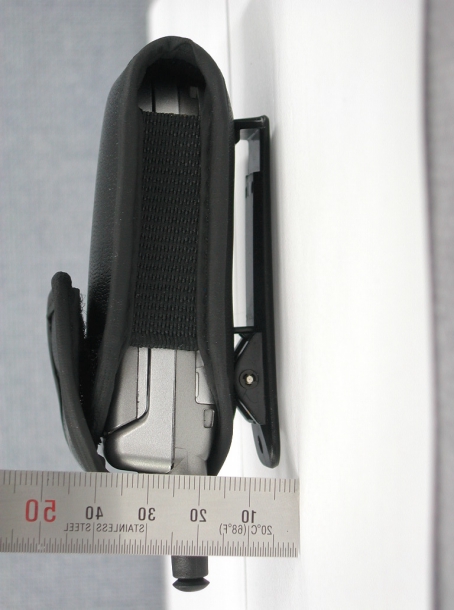

Report No.: HCT-SAR02-0601 FCC ID : PP4TX-50C DATE : June 14, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr ATTACHMENT G – EXTERNAL PHOTOGRAPHS € EXTERNAL PHOTO Report No.: HCT-SAR02-0601 FCC ID : PP4TX-50C DATE : June 14, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr € EXTERNAL PHOTO Report No.: HCT-SAR02-0601 FCC ID : PP4TX-50C DATE : June 14, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr € EXTERNAL PHOTO Report No.: HCT-SAR02-0601 FCC ID : PP4TX-50C DATE : June 14, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr € EXTERNAL PHOTO Report No.: HCT-SAR02-0601 FCC ID : PP4TX-50C DATE : June 14, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr € EXTERNAL PHOTO Report No.: HCT-SAR02-0601 FCC ID : PP4TX-50C DATE : June 14, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr € EXTERNAL PHOTO Report No.: HCT-SAR02-0601 FCC ID : PP4TX-50C DATE : June 14, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr € EXTERNAL PHOTO Report No.: HCT-SAR02-0601 FCC ID : PP4TX-50C DATE : June 14, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr € EXTERNAL PHOTO Report No.: HCT-SAR02-0601 FCC ID : PP4TX-50C DATE : June 14, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr € EXTERNAL PHOTO

Report No.: HCT-SAR02-0601 FCC ID : PP4TX-50C DATE : June 14, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr ATTACHMENT E – FCC ID LABEL/ LOCATION Report No.: HCT-SAR02-0601 FCC ID : PP4TX-50C DATE : June 14, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr LABELLING REQUIREMENTS PER §§ 2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. ( SEE NEXT PAGE ) Report No.: HCT-SAR02-0601 FCC ID : PP4TX-50C DATE : June 14, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr

Report No.: HCT-SAR02-0601 FCC ID : PP4TX-50C DATE : June 14, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr ATTACHMENT H – INTERNAL PHOTOGRAPHS € INTERNAL PHOTO Report No.: HCT-SAR02-0601 FCC ID : PP4TX-50C DATE : June 14, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr € INTERNAL PHOTO Report No.: HCT-SAR02-0601 FCC ID : PP4TX-50C DATE : June 14, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr € INTERNAL PHOTO Report No.: HCT-SAR02-0601 FCC ID : PP4TX-50C DATE : June 14, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr € INTERNAL PHOTO Report No.: HCT-SAR02-0601 FCC ID : PP4TX-50C DATE : June 14, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr € INTERNAL PHOTO Report No.: HCT-SAR02-0601 FCC ID : PP4TX-50C DATE : June 14, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr € INTERNAL PHOTO Report No.: HCT-SAR02-0601 FCC ID : PP4TX-50C DATE : June 14, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr € INTERNAL PHOTO Report No.: HCT-SAR02-0601 FCC ID : PP4TX-50C DATE : June 14, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr € INTERNAL PHOTO Report No.: HCT-SAR02-0601 FCC ID : PP4TX-50C DATE : June 14, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr € INTERNAL PHOTO

HYUNDAI CALIBRATION & CERTIFICATION TECH. CO., LTD. PRODUCT COMPLIANCE DIVISION SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr CERTIFICATE OF COMPLIANCE (SAR EVALUATION) E UT Type: Tri-Mode Dual-Band Phone (AMPS/CDMA/ PCS CDMA) Tx Frequency: 824.04 — 848.97 MHz (AMPS) / 824.70 — 848.31 MHz (CDMA) 1851.25 — 1908.75 MHz (PCS CDMA) Rx Frequency: 869.04 — 893.97 MHz (AMPS) / 869.70 — 893.31 MHz (CDMA) 1931.25 — 1988.75 MHz (PCS CDMA) Max. RF Output Power: 0.562W AMPS (27.5 dBm) / 0.355W CDMA (25.5 dBm) (Conducted) 0.316W PCS CDMA (25.0 dBm) Trade Name/Model(s): HYUNDAI / TX-50C FCC Classification: Licensed Portable Transmitter Held to Ear (PCE) Application Type: Certification FCC Rule Part(s): §2.1093; FCC/ OET Bulletin Supplement C [July 2001] Maximum SAR: 0.509 W/kg AMPS Brain SAR / 0.633 W/kg AMPS Body SAR 0.374 W/kg CDMA Brain SAR / 0.364 W/kg CDMA Body SAR 1.150 W/kg PCS CDMA Brain SAR / 0.549 W/kg PCS CDMA Body SAR This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/ IEEE Std. C95.1- 1992 and had been tested in accordance with the measurement procedures specified in ANSI/ IEEE Std. C95.3- 1992. (See Test Report). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Hyundai C-Tech Co., Ltd. Certifies that no party to this application has been denied FCC benefits pursuant to section 5301 of the Anti- Drug Abuse Act of 1998, 21 U.S. C. 853(a) Report prepared by : Ki-Soo Kim Manager of Product Compliance Team This report o nly respo nds to the tested sa mp le a nd ma y no t be rep rod uced, e xcep t in full, witho ut writte n app ro va l o f the HCT Co., Ltd. Table of Contents 1.1 SCOPE ---------------------------------------------------------------------------------------------------------- 2.1 INTRODUCTION / SAR DEFINITION --------------------------------------------------------------------- 3.1 SAR MEASUREMENT SET-UP --------------------------------------------------------------------------- FCC ID : APPLICANT : PP4TX-50C HYUNDAI CURITEL INC. 3 4 Date of Issue : June 14, 2002 Test Report No.: HCT-RF02-0601 Test Site: HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. FRN: 0005-8642- 21 HYUNDAI CURITEL INC. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701,KOREA FRN: 0006-2784-69 Report No.: HCT-SAR02-0601 FCC ID : PP4TX-50C DATE : June 14, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr 2 οφ 27 4.1 E-FIELD PROBE SYSTEM --------------------------------------------------------------------------------- 5.1 EUT ARRANGEMENT ------------------------------------------------------------------------------------- 6.1 E-FIELD PROBE CALIBRATION PROCESS -------------------------------------------------------- 7.1 PHANTOM, HOLDER, & EQUIVALENT TISSUE --------------------------------------------------- 8.1 SYSTEM SPECIFICATIONS ------------------------------------------------------------------------------ 9.1 MEASUREMENT PROCESS ------------------------------------------------------------------------------ 10.1 ANSI/ IEEE C95.1 - 1992 RF EXPOSURE LIMITS -------------------------------------------------------- 11.1 MEASUREMENT UNCERTAINTIES ------------------------------------------------------------------- 12.1 TEST DATA SUMMARY ---------------------------------------------------------------------------------- 13.1 SAR TEST EQUIPMENT LIST --------------------------------------------------------------------------- 14.1 CONCLUSION ------------------------------------------------------------------------------------------------ 15.1 REFERENCES -------------------------------------------------------------------------------------------- Report No.: HCT-SAR02-0601 FCC ID : PP4TX-50C DATE : June 14, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr 3 οφ 27 SAR MEASUREMENT REPORT 1.1 SCOPE Environmental evaluation measurements of specific absorption rate 1 (SAR) distributions in emulated human head and body tissues exposed to radio frequency (RF) radiation from wireless portable devices for compliance with the rules and regulations of the U.S. Federal Communications Commission (FCC). 2 1. 2 Applicant • EUT Type: Tri-Mode Dual-Band Phone (AMPS/CDMA/PCS CDMA) • Trade Name: HYUNDAI • Model(s): TX-50C • FCC ID: PP4TX-50C • Serial Number(s): 20020000005 • Tx Frequency: 824.04 – 848.97 MHz (AMPS) 824.70 – 848.31 MHz (CDMA) 1851.25 – 1908.75 MHz (PCS CDMA) • Rx Frequency: 869.04 – 893.97 MHz (AMPS) 869.70 – 893.31 MHz (CDMA) 1931.25 – 1988.75 MHz (PCS CDMA) • Application Type: Certification • FCC Classification: Licensed Portable Transmitter Held to Ear (PCE) • FCC Rule Part(s): §2.1093; FCC/ OET Bulletin Supplement C [July 2001] • Modulation(s): AMPS/ CDMA/ PCS CDMA • Αntenna Type: Retractable (Retracted/Extended) • Max RF. Output Power: 0.511W ERP AMPS (27.083 dBm) 0.349W ERP CDMA (25.423 dBm) 0.310W EIRP PCS CDMA (24.911 dBm) • Date(s) of Tests: April 24, 2002 – May 6, 2002 • Place of Tests: Hyundai C-Tech. EMC Lab. Icheon, Kyounki-Do, KOREA • Report Serial No.: HCT-SAR02-0601 F Figure 1. SAR System 1 Specific Absorption Rate (SAR) is a measure of the rate of energy absorption due to exposure to an RF transmitting source (wireless portable device). 2 IEEE/ANSI Std. C95.1-1992 limits are used to determine compliance with FCC ET Docket 9…

Text truncated - open the document above for the full version.

Report No.: HCT-SAR02-0601 FCC ID : PP4TX-50C DATE : June 14, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr ATTACHMENT O – SAR TEST PLOTS (1 of 3) € AMPS (Touch ) Report No.: HCT-SAR02-0601 FCC ID : PP4TX-50C DATE : June 14, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr € AMPS (Touch ) Report No.: HCT-SAR02-0601 FCC ID : PP4TX-50C DATE : June 14, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr € AMPS (Touch ) Report No.: HCT-SAR02-0601 FCC ID : PP4TX-50C DATE : June 14, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr € AMPS (Touch ) Report No.: HCT-SAR02-0601 FCC ID : PP4TX-50C DATE : June 14, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 13…

Text truncated - open the document above for the full version.
