PPIRH-19GSM Mobile Phone (PCS 1900)

User’s Guide 9356281 Issue 1 The wireless phone described in this guide is approved for use in GSM 900, 1800 and 1900 networks. LEGAL INFORMATION Part No. 9356281 Issue No. 1 Copyright ©2003 Nokia. All rights reserved. Nokia is a registered trademark of Nokia Corporation. Nokia, Nokia Connecting People, Xpress-on, Pop-Port, the Original Accessories logos, Space Impact, Snake II, and Bumper are trademarks of Nokia Corporation and/or its affiliates. Printed in Canada 06/2003 US Patent No 5818437 and other pending patents. T9 text input software Copyright ©1999-2003. Tegic Communications, Inc. All rights reserved. Includes RSA BSAFE cryptographic or security protocol software from RSA Security. Java is a trademark of Sun Microsystems, Inc. The information contained in this user guide was written for the Nokia 3100 phone. Nokia operates a policy of continuous development. Nokia reserves the right to make changes and improvements to any of the products described in this document without prior notice. UNDER NO CIRCUMSTANCES SHALL NOKIA BE RESPONSIBLE FOR ANY LOSS OF DATA OR INCOME OR ANY SPECIAL, INCIDENTAL, AND CONSEQUENTIAL OR INDIRECT DAMAGES HOWSOEVER CAUSED. THE CONTENTS OF THIS DOCUMENT ARE PROVIDED “AS IS.” EXCEPT AS REQUIRED BY APPLICABLE LAW, NO WARRANTIES OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE MADE IN RELATION TO THE ACCURACY AND RELIABILITY OR CONTENTS OF THIS DOCUMENT. NOKIA RESERVES THE RIGHT TO REVISE THIS DOCUMENT OR WITHDRAW IT AT ANY TIME WITHOUT PRIOR NOTICE. EXPORT CONTROLS This product contains commodities, technology or software exported from the United States in accordance with the Export Administration regulations. Diversion contrary to U.S. or Canadian law is prohibited. FCC/INDUSTRY CANADA NOTICE Your phone may cause TV or radio interference (for example, when using a telephone in close proximity to receiving equipment). The FCC or Industry Canada can require you to stop using your telephone if such interference cannot be eliminated. If you require assistance, contact your local service facility. This device complies with part 15 of the FCC rules. Operation is subject to the condition that this device does not cause harmful interference. Contents 3 Contents FOR YOUR SAFETY ................... 6 General information ................ 8 Access codes ........................................... 8 Extended user’s guide .......................... 8 Overview of the functions in the phone............................. 9 Shared memory ...................................... 9 1. Your phone ......................... 10 Keys and connectors........................... 10 Standby mode....................................... 10 Power saving ..................................... 11 Essential indicators.......................... 11 2. Getting started................... 12 Installing the SIM card and the battery............................................. 12 Charging the battery .......................... 13 Switching the phone on and off ..... 13 Normal operating position................ 14 Keypad lock (Keyguard) ..................... 14 Changing the front and back cover.............................................. 14 Charging the glow-in-the-dark cover........................................................ 15 3. Basic functions................... 16 Making a call ........................................ 16 Speed dialling a phone number ... 16 Answering or rejecting an incoming call ........................................ 17 Call waiting........................................ 17 Options during a call .......................... 17 Loudspeaker....................................... 17 Writing text........................................... 18 Setting predictive text input on or off.............................................. 18 Using predictive text input ........... 18 Writing compound words .......... 19 Using traditional text input .......... 19 4. Using the menu .................. 20 List of menu functions ....................... 20 Messages (Menu 1) ............................. 22 Text messages ................................... 22 Writing and sending messages. 22 Options for sending a message 23 Writing and sending an SMS e-mail..................................... 23 Reading and replying to a message or an SMS e-mail .... 23 Inbox and outbox folders ........... 24 Templates........................................ 24 Archive folder and my folders... 24 Distribution lists ........................... 25 Message counters......................... 25 Multimedia messages ..................... 25 Writing and sending a multimedia message.................... 26 Reading and replying to a multimedia message.................... 27 Multimedia messages Inbox, Outbox, Saved and Sent items folders .............................................. 27 Multimedia messages memory full ....................................... 27 Deleting messages ........................... 27 Voice messages................................. 28 Info messages ................................... 28 Message settings.............................. 28 Settings for text and e-mail messages ......................................... 28 Overwrite settings for text and e-mail messages................... 28 Settings for the multimedia messages ......................................... 29 Contents 4 Font size setting ........................... 29 Service commands .......................... 29 Call register (Menu 2)........................ 30 Recent call lists ................................ 30 Call counters and call timers ....... 30 Contacts (Menu 3).............................. 30 Searching for a name in contacts.............................................. 31 Saving multiple numbers, text items and an image per contact ........................................ 31 Profiles (Menu 4).................................…

Text truncated - open the document above for the full version.

NCKIA NOKIA MOBILE PHONES Lise-Meitner-Strasse 11 89081 Ulm, Germany +49 (0)731-1754-0 +49 (0)731-1754-68 00 05/08/2003 Federal Communications Commission Authorization a Evaluation Division, 7435 Oakland Mills Road, Columbia, MD. 21046 Attention: Equipment Authorization Branch REQUEST FüR CüNFIDENTIALlTY Pursuant to Sections 0.457 (d)(l)(ii) and 0.459 of the Commission's Rules, the Applicant hereby requests confidential treatment of same of the information accompanying this Application of FCC 10: PPIRH-19 and as outlined below: -Exhibit 4: RF Block Oiagram -Exhibit 5: Schematic Oiagrams -Exhibit 10: List ofActive Oevices, Tune-Up Procedure and Part list Exhibit 12: Theory of Operation, Frequency determining part24, frequency range and Harmonics Emission part 24 These materials contain trade secrets and proprietary information not customarily released to the public and the public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457 (d)(l)(ii) disclosure of this Application and all accompanying documentation will not be made before the date of the Grant für this Application.

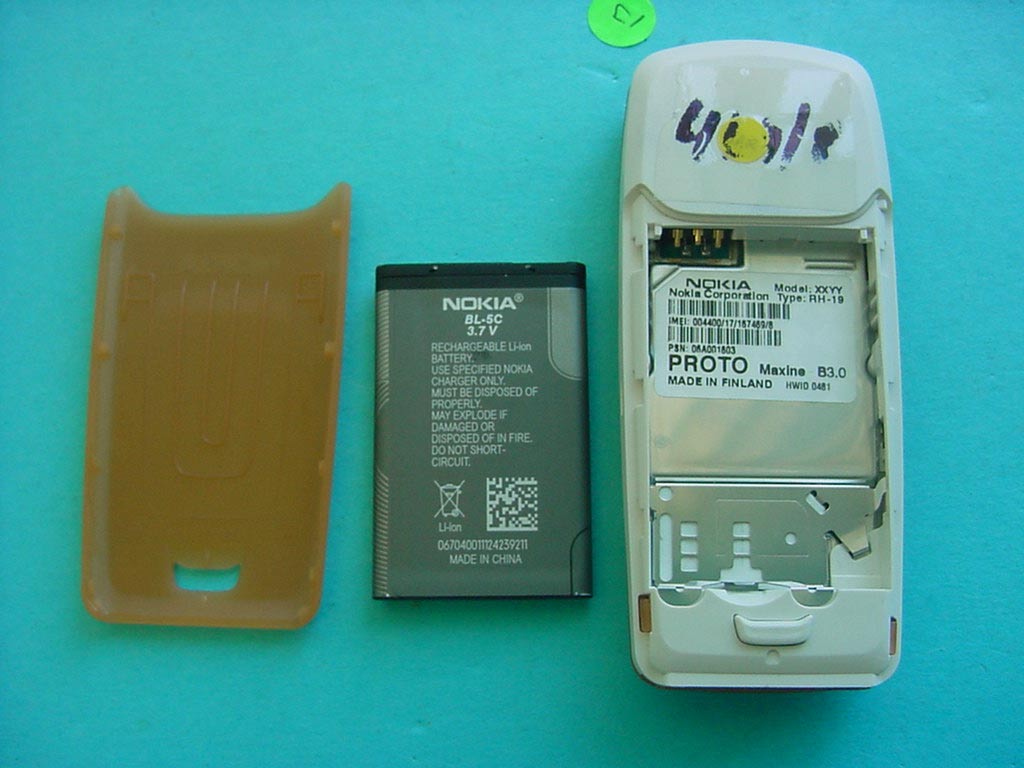

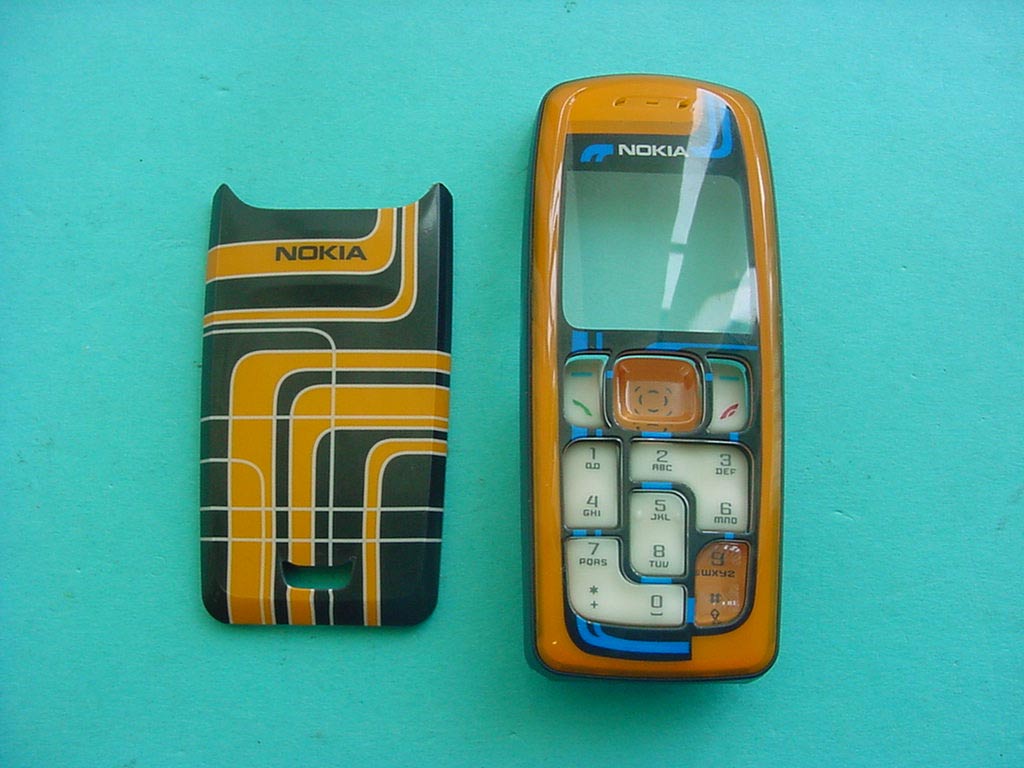

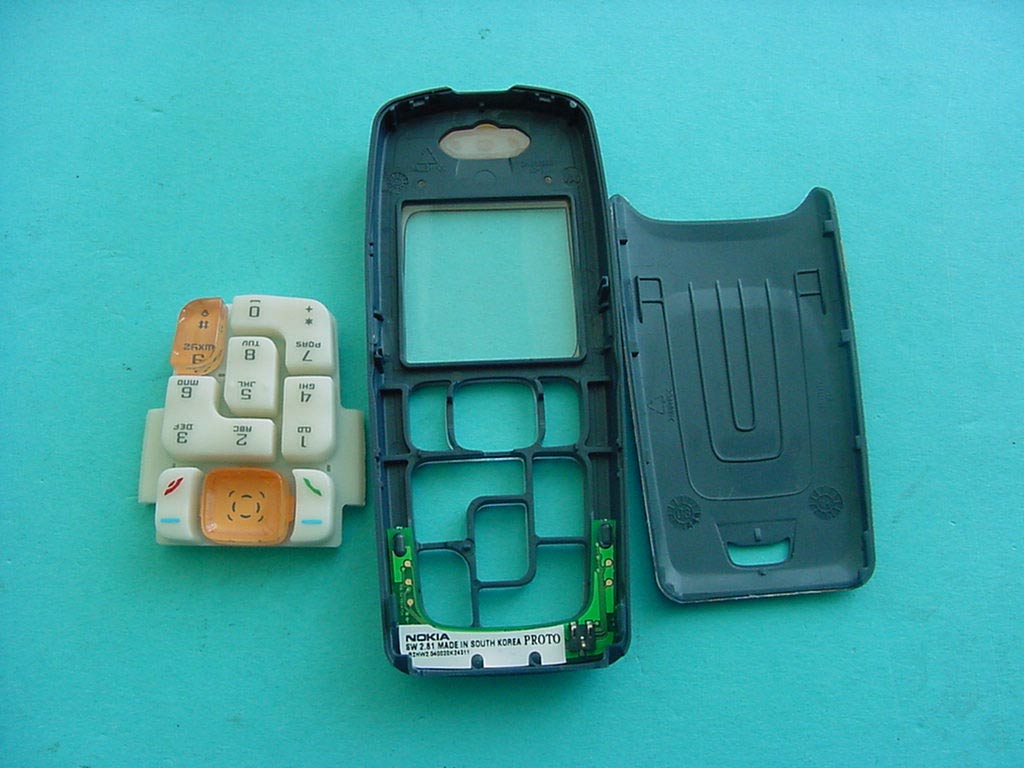

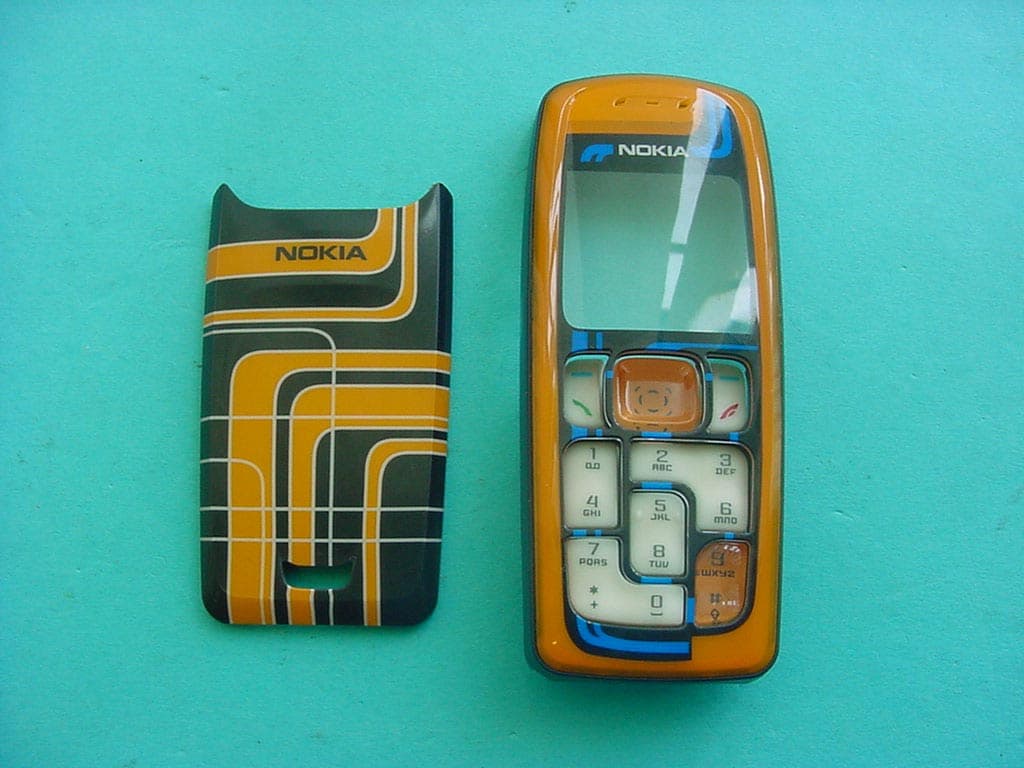

CETECOM ICT Services GmbH Test report no.: 2-3275-01-01/03Issue Date: 2003-05-28Page 66 (77) Pictures of the test sample HWID 0481 CETECOM ICT Services GmbH Test report no.: 2-3275-01-01/03Issue Date: 2003-05-28Page 67 (77) CETECOM ICT Services GmbH Test report no.: 2-3275-01-01/03Issue Date: 2003-05-28Page 68 (77) CETECOM ICT Services GmbH Test report no.: 2-3275-01-01/03Issue Date: 2003-05-28Page 71 (77) active cover CETECOM ICT Services GmbH Test report no.: 2-3275-01-01/03Issue Date: 2003-05-28Page 72 (77)

Material Sheet 1 of 1 Original Scale Original Size A4 2:1 NMP Code Item Name Document Number Doc. Vers. Tool Vers. Name / Date Change Ref. Approved / Date Original Designer FUNCTIONAL CHARACTERISTICS KEY MAIN FUNCTIONAL CHARACTERISTIC MAIN FUNCTIONAL CHARACTERISTIC ( Proof of Process Capability Required ) Copyright c Nokia Mobile Phones. All rights reserved THIS DRAWING IS PROTECTED BY COPYRIGHT AS AN UNPUBLISHED WORK UNAUTHORIZED REPRODUCTION OF THIS DRAWING IS NOT PERMITTED THIS DRAWING CONTAINS PROPRIETARY AND CONFIDENTIAL INFORMATION This document is the property of Nokia Mobile Phones TYPE LABEL RH-19, (General) DMP07419 Bar Code 128 Subset B/C, height 2.5 mm Module width 3 dots. Bar Code 128 Subset B , Module width 3 dots. height 2.5 mm Brady B-7575 thermal transfer printable tamper evident metallized polyester 65 um See table. Place tolerance of printing +/-0.3 Layout 2:1 Schad 220403 1.0 Cangiano 190503Schad 190503 Blank label material: To be printed in NMP production using (600dpi) Thermal Transfer Printer HDG12 BLANK LABEL 30,5 x 20 CONNECTIONTOPDMS FollowingitemsareprintedfromPDMSdatabase -IMEI““ -ProductCode“Code:” XXXXXX/xx/yyyyyy/0 XXXXXXX Artwork for production ( 1:1 pcx-file) ( 2 0 . 0 ) (30.5 ) Quiet Zone2.0 1 . 2 8 , 8 1 3 , 4 No. Part nameQty Drw no.Note 11 21 NMP CODE: DMC03291 9381149 See Data sheet 3 Thermal Transfer Ribbon R-7963 4 NMP CODE: 9730082 1 1 P07419XXdpi600.pcx P07419XXdpi300.pcx PRINTING FILE PRINTING FILE XX = Doc. Version Number XX = Doc. Version Number P r e l i m i n a r y Type: RH-19 Nokia Corporation 168 MADE IN GERMANY FCC ID: PPIRH-19 IC: 661U-RH19 Model: 3100 Type: RH-19 Nokia Corporation 168 MADE IN GERMANY FCC ID: PPIRH-19 IC: 661U-RH19 Model: 3100 CONFIDENTIAL 26 May 2003 Exhibit 1: Label Information FCC ID: PPIRH-19 Applicant: Nokia Copyright © 2003 Nokia GmbH NOKIA MOBILE PHONES Lise-Meitner-Strasse 11 89081 Ulm, Germany +49(0)731-1754-0 +49(0)731-1754-6800 05/08/2003 Federal Communications Commission Authorization tt Evaluation Division, 7435 Oakland Mills Road, Columbia, MD. 21046 Attention: Equipment Authorization Branch COMPLlANCE STATEMENT OF PPIRH-19 The compliance statement can be seen in User Guide of PPIRH-19 because the size of the handportable pprRR':'19 and its identlfication label are so small that the compliance statement cannot be printed large enough to be visible. NOKIA MOBILE PHONES

CETECOM ICT Services GmbH Test report no.: 2-3275-01-01/03Issue Date: 2003-05-28Page 69 (77) CETECOM ICT Services GmbH Test report no.: 2-3275-01-01/03Issue Date: 2003-05-28Page 70 (77) CETECOM ICT Services GmbH Test report no.: 2-3275-01-01/03Issue Date: 2003-05-28Page 73 (77) CETECOM ICT Services GmbH Test report no.: 2-3275-01-01/03Issue Date: 2003-05-28Page 74 (77) CETECOM ICT Services GmbH Test report no.: 2-3275-01-01/03Issue Date: 2003-05-28Page 75 (77)

TCC Oulu Exhibit 11: SAR Report DTX07333-EN Applicant: Nokia Corporation FCC ID: PPIRH-19 Copyright  2003 Nokia Corporation 1 (16) SAR Compliance Test Report Test report no.: Not numbered Date of report: 2003-06-23 Number of pages: 93 Contact person: Pentti Pärnänen Responsible test engineer: Pentti Pärnänen Testing laboratory: Nokia Corporation Elektroniikkatie 10 P.O. Box 50 FIN-90571 OULU Finland Tel. +358-7180-08000 Fax. +358-7180-47222 Client: Nokia Corporation Lise Meitner Strasse 10 89081 Ulm Germany Tel. +49-731-1754-0 Fax. +49-731-1754-6800 Tested devices: PPIRH-19 Supplement reports: - Testing has been carried out in accordance with: 47CFR §2.1093 Radiofrequency Radiation Exposure Evaluation: Portable Devices IEEE P1528-200X Draft 6.4 Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Body Due to Wireless Communications Devices: Experimental Techniques FCC OET Bulletin 65 (Edition 97-01), Supplement C (Edition 01-01) Evaluating Compliance with FCC Guidelines for Human Exposure to Radiofrequency Electromagnetic Fields Documentation: The documentation of the testing performed on the tested devices is archived for 15 years at TCC Oulu Test results: The tested device complies with the requirements in respect of all parameters subject to the test. The test results and statements relate only to the items tested. The test report shall not be reproduced except in full, without written approval of the laboratory. Date and signatures: 2003-06-23 For the contents: Pentti Pärnänen Manager, TCC Oulu Anne Kiviniemi Test Engineer TCC Oulu Exhibit 11: SAR Report DTX07333-EN Applicant: Nokia Corporation FCC ID: PPIRH-19 Copyright  2003 Nokia Corporation 2 (16) CONTENTS 1. SUMMARY FOR SAR TEST REPORT............................................................................................................................ 3 1.1 M AXIMUM R ESULTS F OUND DURING SAR E VALUATION ..................................................................................................................3 1.1.1 Head Configuration.......................................................................................................................................................3 1.1.2 Body Worn Configuration...........................................................................................................................................3 1.1.3 Measurement Uncertainty ..........................................................................................................................................3 2. DESCRIPTION OF TESTED DEVICE.............................................................................................................................. 4 PICTURE OF PHONE......................................................................................................................................................................................4 2.2 D ESCRIPTION OF THE ANTENNA........................................................................................................................................................4 2.3 B ATTERY OPTIONS............................................................................................................................................................................4 3. TEST CONDITIONS.......................................................................................................................................................... 5 3.1 AMBIENT CONDITIONS......................................................................................................................................................................5 3.2 RF CHARACTERISTICS OF THE TEST SITE............................................................................................................................................5 3.3 T EST SIGNAL, FREQUENCIES, AND OUTPUT POWER .........................................................................................................................5 4. DESCRIPTION OF THE TEST EQUIPMENT................................................................................................................. 5 4.1 SYSTEM ACCURACY VERIFICATION.....................................................................................................................................................6 4.2 T ISSUE SIMULANTS...........................................................................................................................................................................7 4.2.1 Head Tissue Simulant...................................................................................................................................................7 4.2.2 Muscle Tissue Simulant................................................................................................................................................8 4.3 P HANTOMS........................................................................................................................................................................................8 4.4 I SOTROPIC E-FIELD PROBE ET3DV6...............................................................................................................................................9 5. DESCRIPTION OF THE TEST PROCEDURE................................................................................................................. 9 5.1 TEST POSITIONS................................................................................................................................................................................9 5.1.1 Against Phantom Head................................................................................................................................................9 5.1.2 Body Worn Configuration........................................................................................................................................ 12 5.2 S CA…

Text truncated - open the document above for the full version.

NCKIA NOKIA MOBILE PHONES Lise-Meitner-Strasse 11 89081 Ulm, Germany +49 (0)731-1754-0 +49 (0)731-1754-6800 05/08/2003 Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road Columbia, MD. 21046 Attention: Equipment Authorization Branch We hereby certify that the transceiver FCC 10: PPIRH-19 complies with ANSI/IEEE C95.1-1992 Standard für Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. Compliance was determined by testing appropriate parameters according to standard. NOKIA MOBILE PHONES

CETECOM ICT Services GmbH Radio Satellite Communication Untertürkheimer Straße 6-10 . D-66117 SaarbrückenTelephone: +49 (0)681 598-9100Telefax: -9075 RSC11issue test report consist of 77 PagesPage 1 (77) BLUETOOTH TM is a trademark owned by Bluetooth SIG, Inc. and licensed to CETECOM Recognized by the Federal Communications Commission FCC–Identification Number: 90462 TCB ID: DE 0001 Accredited by the German Accreditation Council DAR–Registration Number TTI–P–G 166/98 Independent ETSI compliance test house ETSI Accredited Bluetooth™ Test Facility (BQTF) Test report no.: 2-3275-01-01/03 FCC Part 24 RH-19 FCC ID: PPIRH-19 IC: 661U-RH19 CETECOM – ICT Services GmbH Untertürkheimer Str. 6-10 66117 Saarbrücken, Germany Telephone: + 49 (0) 681 / 598-0 Fax: + 49 (0) 681 / 598-9075 CETECOM ICT Services GmbH Test report no.: 2-3275-01-01/03Issue Date: 2003-05-28Page 2 (77) Table of Contents 1 General information 1.1 Notes 1.2 Testing laboratory 1.3 Details of applicant 1.4 Application details 1.5 Test item 1.6 Test standards 2 Technical test 2.1 Summary of test results 2.2 Test report 1 General information 1.1 Notes The test results of this test report relate exclusively to the test item specified in 1.5. The CETECOM ICT Services GmbH does not assume responsibility for any conclusions and generalizations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the CETECOM ICT Services GmbH. 1.2Testing laboratory CETECOM ICT Services GmbH Untertürkheimer Straße 6 - 10 66117 Saarbrücken, Germany Telephone: + 49 681 598 - 9100 Telefax: + 49 681 598 - 9075 E-mail: [email protected] Internet: www.cetecom-ict.de Accredited testing laboratory The Test laboratory (area of testing) is accredited according to DIN EN ISO/IEC 17025. DAR registration number: TTI-P-G-166/98 Listed by: Federal Communications Commission (FCC) Identification/Registration No : 90462 Accredited Bluetooth TM Test Facility (BQTF) BLUETOOTH TM is a trademark owned by Bluetooth SIG, Inc. and licensed to CETECOM CETECOM ICT Services GmbH Test report no.: 2-3275-01-01/03Issue Date: 2003-05-28Page 3 (77) 1.3Details of applicant Name: Nokia Mobile Phones / TCC Salo Street: P.O. Box 86 (Joensuunkatu 7 E / Kiila 1 B) City: FIN-24101 Salo Country: Finland Telephone : +358 (0) 7180 42913 Telefax: +358 (0) 7180 42920 Contact: Mr. Jarkko Luoma Telephone : +358 (0) 7180 42913 e-mail: [email protected] 1.4Application details Date of receipt of application: 2003-05-16 Date of receipt of test item: 2003-05-21 Date of test: 2003-05-22/27 1.5Test item Type of equipment: GSM Mobile Phone (PCS 1900) Type designation:RH-19 Manufacturer:Applicant Street: City: Country: Serial number:IMEI: 004400/17/167469/8 and 004400/17/167477/1 Additional information : Frequency:1850.2 - 1909.8 MHz Type of modulation:300KGXW Number of channels :300 Antenna:integral antenna Power supply:3.7 Vdc Li-Ion Output power:cond: 30.04 dBm Peak, EIRP: 29.4 dBm (Burst); ERP: 27.3 dBm (Burst) Temperature range:-30°C to +60°C FCC-ID:PPIRH-19 IC:661U-RH19 Hardware:0481 Software:1.71 1.6Test standards: FCC Part 24 CETECOM ICT Services GmbH Test report no.: 2-3275-01-01/03Issue Date: 2003-05-28Page 4 (77) 2 Technical test For Part 24 we use the substitution method (TIA/EIA 603). All measurements in this report are done in GSM mode. The device is able to transmit data in GPRS mode also. As the current measurements are performed in PEAK mode no other results from GPRS mode are possible. The only different is the modulation average power, which is 3 dB higher (by using 2 timeslots in the Up-link ). 2.1Summary of test results No deviations from the technical specification(s) were ascertained in the course of the tests performed. FINAL VERDICT: PASS Technical responsibility for area of testing : 2003-05-28RSC-8414 Ames H. DateSectionNameSignature Technical responsibility for area of testing : 2003-05-28RSC-8412 Hausknecht D. DateSectionNameSignature CETECOM ICT Services GmbH Test report no.: 2-3275-01-01/03Issue Date: 2003-05-28Page 5 (77) 2.2Test report TEST REPORT Test report no. : 2-3275-01-01/03 CETECOM ICT Services GmbH Test report no.: 2-3275-01-01/03Issue Date: 2003-05-28Page 6 (77) TEST REPORT REFERENCE LIST OF MEASUREMENTS PARAMETERS TO BE MEASUREDPAGE Part PCS 1900 POWER OUTPUT §24.2327 FREQUENCY STABILITY §24.2359 AFC FREQ ERROR vs. VOLTAGE10 AFC FREQ ERROR vs. TEMPERATURE10 EMISSIONS LIMITS §24.23812 CONDUCTED SPURIOUS EMISSIONS32 BLOCK EDGE COMPLIANCE FOR BLOCK A, B, C, D, E AND F41 OCCUPIED BANDWIDTH §2.98953 CONDUCTED EMISSIONS § 15.107/20760 TEST EQUIPMENT AND ANCILLARIES USED FOR TESTS61 TEST SETUP63 Remarks: For this test we used two different type of cover, a standard part and a so called “active cover” with some active parts inside. There were no difference in the RF-behavior between the two covers. We made additional measurements for unwanted radiated emissions according to Part15 and Part24. For AC-conducted measurements we used an AC charger ACP-12E. CETECOM ICT Services GmbH Test report no.: 2-3275-01-01/03Issue Date: 2003-05-28Page 7 (77) REFERENCE NUMBER(S) OF TEST EQUIPMENT USED (for reference numbers see test equipment listing) 64 POWER OUTPUT §24.232 Summery: This paragraph contains both average , peak output powers and EIRP measurements for the mobile station. In all cases, the peak output power is within the required mask (this mask is specified in the JTC standards, TIA PN3389 Vol. 1 Chap 7, and is no FCC requirement). Method of Measurements: The mobile was set up for the max. output power with pseudo random data modulation. The power was measured with R&S Signal Analyzer FSIQ 26 ( peak and average) This measurements were done at 3 frequencies, 1850.2 MHz, 1880.0 MHz and 1909.8 MHz (bottom, middle and top of operational frequ…

Text truncated - open the document above for the full version.
