PPIRM-17Triband GSM mobile phone

User’s Guide 9231702 Issue 1 Troubadix_FCCdraft_UG_print.fm Page 1 Monday, July 12, 2004 5:07 PM DECLARATION OF CONFORMITY We, NOKIA CORPORATION declare under our sole responsibility that the product RH-37 is in conformity with the provisions of the following Council Directive: 1999/5/EC. A copy of the Declaration of Conformity can be found from http://www.nokia.com/phones/declaration_of_conformity/. Copyright © 2004 Nokia. All rights reserved. Reproduction, transfer, distribution or storage of part or all of the contents in this document in any form without the prior written permission of Nokia is prohibited. Nokia, Nokia Connecting People, Xpress-on and Pop-Port are trademarks or registered trademarks of Nokia Corporation. Other product and company names mentioned herein may be trademarks or tradenames of their respective owners. Nokia tune is a sound mark of Nokia Corporation. US Patent No 5818437 and other pending patents. T9 text input software Copyright (C) 1997-2004. Tegic Communications, Inc. All rights reserved. Includes RSA BSAFE cryptographic or security protocol software from RSA Security. Java is a trademark of Sun Microsystems, Inc. Nokia operates a policy of continuous development. Nokia reserves the right to make changes and improvements to any of the products described in this document without prior notice. Under no circumstances shall Nokia be responsible for any loss of data or income or any special, incidental, consequential or indirect damages howsoever caused. The contents of this document are provided "as is". Except as required by applicable law, no warranties of any kind, either express or implied, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose, are made in relation to the accuracy, reliability or contents of this document. Nokia reserves the right to revise this document or withdraw it at any time without prior notice. The availability of particular products may vary by region. Please check with the Nokia dealer nearest to you. Export Controls This device may contain commodities, technology or software subject to export laws and regulations from the US and other countries. Diversion contrary to law is prohibited. 9231702 / Issue 1 Troubadix_FCCdraft_UG_print.fm Page 2 Monday, July 12, 2004 5:07 PM Troubadix_FCCdraft_UG_print.fm Page 3 Monday, July 12, 2004 5:07 PM UNDER NO CIRCUMSTANCES SHALL NOKIA BE RESPONSIBLE FOR ANY LOSS OF DATA OR INCOME OR ANY SPECIAL, INCIDENTAL, AND CONSEQUENTIAL OR INDIRECT DAMAGES HOWSOEVER CAUSED. THE CONTENTS OF THIS DOCUMENT ARE PROVIDED "AS IS." EXCEPT AS REQUIRED BY APPLICABLE LAW, NO WAR- RANTIES OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE MADE IN RELATION TO THE ACCURACY AND RELIABILITY OR CONTENTS OF THIS DOCUMENT. NOKIA RESERVES THE RIGHT TO REVISE THIS DOCUMENT OR WITHDRAW IT AT ANY TIME WITHOUT PRIOR NOTICE. EXPORT CONTROLS This device may contain commodities, technology, or software that may only be exported in accordance with the U. S. Export Administration regulations. Diver- sion contrary to U.S. or Canadian law is prohibited. FCC/INDUSTRY CANADA NOTICE Your phone may cause TV or radio interference (for example, when using a tele- phone in close proximity to receiving equipment). The FCC or Industry Canada can require you to stop using your telephone if such interference cannot be eliminated. If you require assistance, contact your local service facility. This device complies with part 15 of the FCC rules. Operation is subject to the condi- tion that this device does not cause harmful interference. Troubadix_FCCdraft_UG_print.fm Page 4 Monday, July 12, 2004 5:07 PM Manufactured or sold under one or more following US Patents. Asterisk (*) indicates design patents pending. RE32,58045583024868846494563349691925001372 510117551519465173927521283452300915241583 531115153172835331638533536253533285371481 537893553847825396657540094954164355442521 544636454794765526366555312555576395565821 557036955812445600708562527456776205692032 572954157605685794142580246558094135818437 582708258391015844884584521958706835884103 588977059078235912570591469059147965917868 592082659535415956332595662559566335966378 597788759871375991857600611460115546011853 601455160145736026161603518960382386043760 604719660497966050415605543960601936069923 607278760817326084920608496260945876097964 610578461120996115617611918061218466128509 613809161409666144243614467661482096151485 615150761636096164547616724861852956188909 624958462593126266330627236162824366292668 629528663110546314166632438963244126347218 636325963703626370389637782063814686392660 640095864531796463278647047064873976522670 619892849691925266782539022354448165487084 564039556640535699482570139257220745754976 580530158358895857151585984358621785898925 593023359466515960354596038959639016005857 601197160318276118775612832261377896167248 617007361785356195338619903562400766266321 628588863567596377803643016364383706456237 Contents 5 Contents Contents ................................... 5 FOR YOUR SAFETY................... 7 General information ................ 9 About your device ................................. 9 Overview of the functions of the phone................................................. 9 Shared memory................................. 10 Nokia PC Suite software.................... 10 Access codes ......................................... 10 Security code (5 to 10 digits) ....... 10 PIN and PIN2 codes (4 to 8 digits), Module PIN and Signing PIN ........ 10 PUK and PUK2 codes (8 digits) .... 11 Barring password (4 digits) ........... 11 Wallet code (4 to 10 digits) .......... 11 Network services.................................. 11 Configuration settings service ..... 12 Nokia support on the Web................ 12 1. Getting started................... 13 Installing the SIM card and the battery.............…

Text truncated - open the document above for the full version.

NCKIA NOKIA MOBILE PHONES Lise-Meitner-Strasse 11 0-89081 Ulm, Germany +49(0)731-1754-0 +49(0)731-1754-6800 06/20/2004 Federal Communications Commission Authorization a Evaluation Division, 7435 Oakland Mills Road, Columbia, MD. 21046 Attention: Equipment Authorization Branch REQUEST FüR CüNFIDENTIALlTY Pursuant to Sections 0.457 (d)(l)(ii) and 0.459 of the Commission's Rules, the Applicant hereby requests confidential treatment of some of the information accompanying this Application of FCC ID: PPIRM-17 and as outlined below: -Exhibit 4: RF Block Diagram ~ -Exhibit 5: Schematic Diagrams -Exhibit 10: List of Active Devices, Tune-Up Procedure and Part list Exhibit 12: Theory of Operation, Frequency determining part24, frequency range and Harmonics part 24 These materials contain trade secrets and proprietary information not customarily released to the public and the public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457 (d)(1)(ii) disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this Appl ication.

NOKIA MOBILE PHONES Lise-Meitner-Strasse 11 0-89081 Ulm, Germany +49(0)731-1754-0 +49(0)731-1754-6800 07/12/2004 Federal Communications Commission Authorization a Evaluation Division, 7435 Oakland Mills Road, Columbia, MD. 21046 Attention: Equipment Authorization Branch , REQUEST FOR SHORT TERM CONFIDENTIALllY Pursuant to Sections 0.457 (d)(l)(ii) and 0.459 of the Commission's Rules, the Applicant hereby requests short term confidential treatment of same of the information accompanying this Application of FCC 10: PPIRM-17 and as outlined below: -Exhibit 3: External photos -Exhibit 7: Test setup photos -Exhibit 8: User's manual -Exhibit 9: Internal photos These materials contain trade secrets and proprietary information not customarily released to the public and the public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457 (d)(l)(ii) disclosure of this Application and all accompanying documentation will not be made before the date of the Grant tor this Application.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 July 9, 2004 RE: FCC ID: PPIRM-17_ATCB001479 Attention: Jukka Pekkala I have a few comments on this Application. Please note that further comments may arise in response to answers provided to the questions below. FCC comments 1. FYI - Please note the temporary confidentiality includes the following conditions: “...if prior to the expiration of the 45 day period, an applicant engages in public marketing activities or otherwise publicizes a device for which temporary confidential treatment has been granted, the applicant must coincidentally notify the FCC or the TCB issuing the equipment authorization so that the subject exhibits may be placed in the public database immediately. “ Please note, so as not to confuse those exhibits which are under the temporary confidentiality from those under permanent confidentiality, the temporary confidentiality exhibit should clearly state Temporary Confidentiality requested. 2. Please note that while the head and body SAR values are listed in the manual, the required separation distance for body worn accessories in not. The 2.2cm separation should also be listed in the manual SAR information. 3. Please note that the bandwidth points shown on the plot on pages 9 and 10 of the report do not appear to be the actual 99% bandwidth points as they are less than 18dBc. Please explain. Industry Canada comments 4. Please note that Industry Canada has stated that the information on RSP appendix I and II must be identical. Please note that the company number listed on the RSP appendix I and appendix II do not match. The company number on appendix I is 661U while the company number on appendix II is 661AB. Please provide RSP100 appendixes I and II with the proper and identical company number. 5. Please note that Industry Canada has stated that the information on RSP appendix I and II must be identical. Please note that the model number listed on the RSP appendix I and appendix II do not match. The model number on appendix I is 7260 while the model number on appendix II is RM- 17 . Please provide RSP100 appendixes I and II with the proper and identical model number. 6. Please note that Industry Canada has stated that the information on RSP appendix I and II must be identical. Please note that the RSS standard listed in RSP100 appendix II does not include the issue or the rev number. Please note that the RSS standard listed on page 2 of appendix I does not list the issue or rev number. Please include this in the information in appendixes I and II 7. Please list the gain of the antenna as specified in appendix I. 8. Please note that the transmitter spurious emissions listed in RSP100 appendix I and II are not the same. Appendix I lists only one value in dBuV/m while appendix II list two values in dBm for each modulation. As the IC requires that information on the two appendixes must be the same, please provide the same information in the two appendixes. 9. Please list the receiver spurious emission (worse case) in appendix II. 10. Please note that while you have provided an attestation to compliance to ANSI/IEEE C95.1-1992, you do not appear to have provided the required attestation to compliance to RSS102. Please provide the attestation to compliance to the Canadian rf exposure standard 11. Please note that the test report does not state the issue and rev number of the RSS133 used. As there are 2 issues of RSS133 it is important that the testing was performed in accordance with the appropriate issue and rev number. Please verify that the RSS133 standard referred to in the report was the most current Issue 2 Rev 1 1999 standard. z Page 2 July 9, 2004 Dennis Ward mailto:[email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

1(1) 14.07.2004 Ref: FCC ID:PPIRM-17_ATCB001479 Nemko test report no 1032312 Dear Sir, FCC comment 3: Test report plots on pages 9 and 10. The measurement determines occupied bandwidth as the difference between upper and lower frequencies where 0.5% of the emission power is above the upper frequency and 0.5% of the emission power is below the lower frequency. We have measured the 99% occupied bandwidth using spectrum analyzer and calculation of the 99% bandwidth is made by graphical integration of the recorded RF spectrum. Industry Canada comment 11: We have used the RSS-133 Issue 2 Rev 1 1999 and we will add the version to future reports. Sincerely, Timo Hietala Test Engineer Nemko Oy p. +358 424 5454 327

07/13/2004 ATCB ID: ATCB001479 Answers to questions of July 12, 2004 Attention: Dennis Ward FCC answers: 1. Updated request for the temporary confidentiality provided. 2. Updated User Guide provided. 3. Answer from Test House Nemko provided. See file RM-17_PPIRM- 17_ATCB001479_Nokia_answers_3_and_11.pdf Industry Canada answers: 4. Updated page 2 and Appendix II for RSP100 provided. 5. Updated page 2 and Appendix II for RSP100 provided. 6. Updated page 2 and Appendix II for RSP100 provided. 7. Updated page 2 and Appendix II for RSP100 provided. 8. Updated page 2 and Appendix II for RSP100 provided. 9. Updated page 2 and Appendix II for RSP100 provided. 10. RSS102 compliance statement provided. 11. Statement from Test House Nemko provided. See file RM-17_PPIRM- 17_ATCB001479_Nokia_answers_3_and_11.pdf Jukka Pekkala mailto: [email protected] FCC ID: PPIRH-50 IC: 661U-RH50 Applicant: Nokia Copyright © 2004 Nokia GmbH

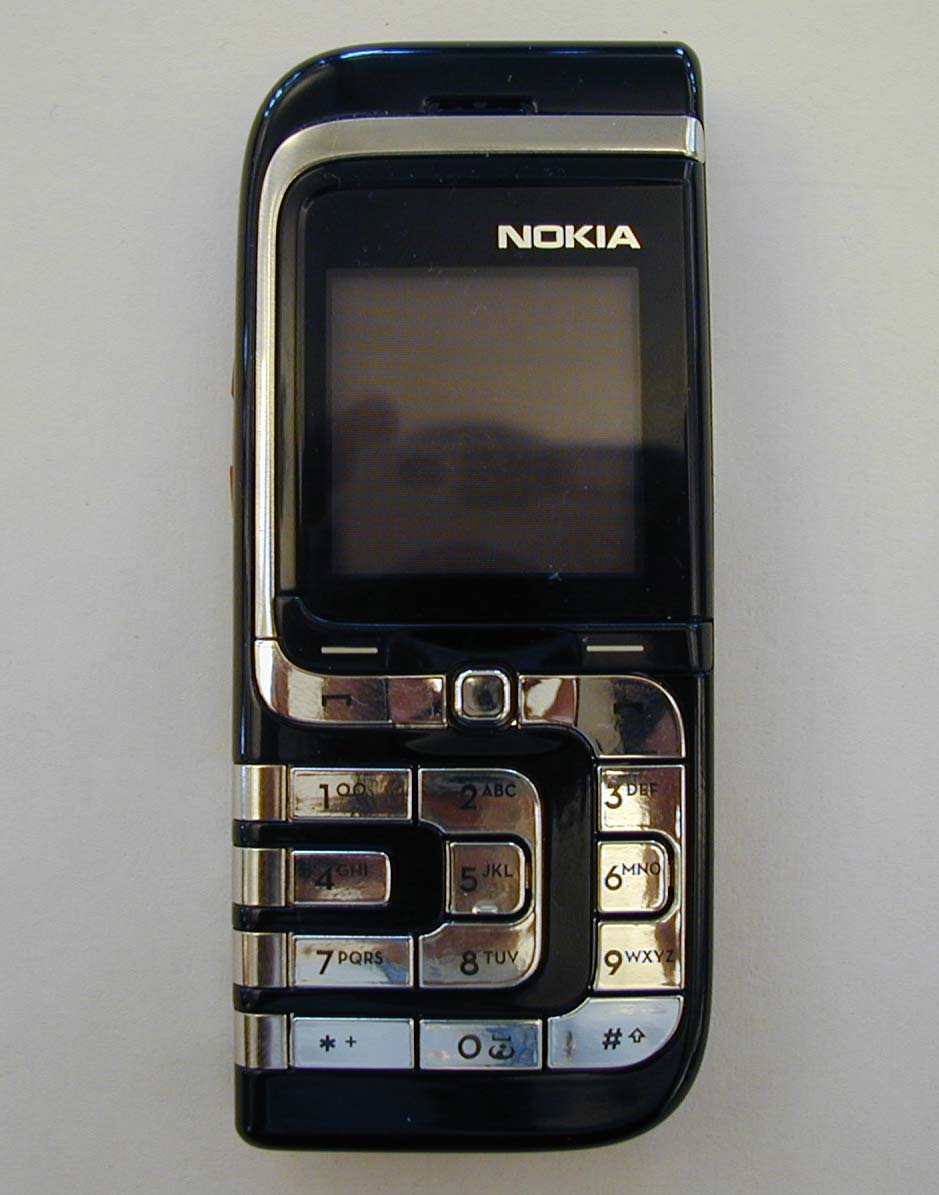

1 (5) 11.6.2004 External Photographs of the RM-17 (Nokia 7260) 2 (5) 11.6.2004 3 (5) 11.6.2004 4 (5) 11.6.2004 5 (5) 11.6.2004

Material Sheet 1 of 1 Original Scale Original Size A4 1:1 NMP Code Item Name Document Number Doc. Vers. Tool Vers. Name / Date Change Ref. Approved / Date Original Designer FUNCTIONAL CHARACTERISTICS KEY MAIN FUNCTIONAL CHARACTERISTIC MAIN FUNCTIONAL CHARACTERISTIC ( Proof of Process Capability Required ) Copyright c Nokia Mobile Phones. All rights reserved THIS DRAWING IS PROTECTED BY COPYRIGHT AS AN UNPUBLISHED WORK UNAUTHORIZED REPRODUCTION OF THIS DRAWING IS NOT PERMITTED THIS DRAWING CONTAINS PROPRIETARY AND CONFIDENTIAL INFORMATION This document is the property of Nokia Mobile Phones TYPE LABEL RM-17, General 040-002893 Datamatrix 5.4 x 5.4: Quality Level: ECC 200 22 Rows, 22 Columns Element Width: 6 dots See table. Place tolerance of printing +/-0.3 Layout 2:1 T.Schmitz 050404 T.Schmitz 240604 0.1 Changiano 050404 Blank label material: To be printed in NMP production using (600dpi) Thermal Transfer Printer HDJ12 Combined Blank Type Label Roll CONNECTION TO PDMS Following items are printed from PDMS database -IMEI““ -Product Code“” XXXXXXxxyyyyyy0 XXXXXXX Artwork for production ( 1:1 pcx-file) (13.0) Quiet Zone 1.5 1.5 No. Part nameQty Drw no.Note 11 21 NMP CODE: DMC07127 9381484 See Data sheet 3 Thermal Transfer Ribbon R-7963 4 NMP CODE: 9730082 1 1 P002893XXdpi600.pcx P002893XXdpi300.pcx PRINTING FILE PRINTING FILE XX = Doc. Version Number XX = Doc. Version Number (32.5) 6.0 123456789012345 Artwork 1:1 Datamatrix 5.4 x 5.4: Quality Level: ECC 200 22 Rows, 22 Columns Element Width: 6 dots 1.5 14.5 (16.0) 5.3 Type LabelWork Label (1.5) (11.0) 1.5 7.4 123456789012345 Nokia Corporation 168 FCC ID: PPIRM-17 IC: 661U-RM17 MADE IN GERMANY Ty p e : R M - 1 7 Model: 7260 0123456 Nokia Corporation 168 FCC ID: PPIRM-17 IC: 661U-RM17 MADE IN GERMANY Type: RM-17 Model: 7260 123456789012345 123456789012345 Nokia Corporation 168 FCC ID: PPIRM-17 IC: 661U-RM17 MADE IN GERMANY Type: RM-17 Model: 7260 0123456 1.0 0.2 Cangiano 240604 D.Braig 290404 18-Jun-04 Exhibit 1: Label Location Applicant: Nokia FCC ID: PPIRM-17 Copyright 2004 Nokia GmbH C 123456789012345 Nokia Corporation 168 FCC ID: PPIRM-17 IC: 661U-RM17 MADE IN GERMANY Type: RM-17 Model:7260 0123456

CONFIDENTIAL 1 (5) 11.6.2004 Internal Photographs of the RM-17 (Nokia 7260) CONFIDENTIAL 2 (5) 11.6.2004 CONFIDENTIAL 3 (5) 11.6.2004 CONFIDENTIAL 4 (5) 11.6.2004 CONFIDENTIAL 5 (5) 11.6.2004

Salo SaloSalo Salo ____________________________________________________________________________ SAR Report Salo_SAR0427_02 Applicant: Nokia Corporation Type: RM-17 Copyright  2004 TCC Salo 2/28 CONTENTS CONTENTSCONTENTS CONTENTS 1. 1.1. 1. SUMMARY OF SAR TEST SUMMARY OF SAR TEST SUMMARY OF SAR TEST SUMMARY OF SAR TEST REPORT REPORTREPORT REPORT................................ ................................................................ ................................................................ ................................................................ ................................................................ ................................................................ ................................................................ ................................................................ ............................................. .......................... ............. 3 33 3 1.1 TEST DETAILS.............................................................................................................................................................................3 1.2 MAXIMUM RESULTS....................................................................................................................................................................3 1.2.1 Head Configuration........................................................................................................................................................ 3 1.2.2 Body Worn Configuration ............................................................................................................................................ 3 1.2.3 Maximum Drift ................................................................................................................................................................ 3 1.2.4 Measurement Uncertainty ........................................................................................................................................... 3 2. 2.2. 2. DESCR DESCRDESCR DESCRIPTION OF THE DEVICE IPTION OF THE DEVICEIPTION OF THE DEVICE IPTION OF THE DEVICE UNDER TEST UNDER TEST UNDER TEST UNDER TEST................................ ................................................................ ................................................................ ................................................................ ................................................................ ................................................................ ........................................................... ...................................................... ........................... 4 44 4 2.1 DESCRIPTION OF THE ANTENNA..................................................................................................................................................4 3. 3.3. 3. TEST CONDITIONS TEST CONDITIONSTEST CONDITIONS TEST CONDITIONS ................................ ................................................................ ................................................................ ................................................................ ................................................................ ................................................................ ................................................................ ................................................................ ................................................................ ................................................................ ..................................... .......... ..... 4 44 4 3.1 TEMPERATURE AND HUMIDITY....................................................................................................................................................4 3.2 TEST SIGNAL, FREQUENCIES, AND OUTPUT POWER....................................................................................................................5 4. 4.4. 4. DESCRIPTION OF THE T DESCRIPTION OF THE TDESCRIPTION OF THE T DESCRIPTION OF THE TEST EQUIPMENT EST EQUIPMENTEST EQUIPMENT EST EQUIPMENT ................................ ................................................................ ................................................................ ................................................................ ................................................................ ................................................................ ............................................................... .............................................................. ............................... 5 55 5 4.1 MEASUREMENT SYSTEM AND COMPONENTS................................................................................................................................5 4.1.1 Isotropic E-field Probe, SN: 1396................................................................................................................................ 6 4.2 PHANTOMS................................................................................................................................................................................6 4.3 SIMULATING LIQUIDS.................................................................................................................................................................7 4.3.1 Liquid Recipes.................................................................................................................................................................. 7 4.3.2 Verification of the System ............................................................................................................................................ 7 4.3.3 Tissue Simulants used in the Measurements .......................................................................................................... 8 5. 5.5. 5. DESCRIPTION OF THE T DESCRIPTION OF THE TDESCRIPTION OF THE T DESCRIPTION OF THE TEST EST EST EST PROCEDURE PROCEDUREPROCEDURE PROCEDU…

Text truncated - open the document above for the full version.

NCKIA NOKIA MOBILE PHONES Lise-Meitner-Strasse 11 0-89081 Ulm, Germany +49(0)731-1754-0 +49(0)731-1754-6800 06/20/2004 Federal Communications Commission, Authorization Et Evaluation Division, 7435 Oakland Mills Road Columbia, MD. 21046 Attention: Equipment Authorization Branch We hereby certify that the transceiver FCC 10: PPIRM-17 complies with ANSI/IEEE C95.1-1992 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. Compliance was determined by testing appropriate parameters according to standard. .. NOKIA MOBILE PHONES ~.. -{ -"c, Jen ning Product Program Manag~r, Ulm

Nemko Oy • P.O.Box 19, FIN-02601 Espoo, Finland Street address: Perkkaantie 11, FIN-02600 Espoo Telephone +358 (0)424 5454 1 • Telefax +358 (0)9 5489 6371 T EST REPORT Date: ESPOO 30.06.2004 Page: 1 (24) Appendices − Date of handing in: 11.06.2004 Number: 1032312 Tested by: No. 1 / 1 Timo Hietala, Test Engineer Reviewed by: Jyrki Leino, Market Access Manager SORT OF EQUIPMENT: Triple band (900/1800/1900) E-GPRS GSM mobile phone MARKETING NAME: TYPE: RM-17 MANUFACTURER: Nokia Corporation CLIENT: Nokia Germany ADDRESS: Lise Meitner Strasse 10, 89081 ULM Germany TELEPHONE: +49 1735 459 941, Jukka Pekkala TEST LABORATORY: Nemko Oy FCC REG. NO. 91087 August 27, 2001 IC FILE NO. IC 4627 July 2, 2003 SUMMARY: In regard to the performed tests the equipment under test fulfils the requirements defined in the test specifications, see page 2 for details The test results are valid for the tested unit only. Without a written permission of Nemko Oy it is allowed to copy this report as a whole, but not partially. Version f1.00 Type: RM-17 Test report 1032312 Page 2 (24) Date 30.06.2004 Summary of performed tests and test results Section in CFR 47 Section in RSS-133 Result 24.232, (b) 6.2 Radiated RF output PASS 2.1049, (h) 5.6 99% occupied bandwidth X 24.238 (a) 6.3 Band-edge compliance PASS 24.238 (a), 2.1053 6.3 Spurious radiated emissions PASS 24.235, 2.1055 (a)(1)(b) 7 Frequency stability, temperature variation PASS 24.235, 2.1055 (d)(1)(2) 7 Frequency stability, voltage variation PASS Explanations: PASS The EUT passed that particular test. FAIL The EUT failed that particular test. X The measurement was done, but there is no applicable performance criteria. Type: RM-17 Test report 1032312 Page 3 (24) Date 30.06.2004 Contents Summary of performed tests and test results ..........................................................................................2 1. EUT and Accessory Information .........................................................................................................4 1.1 EUT description ........................................................................................................................4 1.2 EUT and accessories................................................................................................................4 2. Standards and measurement methods...............................................................................................5 3. Test results..........................................................................................................................................5 3.1 Radiated RF output power........................................................................................................5 3.1.1 Test method and limit ...............................................................................................................5 3.1.2 Limit ..........................................................................................................................................6 3.1.3 EUT operation mode.................................................................................................................6 3.1.4 Test results ...............................................................................................................................6 3.1.5 EUT operation mode.................................................................................................................7 3.1.6 Test results ...............................................................................................................................7 3.1.7 EUT operation mode.................................................................................................................7 3.1.8 Test results ...............................................................................................................................7 3.2 99% occupied bandwidth..........................................................................................................8 3.2.1 Test method and limit ...............................................................................................................8 3.2.2 Limit ..........................................................................................................................................8 3.2.3 EUT operation mode.................................................................................................................9 3.2.4 Test results ...............................................................................................................................9 3.2.5 EUT operation mode...............................................................................................................10 3.2.6 Test results .............................................................................................................................10 3.3 Band-edge compliance ...........................................................................................................11 3.3.1 Test method and limit .............................................................................................................11 3.3.2 Limit ........................................................................................................................................11 3.3.3 EUT operation mode...............................................................................................................12 3.3.4 Test results .............................................................................................................................12 3.3.1 EUT operation mode...............................................................................................................14 3.3.2 Test results .............................................................................................................................14 3.4 Spurious radiated emission ....................................................................................................…

Text truncated - open the document above for the full version.

Nemko Oy • P.O.Box 19, FIN-02601 Espoo, Finland Street address: Perkkaantie 11, FIN-02600 Espoo Telephone +358 (0)424 5454 1 • Telefax +358 (0)9 5489 6371 T EST REPORT Date: ESPOO 30.06.2004 Page: 1 (13) Appendices − Date of handing in: 11.06.2004 Number: 1032313 Tested by: No. 1 / 1 Timo Hietala, Test Engineer Reviewed by: Jyrki Leino, Market Access Manager SORT OF EQUIPMENT: Triple band (900/1800/1900) E…

Text truncated - open the document above for the full version.
