PPIRM-237GSM900/1800/1900 Cellphone with BT

Nokia 3110 classic User Guide 9200417 Issue 1 CyanCyanMagentaMagentaYellowYellowBlackBlack file:/D:/temp/overmode/GUID-1AFD4F23-530A-4232-B1A2-AD8C3D7641D3.en.200703141510500741173878171418/en/1/GUID-E9B10502-9BEE-452E- A2EB-4A477D49C6EB.xmlPage 1Mar 14, 2007 3:16:59 PM DECLARATION OF CONFORMITY Hereby, NOKIA CORPORATION declares that this RM-237 product is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. A copy of the Declaration of Conformity can be found at www.nokia.com/phones/ declaration_of_conformity/. © 2007 Nokia. All rights reserved. Nokia, Nokia Connecting People, Nokia Care, Visual Radio, and Navi are trademarks or registered trademarks of Nokia Corporation. Nokia tune is a sound mark of Nokia Corporation. Other product and company names mentioned herein may be trademarks or tradenames of their respective owners. Reproduction, transfer, distribution, or storage of part or all of the contents in this document in any form without the prior written permission of Nokia is prohibited. US Patent No 5818437 and other pending patents. T9 text input software Copyright © 1997-2007. Tegic Communications, Inc. All rights reserved. Includes RSA BSAFE cryptographic or security protocol software from RSA Security. Java and all Java-based marks are trademarks or registered trademarks of Sun Microsystems, Inc. Bluetooth is a registered trademark of Bluetooth SIG, Inc. This product is licensed under the MPEG-4 Visual Patent Portfolio License (i) for personal and noncommercial use in connection with information which has been encoded in compliance with the MPEG-4 Visual Standard by a consumer engaged in a personal and noncommercial activity and (ii) for use in connection with MPEG-4 video provided by a licensed video provider. No license is granted or shall be implied for any other use. Additional information, including that related to promotional, internal, and commercial uses, may be obtained from MPEG LA, LLC. See http:// www.mpegla.com. Nokia operates a policy of ongoing development. Nokia reserves the right to make changes and improvements to any of the products described in this document without prior notice. TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, UNDER NO CIRCUMSTANCES SHALL NOKIA OR ANY OF ITS LICENSORS BE RESPONSIBLE FOR ANY LOSS OF DATA OR INCOME OR ANY SPECIAL, INCIDENTAL, CONSEQUENTIAL OR INDIRECT DAMAGES HOWSOEVER CAUSED. THE CONTENTS OF THIS DOCUMENT ARE PROVIDED "AS IS". EXCEPT AS REQUIRED BY APPLICABLE LAW, NO WARRANTIES OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE MADE IN RELATION TO THE ACCURACY, RELIABILITY OR CONTENTS OF THIS DOCUMENT. NOKIA RESERVES THE RIGHT TO REVISE THIS DOCUMENT OR WITHDR AW IT AT ANY TIME WITHOUT PRIOR NOTICE. The availability of particular products and applications for these products may vary by region. Please check with your Nokia dealer for details, and availability of language options. This device complies with Directive 2002/95/EC on the restriction of the use of certain hazardous substances in electrical and electronic equipment. 0434 CyanCyanMagentaMagentaYellowYellowBlackBlack file:/D:/temp/overmode/GUID-1AFD4F23-530A-4232-B1A2-AD8C3D7641D3.en.200703141510500741173878171418/en/1/GUID-E9B10502-9BEE-452E- A2EB-4A477D49C6EB.xmlPage 2Mar 14, 2007 3:16:59 PM Export controls This device may contain commodities, technology or software subject to export laws and regulations from the US and other countries. Diversion contrary to law is prohibited. FCC/INDUSTRY CANADA NOTICE Your device may cause TV or radio interference (for example, when using a telephone in close proximity to receiving equipment). The FCC or Industry Canada can require you to stop using your telephone if such interference cannot be eliminated. If you require assistance, contact your local service facility. This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by Nokia could void the user's authority to operate this equipment. Check www.nokia.com/support to get the latest version of this guide, contacts, information and additional services and also to download PC Suite and other software. Consult the nearest service point and set up your phone. 9200417/Issue 1 CyanCyanMagentaMagentaYellowYellowBlackBlack file:/D:/temp/overmode/GUID-1AFD4F23-530A-4232-B1A2-AD8C3D7641D3.en.200703141510500741173878171418/en/1/GUID-E9B10502-9BEE-452E- A2EB-4A477D49C6EB.xmlPage 3Mar 14, 2007 3:16:59 PM Contents For your safety ................................7 About your device...........................8 Network services.............................9 Shared memory...............................9 Enhancements...............................10 1. General information................11 Access codes....................................................11 Configuration setting service....................12 Download content........................................12 Software updates..........................................12 Nokia support.................................................13 2. Get started.................................14 Install SIM card and battery.......................14 Insert a microSD card...................................15 Charge the battery........................................16 Antenna............................................................17 Headset.............................................................17 Strap..................................................................17 3. Your device................................18 Keys and parts................................................18 Switch the device on and off...................…

Text truncated - open the document above for the full version.

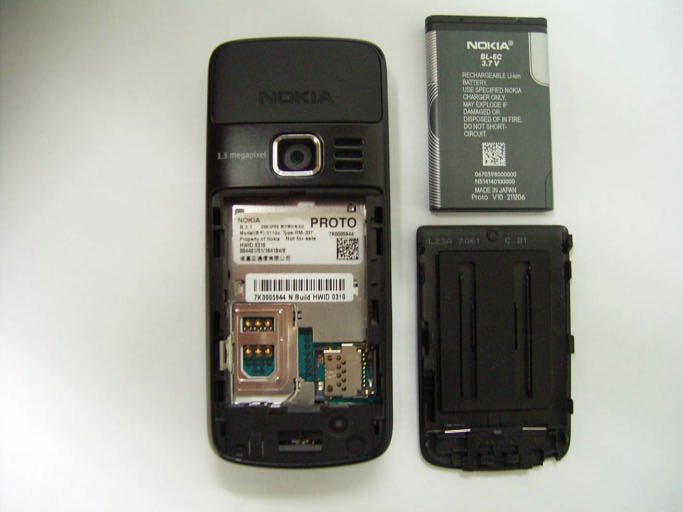

21 Mar 2007 External photographs FCC ID: PPIRM-237 Exhibit 3 IC: 661U-RM237 Applicant: Nokia Corporation Copyright © 2007 Nokia. All rights reserved. 1. EXTERNAL PHOTOGRAPHS 1.1 Front and back 21 Mar 2007 External photographs FCC ID: PPIRM-237 Exhibit 3 IC: 661U-RM237 Applicant: Nokia Corporation Copyright © 2007 Nokia. All rights reserved. 1.2 Disassembled 1.3 External interfaces

1 (1) NOKIA Mobile Phones R&D Ulm 03/21/2007 Copyright  Nokia 2007. All rights reserved. TYPE LABEL FOR PPIRM-237 LABEL LOCATION FOR PPIRM-237 Please refer to external photographs, showing the position of the label

21 March 2007 Internal photographs FCC ID: PPIRM-237 Exhibit 9 IC: 661U-RM237 Applicant: Nokia Corporation Copyright © 2007Nokia. All rights reserved. 1. INTERNAL PHOTOGRAPHS 1.1 Pwb back 21 March 2007 Internal photographs FCC ID: PPIRM-237 Exhibit 9 IC: 661U-RM237 Applicant: Nokia Corporation Copyright © 2007Nokia. All rights reserved. 1.2 Pwb front

Nokia ____________________________________________________________________________ SAR Report Cph_SAR_0710_02 Applicant: Nokia Corporation Type: RM-237 Copyright © 2007 TCC Nokia 1/32 SAR Compliance Test Report Test report no.: Cph_SAR_0710_02 Date of report: 2007-03-05 Template version: 5.0 Number of pages: 32 Testing laboratory: TCC Nokia Copenhagen Laboratory Frederikskaj 1790 COPENHAGEN V DENMARK Tel. +45 33 292929 Fax. +45 33 292934 Client: Nokia Corporation Lise Meitner Strasse 10 89081 ULM GERMANY Tel. +49 731 1754 0 Fax. +49 731 1754 6800 Responsible test engineer: Jesper Nielsen Product contact person: Thomas Reitmayer Measurements made by: Mia-Maria Nielsen & Leif Klysner Tested device: RM-237 FCC ID: PPIRM-237 IC: 661U-RM237 Supplement reports: - Testing has been carried out in accordance with: 47CFR §2.1093 Radiofrequency Radiation Exposure Evaluation: Portable Devices FCC OET Bulletin 65 (Edition 97-01), Supplement C (Edition 01-01) Evaluating Compliance with FCC Guidelines for Human Exposure to Radiofrequency Electromagnetic Fields RSS-102 Evaluation Procedure for Mobile and Portable Radio Transmitters with Respect to Health Canada’s Safety Code 6 for Exposure of Humans to Radio Frequency Fields IEEE 1528 - 2003 IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Technique Documentation: The documentation of the testing performed on the tested devices is archived for 15 years at TCC Nokia. Test results: The tested device complies with the requirements in respect of all parameters subject to the test. The test results and statements relate only to the items tested. The test report shall not be reproduced except in full, without written approval of the laboratory. Date and signatures: For the contents: Nokia ____________________________________________________________________________ SAR Report Cph_SAR_0710_02 Applicant: Nokia Corporation Type: RM-237 Copyright © 2007 TCC Nokia 2/32 CONTENTS 1. SUMMARY OF SAR TEST REPORT............................................................................................................................................. 3 1.1 TEST DETAILS.............................................................................................................................................................................3 1.2 MAXIMUM RESULTS....................................................................................................................................................................3 1.2.1 Head Configuration........................................................................................................................................................ 3 1.2.2 Body Worn Configuration............................................................................................................................................ 3 1.2.3 Maximum Drift................................................................................................................................................................ 4 1.2.4 Measurement Uncertainty........................................................................................................................................... 4 2. DESCRIPTION OF THE DEVICE UNDER TEST........................................................................................................................... 4 2.1 PICTURE OF THE DEVICE..............................................................................................................................................................5 2.2 DESCRIPTION OF THE ANTENNA..................................................................................................................................................5 3. TEST CONDITIONS..................................................................................................................................................................... 6 3.1 TEMPERATURE AND HUMIDITY....................................................................................................................................................6 3.2 TEST SIGNAL, FREQUENCIES AND OUTPUT POWER......................................................................................................................6 4. DESCRIPTION OF THE TEST EQUIPMENT...............................................................................................................................7 4.1 MEASUREMENT SYSTEM AND COMPONENTS................................................................................................................................7 4.1.1 Isotropic E-field Probe Type ES3DV3......................................................................................................................... 8 4.2 PHANTOMS................................................................................................................................................................................8 4.3 TISSUE SIMULANTS....................................................................................................................................................................9 4.3.1 Tissue Simulant Recipes............................................................................................................................................... 9 4.3.2 System Checking............................................................................................................................................................. 9 4.3.3 Tissue Simulants used in the Measurements....................................................................................................... 10 5. DESCRIPTION OF THE TEST PROCEDURE............................................................................................................................. 11 5.1 DEVICE HOLDER..........................................................................…

Text truncated - open the document above for the full version.

FCC Part 22/24 Compliance Test Report FCC Part 22/24 Compliance Test Report / Template Version 8.0 T:\Projects\RM-237\EMC\Results\FCC\Cph_FCC_0710_01.doc Copyright © TCC Nokia 1 (10) TCC Nokia Copenhagen Laboratory Frederikskaj 1790 COPENHAGEN V DENMARK Tel. +45 33 292929 Fax. +45 33 292934 Test Report no.: 06-03-2006 Cph_FCC_0710_01.doc Date of Report: Number of pages: 10 Thomas Reitmayer Customer’s Contact person: Testing laboratory: TCC Nokia Copenhagen Laboratory Frederikskaj 1790 COPENHAGEN V DENMARK Tel. +45 33 292929 Fax. +45 33 292934 FCC listing no.: IC recognition no.: 99059 661AD-1 Nokia Corporation Customer: Lise Meitner Strasse 10 89081 ULM GERMANY Tel. +49 731 1754 0 Fax. +49 731 1754 6800 Tested devices/ accessories: Phone; RM-237 (HW 0210) & Battery; BL-5C & AC Charger; AC-3E & Headset; HS-40 FCC ID: 661U-RM237 PPIRM-237 IC: Supplement reports: Testing has been carried out in accordance with: CFR 47, FCC rules Parts 22 and 24, TIA-603-B-2002 and IC standards RSS-GEN, RSS-132 and RSS-133. Deviations, modifications or clarifications (if any) to above mentioned documents are written in each section under "Test method and limit". The test report must always be reproduced in full; reproduction of an excerpt only is subject to Documentation: written approval of the testing laboratory. The documentation of the testing performed on the tested devices is archived for 15 years at TCC Nokia. The EUT complies with the requirements in respect of all parameters subject to the test. Test Results: The test results relate only to devices specified in this document. Date and signature for the contents: Niels Christian Andersen, Engineer FCC Part 22/24 Compliance Test Report / Template Version 8.0 T:\Projects\RM-237\EMC\Results\FCC\Cph_FCC_0710_01.doc Copyright © TCC Nokia 2 (10) TCC Nokia Copenhagen Laboratory Frederikskaj 1790 COPENHAGEN V DENMARK Tel. +45 33 292929 Fax. +45 33 292934 1. Summary for FCC Part 22/24 Compliance Test Report Date of receipt 20-02-2007 Testing completed 05-03-2007 The customer's contact person Thomas Reitmayer Test Plan referred to \EMC\TESTPLAN\ Notes None Document name T:\Projects\RM-237\EMC\Results\FCC\Cph_FCC_0710_01.doc 1.1. EUT and Accessory Information The EUT is a 3-band (GSM900/1800/1900) mobile phone with GPRS and EGPRS. The EUT is tested with maximum rated TX power, modulated with pseudo random bit sequence (PRBS9). Product Type SN HW MV SW DUT Phone RM-237 004401/01/160431/7 0210 - sk06w15_07 w07.1 28527 Battery BL-5C - 106 - - 29137 AC Charger AC-3E 4090496437171011370;0675370 - - - 29142 Headset HS-40 350853643202 - - - 29141 1.2. Summary of Test Results GSM 1900: Section in CFR 47 Section in RSS-133 Name of the test Result §2.1046(a) 6.2 Conducted RF output power NP §24.232(b) 6.2 Radiated RF output power Passed §2.1049(h) 5.6 99 % occupied bandwidth NP §24.238(a) 6.3 Band edge compliance Passed §24.238(a), §2.1051 6.3 Spurious emissions at antenna terminals NP §24.238(a), §2.1053 6.3 Spurious radiated emissions NP §2.1055(a) 7 Frequency stability, temperature variation NP §2.1055(d) 7 Frequency stability, voltage variation NP PASSED The EUT complies with the essential requirements in the standard. FAILED The EUT does not comply with the essential requirements in the standard. NP The test was not performed by the TCC Nokia Copenhagen Laboratory. FCC Part 22/24 Compliance Test Report / Template Version 8.0 T:\Projects\RM-237\EMC\Results\FCC\Cph_FCC_0710_01.doc Copyright © TCC Nokia 3 (10) TCC Nokia Copenhagen Laboratory Frederikskaj 1790 COPENHAGEN V DENMARK Tel. +45 33 292929 Fax. +45 33 292934 CONTENTS 1. Summary for FCC Part 22/24 Compliance Test Report ........................................... 2 1.1. EUT and Accessory Information ............................................................................................2 1.2. Summary of Test Results .......................................................................................................2 2. Radiated RF output power (FCC §22.913(a), §24.232(b), RSS-GEN 4.6, RSS-132 4.4, RSS-133 6.2) ........................ 4 2.1. Test setup ..............................................................................................................................4 2.2. Test method and limit .............................................................................................................4 2.3. GSM 1900 Test results ..........................................................................................................5 3. Band edge compliance (FCC §22.917(a), 24.238(a), RSS-GEN 4.7, RSS-132 4.5, RSS-133 6.3) .......................... 6 3.1. Test setup ..............................................................................................................................6 3.2. Test method and limit .............................................................................................................6 3.3. GSM 1900 Test results ..........................................................................................................7 4. Test Equipment........................................................................................................... 9 4.1. Conducted measurements .....................................................................................................9 4.2. Radiated measurements ........................................................................................................9 2. Radiated RF output power (FCC §22.913(a), §24.232(b), RSS-GEN 4.6, RSS-132 4.4, RSS-133 6.2) RM-237 Dut#28527 EUT with DUT number BL-5C Dut#29137, AC-3E Dut#29142, HS-40 Dut#29141 Accessories with DUT numbers 230 / 50 Operation Voltage [V] / [Hz] Passed Result None Remarks 20 / 45 / 1016 Temp [°C] / Humidity [%RH] / Air Pressure [mBar] 05-03-2007 Date of measurements Christian Andersen Measured by 2.1. Test setup Tower / table controller Communication Tester Receiver EUT 2.2. Test method and limit The measurement is made according to TIA-603-B-2002 a…

Text truncated - open the document above for the full version.

FCC Part 22/24 Compliance Test Report FCC Part 22/24 Compliance Test Report / Template Version 8.0 T:\Projects\RM-237\EMC\Results\FCC\Tre_FCC_0709_01.doc Copyright © TCC Nokia 1 (11) TCC Nokia Tampere Laboratory P.O. Box 68 Sinitaival 5 FIN-33720 TAMPERE, FINLAND Tel. +358 (0) 7180 46800 Fax. +358 (0) 7180 46880 Test Report no.: 8.3.2007 Tre_FCC_0709_01.doc Date of Report: Number of pages: 11 Thomas Reitmayer Customer’s Contact person: Testing laboratory: TCC Nokia Tampere Laboratory P.O. Box 68 Sinitaival 5 FIN-33720 TAMPERE, FINLAND Tel. +358 (0) 7180 46800 Fax. +358 (0) 7180 46880 FCC listing no.: IC recognition no.: 94436 3608 Nokia Corporation Customer: Lise Meitner Strasse 10 89081 ULM GERMANY Tel. +49 731 1754 0 Fax. +49 731 1754 6800 Tested devices/ accessories: GSM phone RM-237 / Battery BL-5C, AC charger AC-3, Headset HS-40, Dummy battery NN FCC ID: 661U-RM237 PPIRM-237 IC: Supplement reports: - Testing has been carried out in accordance with: CFR 47, FCC rules Parts 22 and 24, TIA-603-B-2002 and IC standards RSS-GEN, RSS-132 and RSS-133. Deviations, modifications or clarifications (if any) to above mentioned documents are written in each section under "Test method and limit". The test report must always be reproduced in full; reproduction of an excerpt only is subject to Documentation: written approval of the testing laboratory. The documentation of the testing performed on the tested devices is archived for 15 years at TCC Nokia. The EUT complies with the requirements in respect of all parameters subject to the test. Test Results: The test results relate only to devices specified in this document. Date and signature for the contents: Jari Jantunen, System Manager FCC Part 22/24 Compliance Test Report / Template Version 8.0 T:\Projects\RM-237\EMC\Results\FCC\Tre_FCC_0709_01.doc Copyright © TCC Nokia 2 (11) TCC Nokia Tampere Laboratory P.O. Box 68 Sinitaival 5 FIN-33720 TAMPERE, FINLAND Tel. +358 (0) 7180 46800 Fax. +358 (0) 7180 46880 1. Summary for FCC Part 22/24 Compliance Test Report Date of receipt 23.2.2007 Testing completed 5.3.2007 The customer's contact person Thomas Reitmayer Test Plan referred to \EMC\TESTPLAN\ Notes - Document name T:\Projects\RM-237\EMC\Results\FCC\Tre_FCC_0709_01.doc 1.1. EUT and Accessory Information The EUT is a 3-band (GSM900/1800/1900) mobile phone with GPRS, EGPRS and Bluetooth. The EUT is tested with maximum rated TX power, modulated with pseudo random bit sequence (PRBS9). Product Type SN HW MV SW DUT GSM phone RM-237 004401011612187 0210 - sk06w15_07w07.1 40975 GSM phone RM-237 004401011611882 0210 - sk06w15_07w07.1 40976 Battery BL-5C - V106 - - 40950 Battery BL-5C - V106 - - 40951 AC Charger AC-3 - - - - 40953 Headset HS-40 - - - - 40954 Dummy battery NN - - - - 40980 1.2. Summary of Test Results GSM 1900: Section in CFR 47 Section in RSS-133 Name of the test Result §2.1046(a) 6.2 Conducted RF output power NP §24.232(b) 6.2 Radiated RF output power NP §2.1049(h) 5.6 99 % occupied bandwidth PASSED §24.238(a) 6.3 Band edge compliance NP §24.238(a), §2.1051 6.3 Spurious emissions at antenna terminals NP §24.238(a), §2.1053 6.3 Spurious radiated emissions PASSED §2.1055(a) 7 Frequency stability, temperature variation PASSED §2.1055(d) 7 Frequency stability, voltage variation PASSED PASSED The EUT complies with the essential requirements in the standard. FAILED The EUT does not comply with the essential requirements in the standard. NP The test was not performed by the TCC Nokia Tampere Laboratory. FCC Part 22/24 Compliance Test Report / Template Version 8.0 T:\Projects\RM-237\EMC\Results\FCC\Tre_FCC_0709_01.doc Copyright © TCC Nokia 3 (11) TCC Nokia Tampere Laboratory P.O. Box 68 Sinitaival 5 FIN-33720 TAMPERE, FINLAND Tel. +358 (0) 7180 46800 Fax. +358 (0) 7180 46880 CONTENTS 1. Summary for FCC Part 22/24 Compliance Test Report ........................................... 2 1.1. EUT and Accessory Information ............................................................................................2 1.2. Summary of Test Results .......................................................................................................2 2. 99 % occupied bandwidth (FCC §2.1049(h), RSS-GEN 4.4.1, RSS-133 5.6) ........... 4 2.1. Test setup ..............................................................................................................................4 2.2. Test method and limit .............................................................................................................4 2.3. GSM 1900 Test results ..........................................................................................................5 3. Spurious radiated emissions (FCC §22.917(a), §24.238(a), §2.1053, RSS-GEN 4.7, RSS-132 4.5, RSS-133 6.3) ......... 6 3.1. Test setup ..............................................................................................................................6 3.2. Test method and limit .............................................................................................................6 3.3. GSM 1900 Test results ..........................................................................................................7 4. Frequency stability, temperature variation (FCC §2.1055(a), §2.1055(a), RSS-GEN 4.5, RSS-132 4.3, RSS-133 7) ........................... 8 4.1. Test setup ..............................................................................................................................8 4.2. Test method and limit .............................................................................................................8 4.3. GSM 1900 Test results ..........................................................................................................9 5. Frequency stability, voltage variation (FCC §2.1055(d), RSS-GEN 4.5, RSS-132 4.3, RSS-133 7) ............................................ 10 5.1. Test setup ......................................................................................…

Text truncated - open the document above for the full version.
