PPIRM-323GSM850/1800/1900 phone with BT andWLAN (UMA)

Nokia 6301b User Guide xxxxxxx Issue 1 CyanCyanMagentaMagentaYellowYellowBlackBlack © 2008 Nokia. All rights reserved. Nokia, Nokia Connecting People, Visual Radio, and Navi are trademarks or registered trademarks of Nokia Corporation. Nokia tune is a sound mark of Nokia Corporation. Other product and company names mentioned herein may be trademarks or tradenames of their respective owners. Reproduction, transfer, distribution, or storage of part or all of the contents in this document in any form without the prior written permission of Nokia is prohibited. US Patent No 5818437 and other pending patents. T9 text input software Copyright © 1997-2007. Tegic Communications, Inc. All rights reserved. Includes RSA BSAFE cryptographic or security protocol software from RSA Security. Java and all Java-based marks are trademarks or registered trademarks of Sun Microsystems, Inc. This product is licensed under the MPEG-4 Visual Patent Portfolio License (i) for personal and noncommercial use in connection with information which has been encoded in compliance with the MPEG-4 Visual Standard by a consumer engaged in a personal and noncommercial activity and (ii) for use in connection with MPEG-4 video provided by a licensed video provider. No license is granted or shall be implied for any other use. Additional information, including that related to promotional, internal, and commercial uses, may be obtained from MPEG LA, LLC. See http:// www.mpegla.com. Nokia operates a policy of ongoing development. Nokia reserves the right to make changes and improvements to any of the products described in this document without prior notice. TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, UNDER NO CIRCUMSTANCES SHALL NOKIA OR ANY OF ITS LICENSORS BE RESPONSIBLE FOR ANY LOSS OF DATA OR INCOME OR ANY SPECIAL, INCIDENTAL, CONSEQUENTIAL OR INDIRECT DAMAGES HOWSOEVER CAUSED. THE CONTENTS OF THIS DOCUMENT ARE PROVIDED "AS IS". EXCEPT AS REQUIRED BY APPLICABLE LAW, NO WARRANTIES OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE MADE IN RELATION TO THE ACCURACY, RELIABILITY OR CONTENTS OF THIS DOCUMENT. NOKIA RESERVES THE RIGHT TO REVISE THIS DOCUMENT OR WITHDRAW IT AT ANY TIME WITHOUT PRIOR NOTICE. The availability of particular products and applications and services for these products may vary by region. Please check with your Nokia dealer for details, and availability of language options. Export controls This device may contain commodities, technology or software subject to export laws and regulations from the US and other countries. Diversion contrary to law is prohibited. The third-party applications provided with your device may have been created and may be owned by persons or entities not affiliated with or related to Nokia. Nokia does not own the copyrights or intellectual property rights to CyanCyanMagentaMagentaYellowYellowBlackBlackCyanCyanMagentaMagentaYellowYellowBlackBlack the third-party applications. As such, Nokia does not take any responsibility for end-user support, functionality of the applications, or the information in the applications or these materials. Nokia does not provide any warranty for the third-party applications. BY USING THE APPLICATIONS YOU ACKNOWLEDGE THAT THE APPLICATIONS ARE PROVIDED AS IS WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW. YOU FURTHER ACKNOWLEDGE THAT NEITHER NOKIA NOR ITS AFFILIATES MAKE ANY REPRESENTATIONS OR WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO WARRANTIES OF TITLE, MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, OR THAT THE APPLICATIONS WILL NOT INFRINGE ANY THIRD-PARTY PATENTS, COPYRIGHTS, TRADEMARKS, OR OTHER RIGHTS. FCC/INDUSTRY CANADA NOTICE Your device may cause TV or radio interference (for example, when using a telephone in close proximity to receiving equipment).The FCC or Industry Canada can require you to stop using your telephone if such interference cannot be eliminated. If you require assistance, contact your local service facility. This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by Nokia could void the user's authority to operate this equipment. xxxxxxx/Issue 1 CyanCyanMagentaMagentaYellowYellowBlackBlackCyanCyanMagentaMagentaYellowYellowBlackBlack Contents For your safety ............................6 1. General information................7 About your phone......................................7 Network services.......................................7 Enhancements...........................................7 Access codes...............................................8 Configuration setting service...................8 Download content.....................................8 Software updates......................................9 Nokia support............................................9 Digital rights management......................9 2. Get started.............................10 Install SIM card and battery....................10 Insert a microSD card..............................11 Remove the microSD card.......................11 Charge the battery..................................11 Antenna....................................................12 Headset.....................................................12 Strap.........................................................13 Keys and parts.........................................13 Switch the phone on and off..................13 Standby mode..........................................14 Flight mode..............................................16 Keypad lock (keyguard)..........................16 Functions without a SIM card.................16 3. Calls…

Text truncated - open the document above for the full version.

NOKIA MOBILE PHONES Lise-Meitner-Strasse 10 D-89081 Ulm, Germany +49(0)731-1754-0 +49(0)731-1754-68 00 01/18/2008 Federal Communications Commission Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD. 21046 Attention: Equipment Authorization Branch REQUEST FOR CONFIDENTIALITY Pursuant to Sections 0.457 (d)(1)(ii) and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of some of the information accompanying this Application of FCC ID: PPIRM-323 and as outlined below: - Exhibit 4: RF Block Diagram - Exhibit 5: Schematic Diagrams - Exhibit 10: List of Active Devices, Tune-Up Procedure and Part list - Exhibit 12: Theory of Operation, Frequency determining part 24, frequency range and Harmonics parts 24 These materials contain trade secrets and proprietary information not customarily released to the public and the public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457 (d)(1)(ii) disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this Application. NOKIA Devices R&D Thomas Reitmayer Product Certification Officer, Ulm

NOKIA MOBILE PHONES Lise-Meitner-Strasse 10 D-89081 Ulm, Germany +49(0)731-1754-0 +49(0)731-1754-68 00 01/18/2008 Federal Communications Commission Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD. 21046 Attention: Equipment Authorization Branch REQUEST FOR CONFIDENTIALITY Pursuant to Sections 0.457 (d)(1)(ii) and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of some of the information accompanying this Application of FCC ID: PPIRM-323 and as outlined below: - Exhibit 4: RF Block Diagram - Exhibit 5: Schematic Diagrams - Exhibit 10: List of Active Devices, Tune-Up Procedure and Part list - Exhibit 12: Theory of Operation, Frequency determining part 24, frequency range and Harmonics parts 24 These materials contain trade secrets and proprietary information not customarily released to the public and the public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457 (d)(1)(ii) disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this Application. NOKIA Devices R&D Thomas Reitmayer Product Certification Officer, Ulm

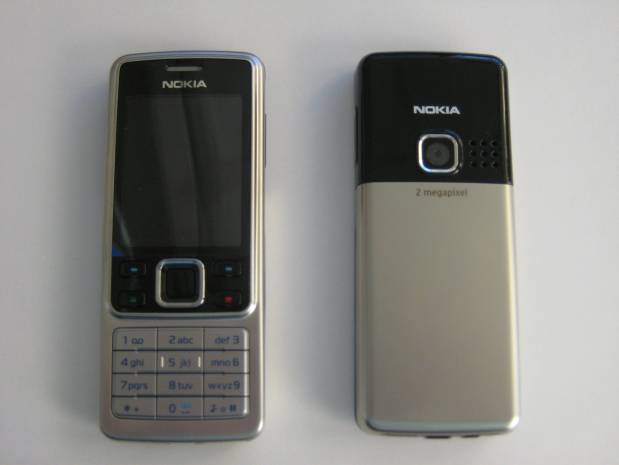

11 January 2008 1. EXTERNAL PHOTOGRAPHS 1.1 Front and back External photographs FCC ID: PPIRM-323 Exhibit 3 IC: 661U-RM323 Applicant: Nokia Devices Ulm Copyright © 2008 Nokia. All rights reserved. 11 January 2008 1.2 Disassembled 1.2 External interfaces External photographs FCC ID: PPIRM-323 Exhibit 3 IC: 661U-RM323 Applicant: Nokia Devices Ulm Copyright © 2008 Nokia. All rights reserved.

1 (1) NOKIA Devices Ulm 01/10/2008 TYPE LABEL FOR PPIRM-323 LABEL LOCATION FOR PPIRM-323 Please refer to external photographs, showing the position of the label Copyright © Nokia 2007. All rights reserved.

08 January 2008 1. BLUETOOTH / WLAN INTERNAL PHOTOGRAPHS 1.1 PWB BT/WLAN antenna contacts WLANModule BT electronics Bluetooth/WLAN internal photographs FCC ID: PPIRM-323 Exhibit 9 IC: 661U-RM323 Applicant: Nokia Devices Ulm Copyright © 2008 Nokia. All rights reserved. 08 January 2008 1.2 BT/WLAN antenna in B-cover BT / WLAN antenna placement in B-cover BT / WLAN antenna Bluetooth/WLAN internal photographs FCC ID: PPIRM-323 Exhibit 9 IC: 661U-RM323 Applicant: Nokia Devices Ulm Copyright © 2008 Nokia. All rights reserved.

FCC Part 15C Compliance Test Report FCC Part 15C Compliance Test Report / Template Version 9.0 \\satcc01nmp\TCC_salo\Projects\RM-323\EMC\Results\FCC\Cph_FCC_0801_09.doc Copyright © TCC Nokia 1 (9) TCC Nokia Copenhagen Laboratory Frederikskaj 1790 COPENHAGEN V DENMARK Tel. +45 33 292929 Fax. +45 33 292934 Test Report no.: 04-01-2008 Cph_FCC_0801_09.doc Date of Report: Number of pages: 9 Bruno Ramelli Customer’s Contact person: Testing laboratory: TCC Nokia Copenhagen Laboratory Frederikskaj 1790 COPENHAGEN V DENMARK Tel. +45 33 292929 Fax. +45 33 292934 FCC listing no.: IC recognition no.: 99059 661AD-1 Nokia Corporation Customer: Lise Meitner Strasse 10 89081 ULM GERMANY Tel. +49 731 1754 0 Fax. +49 731 1754 6800 Tested devices/ accessories: Phone; RM-323 (HW 0303), Battery; BL-4C, Headset; HS-47 AC-Charger; AC-4E FCC ID: 661U-RM323 PPIRM-323 IC: Supplement reports: Testing has been carried out in accordance with: CFR 47, FCC rules Part 15 Subpart C, ANSI C63.4 (2003), Public Notice DA 00-705, DTS procedures KDB 558074, IC standards RSS-GEN (Issue 2, June 2007) and RSS-210 (Issue 7, June 2007). Deviations, modifications or clarifications (if any) to above mentioned documents are written in each section under "Test method and limit". The test report must always be reproduced in full; reproduction of an excerpt only is subject to Documentation: written approval of the testing laboratory. The documentation of the testing performed on the tested devices is archived for 15 years at TCC Nokia. The EUT complies with the requirements in respect of all parameters subject to the test. Test Results: The test results relate only to devices specified in this document. Date and signature for the contents: Niels Christian Andersen, Engineer FCC Part 15C Compliance Test Report / Template Version 9.0 \\satcc01nmp\TCC_salo\Projects\RM-323\EMC\Results\FCC\Cph_FCC_0801_09.doc Copyright © TCC Nokia 2 (9) TCC Nokia Copenhagen Laboratory Frederikskaj 1790 COPENHAGEN V DENMARK Tel. +45 33 292929 Fax. +45 33 292934 1. Summary for FCC Part 15C Compliance Test Report Date of receipt 04-12-2007 Testing completed 03-01-2008 The customer's contact person Bruno Ramelli Test Plan referred to T:\Projects\RM-323\TestPlan_RS\ RS_Testplan_RM-323.xls Notes None Document name T:\Projects\RM-323\EMC\Results\FCC\Cph_FCC_0801_09.doc 1.1. EUT and Accessory Information The EUT is a 3-band (GSM850/1800/1900) mobile phone with GPRS, EGPRS, Bluetooth and WLAN. Bluetooth and WLAN are tested with maximum rated TX power. Product Type SN HW MV SW DUT Phone RM-323 004401/01/655467/3 0303 - prt5.50 27375 Battery BL-4C 06703864175350405E11479298 - - - 27380 Headset HS-47 0694579721 212113306 - - - 27138 AC-Charger AC-4E 3943497225160412908;0675384 - - - 27129 1.2. Summary of Test Results WLAN: Section in CFR 47 Section in RSS-210 Name of the test Result 15.247(b)(1) A8.4 (4) Conducted peak output power NP 15.247(d) A8.5 Band edge compliance of RF emissions Passed 15.247(d) A8.5 Spurious RF conducted emissions NP 15.247(d), 15.209 A8.5 Spurious radiated emissions NP 15.207 7.2.2 AC powerline conducted emissions NP 15.247(a)(2) A8.2 (1) 6 dB bandwidth NP 15.247(e) A8.2 (2) Power spectral density NP PASSED The EUT complies with the essential requirements in the standard. FAILED The EUT does not comply with the essential requirements in the standard. NP The test was not performed by the TCC Nokia Copenhagen Laboratory. FCC Part 15C Compliance Test Report / Template Version 9.0 \\satcc01nmp\TCC_salo\Projects\RM-323\EMC\Results\FCC\Cph_FCC_0801_09.doc Copyright © TCC Nokia 3 (9) TCC Nokia Copenhagen Laboratory Frederikskaj 1790 COPENHAGEN V DENMARK Tel. +45 33 292929 Fax. +45 33 292934 CONTENTS 1. Summary for FCC Part 15C Compliance Test Report.............................................. 2 1.1. EUT and Accessory Information ............................................................................................2 1.2. Summary of Test Results .......................................................................................................2 2. Test setups.................................................................................................................. 4 2.1. Conducted RF test setup .......................................................................................................4 2.2. AC powerline conducted emissions test setup.......................................................................4 2.3. Spurious radiated emissions test setup .................................................................................4 3. Band edge compliance of RF emissions (FCC §15.247(d), RSS-210 A8.5) ............ 5 3.1. Test method and limit .............................................................................................................5 3.2. WLAN Test results .................................................................................................................6 4. Test Equipment........................................................................................................... 8 4.1. Conducted measurements .....................................................................................................8 4.2. Radiated measurements ........................................................................................................8 2. Test setups 2.1. Conducted RF test setup Spectrum analyser Power divider Attenuator EUT Radio simulator 20dB attenuator 2.2. AC powerline conducted emissions test setup Receiver Pulse limiter LISN EUT 2.3. Spurious radiated emissions test setup Tower / table controller Communication Tester Receiver EUT FCC Part 15C Compliance Test Report / Template Version 9.0 \\satcc01nmp\TCC_salo\Projects\RM-323\EMC\Results\FCC\Cph_FCC_0801_09.doc Copyright © TCC Nokia 4 (9) TCC Nokia Copenhagen Laboratory Frederikskaj 1790 COPENHAGEN V DENMARK Tel. +45 33 292929 Fax. +45 33 292934 FCC Part 15C Compliance Test Report / Template Version 9.0 \\satcc01nmp\TCC_salo\Projects\…

Text truncated - open the document above for the full version.

FCC Part 15C Compliance Test Report / Template Version 9.0 T:\Projects\RM-323\EMC\Results\FCC\Tre_FCC_0750_03.doc Copyright © TCC Nokia 1 (66) TCC Nokia Tampere Laboratory P.O. Box 68 Sinitaival 5 FIN-33720 TAMPERE, FINLAND Tel. +358 (0) 7180 46800 Fax. +358 (0) 7180 46880 FCC Part 15C Compliance Test Report Test Report no.: Tre_FCC_0750_03.doc Date of Report: 14.1.2008 Number of pages: 66 Customer’s Contact person: Bruno Ramelli Testing laboratory: TCC Nokia Tampere Laboratory P.O. Box 68 Sinitaival 5 FIN-33720 TAMPERE, FINLAND Tel. +358 (0) 7180 46800 Fax. +358 (0) 7180 46880 FCC listing no.: IC recognition no.: 94436 3608 Customer: Nokia Corporation Lise Meitner Strasse 10 89081 ULM GERMANY Tel. +49 731 1754 0 Fax. +49 731 1754 6800 Tested devices/ accessories: GSM phone RM-323 / Battery BL-4C, Headset HS-47, AC-Charger AC-5E FCC ID: PPIRM-323 IC: 661U-RM323 Supplement reports: - Testing has been carried out in accordance with: CFR 47, FCC rules Part 15 Subpart C, ANSI C63.4 (2003), Public Notice DA 00-705, DTS procedures KDB 558074, IC standards RSS-GEN (Issue 2, June 2007) and RSS-210 (Issue 7, June 2007). Deviations, modifications or clarifications (if any) to above mentioned documents are written in each section under "Test method and limit". Documentation: The test report must always be reproduced in full; reproduction of an excerpt only is subject to written approval of the testing laboratory. The documentation of the testing performed on the tested devices is archived for 15 years at TCC Nokia. Test Results: The EUT complies with the requirements in respect of all parameters subject to the test. The test results relate only to devices specified in this document. Date and signature for the contents: Jari Jantunen, System Manager FCC Part 15C Compliance Test Report / Template Version 9.0 T:\Projects\RM-323\EMC\Results\FCC\Tre_FCC_0750_03.doc Copyright © TCC Nokia 2 (66) TCC Nokia Tampere Laboratory P.O. Box 68 Sinitaival 5 FIN-33720 TAMPERE, FINLAND Tel. +358 (0) 7180 46800 Fax. +358 (0) 7180 46880 1. Summary for FCC Part 15C Compliance Test Report Date of receipt 10.12.2007 Testing completed 8.1.2008 The customer's contact person Bruno Ramelli Test Plan referred to T:\Projects\RM-323\TestPlan_RS\RS_Testplan_RM-323.xls Notes - Document name T:\Projects\RM-323\EMC\Results\FCC\Tre_FCC_0750_03.doc 1.1. EUT and Accessory Information The EUT is a 3-band (GSM850/1800/1900) mobile phone with GPRS, EGPRS, Bluetooth and WLAN. Bluetooth and WLAN are tested with maximum rated TX power. Product Type SN HW MV SW DUT GSM-Phone RM-323 004401016554996 0303 - Vp prt5.50 41343 GSM-Phone RM-323 004401016554483 0303 - Vp prt5.50 41356 GSM-Phone RM-323 004401016554392 0303 - Vp prt5.50 41371 Battery BL-4C - - - - 41342 Headset HS-47 - - - - 41181 AC-Charger AC-5E - - - - 41096 1.2. Summary of Test Results Bluetooth: Section in CFR 47 Section in RSS-GEN or RSS-210 Name of the test Result 15.247(b)(1) A8.4 (2) Conducted peak output power PASSED 15.247(d) A8.5 Band edge compliance of RF emissions PASSED 15.247(d) A8.5 Spurious RF conducted emissions PASSED 15.247(d), 15.209 A8.5 Spurious radiated emissions PASSED 15.207 7.2.2 AC powerline conducted emissions PASSED 15.247(a)(1) A8.1 (1) 20 dB bandwidth PASSED 15.247(a)(1) A8.1 (2) Carrier frequency separation PASSED 15.247(a)(1)(iii) A8.1 (4) Number of hopping frequencies PASSED 15.247(a)(1)(iii) A8.1 (4) Time of occupancy PASSED WLAN: Section in CFR 47 Section in RSS-210 Name of the test Result 15.247(b)(1) A8.4 (4) Conducted peak output power PASSED 15.247(d) A8.5 Band edge compliance of RF emissions NP 15.247(d) A8.5 Spurious RF conducted emissions PASSED 15.247(d), 15.209 A8.5 Spurious radiated emissions PASSED 15.207 7.2.2 AC powerline conducted emissions PASSED 15.247(a)(2) A8.2 (1) 6 dB bandwidth PASSED 15.247(e) A8.2 (2) Power spectral density PASSED PASSED The EUT complies with the essential requirements in the standard. FAILED The EUT does not comply with the essential requirements in the standard. NP The test was not performed by the TCC Nokia Tampere Laboratory. FCC Part 15C Compliance Test Report / Template Version 9.0 T:\Projects\RM-323\EMC\Results\FCC\Tre_FCC_0750_03.doc Copyright © TCC Nokia 3 (66) TCC Nokia Tampere Laboratory P.O. Box 68 Sinitaival 5 FIN-33720 TAMPERE, FINLAND Tel. +358 (0) 7180 46800 Fax. +358 (0) 7180 46880 CONTENTS 1. Summary for FCC Part 15C Compliance Test Report.............................................. 2 1.1. EUT and Accessory Information ............................................................................................2 1.2. Summary of Test Results .......................................................................................................2 2. Test setups.................................................................................................................. 5 2.1. Conducted RF test setup .......................................................................................................5 2.2. AC powerline conducted emissions test setup.......................................................................5 2.3. Spurious radiated emissions test setup .................................................................................5 3. Conducted peak output power (FCC §15.247(b)(1), RSS-210 A8.4 (2)) .................. 6 3.1. Test method and limit .............................................................................................................6 3.2. Bluetooth Test results ............................................................................................................7 4. Band edge compliance of RF emissions (FCC §15.247(d), RSS-210 A8.5) .......... 10 4.1. Test method and limit ...........................................................................................................10 4.2. Bluetooth Test results ..........................................................................................................11 5. Spurious RF conducted emission…

Text truncated - open the document above for the full version.

RM-323_test_setup_photographs.DOC 1 (2) TCC Tampere P.O. Box 68 FIN -33721 Tampere FINLAND Tel. +358 7180 46800 Fax. +358 7180 46880 TCC Nokia EUT test setups Picture 1 Spurious radiated emission measurement Picture 2 Radiated emission measurement GSM RX / Bluetooth TX / WLAN RX + Computer peripherals RM-323_test_setup_photographs.DOC 2 (2) TCC Tampere P.O. Box 68 FIN -33721 Tampere FINLAND Tel. +358 7180 46800 Fax. +358 7180 46880 TCC Nokia Picture 3 AC powerline conducted emission measurement Bluetooth TX / WLAN TX Picture 4 AC powerline conducted emission measurement GSM RX / Bluetooth TX / WLAN RX+ Computer peripherals
