PPIRM-722GSM/WCDMA cellular phone w/BT

Nokia C2-01 User Guide C2-01.5 5555555 Issue 1 Contents Safety4 About your device5 Network services5 Get started7 Keys and parts7 Insert SIM card and battery7 Insert a memory card9 Remove the memory card9 Charge the battery10 Attach the wrist strap10 Switch the device on or off10 GSM antenna11 Headset11 Basic use12 Keypad lock12 Access codes12 PUK codes12 Volume control13 Standby mode 13 Indicators13 Navigate the menus14 Shortcuts14 Operator menu14 Use your device without a SIM card15 Write text15 Nokia account and Nokia's Ovi services16 About Ovi Store16 Contacts 16 Calls17 Make and answer a call17 Loudspeaker17 Dialling shortcuts18 Log18 Messaging18 Text and multimedia messages18 Mail20 Chat with your friends21 Flash messages21 Nokia Xpress audio messages 21 Voice messages21 Message settings22 Organiser22 Alarm clock22 Calendar and to-do list22 Web or Internet 23 About Web 23 Connect to a web service23 Media 24 Camera and video24 FM radio24 Voice recorder25 Music player25 Gallery26 Settings27 Profiles27 Tones28 Display28 Date and time28 Synchronisation and backup28 Connectivity29 Call and phone30 Restore factory settings31 Find more help31 Support31 About device software updates31 Update device software using your device32 Update device software using your PC33 2Contents Protect the environment33 Save energy33 Recycle33 Product and safety information34 Contents3 Safety Read these simple guidelines. Not following them may be dangerous or illegal. Read the complete user guide for further information. SWITCH ON SAFELY Do not switch the device on when wireless phone use is prohibited or when it may cause interference or danger. ROAD SAFETY COMES FIRST Obey all local laws. Always keep your hands free to operate the vehicle while driving. Your first consideration while driving should be road safety. INTERFERENCE All wireless devices may be susceptible to interference, which could affect performance. SWITCH OFF IN RESTRICTED AREAS Follow any restrictions. Switch the device off in aircraft, near medical equipment, fuel, chemicals, or blasting areas. QUALIFIED SERVICE Only qualified personnel may install or repair this product. ACCESSORIES AND BATTERIES Use only approved accessories and batteries. Do not connect incompatible products. WATER-RESISTANCE Your device is not water-resistant. Keep it dry. 4Safety About your device The wireless device described in this guide is approved for use on the (E)GSM 850, 900, 1800, and 1900 MHz networks, and UMTS 850/1900/2100 MHz networks. Contact your service provider for more information about networks. Your device may have preinstalled bookmarks and links for third-party internet sites and may allow you to access third-party sites. These are not affiliated with Nokia, and Nokia does not endorse or assume liability for them. If you access such sites, take precautions for security or content. Warning: To use any features in this device, other than the alarm clock, the device must be switched on. Do not switch the device on when wireless device use may cause interference or danger. When using this device, obey all laws and respect local customs, privacy and legitimate rights of others, including copyrights. Copyright protection may prevent some images, music, and other content from being copied, modified, or transferred. Make back-up copies or keep a written record of all important information stored in your device. When connecting to any other device, read its user guide for detailed safety instructions. Do not connect incompatible products. The images in this guide may differ from your device display. Refer to the user guide for other important information about your device. Network services To use the device you must have service from a wireless service provider. Some features are not available on all networks; other features may require that you make specific arrangements with your service provider to use them. Network services involve transmission of data. Check with your service provider for details about fees in your home network and when roaming on other networks. Your service provider can explain what charges will apply. Some networks may have limitations that affect how you can use some features of this device requiring network support such as support for specific technologies like WAP 2.0 protocols (HTTP and SSL) that run on TCP/IP protocols and language-dependent characters. Your service provider may have requested that certain features be disabled or not activated in your device. If so, these features will not appear on your device menu. Your device may also have customized items such as menu names, menu order, and icons. Safety5 During extended operation such as a high speed data connection, the device may feel warm. In most cases, this condition is normal. If you suspect the device is not working properly, take it to the nearest authorised service facility. 6Safety Get started Keys and parts 1 End/Power key 2Earpiece 3Display 4Selection keys 5Navi™ key (scroll key) 6Call key 7Keypad 8Charger connector 9Headset connector/Nokia AV Connector (3.5 mm) 10Camera lens 11Micro USB connector 12Loudspeaker 13Microphone 14Memory card slot 15Wrist strap hole Insert SIM card and battery Important: Do not use a mini-UICC SIM card, also known as a micro-SIM card, a micro-SIM card with an adapter, or a SIM card that has a mini-UICC cutout (see figure) in this device. A micro SIM card is smaller than the standard SIM card. This device does not support the use of micro-SIM cards and use of incompatible SIM cards may damage the card or the device, and may corrupt data stored on the card. Get started7 The SIM card and its contacts can be easily damaged by scratches or bending, so be careful when handling, inserting, or removing the card. 1Press and slide the back cover towards the bottom of the phone, and remove it (1). 2Remove the battery (2). 3Open the SIM card holder (3), insert the SIM card with the contact surface facing down (4), and close the holder (5). 4…

Text truncated - open the document above for the full version.

NOKIA GmbH Joensuunkatu 7 FIN-24100 SALO FINLAND Tel. +358 7180 08000 December 01, 2010 Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD. 21046 Attention: Equipment Authorization Branch REQUEST FOR CONFIDENTIALITY Pursuant to Sections 0.457 (d) (l) (ii) and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of some of the information accompanying this Application of FCC ID: PPIRM-722 and as outlined below: - Exhibit 4: Block Diagram - Exhibit 5: Schematic Diagrams - Exhibit 12: Theory of Operation / Description of Circuitry These materials contain trade secrets and proprietary information not customarily released to the public and the public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457 (d) (l) (ii) disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this Application. NOKIA CORPORATION Tero Lehtinen Product Certification Officer Devices, Salo

NOKIA GmbH Joensuunkatu 7 FIN-24100 SALO FINLAND Tel. +358 7180 08000 Fax +358 7180 45220 December 14, 2010 Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD. 21046 Attention: Equipment Authorization Branch CHANGES IN DESIGN from HWID 0220 to HWID 0320 PPIRM-722 initial testing has been done with HWID 0220 and after that there was introduced new HWID 0320 and the change is to add the metal spring in A-cover to connect the UI shielding. Internal conclusion was to retest different equipment classes as follows: • 15.247(d) 15.209 Spurious radiated emissions (BT) • 15.247(d) Band edge compliance (BT) • §22.913(a) Radiated RF output power (GSM850, WCDMA850) • §22.917(a) Band edge compliance (GSM850, WCDMA850) • §22.917(a), §2.1053 Spurious radiated emissions (GSM850, WCDMA850) • §24.232(b) Radiated RF output power (GSM1900, WCDMA1900) • §24.238(a) Band edge compliance (GSM1900, WCDMA1900) • §24.238(a), §2.1053 Spurious radiated emissions (GSM1900, WCDMA1900) • SAR all tests on all bands NOKIA CORPORATION Tero Lehtinen Product Certification Officer DQD/DC, Salo

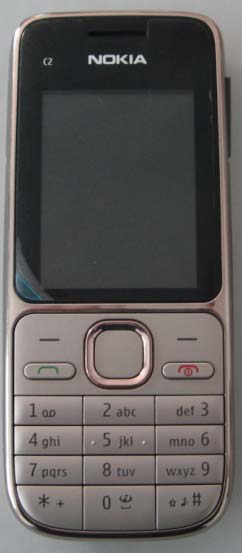

9 Sep2010 External photographs FCC ID: PPIRM-722 Exhibit 3 IC: 661U-RM722 Applicant: Nokia Corporation Copyright © 2010 Nokia. All rights reserved. 1. EXTERNAL PHOTOGRAPHS 1.1 Front and back 9 Sep2010 External photographs FCC ID: PPIRM-722 Exhibit 3 IC: 661U-RM722 Applicant: Nokia Corporation Copyright © 2010 Nokia. All rights reserved. 1.1 Disassembled 1.2 External interfaces 9 Sep2010 External photographs FCC ID: PPIRM-722 Exhibit 3 IC: 661U-RM722 Applicant: Nokia Corporation Copyright © 2010 Nokia. All rights reserved.

1 (1) NOKIA Corporation 11/09/2010 Type label FCC ID: PPIRM-722 Exhibit 1 IC: 661U-RM722 Applicant: Nokia Corporation Copyright © 2010 Nokia. All rights reserved. TYPE LABEL FOR PPIRM-722 LABEL LOCATION FOR PPIRM-722

09 Sep 2010 Internal photographs FCC ID: PPIRM-722 Exhibit 9 IC: 661U-RM722 Applicant: Nokia Corporation Copyright © 2010 Nokia. All rights reserved. 1. INTERNAL PHOTOGRAPHS 1.1 Pwb back 09 Sep 2010 Internal photographs FCC ID: PPIRM-722 Exhibit 9 IC: 661U-RM722 Applicant: Nokia Corporation Copyright © 2010 Nokia. All rights reserved. 1.2 Pwb front

FCC Part 15B Compliance Test Report / Template Version 15.0 FCC15B_RM-722_04.docx Copyright © TCC Nokia 1 (8) TCC Nokia Copenhagen Laboratory Frederikskaj 1790 COPENHAGEN V DENMARK Tel. +45 33 292929 Fax. +45 33 292934 FCC Part 15B Compliance Test Report Test Report no.: FCC15B_RM-722_04.docx Date of Report: 5-Nov-2010 Number of pages: 8 Customer’s Contact person: Cremer Tobias Testing laboratory: TCC Nokia Copenhagen Laboratory Frederikskaj 1790 COPENHAGEN V DENMARK Tel. +45 33 292929 Fax. +45 33 292934 Customer: Nokia Corporation Lise Meitner Strasse 10 89081 ULM GERMANY Tel. +49 731 1754 0 Fax. +49 731 1754 6800 FCC listing no.: IC recognition no.: 99059 661AL-1 Tested devices/ accessories: Phone RM-722 / Battery BL-5C / AC-Charger AC-3E / USB Cable AC-3E / Laptop Lenovo T61 FCC ID: PPIRM-722 IC: 661U-RM722 Supplement reports: - Testing has been carried out in accordance with: CFR 47, FCC rules Part 15 Subpart B, ANSI C63.4 (2003), ICES-003, CISPR 22, RSS-132 (Issue 2, September 2005), RSS-133 (Issue 5, February 2009). Deviations, modifications or clarifications (if any) to above mentioned documents are written in each section under "Test method and limit". Documentation: The test report must always be reproduced in full; reproduction of an excerpt only is subject to written approval of the testing laboratory. The documentation of the testing performed on the tested devices is archived for 15 years at TCC Nokia. Test Results: The EUT complies with the requirements in respect of all parameters subject to the test. The test results relate only to devices specified in this document Date and signature for the contents: Ruben Hansen, System Manager, EMC FCC Part 15B Compliance Test Report / Template Version 15.0 FCC15B_RM-722_04.docx Copyright © TCC Nokia 2 (8) TCC Nokia Copenhagen Laboratory Frederikskaj 1790 COPENHAGEN V DENMARK Tel. +45 33 292929 Fax. +45 33 292934 1. Summary for FCC Part 15B Compliance Test Report Date of receipt 02-Nov-2010 Testing completed 5-Nov-2010 The customer's contact person Cremer Tobias Test Plan referred to T:\Projects\RM-722\TestPlan\RS_testplan_RM-722.xls Notes - Document name T:\Projects\RM-722\EMC\FCC15B_RM-722_04.docx 1.1. EUT and Accessory Information The EUT is a 8-band (GSM850/900/1800/1900) and WCDMA Band (I/II(1900)/V(850)/V(850)) mobile phone with GPRS, EGPRS and Bluetooth. Product Type SN HW MV SW DUT Phone RM-722 004402/13/260065/5 0220 - jn09w09_10 w39 23953 Battery BL-5C 0670400462040R293A12000913 - - - 23934 AC-Charger AC-3E 4090498422971301612;0675370 - - - 23951 USB Cable AC-3E 07303689034D1205555 - - - 23940 Laptop Lenovo T61 1S7665D71L3W8321 - - - 24950 1.2. Summary of Test Results GSM850: Section in CFR 47 Section in ICES-003 (RSS-132) Name of the test Result 15.107, a 5.3 AC powerline conducted emissions PASSED 15.109, a 5.5 (4.6) Radiated emissions NP Bluetooth: Section in CFR 47 Section in ICES-003 (RSS-132) Name of the test Result 15.107, a 5.3 AC powerline conducted emissions PASSED 15.109, a 5.5 (4.6) Radiated emissions NP PASSED The EUT complies with the essential requirements in the standard. FAILED The EUT does not comply with the essential requirements in the standard. NP The test was not performed by the TCC Nokia Laboratory. FCC Part 15B Compliance Test Report / Template Version 15.0 FCC15B_RM-722_04.docx Copyright © TCC Nokia 3 (8) TCC Nokia Copenhagen Laboratory Frederikskaj 1790 COPENHAGEN V DENMARK Tel. +45 33 292929 Fax. +45 33 292934 CONTENTS 1. Summary for FCC Part 15B Compliance Test Report ............................................... 2 1.1. EUT and Accessory Information ............................................................................................. 2 1.2. Summary of Test Results ........................................................................................................ 2 2. AC powerline conducted emissions (FCC §15.107, ICES-003 section 5.3) .................................................................................. 4 2.2. Test method and limit .............................................................................................................. 4 3. Test Equipment ............................................................................................................. 7 3.1. Conducted measurements ...................................................................................................... 7 3.2. Radiated measurements ......................................................................................................... 7 FCC Part 15B Compliance Test Report / Template Version 15.0 FCC15B_RM-722_04.docx Copyright © TCC Nokia 4 (8) TCC Nokia Copenhagen Laboratory Frederikskaj 1790 COPENHAGEN V DENMARK Tel. +45 33 292929 Fax. +45 33 292934 2. AC powerline conducted emissions (FCC §15.107, ICES-003 section 5.3) EUT with DUT number RM-722, DUT 23953 Accessories with DUT numbers BL-5C, DUT 23934 ; AC-3E, DUT 23951 ; AC-3E, DUT 23940 ; Lenovo T61, DUT 24950 Operation Voltage [V] / [Hz] 115V / 60Hz Results Passed Remarks None Temp [ o C] / Humidity [%RH] / Air Pressure [kPa] 23 / 38 / 1014 Date of measurements 05-Nov-2010 Measured by Ruben Hansen 2.1.1 Test Setup FCC15B_RM-722_04 2.2. Test method and limit The measurement is made according to ANSI C63.4-2003 as follows: The EUT is placed on a wooden table 80 cm above the reference groundplane. The EUT is connected via LISN to a test power supply. The measurement results are obtained as described below: U [dBμV/m] = U RX + A TOT Where U RX is receiver reading and A TOT is total correction factor including cable and pulse limiter attenuations. CISPR 22 Class B limits Frequency range [MHz] Quasi peak limit [dBμV] Average limit [dBμV] 0.15 - 0.5 66 - 56 56 - 46 0.5 - 5 56 46 5 - 30 60 50 FCC Part 15B Compliance Test Report / Template Version 15.0 FCC15B_RM-722_04.docx Copyright © TCC Nokia 5 (8) TCC Nokia Copenhagen Laboratory Frederikskaj 1790 COPENHAGEN V DENMARK Tel. +45 33 292929 Fax. +45 33 292934 2.2.1 GSM850 Tes…

Text truncated - open the document above for the full version.

FCC Part 15B Compliance Test Report / Template Version 15.0 FCC15B_RM-722_07.docx Copyright © TCC Nokia 1 (12) TCC Nokia Tampere Laboratory P.O. Box 68 Sinitaival 5 FIN-33720 TAMPERE, FINLAND Tel. +358 (0) 7180 46800 Fax. +358 (0) 7180 46880 FCC Part 15B Compliance Test Report Test Report no.: FCC15B_RM-722_07.docx Date of Report: 24-Nov-2010 Number of pages: 12 Customer’s Contact person: Tobias Cremer Testing laboratory: TCC Nokia Tampere Laboratory P.O. Box 68 Sinitaival 5 FIN-33720 TAMPERE, FINLAND Tel. +358 (0) 7180 46800 Fax. +358 (0) 7180 46880 Customer: Nokia Corporation Lise Meitner Strasse 10 89081 ULM GERMANY Tel. +49 731 1754 0 Fax. +49 731 1754 6800 FCC listing no.: IC recognition no.: 94436 661AK-1 Tested devices/ accessories: Phone RM-722, Battery BL-5C, AC charger AC-3E, Headset WH-102 Data cable CA-101D, Laptop IBM Thinkpad T40, AC adapter 02K6543, Printer HP deskjet 1600CC3540A, Parallel cable for printer FCC ID: PPIRM-722 IC: 661U-RM722 Supplement reports: - Testing has been carried out in accordance with: CFR 47, FCC rules Part 15 Subpart B, ANSI C63.4 (2003), ICES-003, CISPR 22. Deviations, modifications or clarifications (if any) to above mentioned documents are written in each section under "Test method and limit". Documentation: The test report must always be reproduced in full; reproduction of an excerpt only is subject to written approval of the testing laboratory. The documentation of the testing performed on the tested devices is archived for 15 years at TCC Nokia. Test Results: The EUT complies with the requirements in respect of all parameters subject to the test. The test results relate only to devices specified in this document Date and signature for the contents: Hannu Söderholm, Senior Engineer, EMC FCC Part 15B Compliance Test Report / Template Version 15.0 FCC15B_RM-722_07.docx Copyright © TCC Nokia 2 (12) TCC Nokia Tampere Laboratory P.O. Box 68 Sinitaival 5 FIN-33720 TAMPERE, FINLAND Tel. +358 (0) 7180 46800 Fax. +358 (0) 7180 46880 1. Summary for FCC Part 15B Compliance Test Report Date of receipt 17-Nov-2010 Testing completed 23-Nov-2010 The customer's contact person Tobias Cramer Test Plan referred to T:\Projects\RM-722\TestPlan\RS_testplan_RM-722.xls Notes - Document name T:\Projects\RM-722\EMC\FCC15B_RM-722_07.docx 1.1. EUT and Accessory Information The EUT is a 8-band (GSM850/900/1800/1900) and WCDMA Band (I/II(1900)/V(850)/V(850)) mobile phone with GPRS, EGPRS and Bluetooth. Product Type SN HW MV SW DUT Phone RM-722 004402132259536;8DA187522 0220 - Vp jn09w09_10w39 42409 Battery BL-5C 0670400462040R293A12001737 - - - 42410 AC charger AC-3E 4090498422971301617;0675370 - - - 42411 Headset WH-102 06943238376B3100389 - - - 42413 Data Cable CA-101D - - - - 42412 Laptop IBM Thinkpad T40 99ARTGD - - - 41868 AC Adapter 02K6543 - - - 40202 Printer HP deskjet 1600CC3540A USB8302546 - - - 40077 Parallel cable for printer - - - - - 40087 1.2. Summary of Test Results GSM 850: Section in CFR 47 Section in ICES-003 (RSS-132) Name of the test Result 15.107, a 5.3 AC powerline conducted emissions NP 15.109, a 5.5 (4.6) Radiated emissions PASSED GSM 1900: Section in CFR 47 Section in ICES-003 (RSS-132) Name of the test Result 15.107, a 5.3 AC powerline conducted emissions NP 15.109, a 5.5 (4.6) Radiated emissions PASSED Bluetooth: Section in CFR 47 Section in ICES-003 Name of the test Result 15.107, a 5.3 AC powerline conducted emissions NP 15.109, a 5.5 Radiated emissions PASSED PASSED The EUT complies with the essential requirements in the standard. FAILED The EUT does not comply with the essential requirements in the standard. NP The test was not performed by the TCC Nokia Laboratory. FCC Part 15B Compliance Test Report / Template Version 15.0 FCC15B_RM-722_07.docx Copyright © TCC Nokia 3 (12) TCC Nokia Tampere Laboratory P.O. Box 68 Sinitaival 5 FIN-33720 TAMPERE, FINLAND Tel. +358 (0) 7180 46800 Fax. +358 (0) 7180 46880 CONTENTS 1. Summary for FCC Part 15B Compliance Test Report .............................................. 2 1.1. EUT and Accessory Information ............................................................................................. 2 1.2. Summary of Test Results ........................................................................................................ 2 2. Radiated emissions (FCC §15.109, ICES-003 section 5.5) ................................................................................ 4 2.2. Test method and limit .............................................................................................................. 4 2.3. GSM850 + FM radio on Test results ....................................................................................... 6 2.4. GSM1900 + FM radio on Test results ..................................................................................... 7 3. Radiated emissions (FCC §15.109, ICES-003 section 5.5) ................................................................................ 8 3.2. Test method and limit .............................................................................................................. 8 3.3. Bluetooth Test results ............................................................................................................. 9 4. Test Equipment ......................................................................................................... 11 4.1. Conducted measurements .................................................................................................... 11 4.2. Radiated measurements ....................................................................................................... 12 FCC Part 15B Compliance Test Report / Template Version 15.0 FCC15B_RM-722_07.docx Copyright © TCC Nokia 4 (12) TCC Nokia Tampere Laboratory P.O. Box 68 Sinitaival 5 FIN-33720 TAMPERE, FINLAND Tel. +358 (0) 7180 46800 Fax. +358 (0) 7180 46880 2. Radiated emissions (FCC §15.109, ICES-003 section 5.5) EUT with DUT number RM-722, DUT 42409 Accessories…

Text truncated - open the document above for the full version.

EMC Test Setup Photos / Template Version 1.0 EMC_Photo_RM-722_12.docx Copyright © TCC Nokia 1 (3) RM-722 Test Setups Picture 1. FCC Part 15C Radiated emissions Picture 2. FCC Part 15B Radiated emissions EMC Test Setup Photos / Template Version 1.0 EMC_Photo_RM-722_12.docx Copyright © TCC Nokia 2 (3) Picture 3. FCC Part 15C AC powerline conducted emissions EMC Test Setup Photos / Template Version 1.0 EMC_Photo_RM-722_12.docx Copyright © TCC Nokia 3 (3) Picture 4. FCC Part 15B AC powerline conducted emissions Measured from the AC plug of the PC. Measured from the AC plug of the Phone.
