PPIRM-94GSM 900/ 1800/ 1900 PCS phone with BT

Nokia 6021 user guide EN 9237275 Issue 1 DECLARATION OF CONFORMITY We, NOKIA CORPORATION declare under our sole responsibility that the product RM-94 is in conformity with the provisions of the following Council Directive: 1999/5/EC. A copy of the Declaration of Conformity can be found from http://www.nokia.com/phones/declaration_of_conformity/. Copyright © 2005 Nokia. All rights reserved. Reproduction, transfer, distribution or storage of part or all of the contents in this document in any form without the prior written permission of Nokia is prohibited. Nokia, Nokia Connecting People, Xpress-on and Pop-Port are trademarks or registered trademarks of Nokia Corporation. Other product and company names mentioned herein may be trademarks or tradenames of their respective owners. Nokia tune is a sound mark of Nokia Corporation. Bluetooth is a registered trademark of Bluetooth SIG, Inc. US Patent No 5818437 and other pending patents. T9 text input software Copyright (C) 1997-2004. Tegic Communications, Inc. All rights reserved. Includes RSA BSAFE cryptographic or security protocol software from RSA Security. Java is a trademark of Sun Microsystems, Inc. USE OF THIS PRODUCT IN ANY MANNER THAT COMPLIES WITH THE MPEG-4 VISUAL STANDARD IS PROHIBITED, EXCEPT FOR USE DIRECTLY RELATED TO (A) DATA OR INFORMATION (i) GENERATED BY AND OBTAINED WITHOUT CHARGE FROM A CONSUMER NOT THEREBY ENGAGED IN A BUSINESS ENTERPRISE, AND (ii) FOR PERSONAL USE ONLY; AND (B) OTHER USES SPECIFICALLY AND SEPARATELY LICENSED BY MPEG LA, L.L.C. Nokia operates a policy of continuous development. Nokia reserves the right to make changes and improvements to any of the products described in this document without prior notice. Under no circumstances shall Nokia be responsible for any loss of data or income or any special, incidental, consequential or indirect damages howsoever caused. The contents of this document are provided "as is". Except as required by applicable law, no warranties of any kind, either express or implied, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose, are made in relation to the accuracy, reliability or contents of this document. Nokia reserves the right to revise this document or withdraw it at any time without prior notice. The availability of particular products may vary by region. Please check with the Nokia dealer nearest to you. EN 9237275/Issue 1 UNDER NO CIRCUMSTANCES SHALL NOKIA BE RESPONSIBLE FOR ANY LOSS OF DATA OR INCOME OR ANY SPECIAL, INCIDENTAL, AND CONSEQUENTIAL OR INDIRECT DAMAGES HOWSOEVER CAUSED. THE CONTENTS OF THIS DOCUMENT ARE PROVIDED "AS IS." EXCEPT AS REQUIRED BY APPLICABLE LAW, NO WARRANTIES OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE MADE IN RELATION TO THE ACCURACY AND RELIABILITY OR CONTENTS OF THIS DOCUMENT. NOKIA RESERVES THE RIGHT TOREVISE THIS DOCUMENT OR WITHDRAW IT AT ANY TIME WITHOUT PRIOR NOTICE. EXPORT CONTROLS This device may contain commodities, technology, or software that may only be exported in accordance with the U. S. Export Administration regulations. Diversion contrary to U.S. or Canadian law is prohibited. FCC/INDUSTRY CANADA NOTICE Your phone may cause TV or radio interference (for example, when using a telephone in close proximity to receiving equipment). The FCC or Industry Canada can require you to stop using your telephone if such interference cannot be eliminated. If you require assistance, contact your local service facility. This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Manufactured or sold under one or more following US Patents. Asterisk (*) indicates design patents pending. RE32,58045583024868846494563349691925001372 510117551519465173927521283452300915241583 531115153172835331638533536253533285371481 537893553847825396657540094954164355442521 544636454794765526366555312555576395565821 557036955812445600708562527456776205692032 572954157605685794142580246558094135818437 582708258391015844884584521958706835884103 588977059078235912570591469059147965917868 592082659535415956332595662559566335966378 597788759871375991857600611460115546011853 601455160145736026161603518960382386043760 604719660497966050415605543960601936069923 607278760817326084920608496260945876097964 610578461120996115617611918061218466128509 613809161409666144243614467661482096151485 615150761636096164547616724861852956188909 624958462593126266330627236162824366292668 629528663110546314166632438963244126347218 636325963703626370389637782063814686392660 640095864531796463278647047064873976522670 619892849691925266782539022354448165487084 564039556640535699482570139257220745754976 580530158358895857151585984358621785898925 593023359466515960354596038959639016005857 601197160318276118775612832261377896167248 628588863567596377803643016364383706456237 617007361785356195338619903562400766266321 5 Content FOR YOUR SAFETY................... 8 General information .............. 10 About your device ............................... 10 Overview of the functions of the phone ......................................... 10 Shared memory................................. 11 Nokia PC Suite software.................... 11 Access codes ......................................... 11 Security code (5 to 10 digits) ....... 11 PIN and PIN2 codes (4 to 8 digits), module PIN, and signing PIN ........ 12 PUK and PUK2 codes (8 digits) .... 12 Barring password (4 digits) ........... 12 Wallet code (4 to 10 digits) .......... 12 Network services.................................. 13 Configuration settings service ..... 13 Downloading content and applications .................................. 14 Nokia support on the Web…

Text truncated - open the document above for the full version.

NCKIA NOKIA MOBILE PHONES Lise-Meitner-Strasse 11 0-89081 Ulm, Germany +49(0)731-1754-0 +49(0)731-1754-6800 03/09/2005 Federal Communications Commission Authorization Et Evaluation Division, 7435 Oakland Mills Road, Columbia, MD. 21046 Attention: Equipment Authorization Branch REOUEST FOR CONFIDENTIALlTY Pursuant to Sections 0.457 (d)(1)(ii) and 0.459 of the Commission's Rules, the Applicant hereby requests confidential treatment of same of the information accompanying this Application of FCC ID: PPIRM-94 and as outlined below: -Exhibit 4: RF Block Diagram -Exhibit 5: Schematic Diagrams -Exhibit 10: List of Active Devices, Tune-Up Procedure and Part list Exhibit 12: Theory of Operation, Frequency determining part24, frequency range and Harmonics part 24 These materials contain trade secrets and proprietary information not customarily released to the public and the public disclosure of these maUers might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457 (d)(1)(ii) disclosure of this Application and all accompanying documentation will not be made before the date of the Grant für this Application. NOKIA MOBILE PHONES Je Pr nager, Ulm

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 March 16, 2005 RE: FCC ID: PPIRM-94_ATCB002213 Attention: Thomas Reitmayer I have a few comments on this Application. Please note that further comments may arise in response to answers provided to the questions below. 1. Please note that the block diagram for part 15 devices must contain ‘the frequency of all oscillators in the device”. The block diagram provided does not contain this information. Please provide the clock and oscillator information required by 47CFR 2.1033. 2. Please note that section 6 of the BT report refers to ANSI C63.4 1992. Please note that this is not the current accepted revision of ANSI C63.4. The current accepted version of ANSI C63.4 is the 2003 version. Please also note that there are a number of significant changes between the two revisions. Please verify and confirm that testing performed in accordance with C63.4 meets the requirements of the current accepted document. 3. Please note that the dwell information reported on page 11 of the BT report does not correlate with known Bluetooth dwell times for DH5 mode. Generally dwell times for BT devices run in the neighborhood of 100+ms, 200+ms and 300+ms, depending on the mode. DH5 generally has s dwell time of approximately 233ms. Please verify the mode the device operating in when tested (i.e. DH1, DH3 DH5)? Please provide data consistent with expected BT dwell times. 4. Please note that the formula on page 5 of the part 24 report does not agree with the data table (i.e. the value Urx is not provided). Please provide this missing data. 5. Please note that the EIRP or conducted power of the EUT is to be measured just prior to the SAR test and just after the SAR test. Please note that the values given for EIRP in both the EMC report and the SAR report are identical. It is not expected that this would occur as the test data would be taken at two separate times and most likely by two separate sets of test equipment. Please explain. 6. Please note that as this is also a part 15C device and is smaller than the palm of the hand the verbatim statement, “This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation” MUST be either on the device or in the manual. The statement currently in the manual is the part 15 statement for receivers. Please provide a manual with the required Part 15.19(a)(3) statement. 7. Please note that the uncertainty listed in the calibration data for probe serial number 1395 is +/- 9.7% while the uncertainty for probe calibration listed in the provided uncertainty budget is +/-5.8%. The expanded uncertainty in the provided uncertainty table in the SAR report is 29.8%. Please verify that the difference between the probe calibration uncertainty in the cal certificate and that listed in the uncertainty table in the SAR report is not sufficient to exceed the max 30% allowed expanded uncertainty. Dennis Ward mailto:[email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. z Page 2 March 16, 2005 Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

March 23, 2005 RE: FCC ID: PPIRM-94_ATCB002213 Attention: Dennis Ward Following answers regarding your questions of March 16, 2005: 1. Block diagram for part 15 device Block diagram updated with frequency information. 2. Reference in BT report The reference was incorrect. We confirm, that the measurement procedures have been in accordance to the 2003 version of the ANSI C63.4. BT report updated accordingly. 3. Dwell information in BT report Report updated with consistent dwell time information. 4. Formula part 24 report Report updated with correct substitution correction formula. 5. EIRP As the device does not have a coaxial RF connector, it was not possible to make a conducted measurement of the output power. As a result, only radiated power levels can be measured. The same sample was used for EIRP and SAR measurements. The EIRP was measured by Nokia TCC EMC lab in Salo, Finland after completion of SAR measurements. No power measurements were made by Nokia TCC SAR lab because the SAR lab is not able to measure radiated power. The product was not reconfigured between EMC and SAR tests and was hand-carried between the EMC and SAR labs, which are both located in Salo, Finland. The power settings are stored in digital memory and were the same for EMC and SAR tests. 6. Statement for part 15C device: User guide updated. 7. Probe Calibration The +/-9.7% uncertainty quoted in the calibration data is a k=2 value i.e. it is equal to 2 x standard deviation. The +/-5.8% value given in the measurement uncertainty table in Section 6 of the SAR report is 1 x standard deviation only. The magnitude of 5.8 is sufficient to cover all of our measurement probes and leads to a slightly conservative estimate for the overall measurement uncertainty of the test equipment used for SAR tests on this product. Answers FCC ID: PPIRM-94 Applicant: Nokia Copyright © 2005 Nokia GmbH

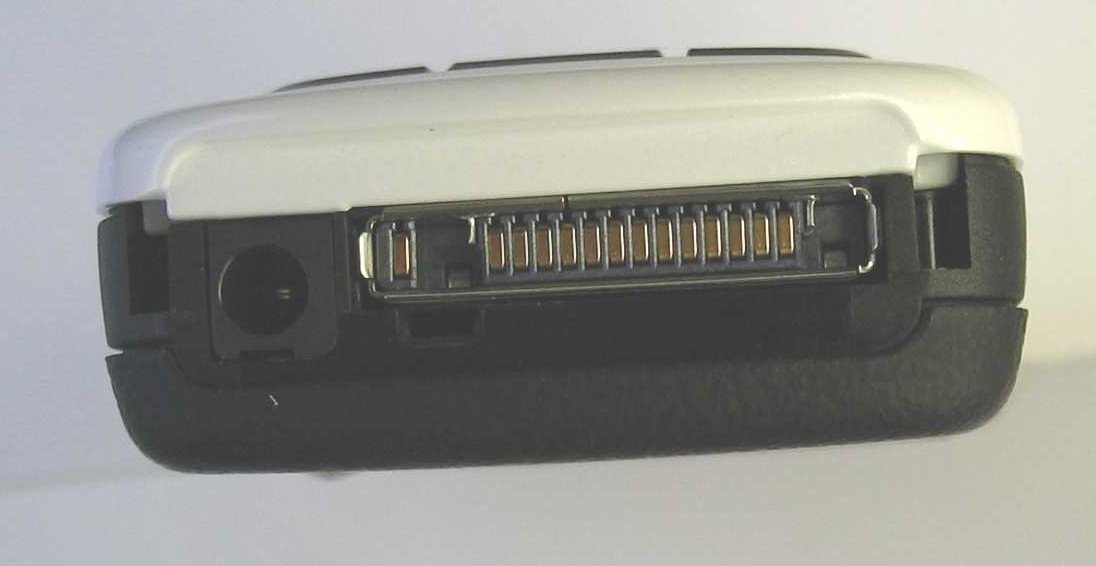

1 (3) 03/08/2005 External Photographs of the RM-94 (Nokia 6021) 2 (3) 03/08/2005 3 (3) 03/08/2005

Material Sheetof11 Original Scale Original Size A4 1:1 NMPCode Item Name Document Number Doc. Vers. Tool Vers. Name / Date Change Ref. Approved / Date Original Designer FUNCTIONALCHARACTERISTICS KEY MAIN FUNCTIONALCHARACTERISTIC MAIN FUNCTIONALCHARACTERISTIC ( Proof of Process CapabilityRequired ) Copyrightc NokiaMobile Phones.All rightsreserved THIS DRAWING IS PROTECTED BYCOPYRIGHTASAN UNPUBLISHED WORK UNAUTHORIZED REPRODUCTION OFTHIS DRAWING IS NOTPERMITTED THIS DRAWING CONTAINS PROPRIETARY AND CONFIDENTIALINFORMATION Thisdocumentis the propertyof NokiaMobile Phones General-MadeinHungary 040-010922 Datamatrix 5.4 x 5.4: Quality Level: ECC 200 22 Rows, 22 Columns Element Width: 6 dots See table. Place tolerance of printing +/-0.3 Layout 2:1 E.Schm141204 1.0 R.NEM100205 Blank label material:To be printed in NMPproduction using (600dpi)ThermalTransfer Printer CombinedBlankTypeLabelRoll CONNECTIONTOPDMS Followingitemsareprintedfrom PDMS database -IMEI!! -ProductCode!" XXXXXXxxyyyyyy0 XXXXXXX (13.0) Quiet Zone 1.5 1.5 No. Part nameQty Drw no.Note 11 21 NMPCODE: DMC07127 9381484 SeeDatasheet 3 ThermalTransfer Ribbon R-7963 4 NMPCODE: 9730082 1 1 P010922XXdpi600.pcx P010922XXdpi300.pcx PRINTING FILE PRINTING FILE XX=Doc.VersionNumber XX=Doc.VersionNumber (32.5) 6.0 123456789012345 Datamatrix 5.4 x 5.4: Quality Level: ECC 200 22 Rows, 22 Columns Element Width: 6 dots 1.5 14.5 (16.0) 5.3 Type LabelWork Label (11.0) 1.5 7.4 Hansen180205 1:1 Artwork forproduction(pcx-file) 1:1 Artwork (1.5) 123456789012345 Nokia Corporation 168 FCC ID: PPIRM-94 IC: 661U-RM94 MADE IN HUNGARY Type: RM-94 Model: 6021 0123456 123456789012345 123456789012345 Nokia Corporation 168 FCC ID: PPIRM-94 IC: 661U-RM94 MADE IN HUNGARY Type: RM-94 Model: 6021 0123456 Nokia Corporation 168 FCC ID: PPIRM-94 IC: 661U-RM94 MADE IN HUNGARY Type: RM-94 Model: 6021 HDJ12TYPELABELRM-94 03/08/2005 Copyright © Nokia 2005. All rights reserved. POSITION OF AREAS FOR LABEL STICKERS 1 . 5 11 5 2 4 3 China 12 x 30 not metal Singapore 6x12 not metal Malaysia 10 x 15 metal (on top of Nokia label) Ta i w a n 6 x 1 3 me t a l AT&T 6,2 x 25 not metal Type Label 32,5 x 13 metal 1 1,2,3,4 5 2,3,4 1,2,3,4 Nokia Corporation 168 MADE BY NOKIA Nokia Corporation 168 MADE BY NOKIA

CONFIDENTIAL 1 (2) 03/09/2005 Bluetooth Internal Photographs of the RM-94 (Nokia 6021) BT electronics BT antenna feeding points CONFIDENTIAL 2 (2) 03/09/2005 BT antenna placement in B-cove BT antenna close-up:

CONFIDENTIAL 1 (4) 03/09/2005 Internal Photographs of the RM-94 (Nokia 6021) CONFIDENTIAL 2 (4) 03/09/2005 CONFIDENTIAL 3 (4) 03/09/2005 CONFIDENTIAL 4 (4) 03/09/2005

TEST REPORT 1 (29) TCC Tampere Bluetooth test report for RM-94 The test results are valid for the tested unit(s) only. This report shall not be reproduced except in full, without the written permission of the testing laboratory. FCC ID:PPIRM-94 IC: 661U-RM94 TCC Tampere Box 68 FIN-33721 TAMPERE FINLAND Tel. +358 7180 46800 Fax. +358 7180 46880 TEST REPORT 2 (29) TCC Tampere CONTENTS 1 LABORATORY INFORMATION................................................................................................................4 2 CUSTOMER INFORMATION....................................................................................................................4 3 SUMMARY OF TEST RESULTS...............................................................................................................5 4 EUT INFORMATION..................................................................................................................................6 4.1 EUT description..................................................................................................................................6 5 EUT TEST SETUPS..................................................................................................................................6 5.1 Setup A (conducted measurements)..................................................................................................7 5.2 Setup B (radiated measurements)......................................................................................................7 6 STANDARDS AND MEASUREMENT METHODS....................................................................................8 7 CARRIER FREQUENCY SEPARATION...................................................................................................9 7.1 EUT operation mode...........................................................................................................................9 7.2 Limits and results................................................................................................................................9 7.3 Screen shot.........................................................................................................................................9 8 NUMBER OF HOPPING FREQUENCIES..............................................................................................10 8.1 EUT operation mode.........................................................................................................................10 8.2 Limits and results..............................................................................................................................10 8.3 Screen shot.......................................................................................................................................10 9 TIME OF OCCUPANCY..........................................................................................................................11 9.1 Connection mode..............................................................................................................................11 9.1.1 EUT operation mode.................................................................................................................11 9.2 Limits and results..............................................................................................................................11 10 20dB BANDWIDTH..................................................................................................................................13 10.1 EUT operation mode.........................................................................................................................13 10.2 Limits and results..............................................................................................................................13 10.3 Screen shots.....................................................................................................................................13 11 PEAK OUTPUT POWER.........................................................................................................................15 11.1 EUT operation mode.........................................................................................................................15 11.2 Limits and results..............................................................................................................................15 11.3 Screen shots.....................................................................................................................................16 12 BAND-EDGE COMPLIANCE OF RF CONDUCTED EMISSIONS.........................................................18 12.1 Hopping enabled...............................................................................................................................18 12.1.1 EUT operation mode.................................................................................................................18 12.1.2 Limits and results......................................................................................................................18 12.1.3 Screen shots.............................................................................................................................18 12.2 Hopping disapled..............................................................................................................................20 12.2.1 EUT operation mode.................................................................................................................20 12.2.2 Limits and results......................................................................................................................20 12.2.3 Screen shots.............................................................................................................................20 13 AC POWERLINE CONDUCTED EMISSIONS........................................................................................22 13.1 Te…

Text truncated - open the document above for the full version.

DOCUMENT NAME: 1 (11) Tre_FCC_0504_01.doc TCC Tampere The test results are valid for the tested unit(s) only. This report shall not be reproduced except in full, without the written permission of the testing laboratory. TCC Tampere Box 68 FIN-33721 TAMPERE FINLAND Tel. +358 7180 08000 Fax. +358 7180 46880 EMC Test Report For RM-94 DOCUMENT NAME: 2 (11) Tre_FCC_0504_01.doc TCC Tampere The test results are valid for the tested unit(s) only. This report shall not be reproduced except in full, without the written permission of the testing laboratory. TCC Tampere Box 68 FIN-33721 TAMPERE FINLAND Tel. +358 7180 08000 Fax. +358 7180 46880 CONTENTS 1 CUSTOMER INFORMATION ....................................................................................................................3 2 EUT AND ACCESSORY INFORMATION .................................................................................................4 2.1 EUT description ..................................................................................................................................4 2.2 EUT and accessories .........................................................................................................................4 3 STANDARDS AND MEASUREMENT METHODS....................................................................................6 4 TEST RESULTS ........................................................................................................................................7 4.1 AC powerline conducted emissions ...................................................................................................7 4.1.1 Limit ............................................................................................................................................7 4.1.2 EUT operation mode...................................................................................................................7 4.1.3 EUT test setup ............................................................................................................................7 4.1.4 Emission measurement data ......................................................................................................8 4.2 Radiated emissions ............................................................................................................................9 4.2.1 Test method and level, 30 MHz – 8500 MHz.............................................................................9 4.2.2 EUT operation mode.................................................................................................................10 4.2.3 EUT test setup ..........................................................................................................................10 4.2.4 Emission measurement data, 30 MHz – 8500 MHz.................................................................10 DOCUMENT NAME: 3 (11) Tre_FCC_0504_01.doc TCC Tampere The test results are valid for the tested unit(s) only. This report shall not be reproduced except in full, without the written permission of the testing laboratory. TCC Tampere Box 68 FIN-33721 TAMPERE FINLAND Tel. +358 7180 08000 Fax. +358 7180 46880 1 CUSTOMER INFORMATION Test laboratory: FCC registration number IC file number: TCC Tampere Nokia Oyj Sinitaival 5 FIN-33720 TAMPERE Tel. +358 7180 08000 Fax. +358 7180 46800 94436 (June 14, 2002) IC 3608 (March 5, 2003) Client: Nokia Corporation Nokia Technology Platform Lise-Meitner-Strasse 10 D-89081 Ulm / Germany Tel. +49 731 1754 6728 Fax. +49 731 1754 6806 Contact person: Thomas Reitmayer Receipt of EUT: 19.1.2005 Date of testing: 21- 24.1.2005 Date of report: 04.02.2005 The tests listed in this report have been done to demonstrate compliance with the applicable requirements in FCC rules Part 15 and IC standard ICES-003. Contents approved: DOCUMENT NAME: 4 (11) Tre_FCC_0504_01.doc TCC Tampere The test results are valid for the tested unit(s) only. This report shall not be reproduced except in full, without the written permission of the testing laboratory. TCC Tampere Box 68 FIN-33721 TAMPERE FINLAND Tel. +358 7180 08000 Fax. +358 7180 46880 2 EUT AND ACCESSORY INFORMATION 2.1 EUT description The EUT is a mobile phone EUT is a triple band (GSM 900/1800/1900 EGPRS) mobile phone. The highest internal frequency of the EUT is 3980 MHz. 2.2 EUT and accessories The table below lists all EUTs and accessories used in the tests. Later in this test report, only numbers in the last column are used to refer to the devices in each test. Name Type S/N Number EUT Mobile phone RM-94 004400591701014 40153 Accessories Battery BL-5B L403C10315876 40155 Charger ACP-12 - 40121 Headset HS-5 - 40161 Note! Phone HW ID is 3055 DOCUMENT NAME: 5 (11) Tre_FCC_0504_01.doc TCC Tampere The test results are valid for the tested unit(s) only. This report shall not be reproduced except in full, without the written permission of the testing laboratory. TCC Tampere Box 68 FIN-33721 TAMPERE FINLAND Tel. +358 7180 08000 Fax. +358 7180 46880 SUMMARY OF TEST RESULTS Section in CFR 47 Section in ICES-003 Result 15.107,a 5.3 AC powerline conducted emissions PASS 15.109,a 5.5 Radiated emissions PASS DOCUMENT NAME: 6 (11) Tre_FCC_0504_01.doc TCC Tampere The test results are valid for the tested unit(s) only. This report shall not be reproduced except in full, without the written permission of the testing laboratory. TCC Tampere Box 68 FIN-33721 TAMPERE FINLAND Tel. +358 7180 08000 Fax. +358 7180 46880 3 STANDARDS AND MEASUREMENT METHODS The tests were performed in guidance of CFR 47 Part 15 Subpart B, ANSI C63.4 (2001), ICES-003 and CISPR 22. Deviations, modifications or clarifications (if any) to above mentioned documents are written in each section under "Test method". DOCUMENT NAME: 7 (11) Tre_FCC_0504_01.doc TCC Tampere The test results are valid for the tested unit(s) only. This report shall not be reproduced except in full, without the written permission of the testing laboratory. TCC Ta…

Text truncated - open the document above for the full version.

DOCUMENT NAME: 7 (11) Tre_FCC_0504_01.doc TCC Tampere The test results are valid for the tested unit(s) only. This report shall not be reproduced except in full, without the written permission of the testing laboratory. TCC Tampere Box 68 FIN-33721 TAMPERE FINLAND Tel. +358 7180 08000 Fax. +358 7180 46880 4 TEST RESULTS 4.1 AC powerline conducted emissions EUT 40153 Accessories 40121, 40155, 40161 Temp, Humidity, Air Pressure 19ºC51 % RH 1014 mbar Date of measurement 24.1.2005 FCC rule part §15.107 ICES-003 section 5.3 Measured by Jari Jantunen Result PASS 4.1.1 Limit CISPR 22 Class B limit Frequency band (MHz) Quasi-peak limit (dBμV) Average limit (dBμV) 0.15 – 0.5 66 – 56 56 – 46 0.5 – 5 56 46 5 – 30 60 50 4.1.2 EUT operation mode EUT operation mode GSM 1900, idle mode, BlueTooth standby EUT operation voltage 115V/60Hz 4.1.3 EUT test setup Picture 1 EUT test setup DOCUMENT NAME: 10 (11) Tre_FCC_0504_01.doc TCC Tampere The test results are valid for the tested unit(s) only. This report shall not be reproduced except in full, without the written permission of the testing laboratory. TCC Tampere Box 68 FIN-33721 TAMPERE FINLAND Tel. +358 7180 08000 Fax. +358 7180 46880 1000-8500 500 / 5000 54 / 74 AV / PK 4.2.2 EUT operation mode EUT operation mode GSM 1900, idle mode, BlueTooth standby EUT operation voltage 115V/60Hz 4.2.3 EUT test setup Picture 3 EUT test setup 4.2.4 Emission measurement data, 30 MHz – 8500 MHz The measurement results were obtained as described below. [] PREAMPCABLERX GAFAUmuVE−++=/ Where U RX receiver reading A CABLE Attenuation of the cable AF Antenna factor G PREAMP Gain of the preamplifier
